ESCO 10820 Yellow Jackit Combi Style Bead Breaker Kit

The Yellow Jackit Bead Breaker line is a “DYI” style bead breaker that is designed for easy use in the farm and heavy duty truck service market. IN addition to our “DYI” style bead breakers, ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application, along with our professional line of hydraulic equipment for constant use in the field.

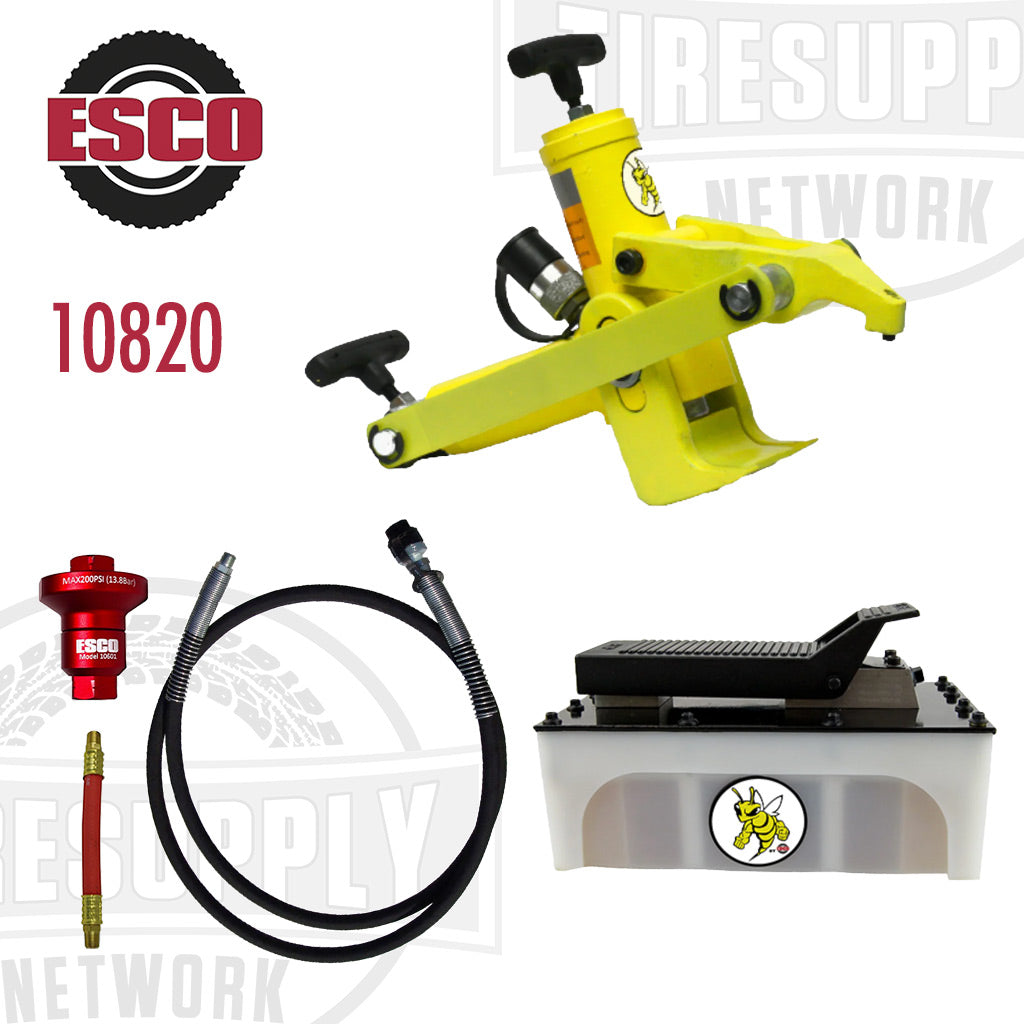

The Yellow Jackit Combi Style Bead Breaker Kit includes the following items:

  • Model 10895 – Yellow Jackit Combi Style Bread Breaker Tool
  • Model 10875 – 5 Quart Yellow Jackit Plastic Hydraulic Air Pump
  • Model 10604 – 8' Hose assembly with Hose Coupler
  • Model 10601K – 6″ Whip-Hose, Air Reducer

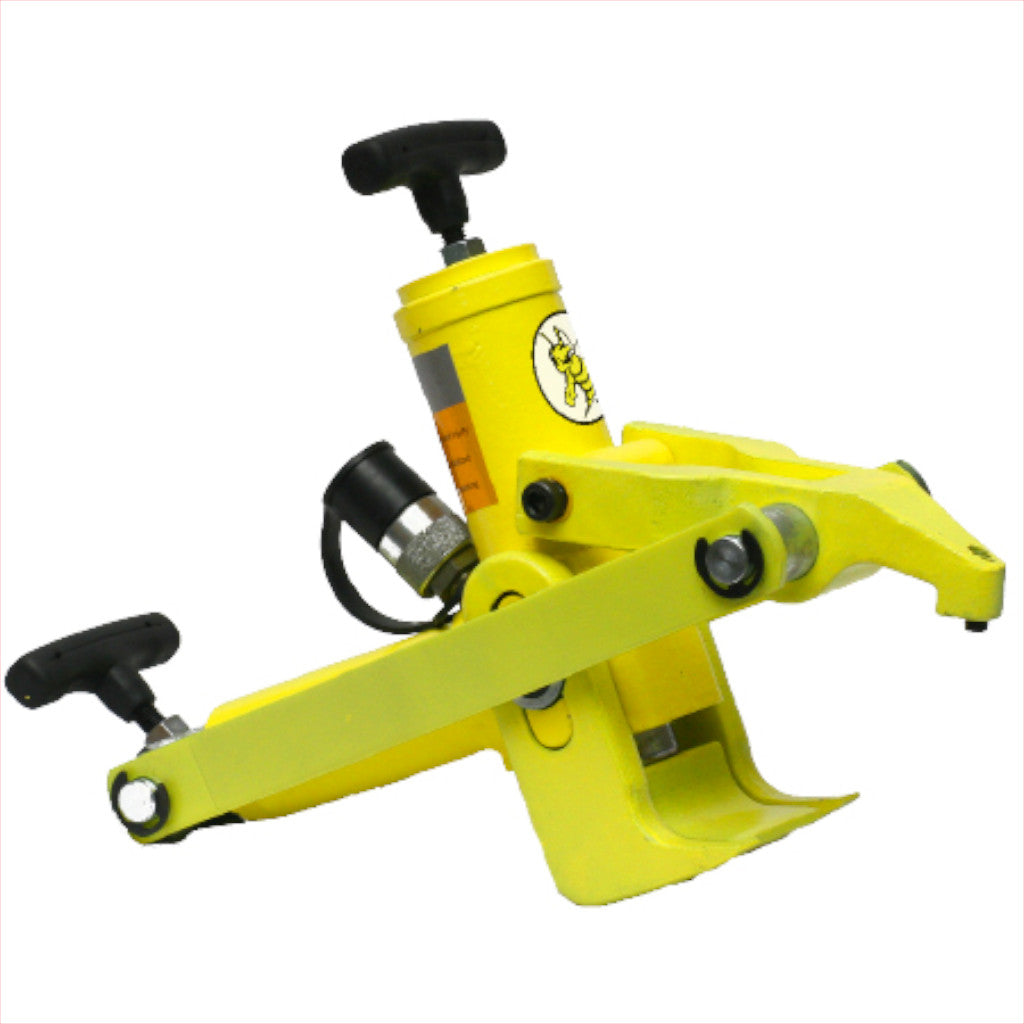

ESCO 10895 Yellow Jackit Combi Style Bread Breaker


  • Used on single, two, and three piece wheel truck tires and rims
  • Works on some of the newly styled wheels
  • The Yellow Jackit Combi style bead breaker is the most popular tool for breaking beads on agricultural wheels
  • This tool is designed to hydraulically clamp on the wheel with a 3.75″ stroke (95mm)
  • Can be used with 10,000 psi air hydraulic pumps


  • Ram Tonnage: 13.8 Tons
  • Stroke: 3.75″ (95 mm)
  • Maximum Pressure: 10,000 psi
  • Length: 18″ (457 mm)
  • Width: 12″ (305 mm)
  • Weight: 35 lbs (16 kg)

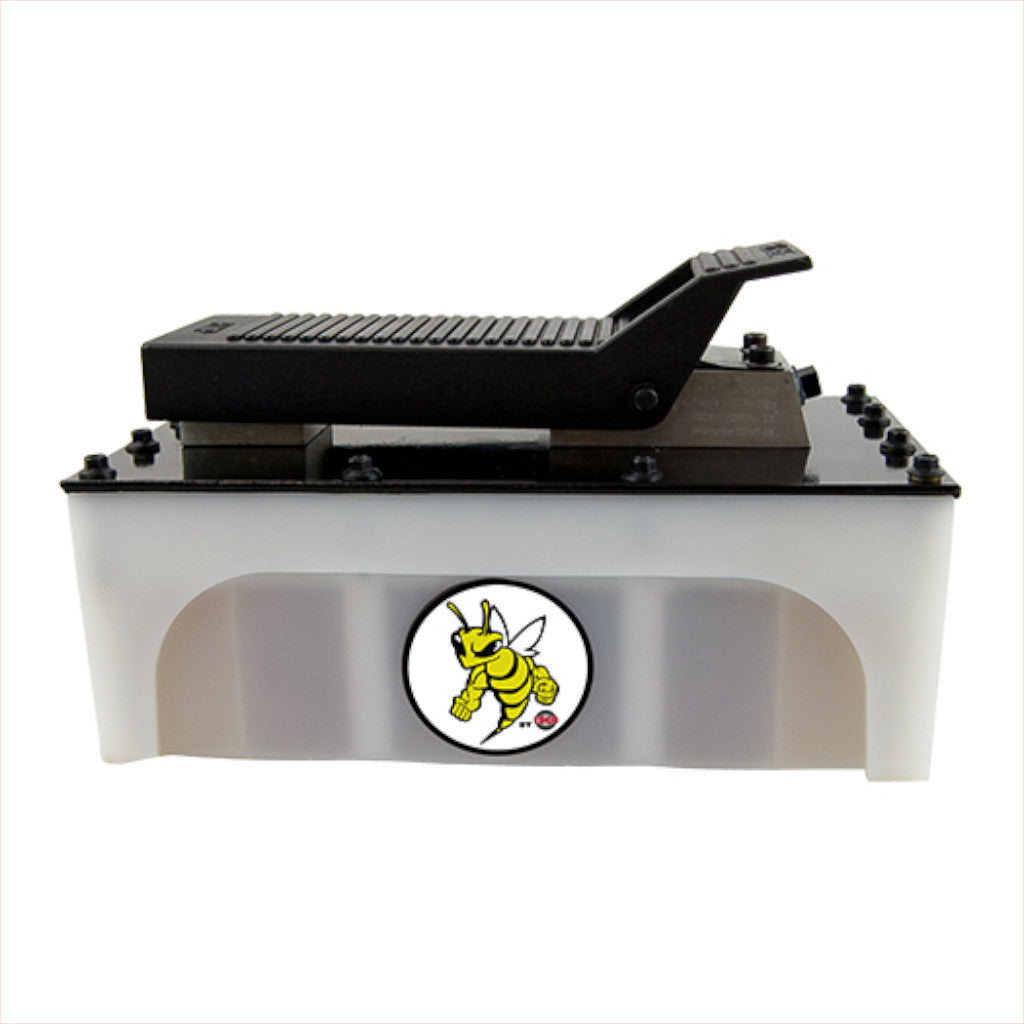

ESCO 10875 Yellow Jackit 5 Quart Plastic Reservoir Air Hydraulic Pump


  • For use with a variety of rams, presses, and hydraulic tools operating up to 10,000 psi
  • Internal load limiting device
  • Air exhaust muffler for quiet pumping of air motor
  • Equipped with Air and oil inlet filters to reduce the risk of contamination


  • Oil Capacity: 5 Quart
  • Maximum Pressure: 10,000 psi
  • Weight: 22 lbs (10 kg)

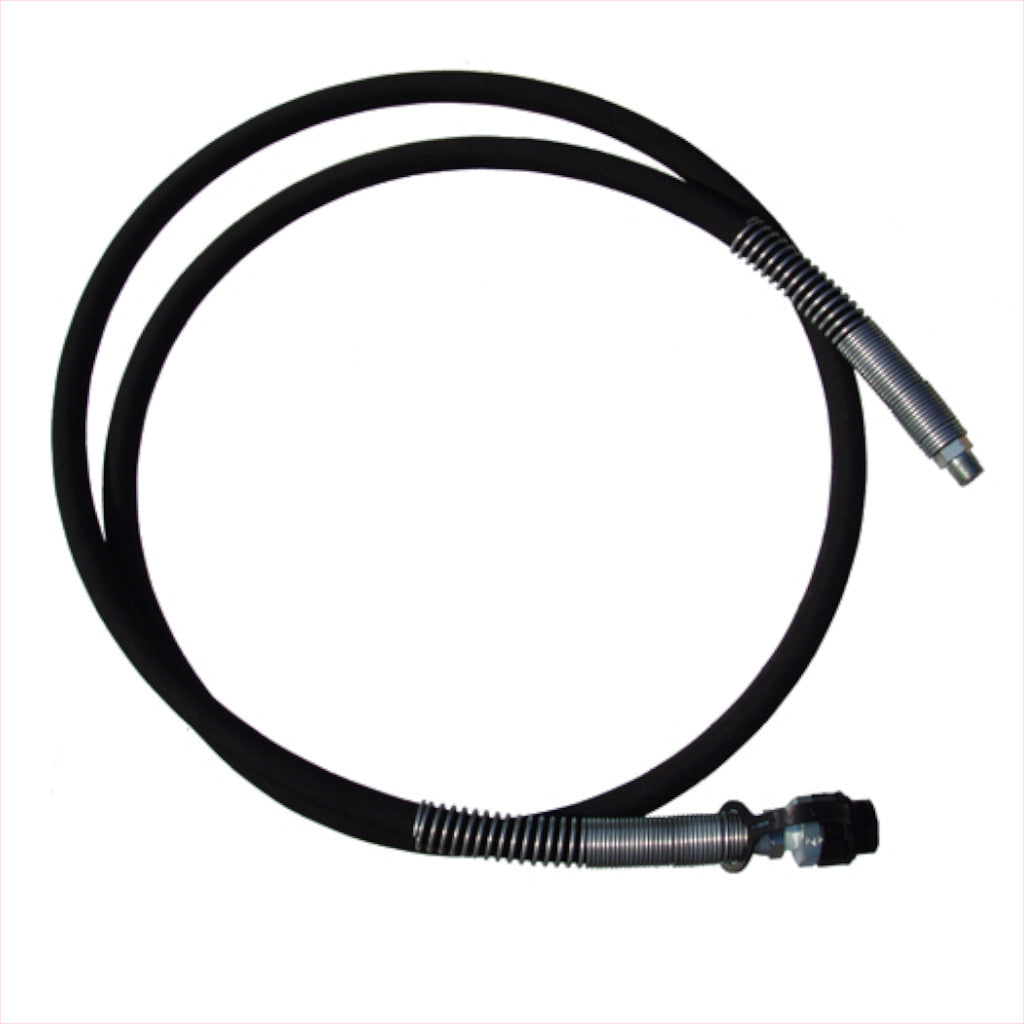

ESCO 10604 Hydraulic Hose Kit - 8′ Hose With Coupler


  • Hydraulic hose with swivel fitting and the hose won’t kink
  • Reinforced with 2 layers of braided steel
  • Hose can withstand extreme cold temperatures of -40°F (C)
  • Use with any 10,000 psi. pump, ram, or bead breaker
  • Attachments Include: ESCO 10605 Half Coupler


  • Length: 8' (8' Hose with 3/8″ 18 Male Ends)
  • Weight: 5 lbs. (2.2 kg)

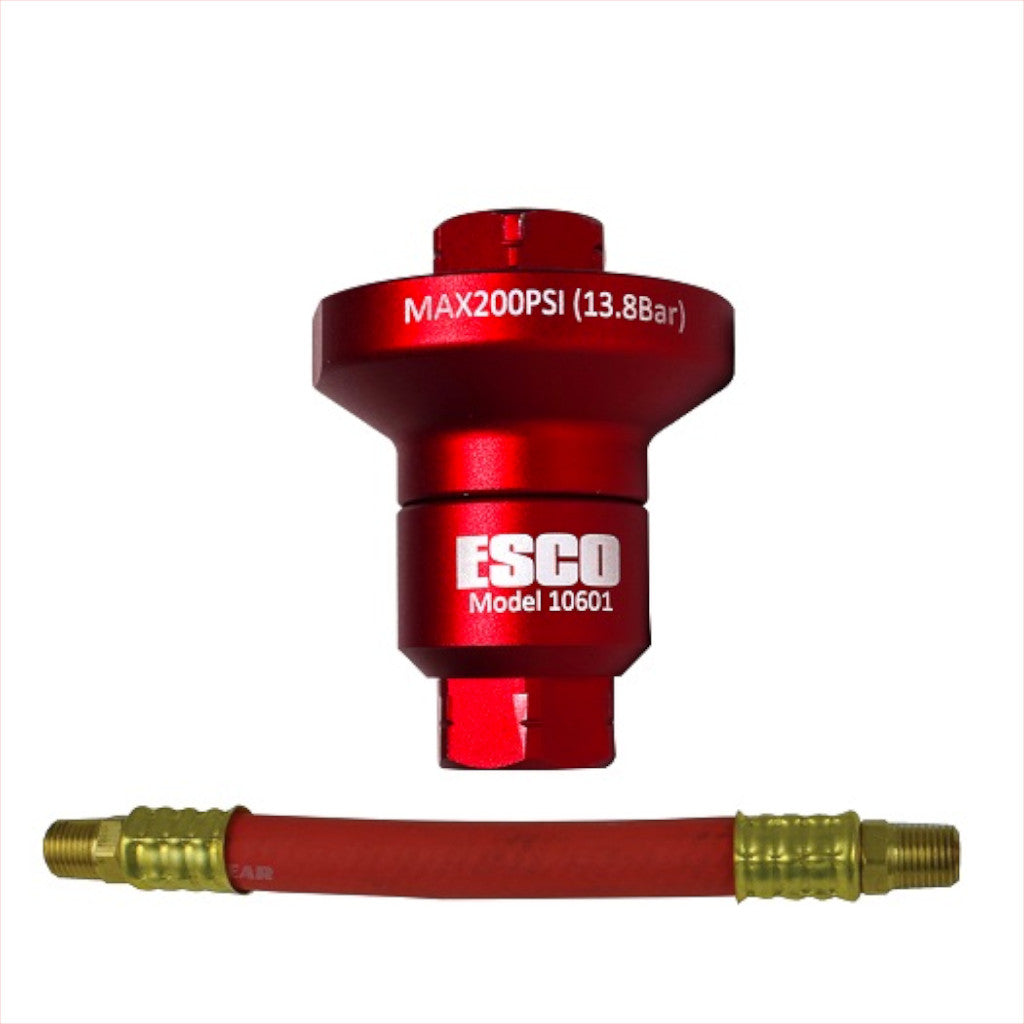

ESCO 10601K Air Reducer With 6″ Whip-Hose

The ESCO 10601K Kit Includes:

  • Model #10601 Air Reducer
  • Model #10601H 6″ Whip-Hose


  • Maintain recommended working air pressure
  • Easy installation and usage
  • Can be used in conjunction with multiple ESCO products

Model #10601 Specifications:

  • Diameter: 15/16″ (24 mm)
  • Working Air Pressure: 110 PSI
  • Air Inlet Size: 1/4″ NPT
  • Weight: 1 lb (0.5 kg)

Model #10601H Specifications:

  • Length: 6″ (152.4 mm)

    Compliance and Restrictions
    WARNING: Cancer and Reproductive Harm -
