ESCO 10202 Combi Bead Breaker Kit with 5 Quart Hydraulic Air Pump

Join CLUB5 at Tire Supply Network and save 5% on EVERY order! Learn more

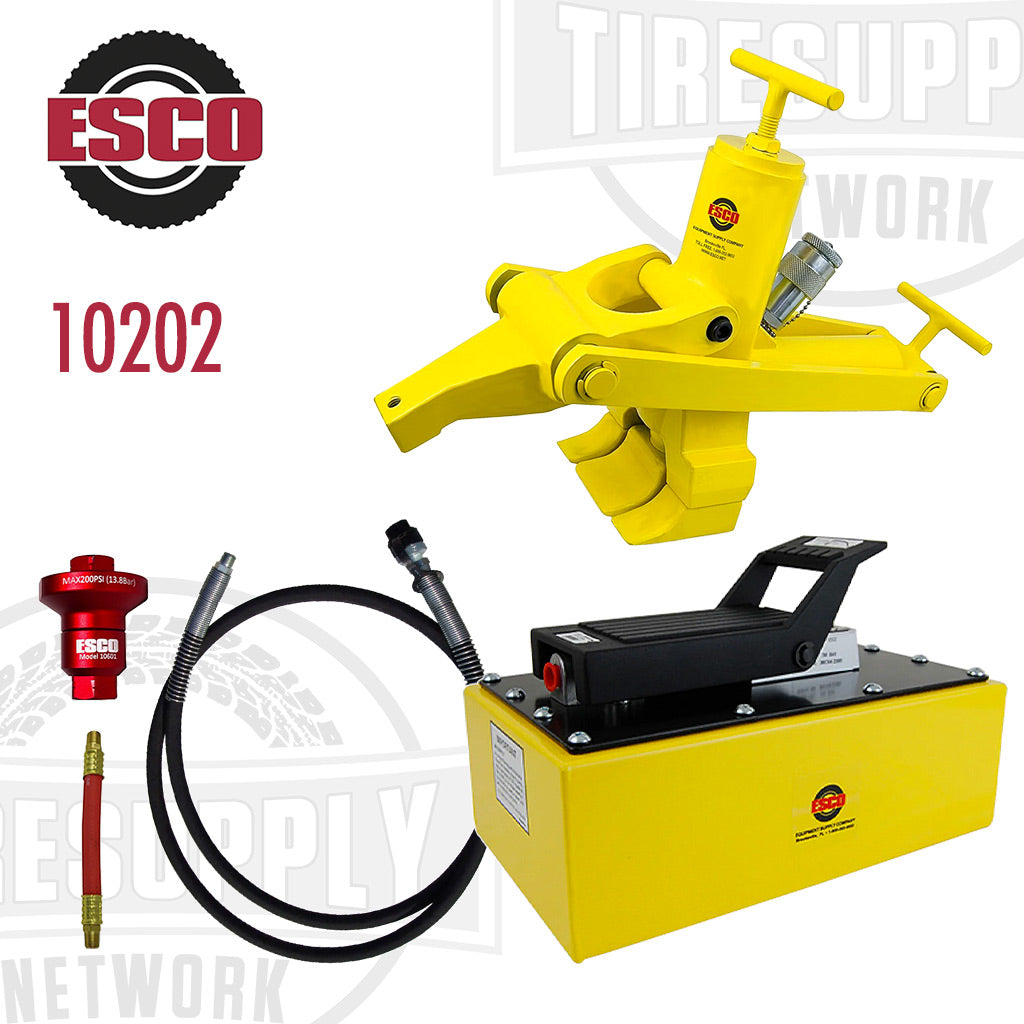

ESCO 10202 Combi Bead Breaker Kit with 5 Quart Hydraulic Air Pump

The ESCO Professional Bead Breaker Series have become a staple in the tire service industry for well over 30 years. ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application.

The ESCO “Combi” Bead Breaker Kit includes the following items:

  • Model #10101 – “Combi” Bead Breaker Tool
  • Model #10592 – 5 Quart Hydraulic Air Pump
  • Model #10604 – 8' Hose assembly with Hose Coupler
  • Model #10601K – 6″ Whip-Hose, Air Reducer

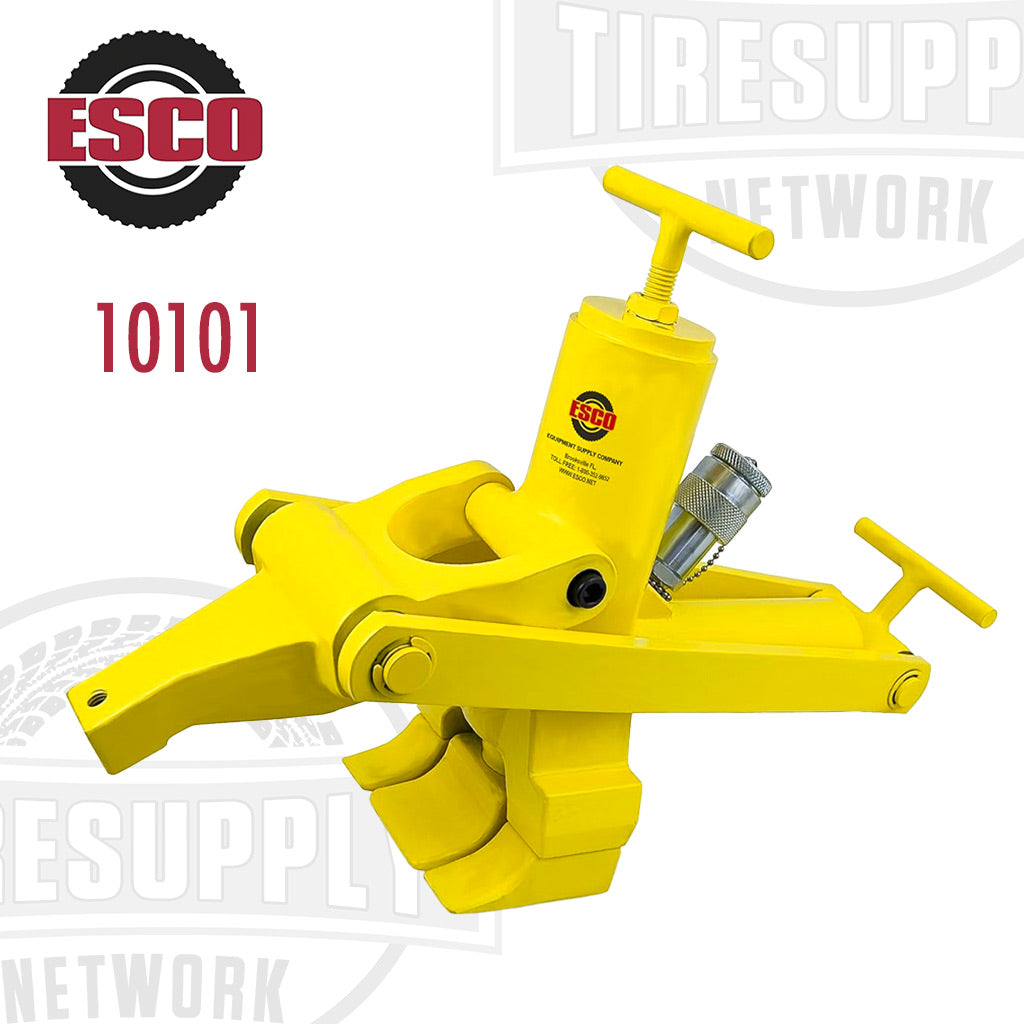

ESCO 10101 Combi Hydraulic Tire Bead Breaker

PLEASE NOTE: ESCO 10101 “Combi” Bead Breaker will NOT work on five-piece Earthmover giant wheel/rim. For these applications, ESCO Model #10100 or ESCO Model #10105 is required.

Features:

  • Works on 1-piece, 2-piece, and 3-piece truck tires/rims
  • Breaks beads in seconds using 13.8 tons of force - 3.75” stroke (95 mm)
  • Use with 10,000 PSI Hydraulic Pump

New Design Features:

  • Adjustable redesigned sequence valve screw
  • Redesigned replaceable clamping jaw
  • Redesigned replaceable pushing foot

Specifications:

  • Ram Tonnage: 13.8 Tons
  • Stroke: 3.75” (95 mm)
  • Maximum Pressure: 10,000 PSI
  • Length: 18” (457 mm)
  • Height: 12” (305 mm)
  • Weight: 36 lbs (16 kg)

ESCO 10592 5 Quart Metal Reservoir Air Hydraulic Pump

Features:

  • Enough oil capacity to operate lifting jacks, cylinders, and then switch to bead breaking tools
  • Rugged 5 quart metal reservoir
  • 10,000 psi hydraulic pressure
  • Specifically designed for tire service trucks
  • Air inlet filter keeps air clean

Specifications:

  • Oil Capacity: 5 Quart
  • Maximum Pressure: 10,000 psi
  • Weight: 27 lbs (12 kg)

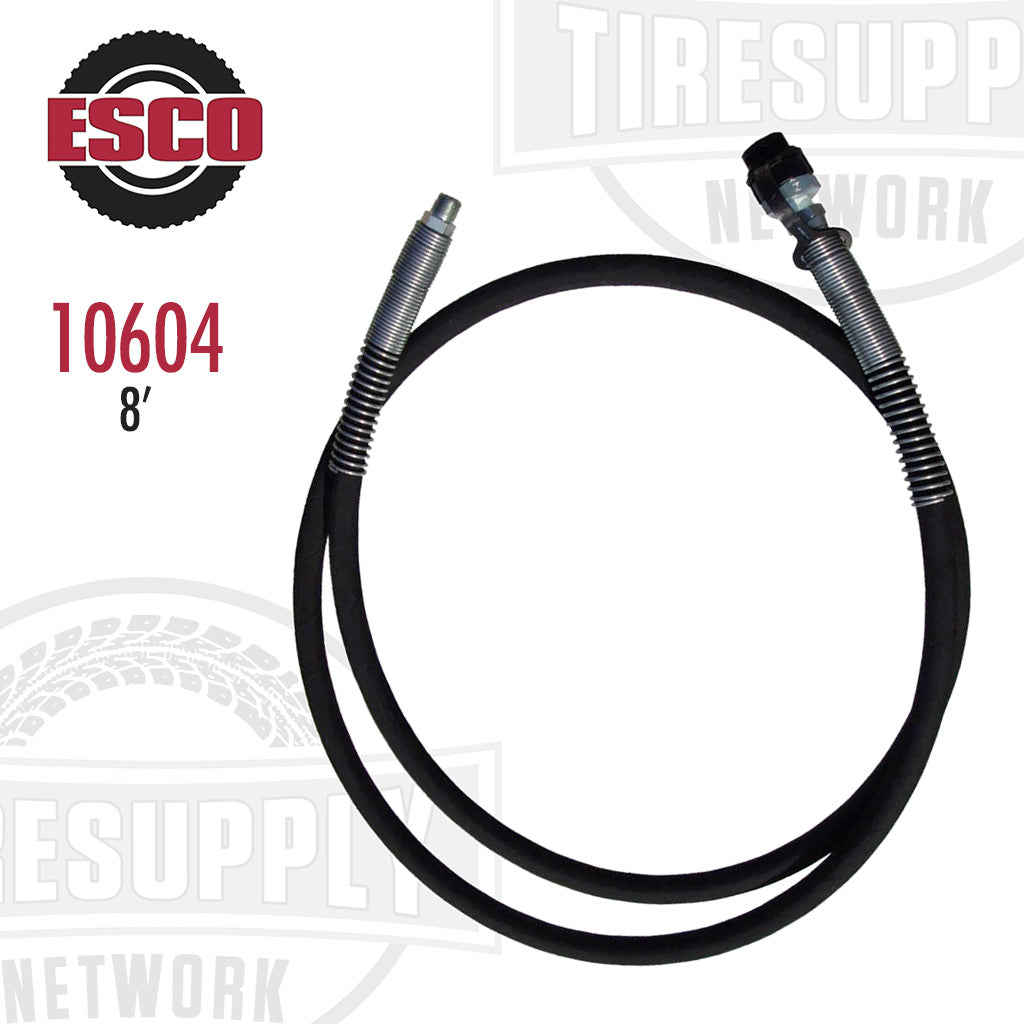

ESCO 10604 Hydraulic Hose Kit - 8′ Hose With Coupler

Features:

  • Hydraulic hose with swivel fitting and the hose won’t kink
  • Reinforced with 2 layers of braided steel
  • Hose can withstand extreme cold temperatures of -40°F (C)
  • Use with any 10,000 psi. pump, ram, or bead breaker
  • Attachments Include: ESCO 10605 Half Coupler

Specifications:

  • Length: 8' (8' Hose with 3/8″ 18 Male Ends)
  • Weight: 5 lbs. (2.2 kg)

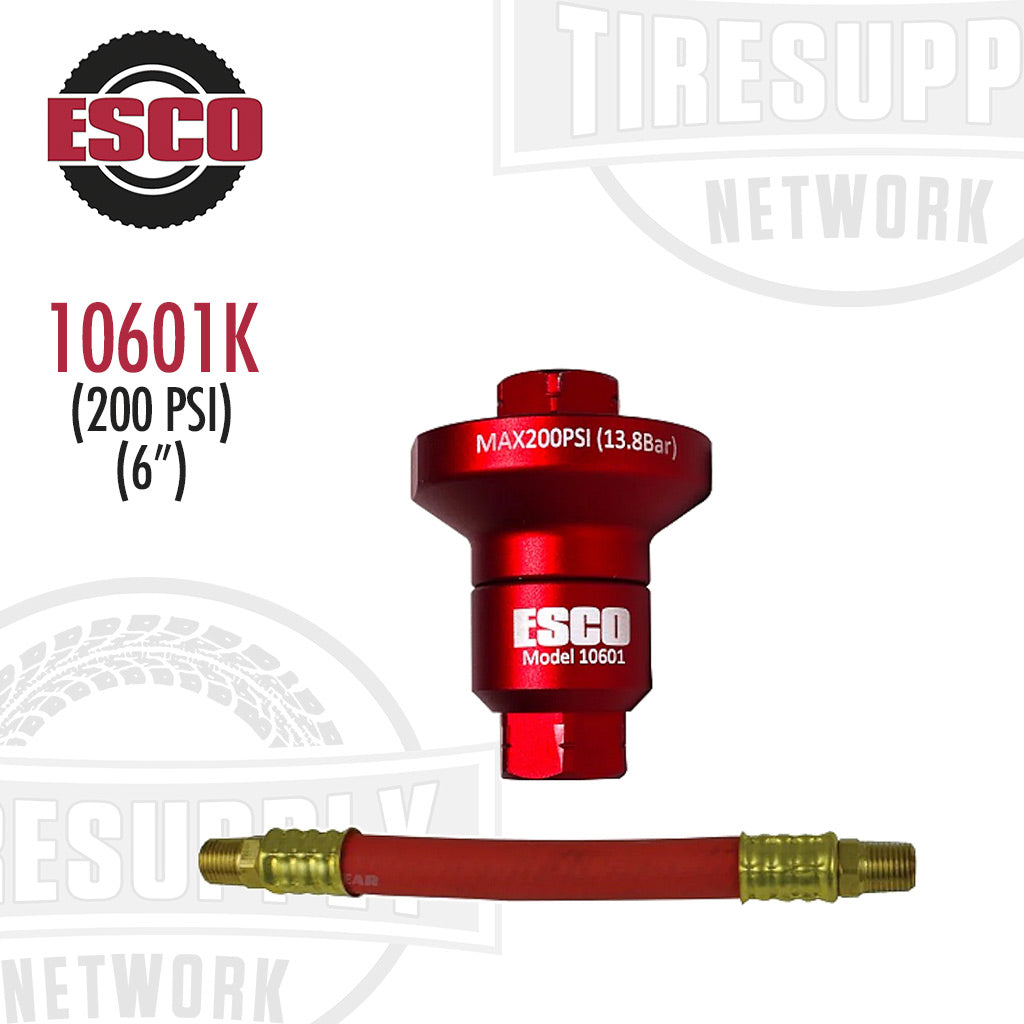

ESCO 10601K Air Reducer With 6″ Whip-Hose

The ESCO 10601K Kit Includes:

  • Model #10601 Air Reducer
  • Model #10601H 6″ Whip-Hose

Features:

  • Maintain recommended working air pressure
  • Easy installation and usage
  • Can be used in conjunction with multiple ESCO products

Model #10601 Specifications:

  • Diameter: 15/16″ (24 mm)
  • Working Air Pressure: 110 PSI
  • Air Inlet Size: 1/4″ NPT
  • Weight: 1 lb (0.5 kg)

Model #10601H Specifications:

  • Length: 6″ (152.4 mm)
    Compliance and Restrictions
    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
