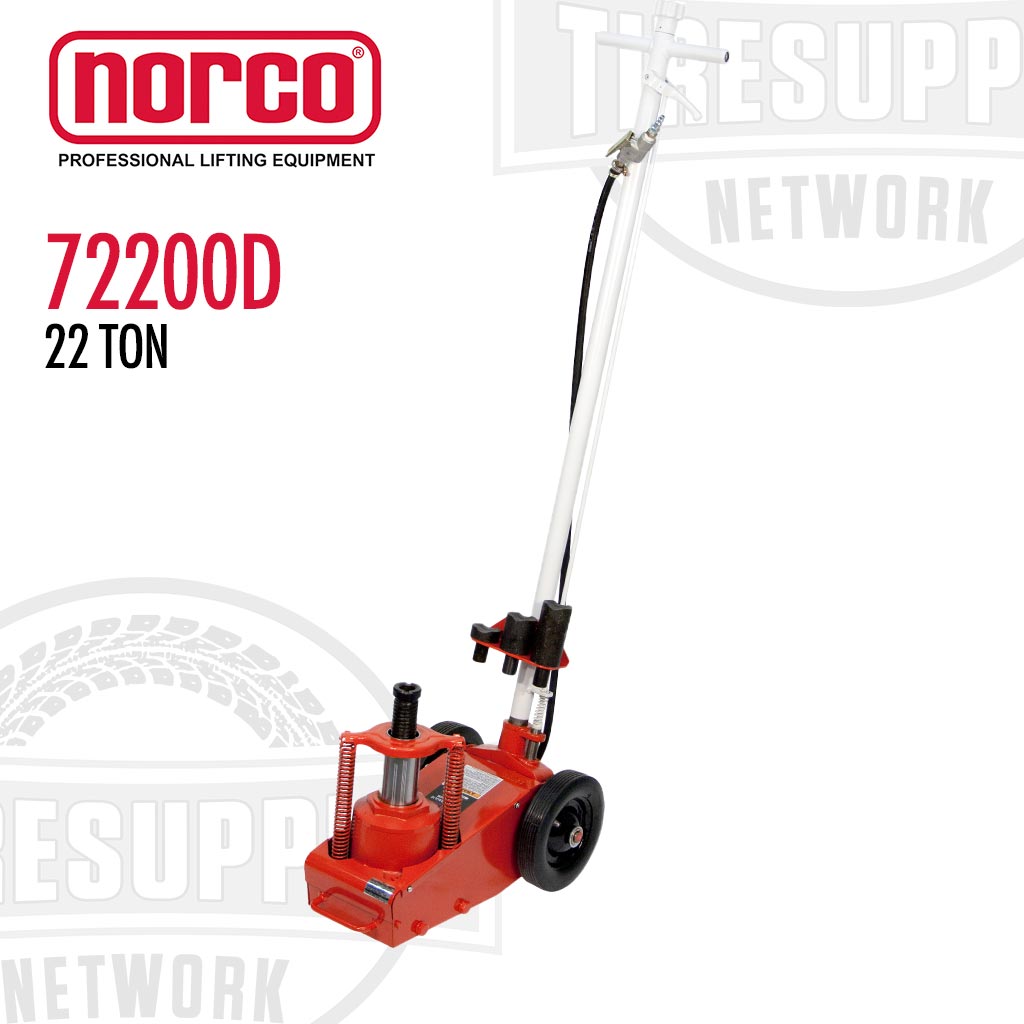

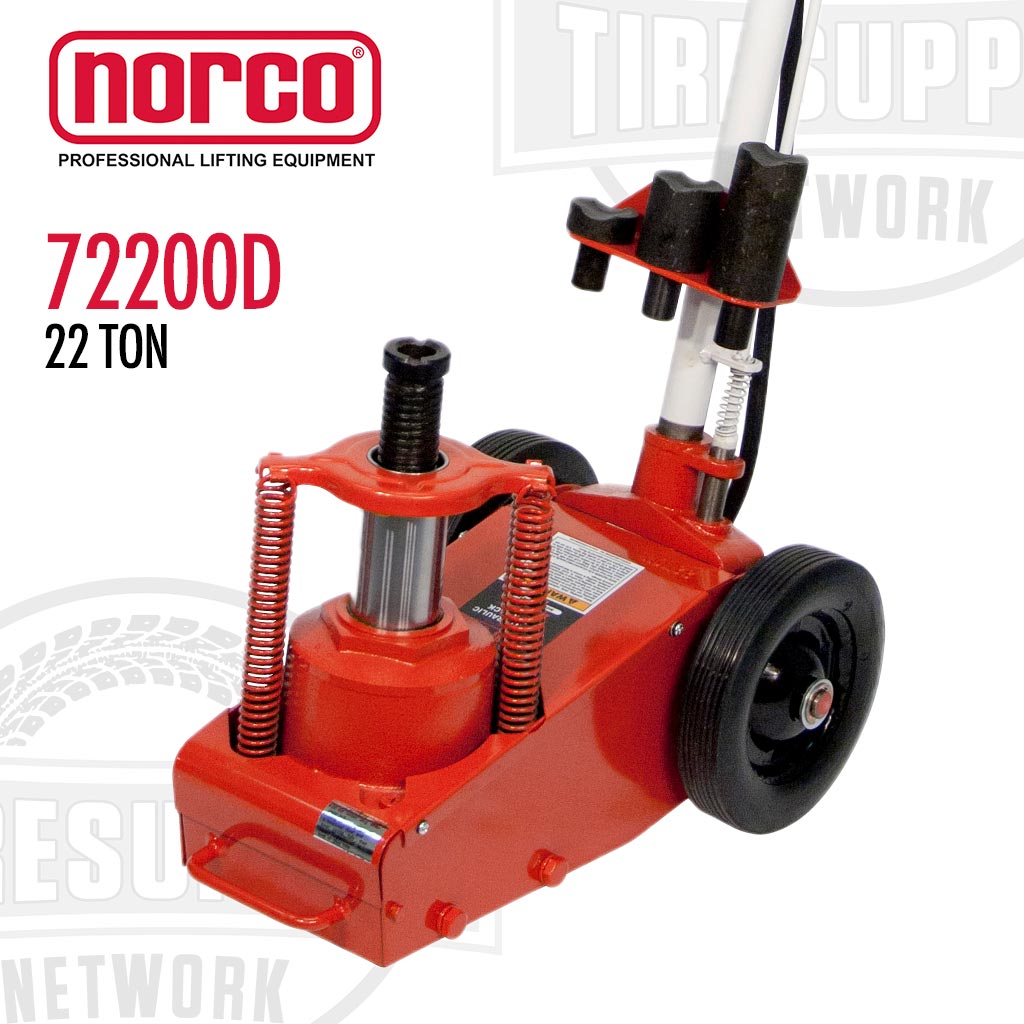

Norco | 22 Ton Air Operated Hydraulic Floor Jack (72200D)

Norco | 22 Ton Air Operated Hydraulic Floor Jack (72200D)

Intended Use:

Ideal for heavy duty truck, agricultural and heavy construction equipment.

Features:

• 50" Long "T" handle helps in positioning jack under vehicles with low overhang.
• The load release on the top mounted "T" handle allows operation at any handle position.
• Handle locking lever secures handle in either vertical, horizontal or 45 degree position.
• Compact design fits easily between tandem wheels.
• Rust inhibitive coating on ram and extension screw offers longer life.
• Large diameter wheels make maneuverability easy.
• Self-retracting ram eliminates manual lowering of jack.
• Safety by-pass system prevents cylinder damage.
• Safety overload system prevents jack from being used beyond its rated capacity.
• Integrated filter protects air motor.
• Fast lifting air motor.
• Three removable 2" diameter saddles with handle mounted saddle holder; 3/4", 2-1/4" and 4" in height.

Specifications:

• Low Lift Height 9"
• High Lift Height 18"
• Stroke 4.75"
• Screw Extension 4.25"
• Length 20"
• Width 13"
• P.S.I. Range 85-200
• Shipping Weight 115 lbs
