Alligator MS-* | EHA 9.7mm Metric Rim Hole Valve Stems - Choose Style

Alligator MS-* | EHA 9.7mm Metric Rim Hole Valve Stems - Choose Style

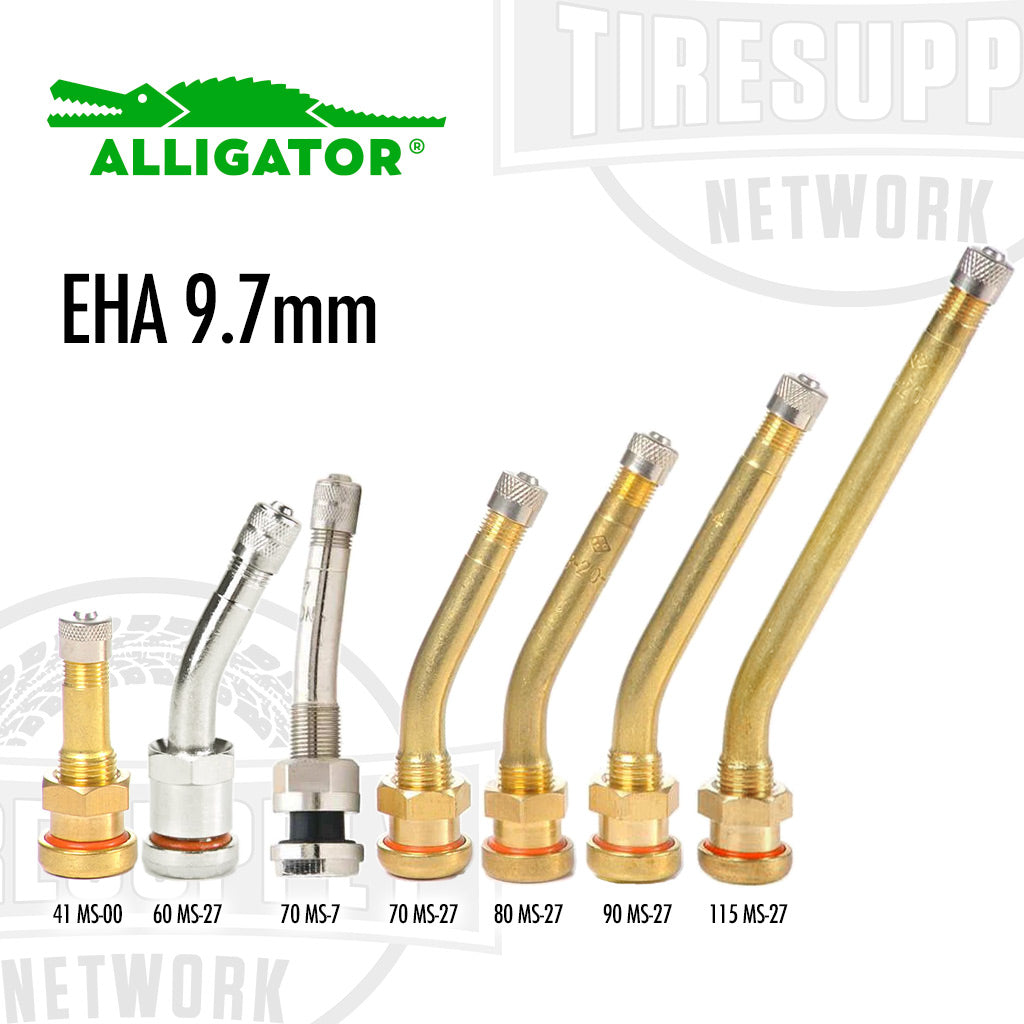

Metric rim hole valve stems are for some imported trucks that will have steel wheels that incorporate the 9.7mm (.390") valve hole. These are the most popular valves for this application. Many shops use these for the Hino or Isuzu trucks.

Specifications:

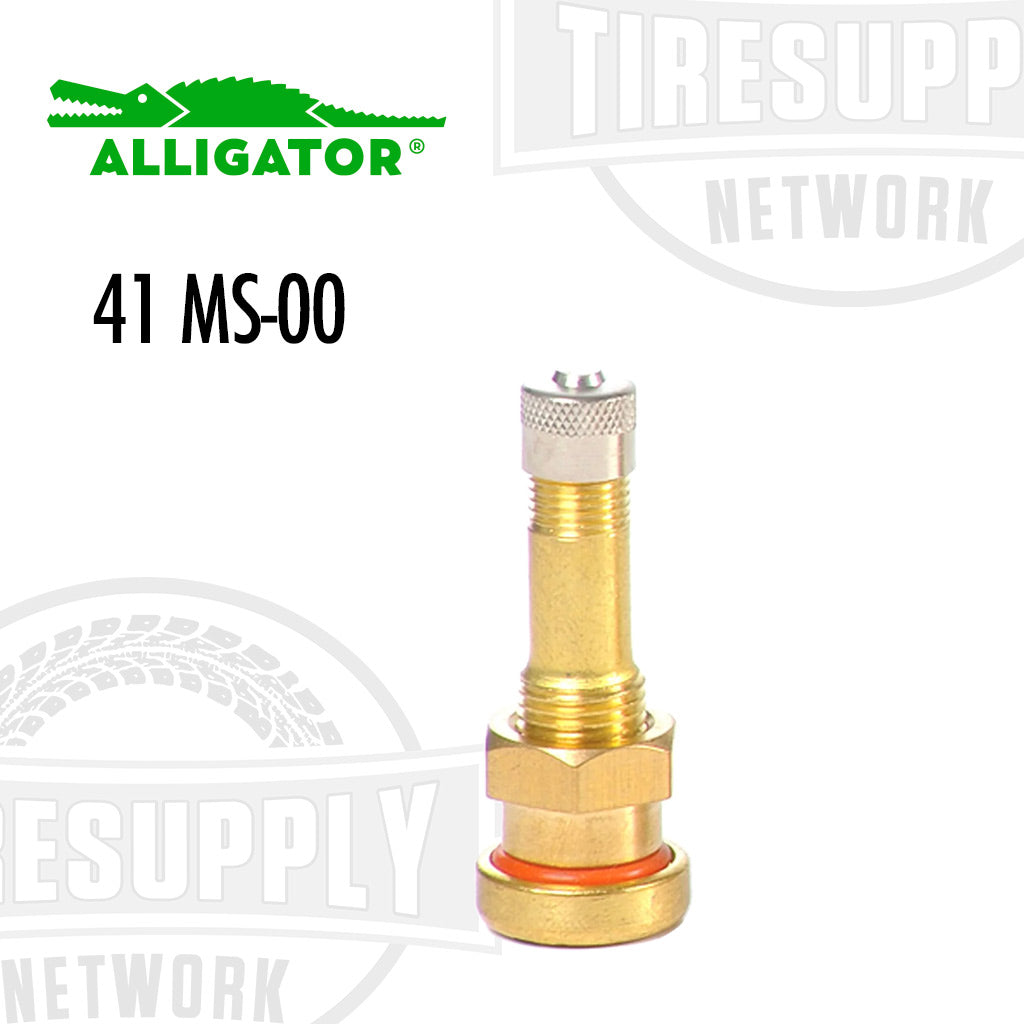

41 MS-00

• ETRTO #: V3-20-1
• Bend Angle: Straight
• Length: 1 3/16"

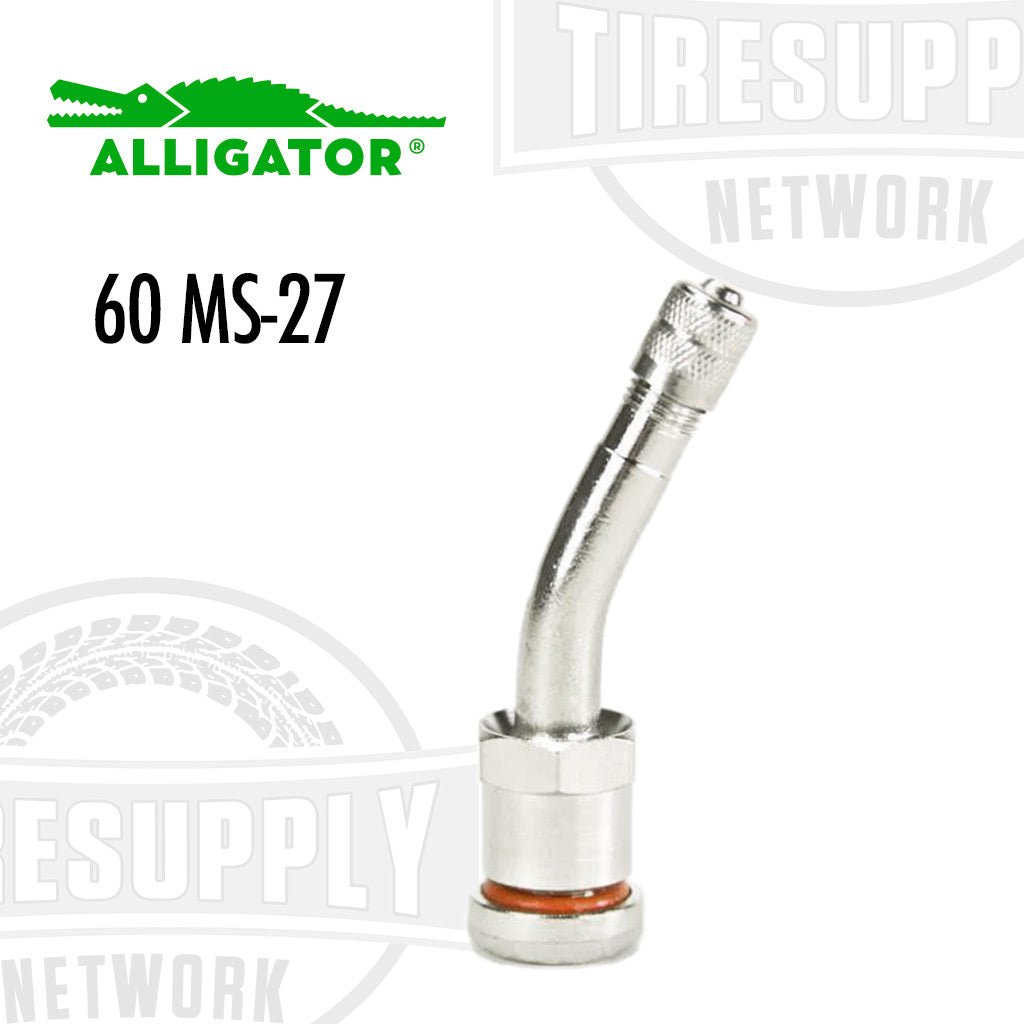

60 MS-27

• ETRTO #: No ETRTO
• Bend Angle: 27°
• Length Until Bend: 1 3/16"
• Length After Bend: 1 3/16"

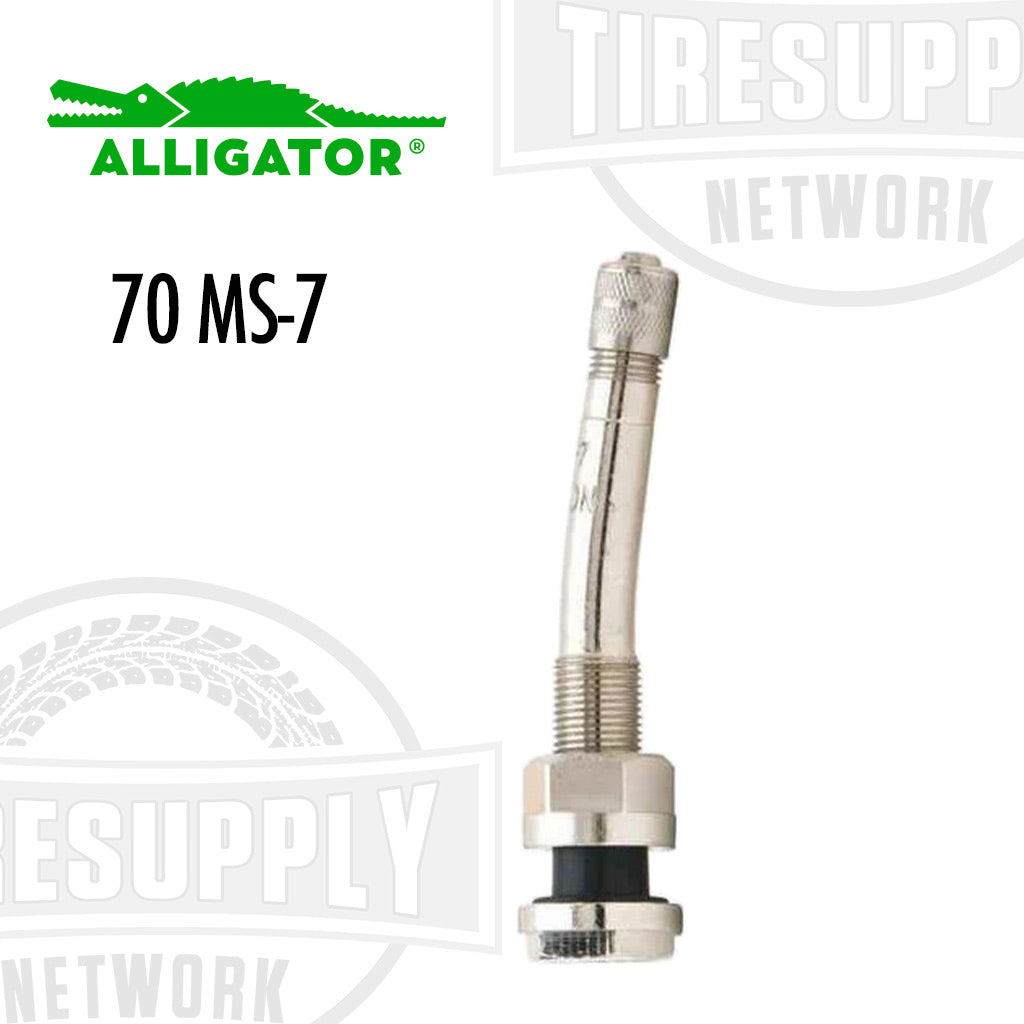

70 MS-7

• Aluminum wheel valve with grommet seal
• Fits 9.7mm

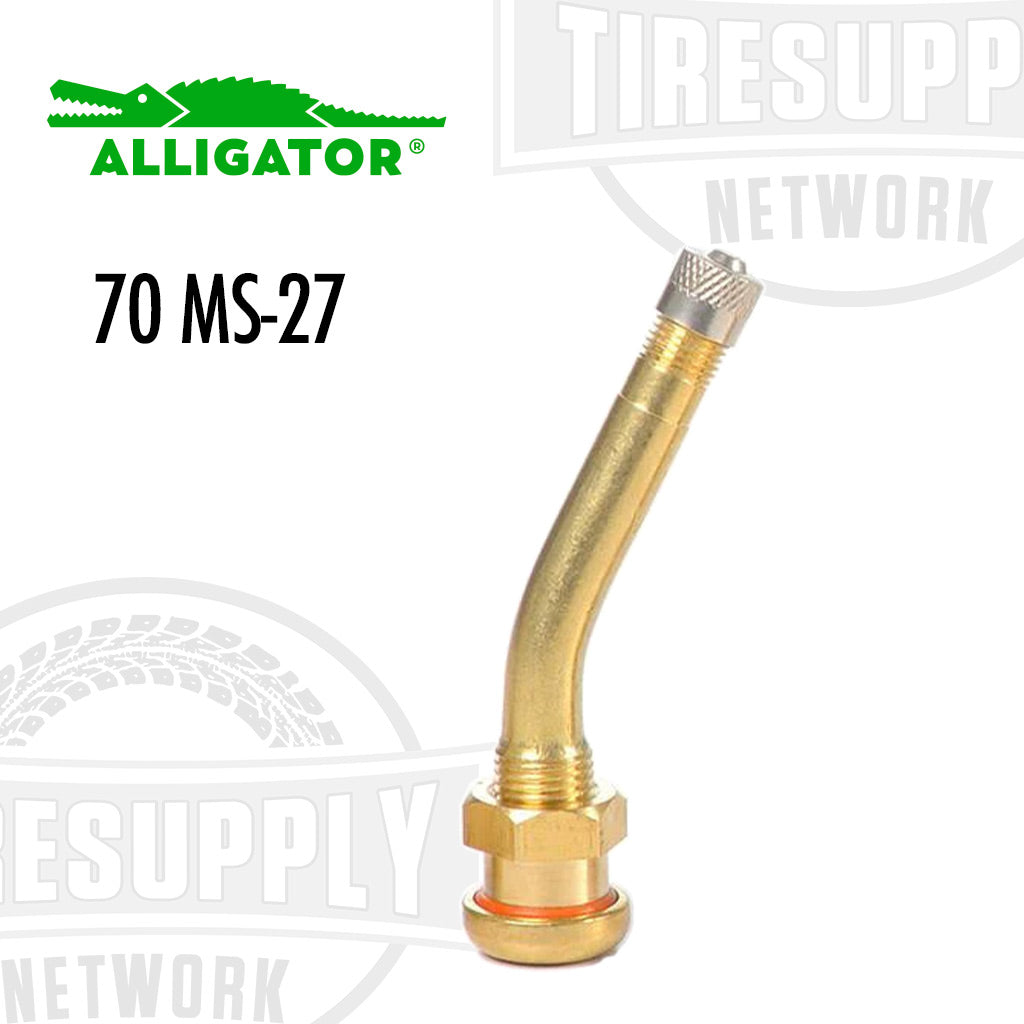

70 MS-27

• ETRTO #: V3-20-5
• Bend Angle: 27°
• Length Until Bend: 1 3/16"
• Length After Bend: 1 9/16"

80 MS-27

• ETRTO #: V3-20-7
• Bend Angle: 27°
• Length Until Bend: 1 3/16"
• Length After Bend: 2

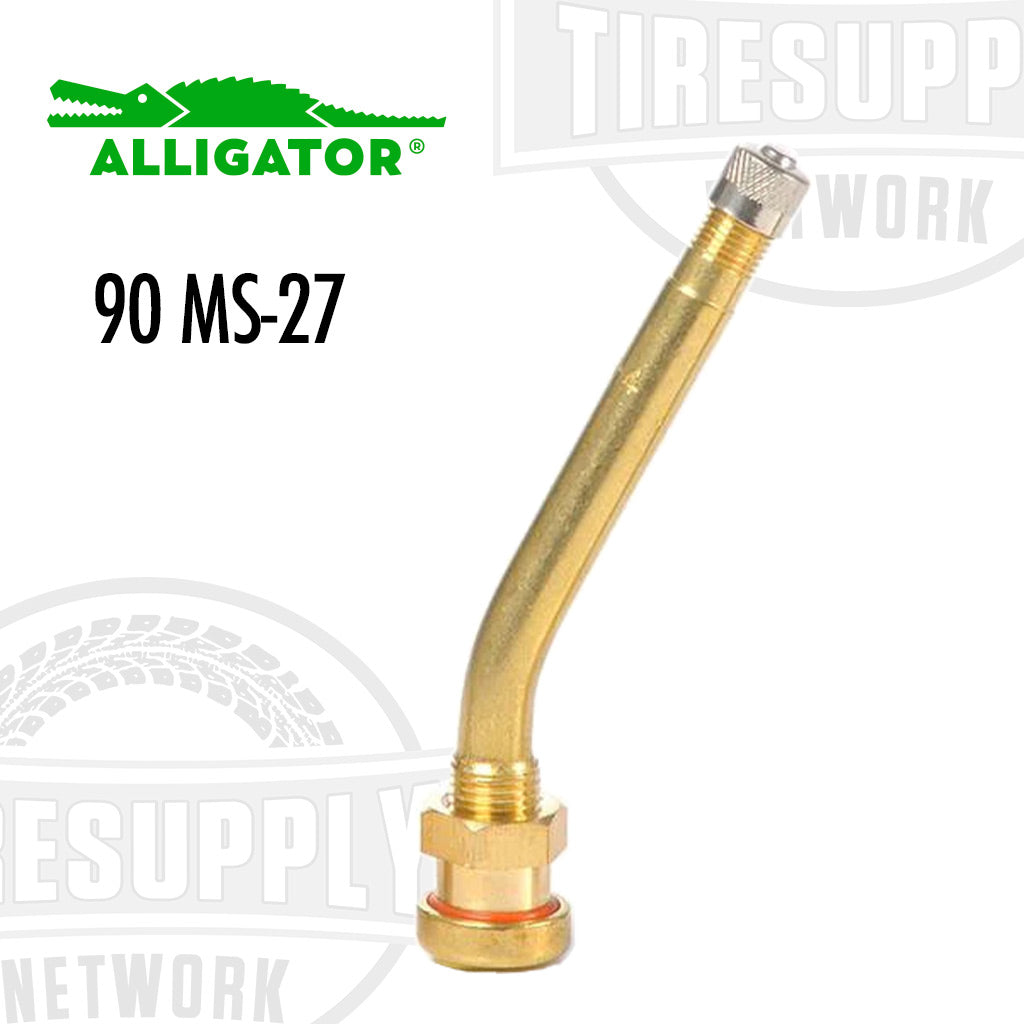

90 MS-27

• ETRTO #: V3-20-4
• Bend Angle: 27°
• Length Until Bend: 1 3/16"
• Length After Bend: 2 3/8"

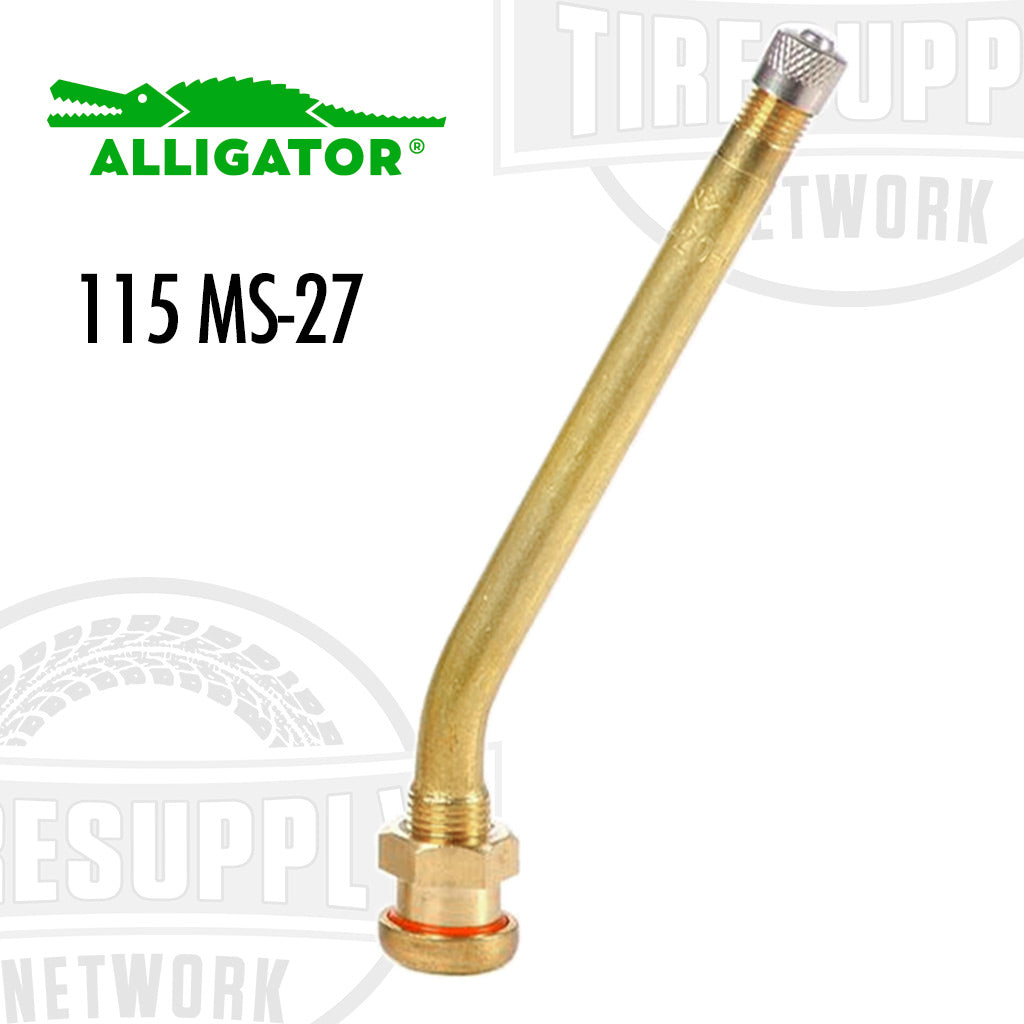

115 MS-27

• ETRTO #: V3-20-6
• Bend Angle: 27°
• Length Until Bend: 1 3/16"
• Length After Bend: 3 3/8"

Compliance and Restrictions:
