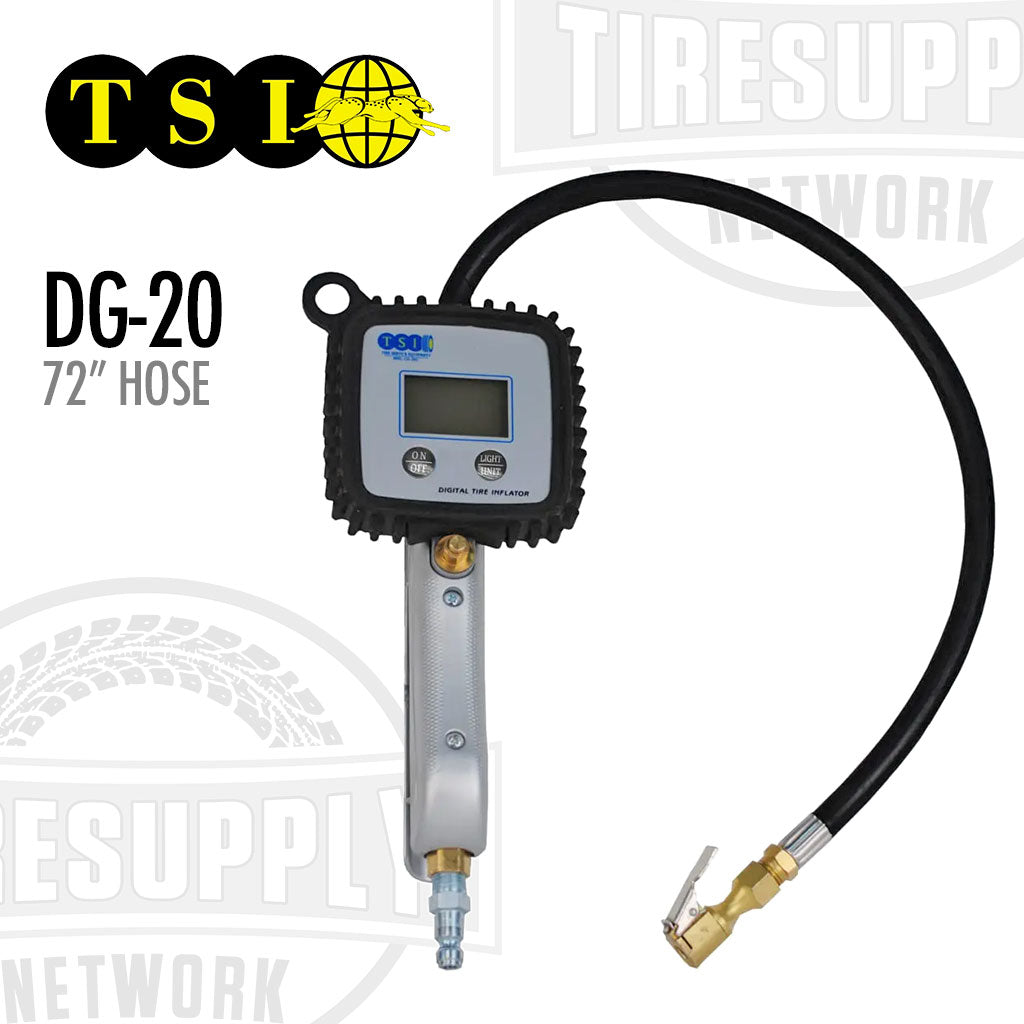

TSI | Digital Tire Inflator (DG-20)

TSI | Digital Tire Inflator (DG-20)

The DG-20 Digital Tire Inflator represents one of the most accurate and easy to use digital tire inflators on the market today. Featuring a large, clear & easy to read digital display, with a back light feature, the DG-20 is designed and built for the toughest shop environments. The durable LCD display is protected by a large full body rubber shock boot which is included. The DG-20 is programmable to display in four units: PSI, BAR, KGF and KPA. The DG-20 services inflation ranges from 0-175 PSI with an accuracy of +/- 1% full scale. A simple inflate and/or deflate control allows for precise inflation control by the user. The DG-20 comes equipped with a 72” inflation hose assembly with a locking straight chuck.

Features:

• High inflation and deflation rates
• Clear & easy to read digital display
• Reset & Back light switches
• Programmable for units of PSI, BAR, KGF and KPA
• High precision pressure sensor from US NOVASENSOR
• Long life battery
• Low battery warning light
• Over pressure warning: if pressure exceeds 250 psi / 17 bar
• Each unit is 100% quality tested

Specifications:

• Inlet:  ¼” female BSPT/NPT
• Hose length: 72”
• Tire valve connector: Clip on locking straight chuck
• Accuracy reading (PSI/KPA/BAR): 0.1/1/0.01
• Max inlet pressure(PSI/KPA/BAR): 250/1200/17
• Inflation range (PSI/KPA/BAR): 0 to 175/1200/12
• Weight: 3 lbs
• Dimensions: 14 x 8 x 5 in

Compliance and Restrictions:

⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
