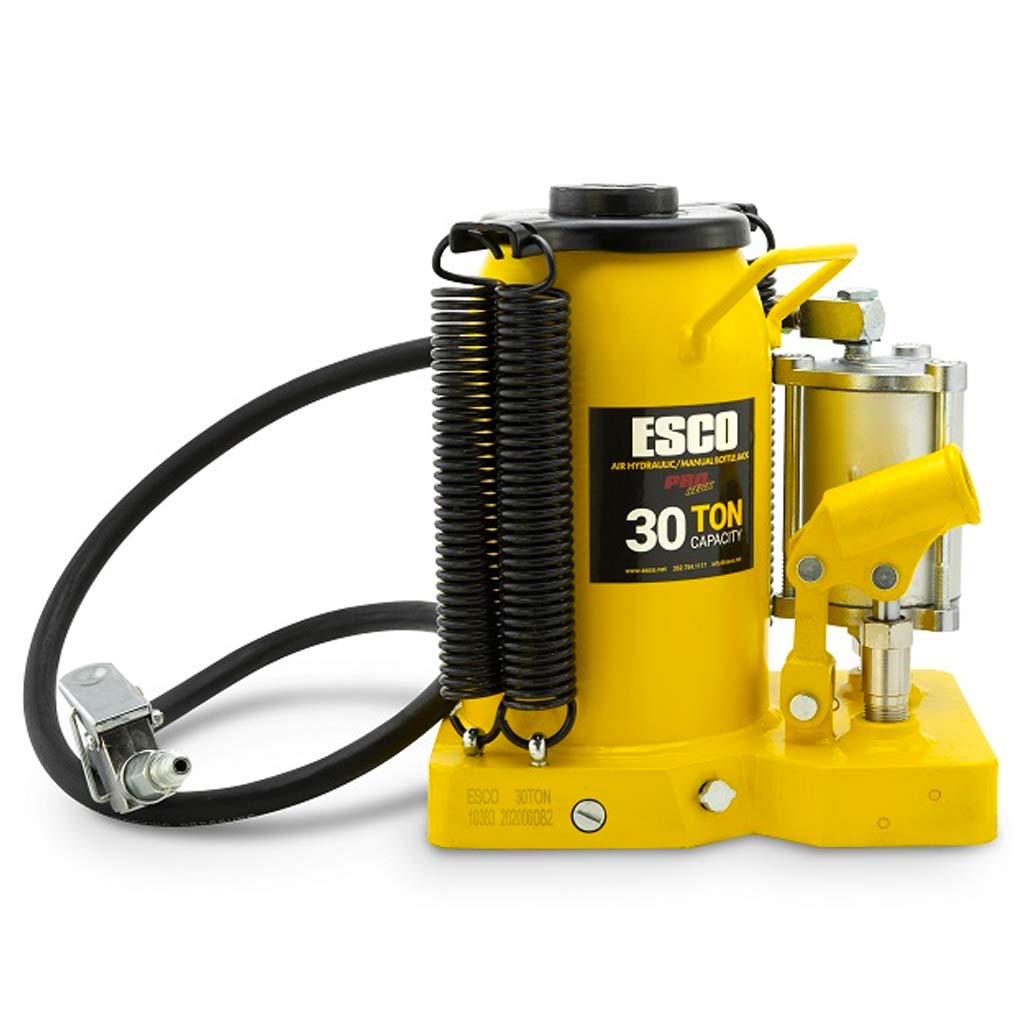

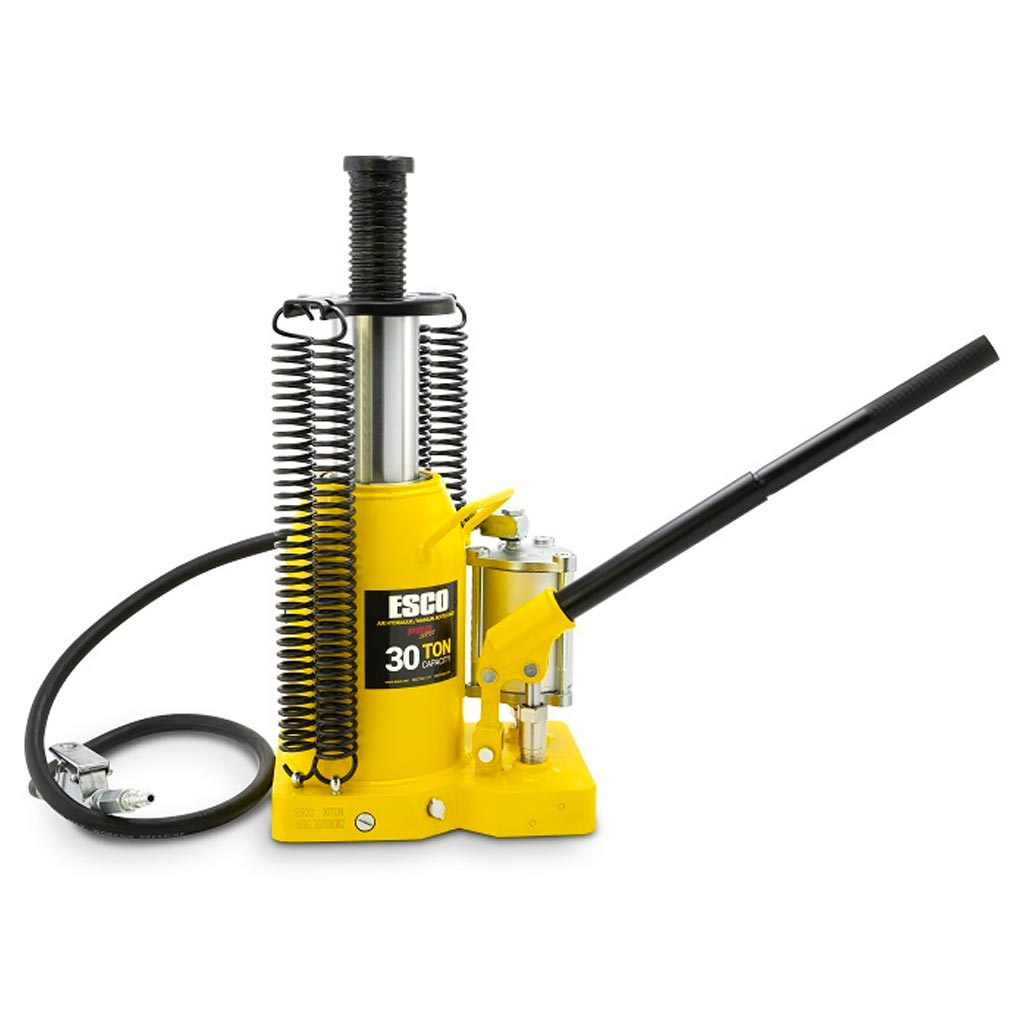

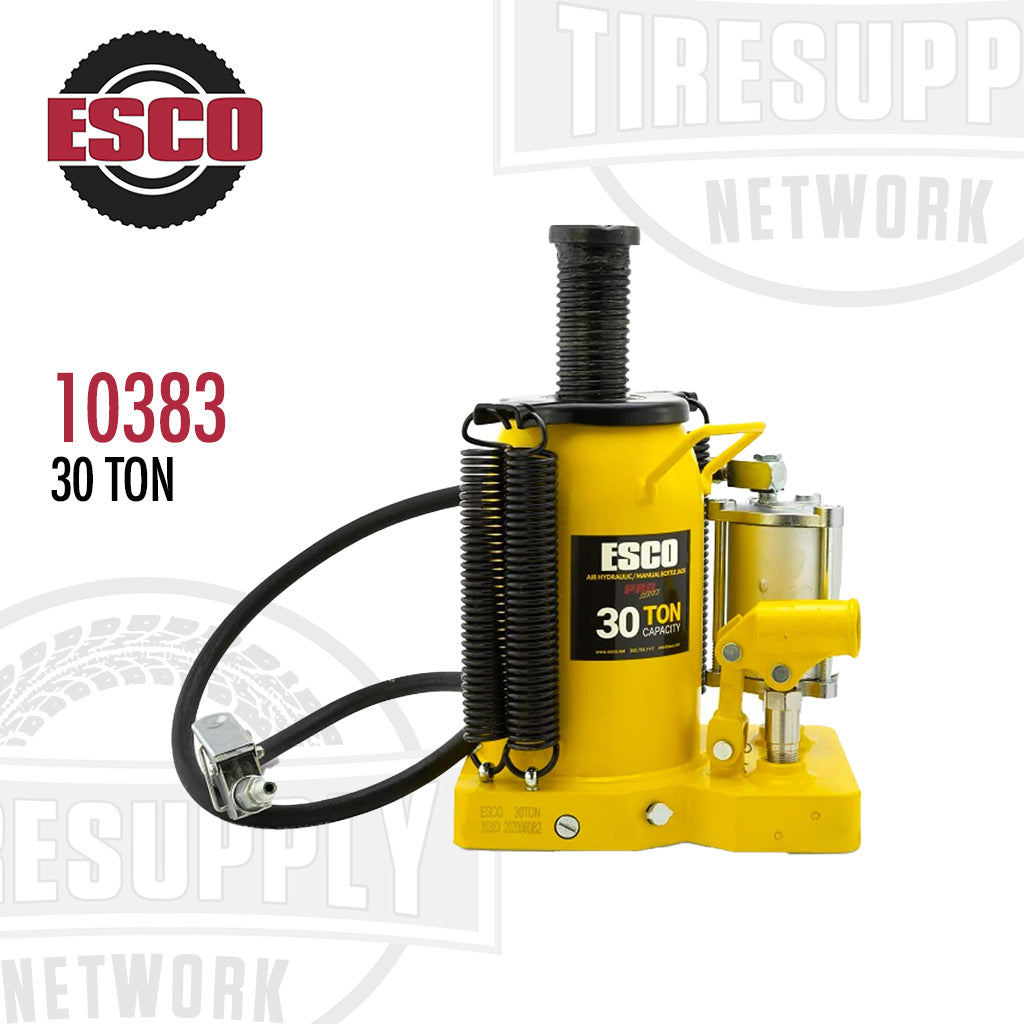

ESCO | Pro Series 30 Ton Air Hydraulic Bottle Jack (10383)
The ESCO Pro Series Air Hydraulic Lifting Equipment is designed with the heavy-duty tire service market in mind. With lifting capacities from 12 Ton and up to 30 Tons, there is a jack that will fit any service technician’s needs. Each jack is designed uniquely for specific application including Commercial Truck, Bus, Tractor & Farm Equipment, and much more.
Features:
- Fully welded cylinder and frame provide superior strength and extended service life
- Extra thick jack base provides exceptional support and stability in severe conditions
- The compact design makes these jacks great for multiple applications including Commercial Truck, Bus, Tractor & Farm Equipment, and much more
- Chrome-plated piston for extra rust and corrosion resistance
- Fitted with a safety valve to prevent overloading
- Double spring design for controlled and safe decent while releasing pressure from the cylinder
- Heat Treated Adjustable Extension Screw provides additional and precise height adjustments. Assists in not overextending cylinder to reach designed heights
- Design to be operated using air or manually with included two-piece lifting/lowering handle
- Includes 4′ swivel end air hose with easy to use handheld push-button air trigger. Air trigger includes 1/4″ NPT fitted air inlet, in-line air filter (extends the life of air motor), and airflow latch for easier constant airflow while raising of the jack to load
- Fitted with a heavy duty constructed chrome plated air motor designed with wear-resistant parts to ensure longevity and dependability in any lifting application
Specifications:
- Capacity: 30 Ton (60,000 lbs)
- Minimum Height: 10.875″
- Maximum Height: 20″
- Ram Travel: 6″
- Screw Adjustment: 3.75″
- Saddle Width: 1.75″
- Base Thickness: 1.5″
- Base Size (LxW): 9.625″ x 7.125″
- Outer Package: 11″ x 10″ x 12″
- Net Weight: 63 lbs
- Gross Weight: 64 lbs
- Air Inlet Fitting: 1/4″ NPT
- Air Pressure: 110-125 psi
- Warranty: 1 Year
