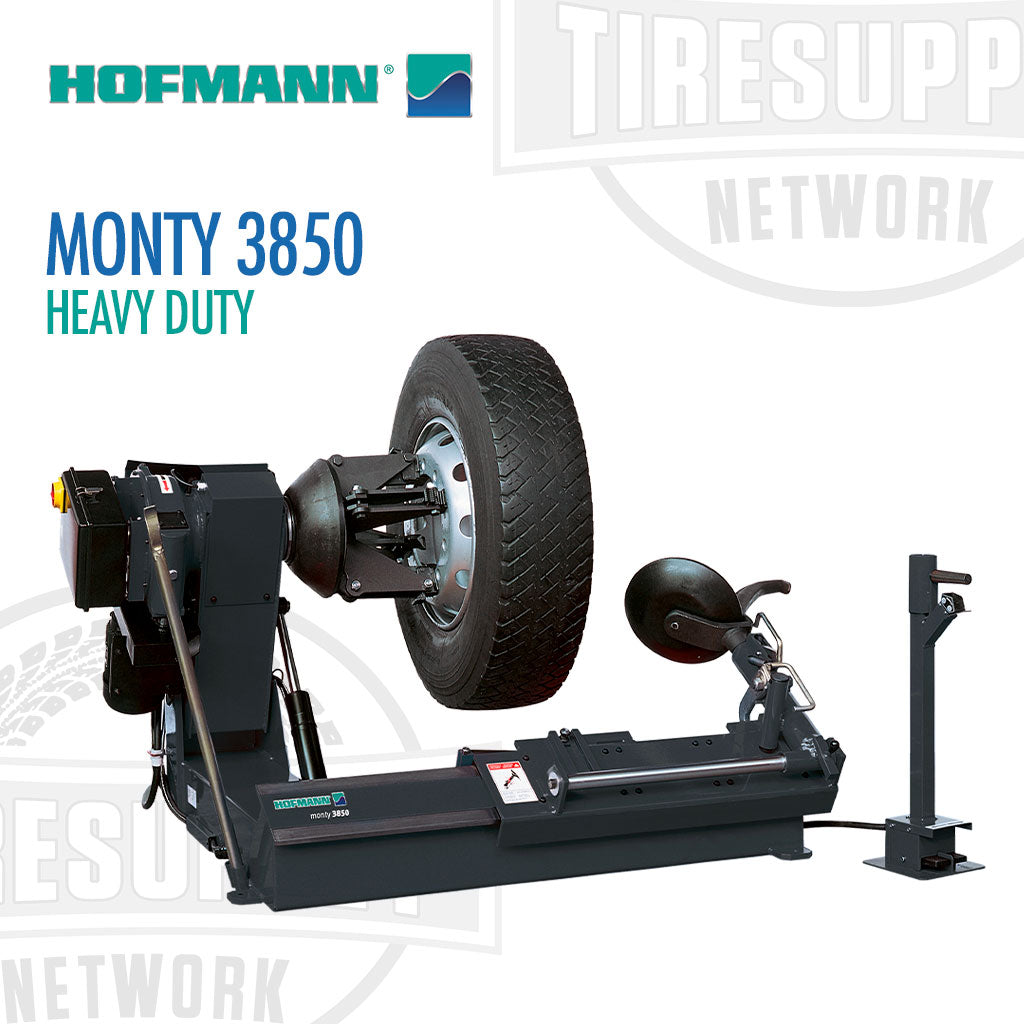

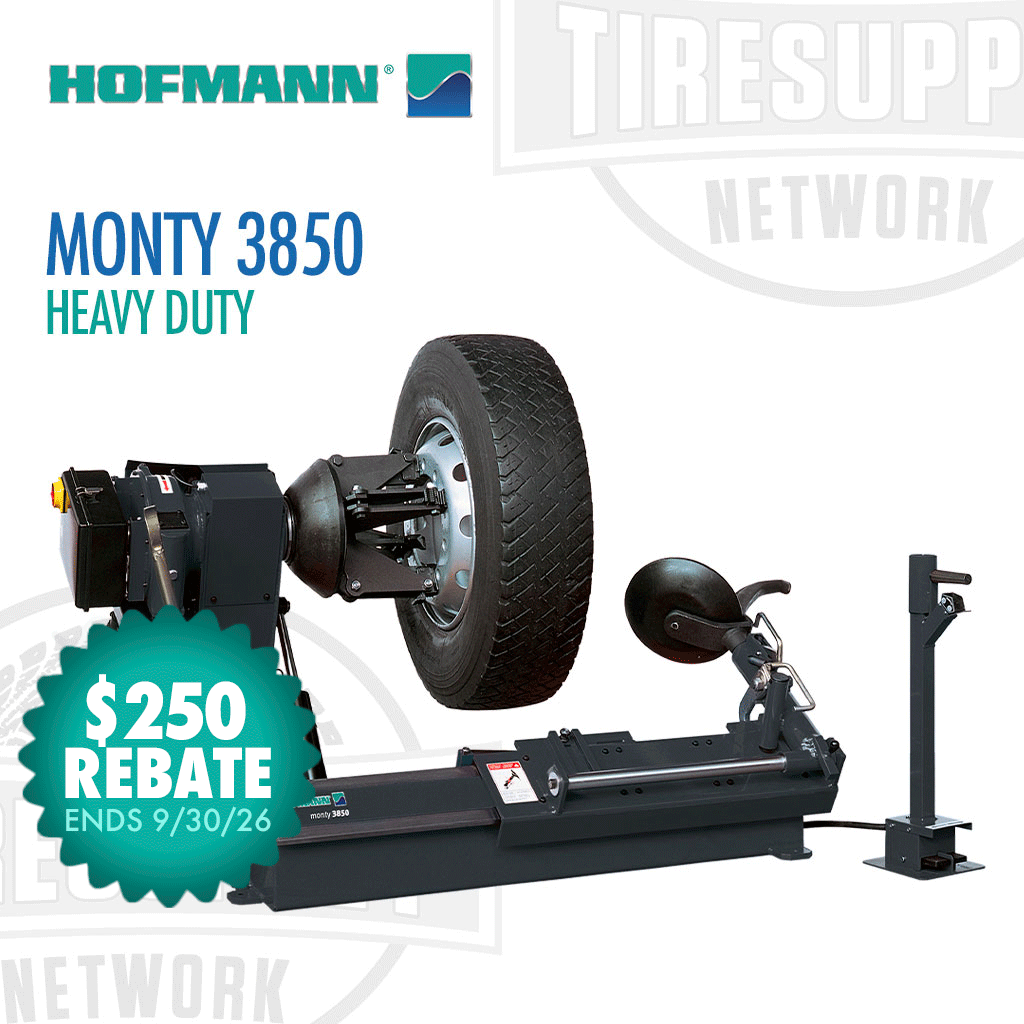

Hofmann | Monty 3850 Truck Tire Changer (EEWH703AUA)
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
With the monty® 3850 tire changer from Hofmann®, technicians can work on a diverse range of heavy-duty tires commonly found on all types of commercial vehicles. From buses to tractor-trailers and everything in between, it's never been easier to service heavy-duty tube-style and tubeless tires, as well as OTR wheel assemblies up to 59 inches in max. diameter. Facilitated by a specialized remote control, a single technician can efficiently and safely oversee all tire-changing operations remotely. The application of a self-centering, four-jaw, hydraulically operated chuck ensures wheels are gripped firmly, preventing accidental unclamping. Featuring an all-in-one, patented bead breaker and mount/demount head assembly to enhance productivity, the monty® 3850 can effortlessly handle even the most challenging tires, making it an essential addition to any shop that regularly services heavy-duty vehicles.
Bead Breaker: This system is equipped with a comprehensive tilting system that facilitates the process of breaking the bead, ensuring optimal positioning of the disk. | Chuck: The robust construction of this feature enables it to accommodate wheels weighing up to 3,300 pounds (1,500 kg). |
Mobile Control Unit: A single technician can safely oversee all tire changing operations from a distance while utilizing the wired remote control console, efficiently boosting productivity in the process. | Non-Return Valve: This feature allows the chuck to always remain under pressure and to avoid the rim from slipping. |
Technical Specs | Monty 3850 |
Hofmann Part Number | EEWH747B |
Rim Clamping Range | 14"-26" (36-66 cm) |
Max Wheel Width | 27.5" (69 cm) |
Max Wheel Diameter | 59" (150 cm) |
Max Wheel Weight | 2,205 lbs (1,000 kg) |
Power Supply | 208 V 1Ph 60 Hz |
Dimensions HxWxD | 58"x 83"x 83" (148 x 210 x 210 cm) |
