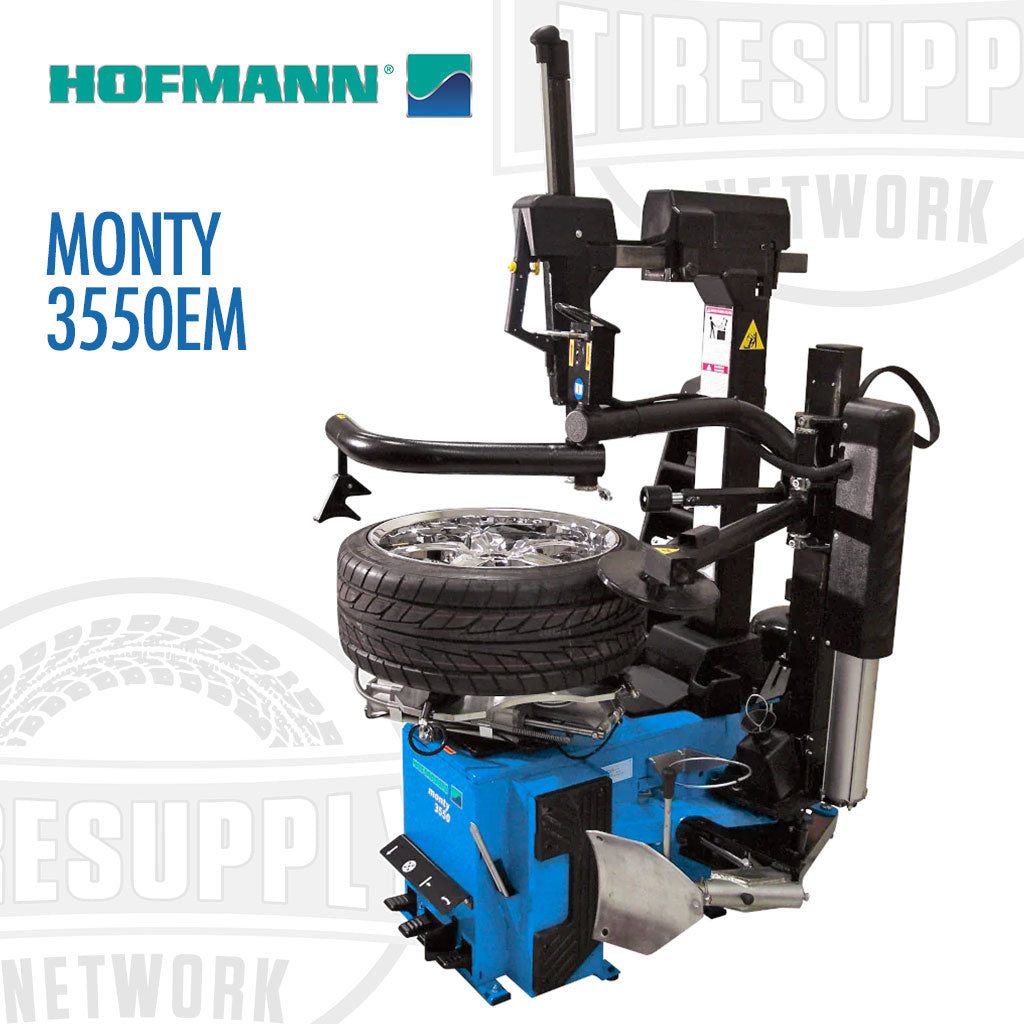

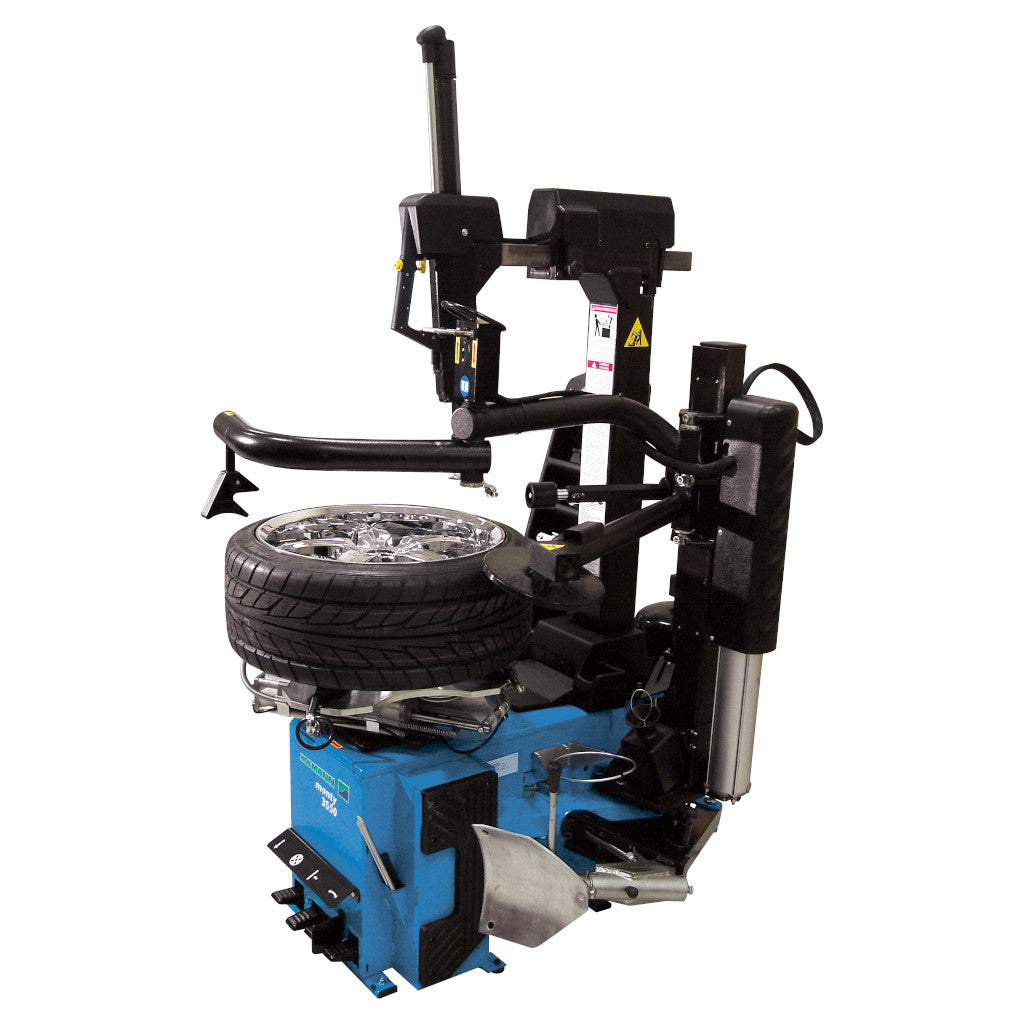

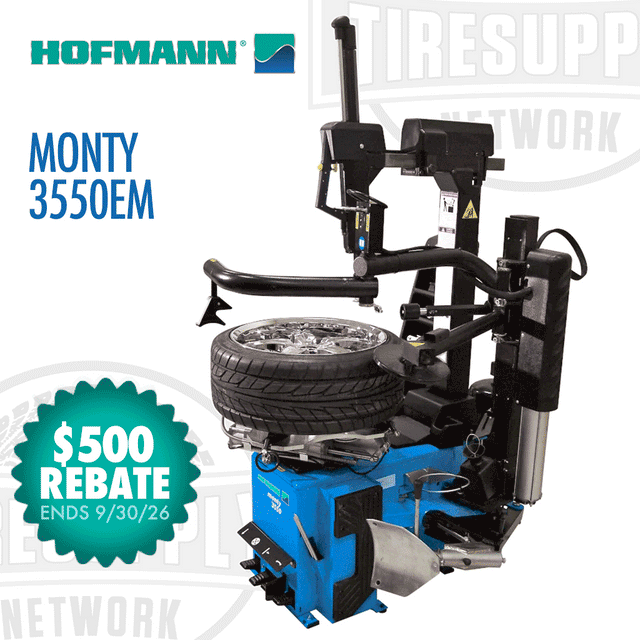

Hofmann | Monty 3550EM Tilt-Tower Tire Changer with EasyMont Pro Bead Assist Helper Arm (M3550EM110B)
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
The Hofmann Monty 3550 series of high-performance tire changers feature the industry's most advanced capabilities to service a wide variety of wheel and tire assemblies. The monty 3550 series is specifically designed to change low-profile, high performance and run-flat tires maximizing a shop's versatility.
Accommodates Large Wheel & Tire Assemblies: Allowing for a tire diameter of 47" and an outer-wheel diameter of 26" on the Monty 3550 (30" on monty 3550em,) the Monty 3550/3550em can handle wheel and tire assemblies found on cars and light trucks.
Dual Wheel Clamping Cylinders: Dual pneumatic clamping cylinders control all four clamping jaws, eliminating damage to wheel due to slippage.
Four-Jaw Clamping Chuck: Self-centering and clamps wheel with either 28" inner or 26" outer diameter.

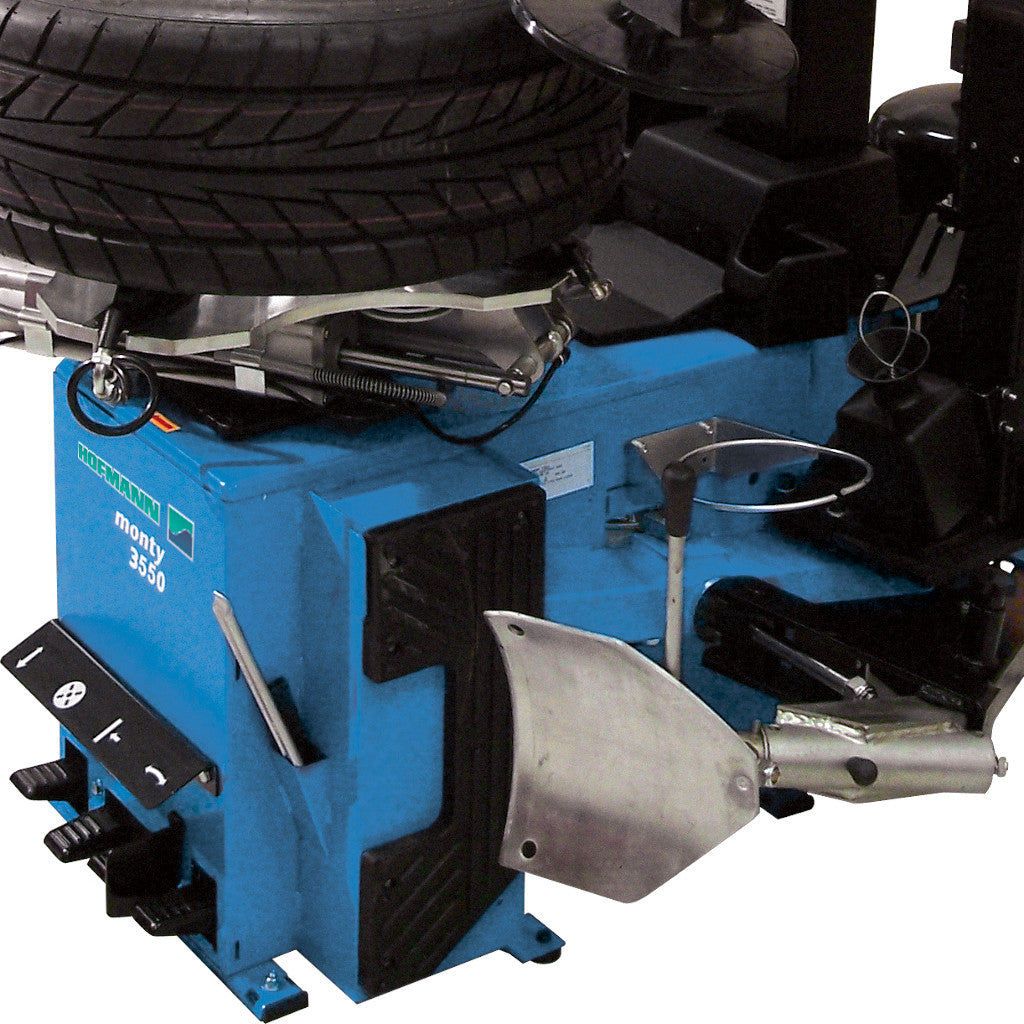

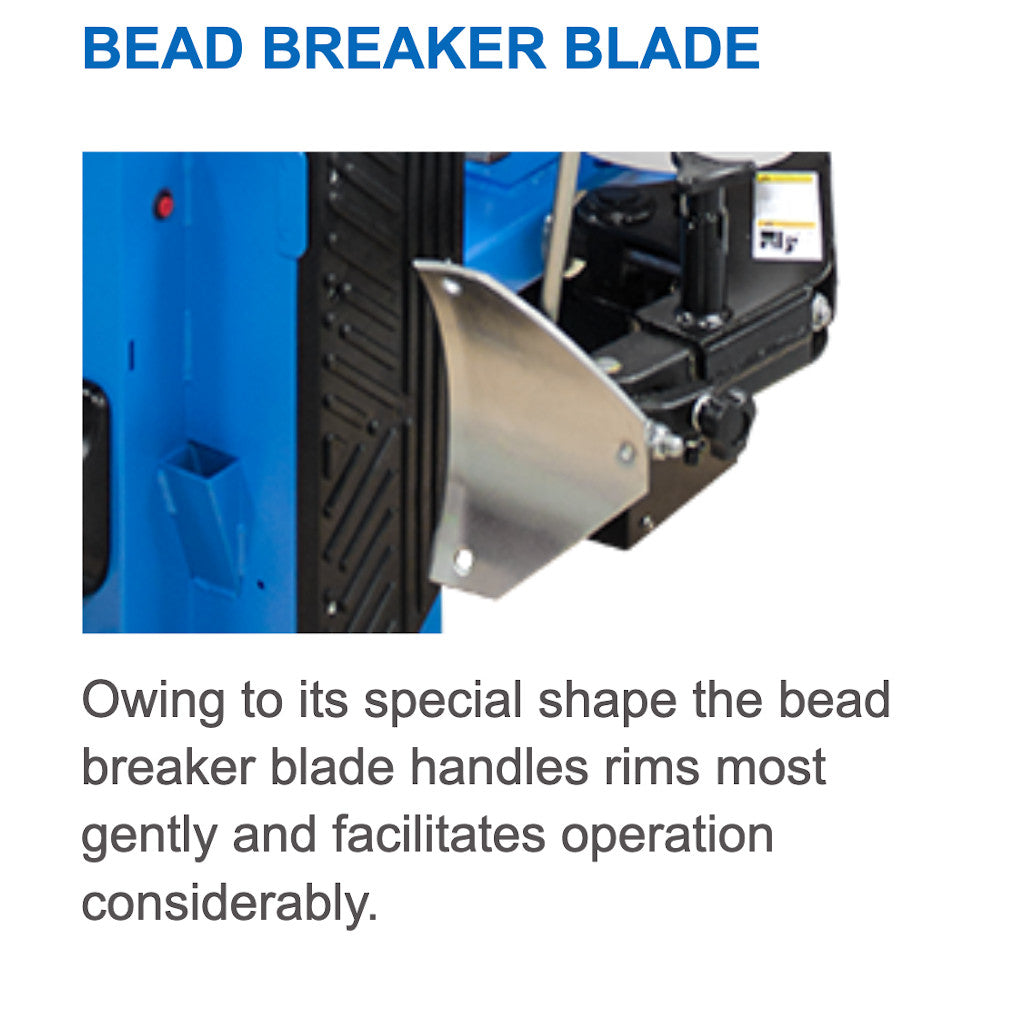

Powerful Two-Position Bead Breaker: 6,000 lbs of power at the bead shovel and a range of up to 17" wide. The two-stage pneumatic cylinder provides precise power and can be toggled with the foot pedal as needed.

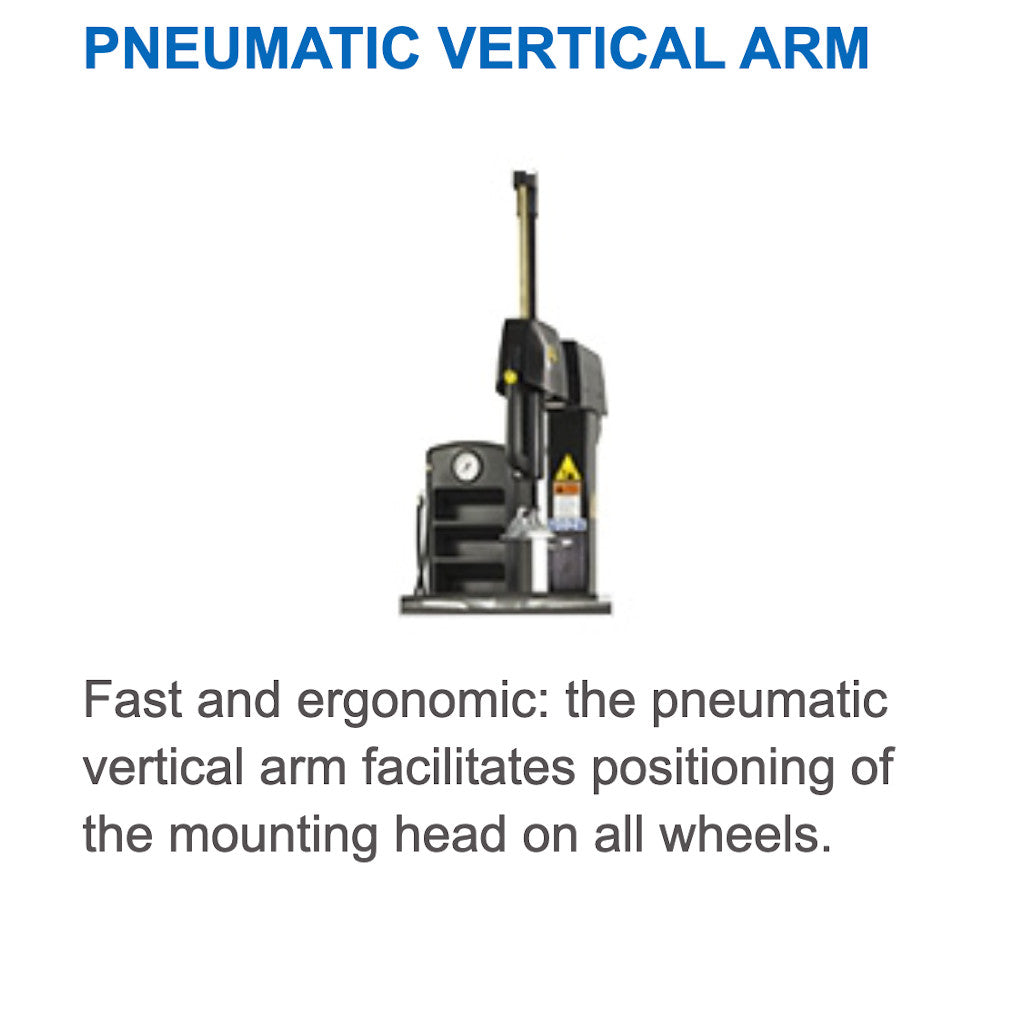

Pneumatically-Controlled Mount/Demount Head: Push-button controlled mount/demount head pneumatically lowers and locks into position, automatically indexing away from the wheel to prevent contact and damage to the wheel and tire assembly.
Protect the Most Delicate Wheels: All metal parts have plastic protection providing non-metal to metal contact when changing delicate wheels.
Accessories Included:

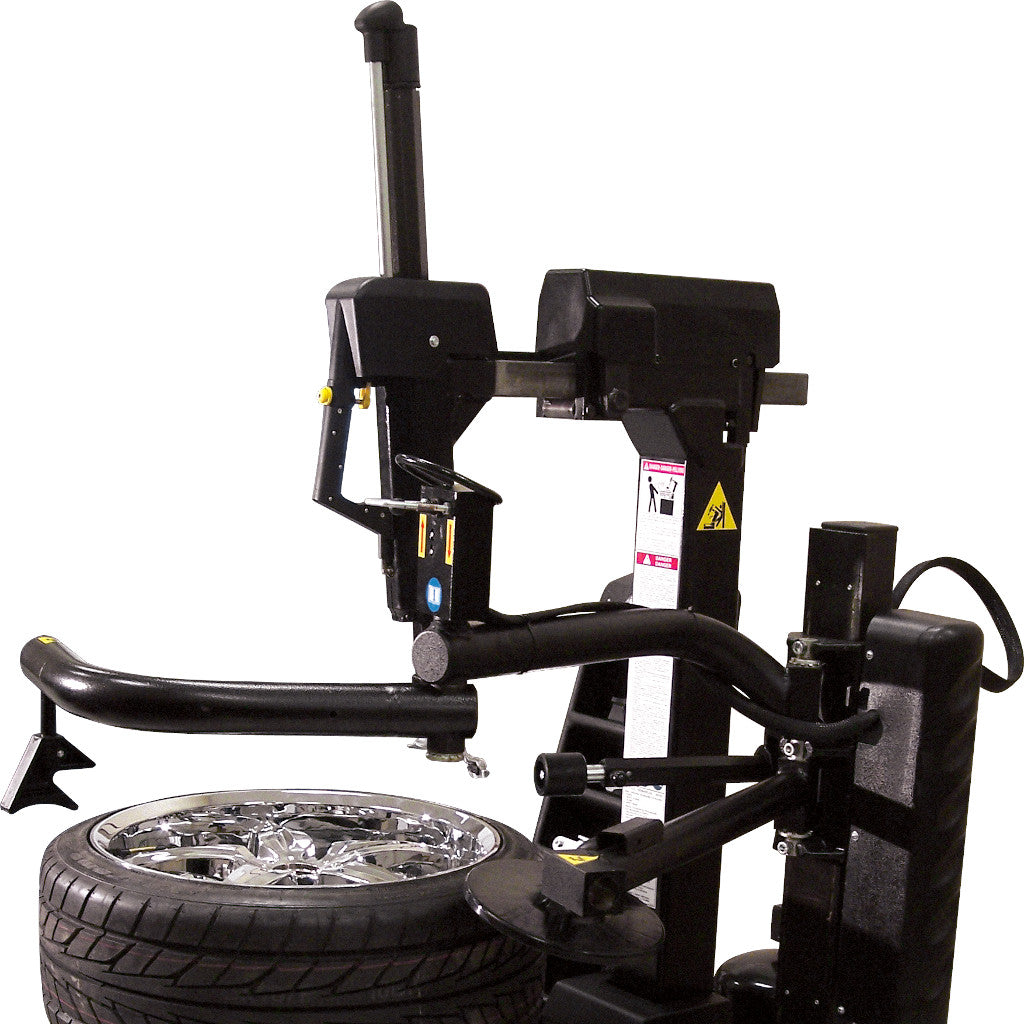

- EasyMont Pro Bead Assist Device (EAA0329G35B)
- Automotive Adapters (EAA0332G91A)

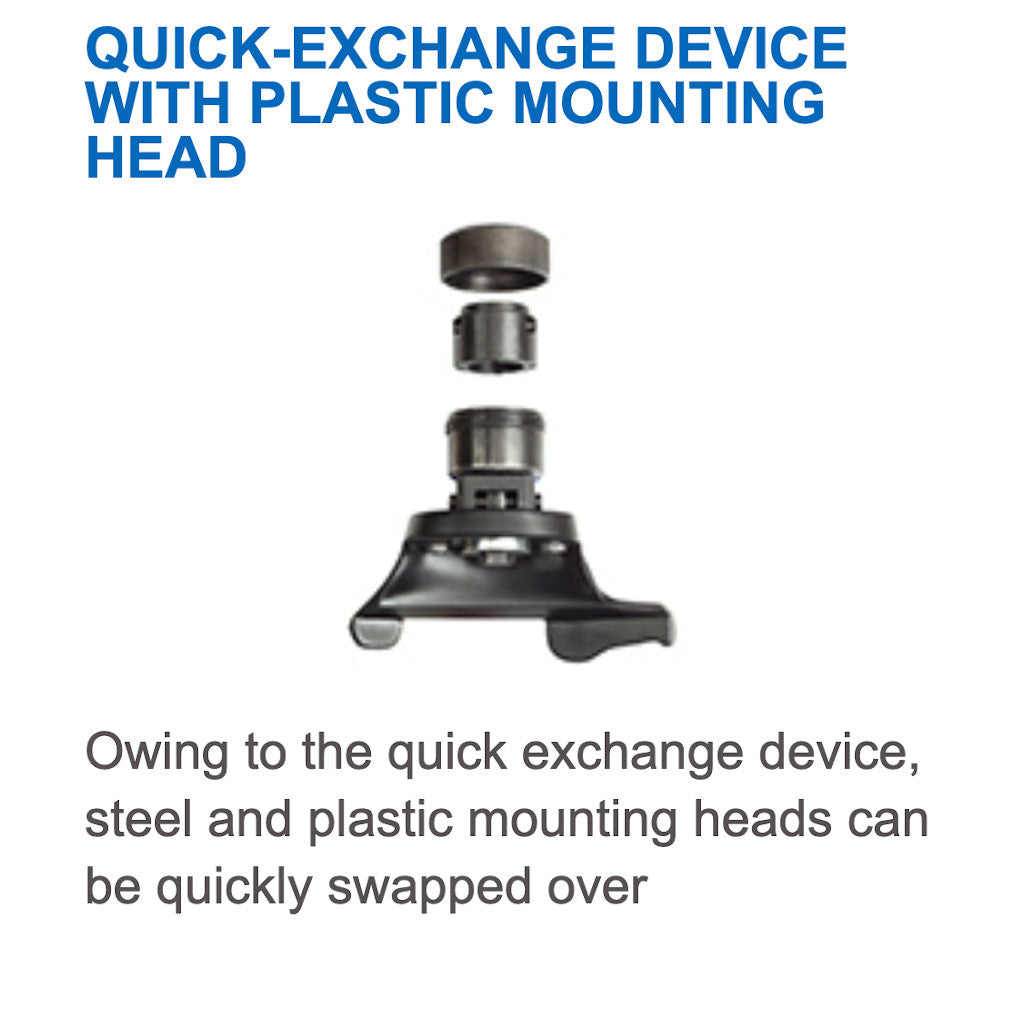

- Quick Change Bead Head Kit (EAA0304G66A)
- Protective Cover for Tire Lever (EAA0247G04A)
- Protective Cover for Bead Breaker Shovel (EAA0304G15A)
- Rim Protector (EAA0304G15A)
| Technical Data | Monty 3550EM |
| Hofmann Part Number | M3550EM110B |
| Overall Wheel Clamping Diameter | 12″ - 28″ (30.5 - 71 cm) |
| Inner Wheel Clamping Diameter | 12″ - 28″ (30.5 - 71 cm) |
| Outer Wheel Clamping Diameter | 12″ - 26″ (30.5 - 66 cm) |
| Bead Breaker Range Position One | 2.5″ - 12″ (6 - 30.5 cm) |
| Bead Breaker Range Position Two | 6″ - 17″ (15 - 43 cm) |
| Bead Loosening Power | 6000 lbs (2722 kg) |
| Shipping Weight | 975 lbs (442 kg) |
| Power Requirements | 120 V, 1 Ph, 60 Hz |
