Hofmann | Monty 3550EM SmartSpeed Tilt-Tower Tire Changer with EasyMont Pro Bead Assist Helper Arm (EEWH747B)

Join CLUB5 at Tire Supply Network and Save 5% on EVERY Order! > Learn more

Hofmann | Monty 3550EM SmartSpeed Tilt-Tower Tire Changer with EasyMont Pro Bead Assist Helper Arm (EEWH747B)

 2024 Q4 REBATE - USE PROMO CODE - 4PACK424

Earn rebates on qualifying equipment purchases made September 30 - December 30, 2024. Scan the QR code to access the Factory Rebate form. Invoice copy and serial required.

1. Go to Hofmann.SpotPlatforms.com
2. Click “Create an account” to setup a new account
3. Once you are logged in, click “Submit Application”
4. Find the option titled “Promo Code”
5. Enter ‘4Pack424’ and hit the “Search” button HOW TO REDEEM
6. Select “Create New Application”
7. Uploading a copy of your invoice is Mandatory
8. Complete the appropriate fields of information and choose “Next”
9. Review information and click the green “Submit Application” button *Cannot be combined with other promotional offers

The Hofmann Monty 3550 series of high-performance tire changers feature the industry's most advanced capabilities to service a wide variety of wheel and tire assemblies. The monty 3550 series is specifically designed to change low-profile, high performance and run-flat tires maximizing a shop's versatility.

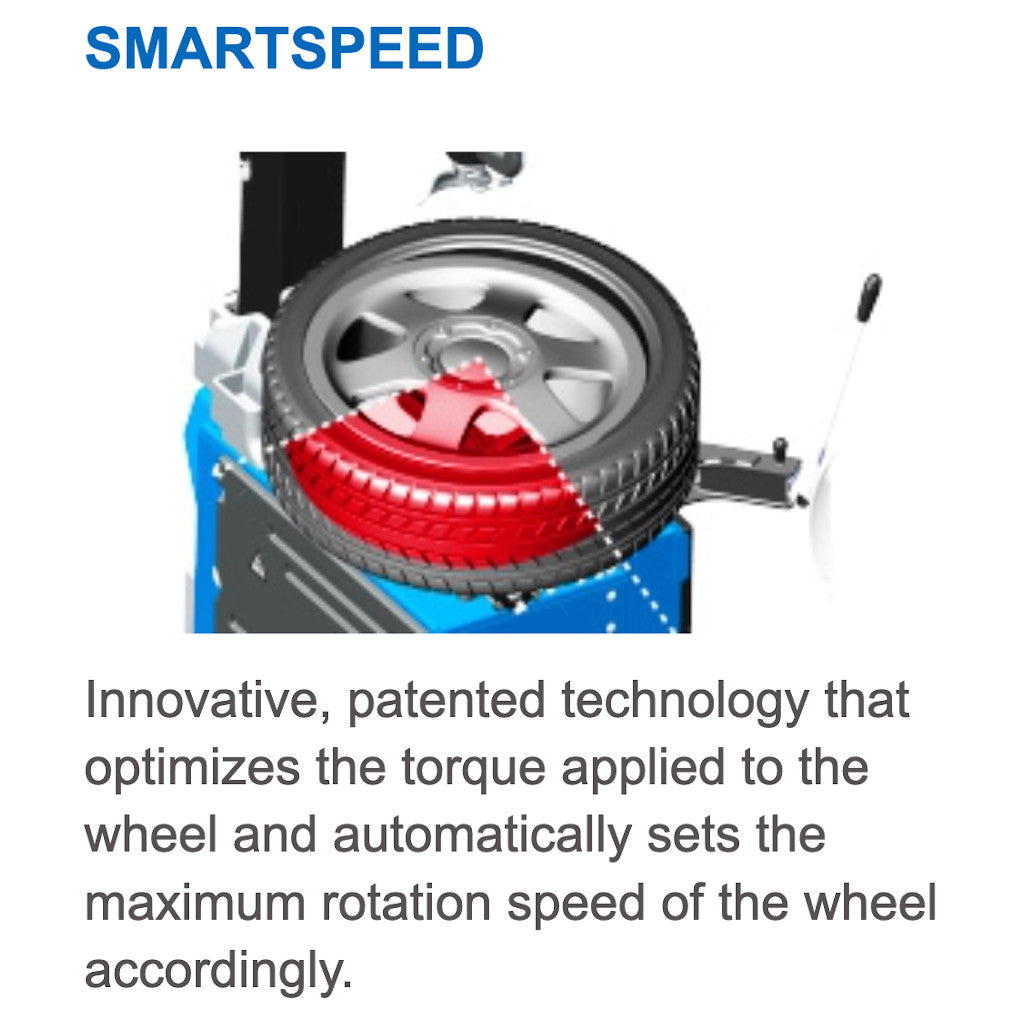

Patented smartSpeed Technology:

  • Automatically minimizes damage to tires
  • Innovative, patented technology that optimizes the torque applied to the wheel and automatically sets the maximum rotation speed of the wheel
  • Variable from 7 RPM to 18 RPM offering the highest possible speed for maximum productivity

Accommodates Large Wheel & Tire Assemblies: Allowing for a tire diameter of 47" and an outer-wheel diameter of 26" on the Monty 3550 (30" on monty 3550em,) the Monty 3550/3550em can handle wheel and tire assemblies found on cars and light trucks.

Dual Wheel Clamping Cylinders: Dual pneumatic clamping cylinders control all four clamping jaws, eliminating damage to wheel due to slippage.

Four-Jaw Clamping Chuck: Self-centering and clamps wheel with either 28" inner or 26" outer diameter.

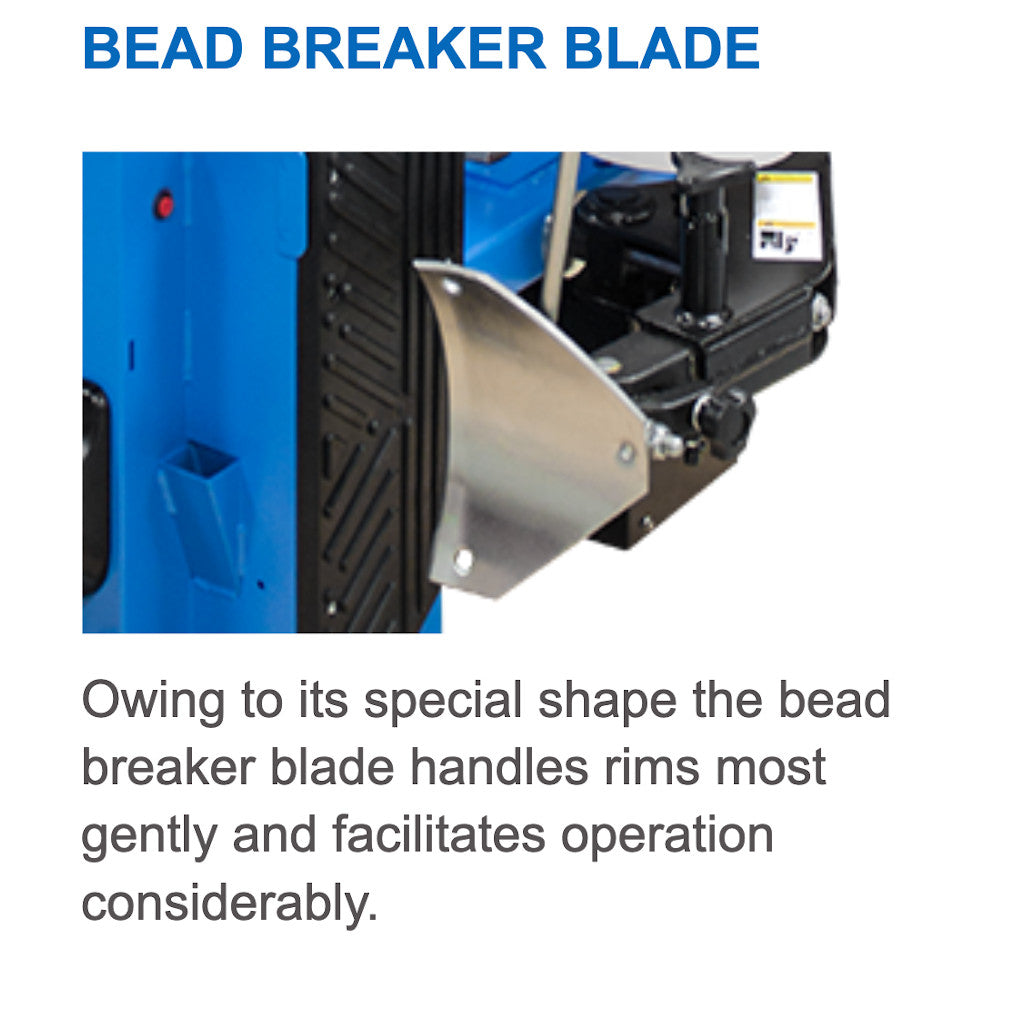

Powerful Two-Position Bead Breaker: 6,000 lbs of power at the bead shovel and a range of up to 17" wide. The two-stage pneumatic cylinder provides precise power and can be toggled with the foot pedal as needed.

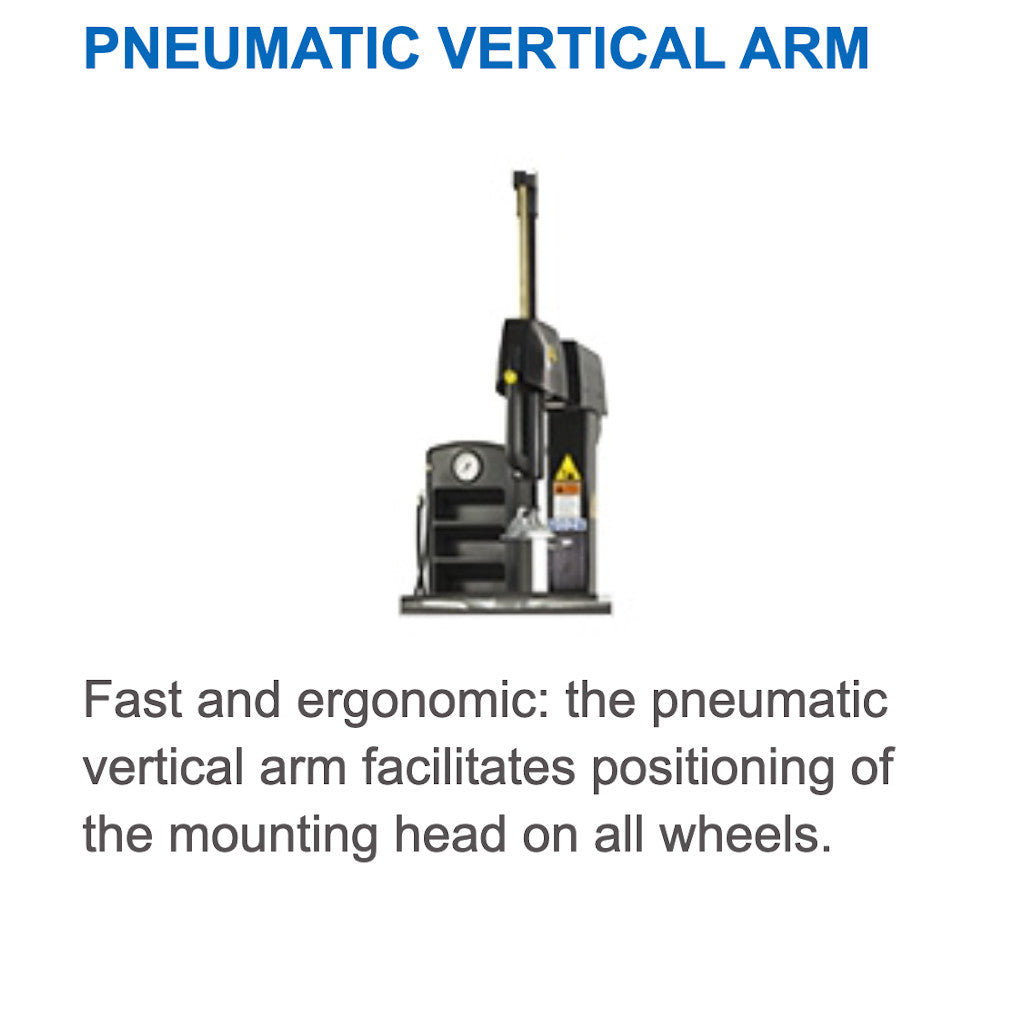

Pneumatically-Controlled Mount/Demount Head: Push-button controlled mount/demount head pneumatically lowers and locks into position, automatically indexing away from the wheel to prevent contact and damage to the wheel and tire assembly.

Protect the Most Delicate Wheels: All metal parts have plastic protection providing non-metal to metal contact when changing delicate wheels.

Accessories Included:

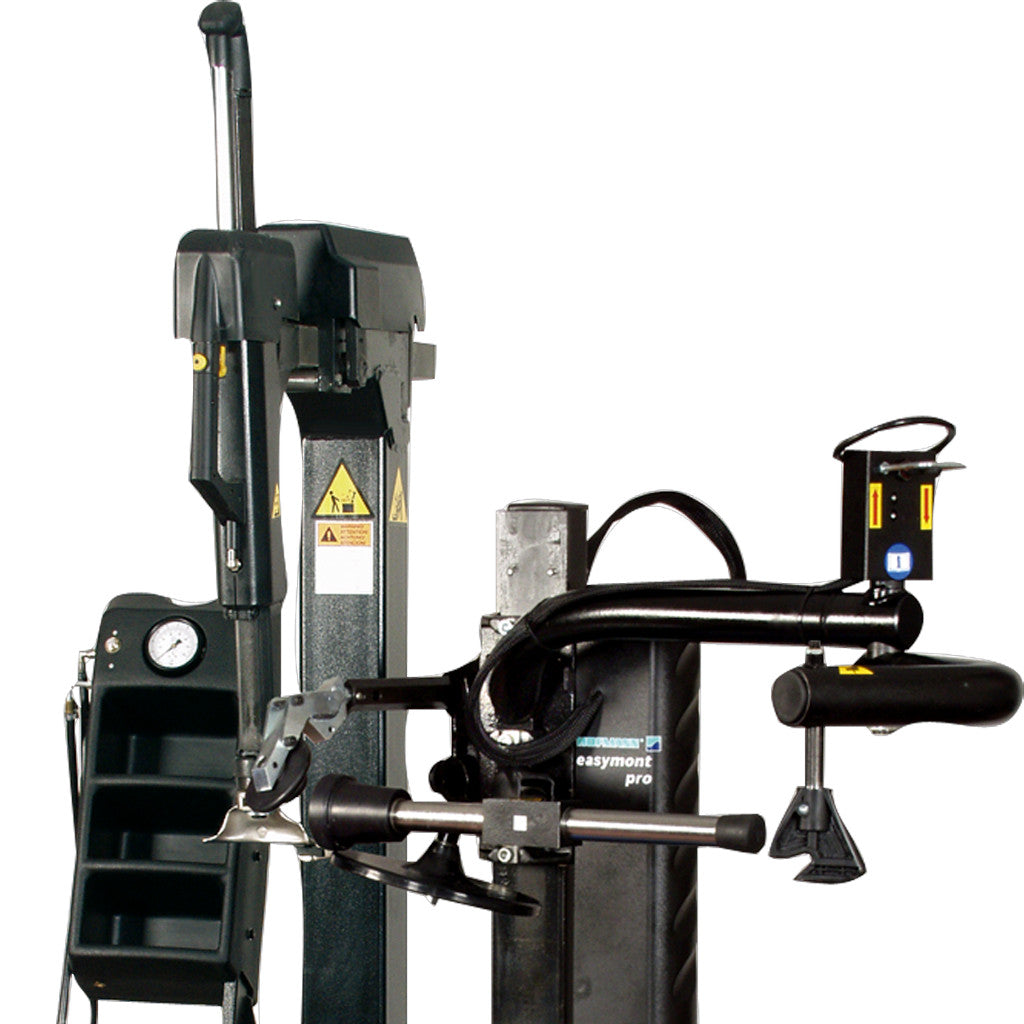

  • EasyMont Pro Bead Assist Device (EAA0329G35B)
  • Automotive Adapters (EAA0332G91A)

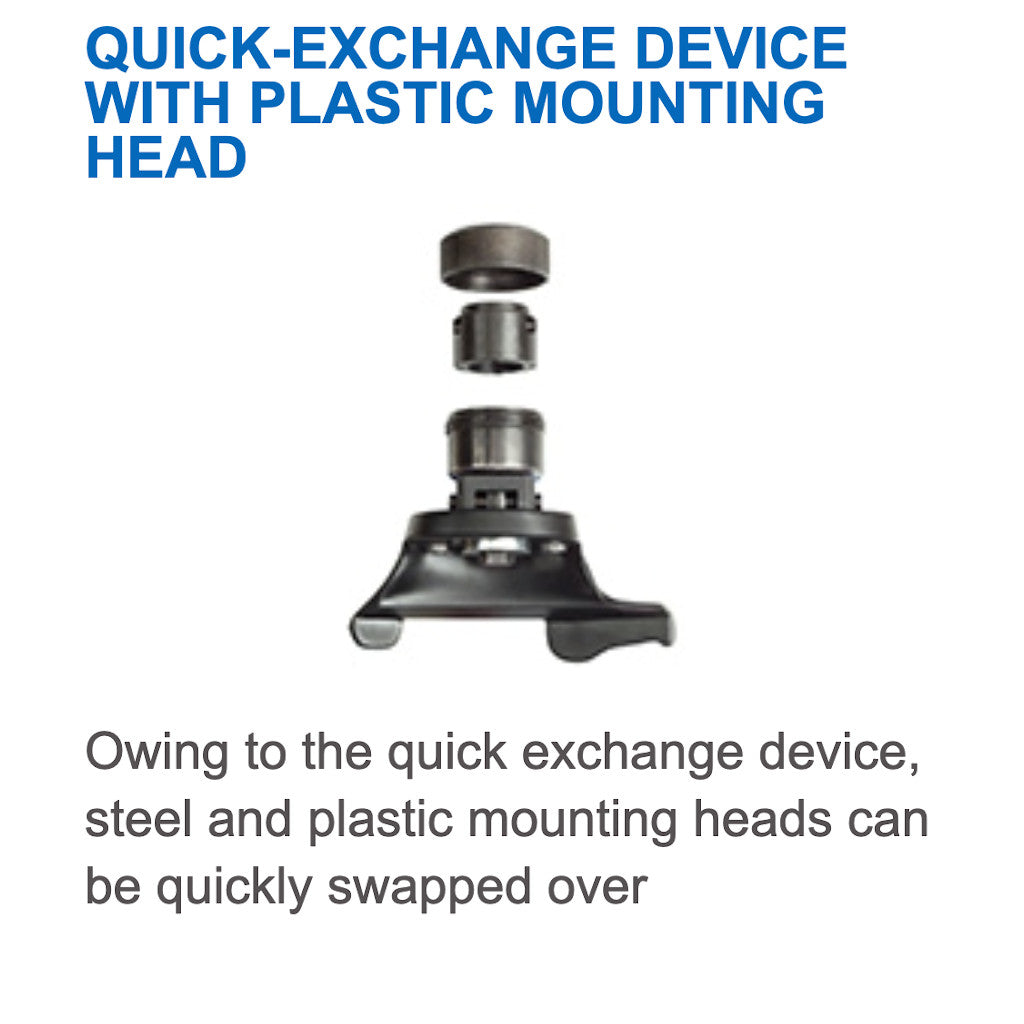

  • Quick Change Bead Head Kit (EAA0304G66A)
  • Protective Cover for Tire Lever (EAA0247G04A)
  • Protective Cover for Bead Breaker Shovel (EAA0304G15A)
  • Rim Protector (EAA0304G15A)
      Technical Data Monty 3550EM with smartSpeed
      Hofmann Part Number EEWH747B
      Overall Wheel Clamping Diameter 12″ - 28″ (30.5 - 71 cm)
      Inner Wheel Clamping Diameter 12″ - 28″ (30.5 - 71 cm)
      Outer Wheel Clamping Diameter 12″ - 26″ (30.5 - 66 cm)
      Bead Breaker Range Position One 2.5″ - 12″ (6 - 30.5 cm)
      Bead Breaker Range Position Two 6″ - 17″ (15 - 43 cm)
      Bead Loosening Power 6000 lbs (2722 kg)
      Shipping Weight 975 lbs (442 kg)
      Single Speed Power Requirements 120 V, 1 Ph, 60 Hz
      smartSpeed Power Requirements
      230 V, 1 Ph, 60 Hz, 16 Amp
      smartSpeed Revolution Speed 7/14 CW, 7 CCW
