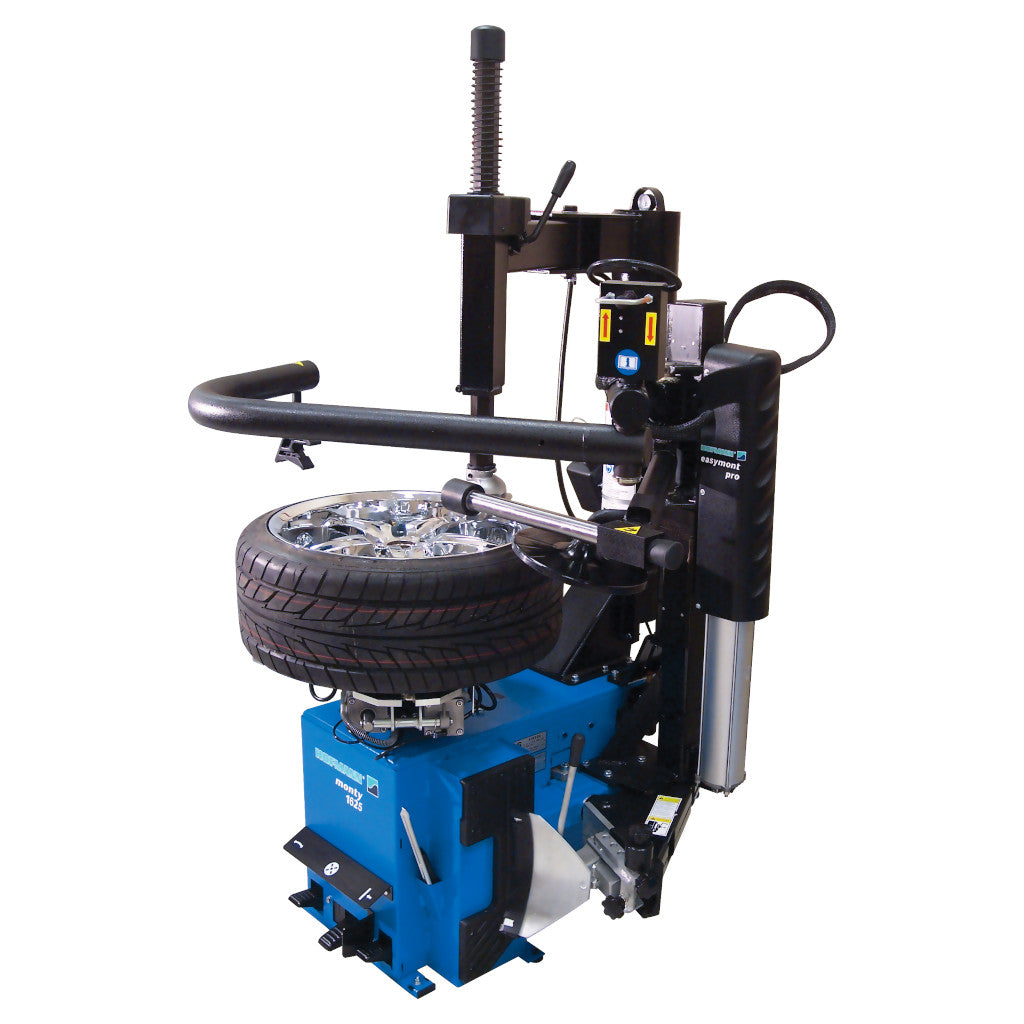

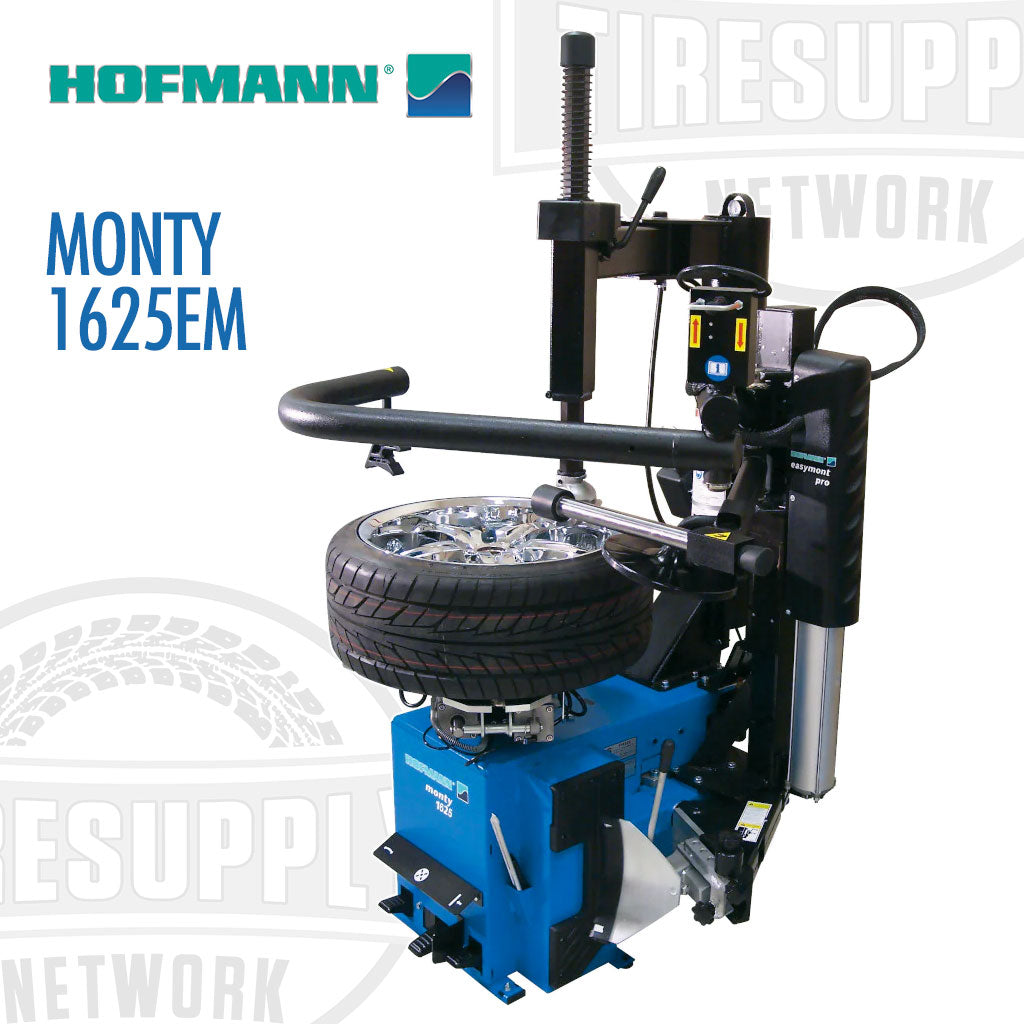

Hofmann | Monty 1625EM Swing-Arm Tire Changer with EasyMont Pro Bead Assist Helper Arm (M1625EM110)
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
The Monty 1625 tire changer is designed for high-volume tire shops, multi-bay repair shops, and car dealerships. The Monty 1625 series swing-arm tire changers feature a 24" outer-wheel clamping standard (28" with optional adapters). These tire changers feature a four-jaw clamping chuck which is self-centering and clamps wheels with either a 26" inner or 24" outer diameter.

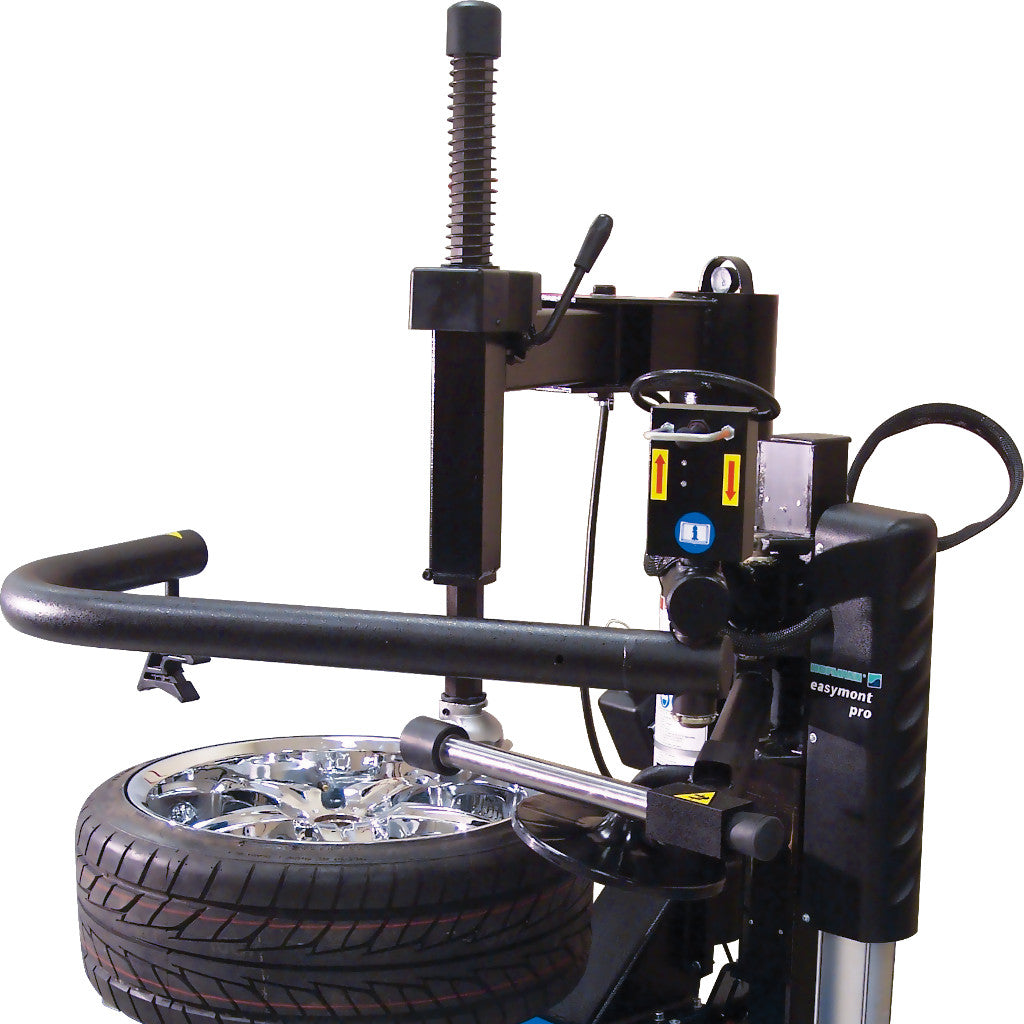

The patented EasyMont Pro Bead Assist on the Monty 1625em holds the bead into the drop center making one-operator tire changes possible on low-profile, high-performance and run-flat tires.
Accommodates Large Wheel & Tire Assemblies: Allowing for a tire diameter of 50" on the Monty 1625 (42" on Monty 1625EM), and outer-wheel diameters of 24". The Monty 1625/1625EM can handle wheel and tire assemblies found on cars and light trucks.
Dual Wheel Clamping Cylinders: Dual pneumatic clamping cylinders control all four clamping jaws, eliminating damage to wheels due to slippage.
Four-Jaw Clamping Chuck: Self-centering and clamps wheels with either 26" inner or 24" outer diameter.

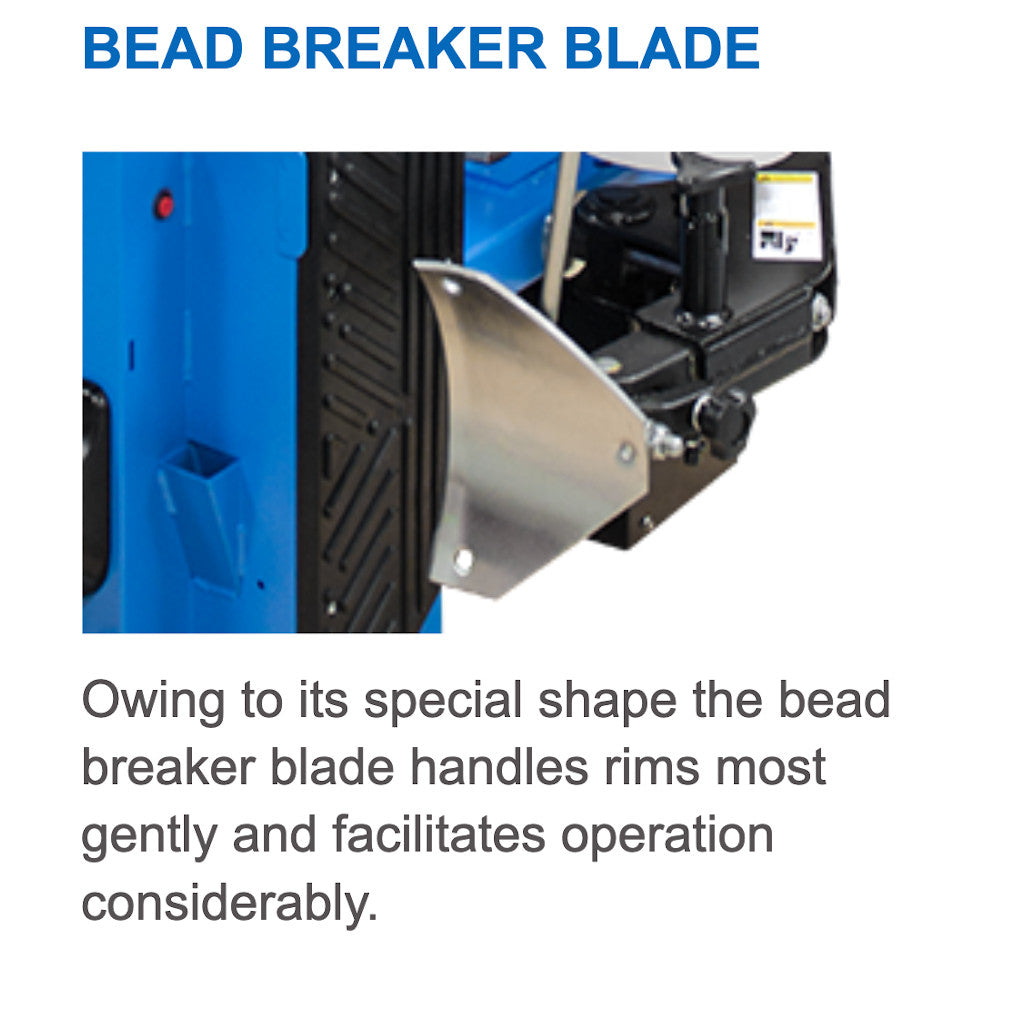

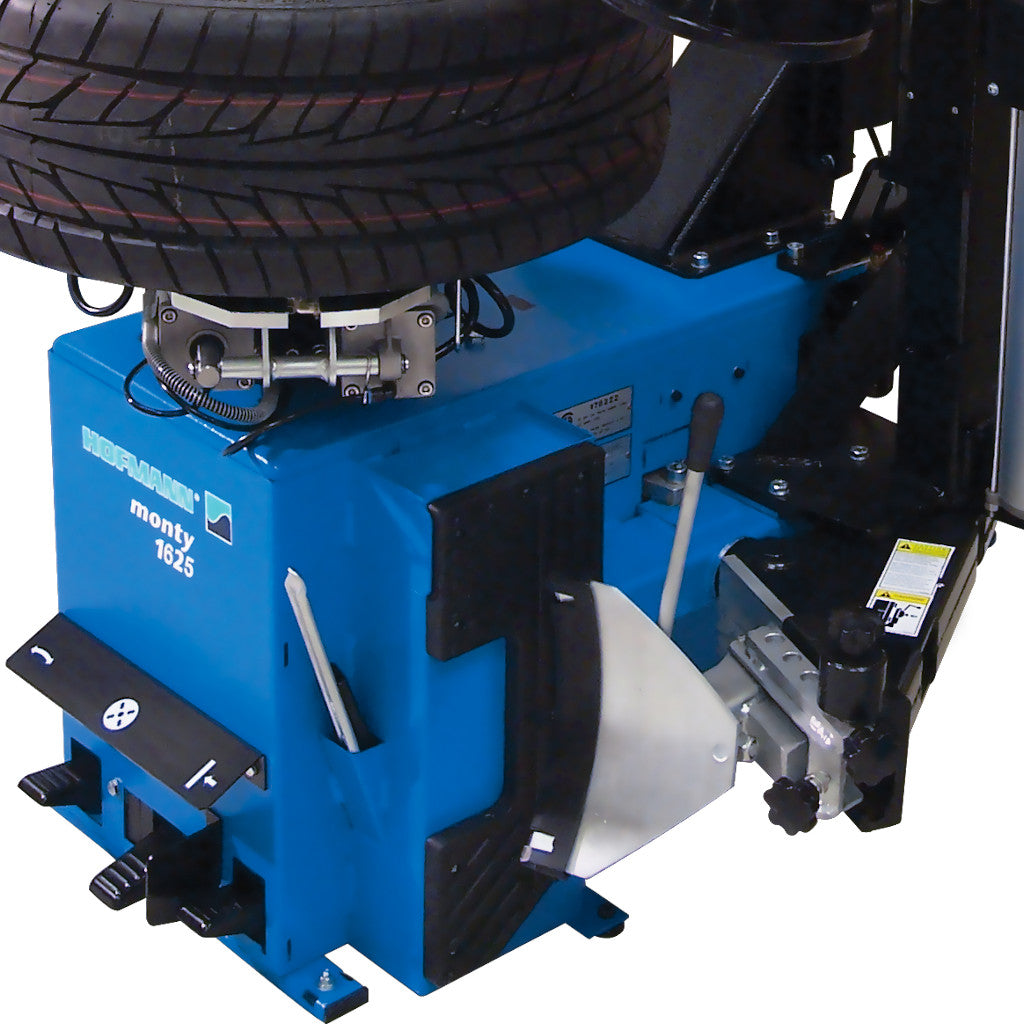

Multi-Position Bead Breaker: 6,000 lbs of power at the bead shovel and a range of up to 18" wide. The two-stage pneumatic cylinder provides precise power and can be toggled with the foot pedal as needed.
Powerful Tire Inflation System: Powerful air blast operated by the foot pedal. Each movable jaw is precisely set to the exact position under the wheel to seal the tire bead.
Built To Last: Heavy, solid 1/2" thick steel clamping table. Rugged steel-reinforced chassis. Rust-proof air cylinders and valves. Compressed air lubricator and regulator on-board.
Accessories Included:
- EasyMont Pro Bead Assist Device (EAA0329G36B)
- Quick Change Bead Head Kit (EAA0304G66A)
- Protective Cover for Tire Lever (EAA0247G04A)
- Protective Cover for Bead Breaker Shovel (EAA0304G15A)
- Rim Protector (EAA0304G52A)
- Round Bar with Roller Attachment (EAA0332G32A)
| Technical Data | Monty 1625EM |
| Hofmann Part Number | M1625EM110 |
| Overall Wheel Clamping Diameter | 10″ - 26″ (25 - 66 cm) |
| Inner Wheel Clamping Diameter | 12″ - 26″ (30 - 66 cm) |
| Outer Wheel Clamping Diameter | 10″ - 24″ (25 - 61 cm) |
| Bead Breaker Range | 2″ - 18″ (5 - 46 cm) |
| Bead Loosening Power | 6000 lbs (2722 kg) |
| Maximum Wheel Width | 15″ (38 cm) |
| Maximum Outer Tire Diameter | 42″ (107 cm) |
| Shipping Weight | 805 lbs (365 kg) |
| Power Requirements | 120 V, 1 Ph, 60 Hz |
