Hofmann | Geoliner 630 Imaging Wheel Alignment System with AC200 Clamps (EEWA721G)
PLEASE NOTE: Sales tax MUST be paid on this item. We will contact you after purchase for sales tax payment.
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

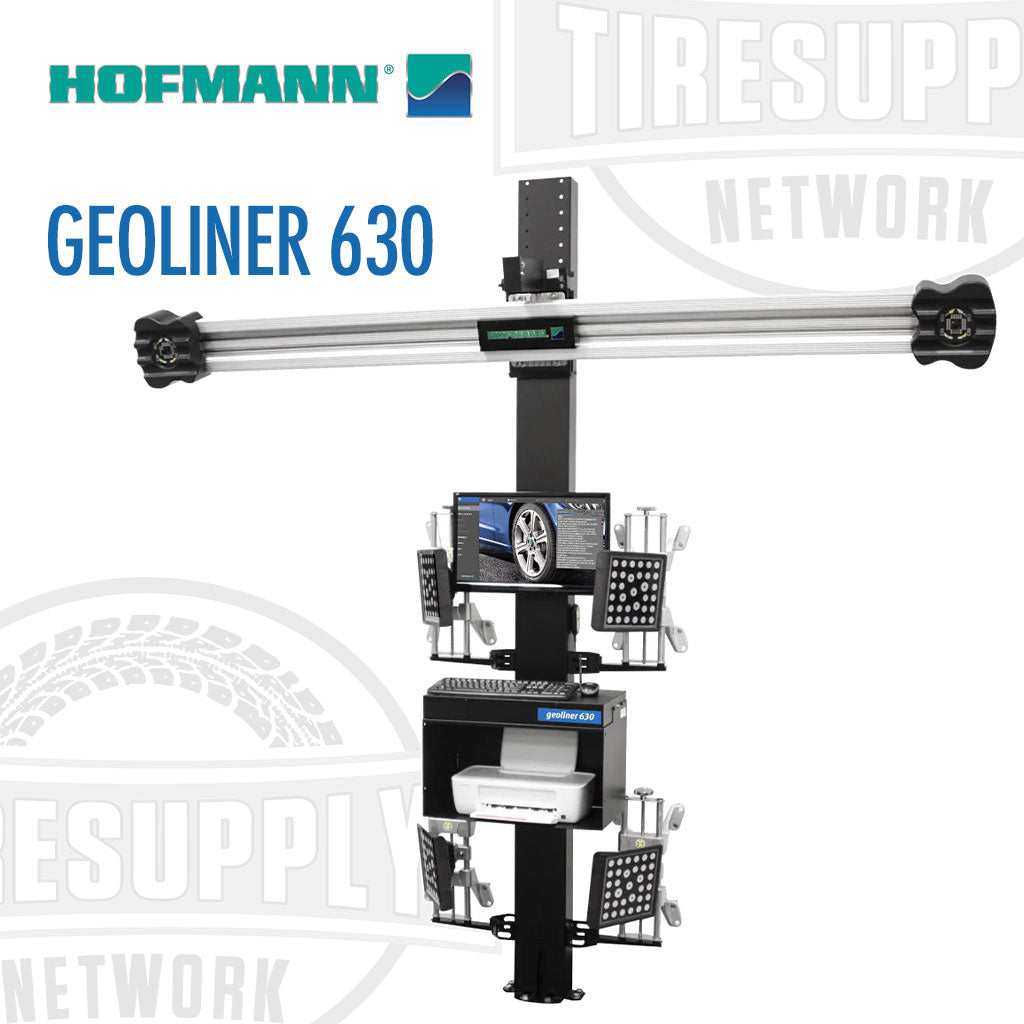

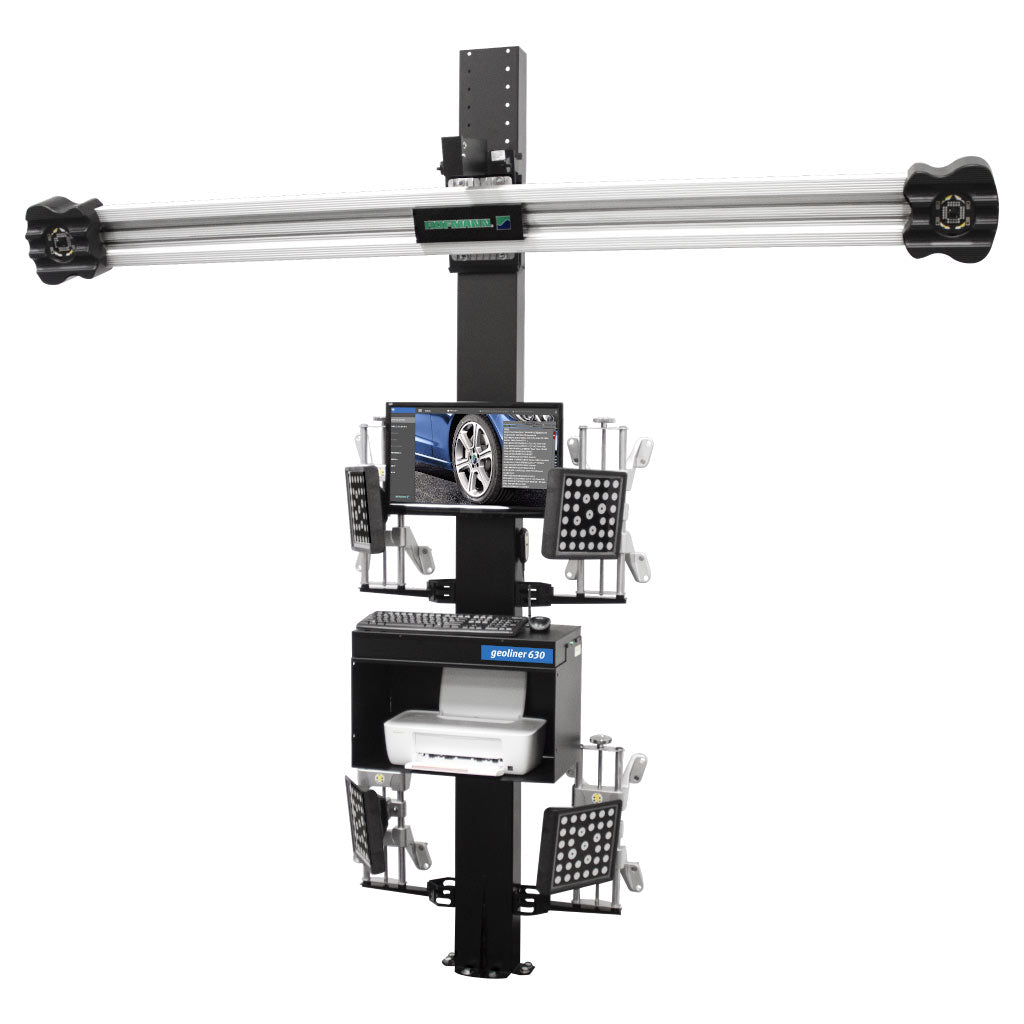

Utilizing advanced imaging technology, the Hofmann Geoliner 630 Imaging Wheel Aligner provides accurate, real-time measurements — reducing setup and measurement times while generating serious productivity benefits. Matched with our latest software, the Geoliner 630 Imaging Wheel Aligner will have your technicians getting readings in a matter of minutes.
Compact All-In-One Installation: With an exclusive tilting beam that allows for alignment at multiple rack heights or on stands.

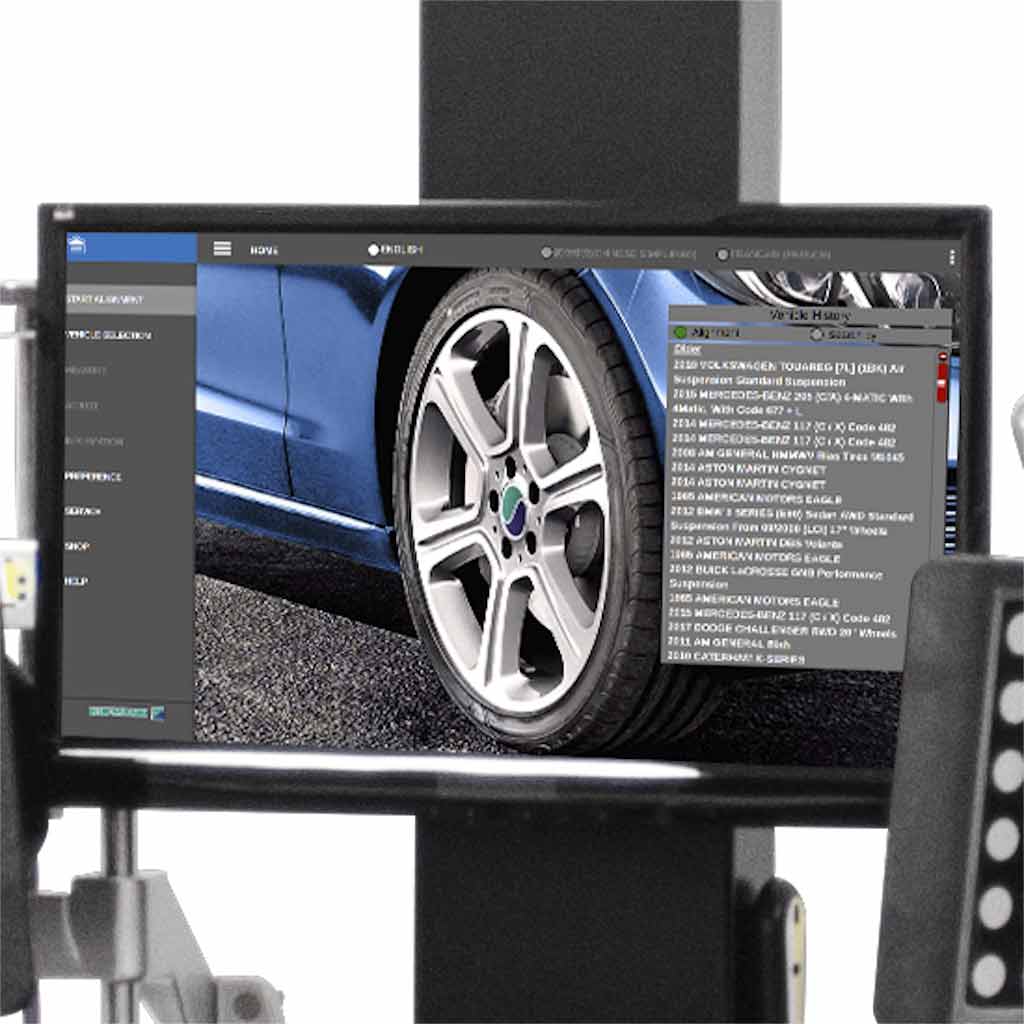

Next-Generation User Interface with Intelligent, Predictive Alignment Flow:
- Quick access to vehicle history from the home screen
- Manual vehicle selection by VIN and with optional VIN scanner
- All-new graphic display optimized for maximum clarity and visibility

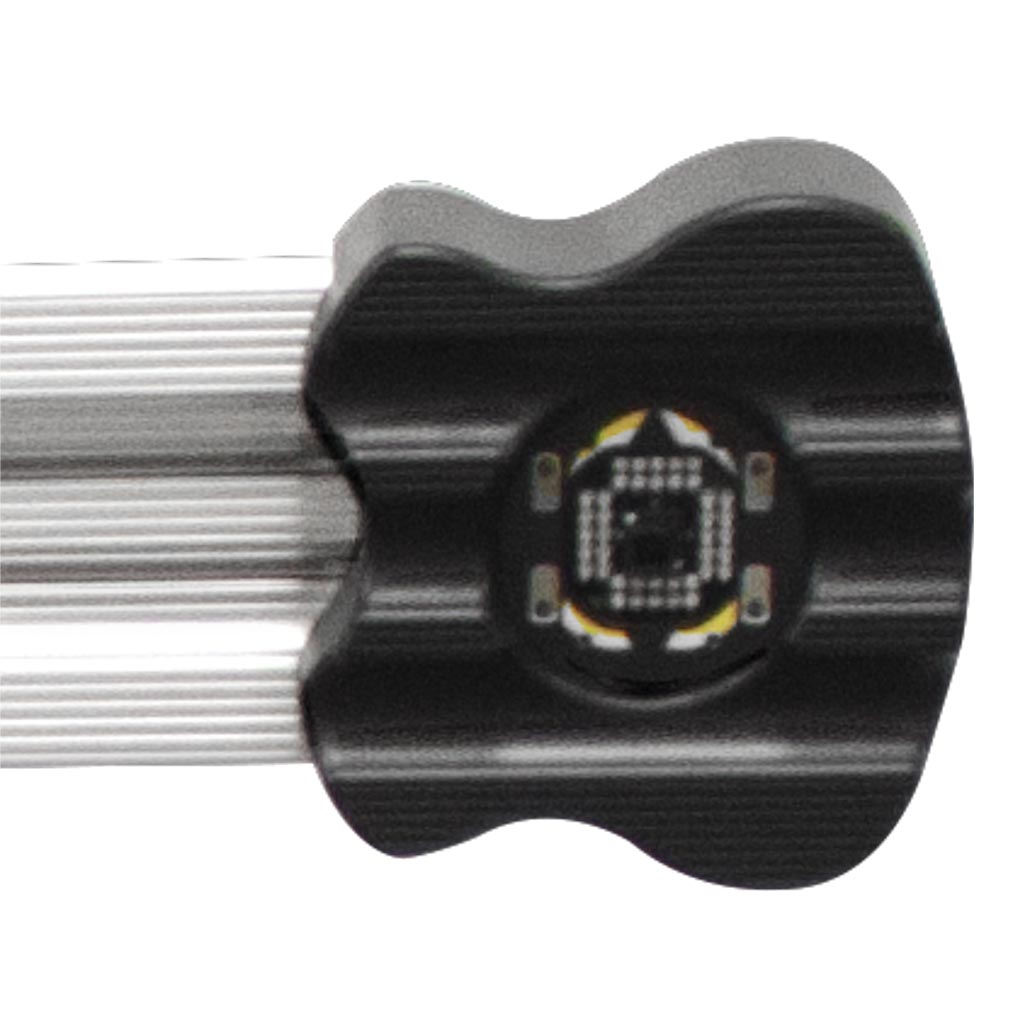

Video Speed Cameras Constantly Monitor The Alignment and Provide Critical Information to Get the Job Done Right: Detection of common environmental conditions and vehicle problems that result in maladjustment.
Patented VODI (Vehicle Orientation Directional Indicator): Guides the technician through the measuring process, reducing the amount of time spent walking back and forth from the vehicle to the aligner.

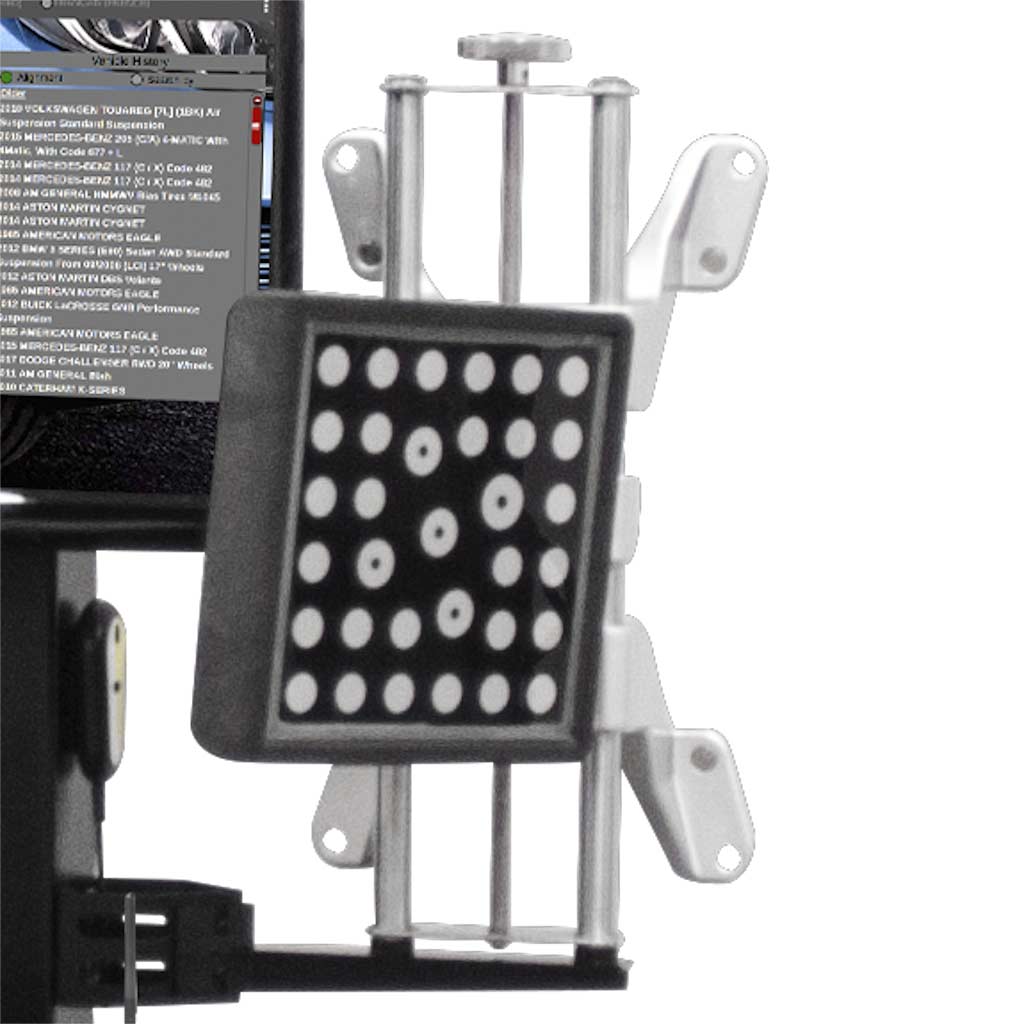

Passive Front and Rear Targets: Provides improved durability with no electronics to damage.
Online Connectivity Automatically Downloads Specifications and Software Updates Allowing Remote Diagnostics for Service:
- Requires customer provided internet connection
- One year of specifications provided
- Single updates and 1-year to 5-year subscriptions are available for purchase
- Enhanced online vehicle repair information is available for one year for no charge with subscription

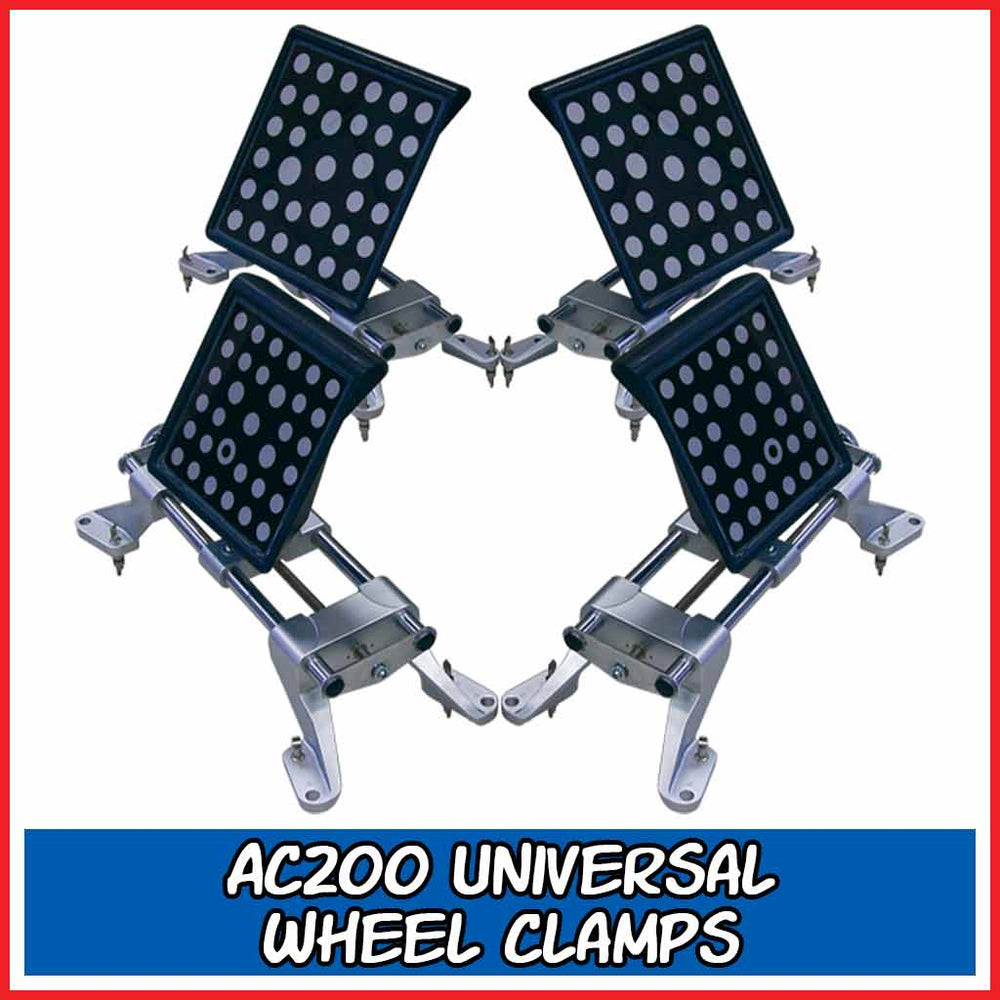

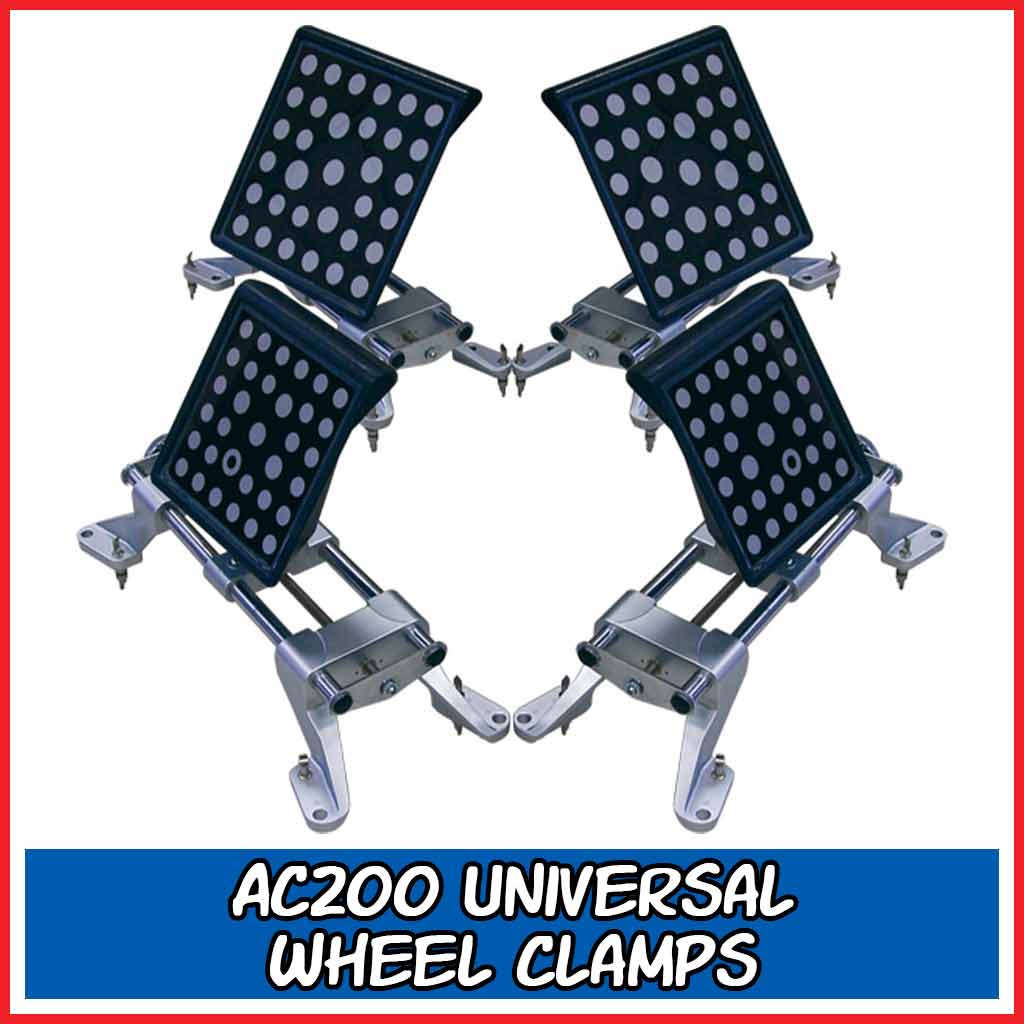

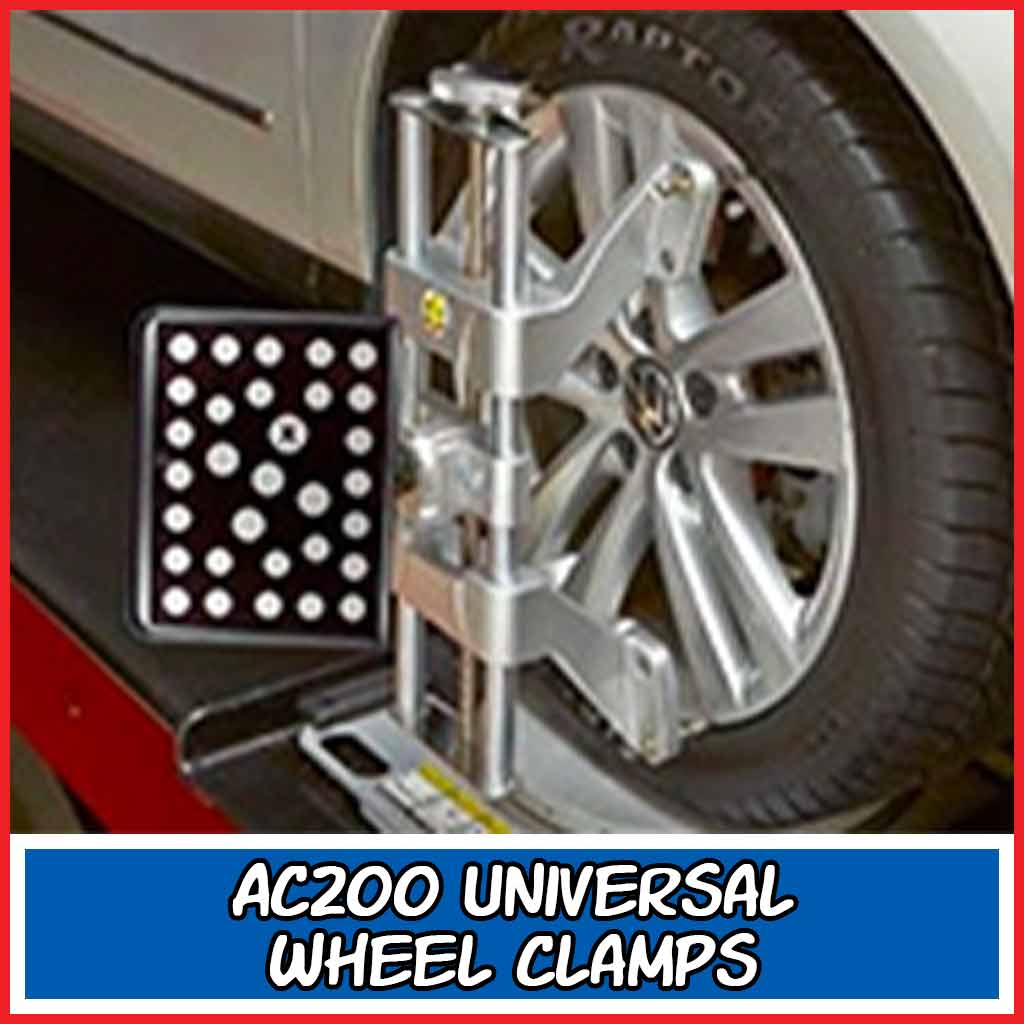

Hofmann AC200 Universal Wheel Clamps:
- Fast and easy to use
- Self-centering design for accurate measurement of the vehicle dimensions
- Two-sided claws eliminate accessories and allow reliable clamping even over hub caps
Standard Accessories Include:
- AC200 Wheel Clamps & Targets
- Brake Pedal Depressor
- Steering Wheel Holder
- (2) Wheel Chocks
- Color Inkjet Printer
| TECHNICAL DATA | Geoliner 630 with AC200 Wheel Clamps |
| Hofmann Part Number | EEWA721G |
| Wheel Size | 13″ - 24″ (33.0 cm - 61.0 cm) |
| Tire Diameter | Up to 37″ (94 cm) |
| Track Width | 48″ - 96″ (121.9 cm - 243.8 cm) |
| Wheel Base | 79″ - 180″ (200.7 cm - 457.2 cm) |
| Power Supply | 115 V, 50/60 Hz, 1 Ph |
| Power Requirements | 120/230 V, 50/60 Hz, 1 Ph |
| Shipping Weight | 501 lbs (227 kg) |
| TECHNICAL DATA | AC200 Wheel Clamps |
| Weight | 11.5 lbs (5.2 kg) |
| Construction | Cast Magnesium |
