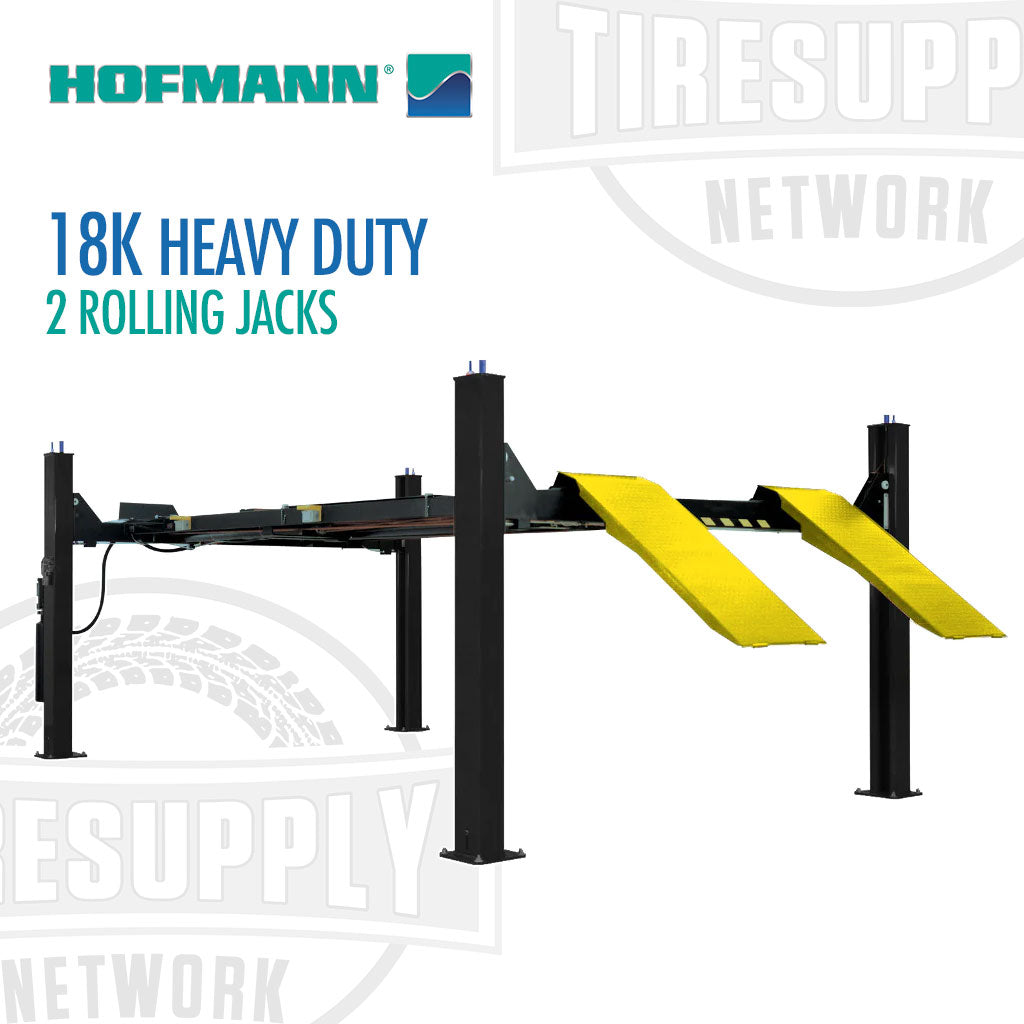

Hofmann FPA18210 Heavy Duty 18K Capacity 4-Post Alignment Lift with 2 Rolling Jacks

Join CLUB5 at Tire Supply Network and save 5% on EVERY order! Learn more

Hofmann FPA18210 Heavy Duty 18K Capacity 4-Post Alignment Lift with 2 Rolling Jacks

PLEASE NOTE: Sales tax MUST be paid on this item. We will contact you after purchase for sales tax payment.

PLEASE NOTE: Installation is NOT included on Vehicle Lifts and Alignment Lifts. If you need installation services, please contact us for an estimate.

This Package Includes:

  • (1) FPA18210 4-Post Lift (18,000 lb capacity)
  • (2) EELR571A Rolling Jacks (9,000 lb capacity each)

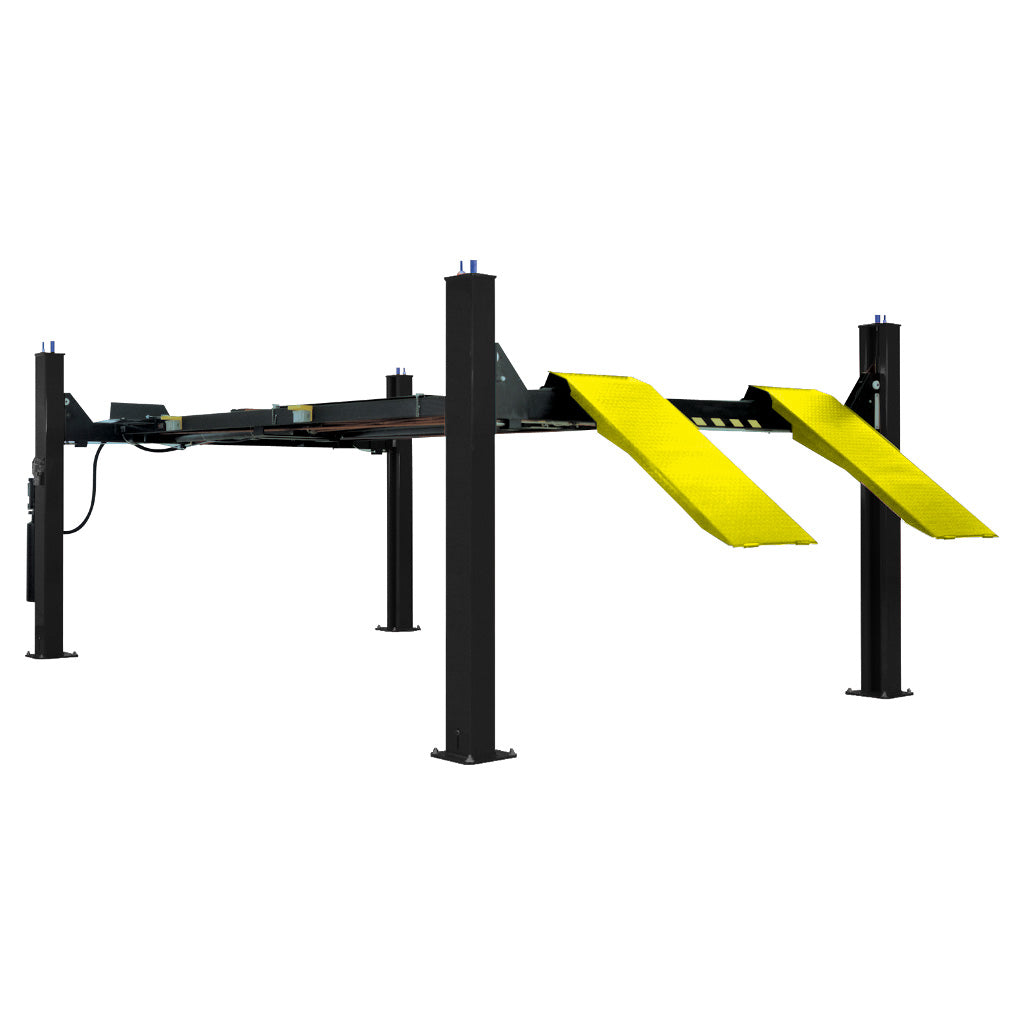

The Hofmann 4-post Alignment Lift offers 18,000 lbs of lifting capability and a lifting system that provides for high-wear resistance and a smooth gliding operation. The 18k 4-post Alignment Lift features 21 positions for maximum flexibility.

Features:

  • Alignment level at twenty positions
  • 24” (60.96cm) Pro-Style decks for wide-track vehicles and no deck adjustment
  • High performance 9/16” diameter, 6 x 37 lifting cables provide durability and added safety
  • Larger 8” pulleys with high performance fiber wound bushings for less wear and longer cable life
  • Dura-Glide lifting system integrates low wear, ultra high molecular weight polyethylene glide blocks to ensure long term alignment accuracy and smooth operation
  • Large profile columns have extra internal reinforced forms to spread and support the load
  • Built in anti-sway system
  • Hidden lifting cylinder mount under the runway adds accessibility and is protected from vehicle damage
  • Hydraulic protection with pressure compensating flow control and velocity fuse check system
  • 65” full floating rear slip plates
  • Stainless air lock release cylinders for each column
  • Long 50” approach ramps provide gentle 10° drive-on angle for lower profile vehicles
  • Filter/Regulator/Lubricator (FRL) protects air systems
  • Certified and approved to the current ANSI/ALI lift standard
                TECHNICAL DATA 18k 4-Post Alignment Lift Package
                Hofmann Part Number FPA18210
                Maximum Capacity 18000 lbs (8165 kg)
                Overall Length 303.375″ (770.6 cm)
                Overall Width 152.125″ (386.4 cm)
                Runway Width 24″ (61 cm)
                4 Wheel Alignment Wheelbase 86″ - 144″ (218.4 cm - 365.8 cm)
                2 Wheel Alignment Wheelbase 203″ (515.6 cm)
                General Service Wheelbase 220″ (558.8 cm)
                Front Accessibility
                Closed
                Ramp Approach Angle (no shims) 10°
                Maximum Raised Height 72″ (182.9 cm)
                Minimum Lowered Height 9.5″ (24.1 cm)
                Lifting Time 70 seconds
                Air Supply Requirements 90 - 120 psi (6 - 8 bar)
                Maximum Operating Pressure 2650 psi (183 bar)
                Power Supply Requirements 230 V, 60 Hz, 1 Ph, 20 Amp
                Shipping Weight 5465 lbs (2484 kg)

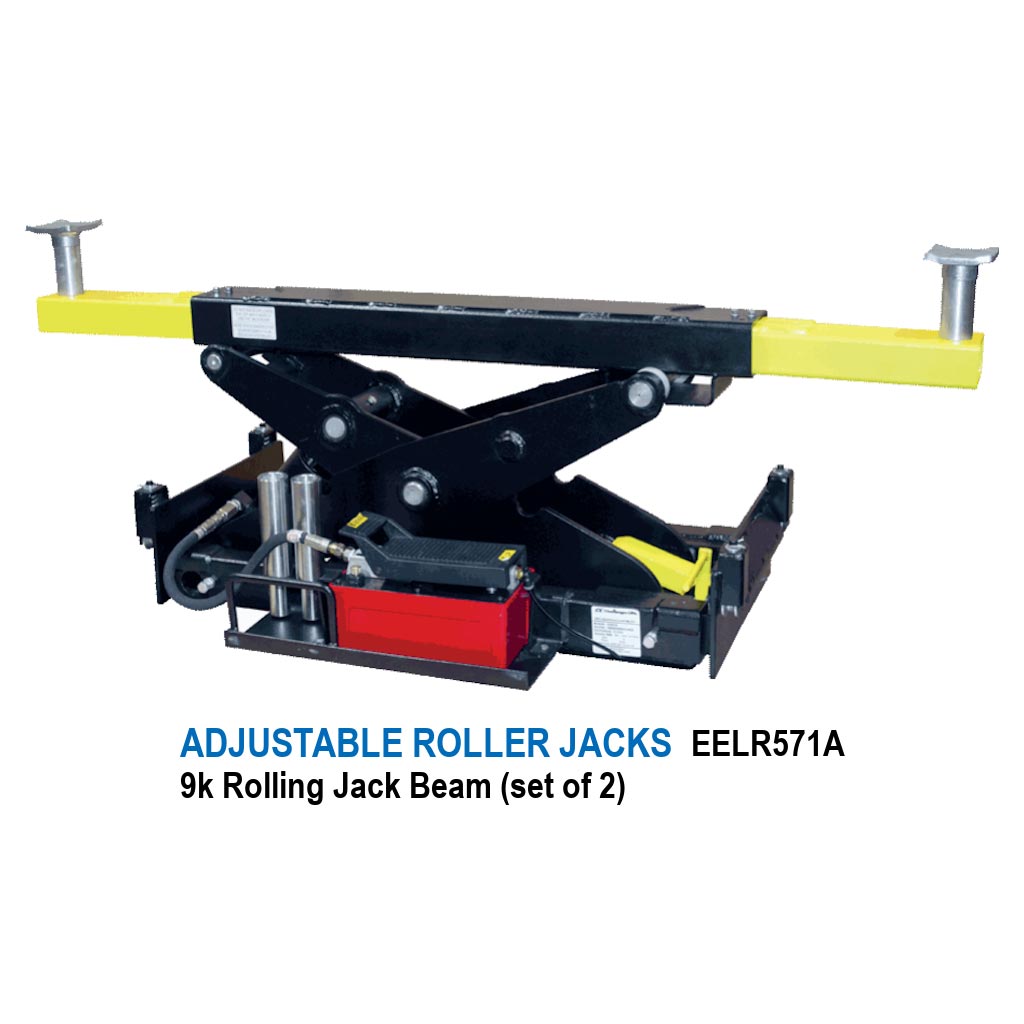

                TECHNICAL DATA Rolling Jack
                Hofmann Part Number EELR571A
                Capacity 9000 lbs (4082 kg)
                Lowered Height 4.75″ (121 mm)
                Raised Height 10″ - 13″ - 19″ (254 - 330 - 483 mm)
                Lift Pad Height 1.5″, 6″ (38 mm, 152 mm)
                Shipping Weight 320 lbs (145 kg)
