Hofmann EELR709APKG Surface Mount 12K Scissor Alignment Lift Package
PLEASE NOTE: Sales tax MUST be paid on this item. We will contact you after purchase for sales tax payment.
PLEASE NOTE: Installation is NOT included on Vehicle Lifts and Alignment Lifts. If you need installation services, please contact us for an estimate.
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

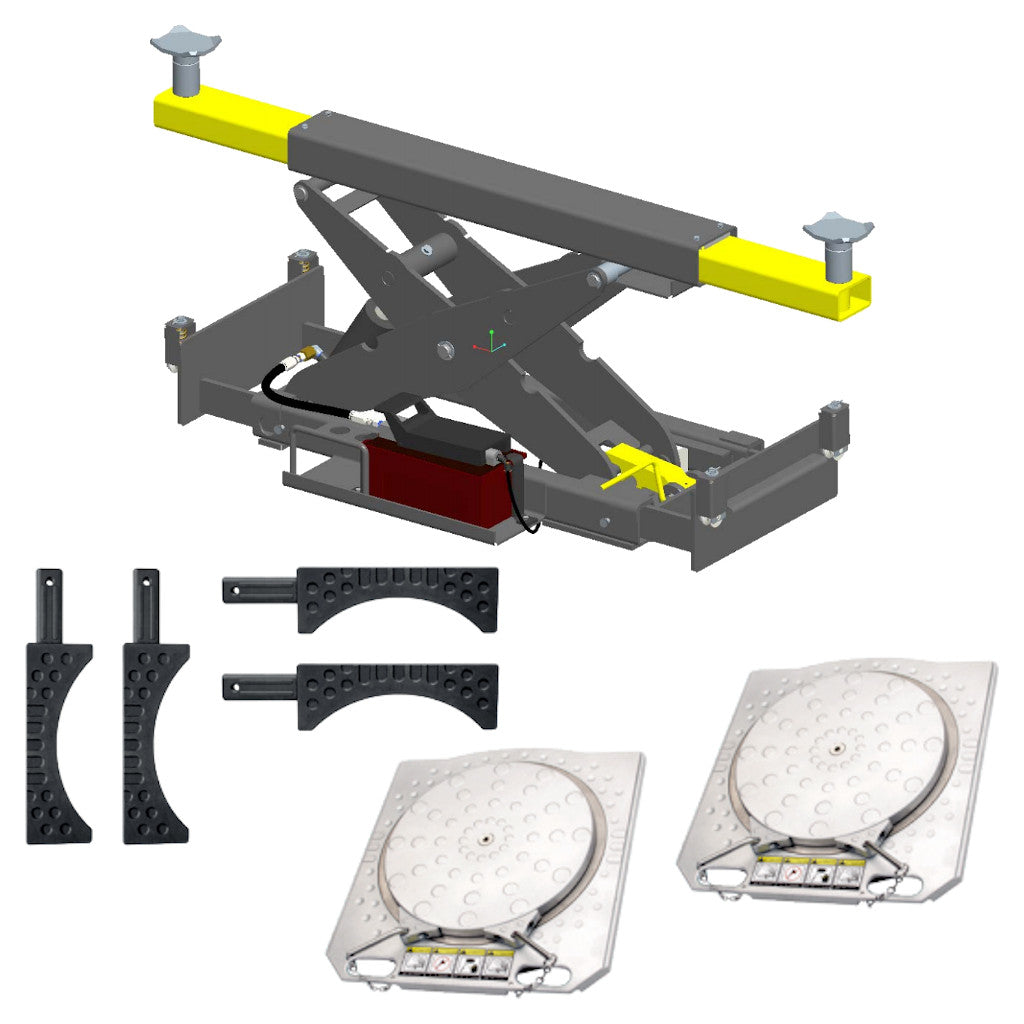

This Package Includes:
- (1) EELR709A Scissor Lift (12,000 lb capacity)

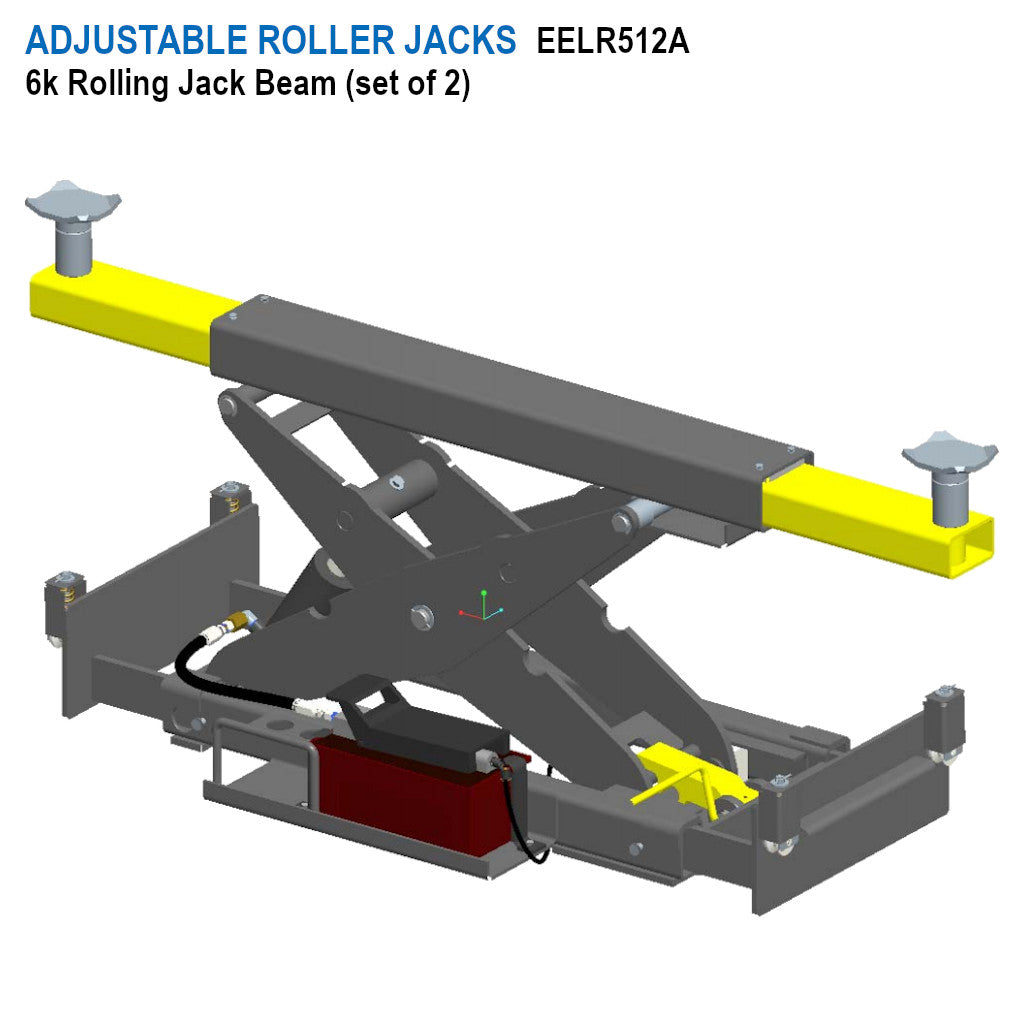

- (2) EELR512A Rolling Jacks (6,000 lb capacity each)

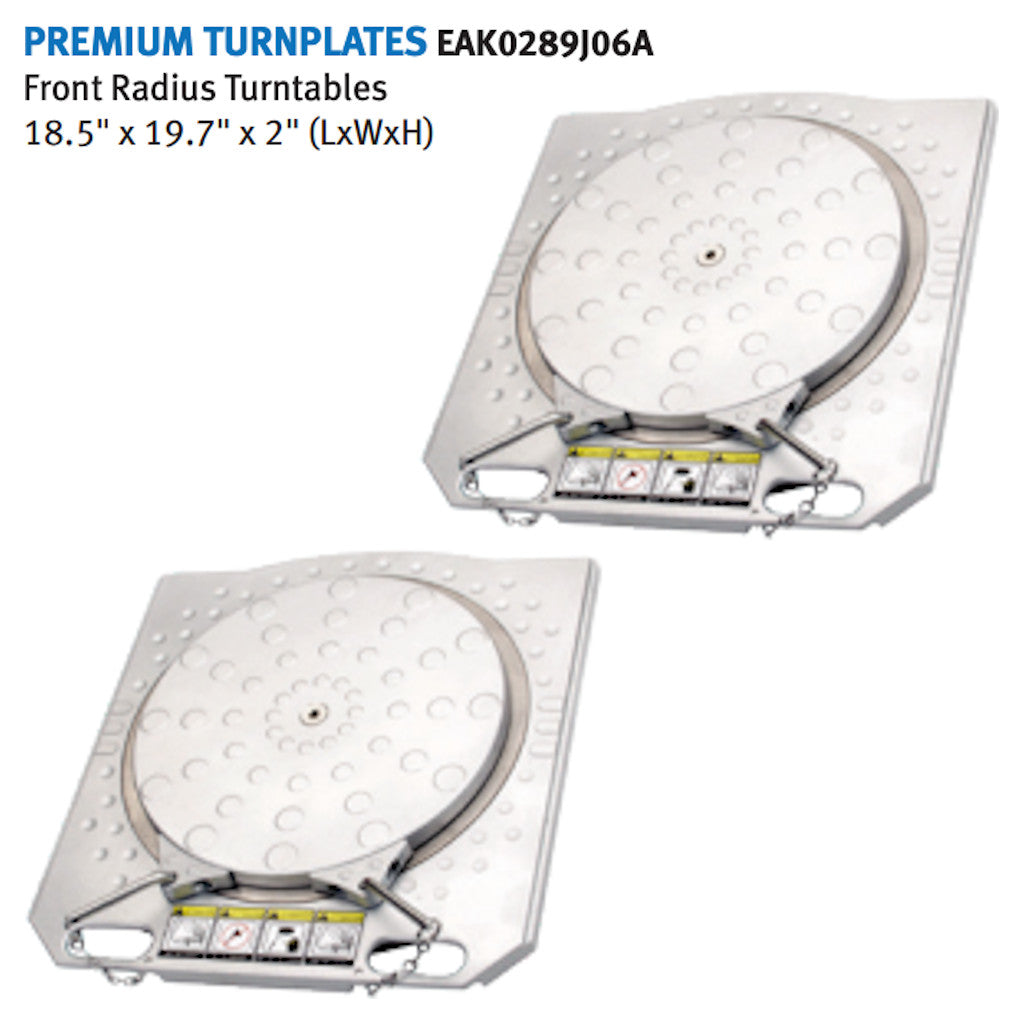

- (2) EAK0289J06A Premium Front Radius Turnplates

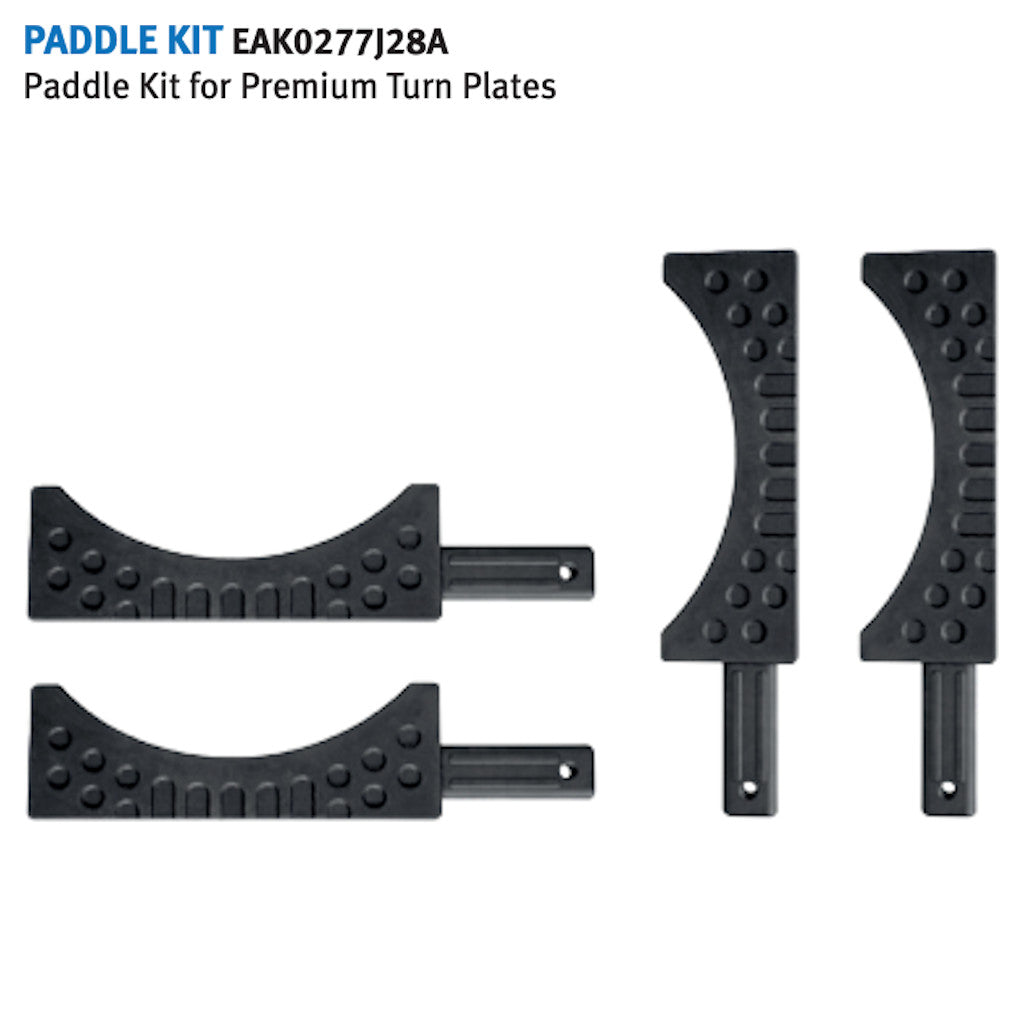

- (1) EAK0277J28A Rollback Paddle Kit

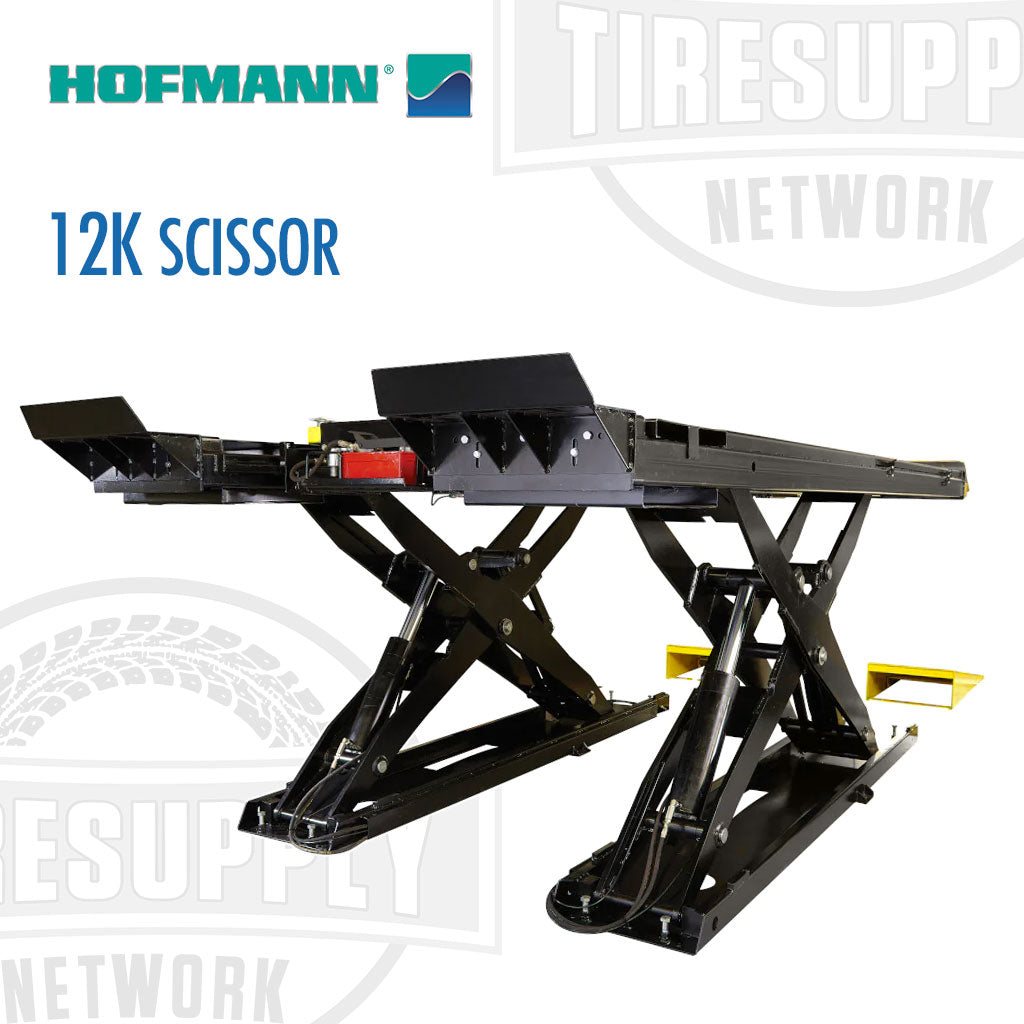

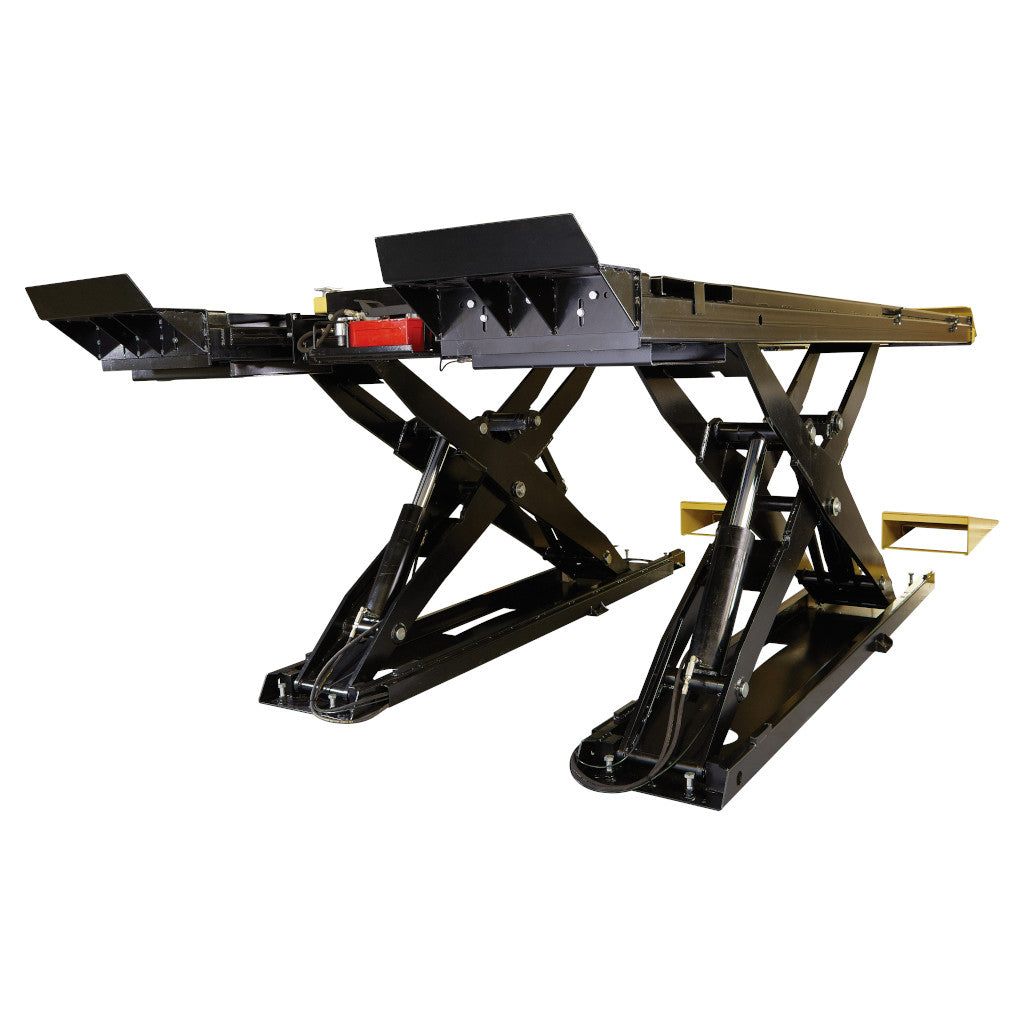

The Hofmann 12k Scissor Alignment Lift is a rugged 12,000 lb capacity scissor alignment lift with an open front design that provides easy access to alignment service and calibration areas.
“Pro-Style” 24" wide runways provide easy drive-on for large vehicles. Hydraulic equalization and full support rear member deliver repeatable smooth level lifting. Flush mounted rear slip plates with heavy-duty encapsulated bearings support and offer smooth movement to ease rear alignment adjustments.
User Flexibility:
- Adjustable turnplate pocket depth ensures level positioning of turnplates
- Expandable approach ramps provide multi tiered drive on approach to suit vehicle clearance and bay length. Extends up to 87". Retracts into itself 35" minimum
- Each heavy duty rolling jack is easy to position and provides 6,000 lbs of wheelfree lifting
Features:
- Lifts straight up - no for or aft movement
- Cross aligned heavy duty hydraulic cylinders maintain constant level lifting with supporting reinforcing rear mount cross member
- Dual engaging twin interlocking mechanical safety racks with pneumatic release
- Smooth lift operation with captured re-enforced glide blocks
- Single point safety lock release system
- Compact, enclosed control console
- On-board Filter/Regulator/Lubricator (FRL) protects air systems
- Powder coat finishing with non-skid runway platform surface
- Certified to the current ANSI/ALI ALCTV:2011 lift standard
| TECHNICAL DATA | 12k Scissor Alignment Lift Package |
| Hofmann Part Number | EELR709APKG |
| Maximum Capacity | 12000 lbs (5443 kg) |
| Overall Width | 90″ (228.6 cm) |
| Width Between Runways | 40″ (101.6 cm) |
| Overall Length | 242″ - 294″ (614 cm - 747 cm) |
| 4 Wheel Alignment Wheelbase | 89″ - 158″ (226 cm - 401 cm) |
| 2 Wheel Alignment Wheelbase | Up to 165″ (419 cm) |
| General Service Wheelbase | 179″ (455 cm) |
| Runway Surface Width | 24″ (61 cm) |
| Maximum Raised Height | 70″ (178 cm) |
| Lifting Time at Full Load | 95 seconds |
| Lowering Time at Full Load | 45 seconds |
| Air Supply Requirements | 90 - 140 psi @ 5 - 10 cfm |
| Power Supply Requirements | 230 VAC, 50/60 Hz, 1 Ph |
| Shipping Weight | 6615 lbs (3001 kg) |
| Console Dimensions (DxWxH) | 16.5″ x 14.125″ x 45.75″ |
| TECHNICAL DATA | Rolling Jack |
| Hofmann Part Number | EELR512A |
| Capacity | 6000 lbs (2722 kg) |
| Minimum Arm Reach | 37″ (94 cm) |
| Maximum Arm Reach | 56″ (142 cm) |
| Minimum Working Height with Adapter | 4″ (10 cm) |
| Fully Raised without Extension Adapter | 14″ (35.5 cm) |
| Extension Adapter | 2.44″ (5 cm) |
| TECHNICAL DATA | Premium Front Radius Turnplates |
| Hofmann Part Number | EAK0289J06A |
| Dimensions (LxWxH) | 18.5″ x 19.7″ x 2″ |
