Hofmann | 15K 4-Post Standard Length Alignment Lift Package - Choose Regular or Galvanized (EELR706*PKG)
PLEASE NOTE: Sales tax MUST be paid on this item. We will contact you after purchase for sales tax payment.
PLEASE NOTE: Installation is NOT included on Vehicle Lifts and Alignment Lifts. If you need installation services, please contact us for an estimate.
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

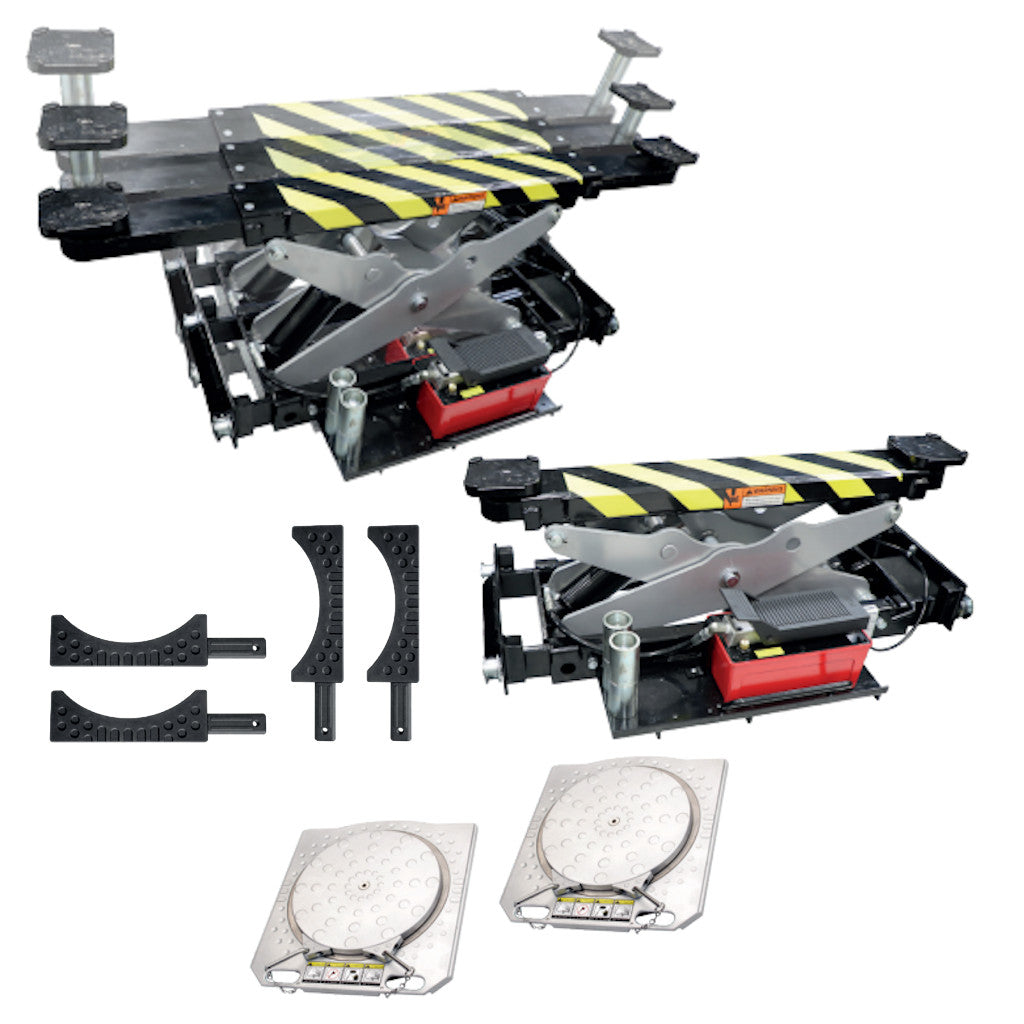

This Package Includes:
- (1) EELR706APKG (Regular) 4-Post Lift (15,000 lb capacity)
- OR
- (1) EELR706GPKG (Galvanized) 4-Post Lift (15,000 lb capacity)

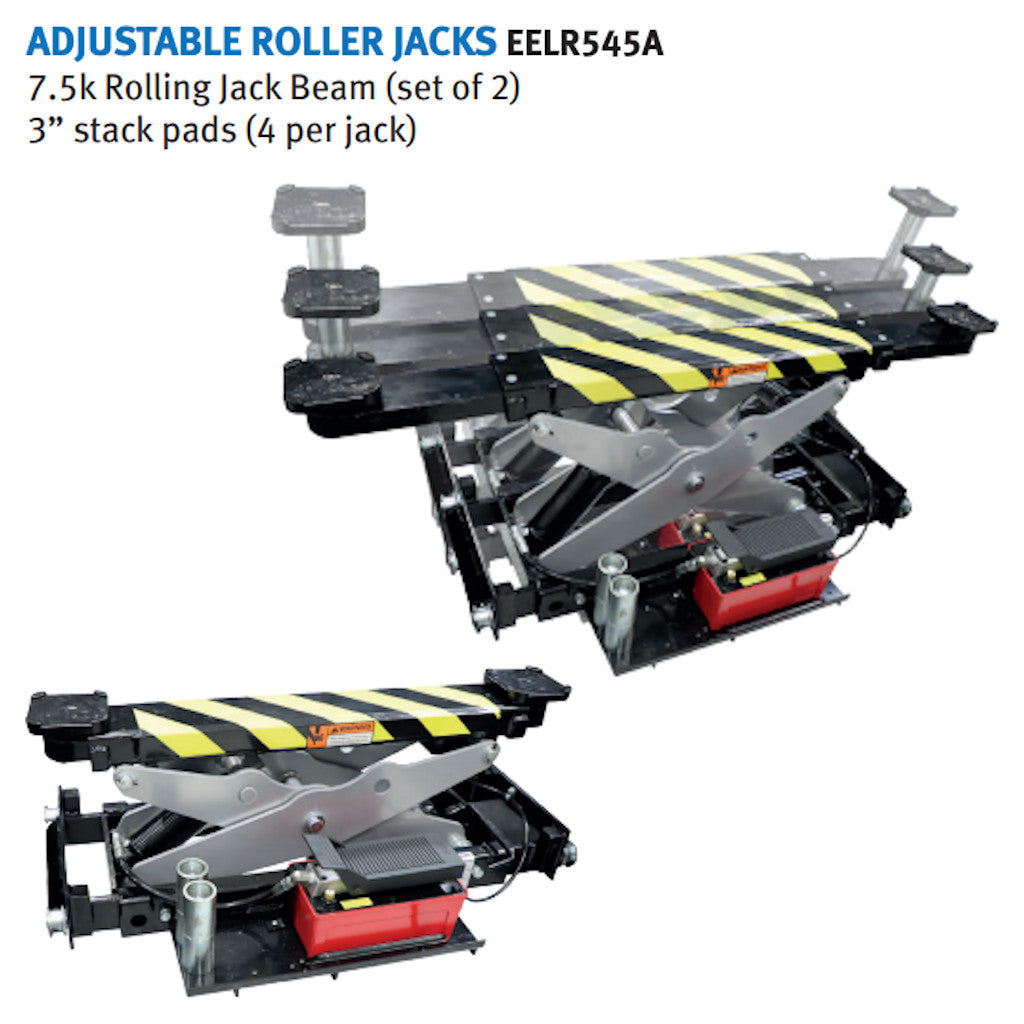

- (2) EELR545A Rolling Jacks (7,500 lb capacity each)
- (2) EAK0289J06A Premium Front Radius Turnplates

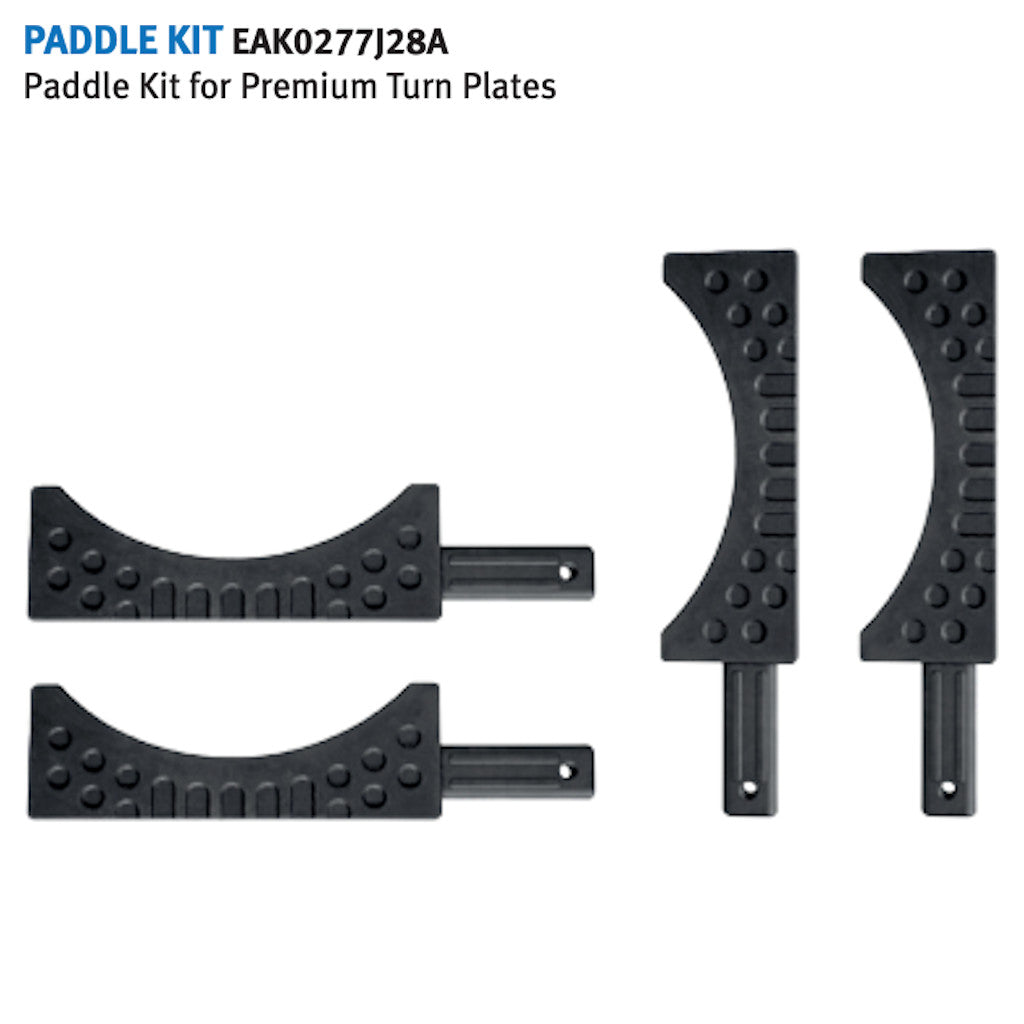

- (1) EAK0277J28A Rollback Paddle Kit

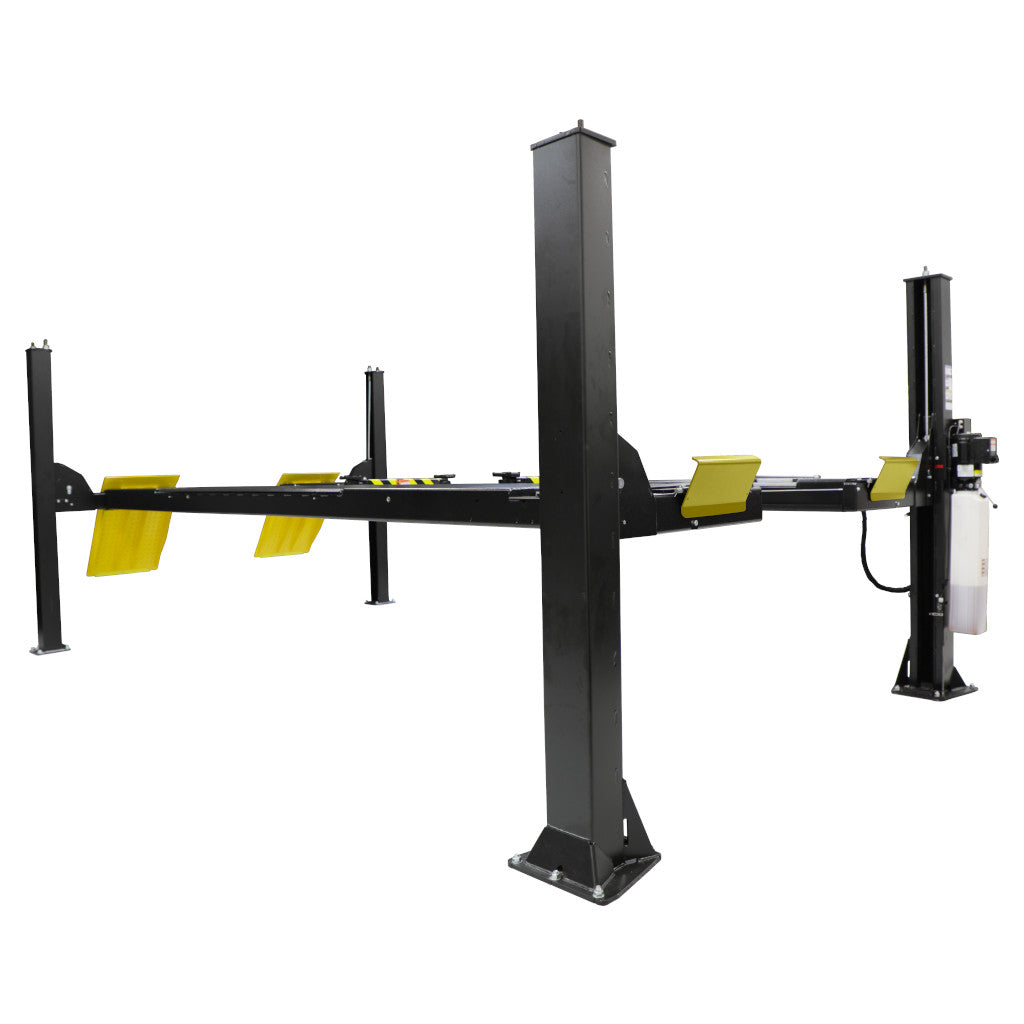

Accommodating, accessible, and equipped - the Hofmann 15k 4-post Alignment Lift is designed for the modern era of automotive service with a robust and refined structure made for professional-grade lifting.

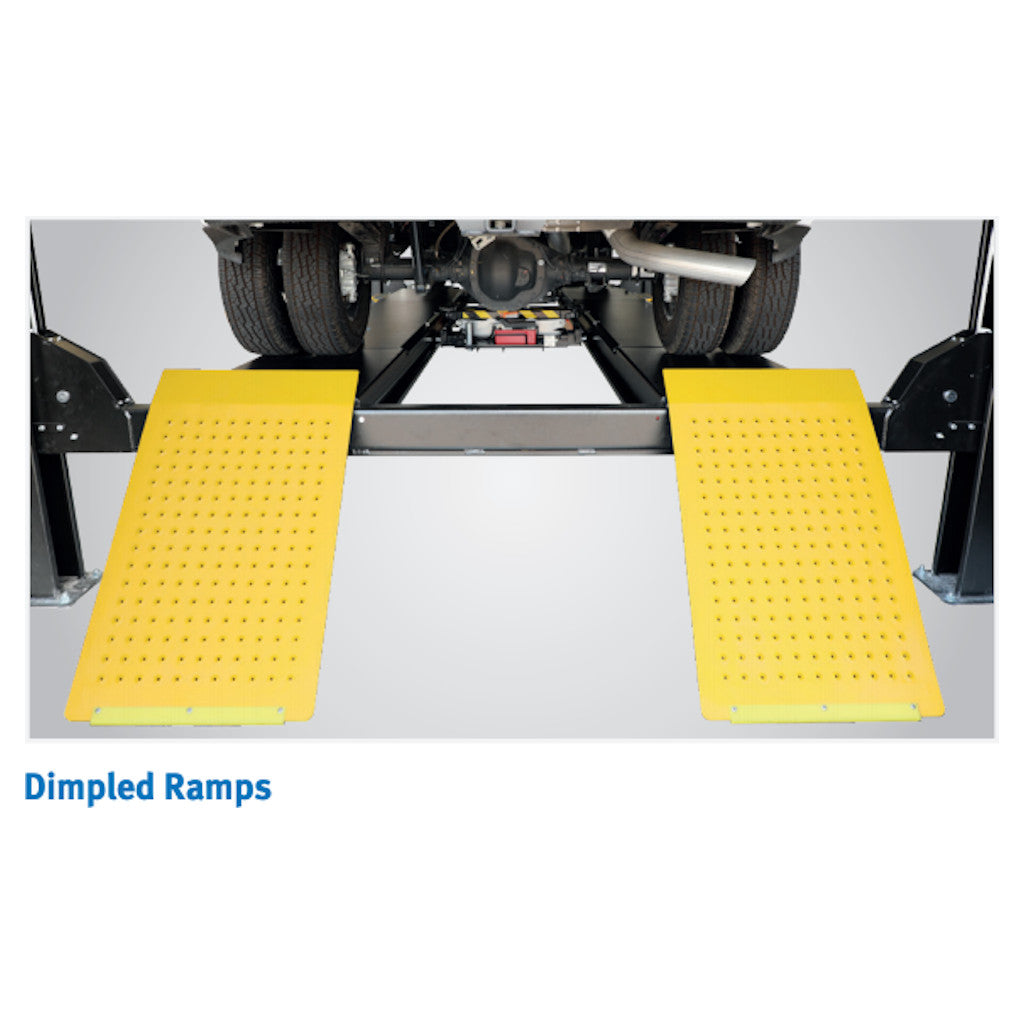

Offering a heavy-duty lifting capacity of 15,000 lbs., convenient open-front construction, ultra-wide runways, and extended 100” rear slip plates with easy-access low-approach ramps, this 4-post lift is equipped to handle a diverse range of vehicles and take your service work to the next level.
Available in two lengths: standard and extended, this lift is certified to the industry's leading ANSI/ALI automotive lift standard.
- EELR706APKG Standard
- EELR706GPKG Standard Galvanized
- EELR708APKG Extended
- EELR708GPKG Extended Galvanized
Lights and Locks models also available:
- EELR706LLPKG Standard
- EELR706GLLPKG Standard Galvanized
- EELR708LLPKG Extended
- EELR708GLLPKG Extended Galvanized

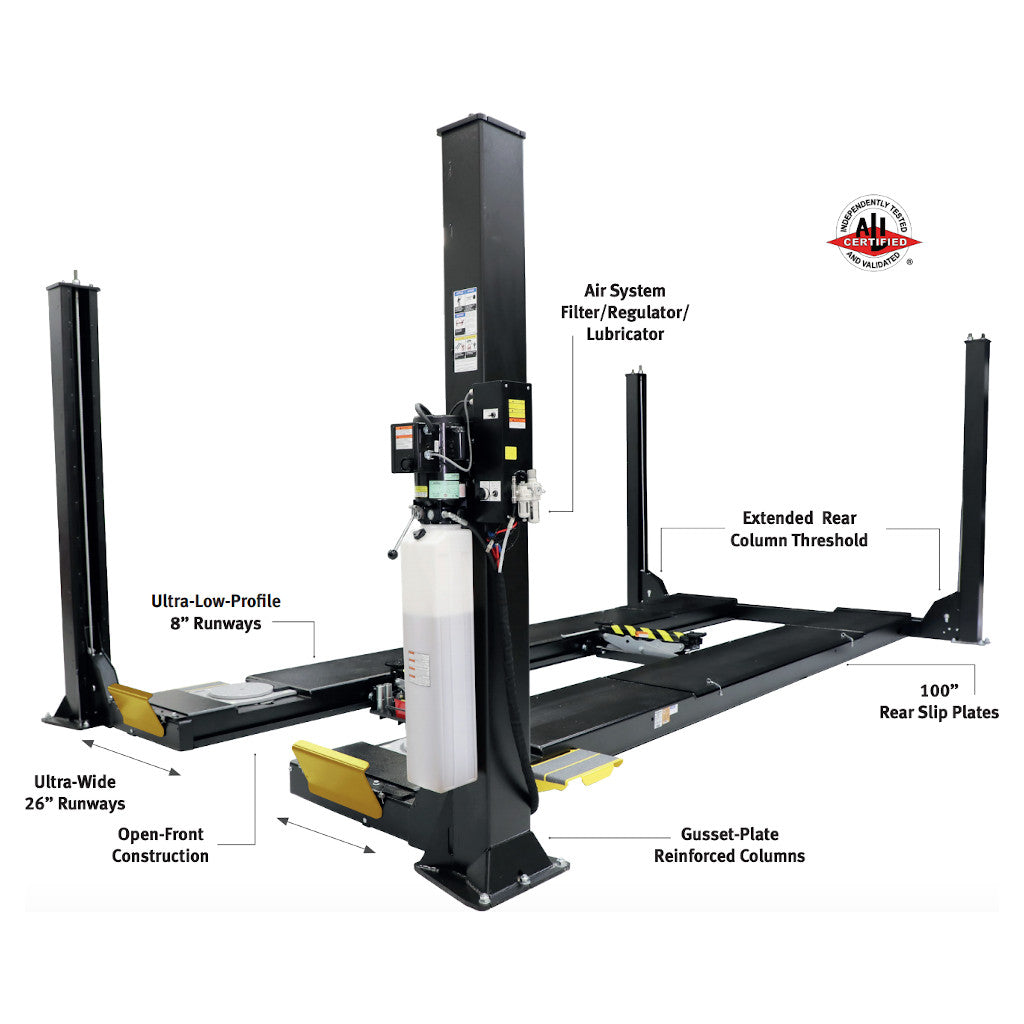

Expanded clearance and extended runways:
- 120” drive-on clearance / 125” body clearance allows dual-wheel trucks to drive on without interference

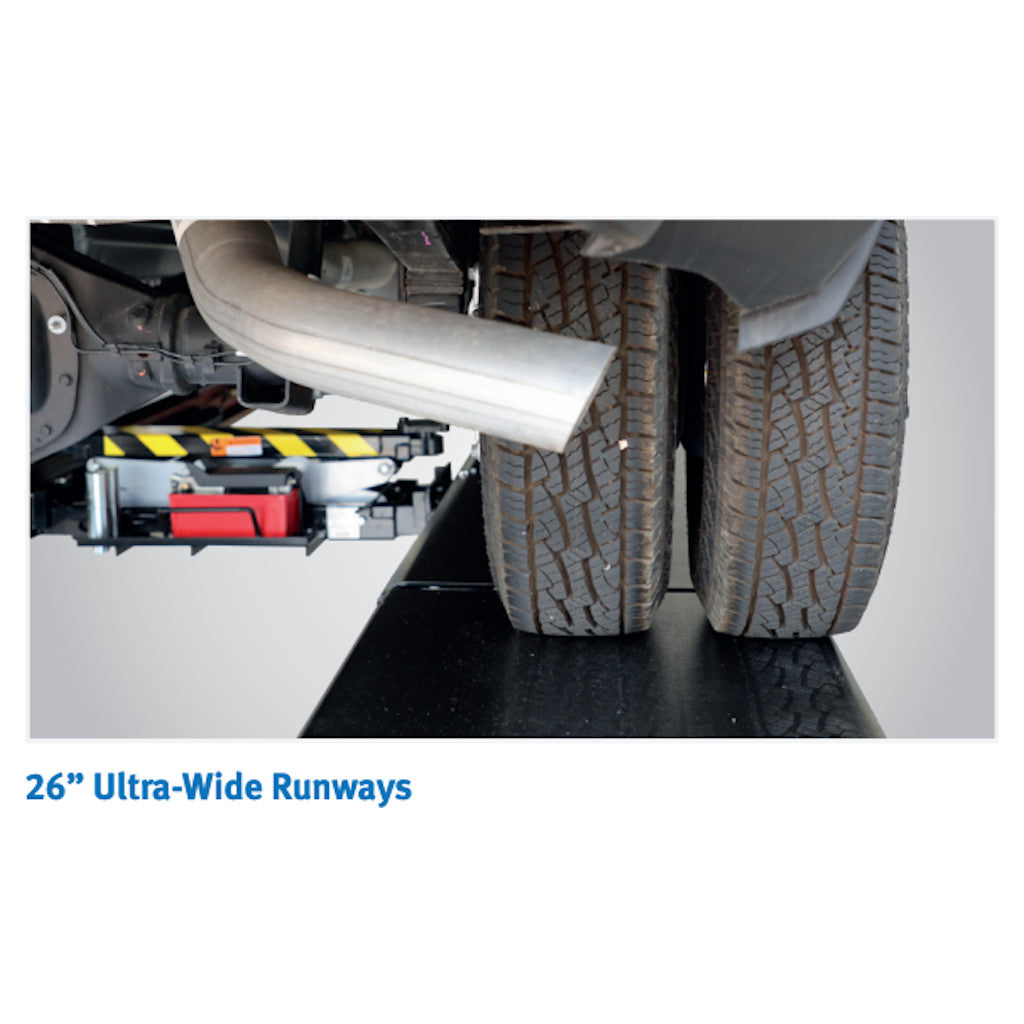

- Best-in-class, ultra-wide, 26” runways accommodate wide-track vehicles
- Ultra-low-profile, 8” runways allow “easy-on” approach angle for low-profile vehicles

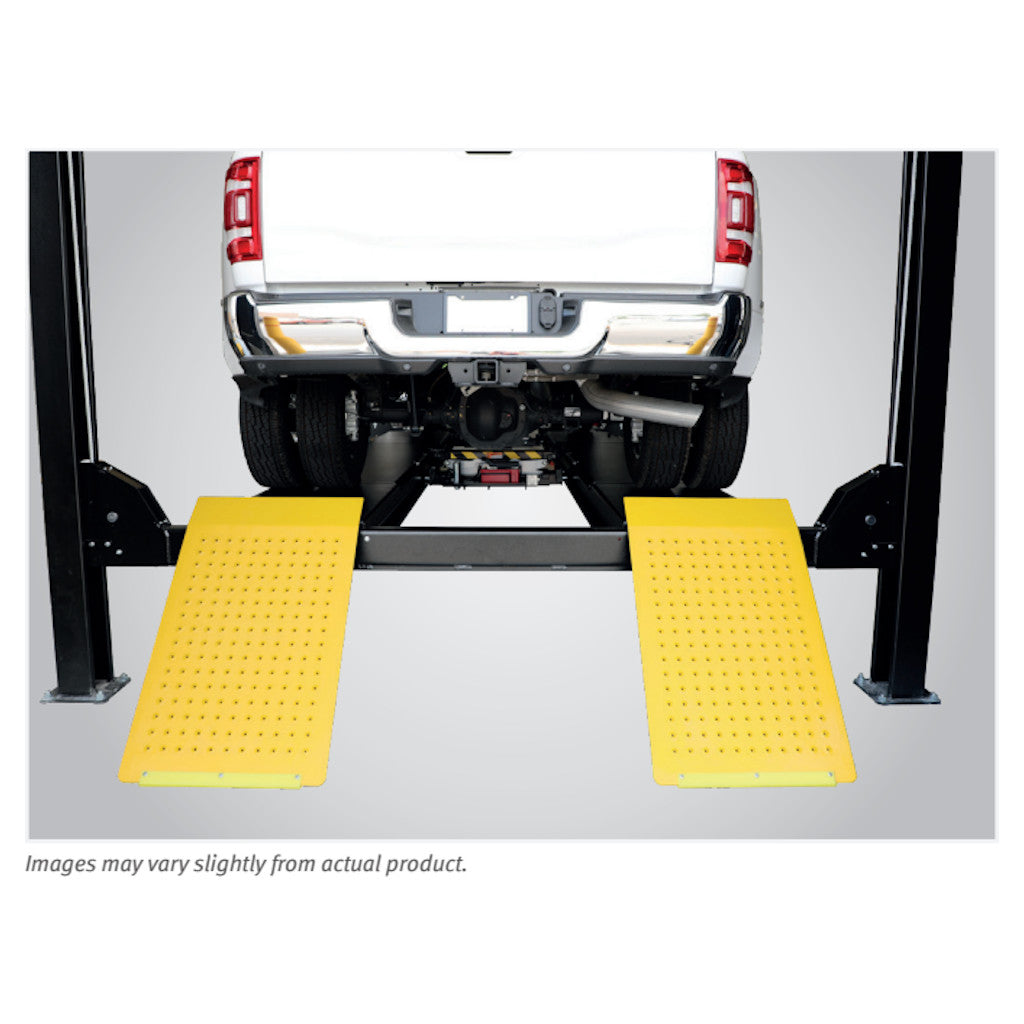

- Extra-long 100” rear slip plates for improved 4-wheel alignment capability for long and short wheelbase vehicles
Easy access, open-front design:

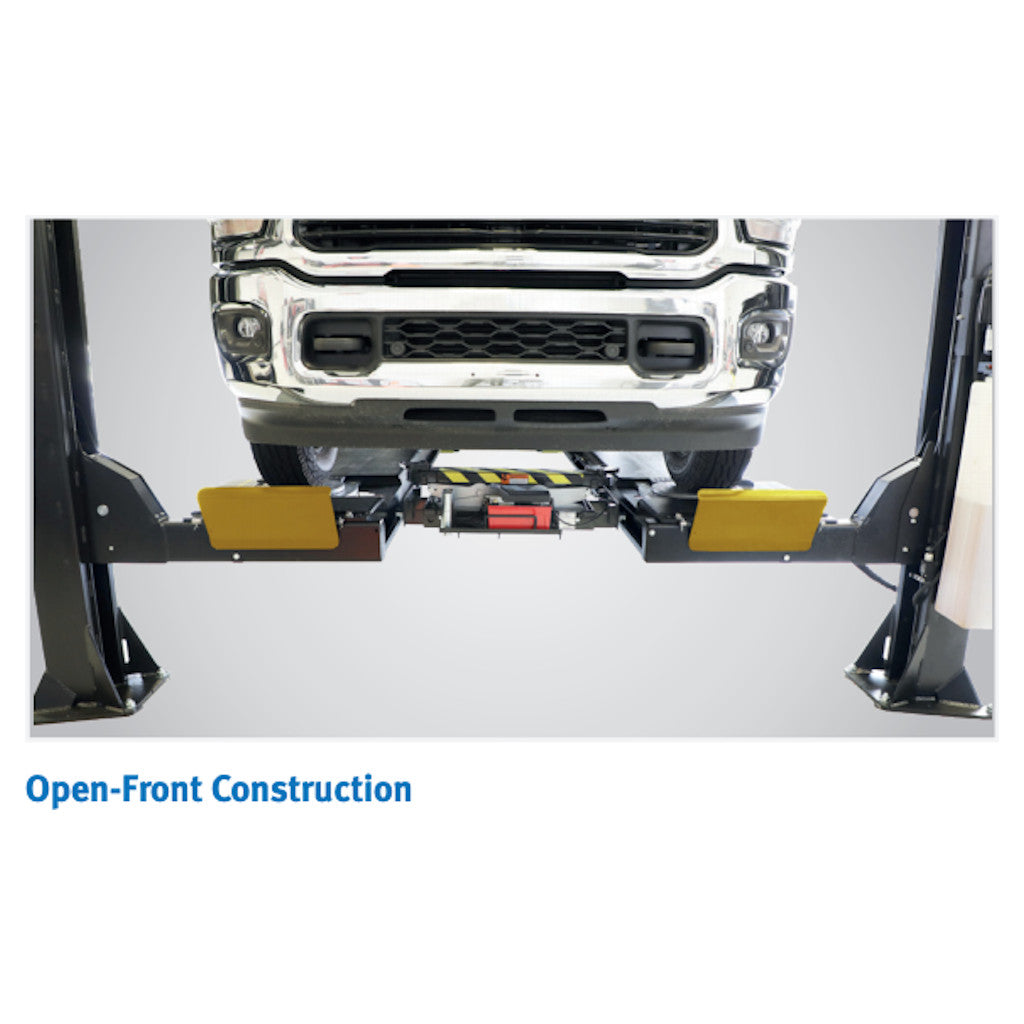

- Open-front construction provides easy access to service areas for hassle-free adjustments and repairs
- Micro-adjustment leveling on front and rear cross beam
- Adjustable, folding 4” front wheel stops have clearance for long, low-profile vehicles

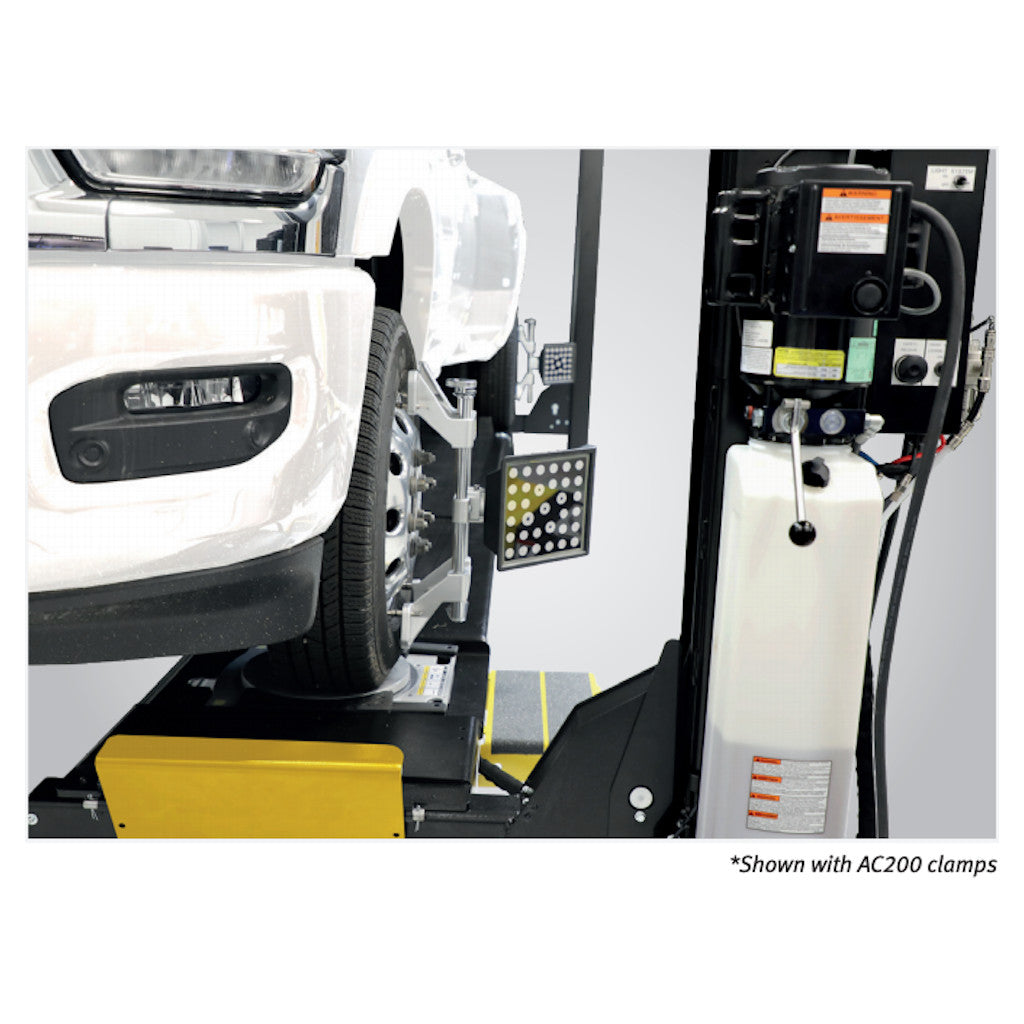

- Imaging alignment compatible – easily accommodate split-roll during alignment using AC200 or AC400 clamps
| TECHNICAL DATA | 15k 4-Post Standard Length Lift Package |
| Hofmann Part Number | EELR706APKG |
| Maximum Capacity | 15000 lbs (6804 kg) |
| 4 Wheel Alignment Wheelbase | 68″ - 158″ (172.7 cm - 401.3 cm) |
| 2 Wheel Alignment Wheelbase | 167.75″ (426.1 cm) |
| General Service Wheelbase | 183″ (464.8 cm) |
| Overall Length | 250.75″ (637.0 cm) |
| Overall Width | 142″ (360.7 cm) |
| Runway Width | 26″ (66.0 cm) |
| Width Between Runways | 40.625″ (103.2 cm) |
| Runway Minimum Height | 8″ (17.8 cm) |
| Maximum Lifting Height | 78″ (198.1 cm) |
| Lifting Time | 85 seconds |
| Front Accessibility | Open |
| Column Height | 99.25″ (front), 98″ (rear) |
| Lifting Capacity Per Column | 3750 lbs (1701 kg) |
| Motor | 2 hp |
| Power Supply Requirements | 230 VAC, 50/60 Hz, 1 Ph |
| Air Supply Requirements | 90 - 120 psi (6 - 8 bar) |
| Maximum Operating Pressure | 2190 psi (151 bar) |
| Recommended Minimum Bay Size | 14′ x 24′ |
| Minimum Concrete Thickness | 4″ |
| Shipping Weight | 4550 lbs (2484 kg) |
| TECHNICAL DATA | Rolling Jack |
| Hofmann Part Number | EELR545A |
| Capacity | 7500 lbs (3402 kg) |
| Minimum Arm Reach | 33″ (838 mm) |
| Maximum Arm Reach | 50.175″ (1274 mm) |
| Minimum Lowered Height | 2.375″ (60 mm) above deck surface |
| Maximum Raised Height | 12.25″ (323 mm) above deck surface |
| Air Supply Requirements | 90 - 120 psi (6 - 8 bar) |
| Shipping Weight | 310 lbs (141 kg) |

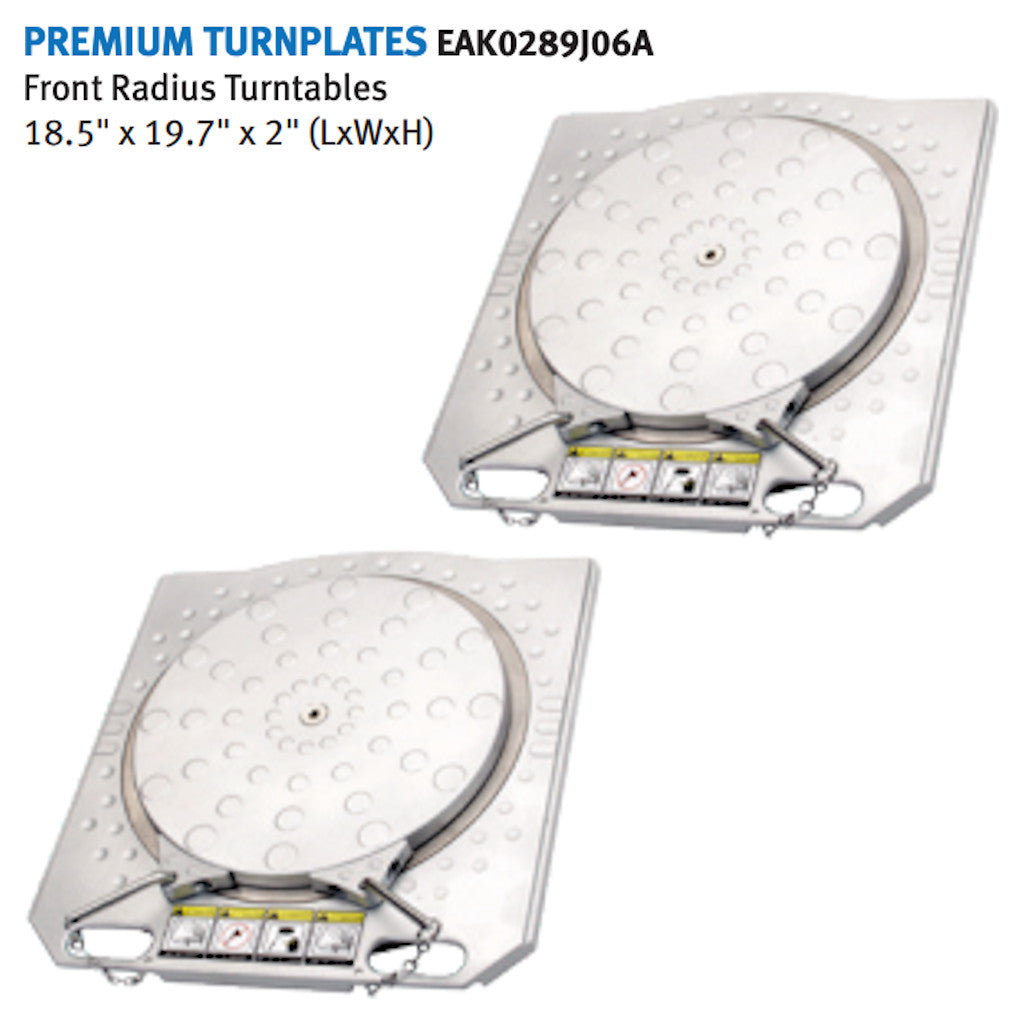

| TECHNICAL DATA | Premium Front Radius Turnplates |
| Hofmann Part Number | EAK0289J06A |
| Dimensions (LxWxH) | 18.5″ x 19.7″ x 2″ |
