ESCO | Maxi Bead Breaker (10102)

ESCO | Maxi Bead Breaker (10102)

The ESCO Professional Bead Breaker Series have become a staple in the tire service industry for well over 30 years. ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application.

Features:

• Works on ALL 3-piece wheels with extended flange that have replaced the older 5-piece wheels
• Designed to work on front or back of the wheel with no attachments or accessories
• Clamps easily to the wheel
• Longer feet and claw than the “Combi” Bead Breaker Model #10101
• No setup time
• 13.8 tons of bead breaking force will break the toughest beads - 4” stroke (102 mm)
• Use with 10,000 PSI Hydraulic Pump

New Design Features:

• Adjustable redesigned sequence valve screw

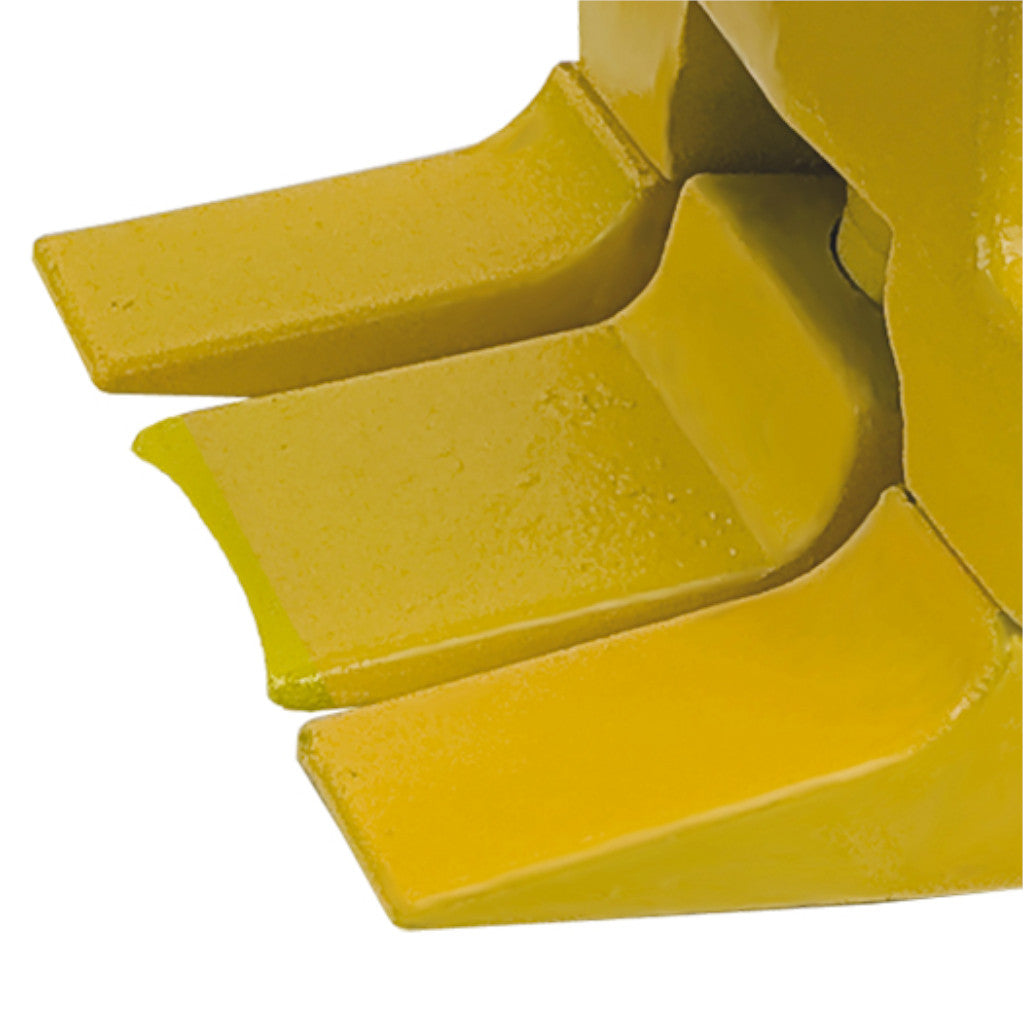

• Redesigned replaceable extended jaw for deep dished style wheels
• Redesigned replaceable teeth 1.25” longer than ESCO Model #10101

Specifications:

• Ram Tonnage: 13.8 Tons
• Stroke: 4” (102 mm)
• Maximum Pressure: 10,000 PSI
• Length: 18” (457 mm)
• Height: 12” (305 mm)
• Weight: 38 lbs (17 kg)

Compliance and Restrictions

⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
