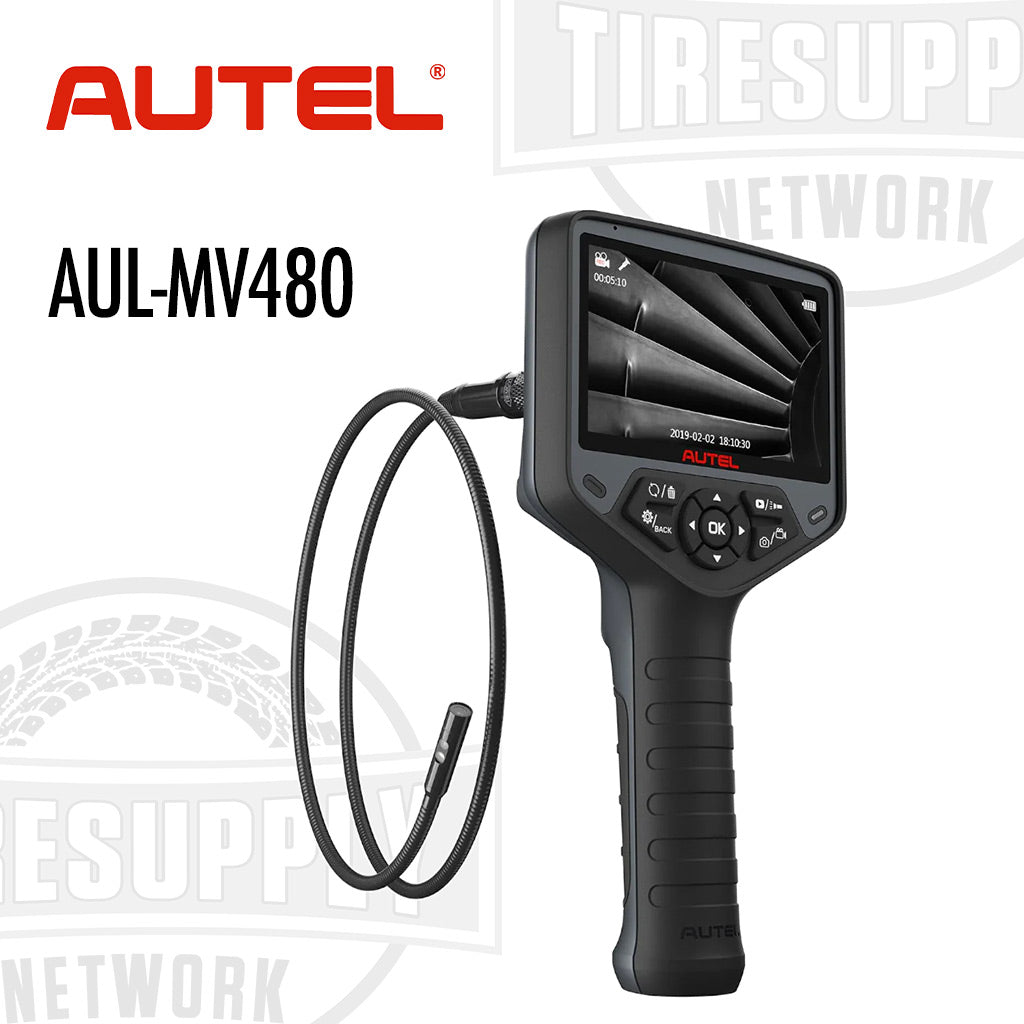

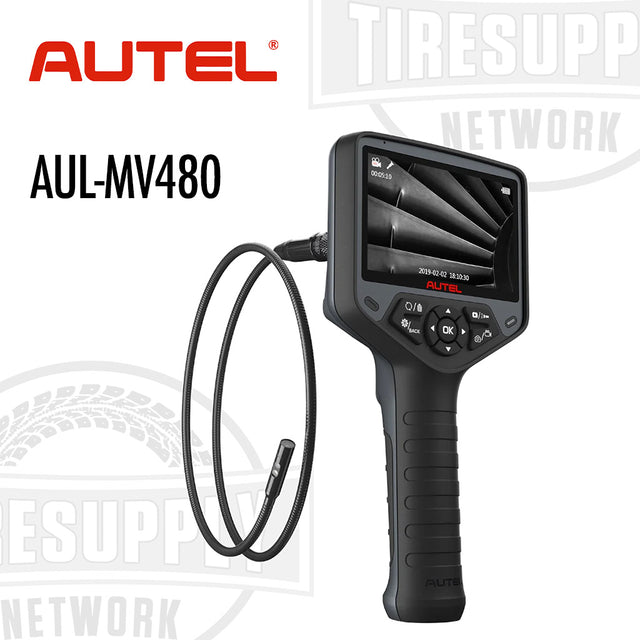

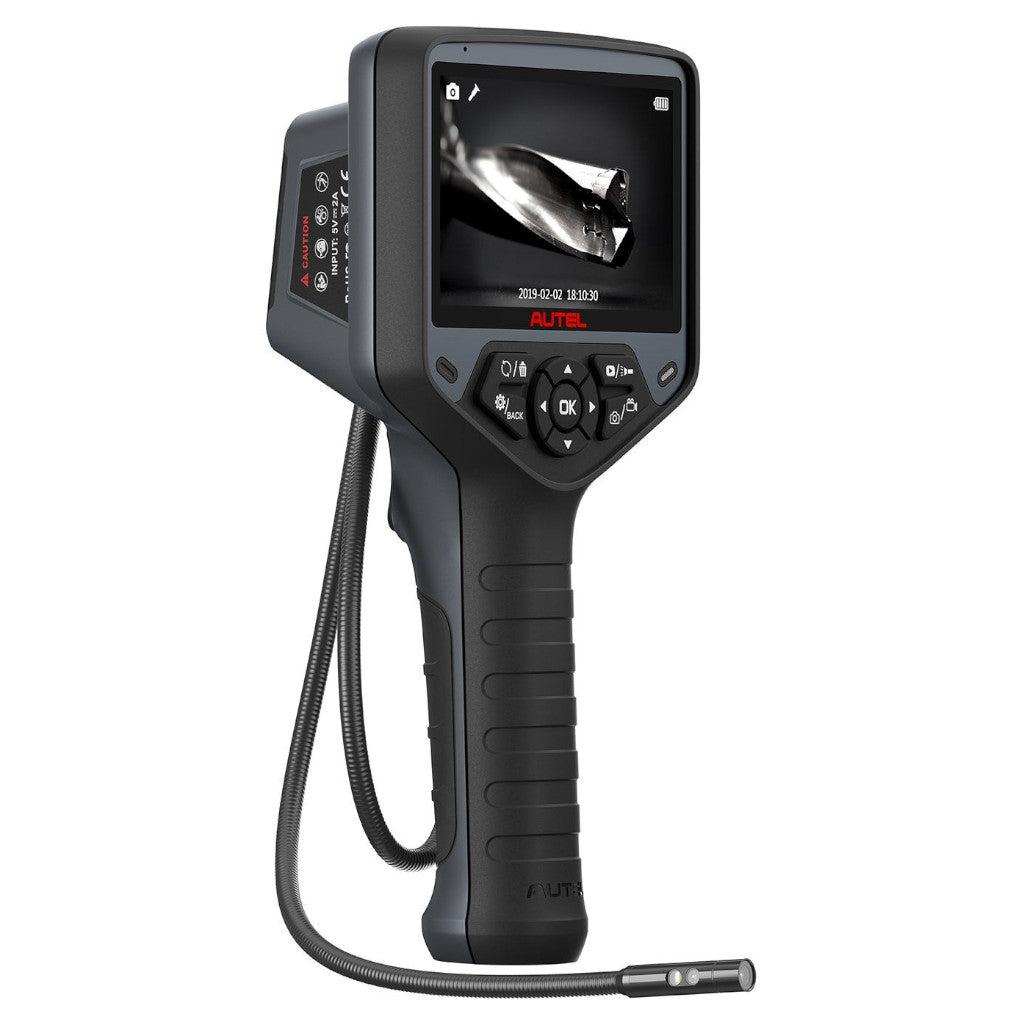

Autel | MaxiVideo Dual-Camera Digital Inspection Videoscope (AUL-MV480)
The MaxiVideo MV480, the next generation of digital videoscope, is ideal for inspecting difficult-to-reach areas with its semi-rigid flexible cable and 10-level adjustable LED light. It features dual front and side cameras with 1920x1080 high resolution, a 4.1" 1200x720 full color LCD display, an 8.5mm camera probe, and a built-in 2600mAh battery with up to 4 hours continuous use. This multipurpose videoscope is an economical solution to inspect machinery, facilities, and infrastructure in the safest, quickest and most cost-effective manner possible.
Features:
- High resolution images and videos (1920 x 1080)

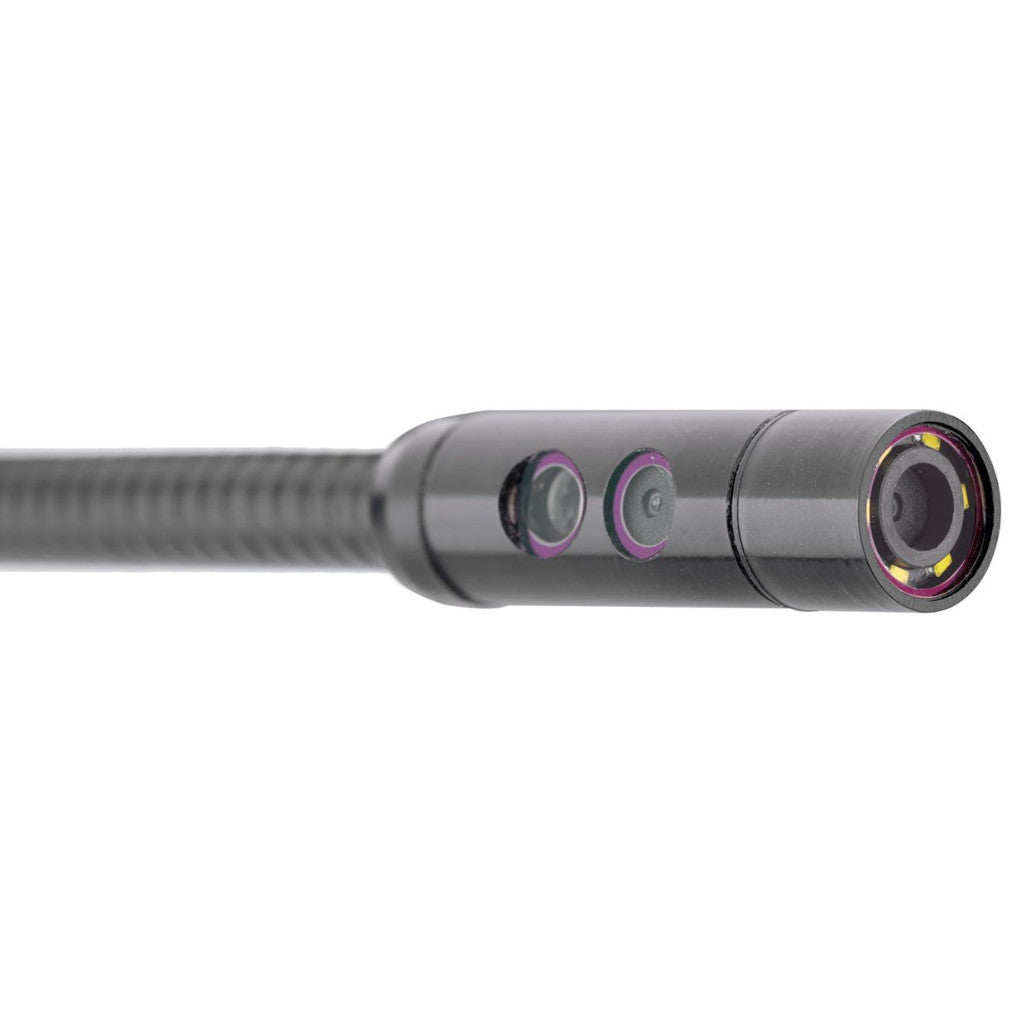

- Dual front and side cameras for wider viewing angle

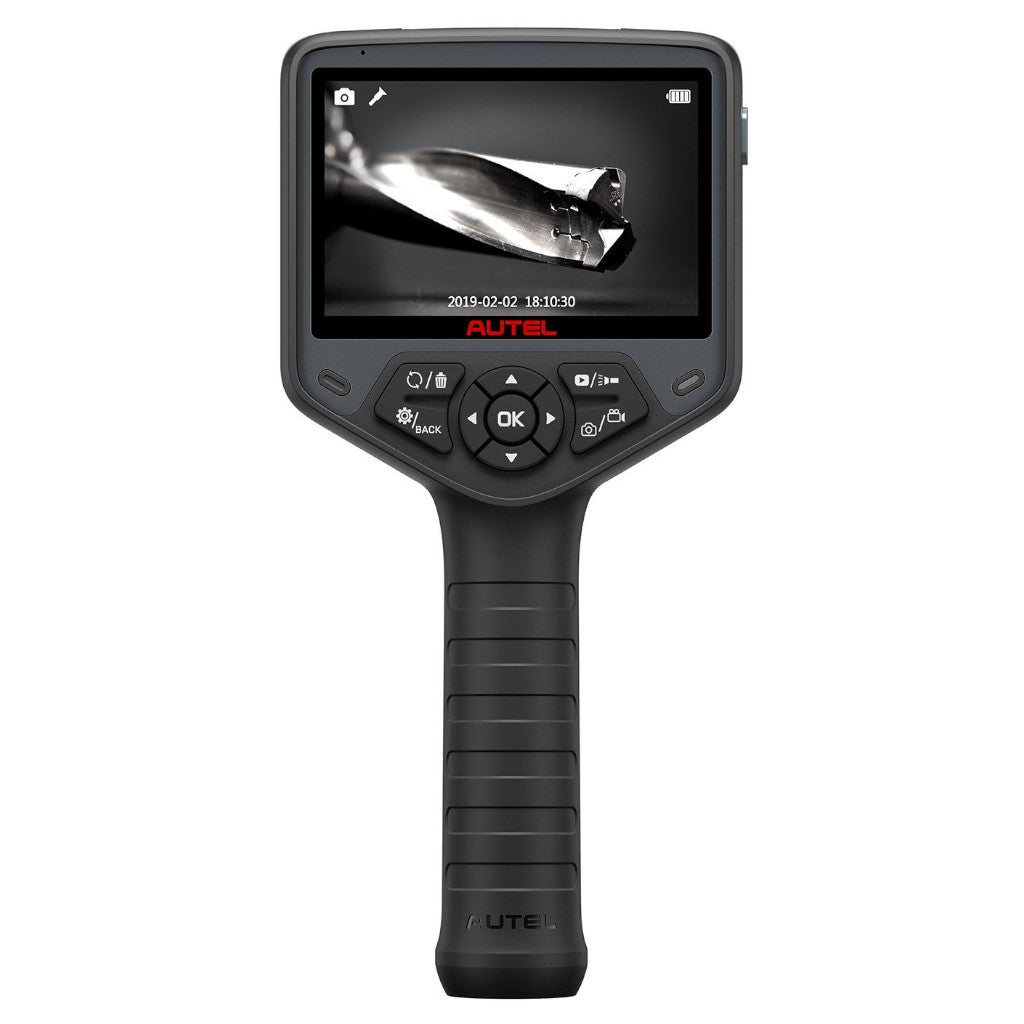

- 4.1″ full color LCD display (1200 x 720)
- 1-button quick image capture and video recording
- 70° field of view for expanded viewing angle
- Adds audio annotation for detailed review
- Micro HDMI-output enables streaming to larger monitors
- Freeze-frame camera stills or video recording
- On-screen horizontal/vertical reverse
- Records and plays back images and video clips
- 7X digital zoom for increased viewing
- 8GB Micro SD card (included), supports up to 128GB
- Mini-USB cable (included) for uploading images and videos
- More than 10,000 lux, adjustable 10-level LED illumination

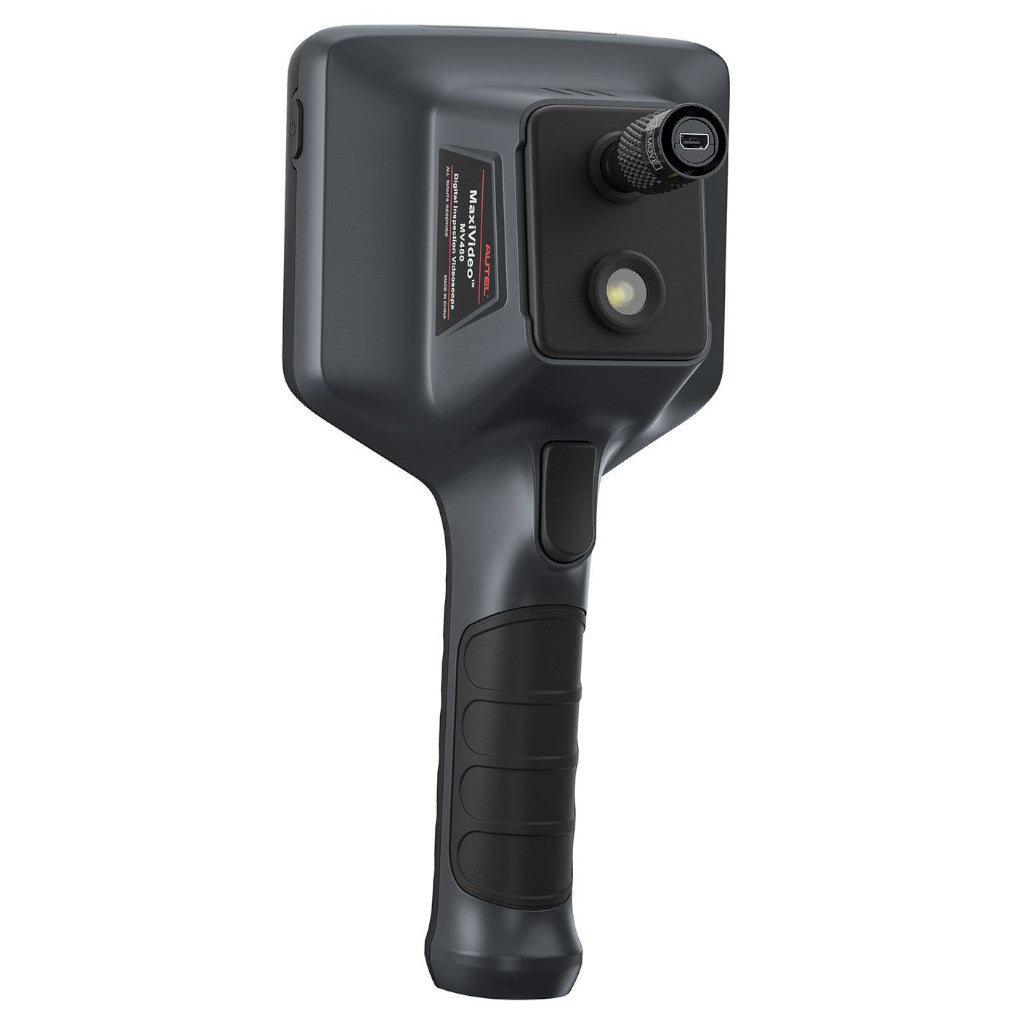

- Flashlight for higher visibility in low-light environment
- Built-in, rechargeable 2,600 mAh battery for 4 hours of continuous use

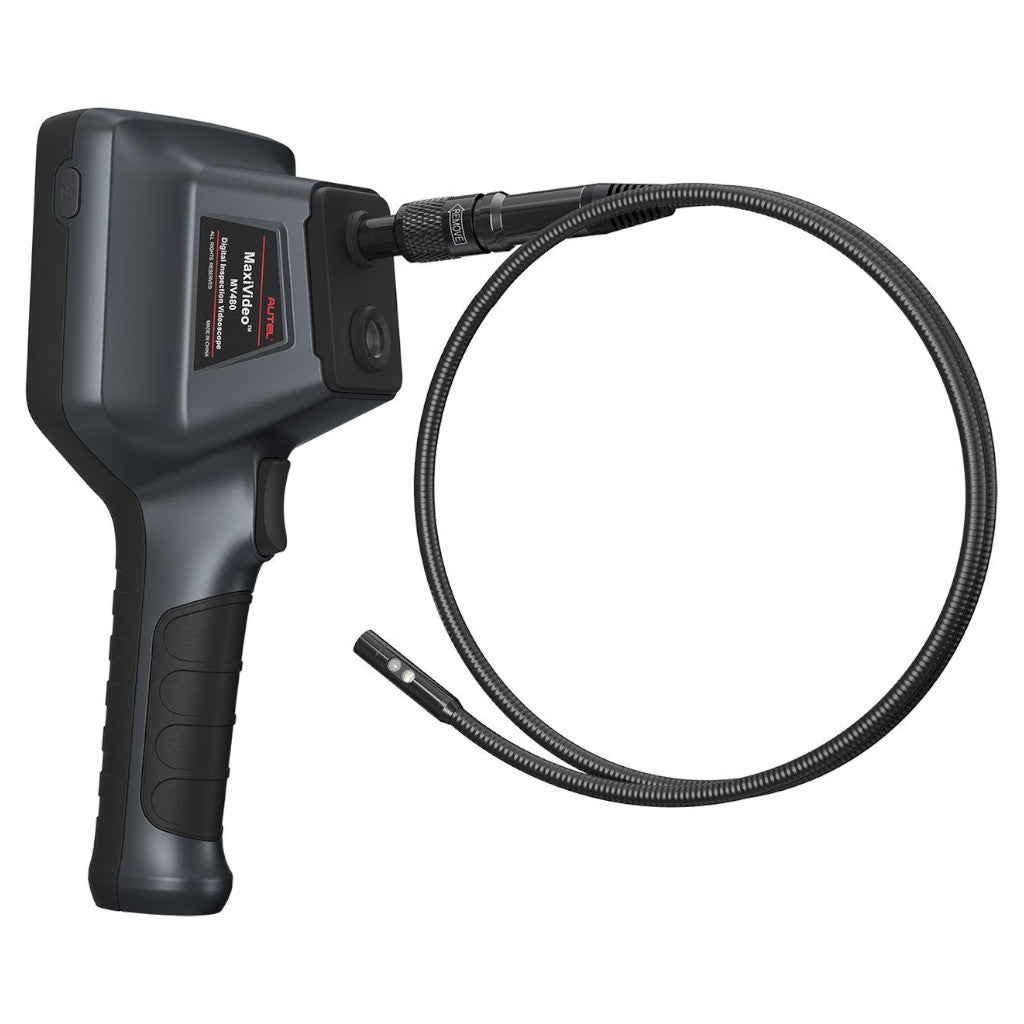

- 1m (39.4") semi-rigid, flexible watertight cable
- Includes magnet and hook cable accessories
- 8.5mm (0.33’’) probe fits most spark plug holes
- Compatible with 5.5mm (0.22’’) camera head (not included)
Includes:
- Magnet and Hook
- Imager Heads and Cable (8.5 mm)
- RS232 Serial Cable
- Mini USB Cable
- Micro SD card
- Charger
- User Manual
- Protective carrying case
Specifications:
- Recommended Use: Indoor
- Optimal Viewing Distance: 0.79" to 2" (2 cm to 5 cm)
- Image Capture: JPG images (1920 x 1080 pixels), MP4 videos (1920 x 1080 pixels)
- Screen Type Display: 4.1” TFT LCD
- Display Resolution: 1200 x 720 pixels
- Power Supply: Built-in rechargeable lithium-ion battery pack (3.7V/2600 mAh)
- Tested Battery Life: Approximately 4 hours of continuous use
- Dimensions: 243 x 116 x 122mm (9.6" x 4.6" x 4.8")
- Weight: 0.422 kg (0.93lbs)
- Recording Medium: Micro SD card (8GB Standard/128GB Max)
- Image Controls: Zoom, low light vision
- Lighting: Fully adjustable LED, Flashlight
- Cable Reach: 1m (39.4")
- Imager Heads: 8.5mm (0.33"), 2 megapixel (1920 x 1080 pixels)
- Waterproof: To a depth of 1m (39.4") (Imager heads and cable only)
- Additional Ports: TF, Mini USB, Micro HDMI
- Operating Temperature: Main unit: 14°F to 122°F (-10°C to 50°C), Cable: 14°F to 140°F (-10°C to 60°C)
- Storage Temperature: Cable: 14°F to 140°F (-10°C to 60°C)
- Storage Temperature: -4°F to 158°F (-20°C to 70°C)
- Operating Humidity: 5% - 95% non-condensing
Compliance and Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
