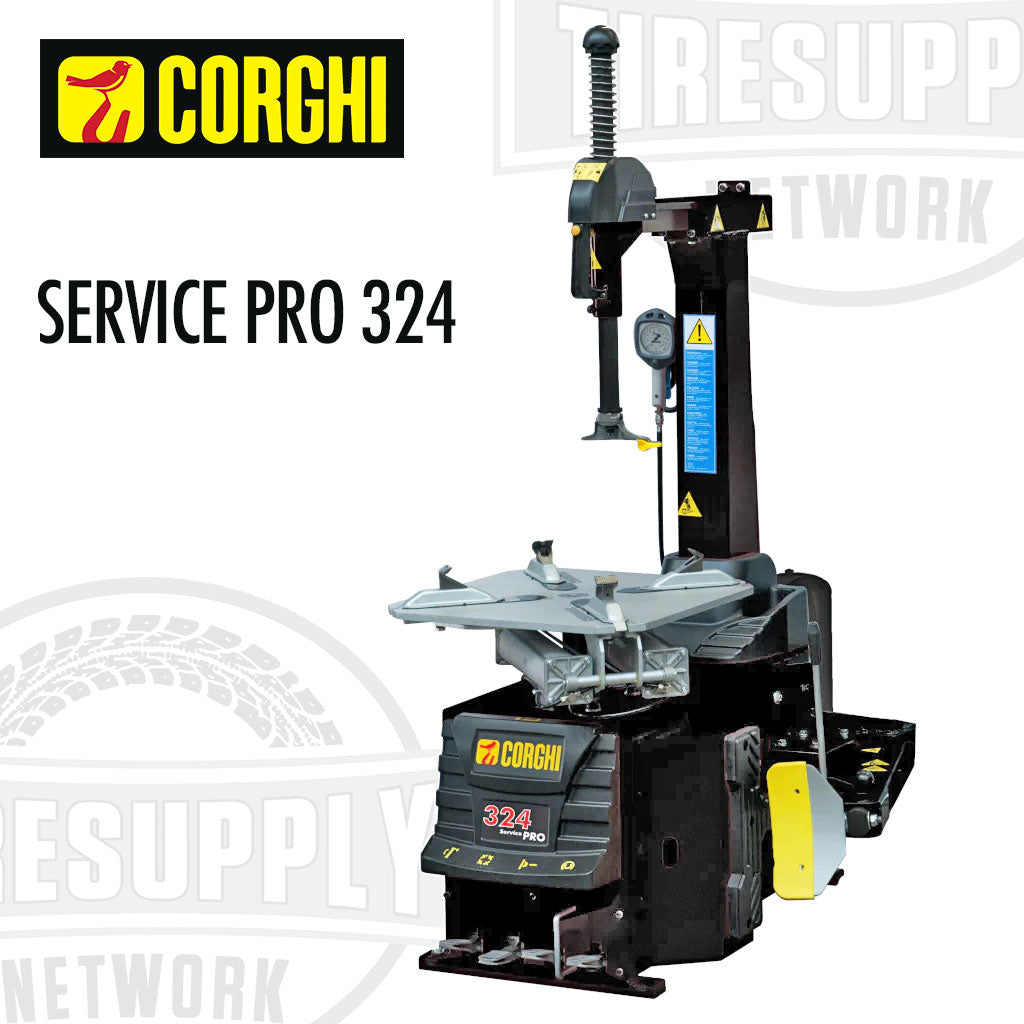

Automatic tire changer for cars, lightweight transport vehicles, and motor vehicles.

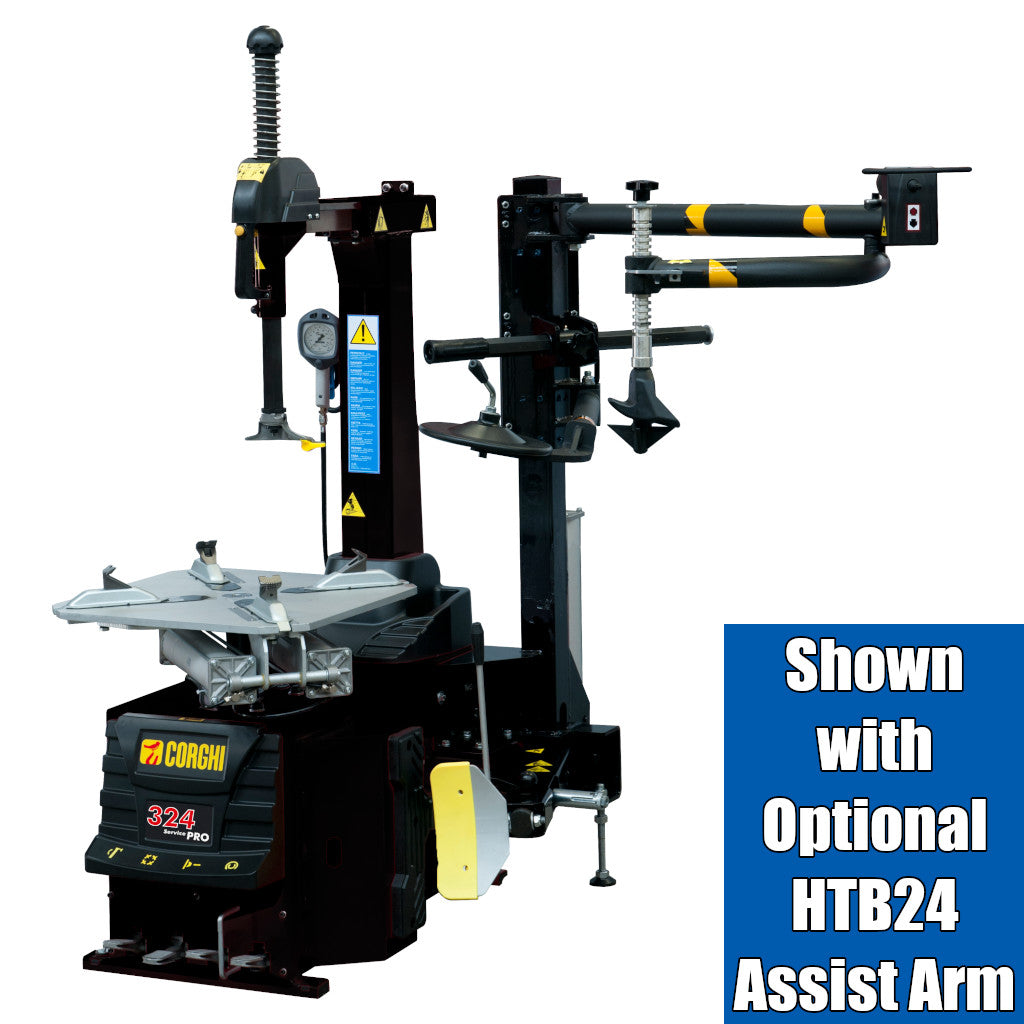

Helper Assist Arm Accessory Option: The helper arm is specifically designed for the Service Pro 324 to assist the operator in the tire changing process with its bead pressing functionality. The HTB24 is similar to helper arms for other Corghi tire changer models.
| Technical Data | Service Pro 324 |
| Corghi Part Number | 0-11901304/00 |
| Outside Clamp | 11″ - 24″ |
| Inside Clamp | 13″ - 26″ |
| Maximum Wheel Diameter | 43.3″ (1100 mm) |
| Tire Width | 3″ - 14″ |
| Bead-Breaker Opening | 15″ (380 mm) |
| Bead-Breaking Power | 3372 lbf (15000 N) |
| Working Air Pressure | 116 - 145 psi (8 - 10 bar) |
| Motor Power | 1.1 hp - 1.47 hp (0.85 kW - 1.1 kW) |
| Power Unit | 115 V / 60 Hz / 1 Ph |
| Chuck Rotation Speed | 7 rpm - 2V 6.5 - 13 rpm |
| Noise Level Running | less than 70 dB |
| Net Weight Machine | 562 lbs (255 kg) |
| Gross Weight Machine | 650 lbs (295 kg) |

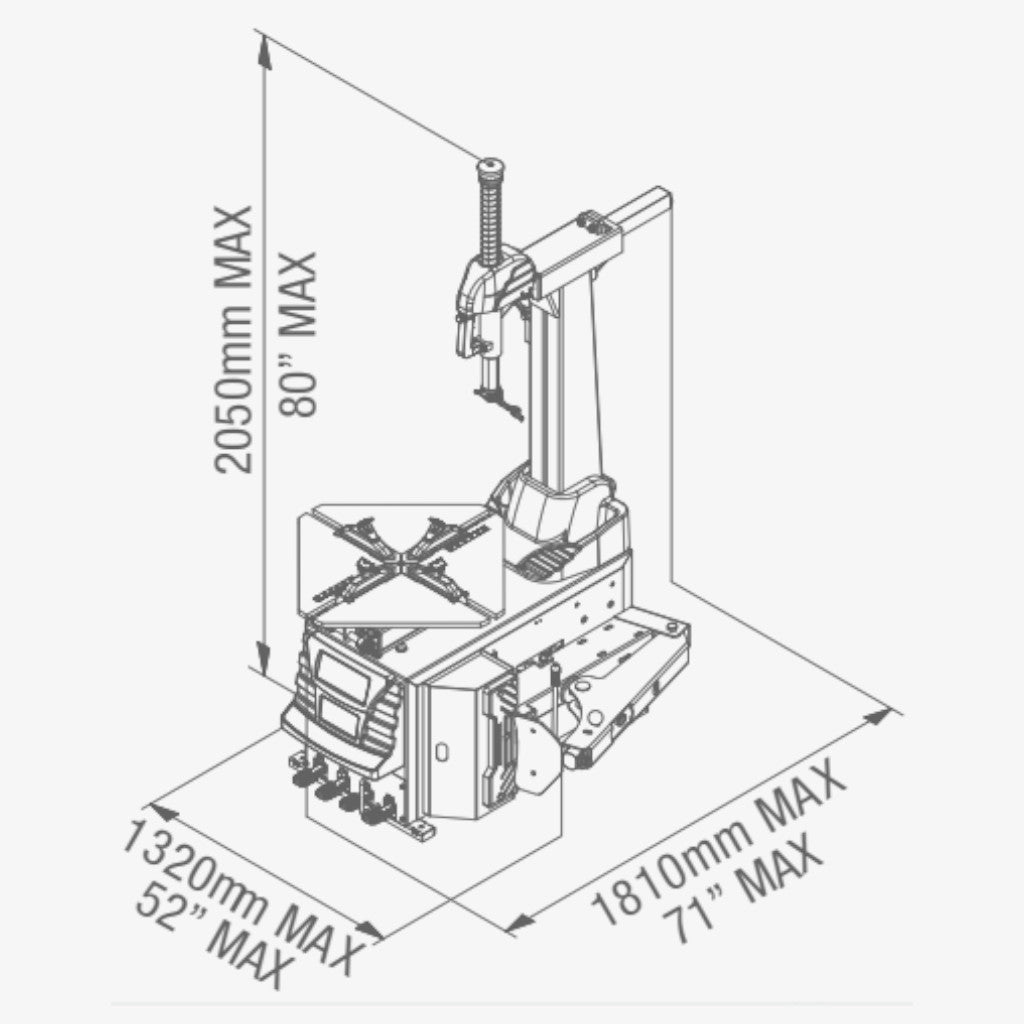

| Maximum Dimensions (W x D x H) | 52″ x 71″ x 80″ (1320 x 1810 x 2050 mm) |
