Chicago Pneumatic | Impact Wrench 3/4″ Drive with 6″ Extended Anvil (CP-7763-6)
Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!
Chicago Pneumatic | Impact Wrench 3/4″ Drive with 6″ Extended Anvil (CP-7763-6) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

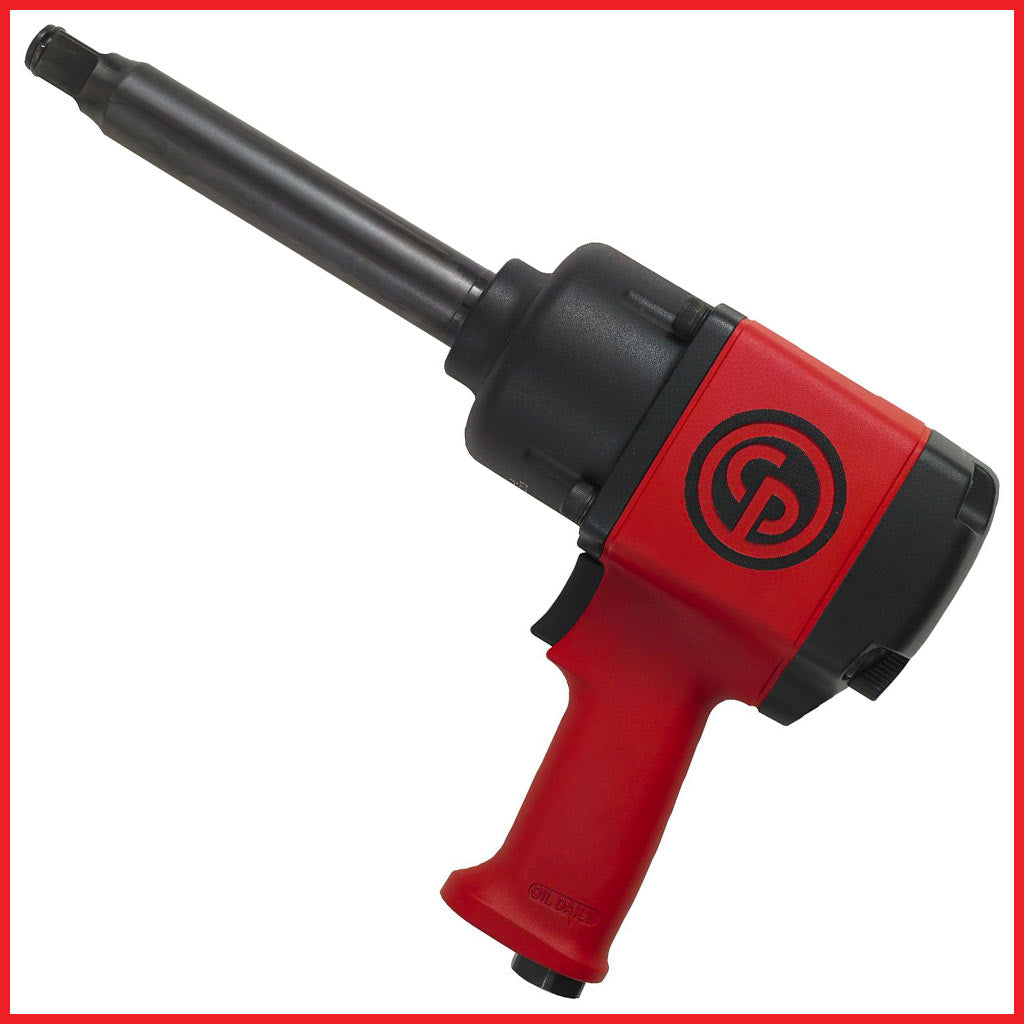

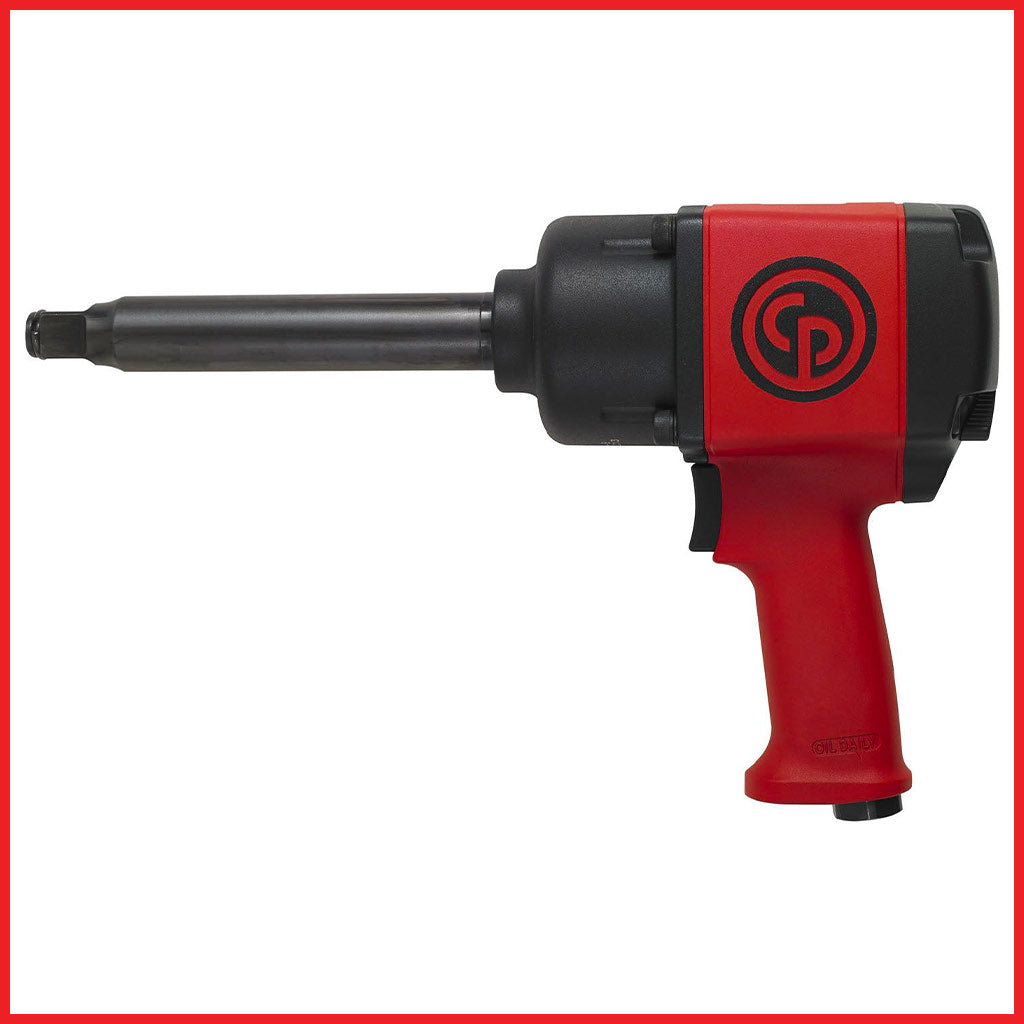

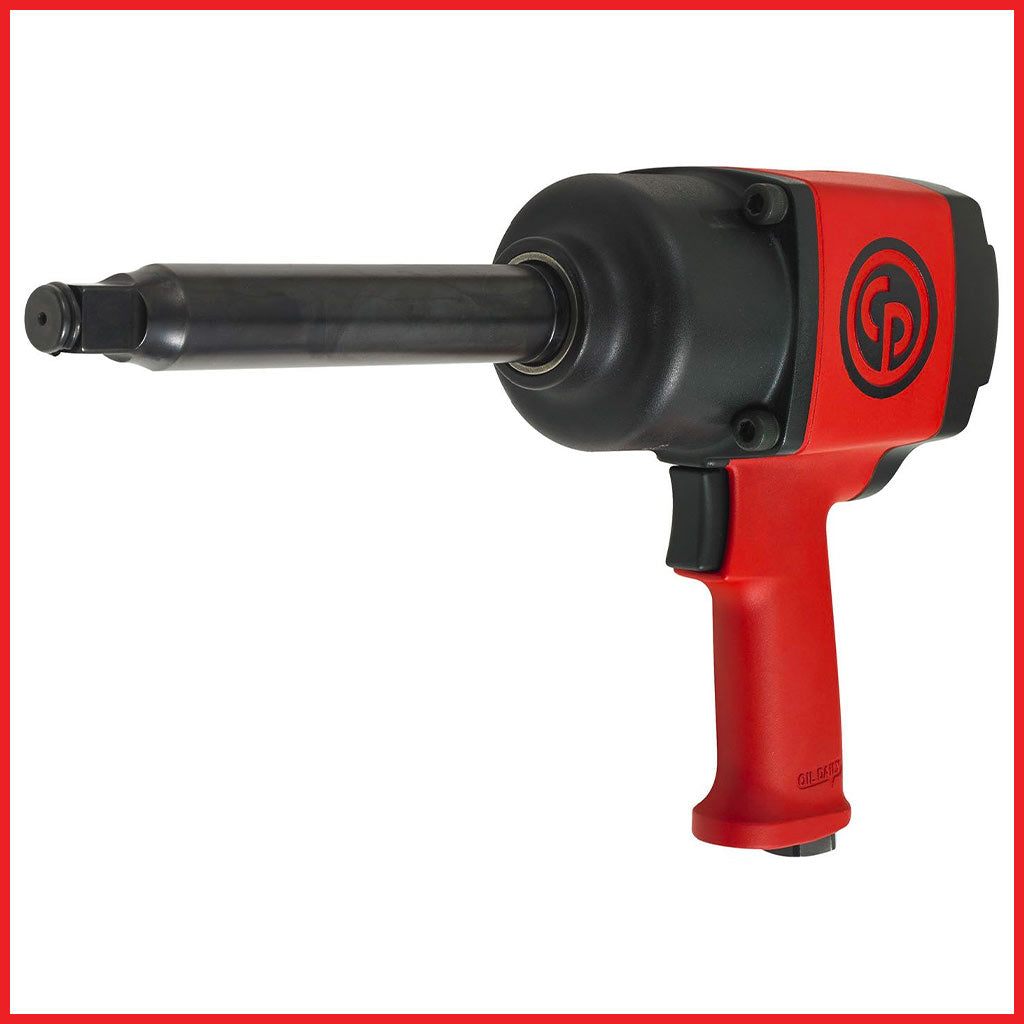

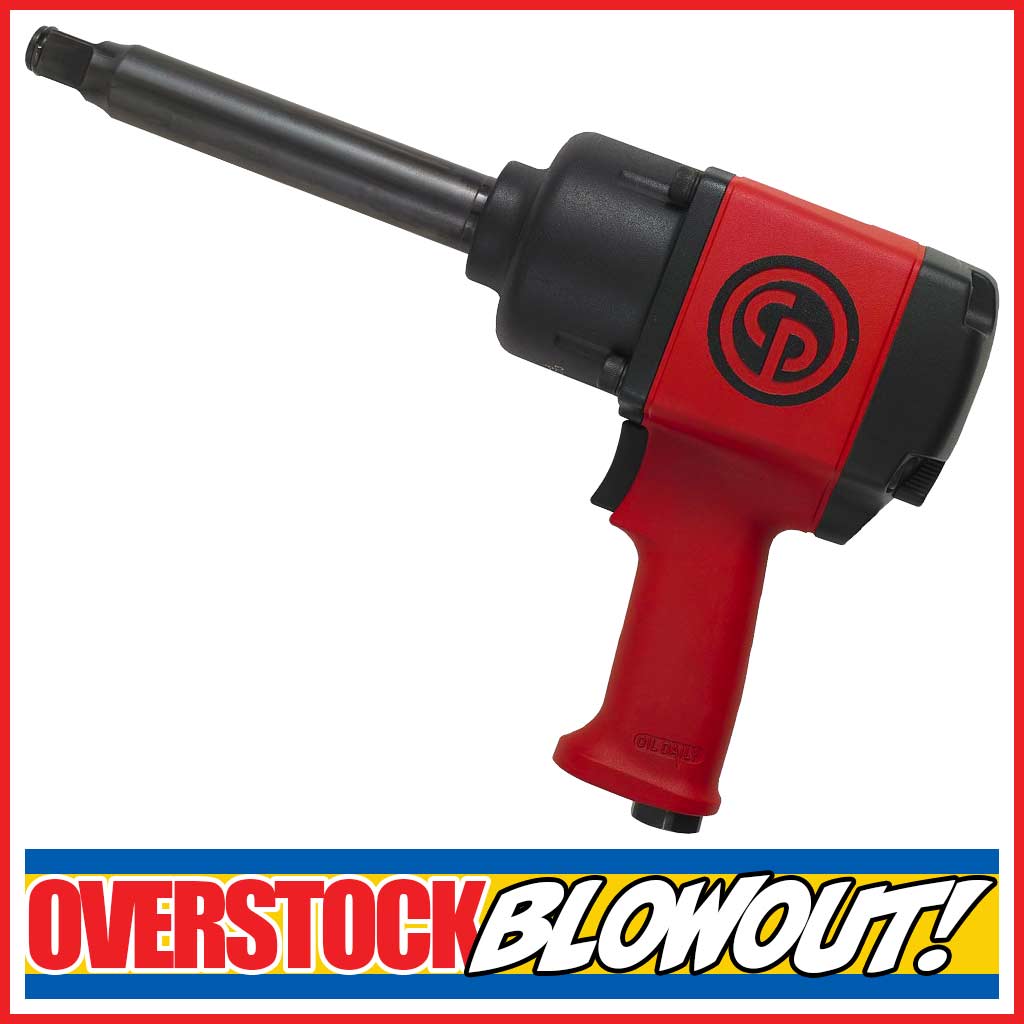

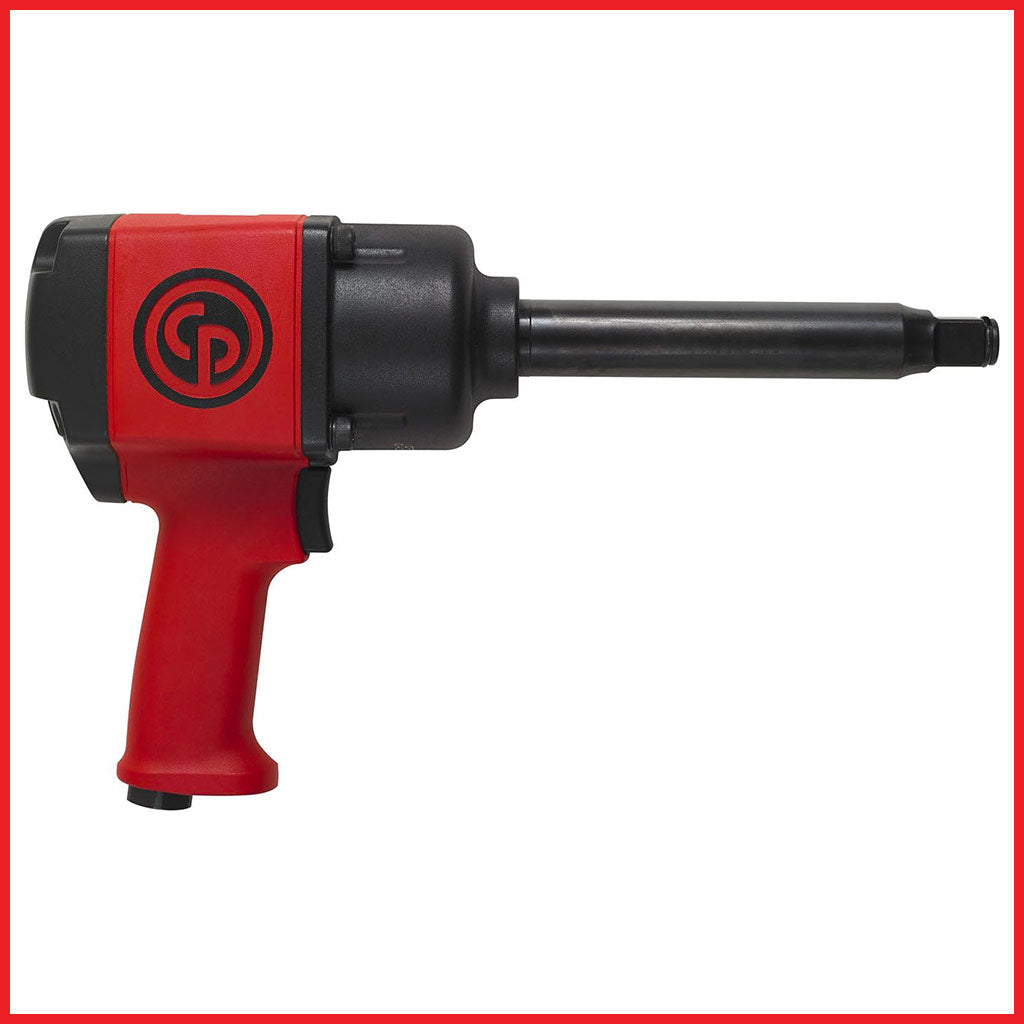

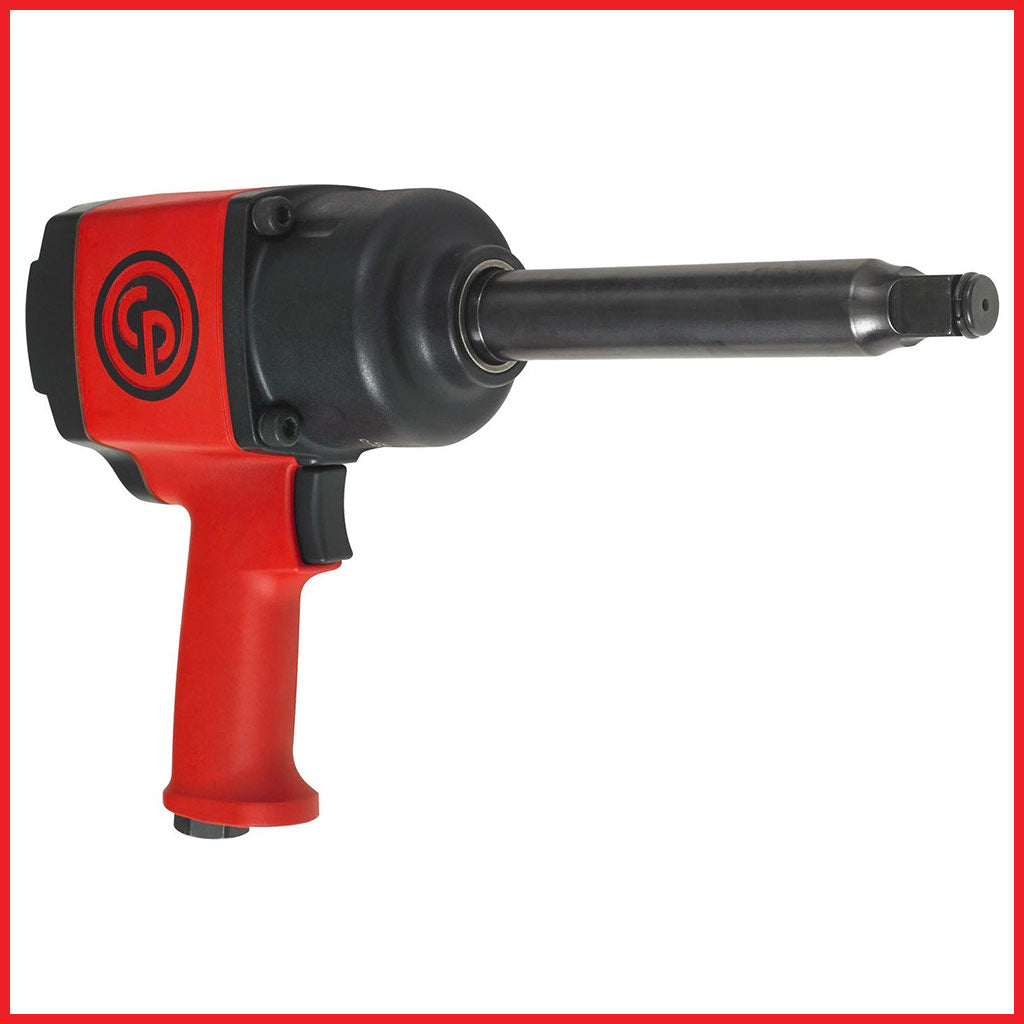

Chicago Pneumatic | Impact Wrench 3/4″ Drive with 6″ Extended Anvil (CP-7763-6)
The CP7763 Series impact wrench 3/4″ square drive delivers reverse torque up to 1,630 Nm / 1,200 ft-lbs. Designed for general maintenance and tire changing, its twin hammer impact mechanism and its composite housing offer high durability in bolting & unbolting applications while also being lightweight and compact.
Features:
- Composite housing and twin hammer impact mechanism for high durability
- A lightweight and compact tool in a composite motor housing that offers greater comfort
- Equipped with intuitive Forward / Reverse lever for easy operation
- Power regulator for a controlled approach
- 6″ Extended Anvil
Specifications:
| Chicago Pneumatic Model Number | CP7763-6 |
|---|---|
| Chicago Pneumatic Part Number | 8941 0776 36 |
| Handle Type | Pistol |
| Square Drive | 3/4" |
| Working Torque Range (fwd) | 100-950 (136-1,288 Nm) |
| Maximum Torque (reserse) | 1200 ft.lbs (1630 Nm) |
| Free Speed | 6300 rpm |
| Blows Per Minute | 900 |
| Net Weight | 13.85 lbs. (6.28 kg) |
| Power/Weight Ratio | 86.6 ft.lb/lb (259.1 Nm/kg) |
| Length | 15" (381 mm) |
| Side to Center | 1.8" (35mm) |
| Average Air Consumption | 7.5 cfm (3.5 l/s) |
| Actual Air Consumption | 30 cfm (14.2 l/s) |
| Minimum Hose Size | 1/2" (13 mm) |
| Noise Level | 96 db(A) |
| Sound Power | 107 db(A) |
| Vibration (ISO-8662-7) | 9 m/s² |
| Vibration α (ISO-28927-2) | 10.4 m/s² |
| Vibration K (ISO-28927-2) | 4.2 m/s² |
| Socket Retainer | Dual |
| Clutch Type | Twin Hammer |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
