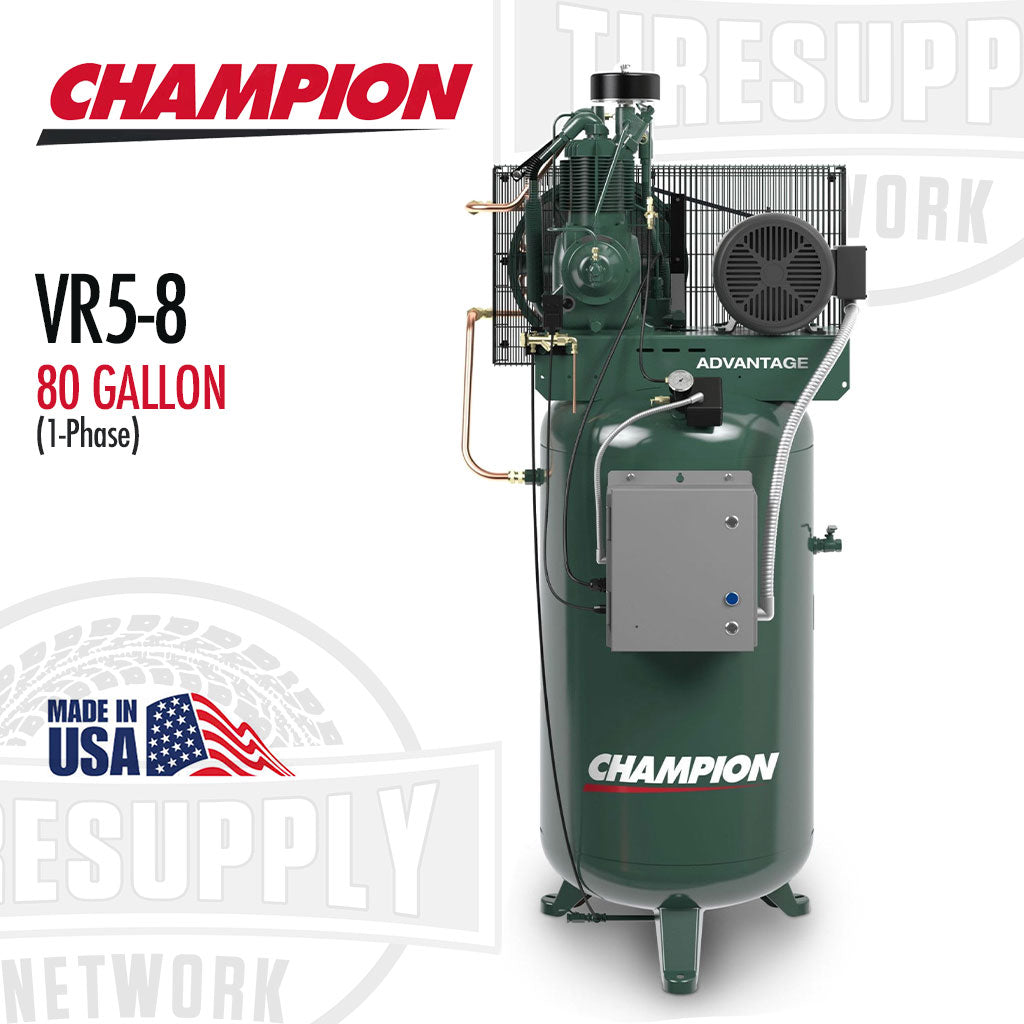

Champion | VR5-8 Air Compressor Fully Equipped 230V, 1PH, 5HP, 80GL (CASRSA128)

Join CLUB5 at Tire Supply Network and Save 5% on EVERY Order! > Learn more

Champion VR5-8 Air Compressor with Aftercooler, Starter Auto Tank Drain, Low Oil Monitor, and Vibration Pad - 230V, 1PH, 5HP, 80GL (CASRSA128)

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

The Champion Advantage Series offers a complete line of compressed air packages that meet any application. The Advantage Series has been carefully engineered to stand up to years of use.

Compressor Features:

  • Multi-finned cylinders - Cooler operating temperatures result in longer life and consistent performance over time.
  • Integral cylinder/head - Gasketless design eliminates the possibility of blown head gaskets for trouble-free operation.
  • Balanced pistons - Aluminum alloy first-stage piston is weight-matched to the cast iron secondstage piston, ensuring proper balance.
  • Piston rings - Two compression rings and one oil control ring provide excellent oil control, and high efficiency air delivery.
  • Lightweight connecting rods - High-density, die-cast aluminum alloy rods minimize reciprocating weight. An integral, precision-bored crankpin bearing and a needle bearing for the piston pin properly distribute bearing loads for longer bearing life than bushings.
  • Pressure relief valves - Located in interstage and discharge.
  • Intercoolers - Large-diameter finned tubing is positioned to obtain the greatest cooling effect between stages for maximum compressor efficiency.
  • Optimized cooling fan/flywheel - Precision balanced flywheel has fan blades for optimum compressor cooling and life.
  • Reliable, high-flow valves - Single-unit, disc-type valves provide low lift and long life. Discs are made of corrosion resistant Swedish steel. Valves are easily serviced by removing the manifolds only.
  • Oversized main bearings - Tapered roller-type main bearings provide full contact and support of the crankshaft plus delivers the longest possible life.
  • Balanced crankshaft - Constructed of rugged ductile iron with large diameter throws for minimum bearing loads and counterweights to minimize vibration.
  • Large capacity crankcase - Rugged cast iron oil reservoir has convenient sight gauge glass, corner oil fill boss and large oil drain.
  • Loadless starting - Positive acting, governor-type centrifugal unloader assures longer motor life by allowing the compressor to start unloaded every time.

Warranty:

  • 3 years parts and labor on pump
  • 1 year parts and labor on everything else

Specifications:

  • Mounted magnetic starter: Yes
  • Vibration isolators: Yes
  • Auto tank drain: Yes
  • Low oil level: Yes
  • Air cooled after-cooler: No
  • Motor: 5HP
  • Tank size: 80 gallons
  • Pump model: R-15B
  • Power supply/voltage: 230V - 1 Ph
  • Dimensions: 33" x 24" x 77"
  • Made in the USA
