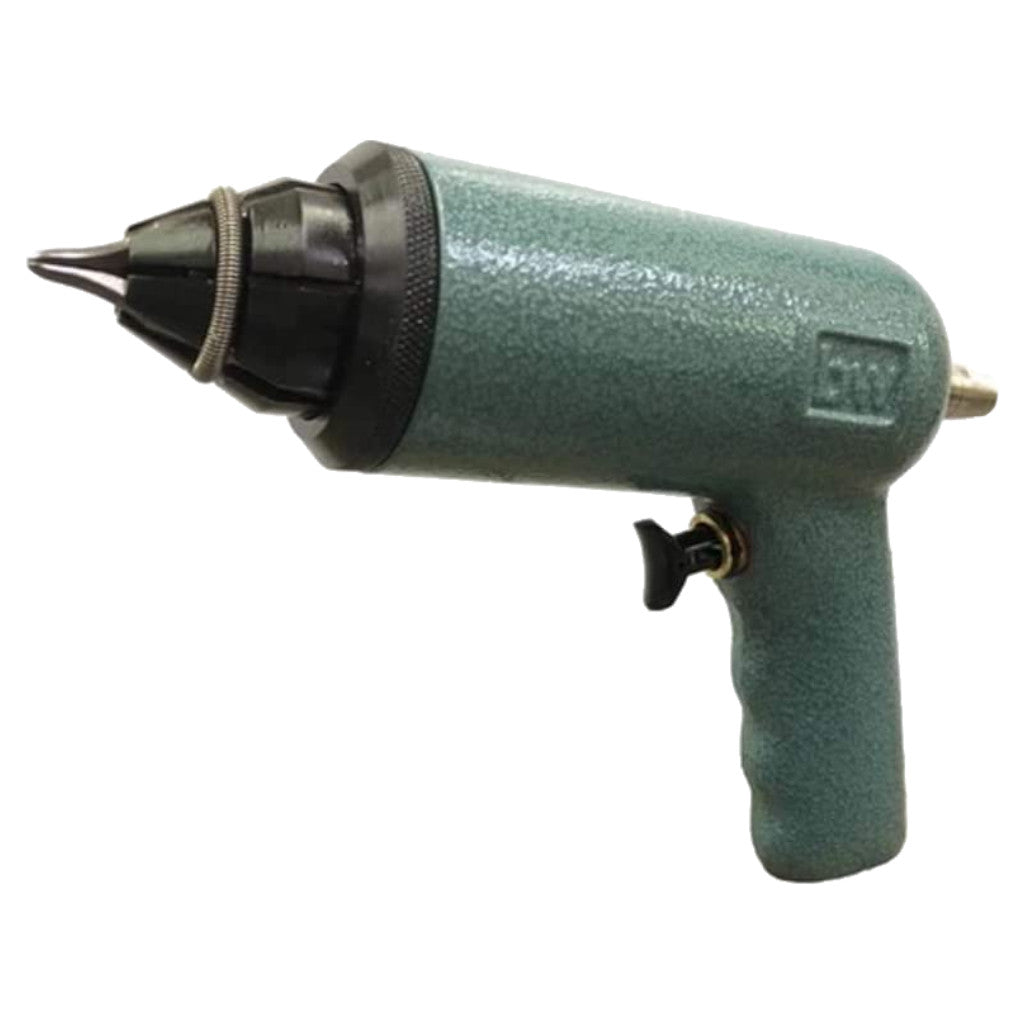

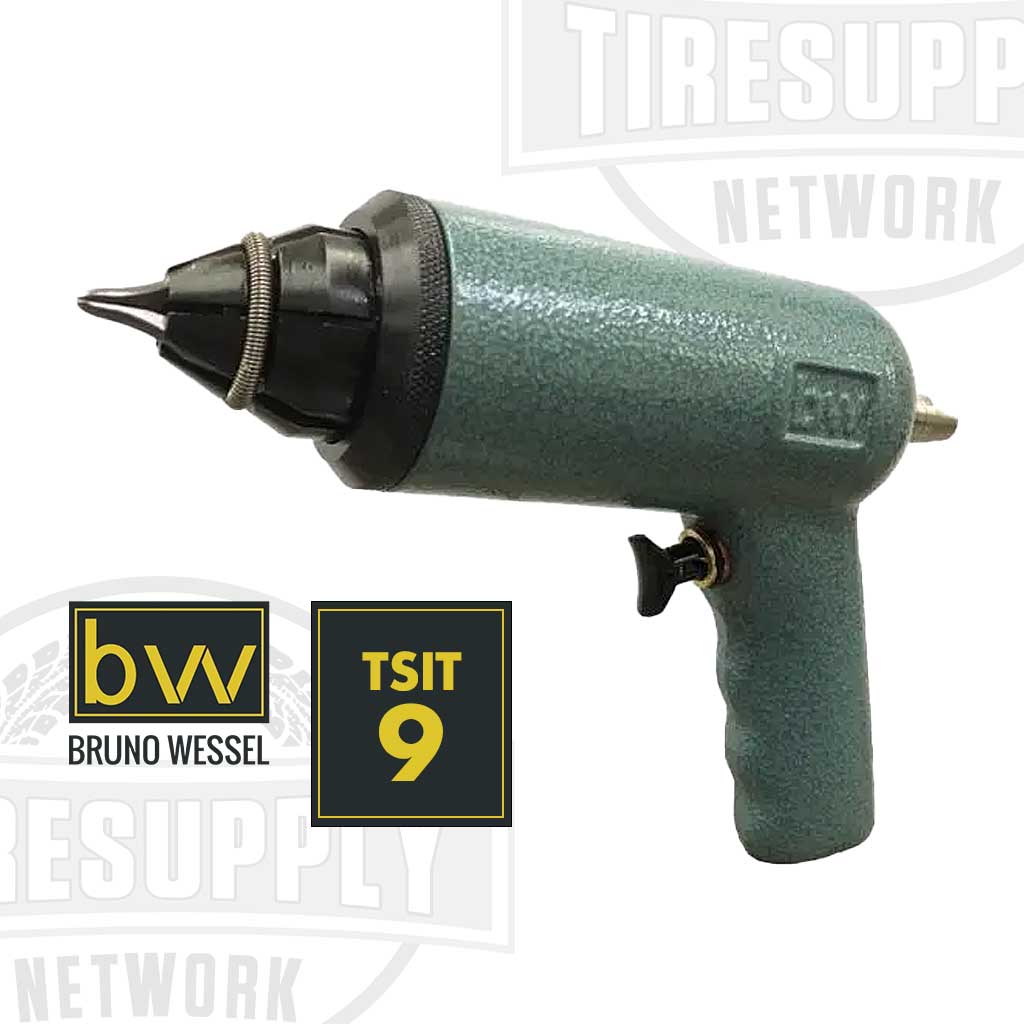

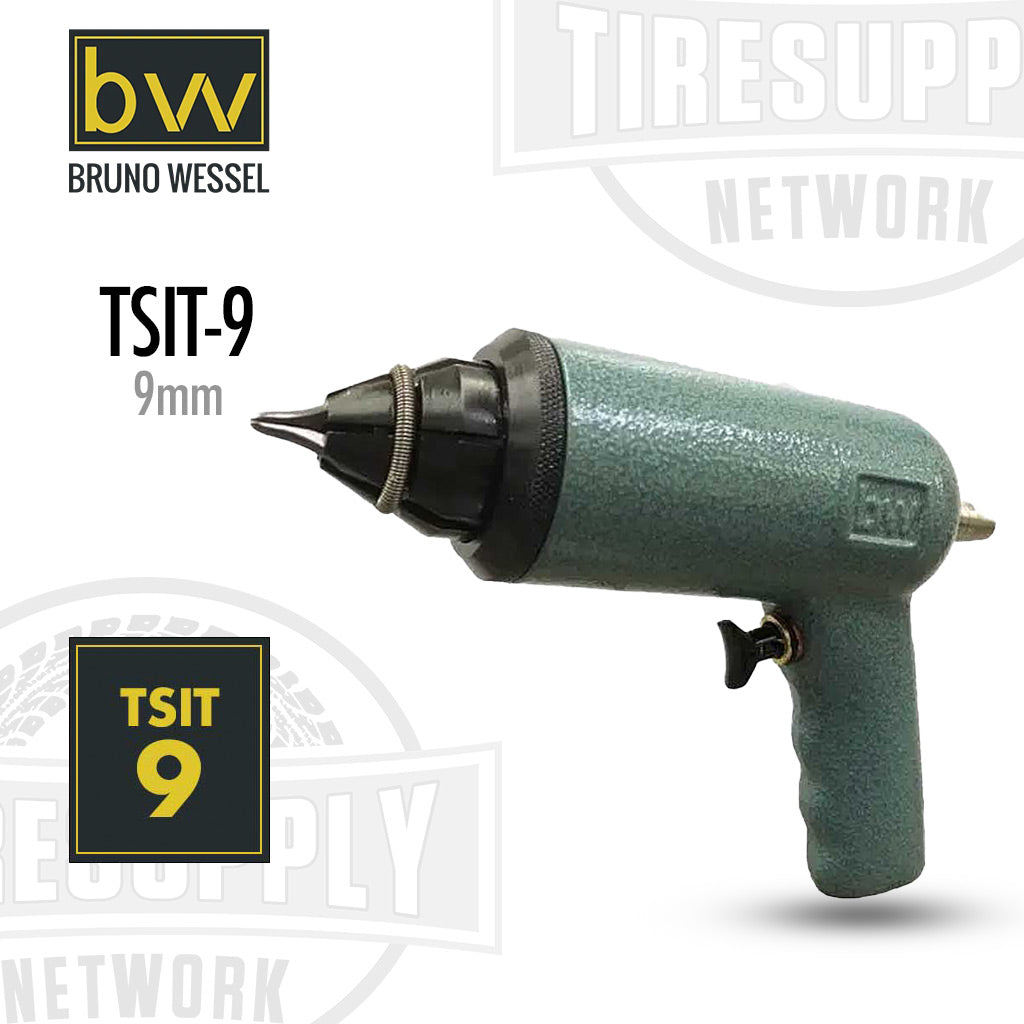

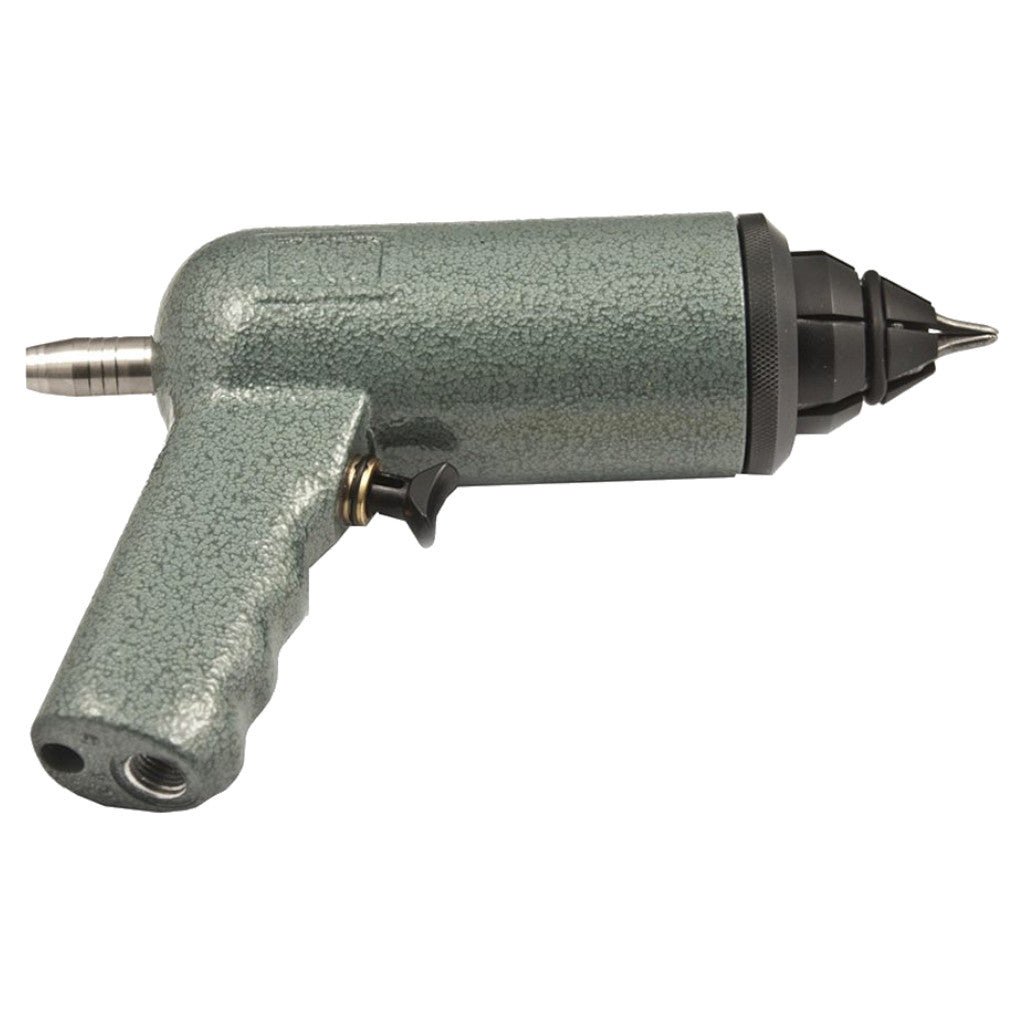

Bruno Wessel | Stud Gun Insertion Tool for 9mm Base Flange Tire Studs (TSIT-9)

Name: Bruno Wessel | Stud Gun Insertion Tool for 9mm Base Flange Tire Studs (TSIT-9)
Brand: Bruno Wessel
SKU: TSIT-9
Price: 599.99 USD
Availability: InStock

$599.99

Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!

Bruno Wessel | Stud Gun Insertion Tool for 9mm Base Flange Tire Studs (TSIT-9)

Features:

The standard of the industry
Automatic, air-powered, lightweight, easy to use and maintain
The TSIT-9 Insertion Tool is used for 9mm base flange tire studs

Most common Bruno Wessel Tire Studs used with the TSIT-9 Insertion Tool are:

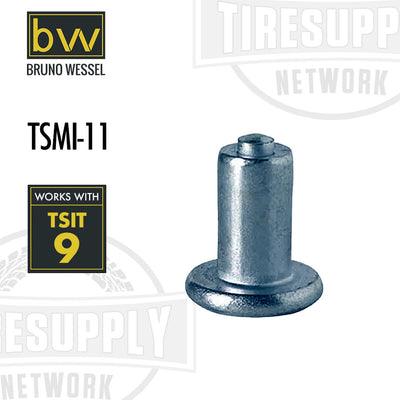

TSMI #11
TSMI #12
TSMI #13
TSMI #15
TSMI #16
TSMI #17
Road Grip Rally Studs 8 x 13
Road Grip Rally Studs 9 x 17
Road Grip Rally Studs 9 x 19.6
Road Grip Motocross Studs 9 x 16
Road Grip Motocross Studs 9 x 18.5
Road Grip Motocross Studs 9 x 20
Road Grip Motocross Studs 9 x 22
Road Grip Motocross Studs 9 x 25
Road Grip Ice Racing Stud TSMI #13 Cold Headed

Also Available:

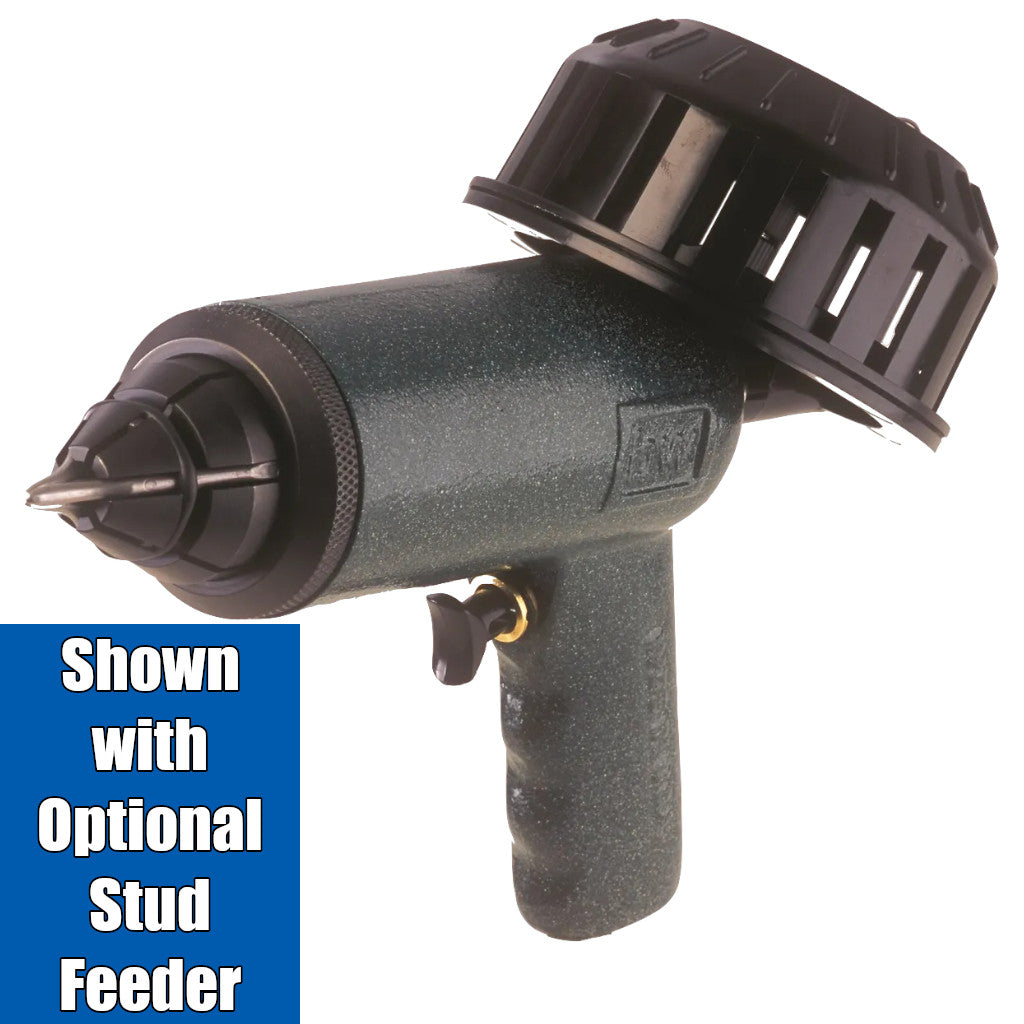

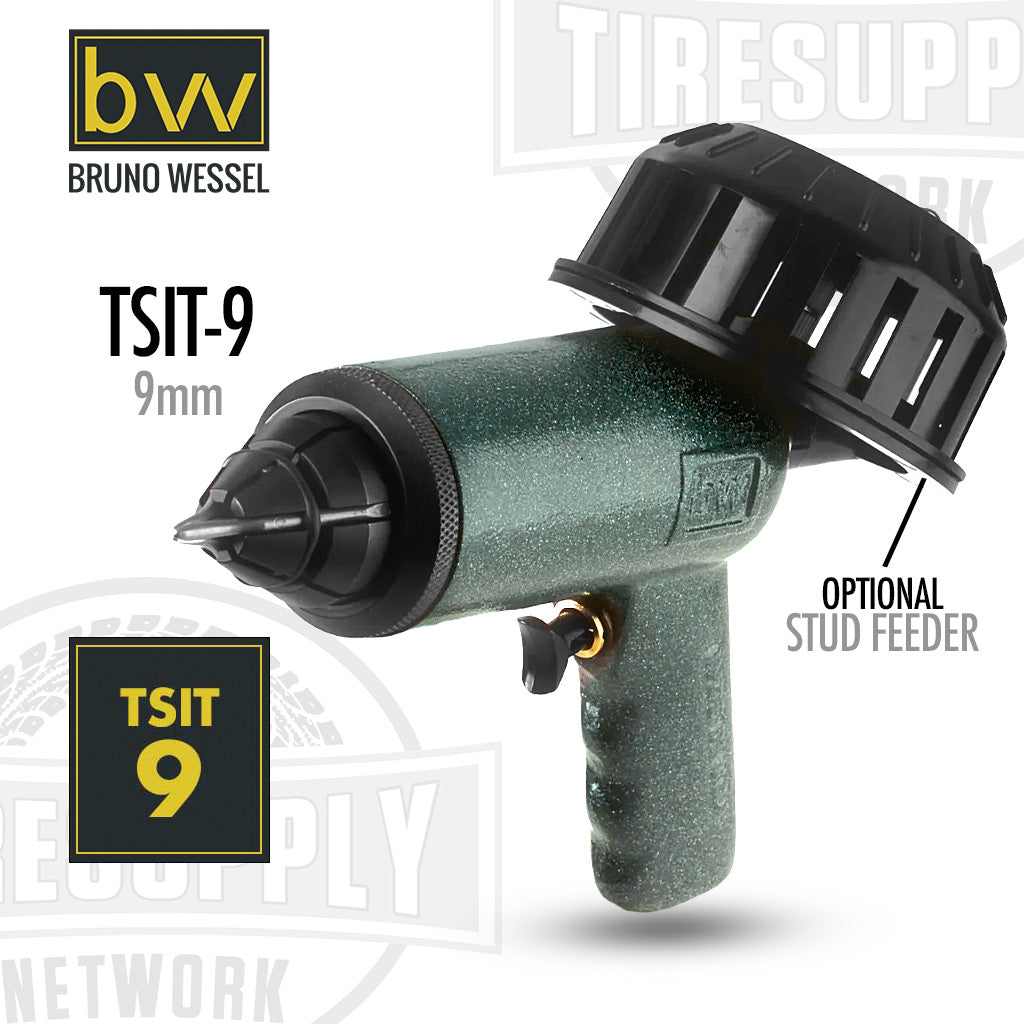

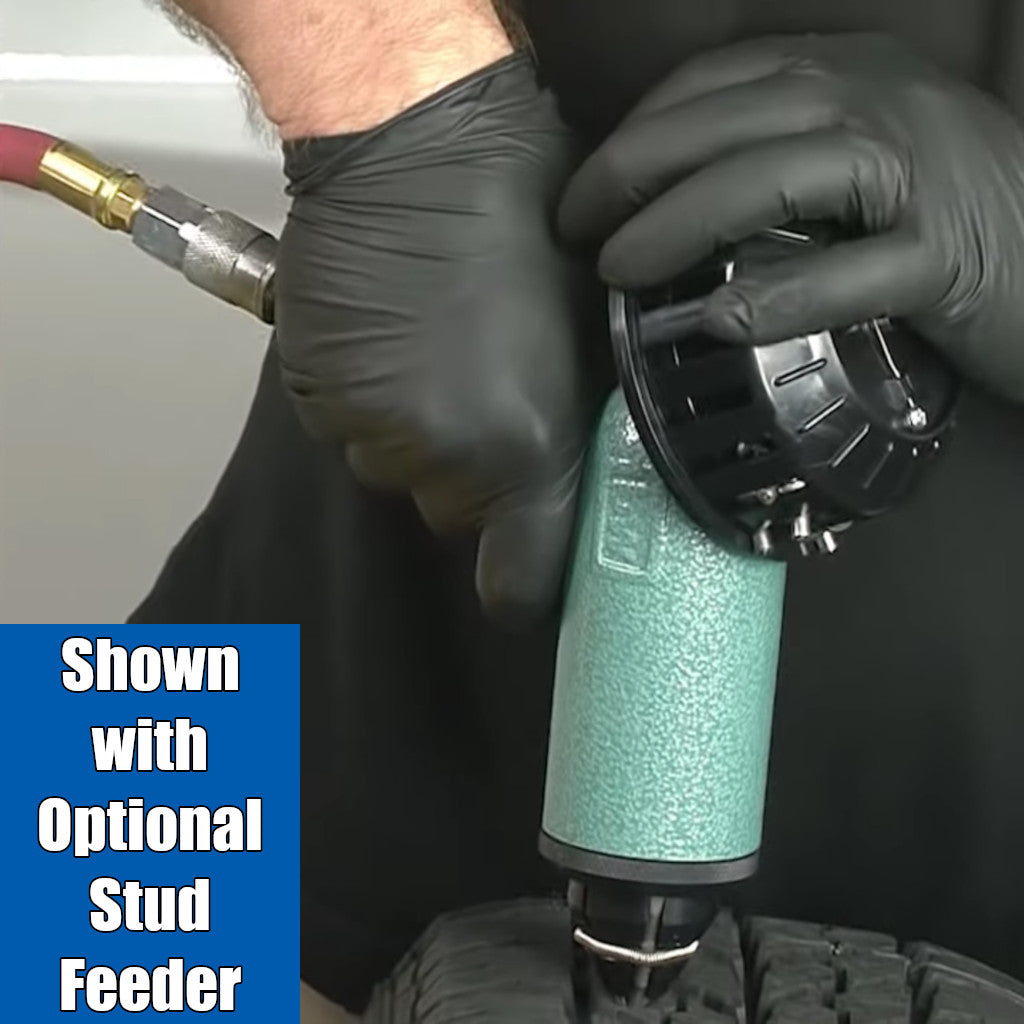

Optional Bruno Wessel Mini Feeder 4048 for TSIT-9 for Road Grip Ice Racing Stud TSMI #13 Cold Headed
Optional feeder not compatible with multi-flange Rally or Motocross studs

Specifications:

Weight: 4.5 lbs

Replacement Parts Chart

Part #	Product Description	View Listing	For Main Product
0084	Spread Finger	See Part Here	TSIT-9 & TSIT-11
0087	Spring Ring Head	See Part Here	TSIT-9 & TSIT-11
0088	O-Ring Piston	See Part Here	TSIT-9 & TSIT-11
0089	O-Ring Brass Sleeve	See Part Here	TSIT-9 & TSIT-11
0090	O-Ring Trigger	See Part Here	TSIT-9 & TSIT-11
0091	O-Ring Trigger	See Part Here	TSIT-9 & TSIT-11
0092	Piston Cup Large	See Part Here	TSIT-9 & TSIT-11
0095	Spring Trigger	See Part Here	TSIT-9 & TSIT-11
0096	Pin Trigger	See Part Here	TSIT-9 & TSIT-11
0098	Trigger w/O-Rings	See Part Here	TSIT-9 & TSIT-11
0126	Inserting Finger	See Part Here	TSIT-9 & TSIT-11
0127	Metering Lever	See Part Here	TSIT-9 & TSIT-11
0129	Piston	See Part Here	TSIT-9 & TSIT-11
0130-9	Feed Tube 9mm	See Part Here	TSIT-9
0131	Tapered Sleeve	See Part Here	TSIT-9 & TSIT-11
0134	Compression Spring	See Part Here	TSIT-9 & TSIT-11
0135	Steel Ring	See Part Here	TSIT-9 & TSIT-11
0136	O-Ring Feed Tube	See Part Here	TSIT-9 & TSIT-11
0383	Piston Cup Small	See Part Here	TSIT-9 & TSIT-11
0381	Stud Gun Repair Kit - Small	See Part Here	TSIT-9 & TSIT-11
0382	Stud Gun Repair Kit - Large	See Part Here	TSIT-9 & TSIT-11
0384	Stud Gun Trigger Repair Kit	See Part Here	TSIT-8, TSIT-9 & TSIT-11
0385	Stud Gun Deluxe Repair Kit	See Part Here	TSIT-9 & TSIT-11

Click the link below to see the parts breakdown of this tool. Call or email us with part numbers that you need and we will special order them for you.

Bruno Wessel TSIT Stud Gun Parts Breakdown
