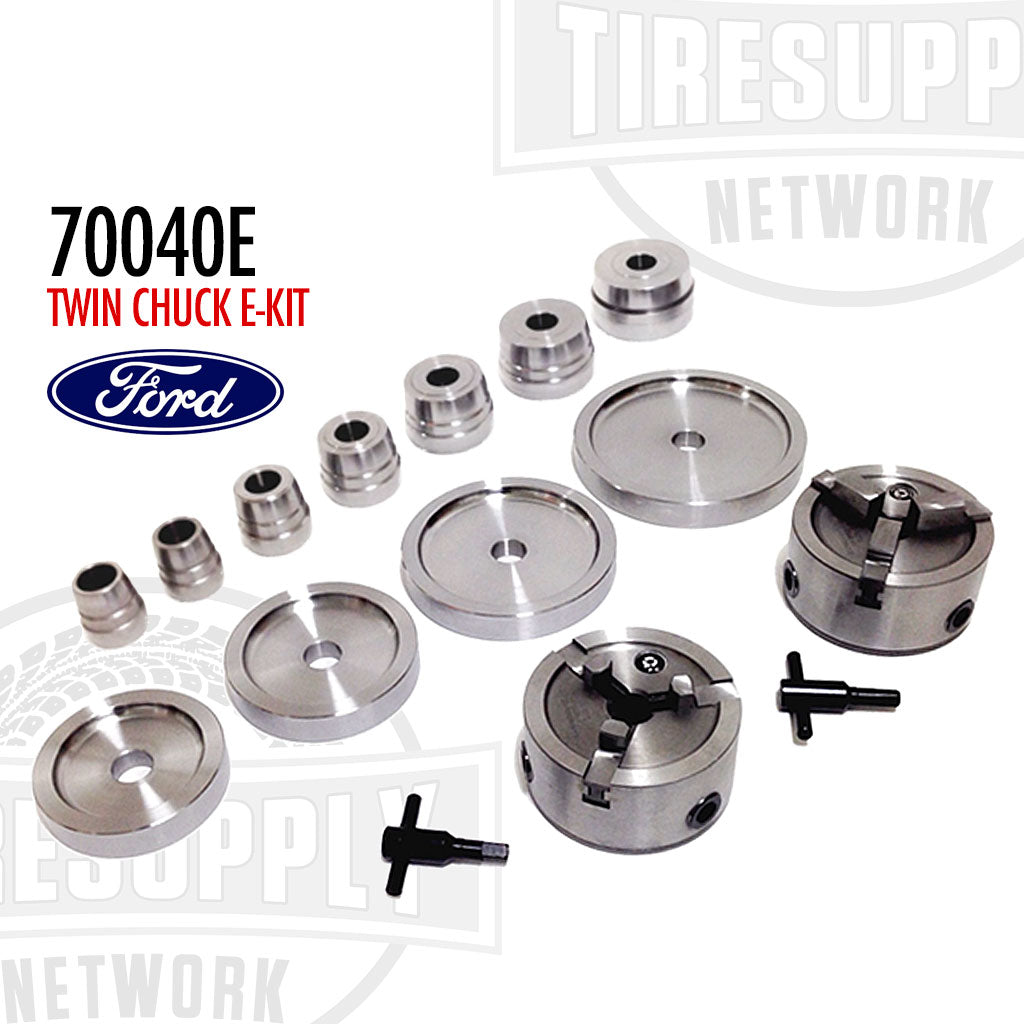

Twin Chuck E-Kit - with Ford F-150 Bushing (70040E)
For Machining Hub and Hub-less Drums and Rotors through 1 Ton Trucks and the 2004 thru present Ford F-150 2x4 front Rotor with pressed wheel bearing in the hub.
The kit comes complete with two separate Quick Chucks one with standard jaws & standard plate #70040 and one with large jaws & large plate #70048, Plus small plate #70047, Toyota plate #70054 and Ford F-150 Bushing #70077 plus the 7 Piece Double Taper Adapter Set Part # 109002
Key Features: No Jaws to Change and optimal for shops with 2 or more brake lathes
Kit Includes:
Quick Chuck Adapter Part# 70040 (with Standard Backing Plate and wrench)
- Quick Chuck (3 jaw chuck, 5" diameter) Part# 70042
- Standard Backing Plate (5" diameter) Part# 70043
- Wrench Part# 70044
Quick Chuck Adapter (Trucks) Part# 70048 (with Truck Jaws, Large Backing Plate and wrench)
- Quick Chuck (3 jaw chuck, 5" diameter w/ Truck Jaws) Part# 70053
- Large Backing Plate (7.25" diameter) Part# 70046
- Wrench Part# 70044
Toyota Backing Plate (6.25" diameter), Part#70054 Small Backing Plate (4.75" diameter), Part#70047 Ford F-150 Bushing Part # 70077 (Used in conjunction with small backing plate) plus the 7 Piece Double Taper Adapter Set Part # 109002
