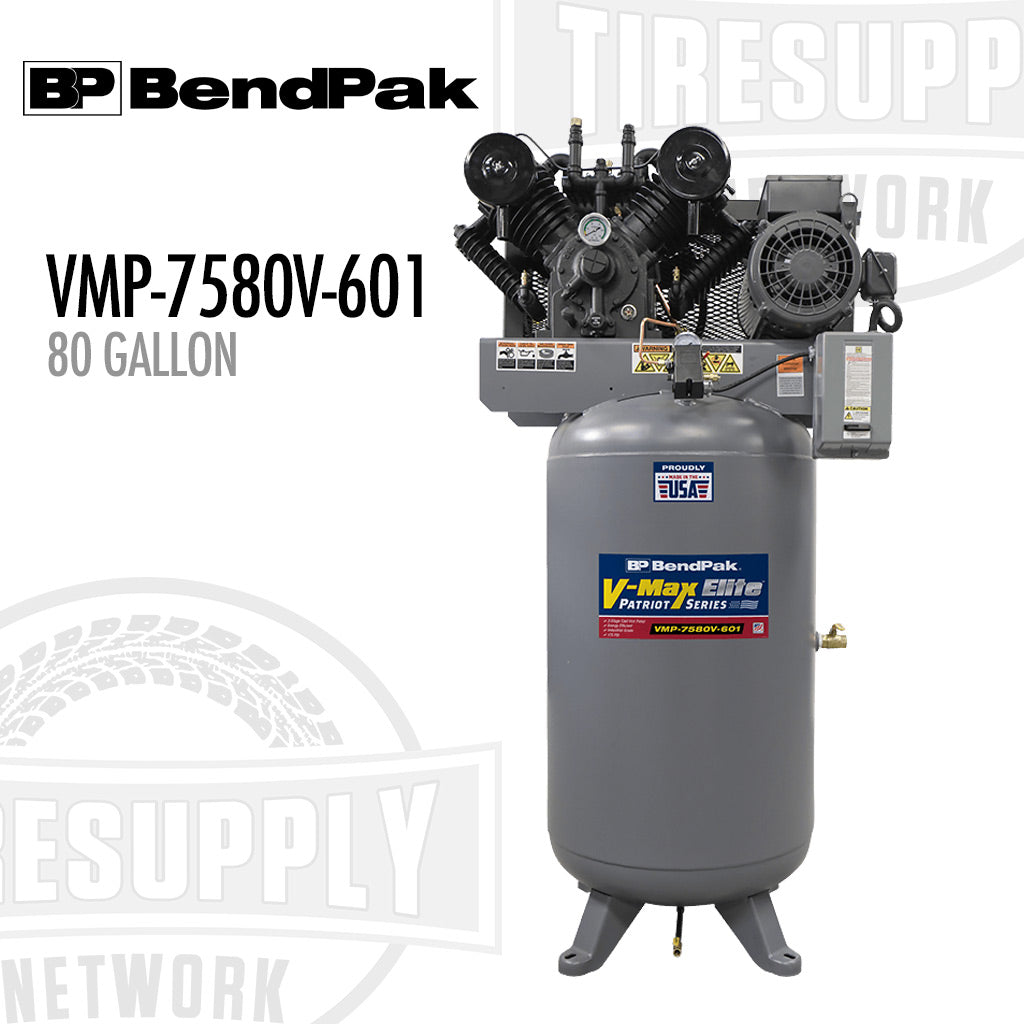

BendPak | VMP-7580V-601 Patriot Series 80-Gallon Vertical Tank Air Compressor, 1PH, 7.5 hp (5179112)

BendPak | VMP-7580V-601 Patriot Series 80-Gallon Vertical Tank Air Compressor, 1PH, 7.5 hp (5179112)

Up your air game with the powerful, 1-phase or 3-phase V-Max Patriot 7580V air compressor from BendPak. V-Max Patriot air compressors meet and exceed your air system needs with high-efficiency technology and unrivaled quality.

Features

• Assembled in USA
• ASME, UL certified

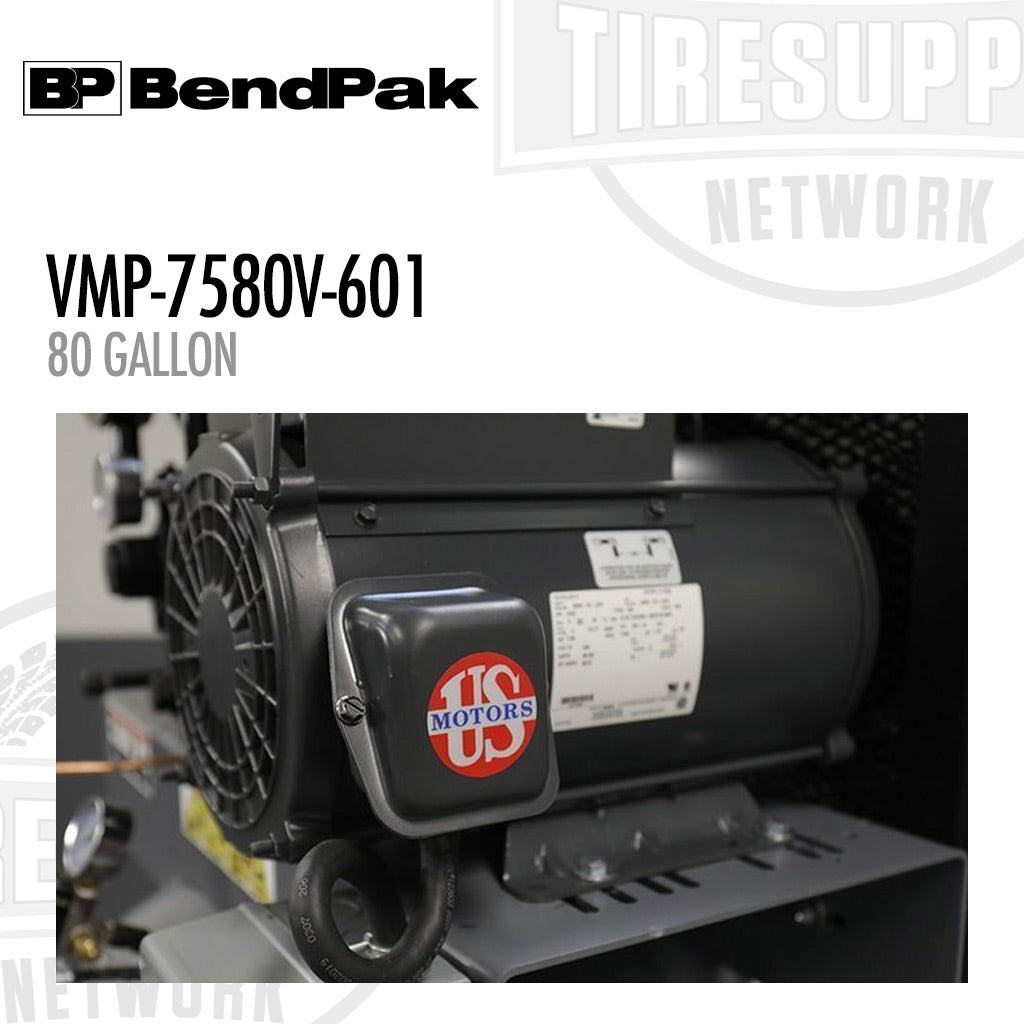

• 7.5 HP energy-efficient motor
• Extra-quiet, low-RPM pump

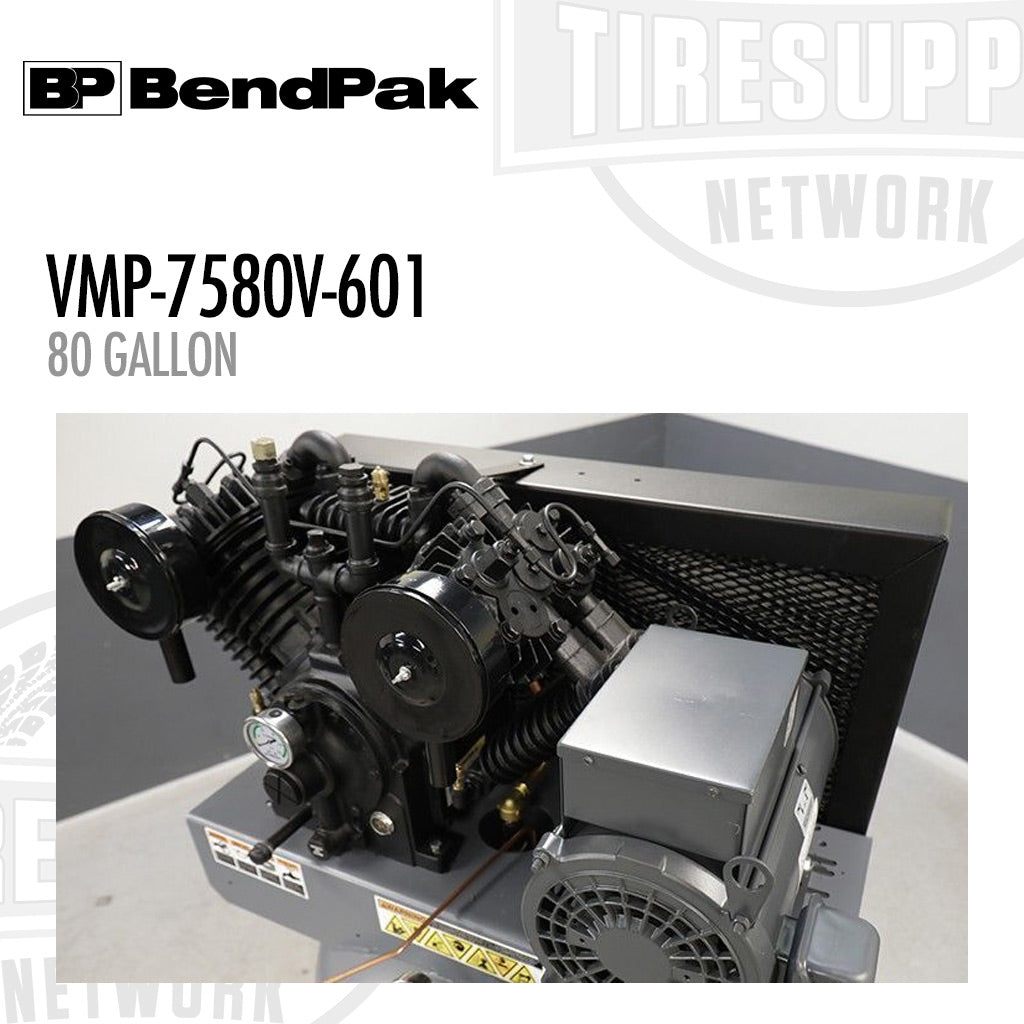

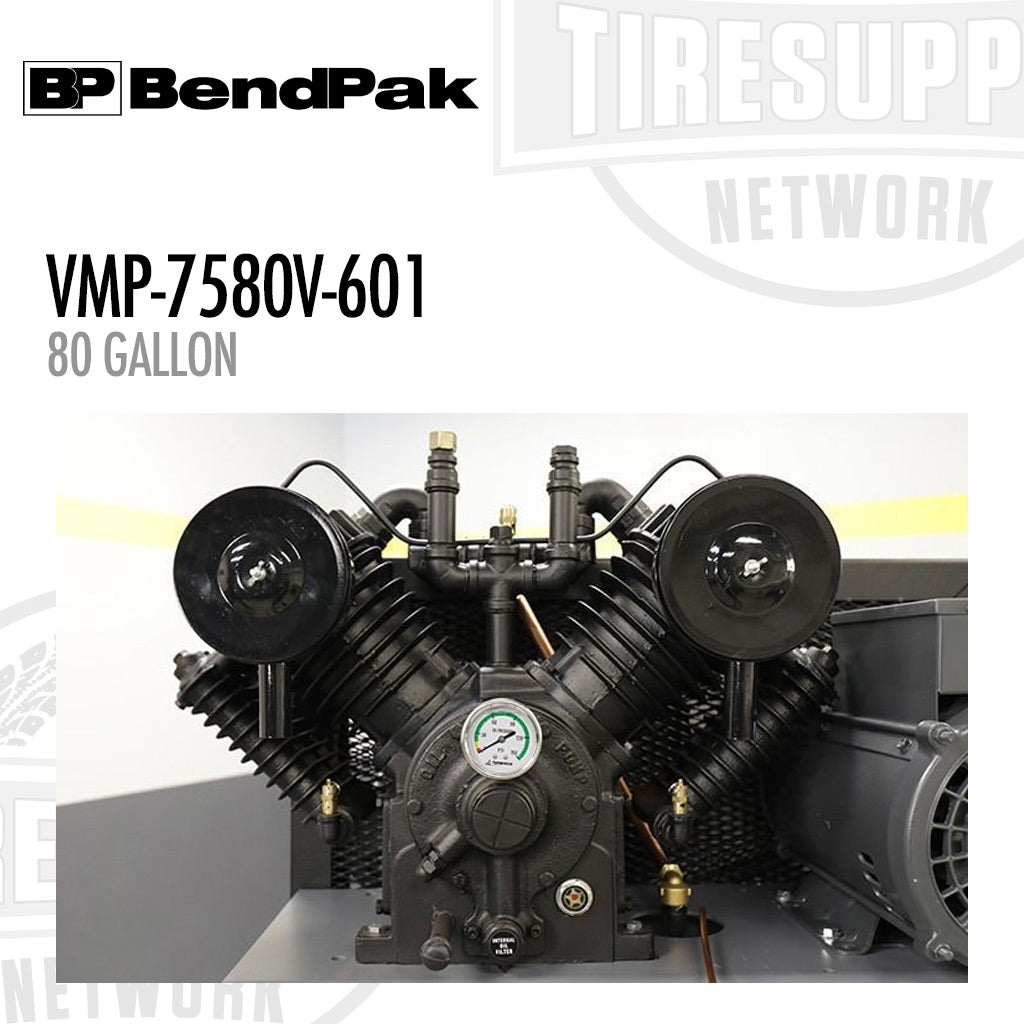

• Cast-iron V-Max Elite pump features simple splash lubrication for total reliability and a "V-4" finned cylinder configuration that provides 360° cooling
• Proven air-cooled design is economical, reliable and environmentally friendly
• Two compression rings and one oil control ring provide excellent oil control and high-efficiency air delivery
• Dual drive belts require less belt tension, resulting in less load on pump bearings, longer belt life and low vibration
• Fully-enclosed belt guard
• Cast-iron pump and heads are more stable under heavy workloads and do not warp from heat like aluminum cylinders with pressed-in sleeves
• ASME-rated tank
• Large surface area and cooling fins on cylinders and forced-air after-cooler provide efficient heat dissipation for lower operating temperatures and dryer air. Compressor runs cooler, oil life is extended and maintenance is reduced
• Tapered roller main bearings provide full contact and support of the crankshaft, and needle-type piston pin bearings properly distribute bearing loads
• Precision balanced flywheel has forced-air fan blades for optimum compressor cooling and life
• Magnetic starter provides thermal overload protection and minimizes start loads, providing long life and trouble‐free operation
• ASME-rated safety valve protects the compressor from overpressure and safeguards the operator
• Balanced flywheel and counterbalanced crankshaft result in nearly vibration-free operation
• Readily accessible disc-valves do not require disassembly of compressor piping, for easy accessibility and reduced maintenance cost and downtime
• Corrosion-resistant tubing for coolers, separators and valves for longer life and reduced maintenance
• Oversized ductile iron crankshaft provides extra strength and longer wear
• High-density, die-cast aluminum alloy rods minimize reciprocating weight

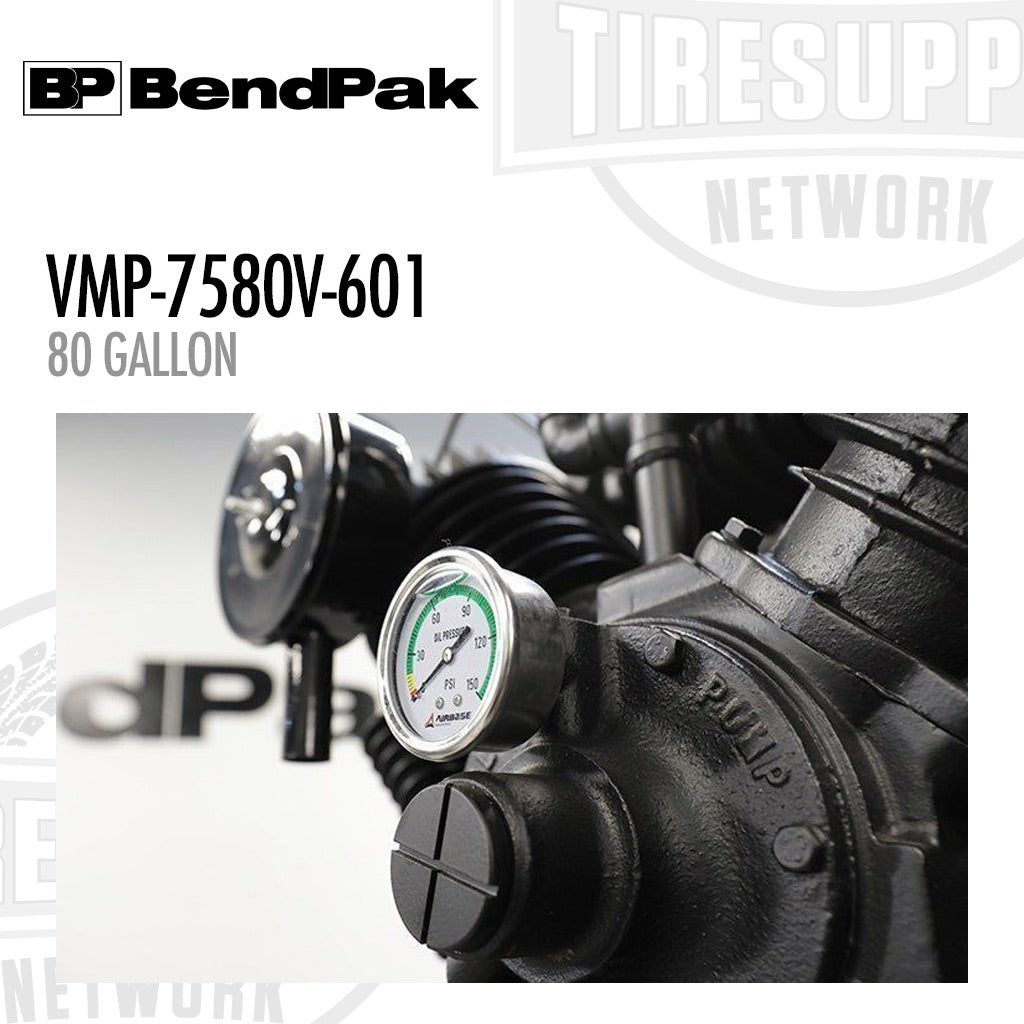

• Rugged cast iron oil reservoir has convenient sight gauge glass, large oil drain and convenient fill cap
• Automatic pressure switch provides auto start and stop
• Integrated pressure unloader valves are built into the intake valve assembly on the air compressor head, reducing internal pump heat from initial start-up compression

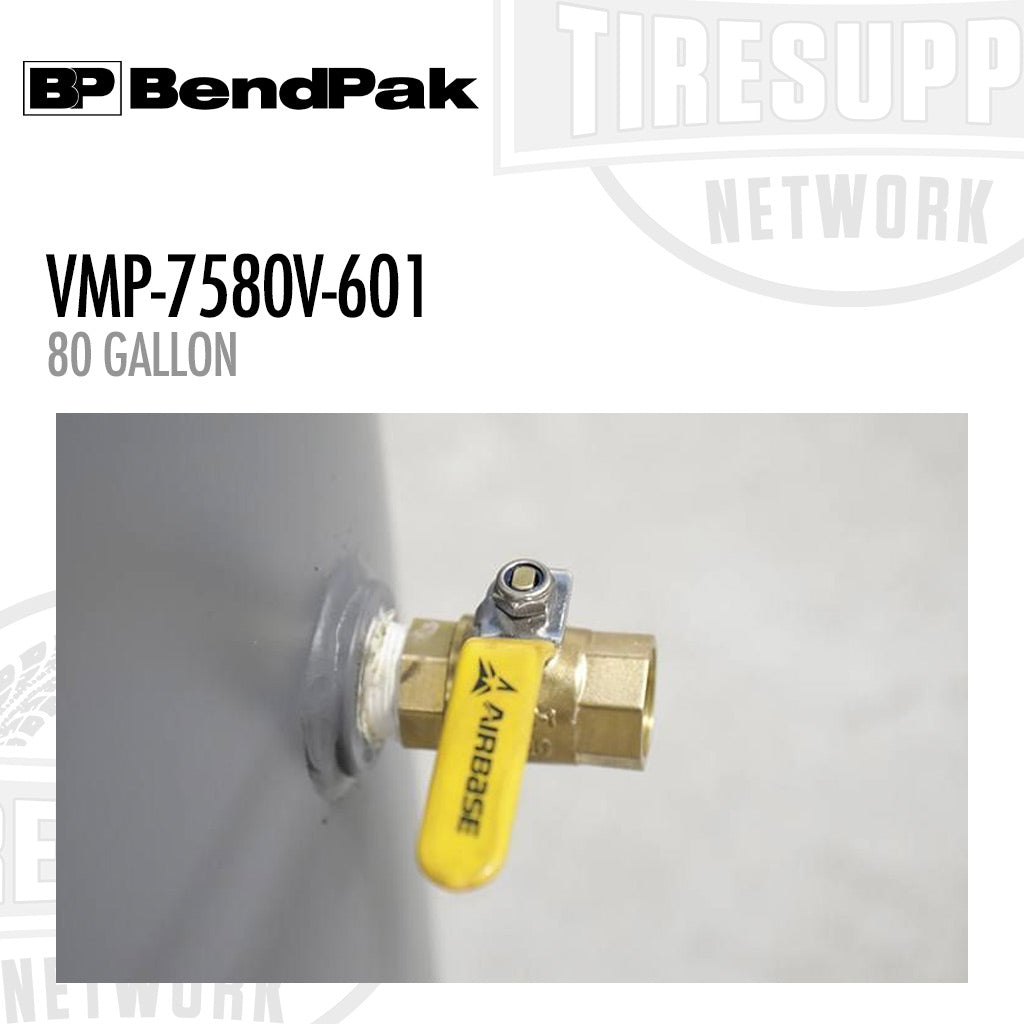

• Pressure gauge with service valve
• Oversize replaceable air filters

The Next Stage in Air Compressor Evolution

Meet the V-Max Patriot 7580V, 1-phase or 3-phase air system. Like every member of the V-Max Patriot family, the 7580V features the rugged V-Max, four-cylinder pump designed for extreme duty and maximum efficiency under all load conditions. The BendPak 7580V is a 2-stage lubricated reciprocating air compressor built with 100% cast-iron pumps to provide the quality and performance required by heavy-use applications like automotive/body repair shops and industrial manufacturing and fleet services.

Specifications (General)

Specifications (Motor)

Specifications (Pump)

Specifications (Tank)

Compliance and Restrictions:

⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
