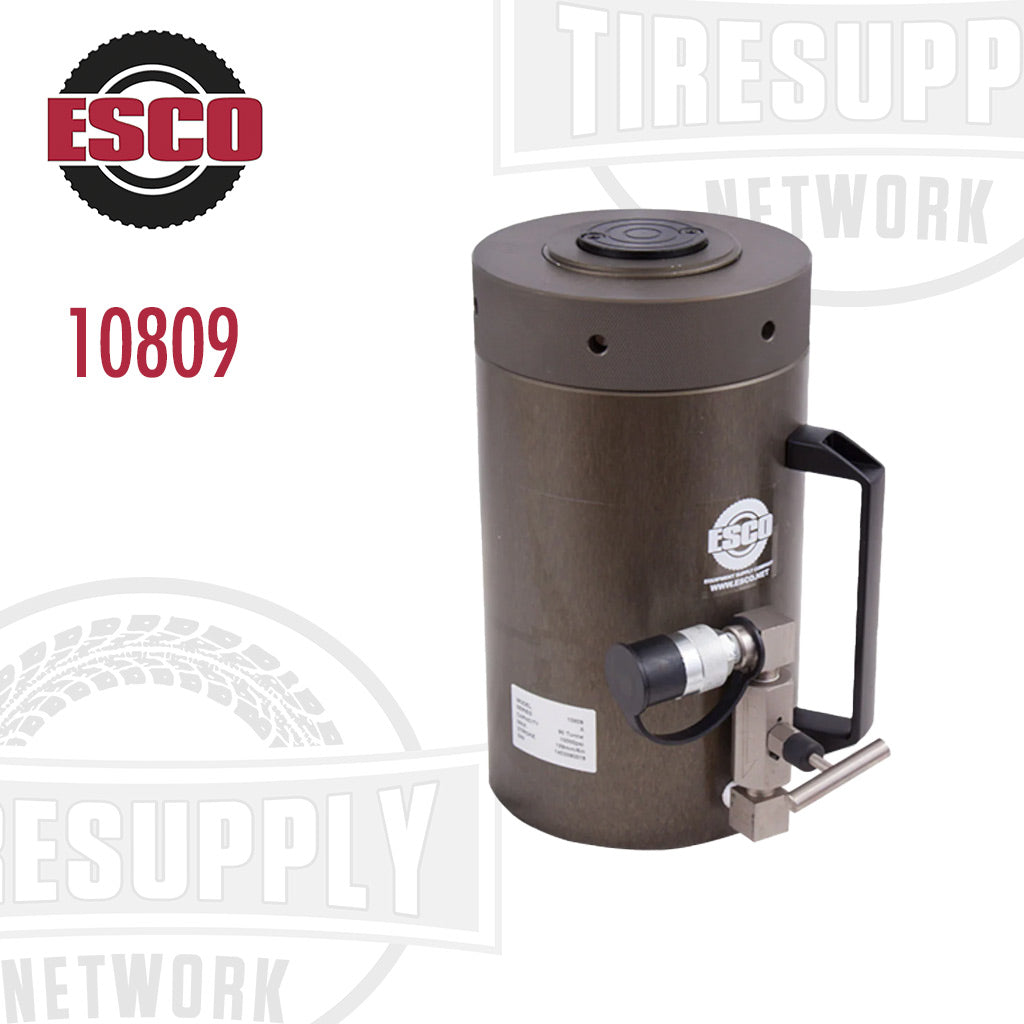

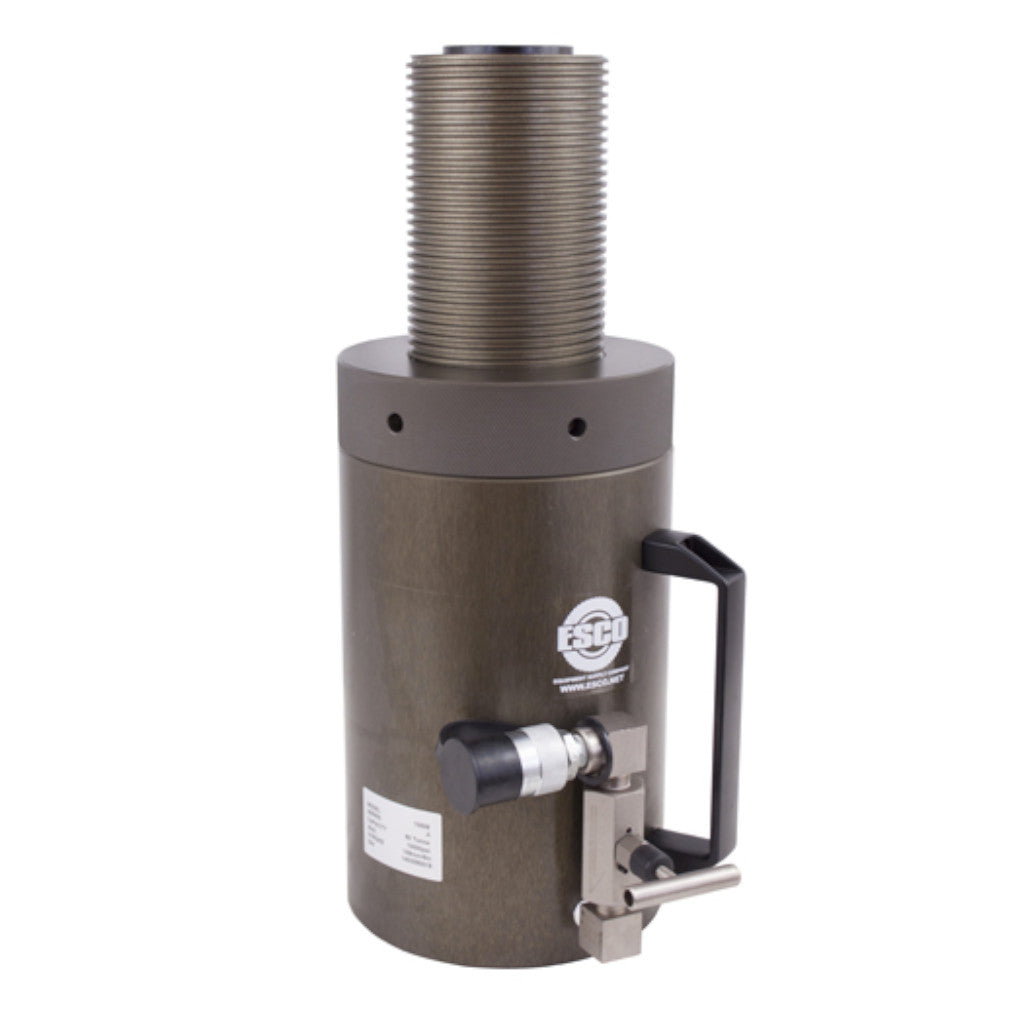

ESCO 10809 | 100 Ton Safety Locking Collar Aluminum Jack

ESCO 10809 | 100 Ton Safety Locking Collar Aluminum Jack

The ESCO Professional Aluminum Locking Collar Jacks (Cylinders) are known for their quality and lightweight durable design. The most important part of lifting a heavy load is the ability to sustain the load. While most instances support jack stands are used; the Locking Collar Jack (Cylinder) acts as its own self-contained support stand. This aids in complying with OSHA regulation 29CFR1926.305.

Features:

• Designed for use in multiple heavy lifting applications including OTR/Mining vehicle lifting
• High tonnage: 100 Ton lifting capacity
• Heavy duty aluminum design at a fraction of the weight
• Lightweight and compact design makes unit(s) highly portable

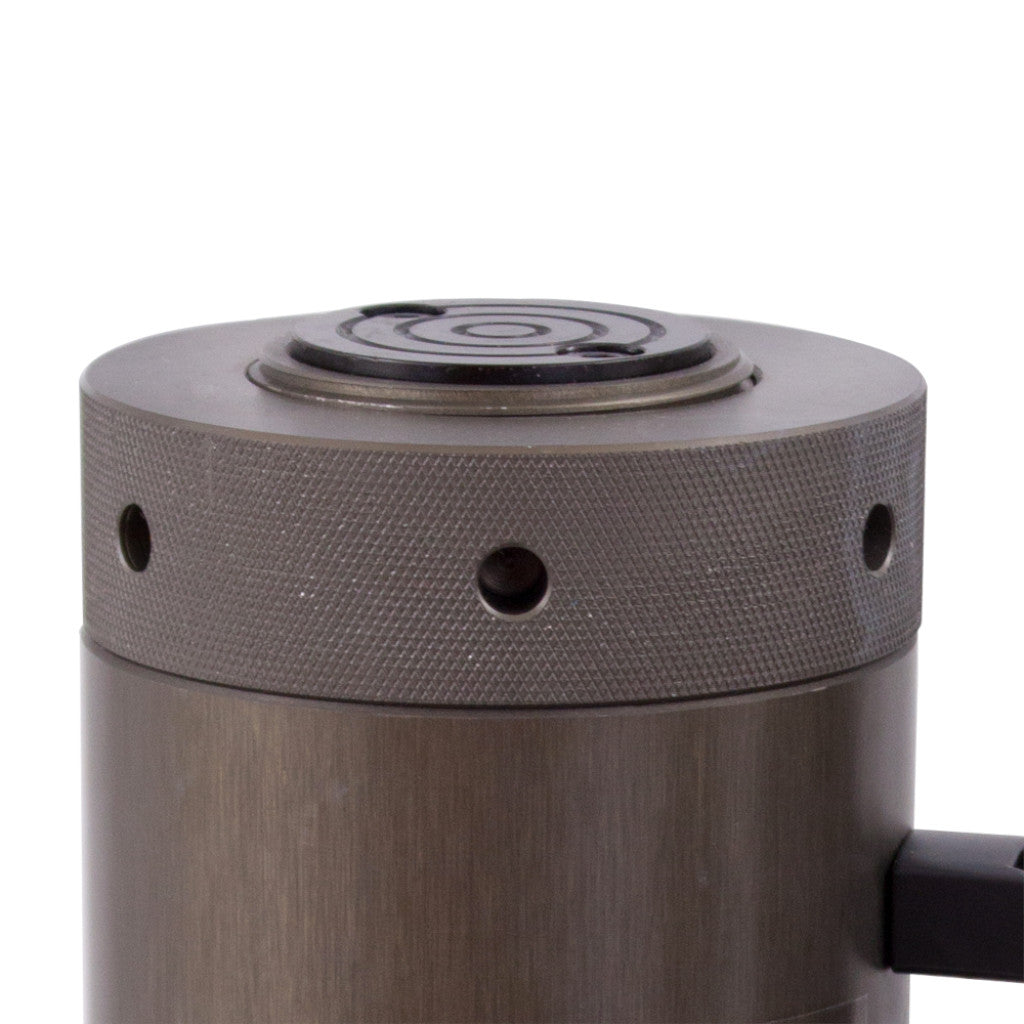

• Safety Lock Nut For Mechanical Load Holding

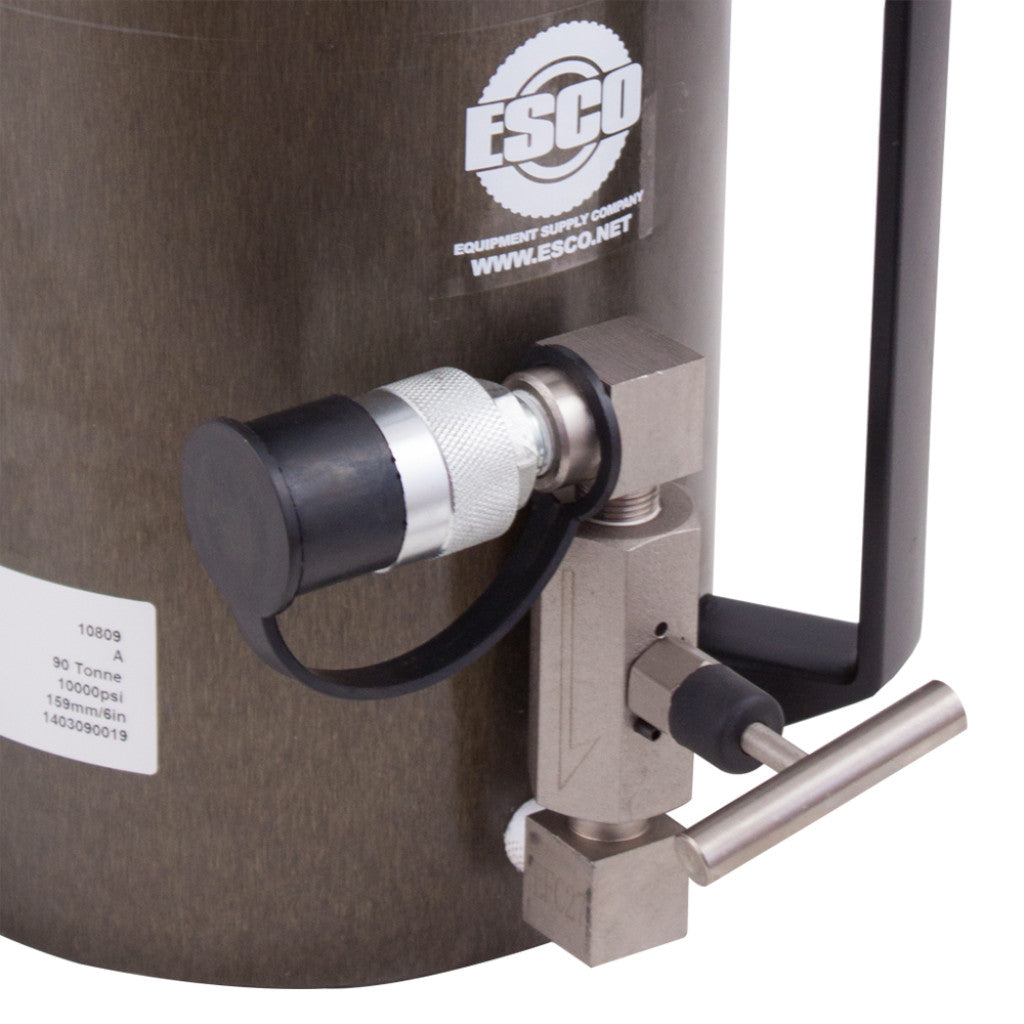

• High Flow quick connect coupler for easy connection

Specifications:

• Capacity 100 Ton
• Stroke: 6.00″
• Cylinder Effective Area: 20.58″ (square inches)
• Oil Capacity: 128.39″ (cubic inches)
• Collapsed Height: 13.37″
• Extended Height: 19.60″
• Outside Diameter: 7.44″

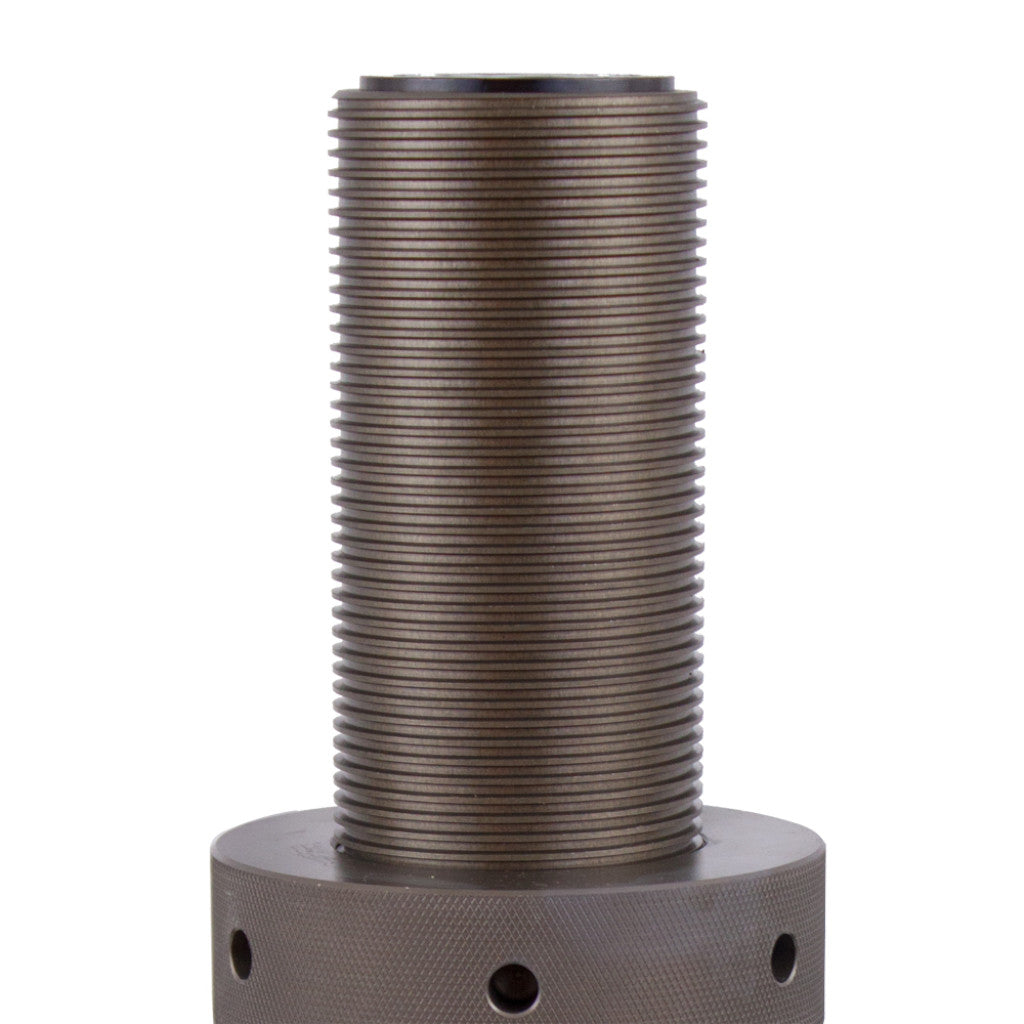

• Piston Rod Diameter: Tr110 x 6 mm
• Nut Thickness: 1.97″
• Weight: 66 lbs (30 kg)

Compliance and Restrictions

⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
