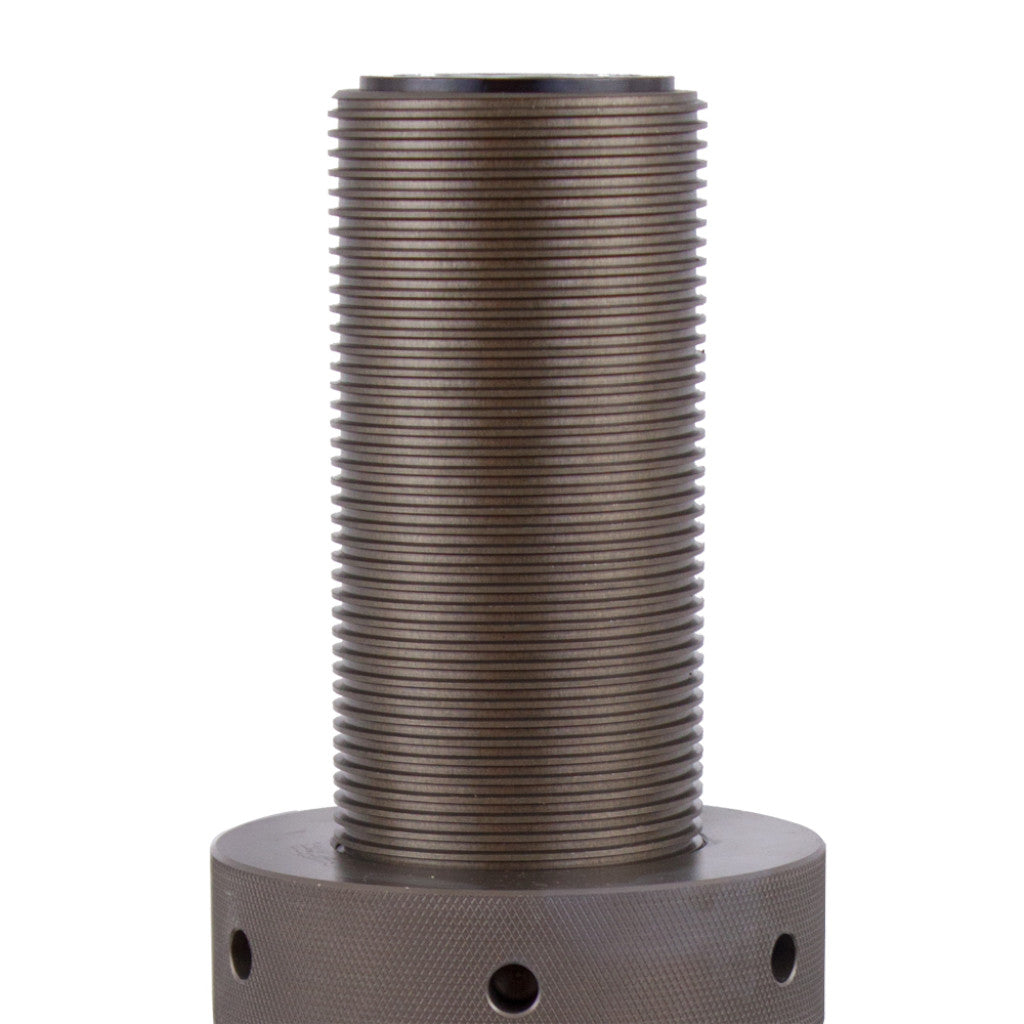

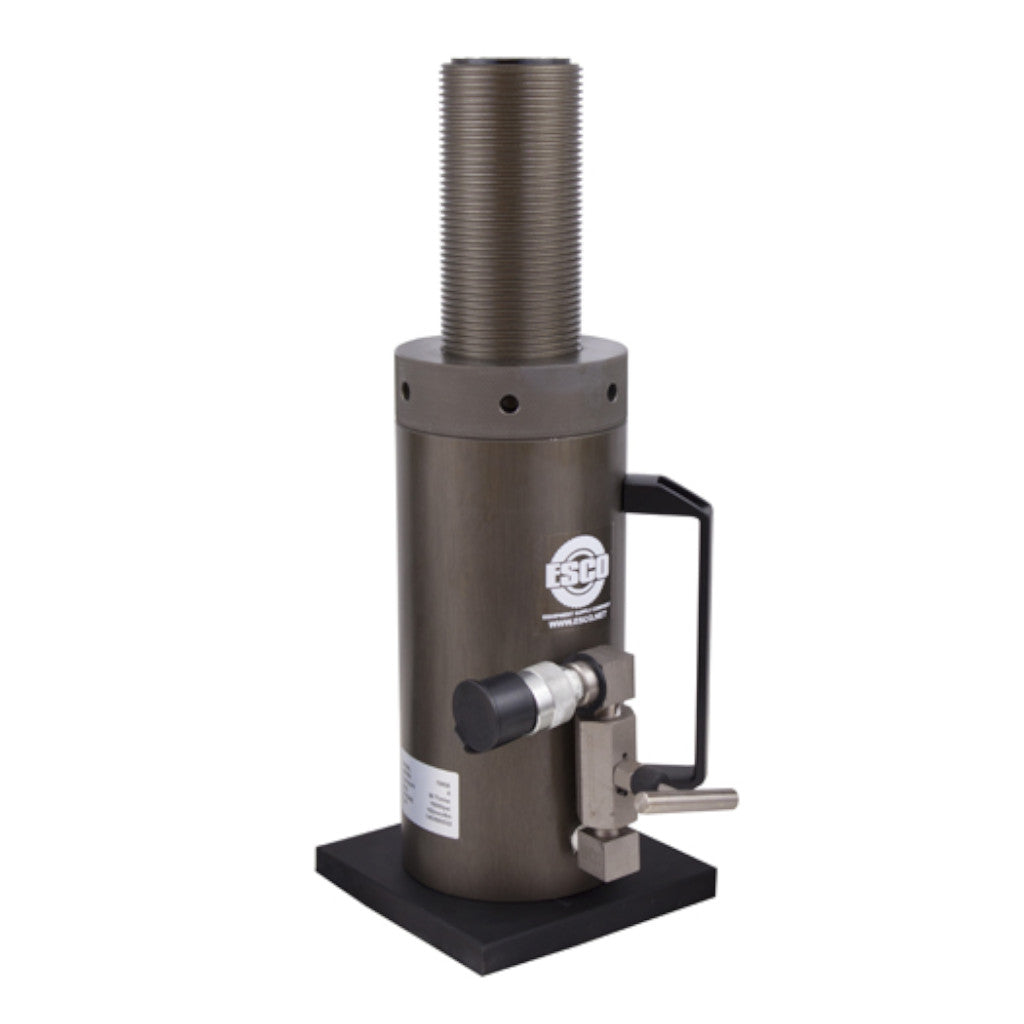

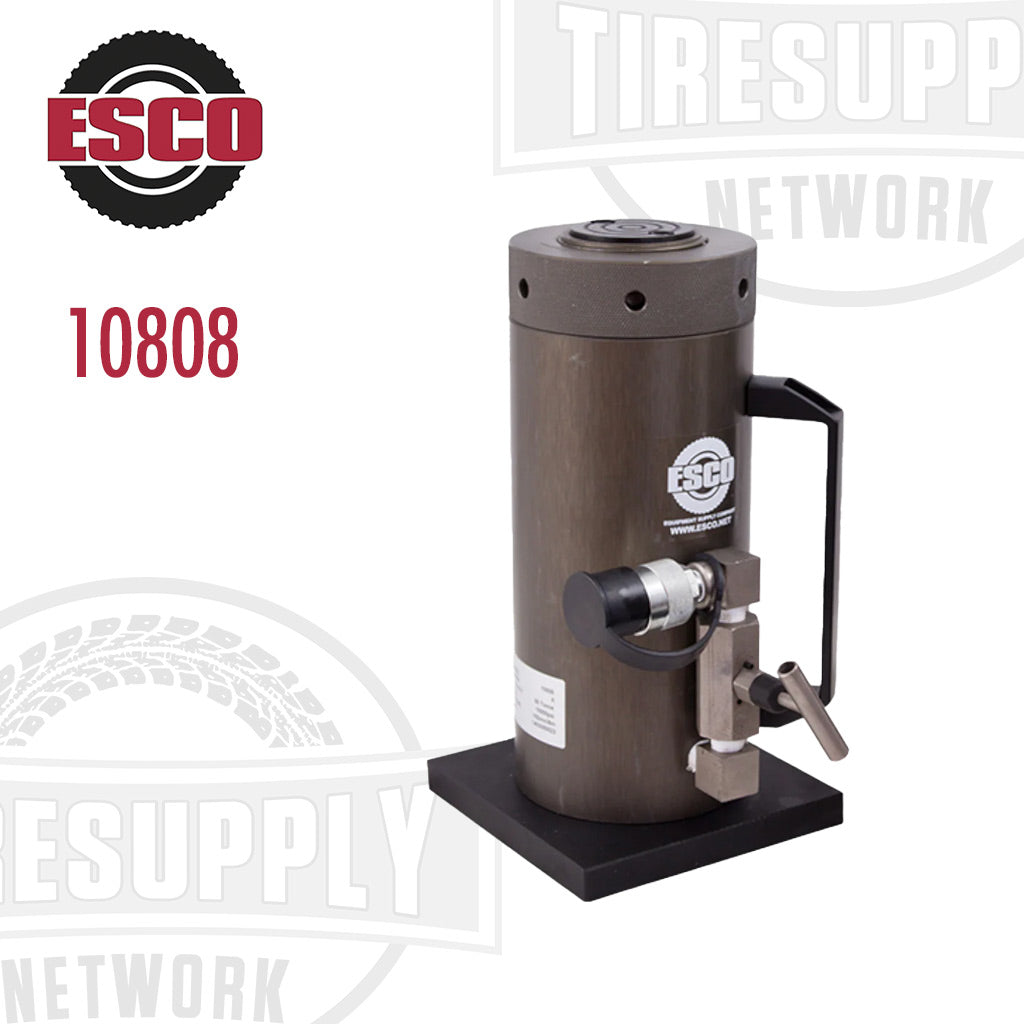

ESCO 10808 50 Ton Safety Locking Collar Aluminum Jack
The ESCO Professional Aluminum Locking Collar Jacks (Cylinders) are known for their quality and lightweight durable design. The most important part of lifting a heavy load is the ability to sustain the load. While most instances support jack stands are used; the Locking Collar Jack (Cylinder) acts as its own self-contained support stand. This aids in complying with OSHA regulation 29CFR1926.305.
Features:
- Designed for use in multiple heavy lifting applications including OTR/Mining vehicle lifting
- High tonnage: 50 Ton lifting capacity
- Heavy duty aluminum design at a fraction of the weight
- Lightweight and compact design makes unit(s) highly portable

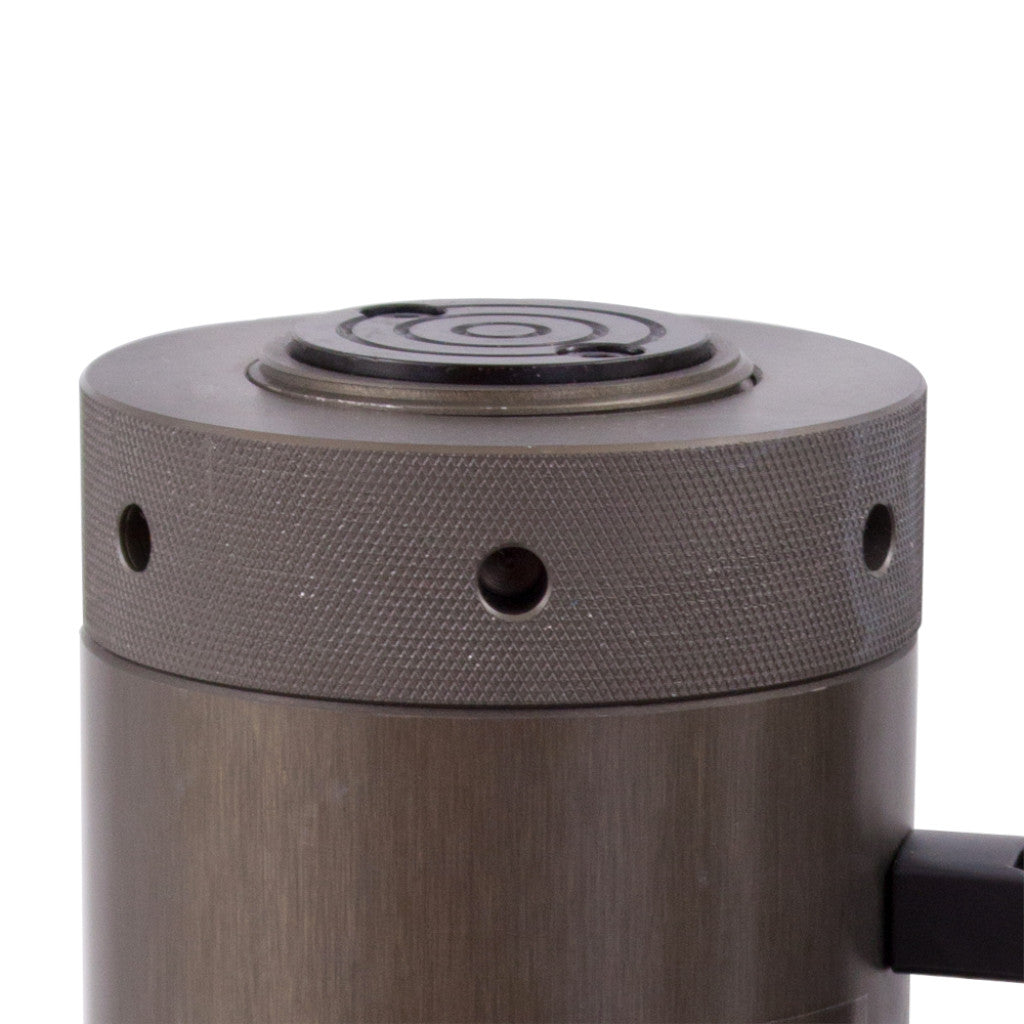

- Safety lock nut For mechanical load holding

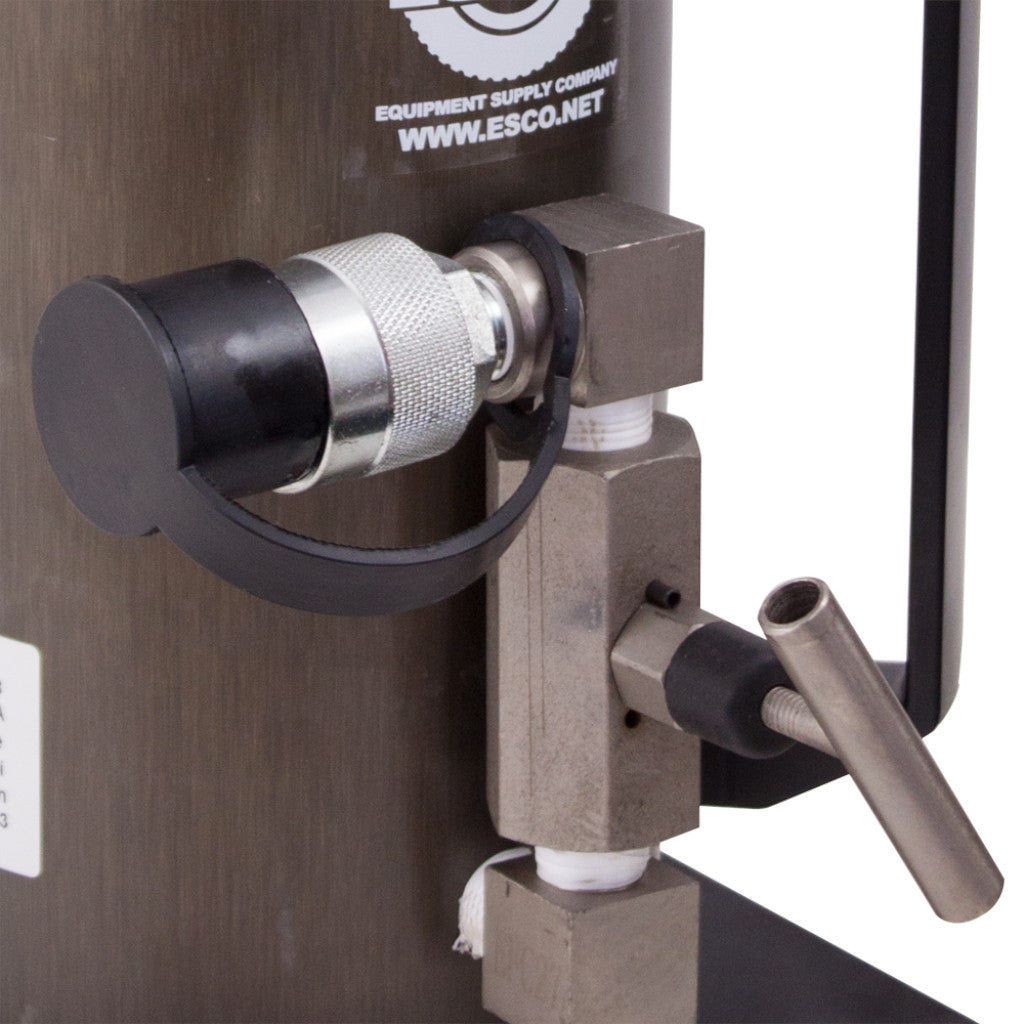

- High Flow quick connect coupler for easy connection
Specifications:
- Capacity: 50 Ton
- Stroke: 6.00″
- Cylinder Effective Area: 10.99″ (square inches)
- Oil Capacity: 67.07″ (cubic inches)
- Collapsed height: 12.50″
- Extended Height: 18.60″
- Outside Diameter: 5.27″
- Piston Rod Diameter: Tr80 x 4 mm
- Nut Thickness: 1.57″
- Weight: 26.4 lbs (12 kg)
