Alcoa O-Ring Seal Bent Metal Valve Stem 9.7mm Hole - Choose Style (TV-54*)
Alcoa truck tubeless tire valves are a must have if the tire technician is working on Alcoa wheels. These truck valve stems come in many different sizes, styles, and bends so make sure to get the correct one to fit your rims needs.
Features:
- Alcoa O-ring Seal Valve
- Designed for use with 9.7mm (.390") rim hole
- Rubber O-ring forms a seal when valve is clamped to rim by tightening hex nut
- Designed specifically for use in aluminum wheels
Specifications

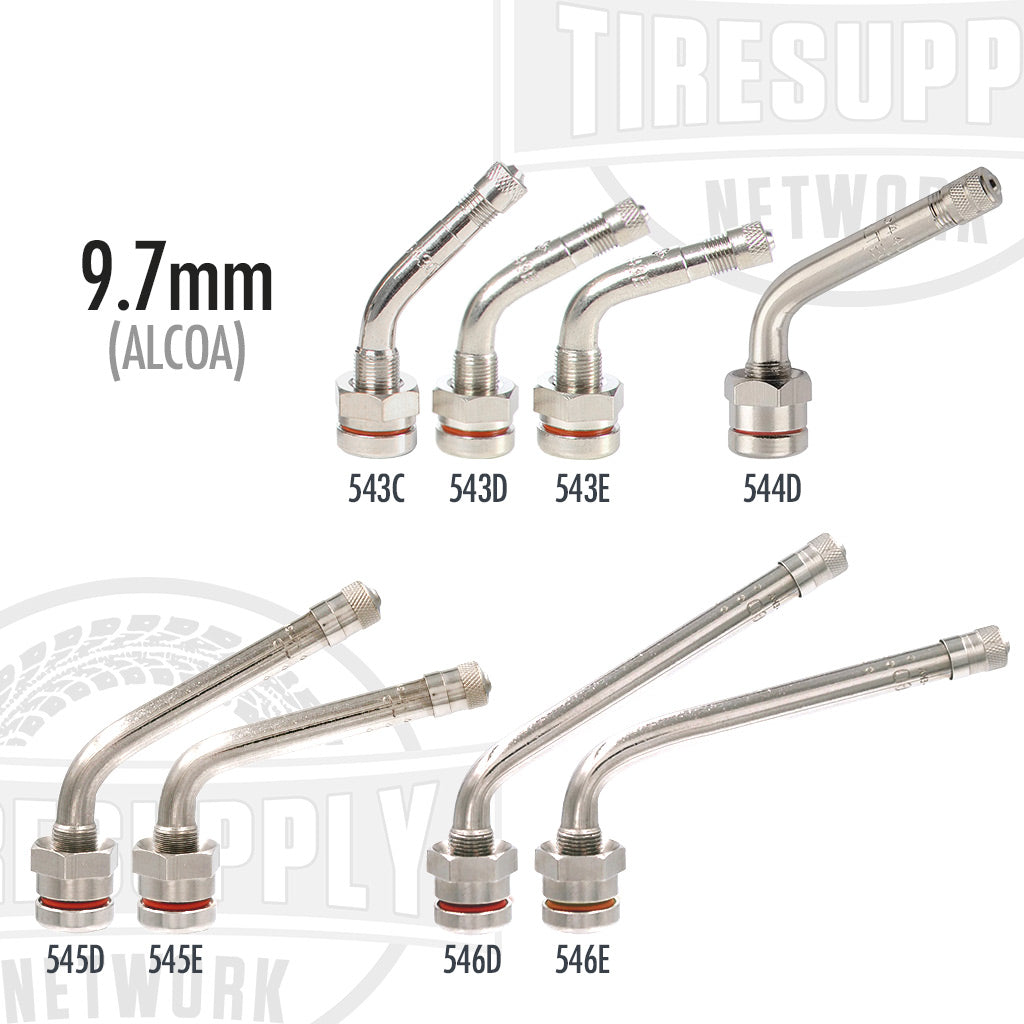

| Model # | Part # | Bend Angle | L Until Bend | L After Bend | Hex Nut |

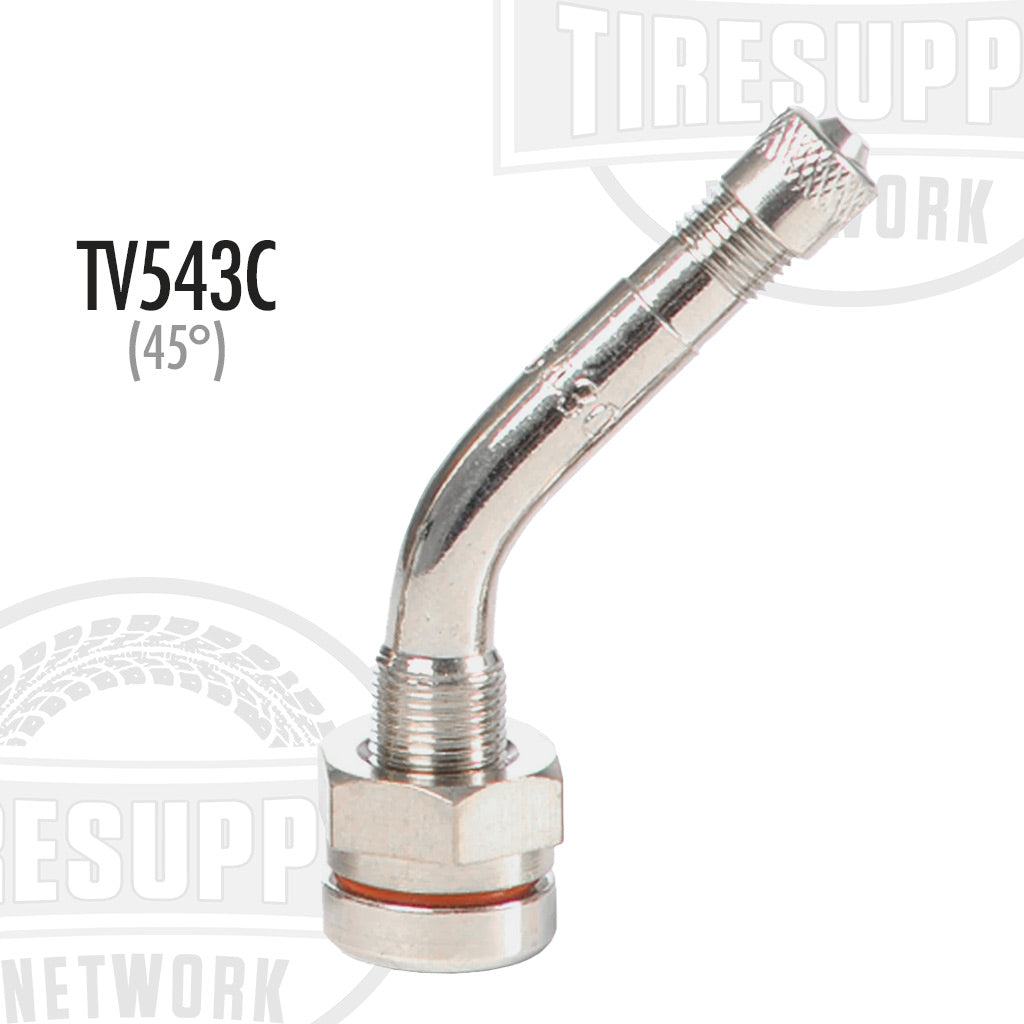

| 543C | TV-543C | 45° | 0.93" | 1.43" | HN-22 |

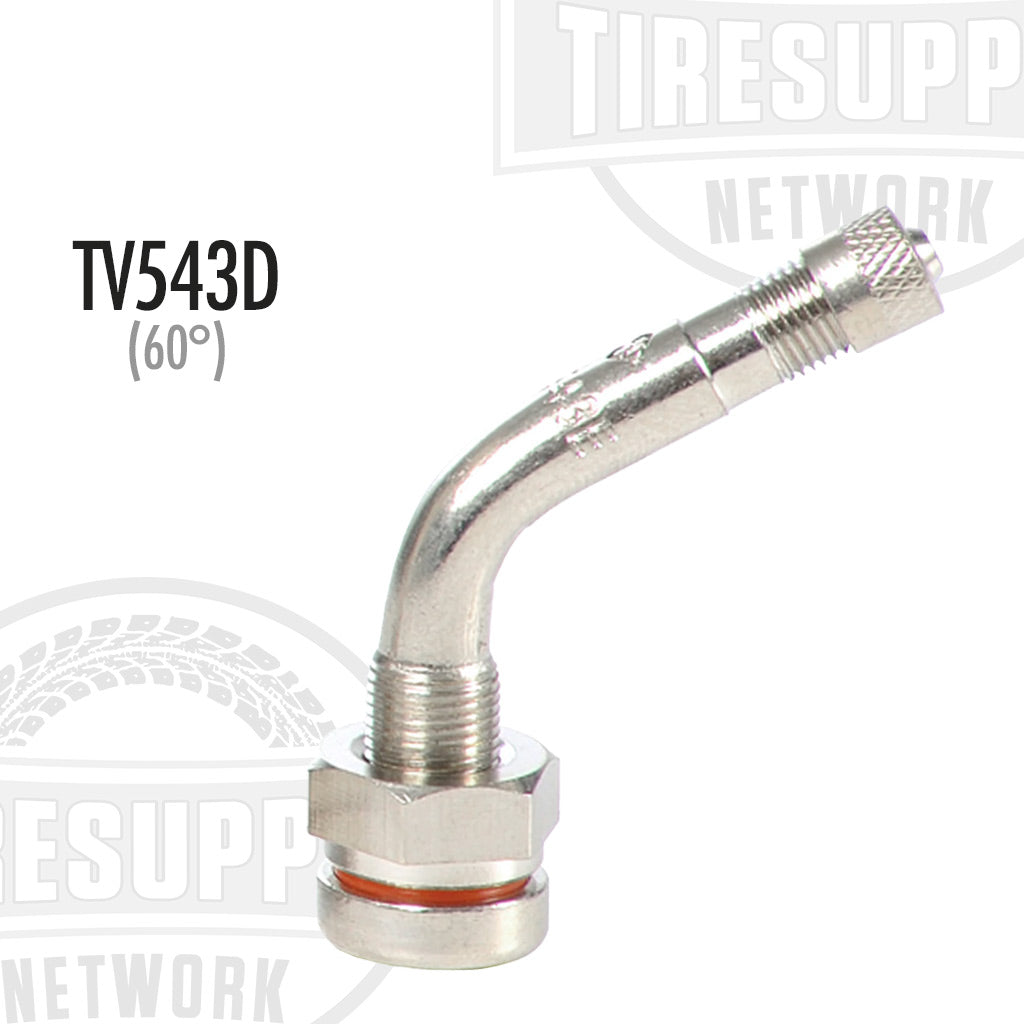

| 543D | TV-543D | 60° | 0.98" | 1.38" | HN-22 |

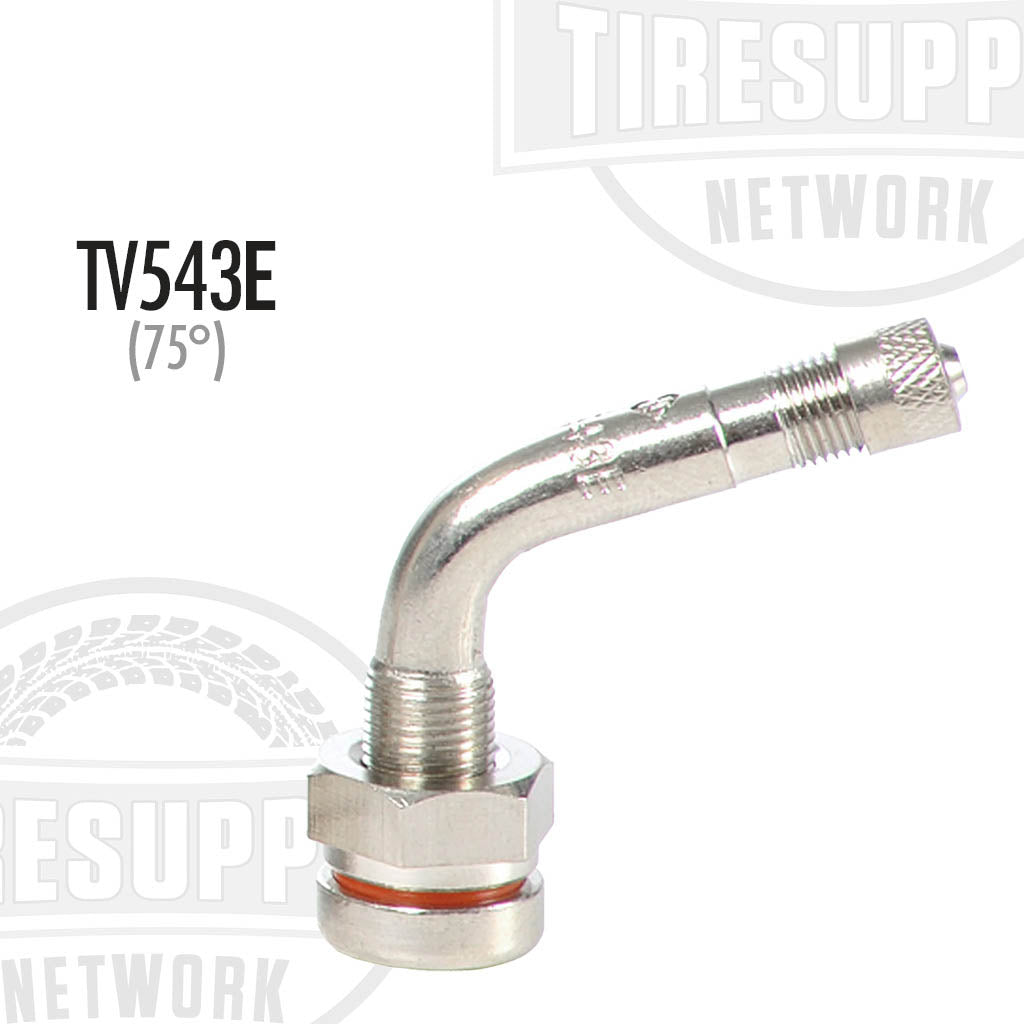

| 543E | TV-543E | 75° | 0.98" | 1.38" | HN-22 |

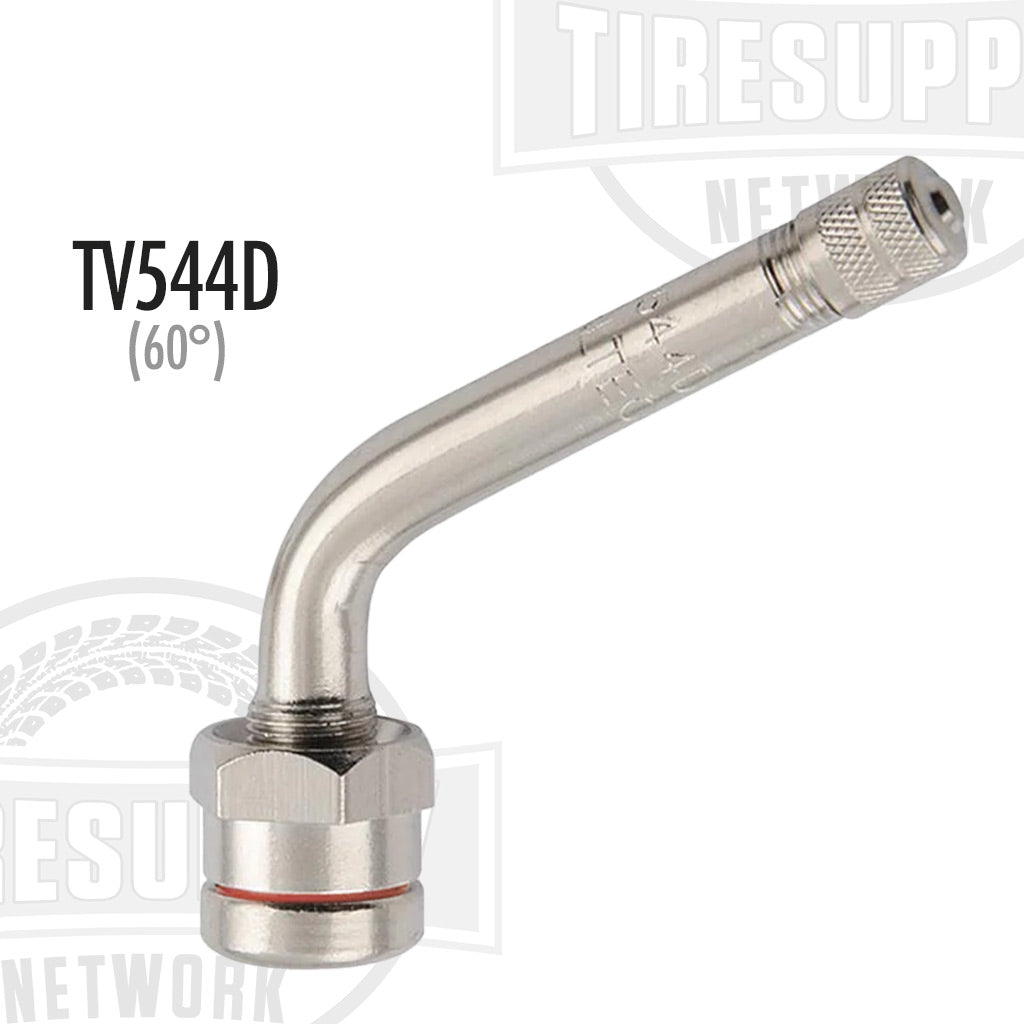

| 544D | TV-544D | 60° | 0.98" | 1.94" | HN-22 |

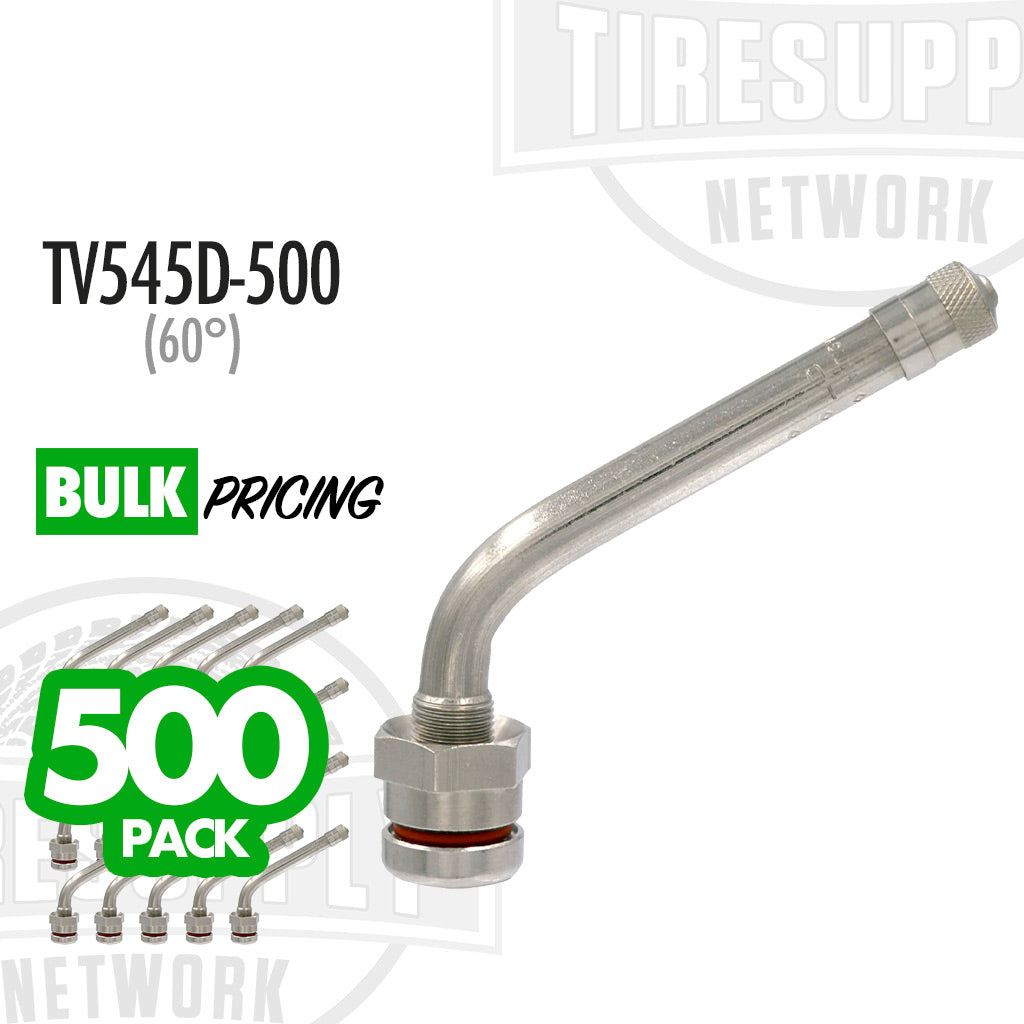

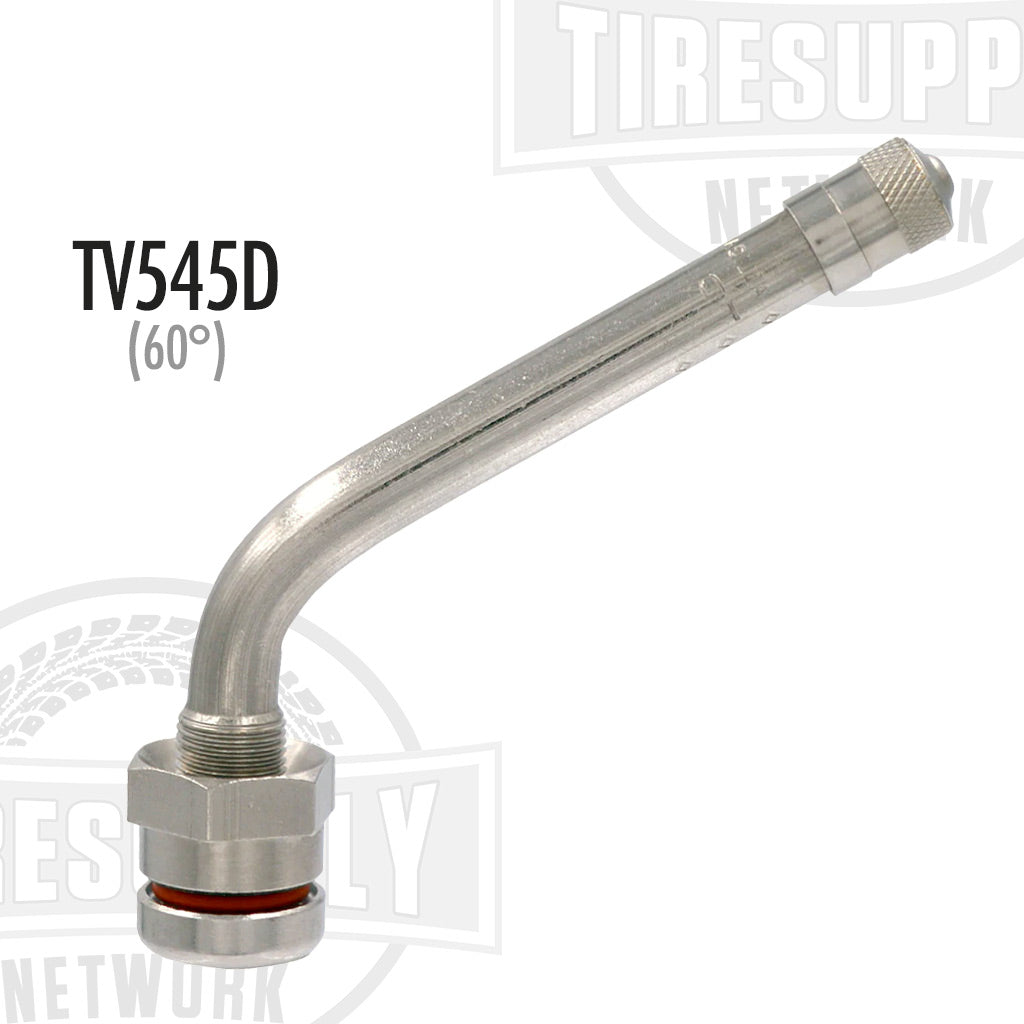

| 545D | TV-545D | 60° | 0.98" | 2.60" | HN-22 |

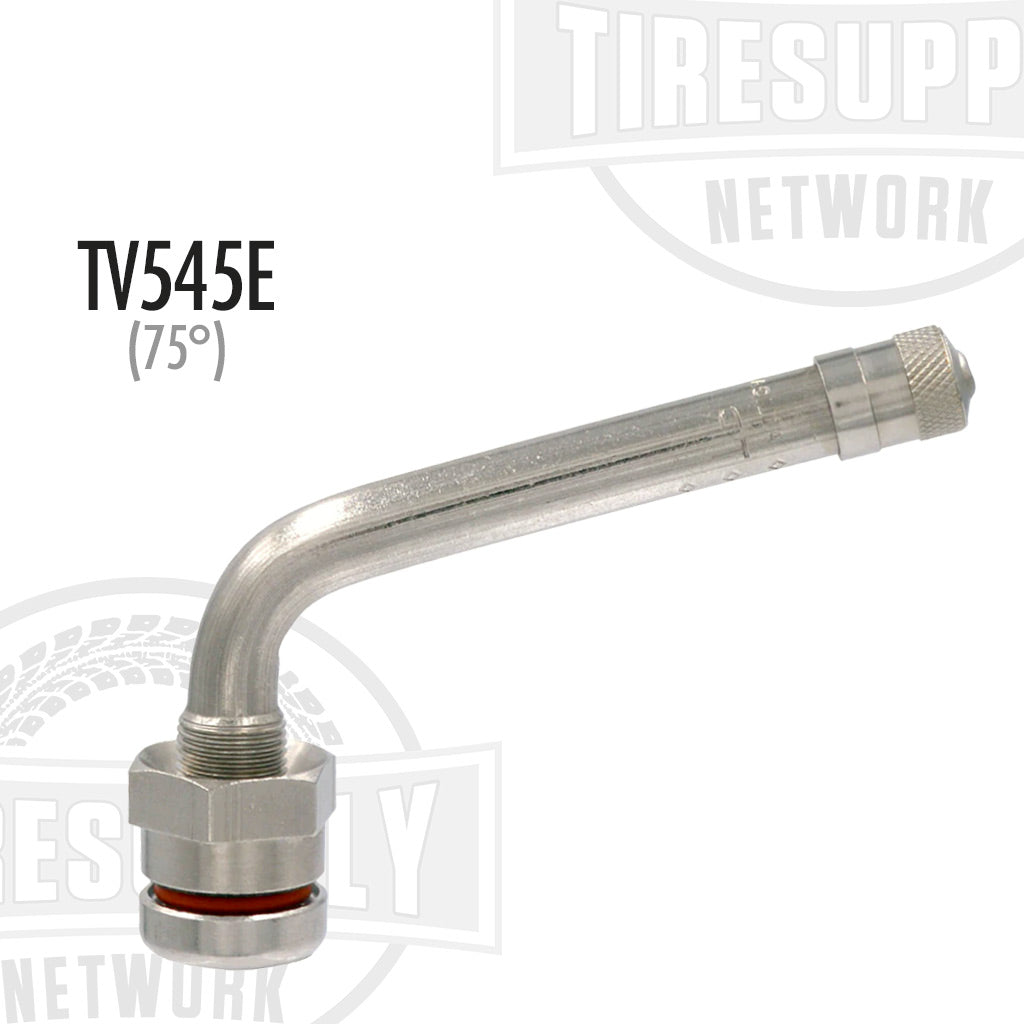

| 545E | TV-545E | 75° | 0.98" | 2.60" | HN-22 |

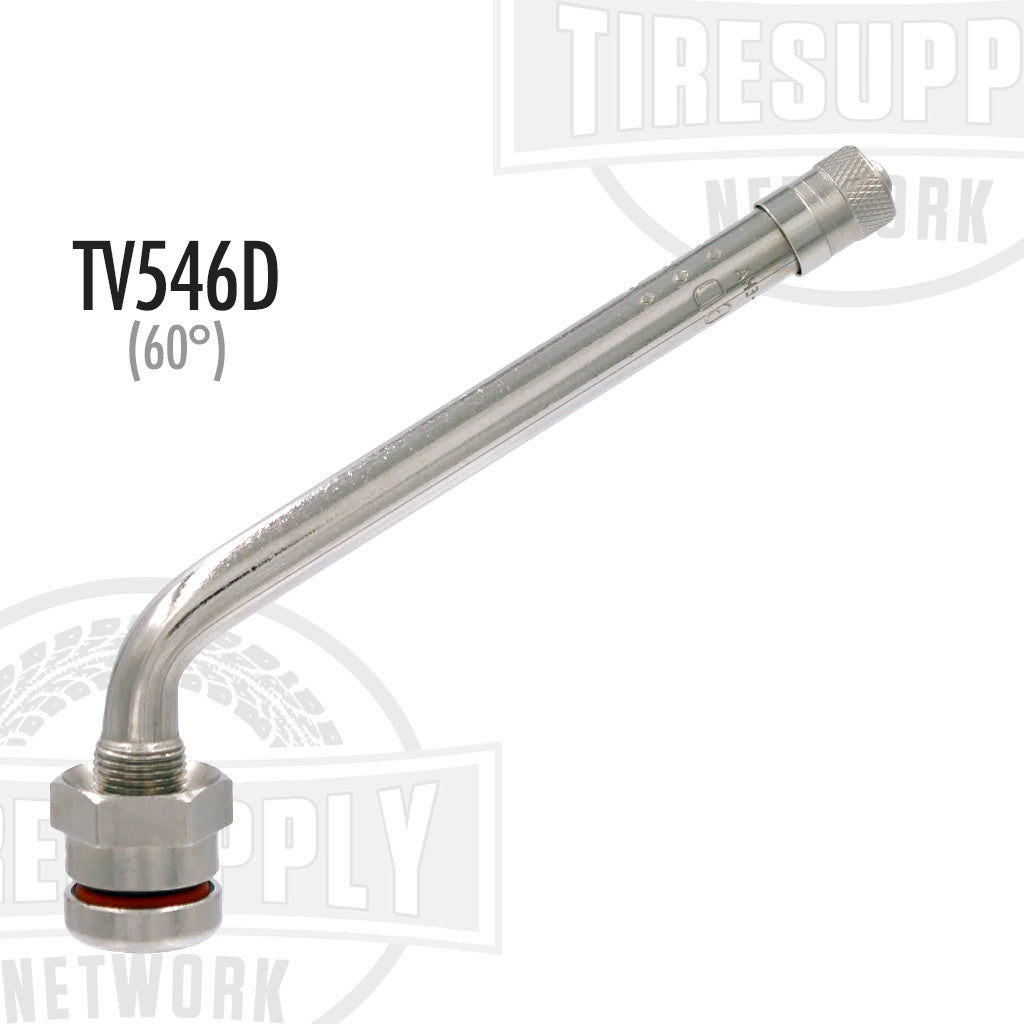

| 546D | TV-546D | 60° | 0.98" | 3.35" | HN-22 |

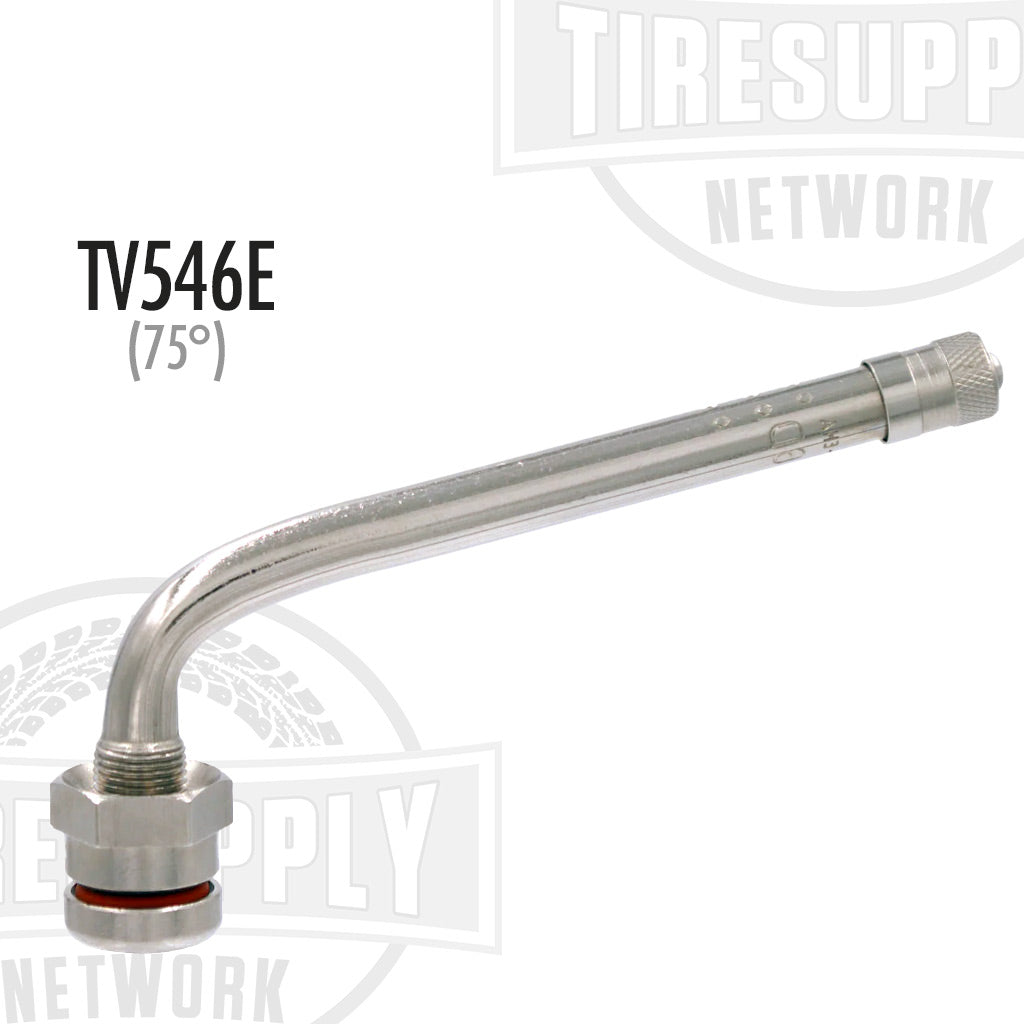

| 546E | TV-546E | 75° | 0.98" | 3.35" | HN-22 |
