BendPak  |  SKU: 5175516

BendPak | 4-Post Lift 7,000-lb Capacity - Super-Tall Vehicle Display Platform - 140.25″ Rise - HD-7PXW (5175516)

$9,695.00 $10,773.00

Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!

As low as $134.65 for 72 months Finance Now!

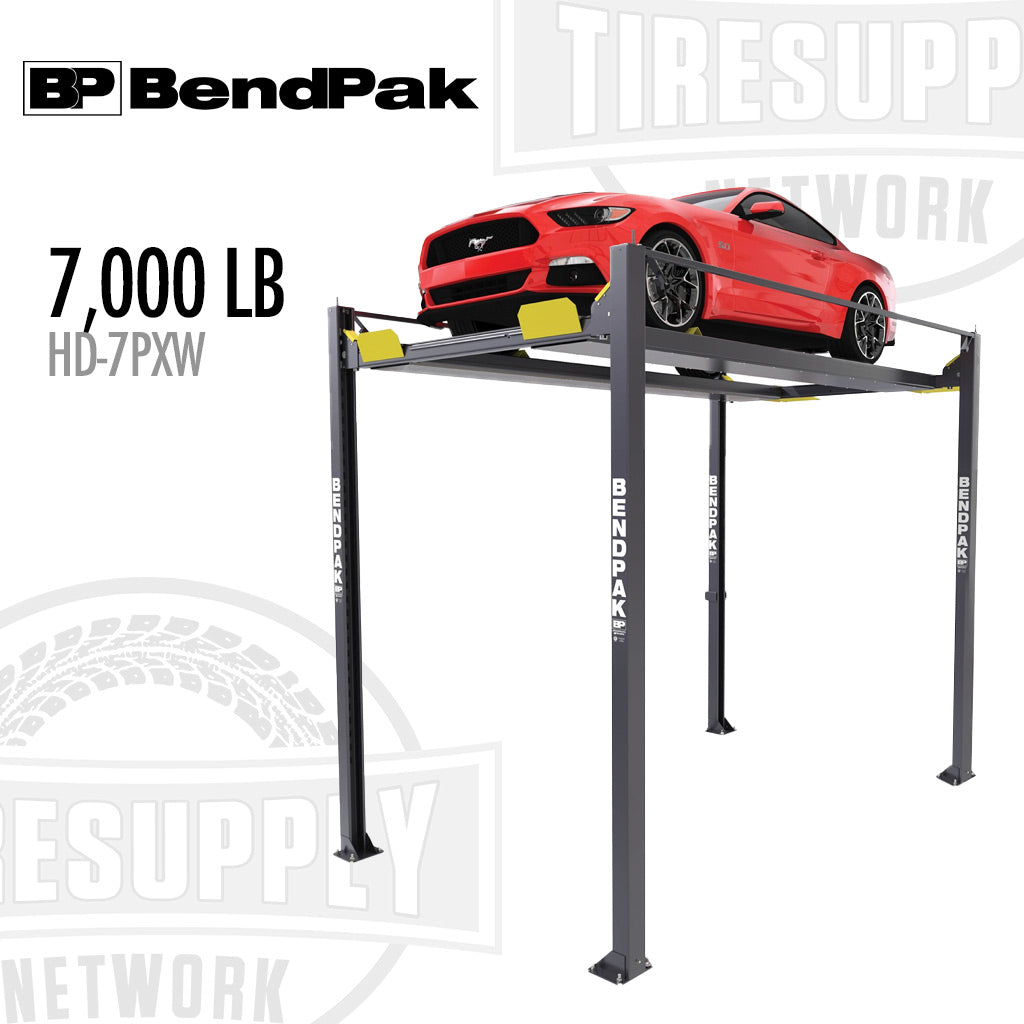

BendPak | 4-Post Lift 7,000-lb Capacity - Super-Tall Vehicle Display Platform - 140.25″ Rise - HD-7PXW (5175516)

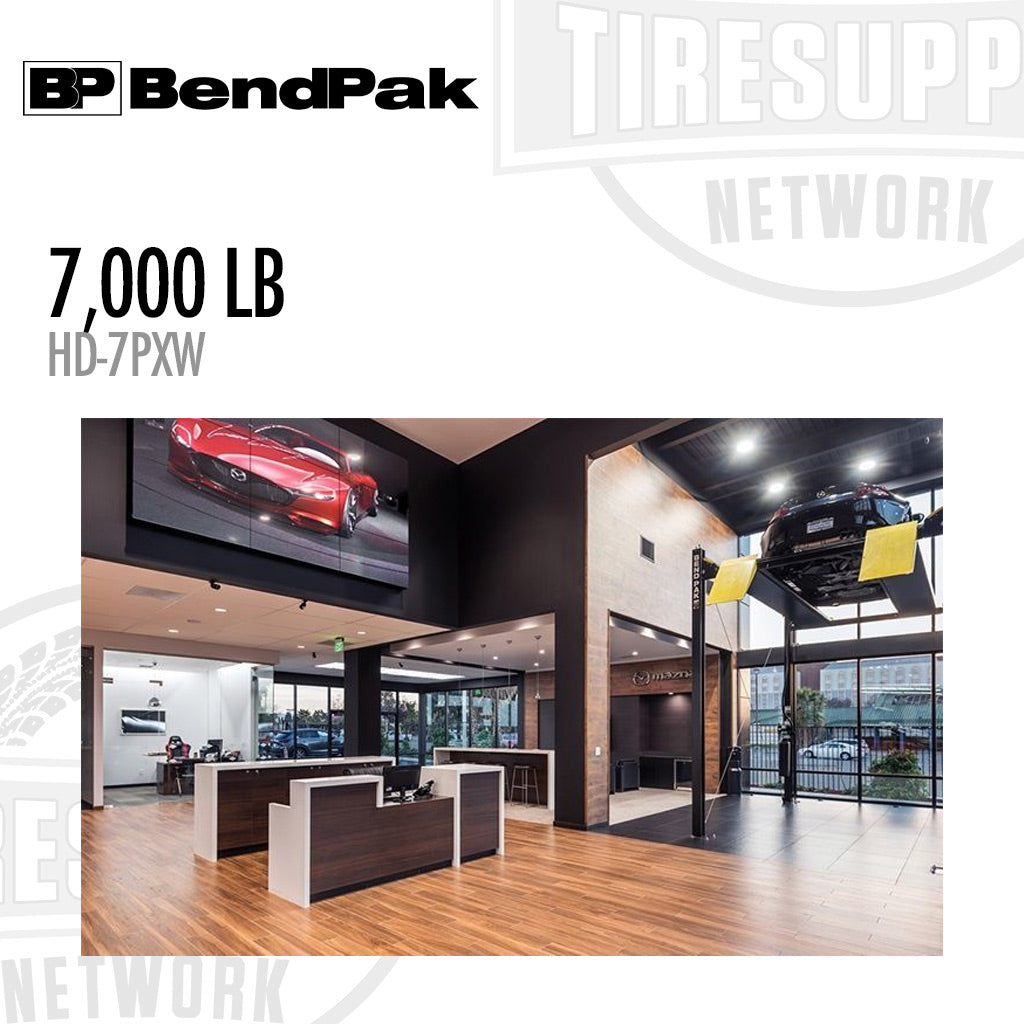

The HD-7PXW is a literal giant. This four-post lift is also a magnificent display platform and will effortlessly lift up to 7,000 lbs. over 12 feet into the air! Specially made for dealers, it's perfect for stacking taller vehicles and getting them seen!

Features
  • 7,000-lb. maximum lifting capacity
  • Super tall rise delivers 12-feet of lifting height
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Internal anti-sway slider blocks in each column
  • Oversized self-lubricating cable rollers
  • Features heavy-duty 3/8” aircraft cable
  • Rugged 1.25” roller axles
  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Ramps feature non-skid surface
  • Push-button pneumatic safety release

Amazingly Tall Four-Post Lift

The HD-7PXW four-post lift has a 7,000-lb. lift capacity and 182" long runways to accommodate a variety of vehicle types and wheelbases.

Same Great Benefits As Other Lifts

The HD-7PXW has all the same safety and convenience features as other BendPak four-post lifts. A one-touch pneumatic safety release instantly releases all locks simultaneously, and the lift's lone hydraulic cylinder is neatly tucked under the power-side runway. There's simply no better-looking and higher-reaching car lift on the market than the HD-7PXW.

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

5-2-1 Warranty

  • 5 Years Structure
  • 2 Years Hydraulics
  • 1 Year Parts & Labor
Specifications
SKU
 5175516
Lifting Capacity 7,000 lbs (3,175 kg)
Maximum Capacity (Front Axle) 3,500 lbs (1,588 kg)
Maximum Capacity (Rear Axle) 3,500 lbs (1,588 kg)
Minimum Runway Height 5" (127 mm)
Maximum Rise 140.25" (3,562 mm)
Maximum Lifting Height 145.25" (3,689 mm)
Time to Full Rise 50 seconds
Overall Width 110.25" (2,800 mm)
Outside Length 198" (5,029 mm)
Overall Length (includes ramps) 213" (5,688 mm)
Height of Columns 158" (4,013 mm)
Top Lock Height 143.82in" (3,653 mm)
Width Between Columns 100.25" (2,546 mm)
Drive-Thru Clearance 86.5" (2,197 mm)
Runway Width 19" (483 mm)
Length of Runways 182.25" (4,629 mm)
Width Between Runways 35" (889 mm) or 41" (1,041 mm)
Runway Centerline 57" (1,448 mm) or 63" (1,600 mm)
Outside Edge of Runways 75.75" (1,924 mm) or 82" (2,083 mm)
Minimum Wheelbase at Capacity 135" (3,429 mm)
Minimum Wheelbase at 75% Capacity 115" (2,921 mm)
Minimum Wheelbase at 50% Capacity 95" (2,413 mm)
Minimum Wheelbase at 25% Capacity 80" (2,032 mm)
Locking Positions 31
Lock Spacing Every 4" (102 mm)
Motor 208-230 VAC / 50-60 Hz / 1Ph
Noise 45 dB
Shipping Weight 2,254 lbs (1022 kg)
Shipping Dimensions 192'' x 22'' x 31'' (4,876 mm x 558 mm x 787 mm)
