EEWA752BV3

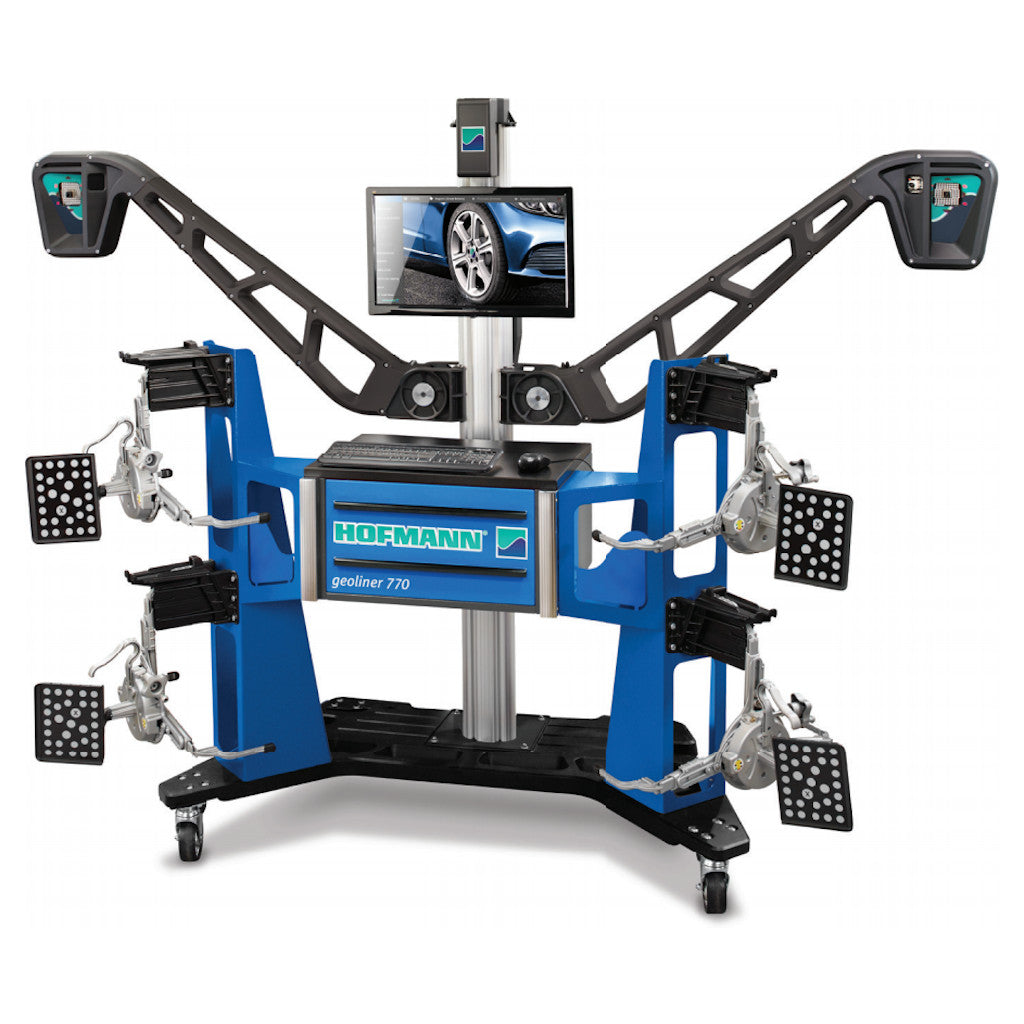

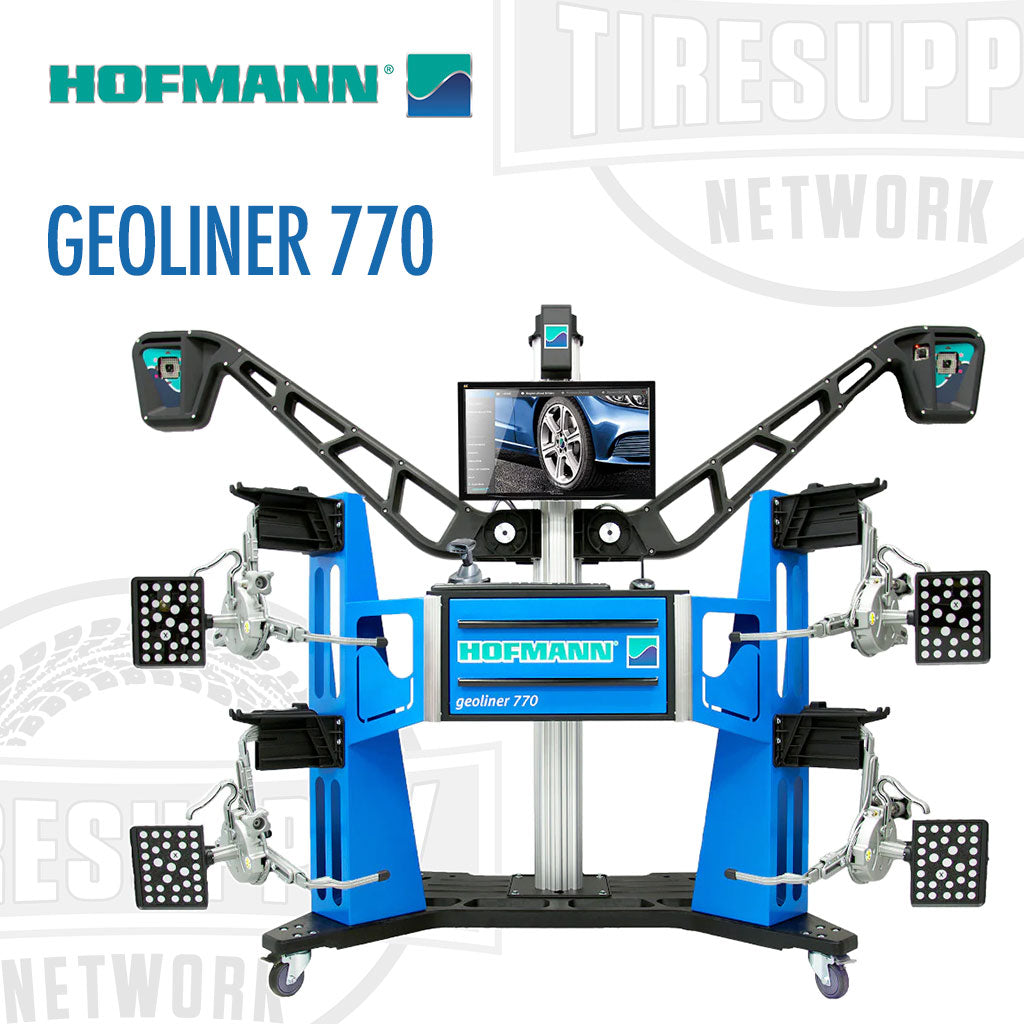

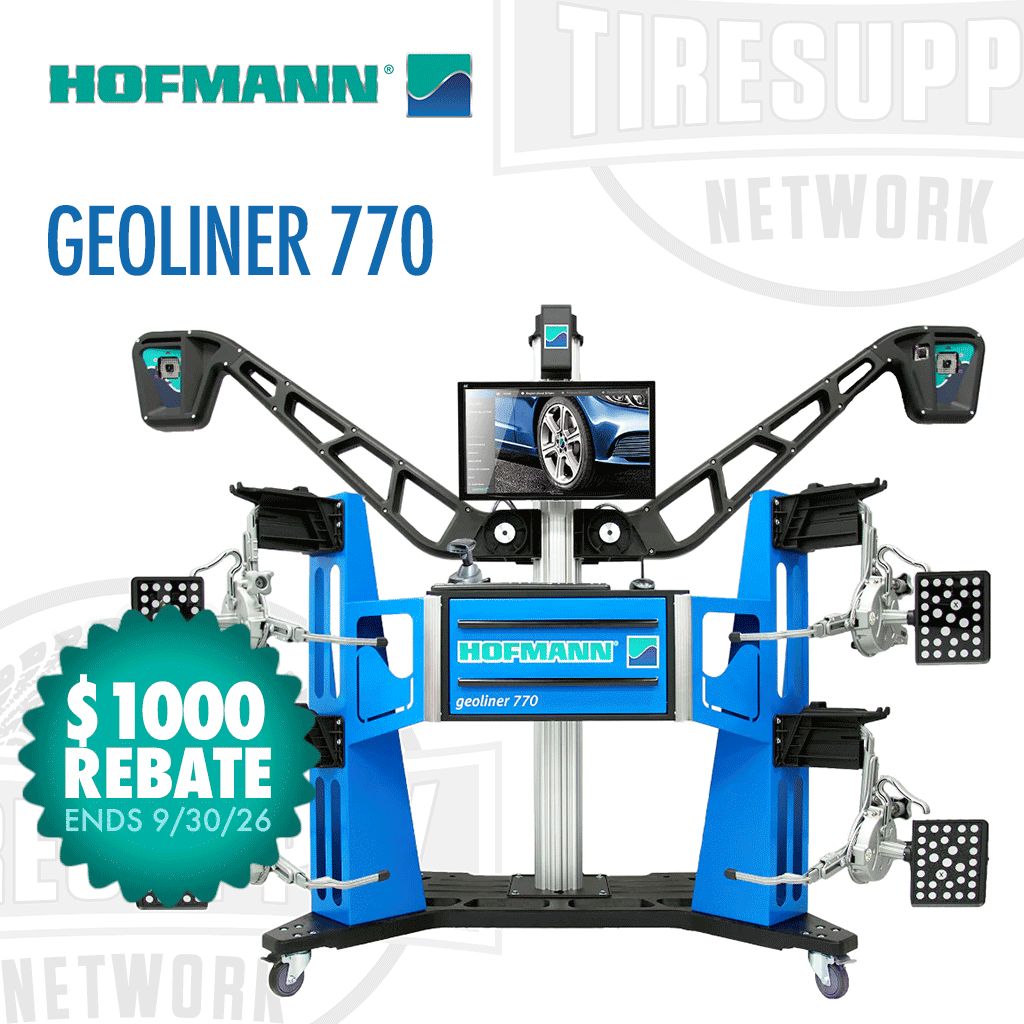

Hofmann Geoliner 770 Mobile Imaging Diagnostic Wheel Alignment System with AC400 Clamps & VIN Reader

Join CLUB5 at Tire Supply Network and save 5% on EVERY order! Learn more

Hofmann Geoliner 770 Mobile Imaging Diagnostic Wheel Alignment System with AC400 Clamps & VIN Code Reader

PLEASE NOTE: Sales tax MUST be paid on this item. We will contact you after purchase for sales tax payment.

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

Ideal for high-volume shops that specialize in alignments and wheel service, the Hofmann Geoliner 770 Diagnostic Wheel Alignment System delivers sophistication in a compact footprint, designed to fit where you need it and move pretty much anywhere else. The short boot-up gets your team to every job quickly, with faster measurements for more efficient, more accurate alignments every time.

Groundbreaking User Interface: The Geoliner 770 Diagnostic Wheel Alignment System features a next-generation interface that provides instant access to critical tasks in an intelligent flow, ensuring vehicle-specific assistance is never more than just one click away.

  • Optimized Vehicle Selection Process:
    • Quick access to history right on the home screen
    • Clear and comprehensive make/year/model selection
    • Quick model search
    • Manual and scanner VIN select, with live lookup feature
  • Quick-Select Language Support for Procedures and Printouts provides rapid changes between commonly used languages
  • All-New Graphic Displays with all screens optimized for maximum visibility and clarity

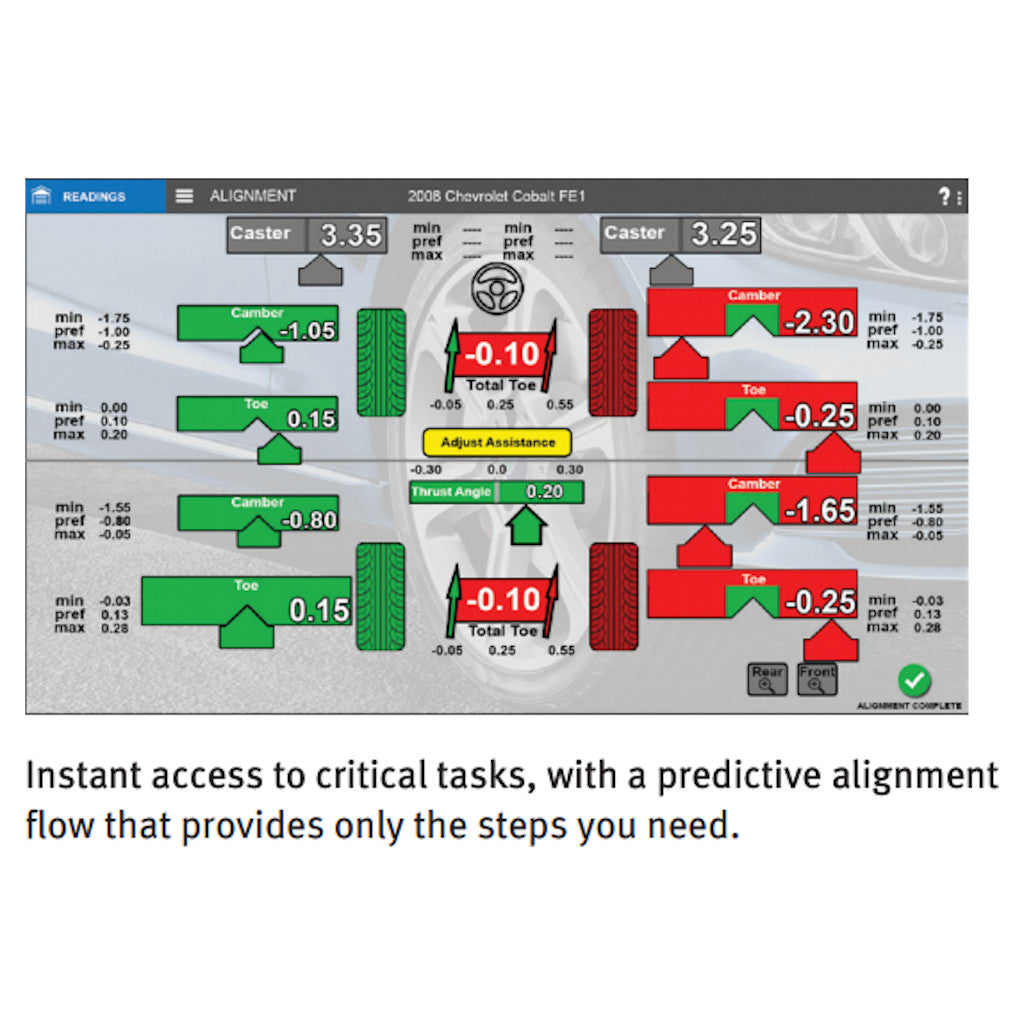

  • Instant Access to Critical Tasks, with a predictive alignment flow that provides only the steps you need

Video Speed Cameras Constantly Monitor Alignments, Providing Critical Information at Every Step: The Geoliner 770’s advanced XD cameras and sophisticated monitoring algorithms find errors as they’re made, detecting problems with suspension stress and damage, rack, clamps, environment, and more — notifying users only when necessary to save time and ensure accuracy on every alignment.

  • Compensate: Error is completely compensated with no notification to the user
  • Warn: Error is completely compensated with user warned that a correction was applied
  • Alert: Critical error leading to a bad alignment is detected; user notified that corrective action is required

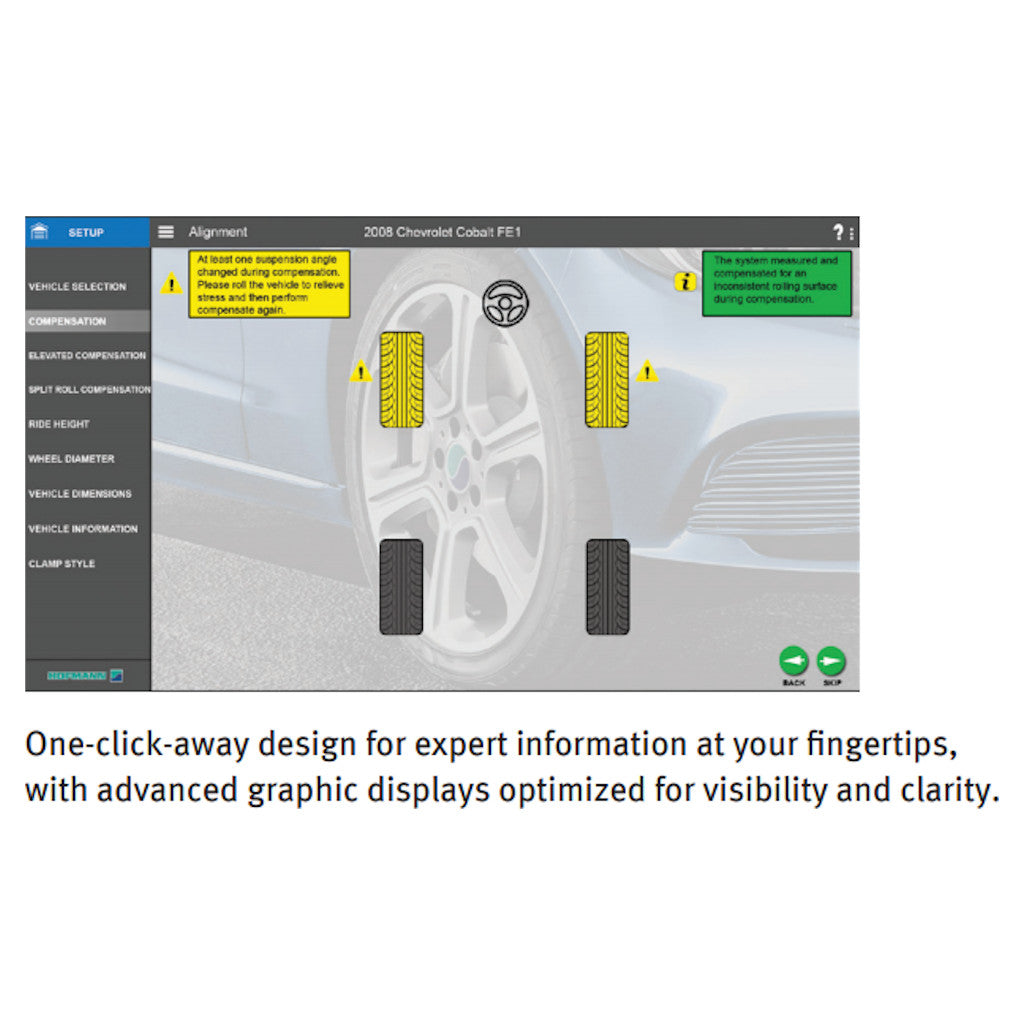

One-Click-Away Design for expert information at your fingertips, with advanced graphic displays optimized for visibility and clarity

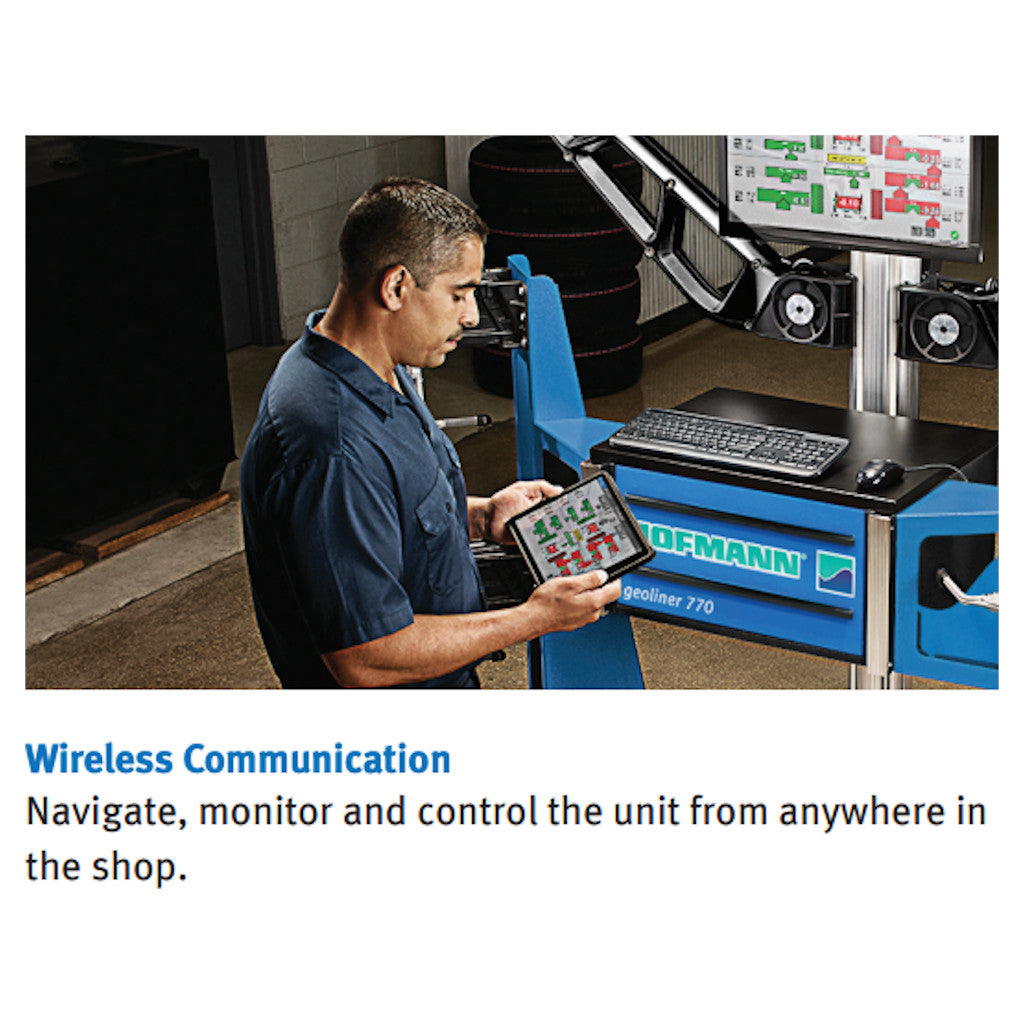

Wireless Communication: Navigate, monitor and control the unit from anywhere in the shop.

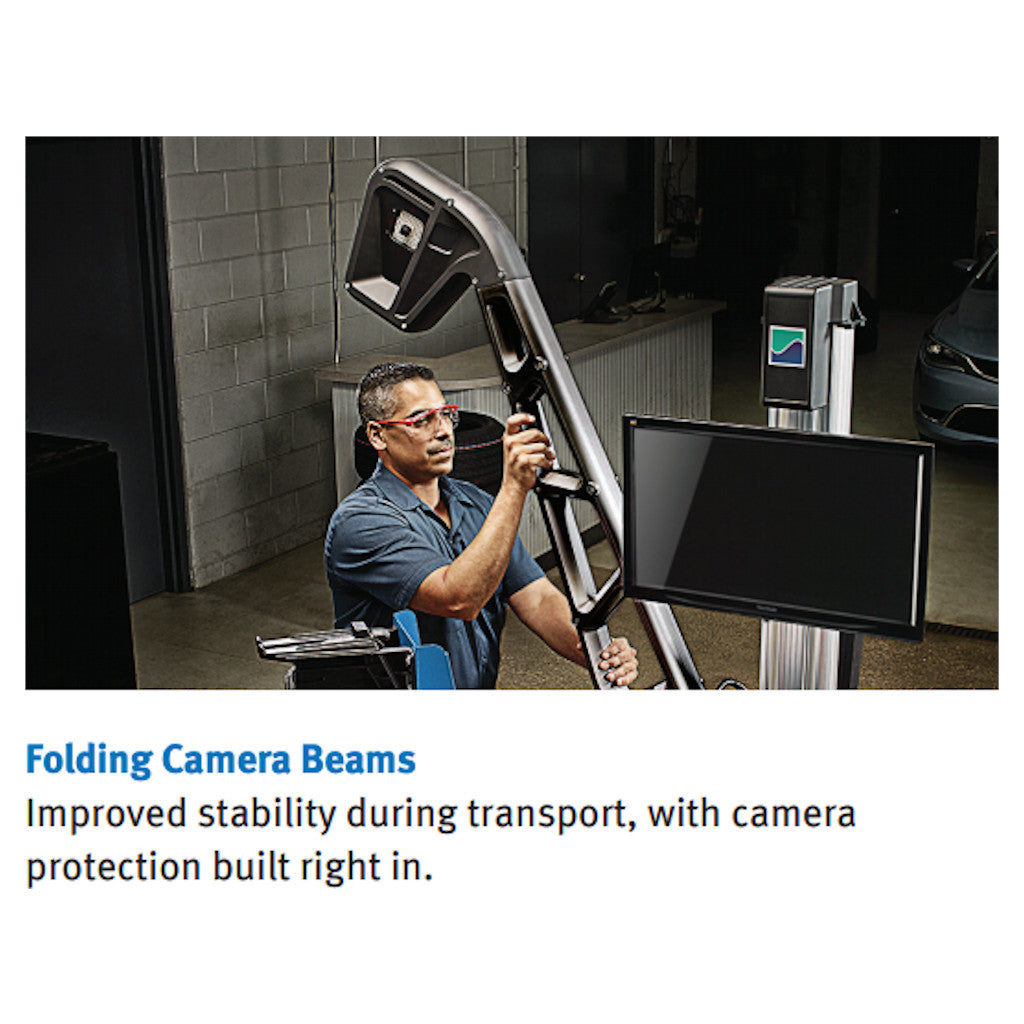

Folding Camera Beams: Improved stability during transport, with camera protection built right in.

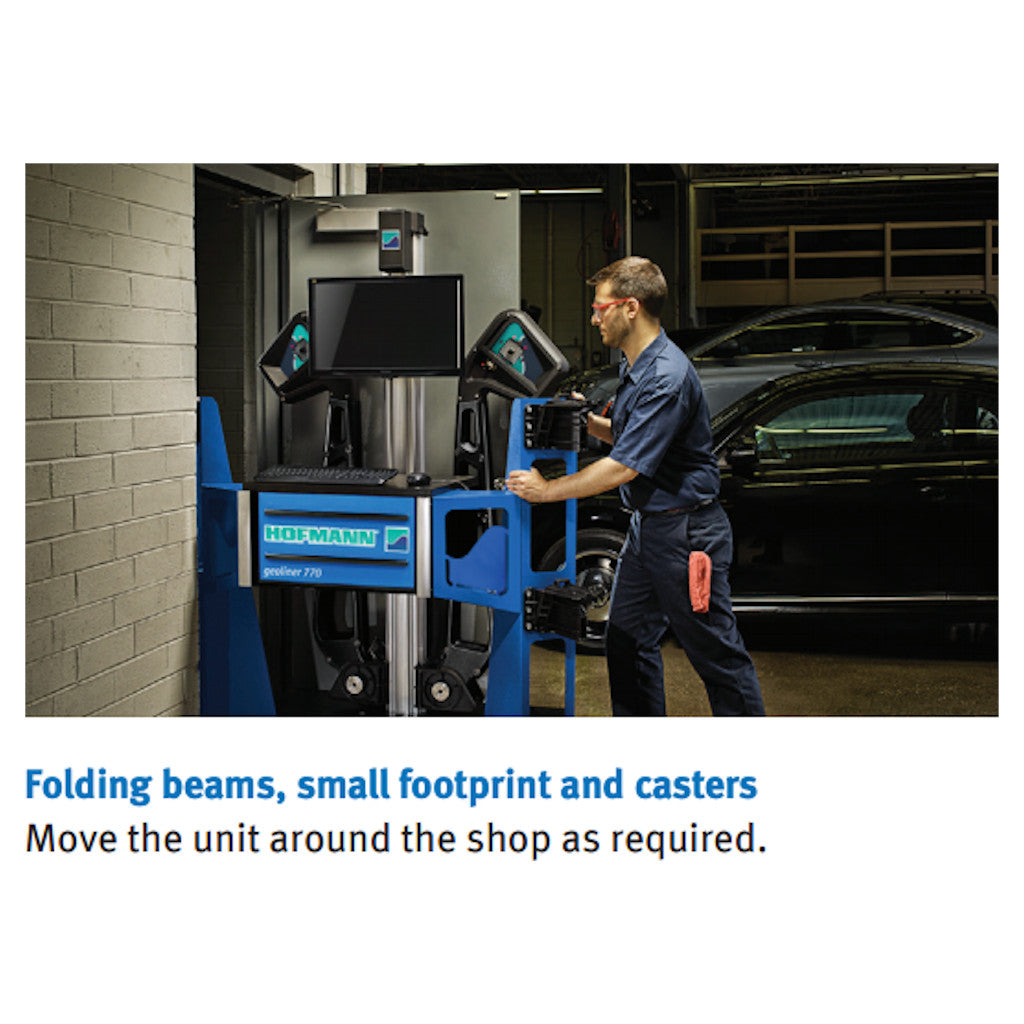

Folding Beams, Small Footprint and Casters: Move the unit around the shop as required.

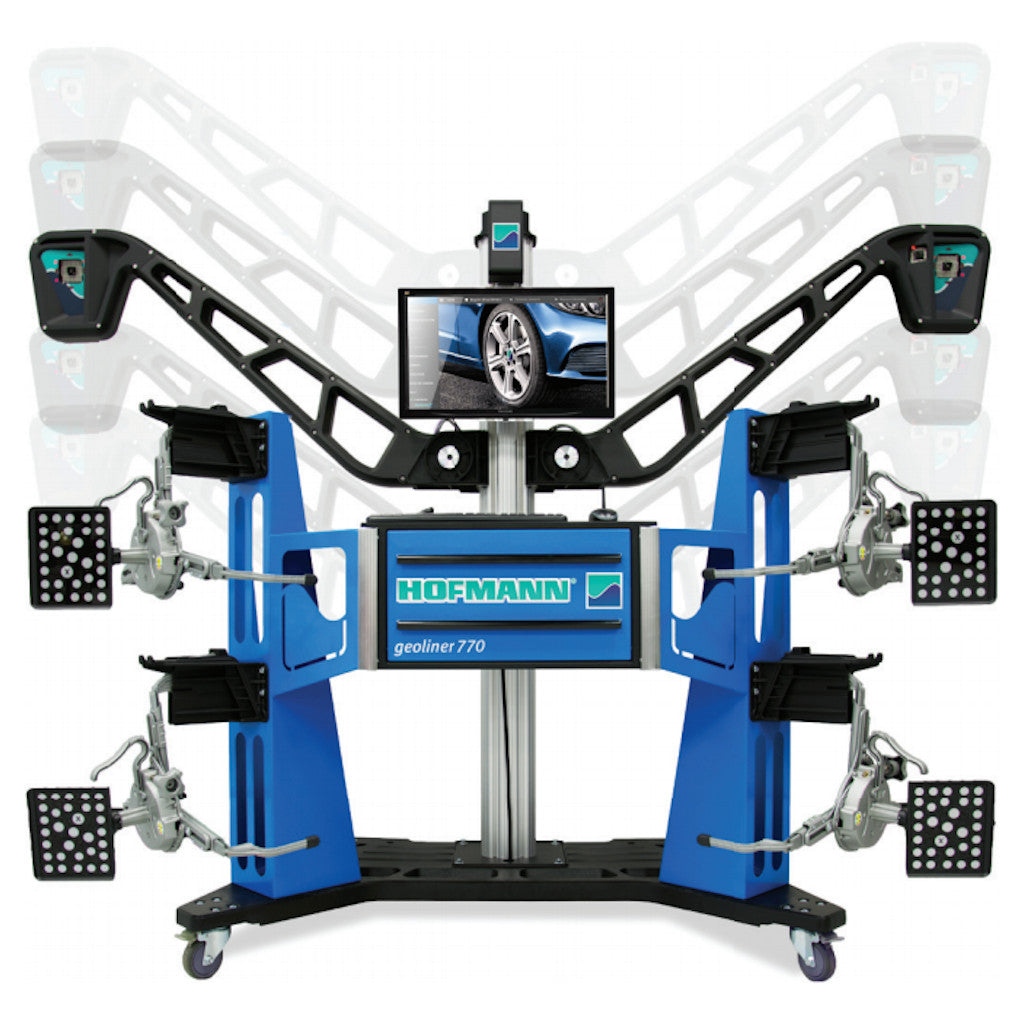

Automatic Height Tracking: The Geoliner 770 wheel alignment system’s automatic height tracking provides optimum placement of its advanced XD targets and cameras for more speed and accuracy on every alignment. And because the camera beams automatically follow the car your team is working on as it’s raised and lowered, it saves them time on every job.

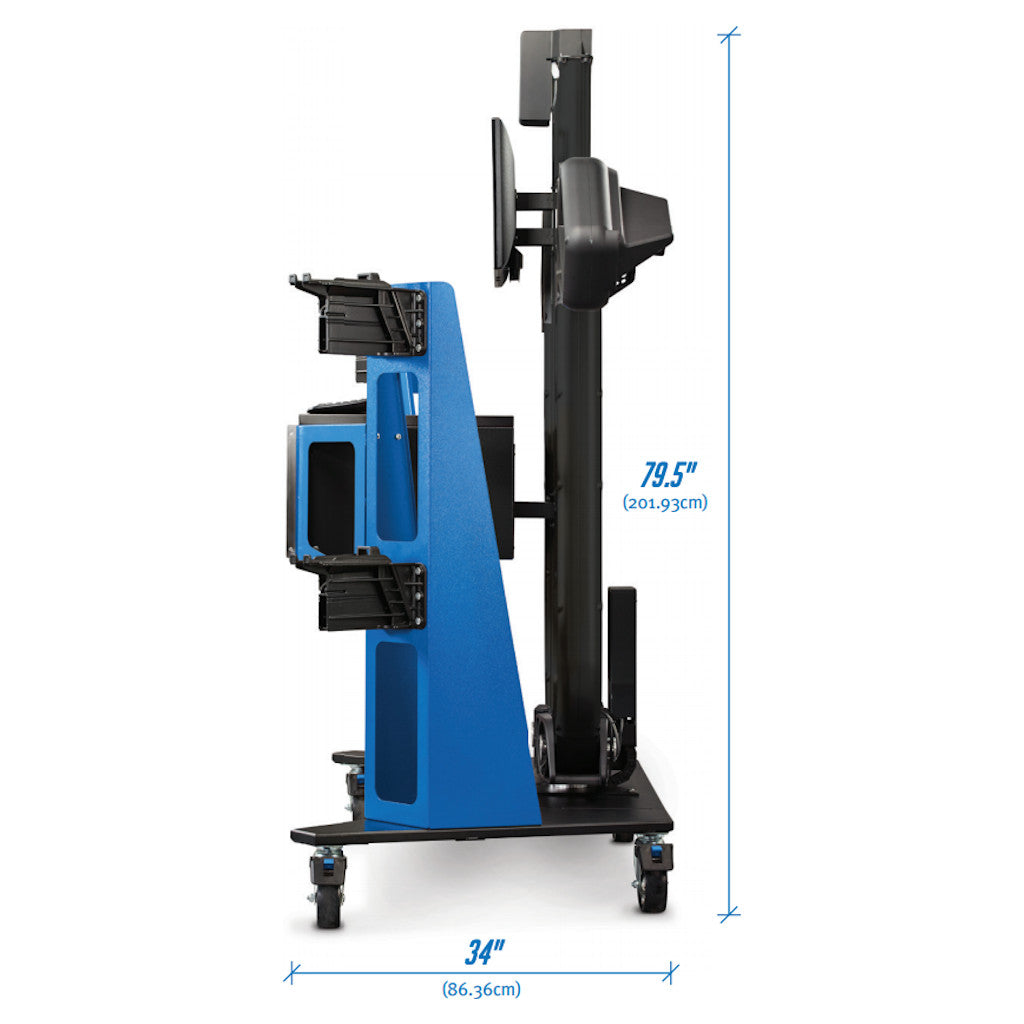

Lightweight, Low-Profile Fits Easily Through Standard Doorways: The Geoliner 770’s lightweight, three-camera system folds to a compact size with a low center of gravity, meaning it takes up less floor space in the shop and can be moved around easily whenever required. Integrated wireless connectivity provides a seamless connection between the aligner and the viewing device — so no matter how challenging the alignment, your team always comes out on top.

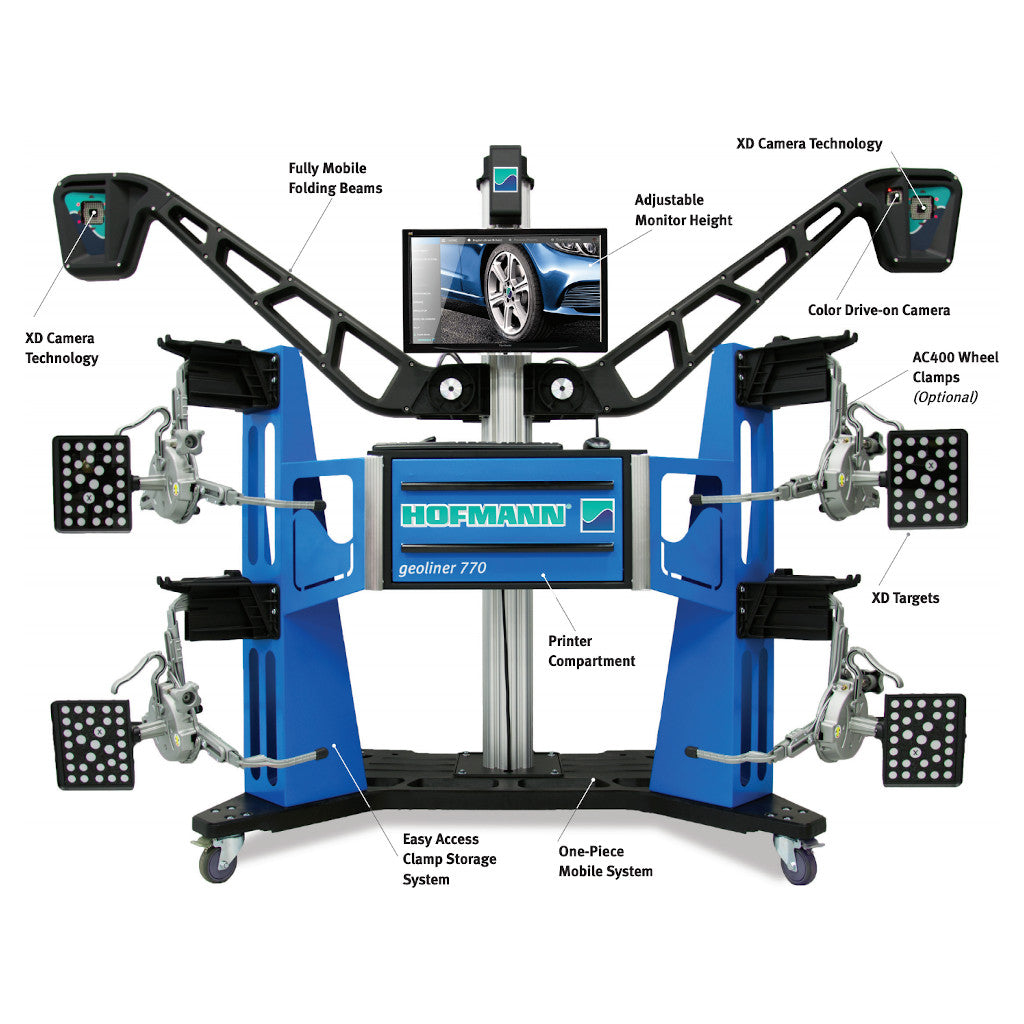

Additional Features:

  • Next Generation UI optimized for the high-volume user
  • Diagnostic alignment with “Compensate-Warn-Alert” intervention gets it right the first time
  • Unique camera beam design fits through a standard doorway and protects cameras
  • Highly accurate and reliable XD Camera Technology
  • Low-profile design lowers the center of gravity for improved stability when moving

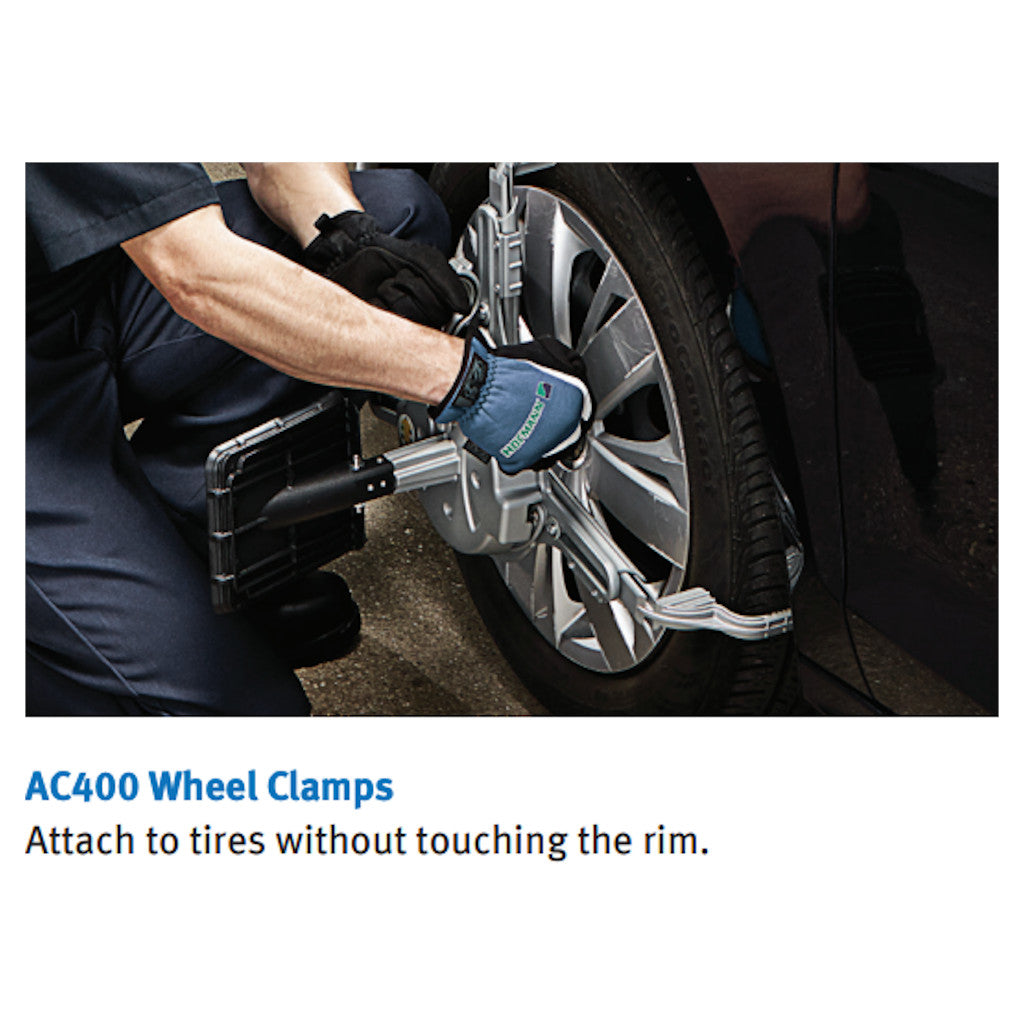

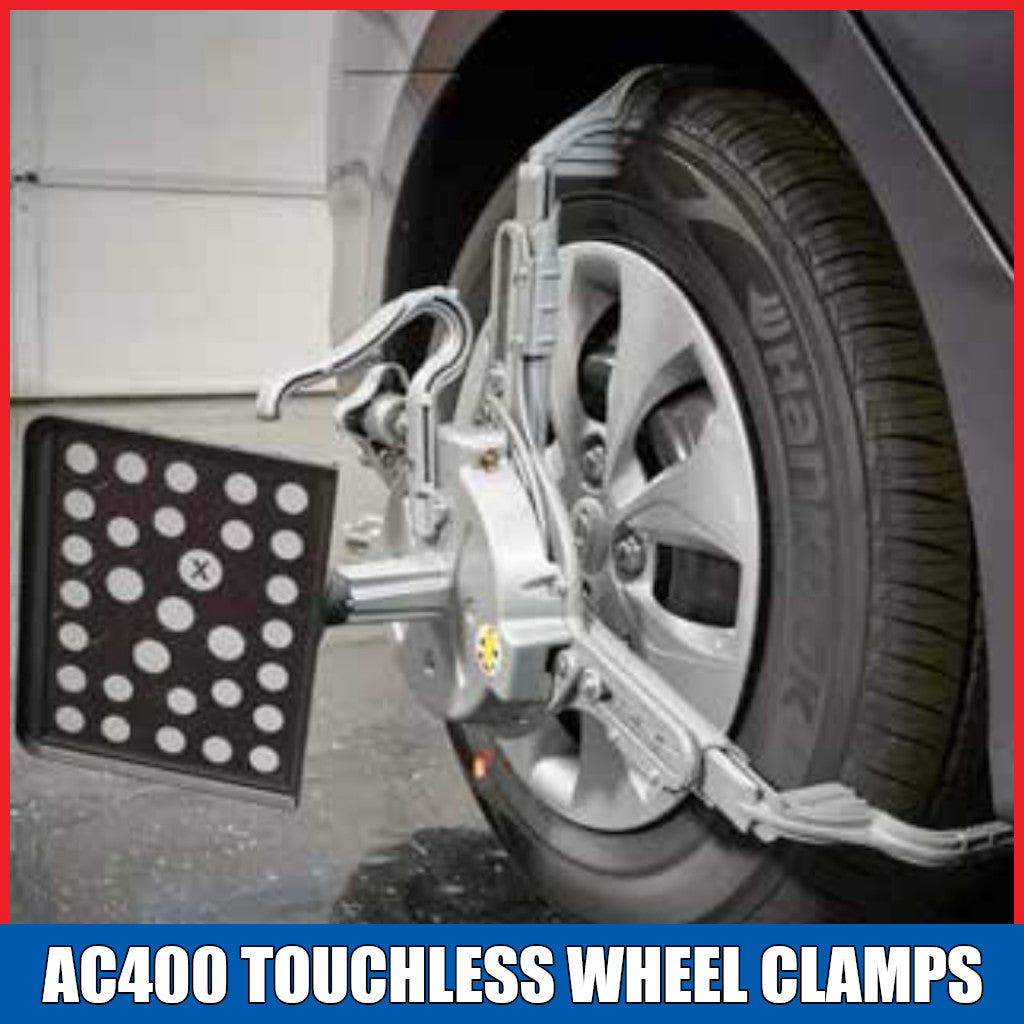

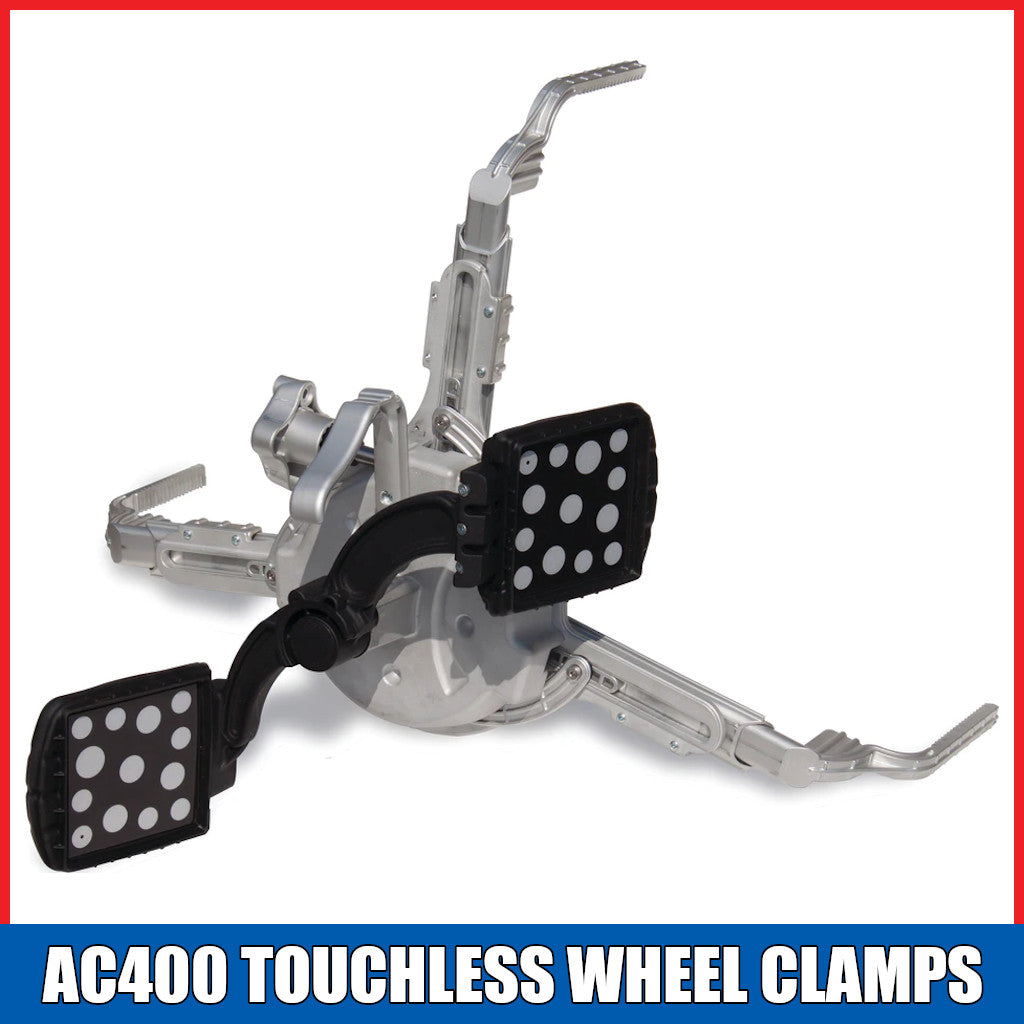

Hofmann AC400 Touchless Wheel Clamping System: Fast and easy to use, the AC400 touchless wheel clamping system from Hofmann provides secure clamping without touching the rim. This patented technology allows service technicians to receive accurate and repeatable results coupled with ease of use and durability.

  • The clamp only engages the tire, eliminating contact with the rim
  • Single point adjustment knob adjusts to the full size range in just a few turns
  • No accessories needed to accommodate the full range of tire sizes
  • Patented self centering design allows measurement of cross diagonal and tire rolling radius to reveal collision damage and mismatched tire sizes
  • Lightweight and durable design; drop tested cast magnesium construction eases the weight that users have to carry
  • XD targets are lighter and take up less space than previous designs
  • Secure clamping delivers accurate and highly repeatable results
  • Clutch limited clamping force ensures consistent and secure attachment

Standard Accessories Included:

  • Steering Wheel Holder
  • (2) Wheel Chocks
  • Brake Pedal Depressor
  • 24″ Flat Panel Monitor
  • Color Inkjet Printer
  • AC400 Wheel Clamps with XD Targets

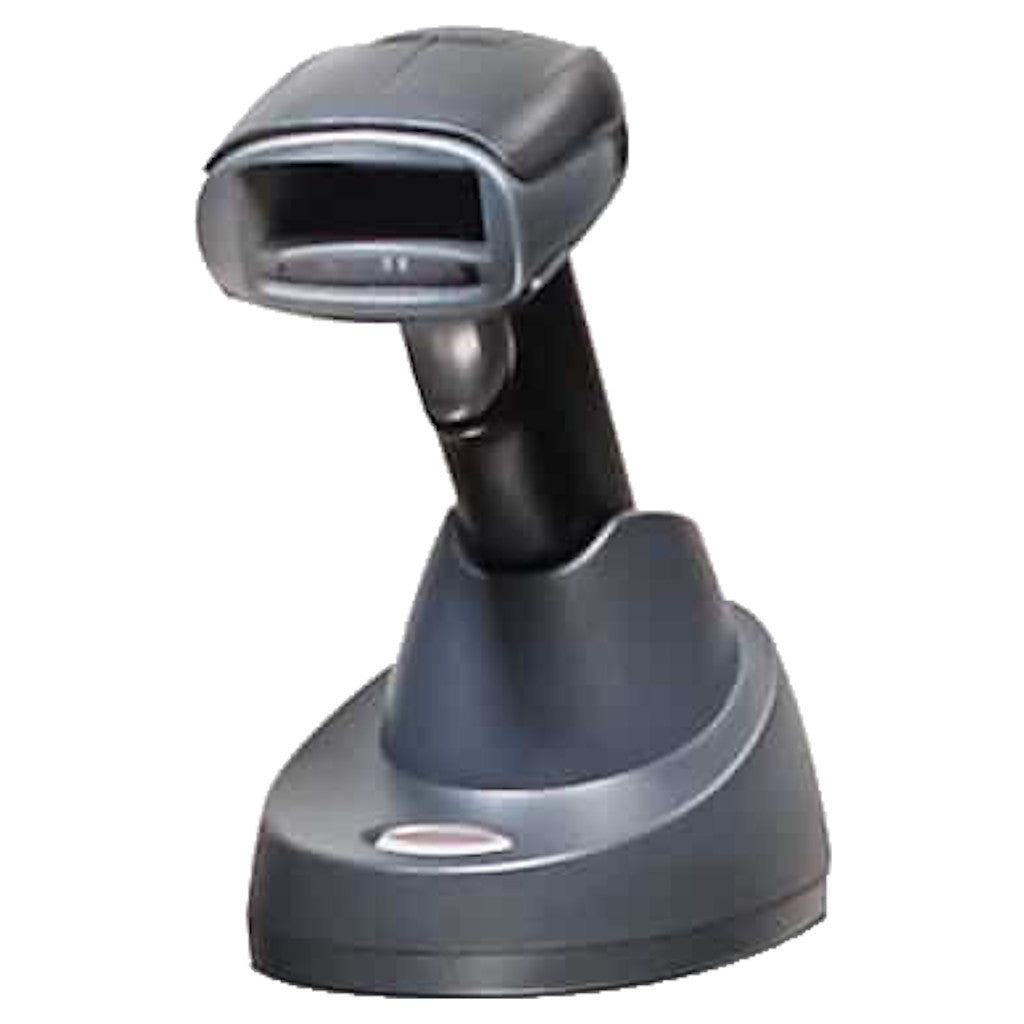

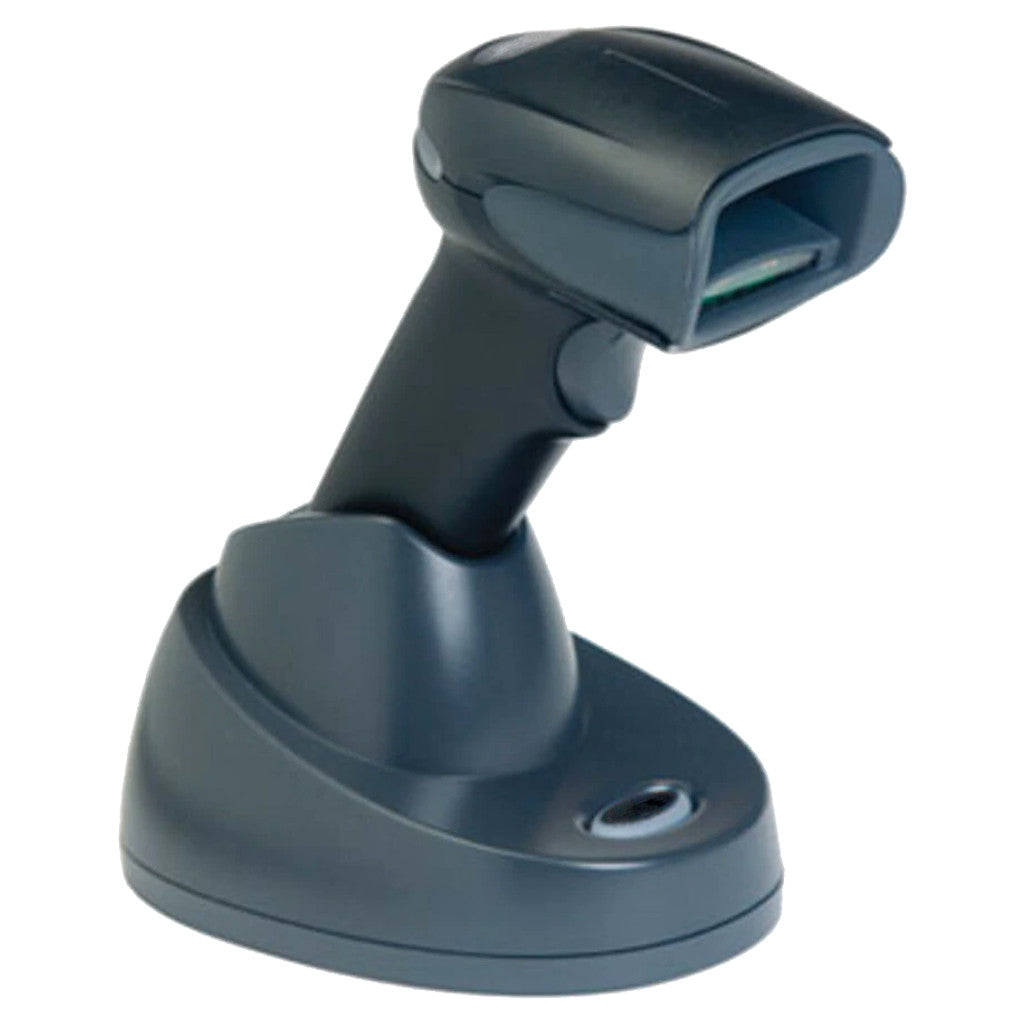

  • VIN Code Reader
TECHNICAL DATA Geoliner 770 with AC400 Wheel Clamps
Hofmann Part Number EEWA752BV3
Tire Diameter 19″ - 39″ (48.3 cm - 99.1 cm)
Track Width 48″ - 96″ (121.9 cm - 243.8 cm)
Wheel Base 79″ - 180″ (200.7 cm - 457.2 cm)
Power Supply 115 V, 50/60 Hz, 1 Ph
Power Requirements 100/230 VAC (must have Earth ground), 50/60 Hz, 15 Amp Circuit
TECHNICAL DATA AC400 Wheel Clamps
Tire Diameter 19″ - 39″ (48.3 cm - 99.1 cm)
Weight 7 lbs (3.2 kg)
Clamping Force 37 lbf (164.6 N)
Construction Cast Magnesium


Compliance and Restrictions

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
