Hofmann | Geoliner 678 Imaging Wheel Alignment System with AC400 Clamps & VIN Code Reader (EEWA715TBV3)

Join CLUB5 at Tire Supply Network and Save 5% on EVERY Order! > Learn more

Hofmann | Geoliner 678 Imaging Wheel Alignment System with AC400 Clamps & VIN Code Reader (EEWA715TBV3)

PLEASE NOTE: Sales tax MUST be paid on this item. We will contact you after purchase for sales tax payment.

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

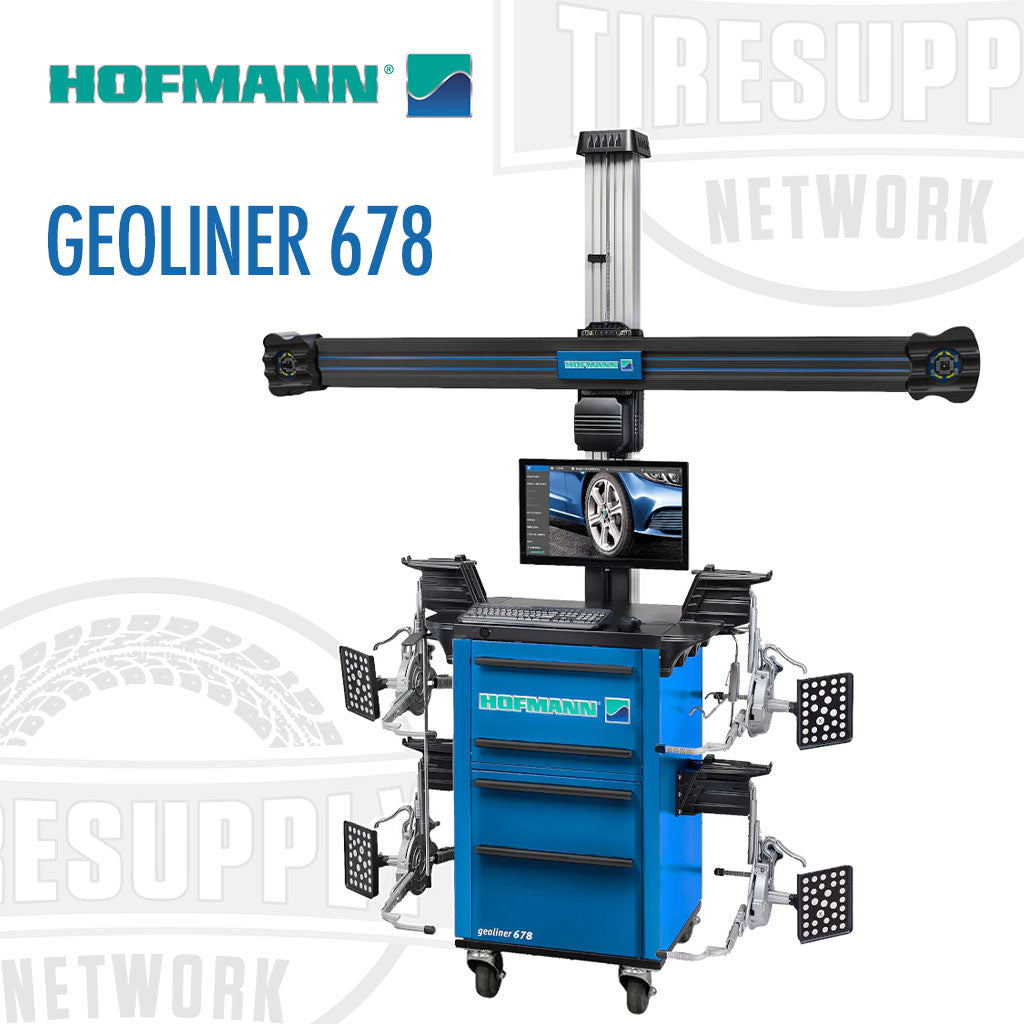

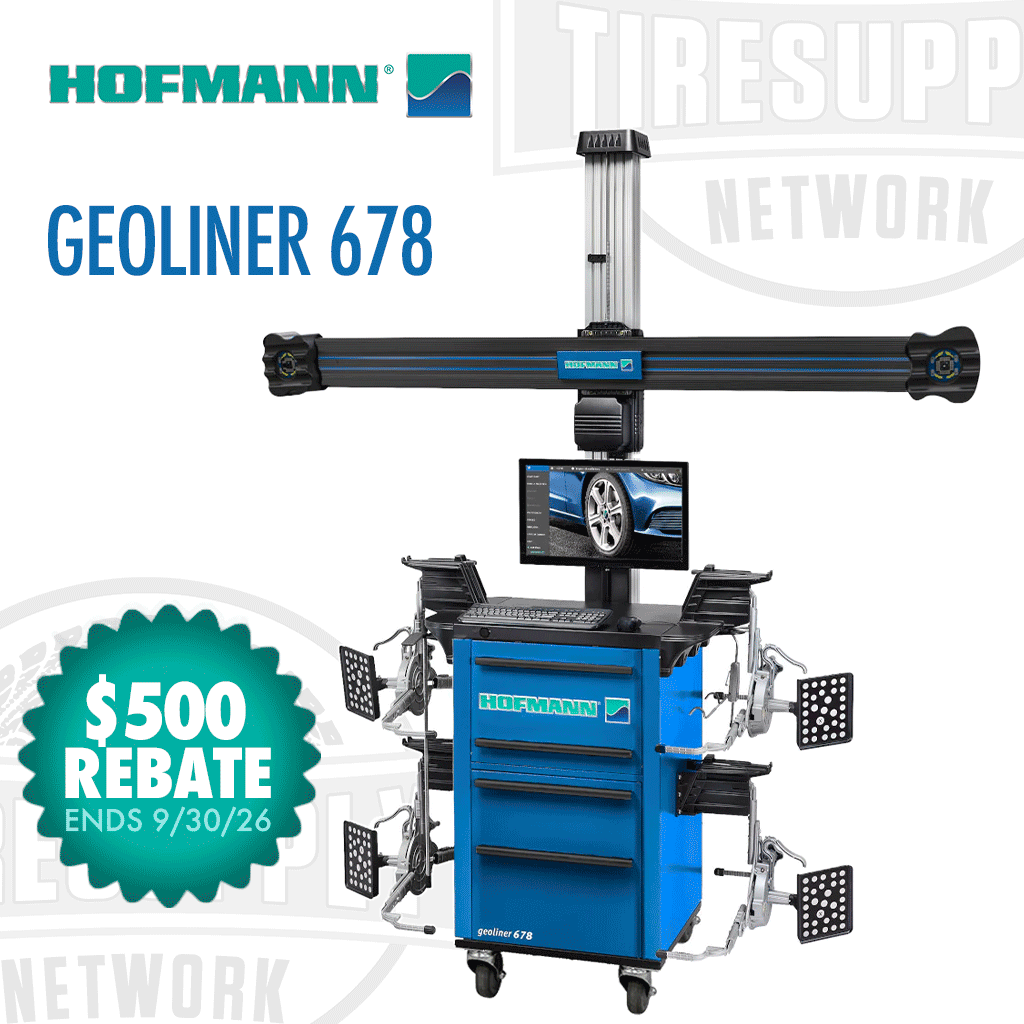

Introducing the latest addition to the Hofmann Imaging Alignment family - the Geoliner 678 Imaging Wheel Aligner. Designed with the technician in mind, this wheel aligner offers advanced technology with the most intuitive software to give any alignment technician the tools needed for an easy and fast alignment.

Fast & Easy to Use:

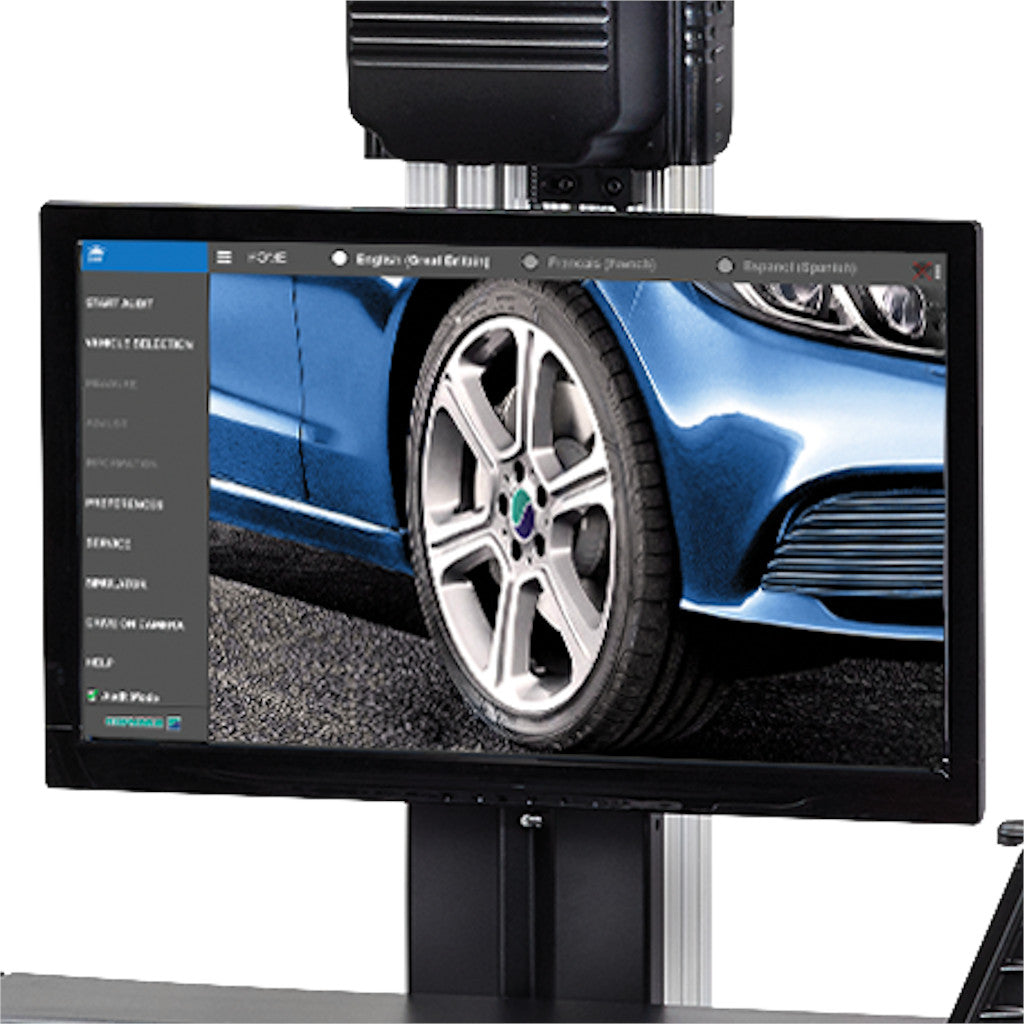

  • New, intuitive software is designed together with technicians to provide the core alignment functions, only one click away
  • Complete alignment process with minimal steps resulting in more alignments per day
  • Compensate, Warn, Alert diagnostic system feature is for detecting and, where possible, compensating errors without interrupting the alignment process

Advanced Features:

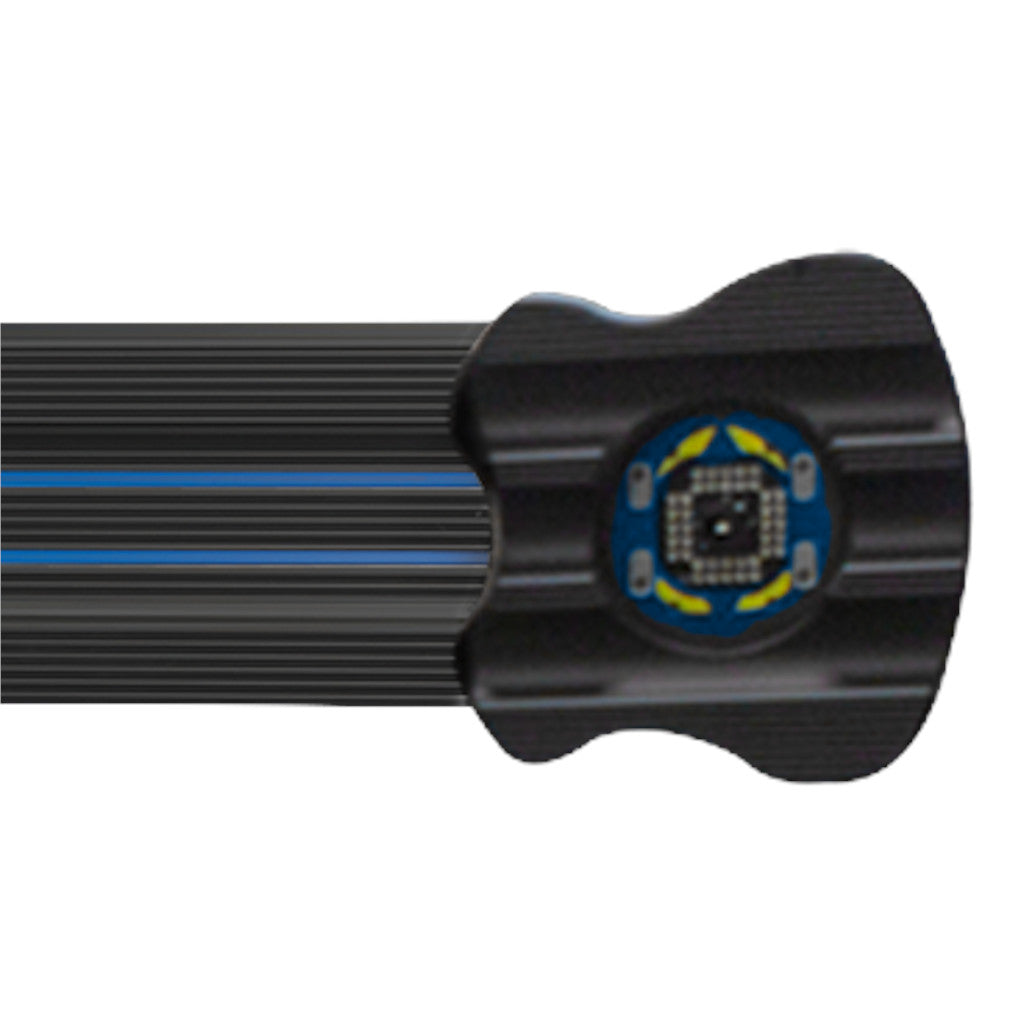

  • Automatic Tracking – Cameras follow the vehicle as it is raised and lowered reducing time spent at the console
  • Video Speed Camera – Allows faster compensation reducing wait time

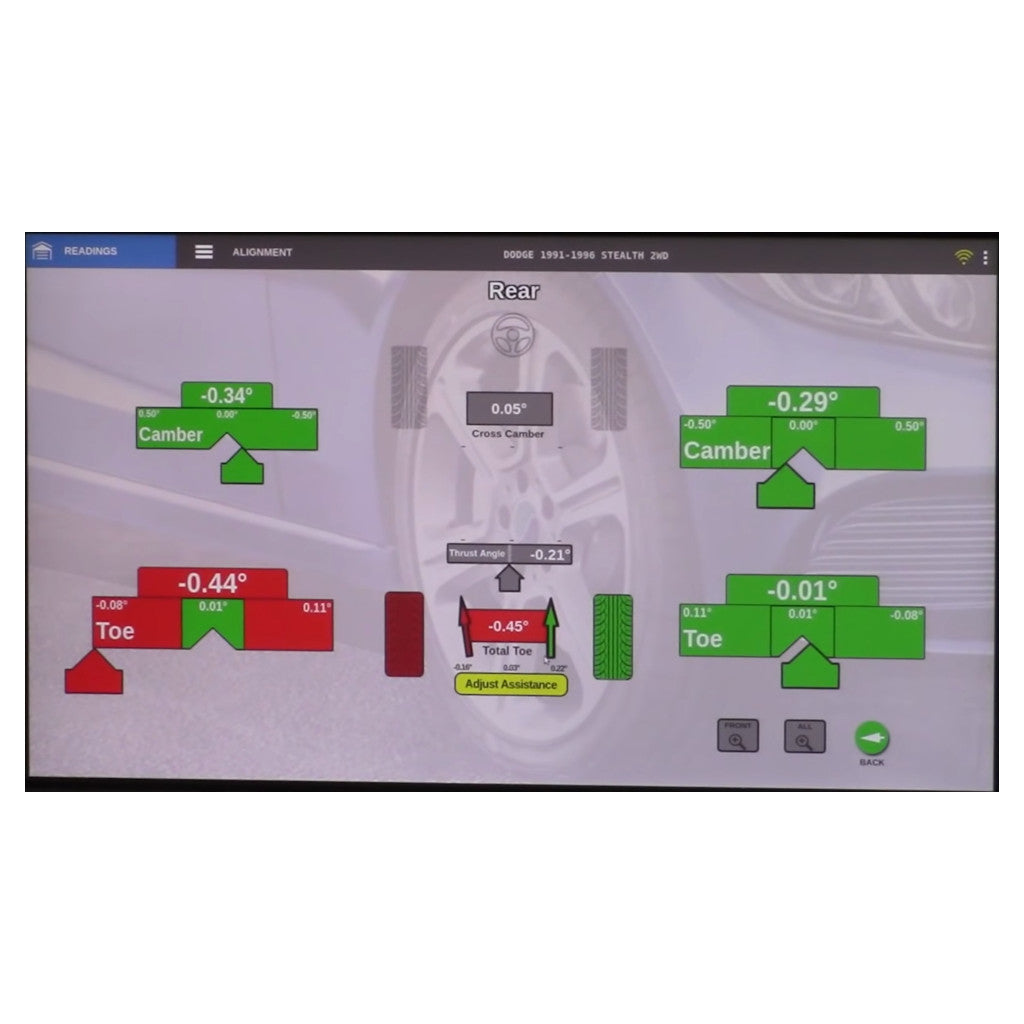

  • Live Readings – No need to remeasure

Intelligent Software Tools:

  • EZ-Toe – Allows adjustment of the critical Front Individual Toe without locking the steering column resulting in a level steering wheel every time
  • Rolling Radius – Checks for mismatched tire sizes, alerting possible mechanical failure (AWD)
  • Cross Diagonal – Checks for vehicle structural damage alerting possible additional repair
  • Adjustment Assistance – Shows where the adjustments are on the vehicle

Cloud Services & Online Report Management:

  • Provides quick access to vehicle specifications and repair information, ADAS guide, technical service bulletins, recall information, TPMS information, sensor reset information, firmware updates and much more
  • Fast and easy software and vehicle specification updates
  • Access, print, email or text aligner reports

Body Shop Vehicle Check:

  • Combined measurements help discover hidden damage before starting the alignment process
  • Measurements include: cross diagonal, vehicle track width and wheel base, front & rear set back, and axle offset
  • Specialized reports provide clear communication to body shop partners

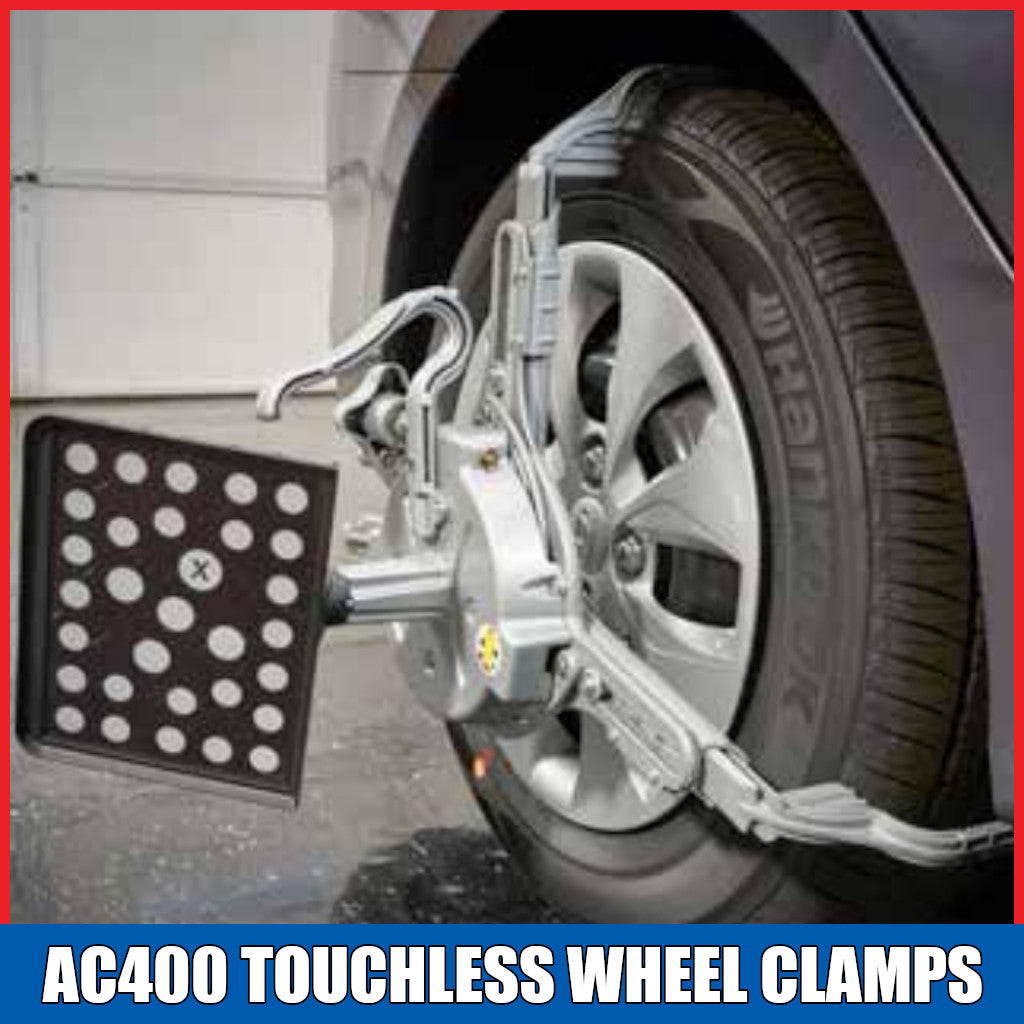

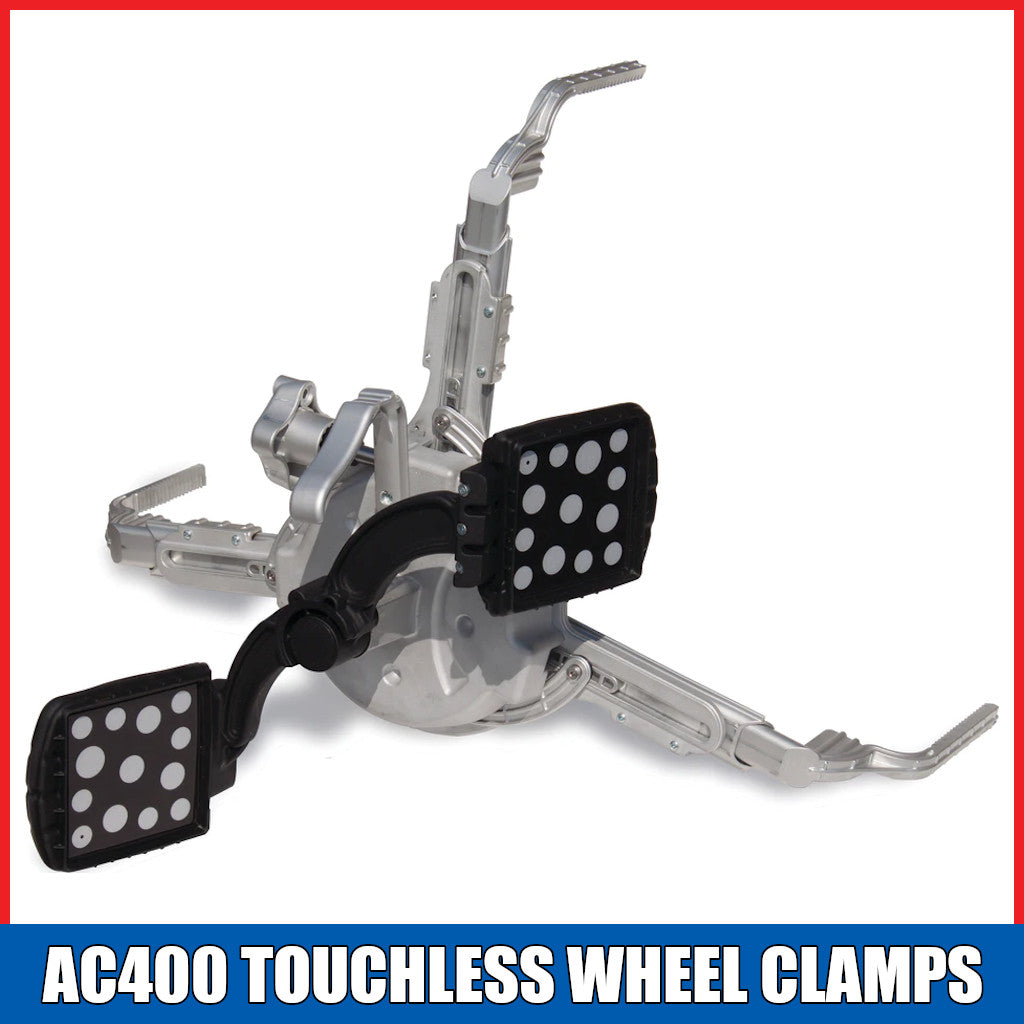

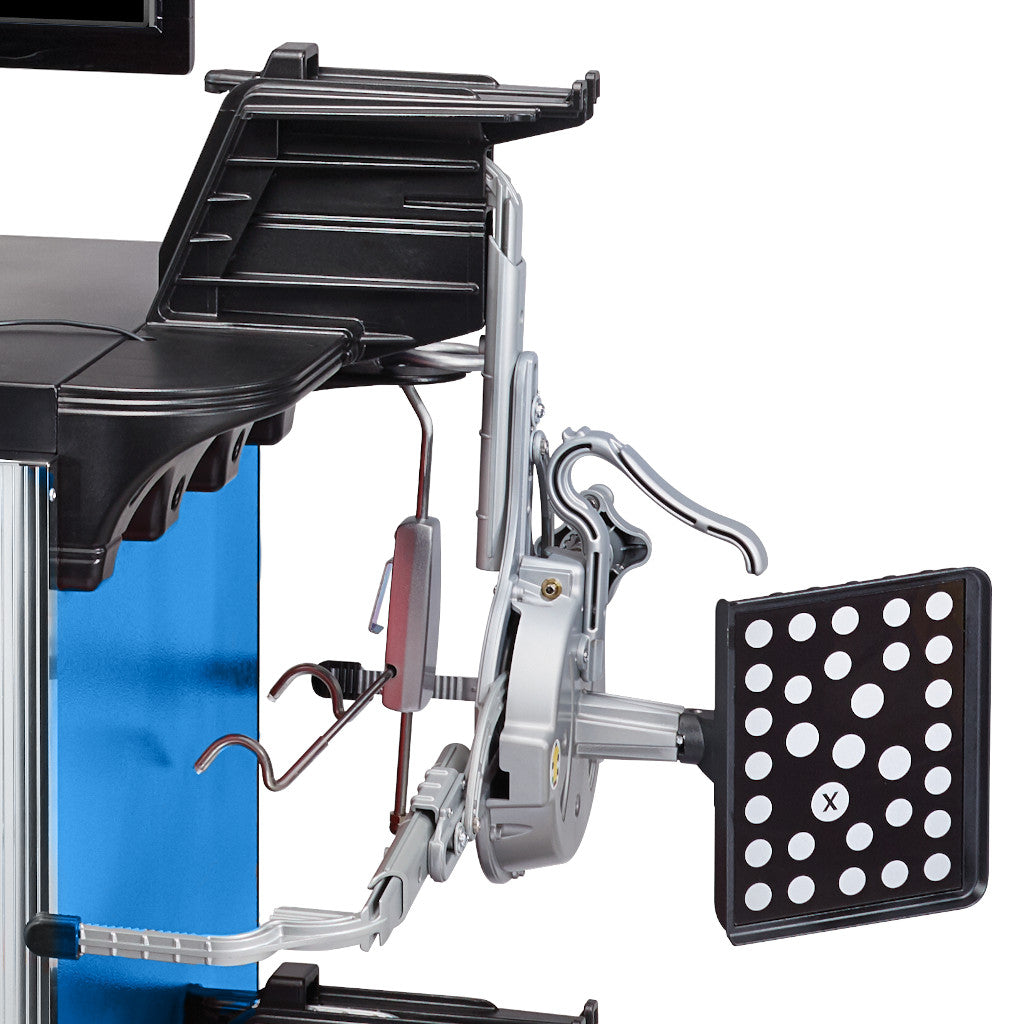

Hofmann AC400 Touchless Wheel Clamping System: Fast and easy to use, the AC400 touchless wheel clamping system from Hofmann provides secure clamping without touching the rim. This patented technology allows service technicians to receive accurate and repeatable results coupled with ease of use and durability.

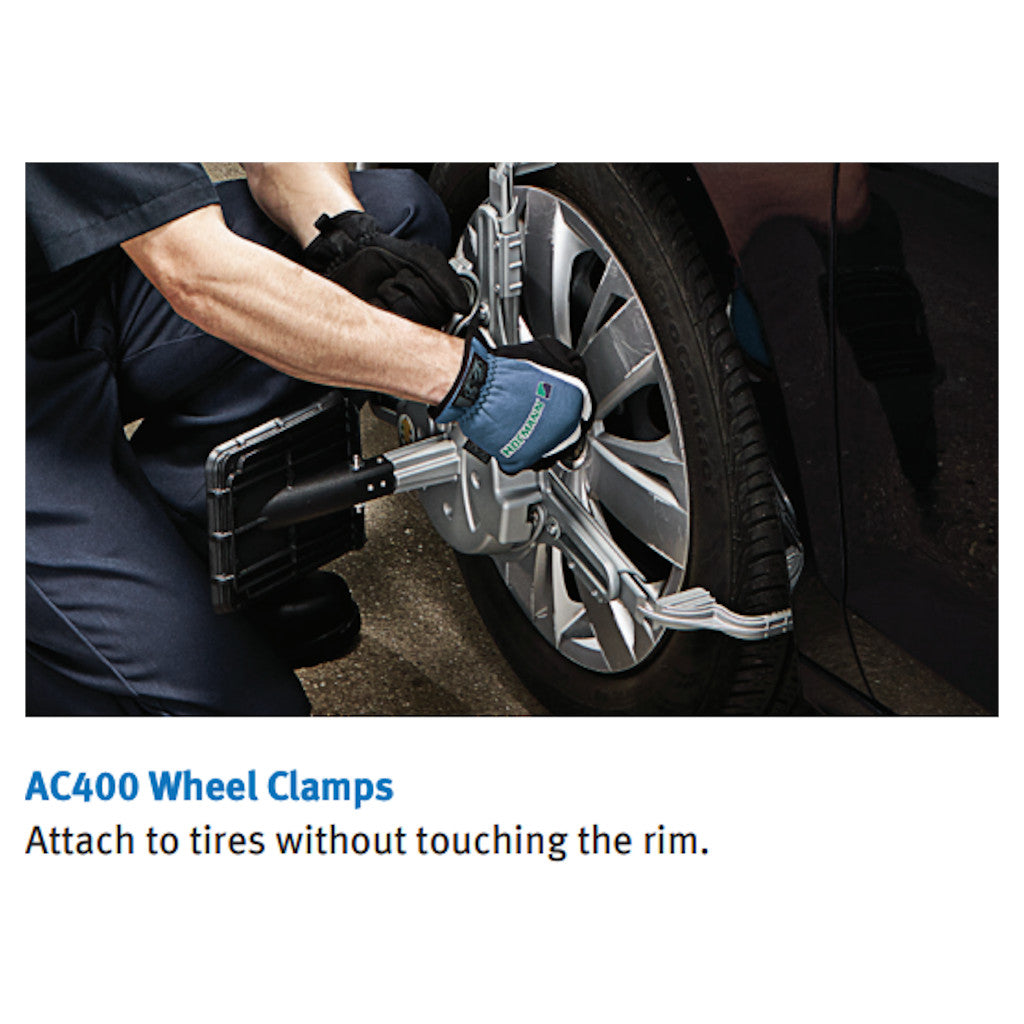

  • The clamp only engages the tire, eliminating contact with the rim
  • Single point adjustment knob adjusts to the full size range in just a few turns
  • No accessories needed to accommodate the full range of tire sizes
  • Patented self centering design allows measurement of cross diagonal and tire rolling radius to reveal collision damage and mismatched tire sizes
  • Lightweight and durable design; drop tested cast magnesium construction eases the weight that users have to carry
  • XD targets are lighter and take up less space than previous designs
  • Secure clamping delivers accurate and highly repeatable results
  • Clutch limited clamping force ensures consistent and secure attachment

Standard Accessories:

  • AC400 Wheel Clamps & Targets
  • Brake Pedal Depressor
  • Color Inkjet Printer
  • Steering Wheel Holder
  • (2) Wheel Chocks

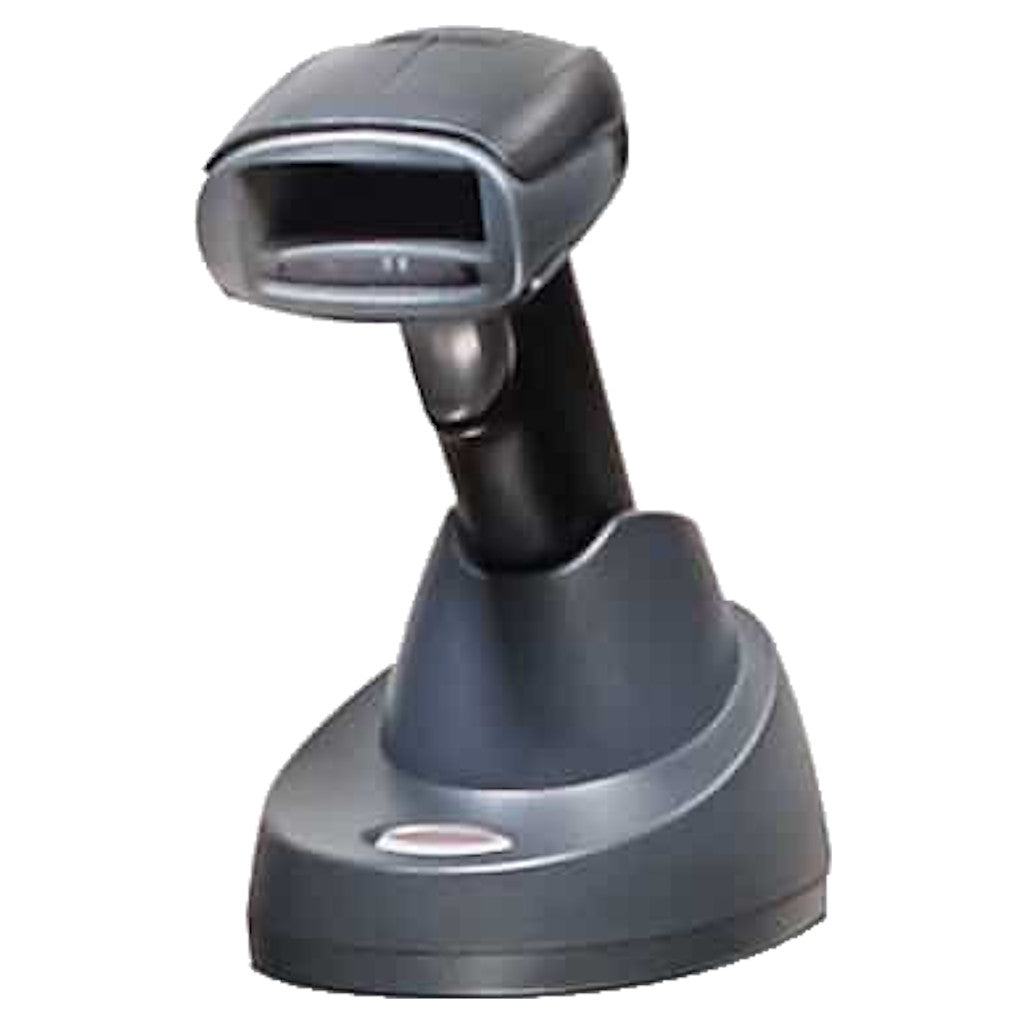

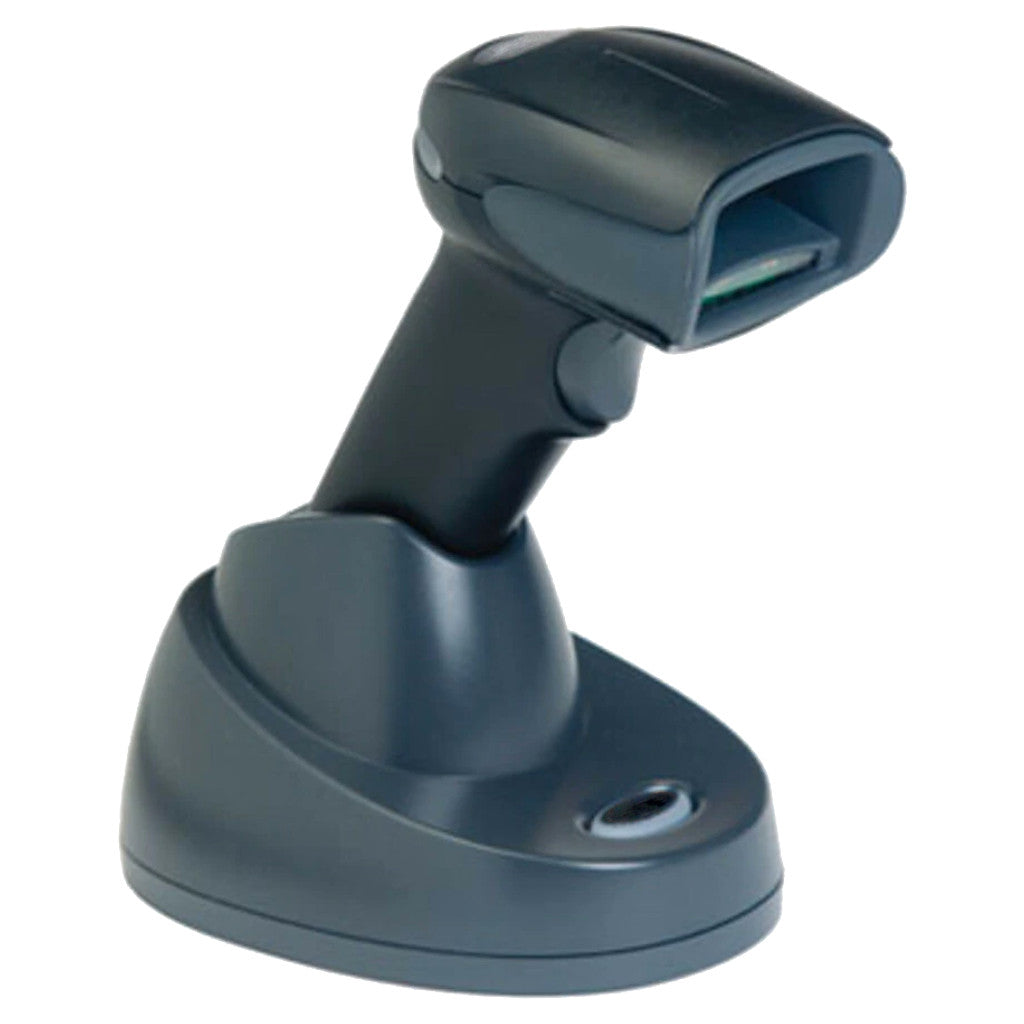

  • VIN Code Reader
    TECHNICAL DATA Geoliner 678 with AC400 Wheel Clamps & VIN Code Reader
    Hofmann Part Number EEWA715TBV3
    Tire Size 19″ - 37″ (48.3 cm - 94.0 cm)
    Wheel Size 12″ - 24″ (30.5 cm - 61.0 cm)
    Track Width 48″ - 96″ (121.9 cm - 243.8 cm)
    Wheel Base 79″ - 180″ (200.7 cm - 457.2 cm)
    Power Supply 115 V, 50/60 Hz, 1 Ph
    Power Requirements 230 VAC, 50/60 Hz, 15 Amp Circuit, 1 Ph
    Shipping Weight 501 lbs (227 kg)
    TECHNICAL DATA AC400 Wheel Clamps
    Weight 7 lbs (3.2 kg)
    Clamping Force 37 lbf (164.6 N)
    Construction Cast Magnesium
