EEWA715H

Hofmann | Geoliner 670 XD Imaging Wheel Alignment System with AC400 Clamps (EEWA715H)

Join CLUB5 at Tire Supply Network and Save 5% on EVERY Order! > Learn more

Hofmann | Geoliner 670 XD Imaging Wheel Alignment System with AC400 Clamps (EEWA715H)

PLEASE NOTE: Sales tax MUST be paid on this item. We will contact you after purchase for sales tax payment.

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

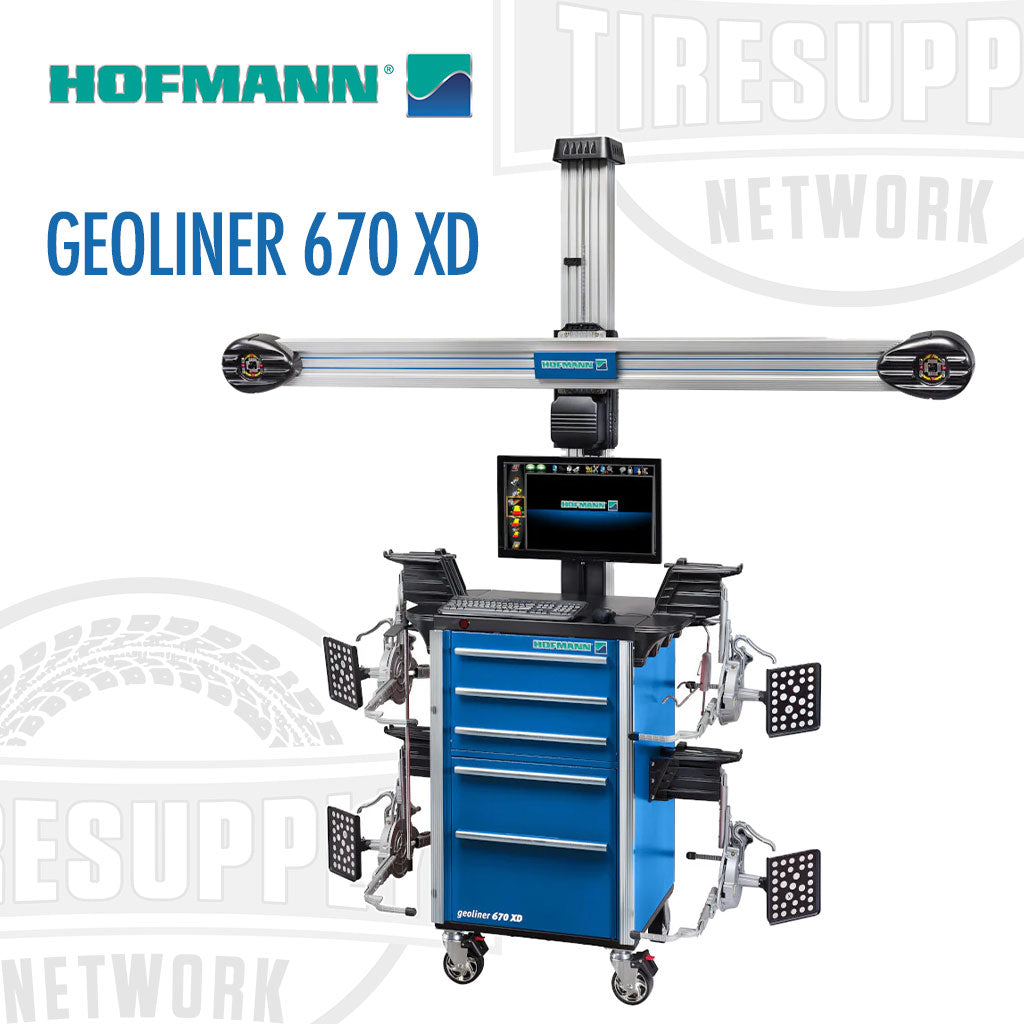

The Geoliner 670 XD Imaging Wheel Aligner combines unmatched accuracy and user-friendly features with a conventional imaging aligner design. Its extensive vehicle specifications database instills even more confidence and assures the job is done right the first time. Accurate, real-time measurements are provided by our patented imaging technology, including high-resolution cameras and the industry's most advanced XD targets.

Pinpoint Alignment Problems Faster and Easier Than Ever Before: Our new, redesigned Geoliner 670 XD Imaging Wheel Aligner features improved camera and target technology and the smallest, lightest XD target system we've ever offered. It also provides highly accurate and repeatable measurements, to help you get the job done quicker and eliminate comebacks.

Versatile, Accurate Hardware:

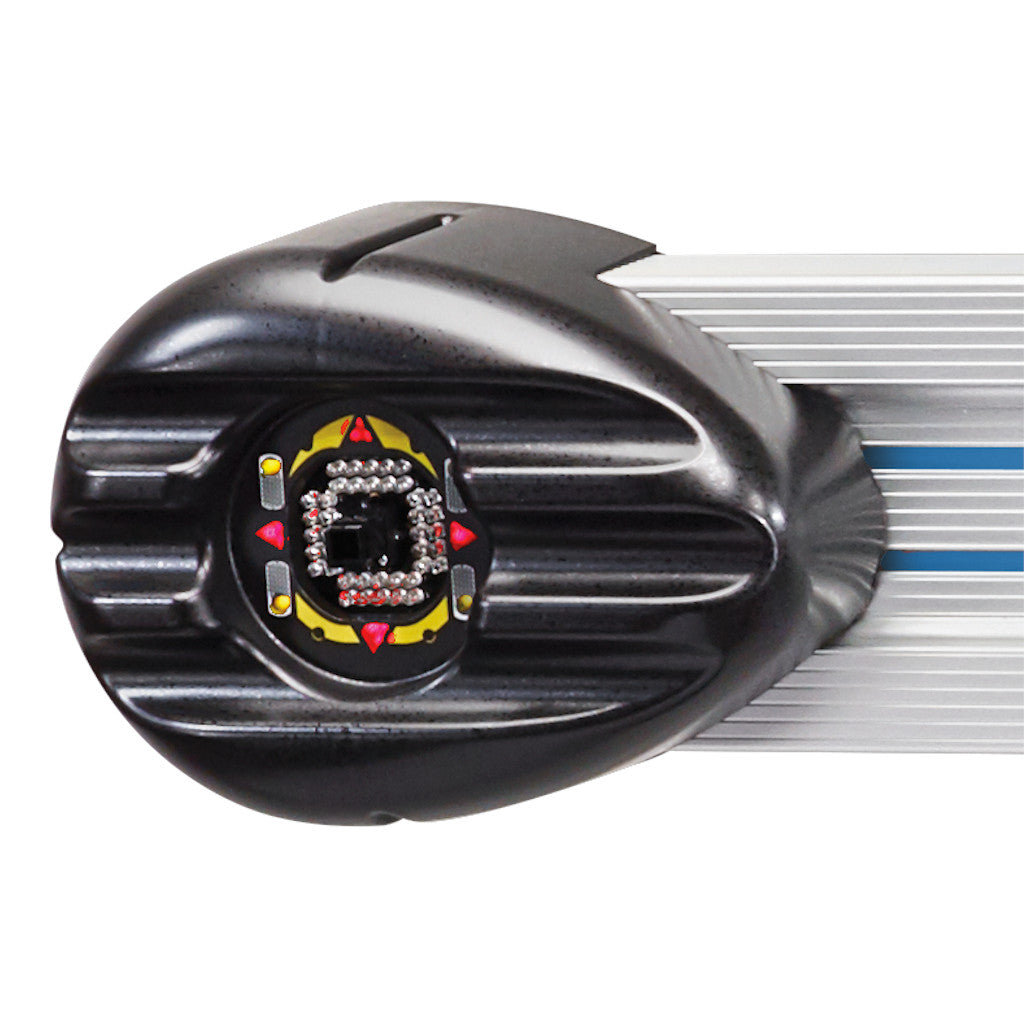

  • High resolution cameras produce accurate, live alignment readings and diagnostic data
  • Passive front and rear XD targets improve durability with no electronics to damage
  • Advanced XD targets and AC400 clamps are lightweight, durable and impact resistant

Ride Height Measurement: Measure ride height and obtain proper alignment specs for those vehicles requiring it.

Patented EZ-TOE: Turn the front wheels and access difficult adjustment points while still displaying centered toe readings.

Manufacturer Specifications: Extensive OEM specifications allow quick and accurate vehicle selection.

Patented Advanced Dimensioning: Cross-diagonal measurements identify frame or structural damage. Rolling Radius identifies mismatched tire sizes; a potential cause of vehicle pulling and drive complaints.

Easy to Follow Help Videos: View detailed videos of how to make needed adjustments to complete even the most complex tasks.

VODITM: Vehicle Orientation Directional Indicator (VODI) guides the technician through the measurement process.

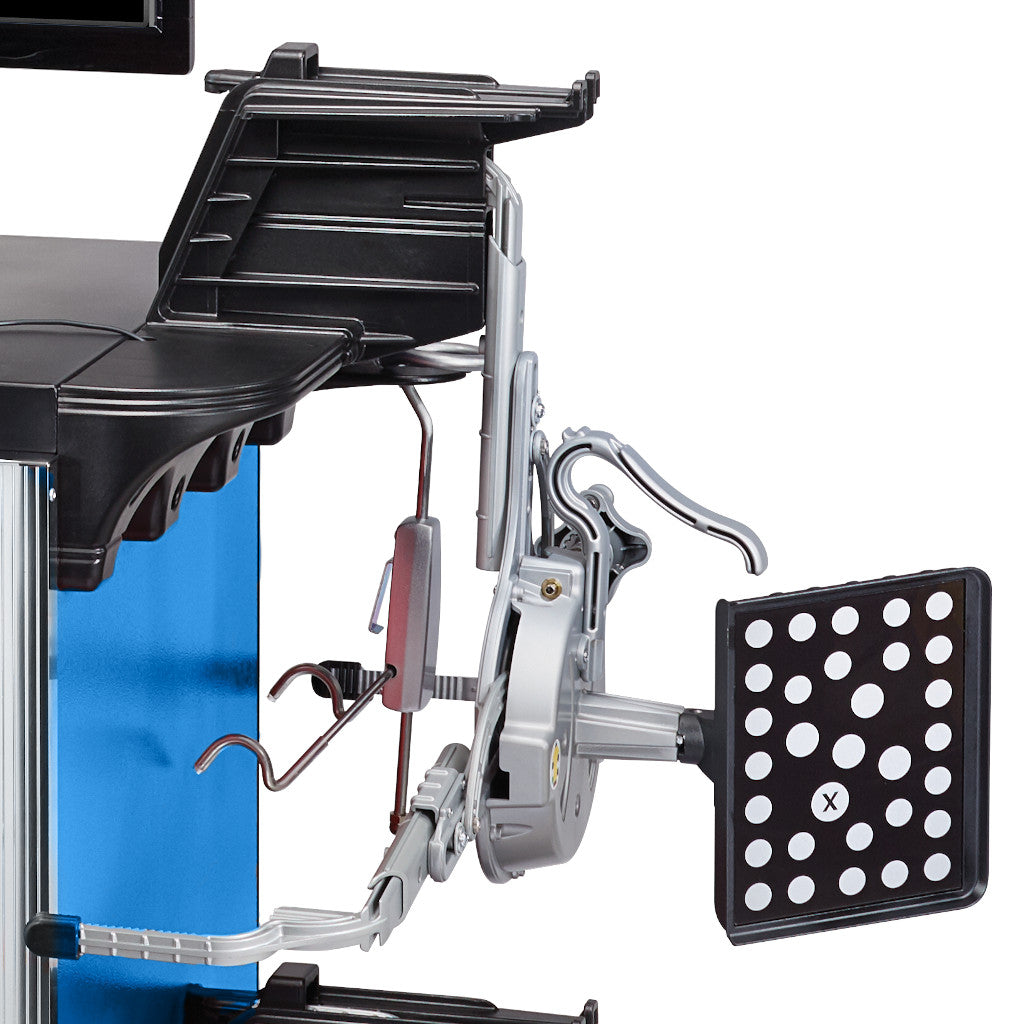

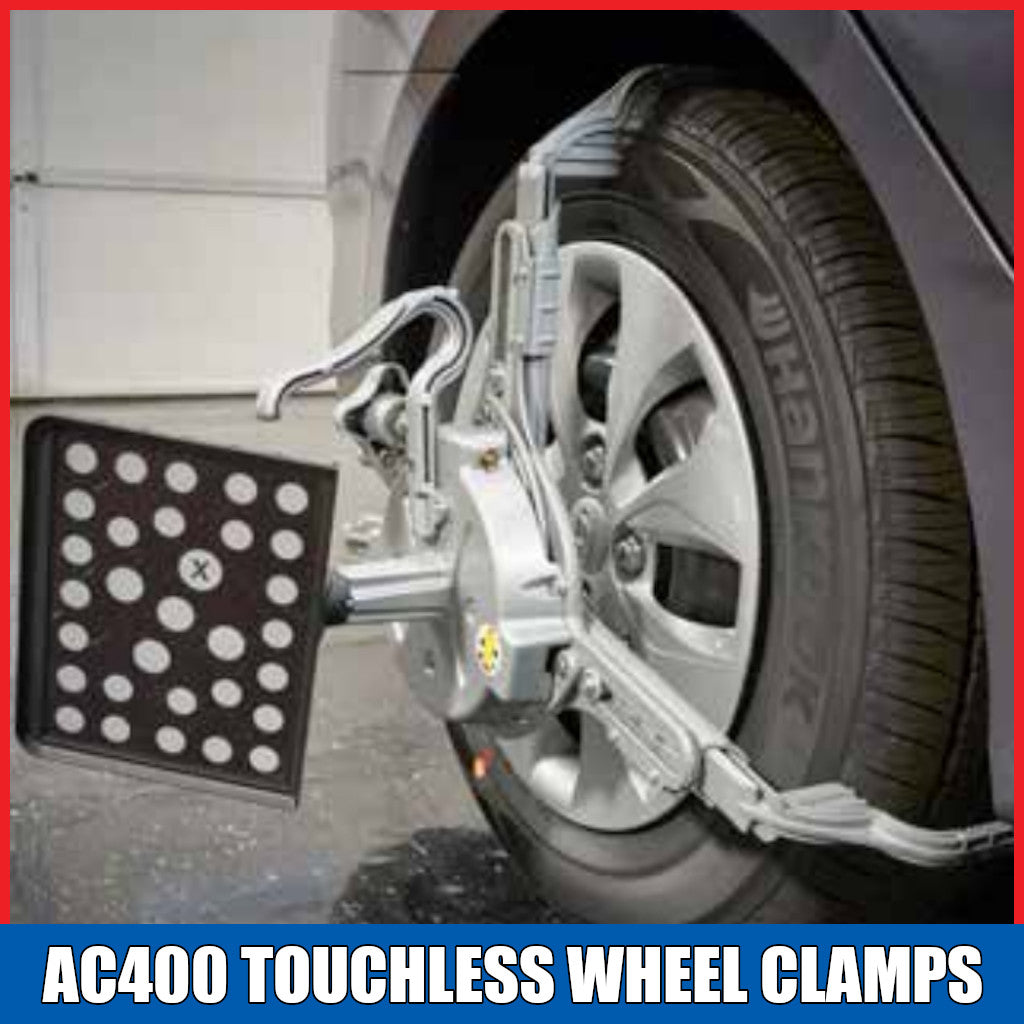

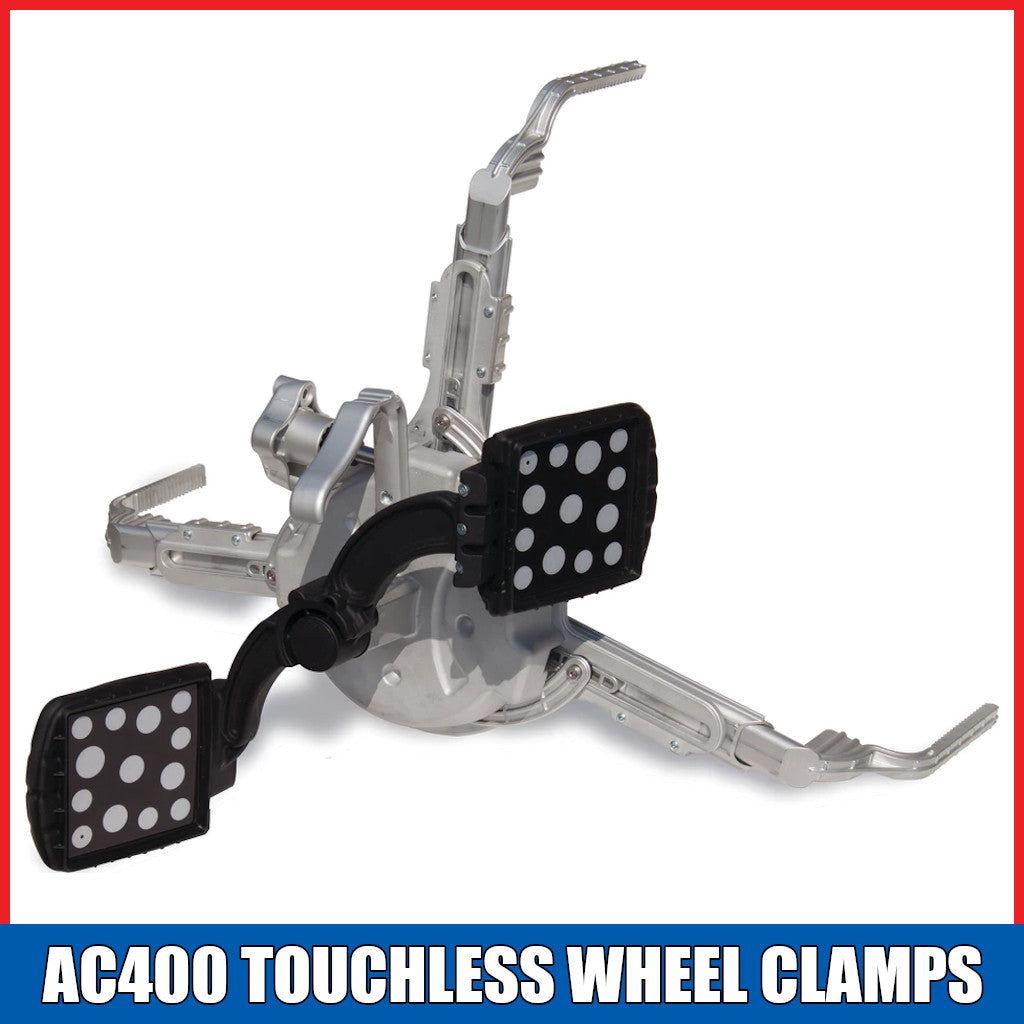

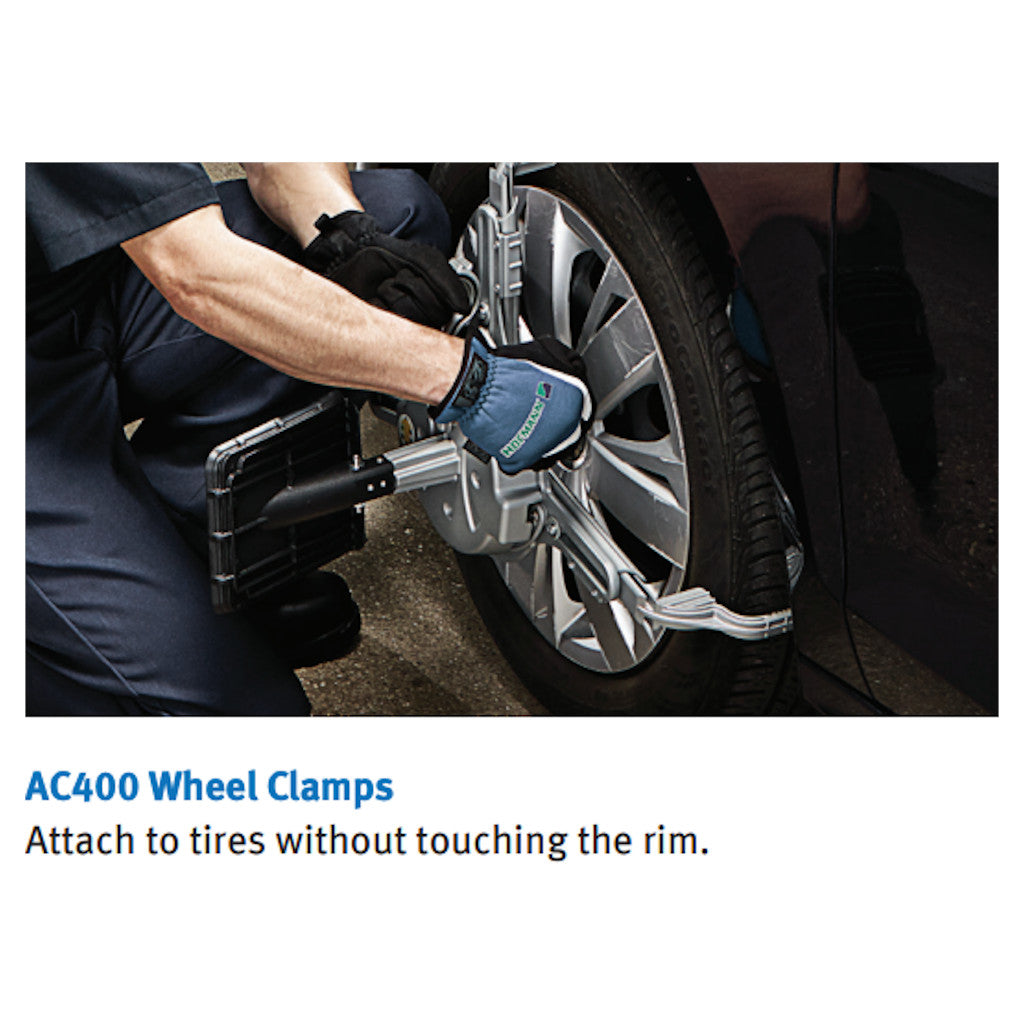

Hofmann AC400 Touchless Wheel Clamping System: Fast and easy to use, the AC400 touchless wheel clamping system from Hofmann provides secure clamping without touching the rim. This patented technology allows service technicians to receive accurate and repeatable results coupled with ease of use and durability.

  • The clamp only engages the tire, eliminating contact with the rim
  • Single point adjustment knob adjusts to the full size range in just a few turns
  • No accessories needed to accommodate the full range of tire sizes
  • Patented self centering design allows measurement of cross diagonal and tire rolling radius to reveal collision damage and mismatched tire sizes
  • Lightweight and durable design; drop tested cast magnesium construction eases the weight that users have to carry
  • XD targets are lighter and take up less space than previous designs
  • Secure clamping delivers accurate and highly repeatable results
  • Clutch limited clamping force ensures consistent and secure attachment

Standard Accessories:

  • AC400 Wheel Clamps & Targets
  • Brake Pedal Depressor
  • Ride Height Target
  • Steering Wheel Holder
  • (2) Wheel Chocks
  • Color Inkjet Printer
      TECHNICAL DATA Geoliner 670 XD with AC400 Wheel Clamps
      Hofmann Part Number EEWA715H
      Tire Diameter 19″ - 39″ (48.3 cm - 99.1 cm)
      Track Width 48″ - 96″ (121.9 cm - 243.8 cm)
      Wheel Base 79″ - 180″ (200.7 cm - 457.2 cm)
      Power Supply 115 V, 50/60 Hz, 1 Ph
      Power Requirements 120/230 VAC, 50/60 Hz, 1 Ph
      Shipping Weight 445 lbs (202 kg)
      TECHNICAL DATA AC400 Wheel Clamps
      Weight 7 lbs (3.2 kg)
      Clamping Force 37 lbf (164.6 N)
      Construction Cast Magnesium
