Hofmann EELR789APKG Standard Bay Surface Mount 14K Scissor Alignment Lift Package - Lights & Locks Model

PLEASE NOTE: Sales tax MUST be paid on this item. We will contact you after purchase for sales tax payment.

PLEASE NOTE: Installation is NOT included on Vehicle Lifts and Alignment Lifts. If you need installation services, please contact us for an estimate.

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

This Package Includes:

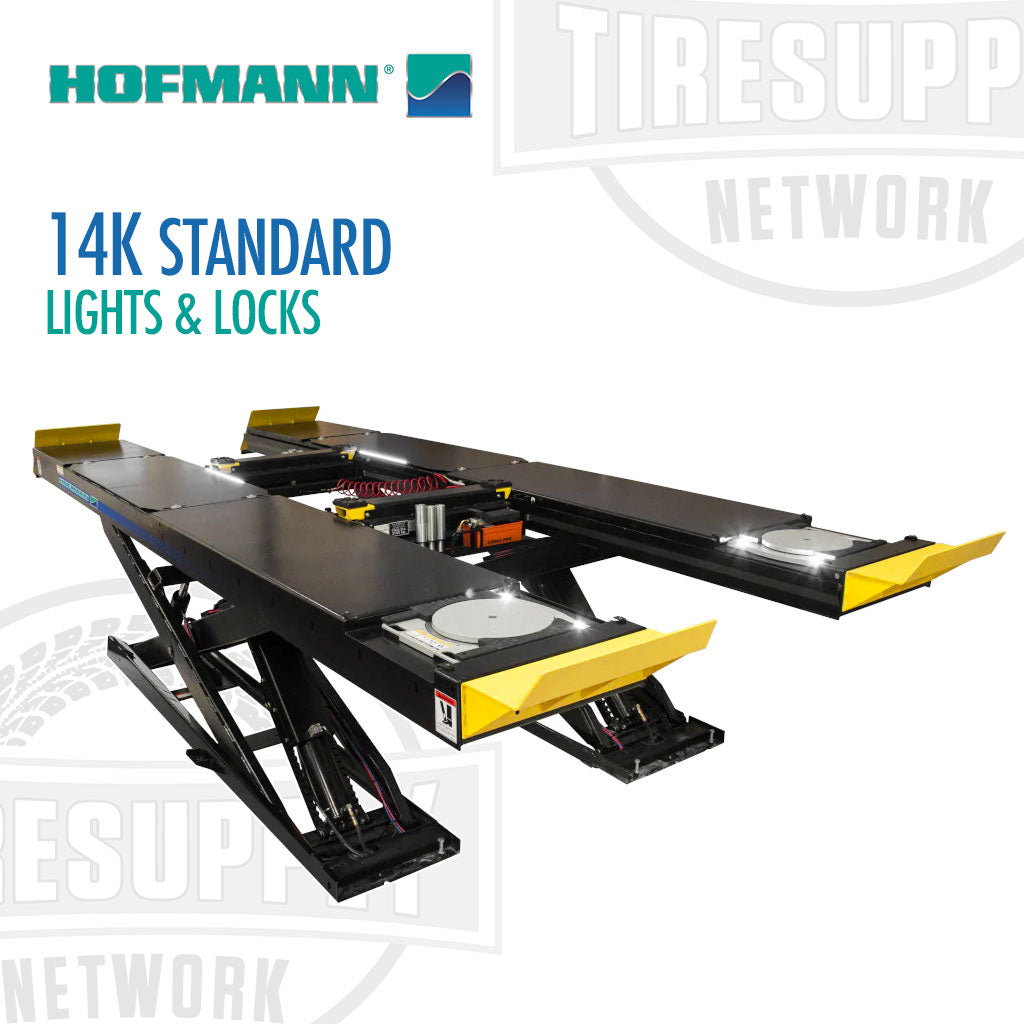

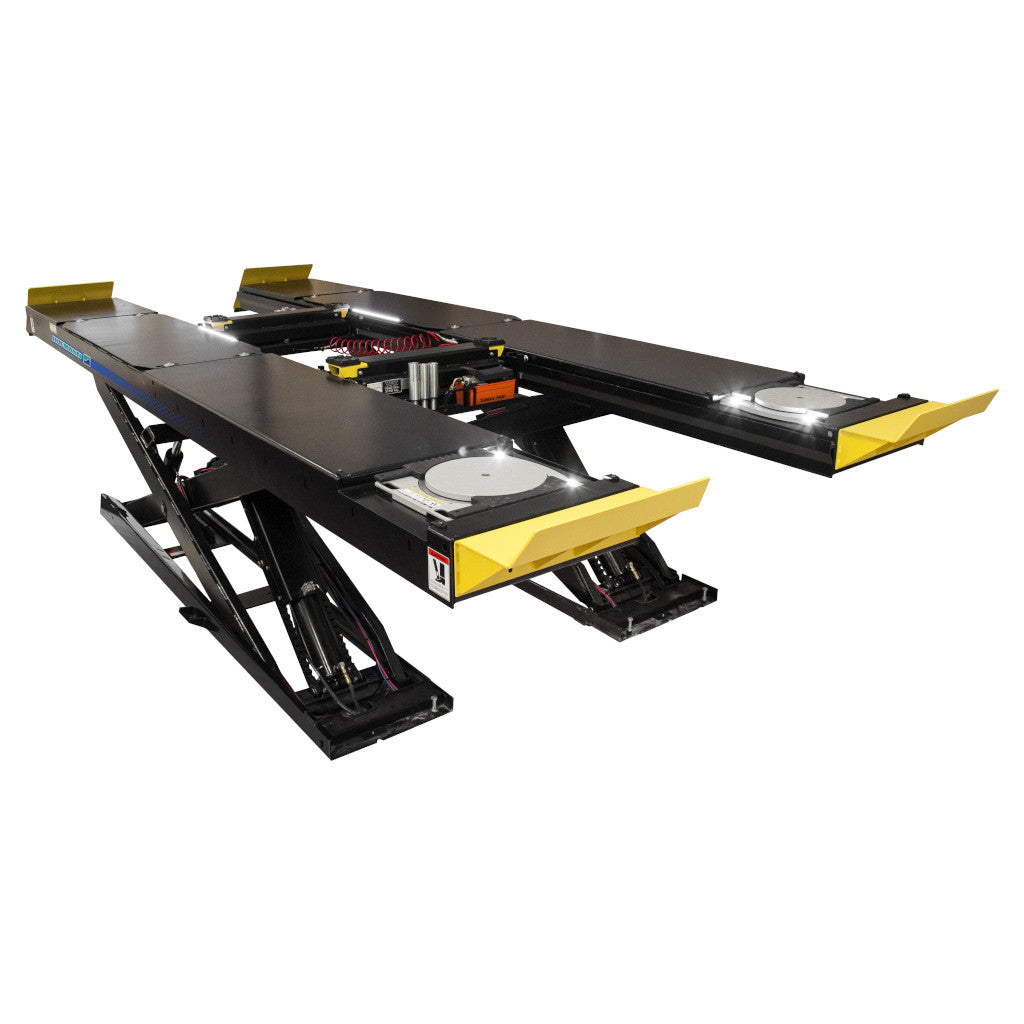

  • (1) EELR789A Scissor Lift (14,000 lb capacity)

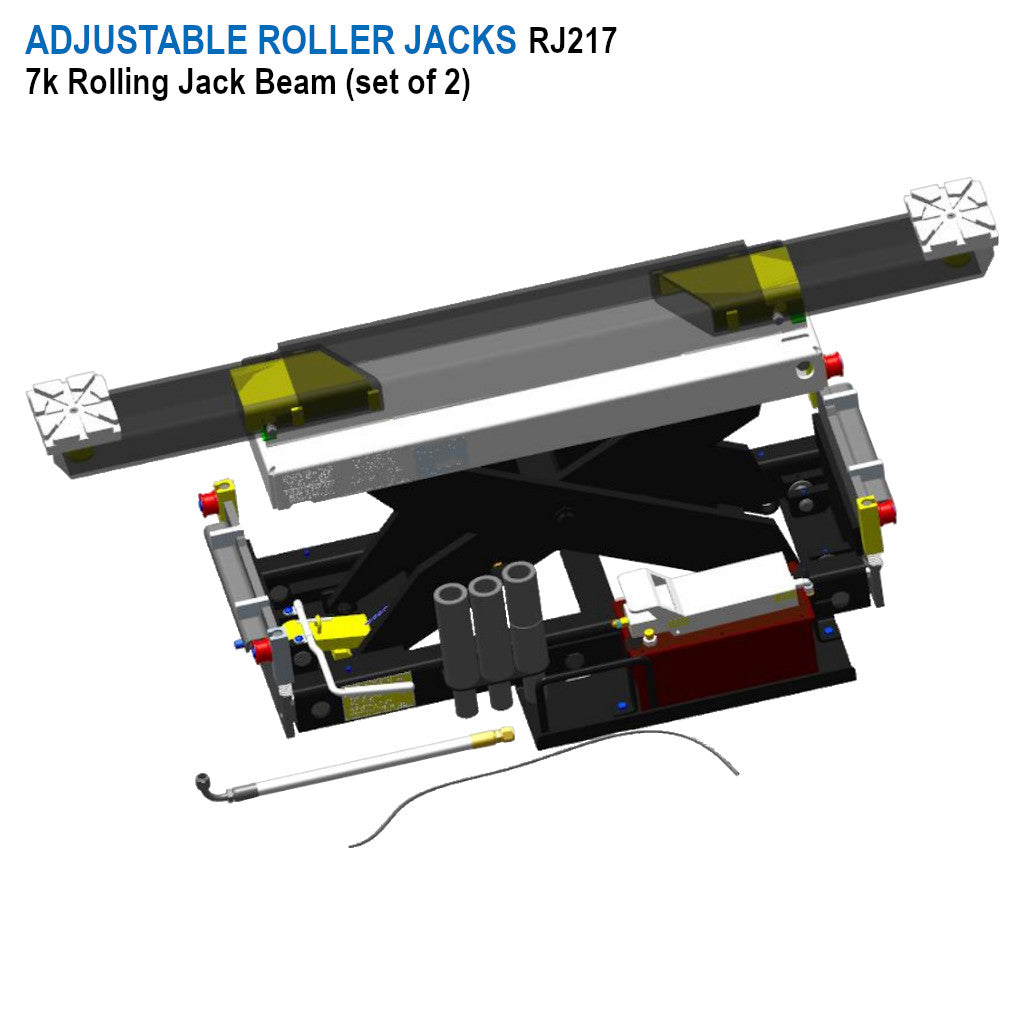

  • (2) RJ217 Rolling Jacks (7,000 lb capacity each)
  • (2) EAK0336V49A Premium Front Radius Turnplates with Lights & Locks Feature

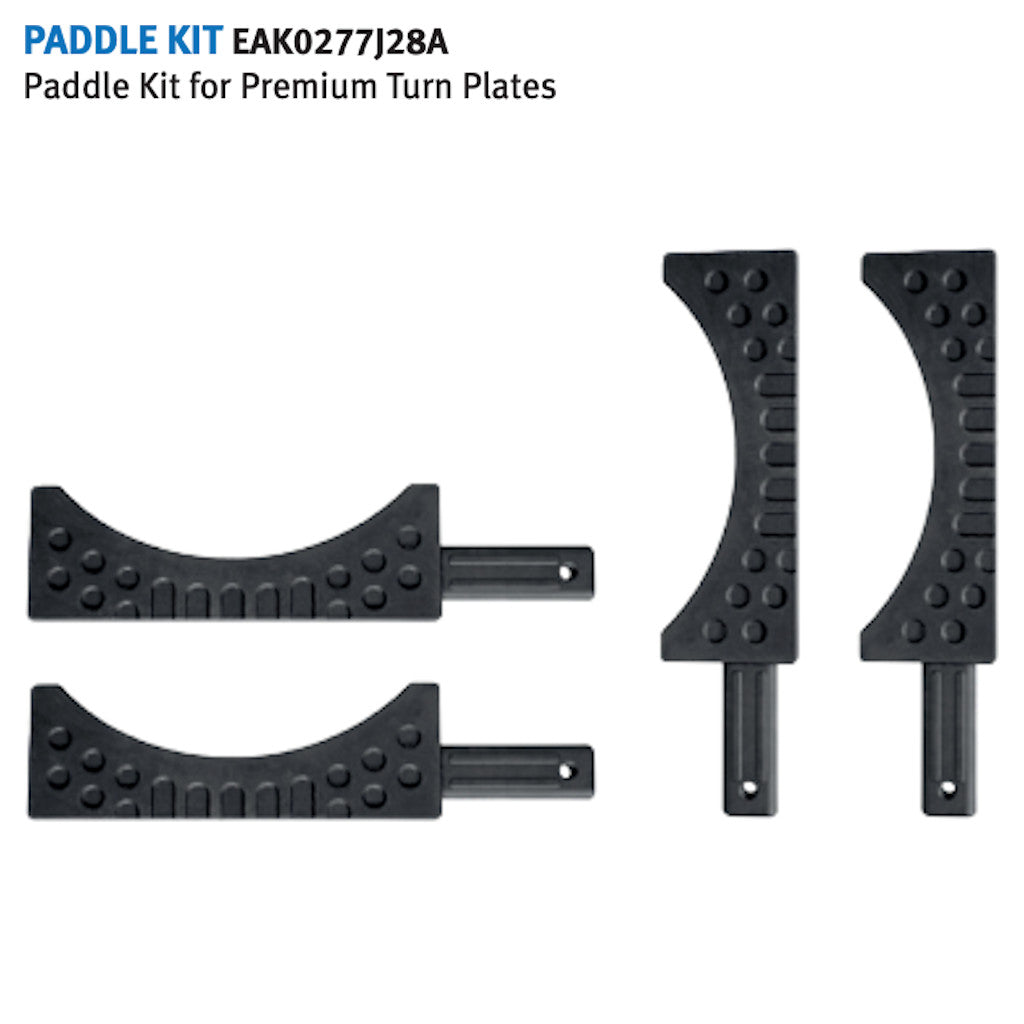

  • (1) EAK0277J28A Rollback Paddle Kit
  • LED Lights in Front Turnplate Base and Rear Slip Plates
  • Locking Control Activation Feature from Lift Console for Alignment Plates

Hofmann Scissor Alignment Lifts are easy to operate, provide increased accessibility to alignment adjustment areas and are easy to load. Space saving design allows for up to five scissor lifts to fit into the same operating space as four 4-post lifts.

Lights & Locks Models provide productivity enhancements while allowing the technician to perform critical tasks while minimizing alignment process operations, by illuminating both inspection and adjustment areas and by sequencing the locking of alignment plates.


  • Maintenance reduced rear slip plates use oversized, encapsulated bearings that roll upward to protect against environment debris
  • Four hydraulic cylinders in a cross aligned arrangement provide secure lifting power and added safety
  • Approach ramps are equipped with end sliders to minimize noise and reduce floor damage
  • Adjustable maximum lift height suits locations with low ceilings
  • On-board Filter/Regulator/Lubricator (FRL) provides clean and lubricated air to help reduce maintenance and protect pneumatic systems

Safety Systems Include:

  • Mechanical locking with pneumatic safety lock release from the control console
  • Flow sensing valves within the hydraulic control circuit
  • Redundant hydraulic safety system with cross aligned hydraulic circuits

Lights & Locks Models:

  • Illuminate alignment adjustment and calibration areas

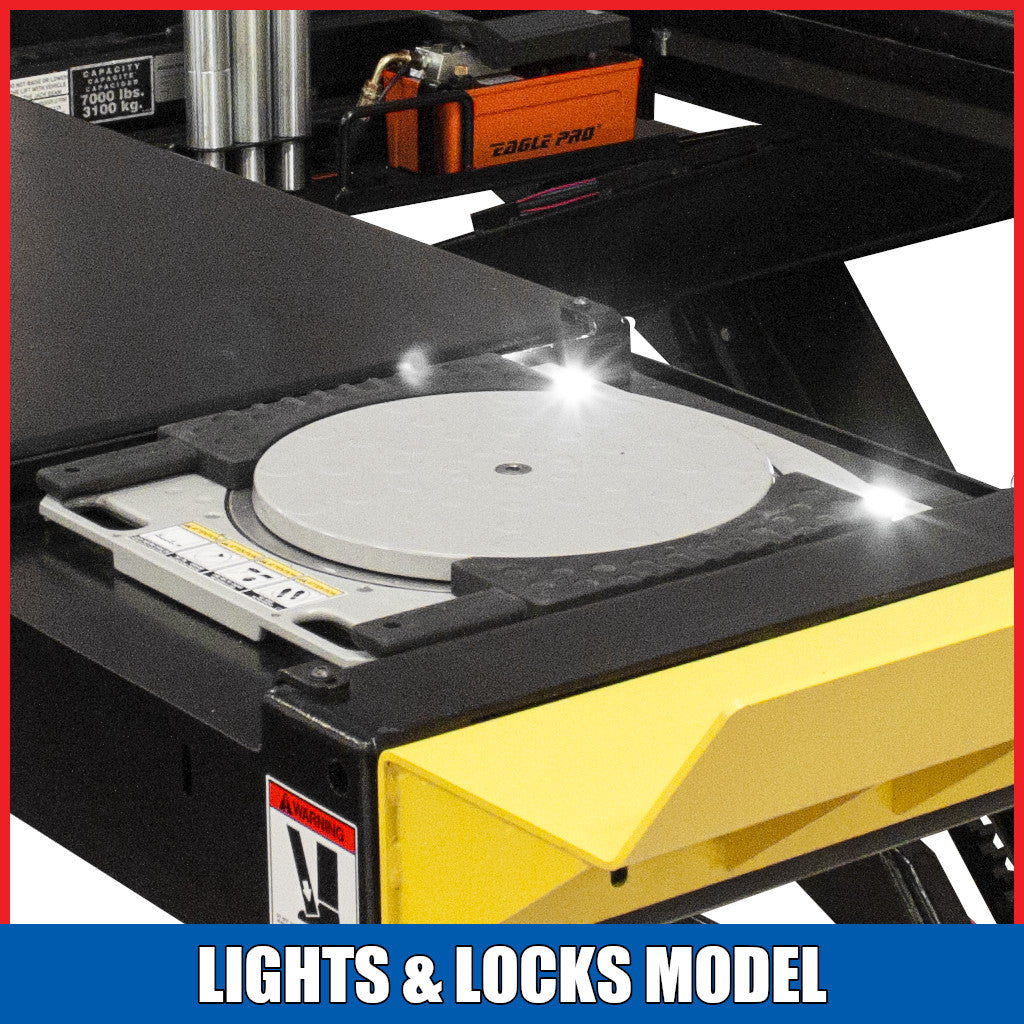

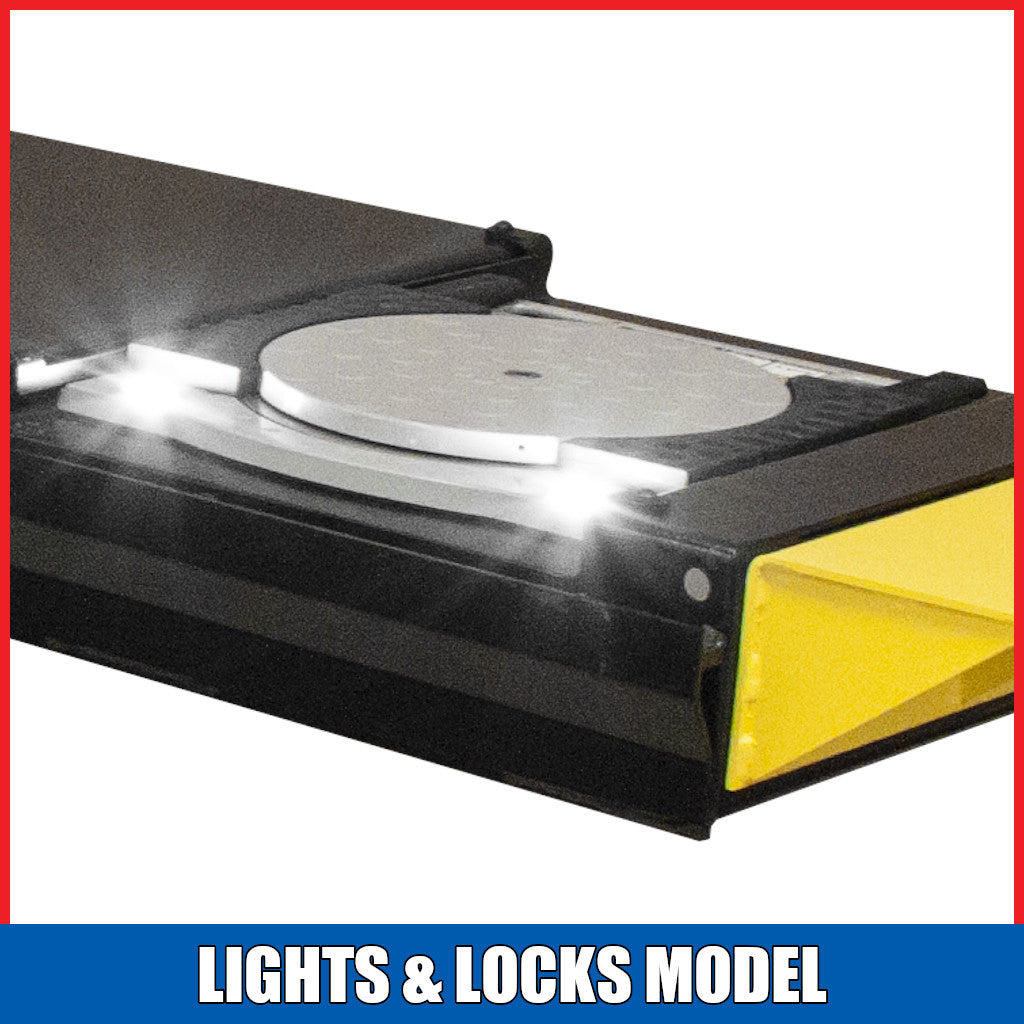

  • Front LEDs are mounted in the front turnplate base to easily accommodate varying vehicle wheel tracks

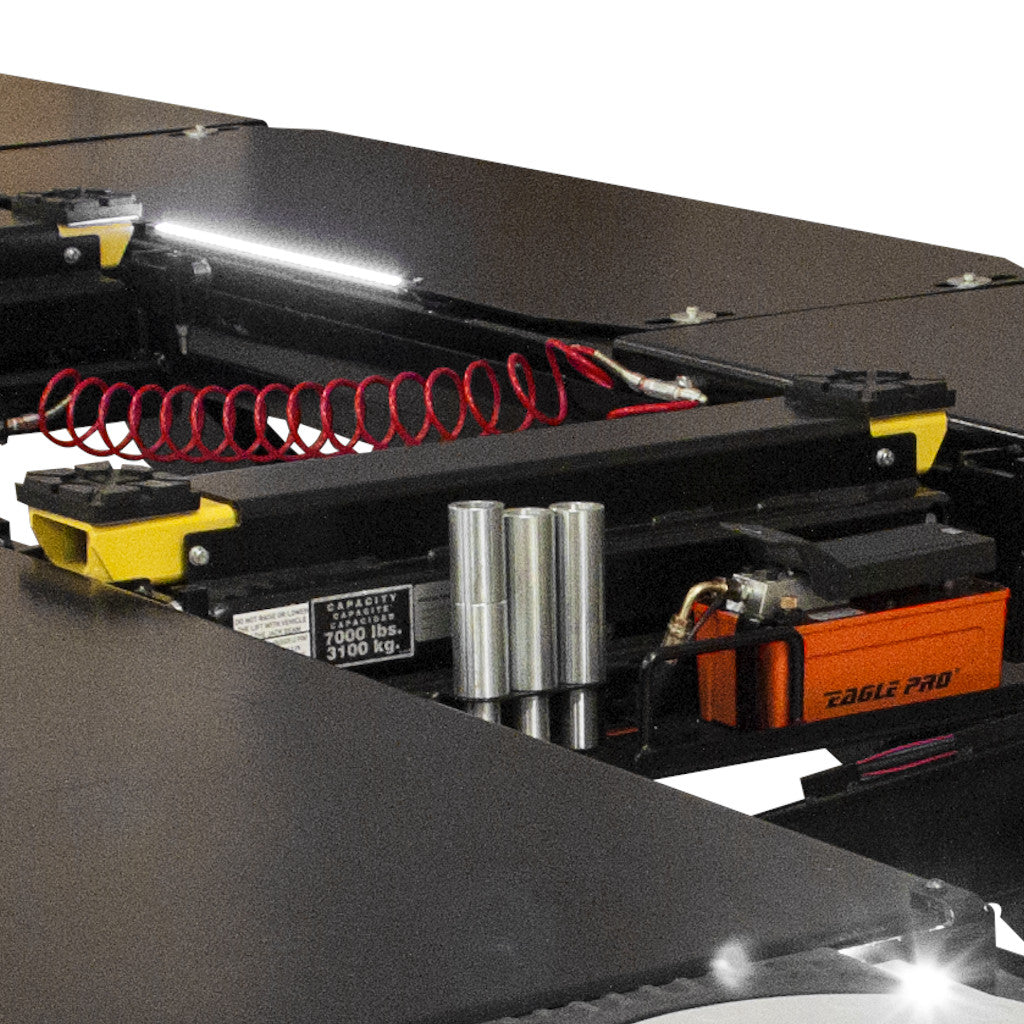

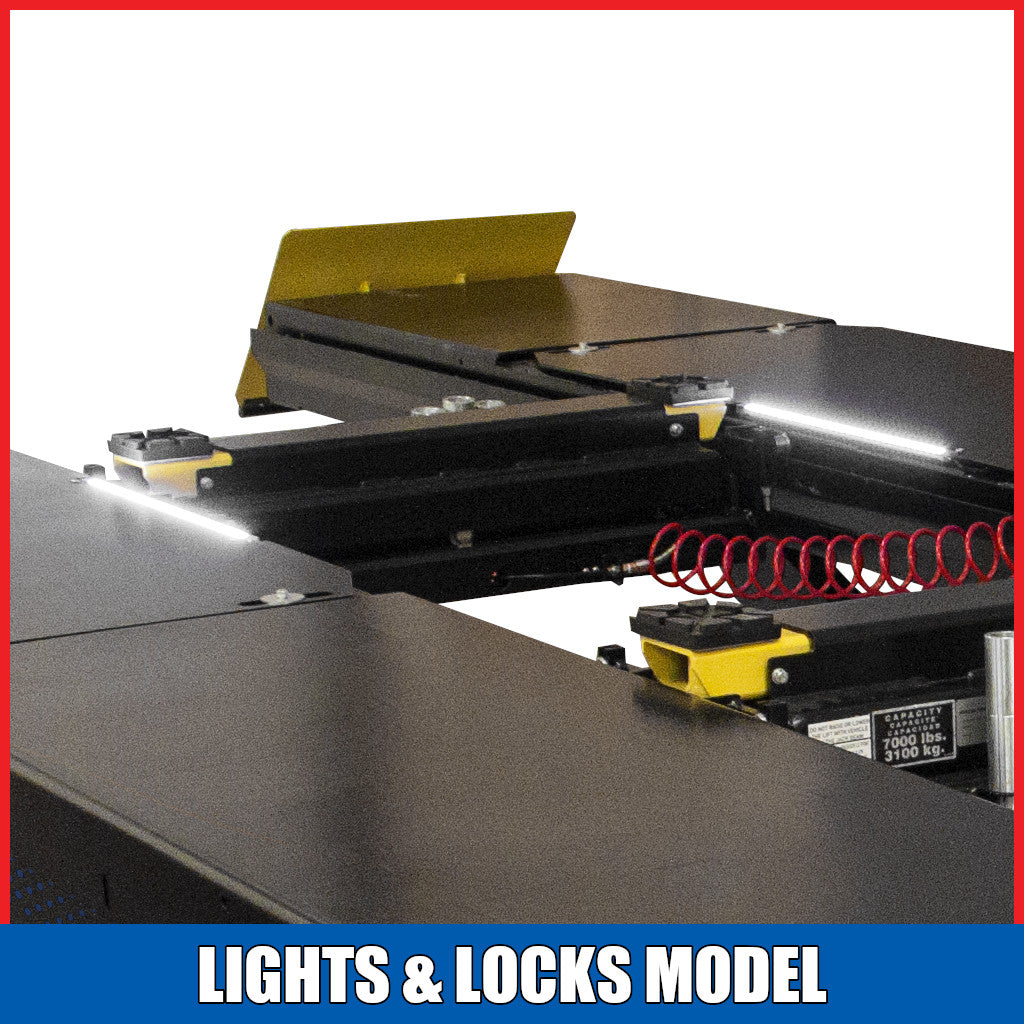

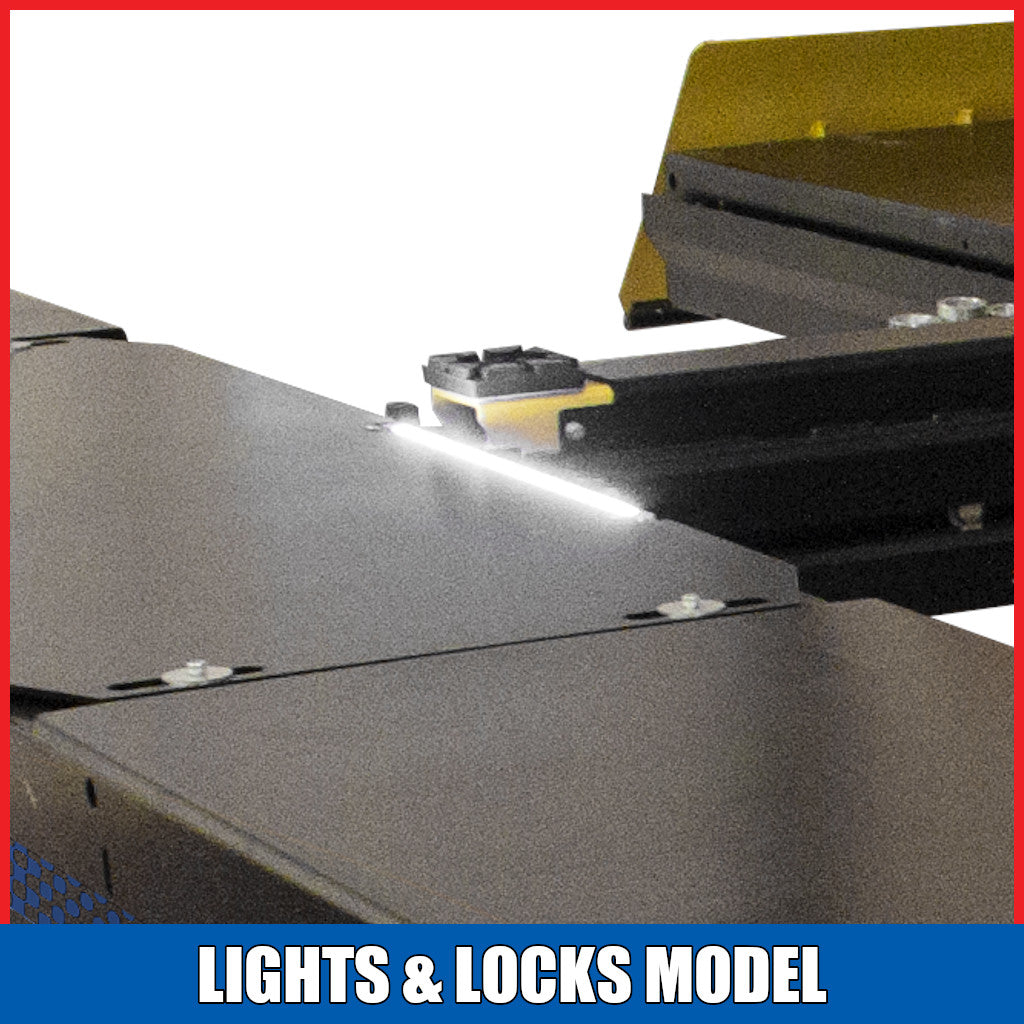

  • Rear LEDs are strategically positioned on the rear slip plates
  • Ease locking control activation from the lift console to reduce walking and effort from resetting alignment pins in plates
  • Locking components made from corrosion-resistant material

True Task Lighting System on Lights & Locks Models:

  • Patented auto on/off light feature ensures no power when operating in the hazard zone
  • Patented light mounting position optimizes viewing angle, illuminating key inspection and adjustment areas
  • Approved for use in Class 1 Division 1 environments for both surface and flush mount models

ALI Certified:

  • All models have been tested and validated by an independent third party to the ANSI/ALI automotive lift standard, ALCTV-2011
            TECHNICAL DATA 14k Scissor Alignment Lift Package
            Hofmann Part Number EELR789APKG
            Maximum Capacity 14000 lbs (6350 kg)
            Overall Width 92.5″ (234.95 cm)
            Width Between Runways 38″ (96.52 cm)
            Overall Length 270″ (685.8 cm)
            4 Wheel Alignment Wheelbase 88″ - 155″ (223.52 cm - 393.70 cm)
            2 Wheel Alignment Wheelbase 180″ (457 cm)
            General Service Wheelbase 194″ (492.8 cm)
            Runway Surface Length 210″ (533.4 cm)
            Runway Surface Width 26″ (66 cm)
            Maximum Raised Height 72″ (182.9 cm)
            Minimum Lowered Height 10″ (25.4 cm)
            Lifting Time at Full Load 75 to 85 seconds
            Motor 3 hp
            Air Supply Requirements 90 - 120 psi
            Power Supply Requirements 230 VAC, 50/60 Hz, 1 Ph, 20 Amp
            Shipping Weight without Jacks 6387 lbs (2897 kg)
            Console Dimensions (DxWxH) 16.5″ x 14.125″ x 45.75″
            TECHNICAL DATA Rolling Jack
            Hofmann Part Number RJ217
            Capacity 7000 lbs (3175 kg)
            Minimum Arm Reach 31″ (787 mm)
            Maximum Arm Reach 53″ (1346 mm)
            Minimum Lowered Height 1″ (25 mm) above deck surface
            Maximum Raised Height 12.75″ (324 mm) above deck surface
            Air Supply Requirements 90 - 120 psi (6 - 8 bar)
            Maximum Operating Pressure 5210 psi (359 bar)
            Shipping Weight 329 lbs (149 kg)
            TECHNICAL DATA Premium Front Radius Turnplates
            Hofmann Part Number EAK0336V49A
            Dimensions (LxWxH) 18.5″ x 19.7″ x 2″
