EELR728APKG

Hofmann EELR728APKG 12K 4-Post Alignment Lift with 2 Rolling jacks, Turnplates, & Rollback Kit

Join CLUB5 at Tire Supply Network and save 5% on EVERY order! Learn more

Hofmann EELR728APKG 12K 4-Post Alignment Lift with 2 Rolling jacks, Turnplates, & Rollback Kit

PLEASE NOTE: Sales tax MUST be paid on this item. We will contact you after purchase for sales tax payment.

PLEASE NOTE: Installation is NOT included on Vehicle Lifts and Alignment Lifts. If you need installation services, please contact us for an estimate.

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

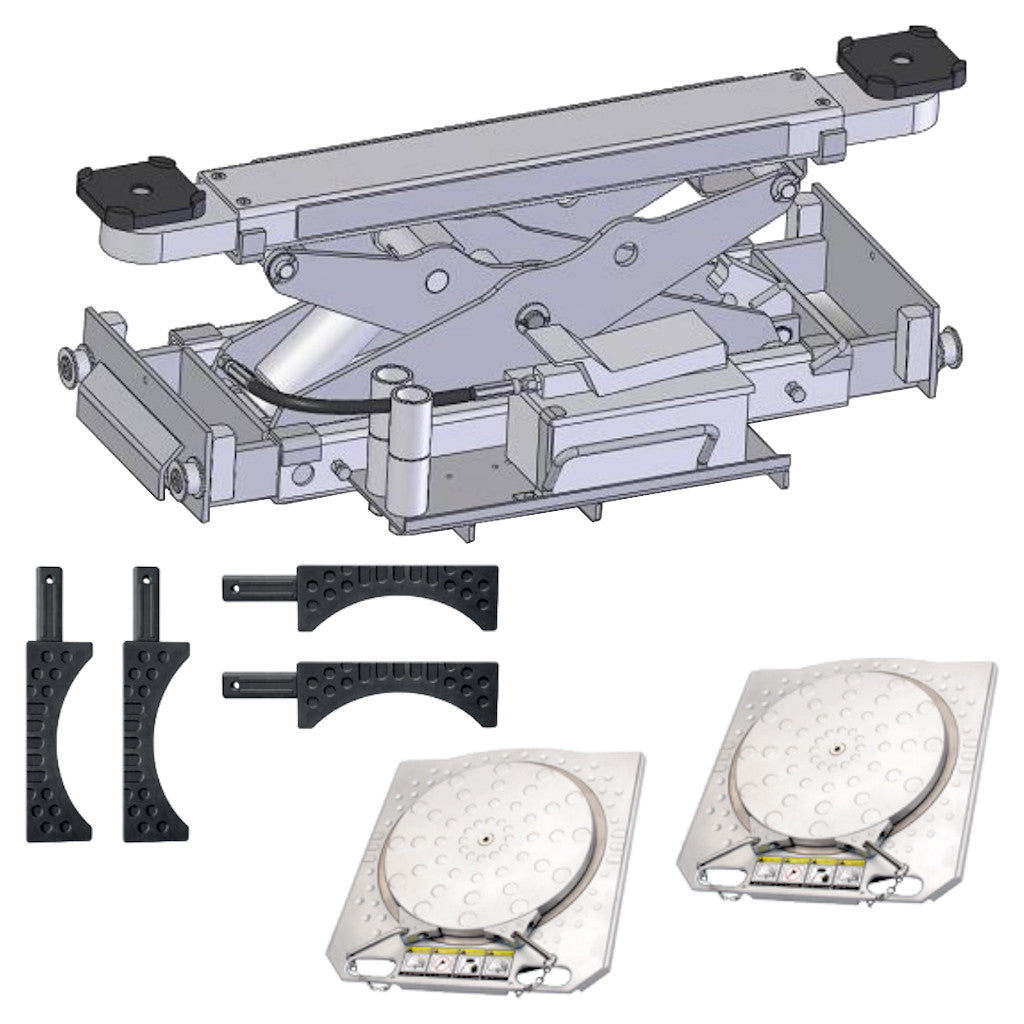

This Package Includes:

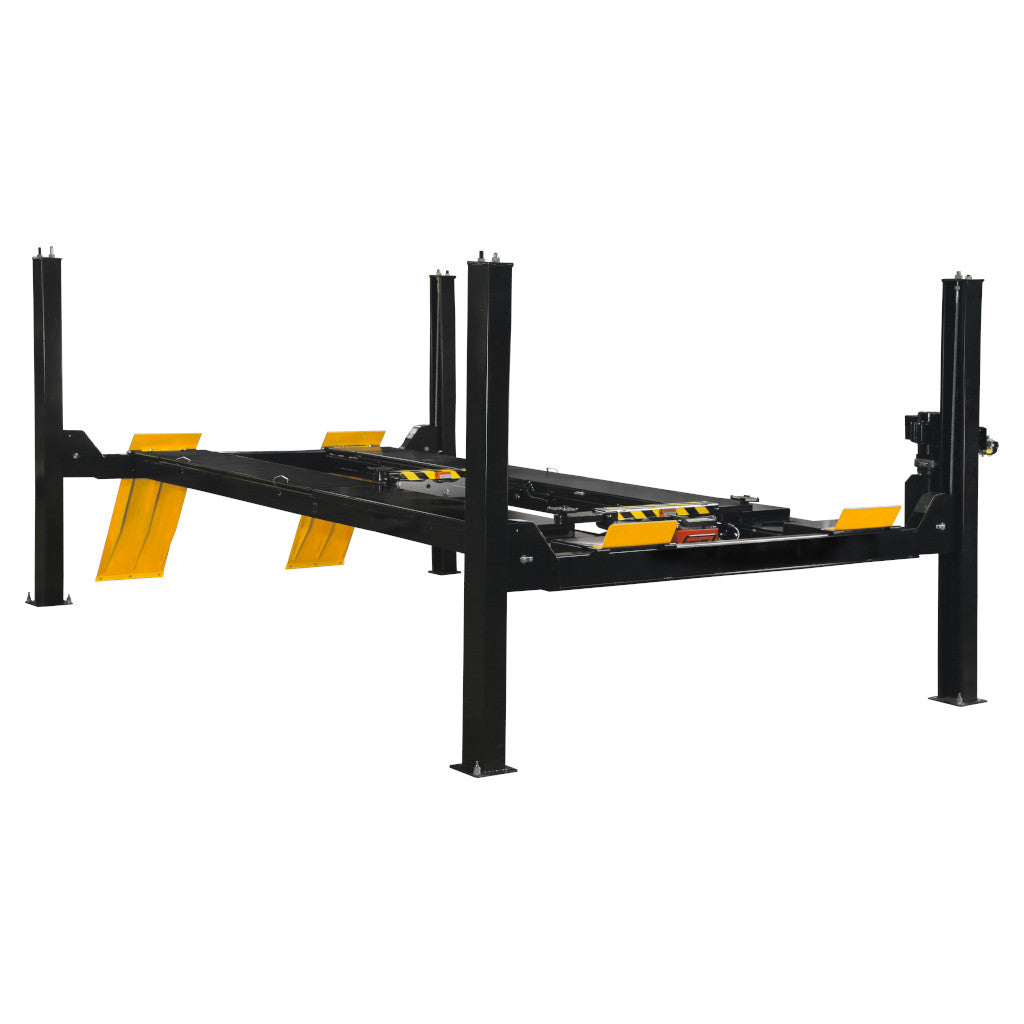

  • (1) EELR728A 4-Post Lift (12,000 lb capacity)
  • (2) EELS900A Rolling Jacks (6,000 lb capacity each)
  • (2) EAK0289J06A Premium Front Radius Turnplates

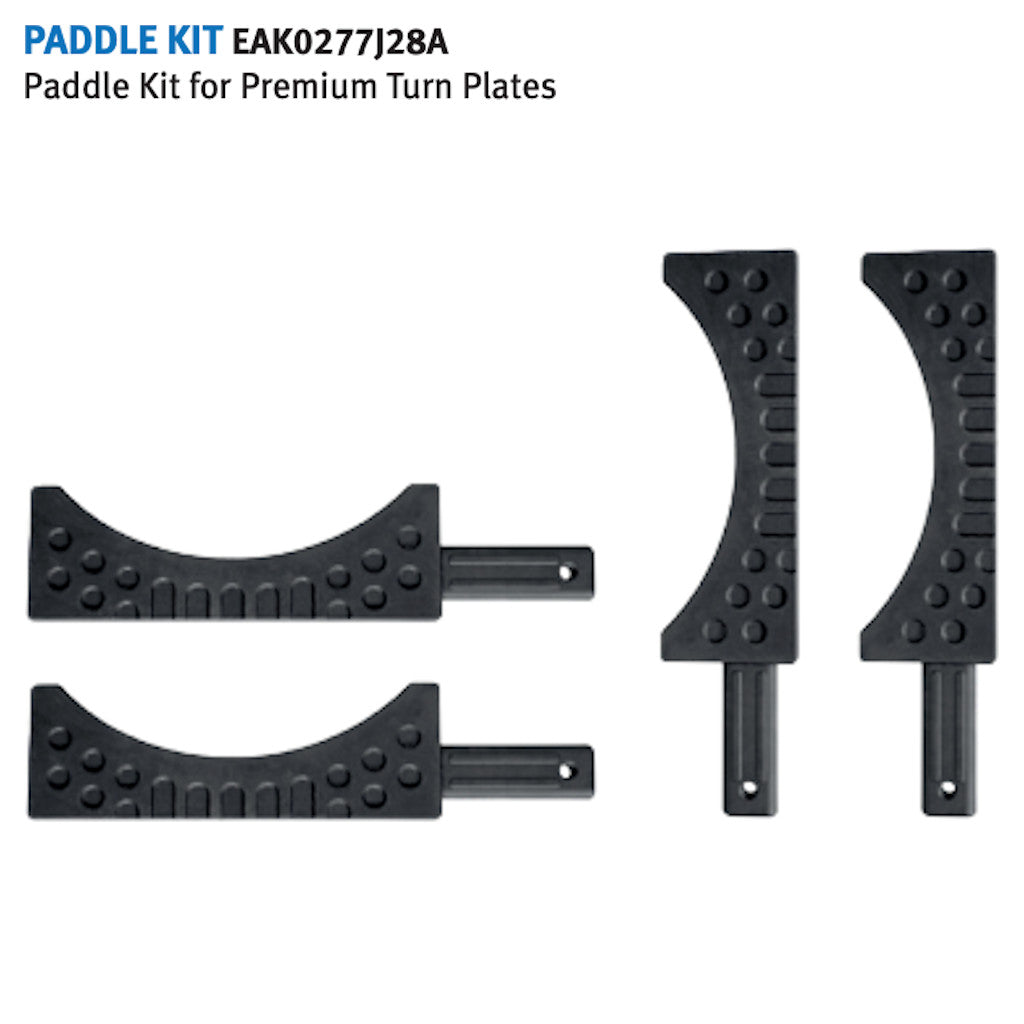

  • (1) EAK0277J28A Rollback Paddle Kit

Versatile 12k 4-post alignment lifts give you 12,000 lbs of heavy-duty lifting capacity in a compact and stable lift design without the need for multiple lifts. Whether it is a micro-car or a heavy-duty pickup, the 12k four post alignment lift has four-wheel alignment capabilities that cover a full range of vehicle requirements.

Features:

  • A conveniently packaged alignment lift with 20.5” wide “Pro-Style” runways, 2 rolling jacking systems, premium turn plates and roll back kit that provides for a complete professional grade alignment system.
  • Save time when loading vehicles of narrow to wide track widths on an ultra-low-profile, shake free and stable closed front design.
  • This unit maintains a steady and shake free surface for advanced alignment equipment measurements.
  • 81.6” long rear slip plates means no need for repositioning of the front turnplates to accommodate for longer or shorter vehicles
  • Hydraulic cylinder mounted underneath runway.
  • Industry proven, brake formed front columns and traverse beam design spreads critical load forces over longer/larger supporting areas to ensure alignment accuracy.
  • Locking ladders mount through the traverse beams to ensure safety lock engagement.
  • Filter / Regulator / Lubricator (FRL) provides a clean and lubricated air supply to the lift and jack systems; improving reliability and reducing the need for maintenance.
  • Slack cable support system to keep cables from hanging when the lift is on the locks.
  • Textured approach ramps for positive vehicle traction.
  • Independently Tested and Validated, ALI Certified to the current Automotive lift standard
                  TECHNICAL DATA 12k 4-Post Alignment Lift Package
                  Hofmann Part Number EELR728APKG
                  Maximum Capacity 12000 lbs (5450 kg)
                  Minimum 4 Wheel Alignment Wheelbase 88.5″ (224.8 cm)
                  Maximum 4 Wheel Alignment Wheelbase 158.5″ (402.6 cm)
                  Maximum 2 Wheel Alignment Wheelbase 168.8″ (428.8 cm)
                  General Service Wheelbase 183″ (464.8 cm)
                  Overall Length 251.5″ (638.6 cm)
                  Overall Width 134.8″ (342.3 cm)
                  Runway Width 20.6″ (52.4 cm)
                  Width Between Runways 40″ / 43″ (101.6 cm / 109.2 cm)
                  Runway Length 204.6″ (519.6 cm)
                  Raised Height 78″ (198.1 cm)
                  Lowered Height 7.2″ (18.25 cm)
                  Lifting Time 74 seconds
                  Front Accessibility Closed
                  Column Height 90.5″ (229.8 cm)
                  Power Supply Requirements 230 VAC, 60 Hz, 1 Ph, 12.5 Amp
                  Air Supply Requirements 90 - 120 psi (6 - 8 bar)
                  Shipping Weight 3307 lbs (1500 kg)

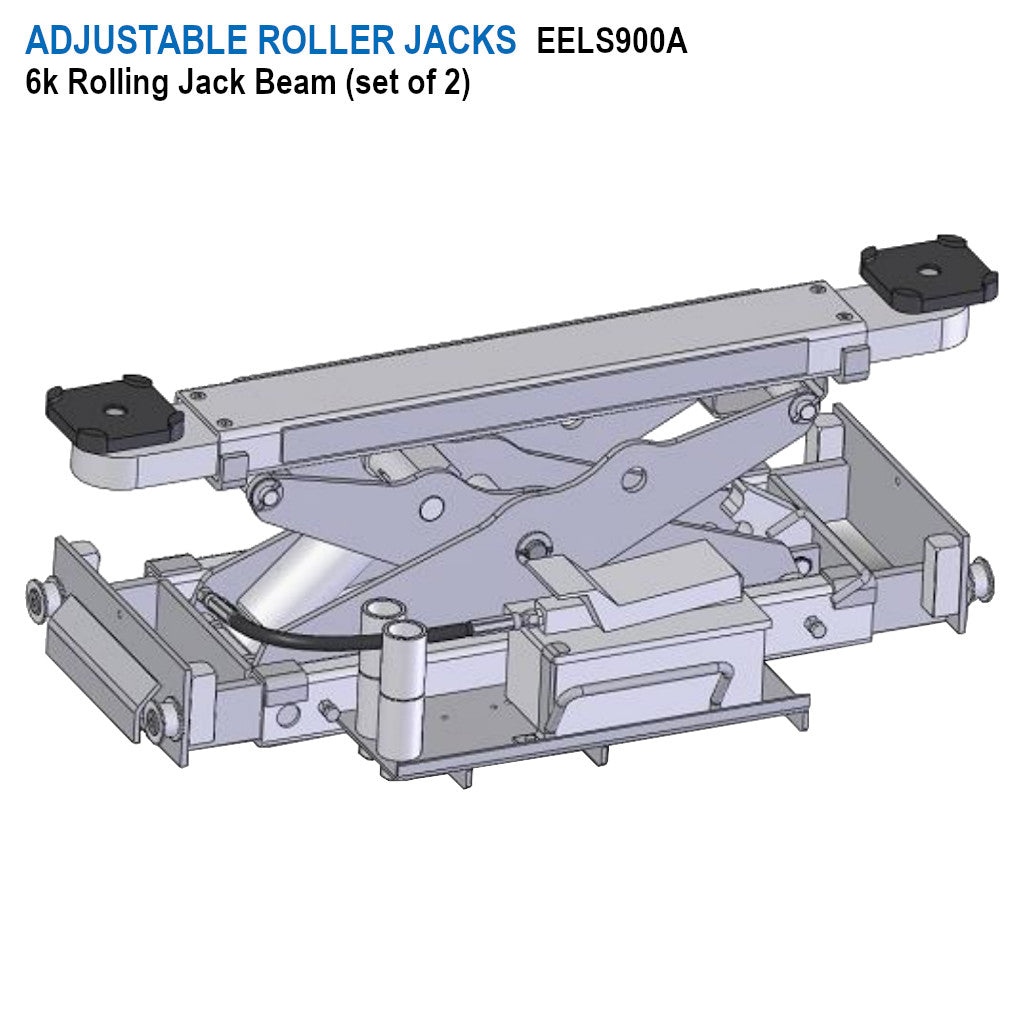

                  TECHNICAL DATA Rolling Jack
                  Hofmann Part Number EELS900A
                  Capacity 6000 lbs (2722 kg)
                  Minimum Arm Reach 33″ (83.8 cm)
                  Maximum Arm Reach 50.2″ (127.5 cm)
                  Raised Height 13.125″ (33.25 cm)
                  Lowered Height with Lift Pad 3.125″ (78.5 mm)
                  Air Supply Requirements 90 - 120 psi (6 - 8 bar)
                  Shipping Weight 308 lbs (140 kg)

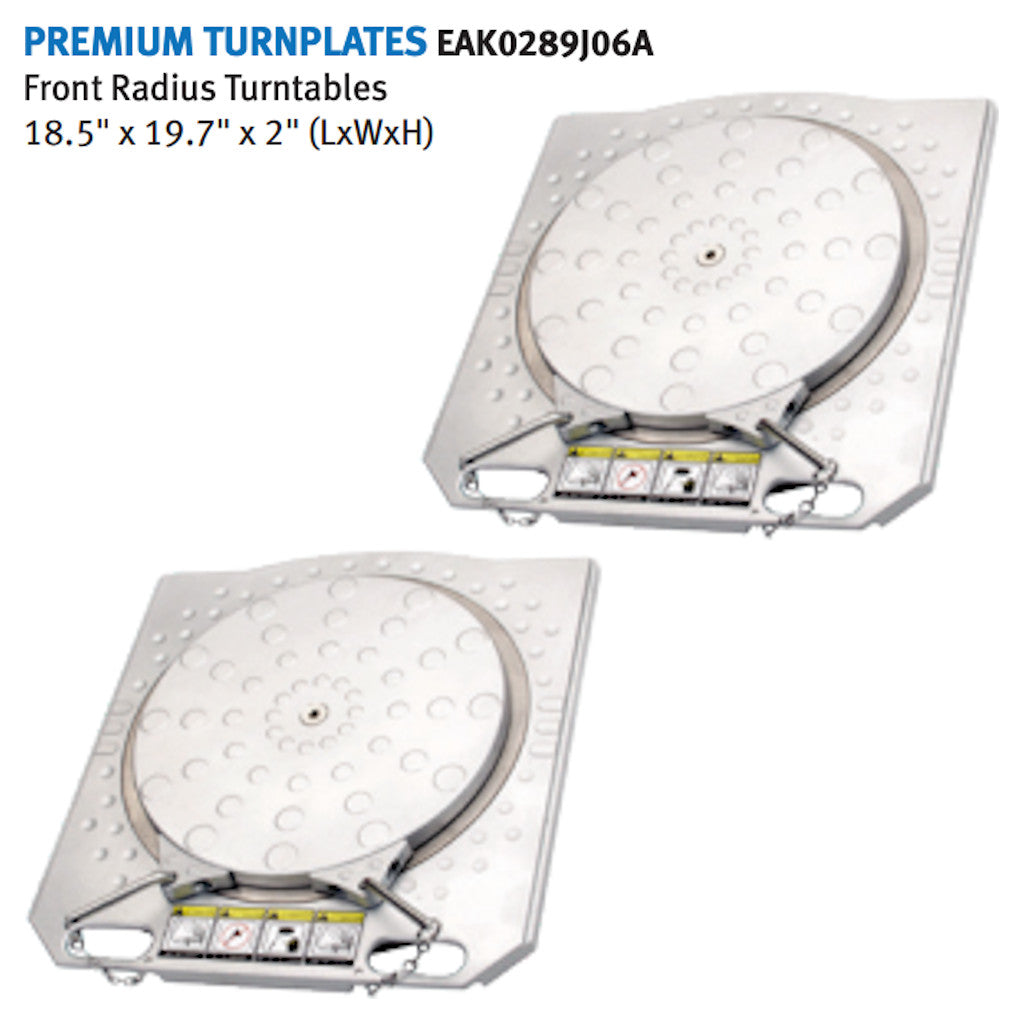

                  TECHNICAL DATA Premium Front Radius Turnplates
                  Hofmann Part Number EAK0289J06A
                  Dimensions (LxWxH) 18.5″ x 19.7″ x 2″


                  Compliance and Restrictions

                  WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
