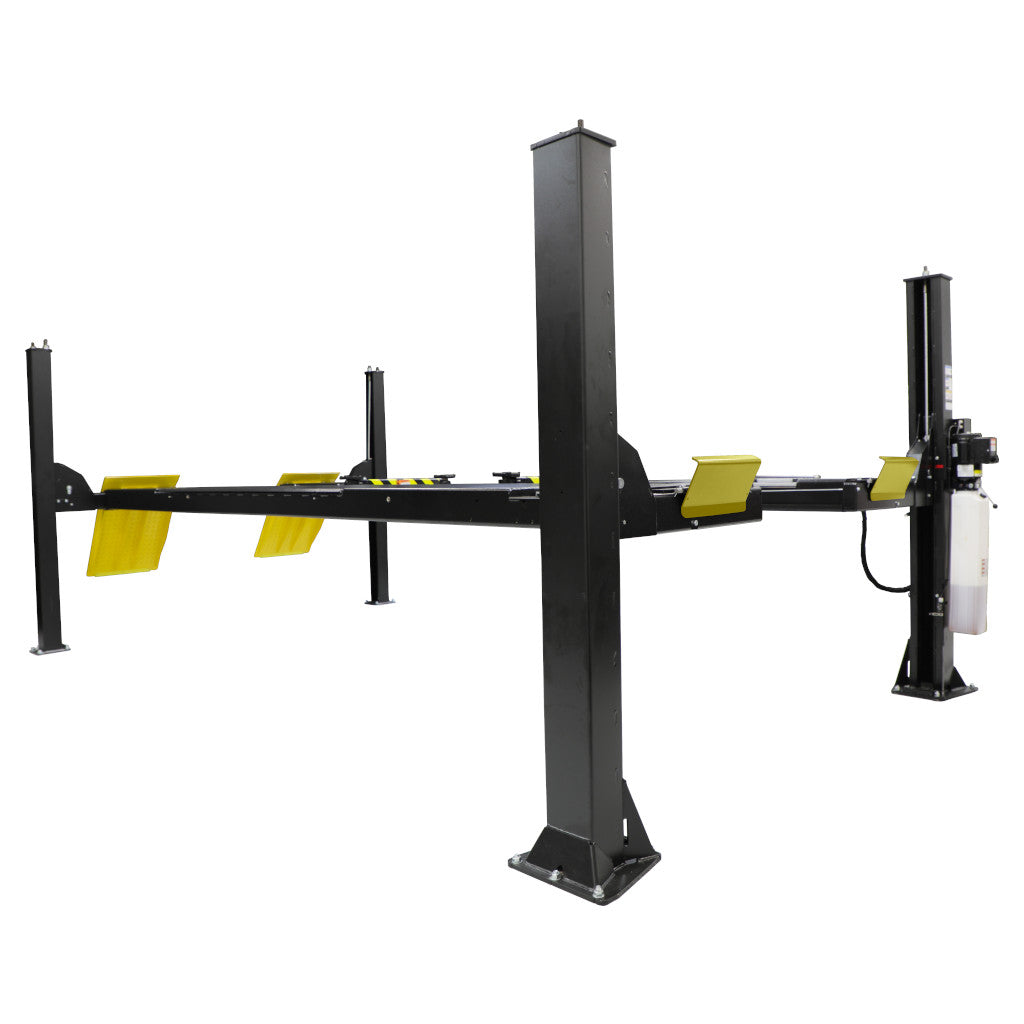

Hofmann EELR708LLPKG 15K 4-Post Extended Length Alignment Lift Package - Lights & Locks Model

Join CLUB5 at Tire Supply Network and save 5% on EVERY order! Learn more

Hofmann EELR708LLPKG 15K 4-Post Extended Length Alignment Lift Package - Lights & Locks Model

PLEASE NOTE: Sales tax MUST be paid on this item. We will contact you after purchase for sales tax payment.

PLEASE NOTE: Installation is NOT included on Vehicle Lifts and Alignment Lifts. If you need installation services, please contact us for an estimate.

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

This Package Includes:

  • (1) EELR708LLPKG 4-Post Lift (15,000 lb capacity)

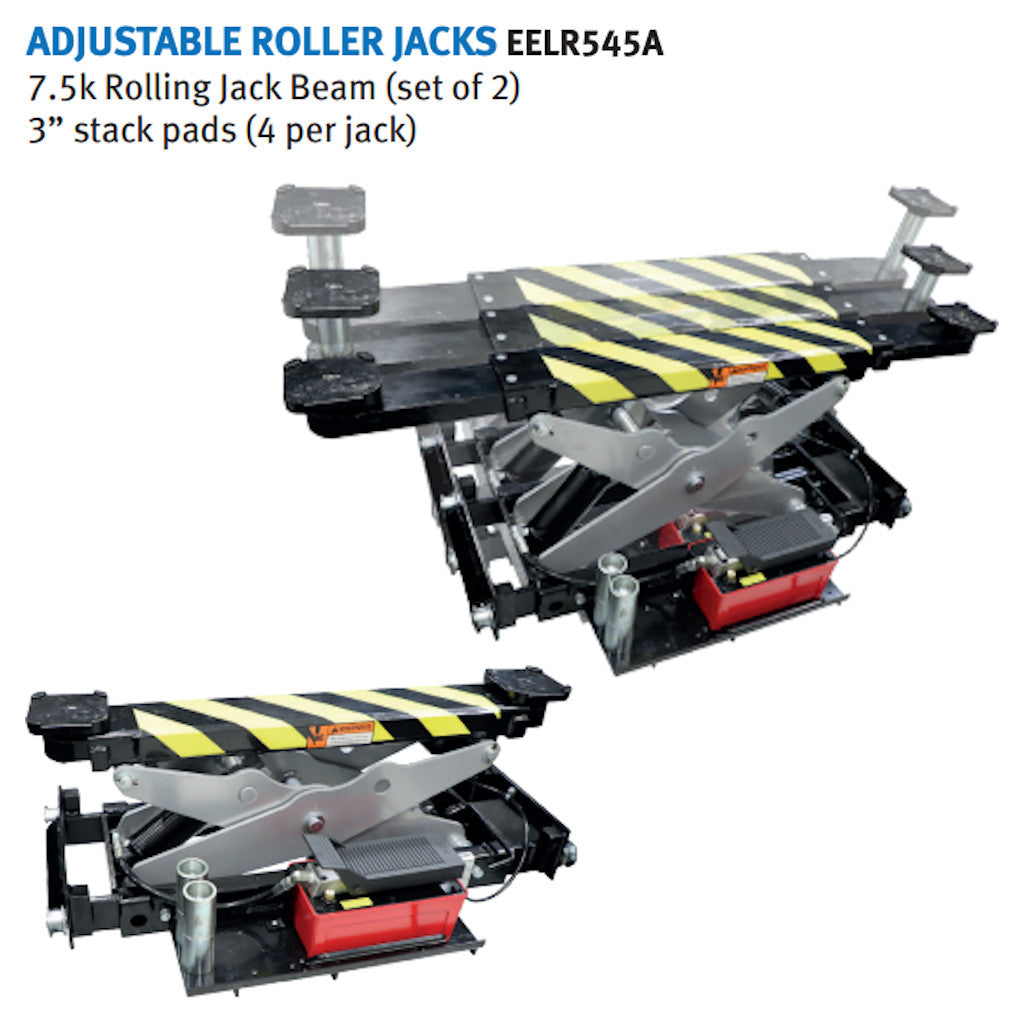

  • (2) EELR545A Rolling Jacks (7,500 lb capacity each)
  • (2) EAK0336V49A Premium Front Radius Turnplates with Lights & Locks Feature

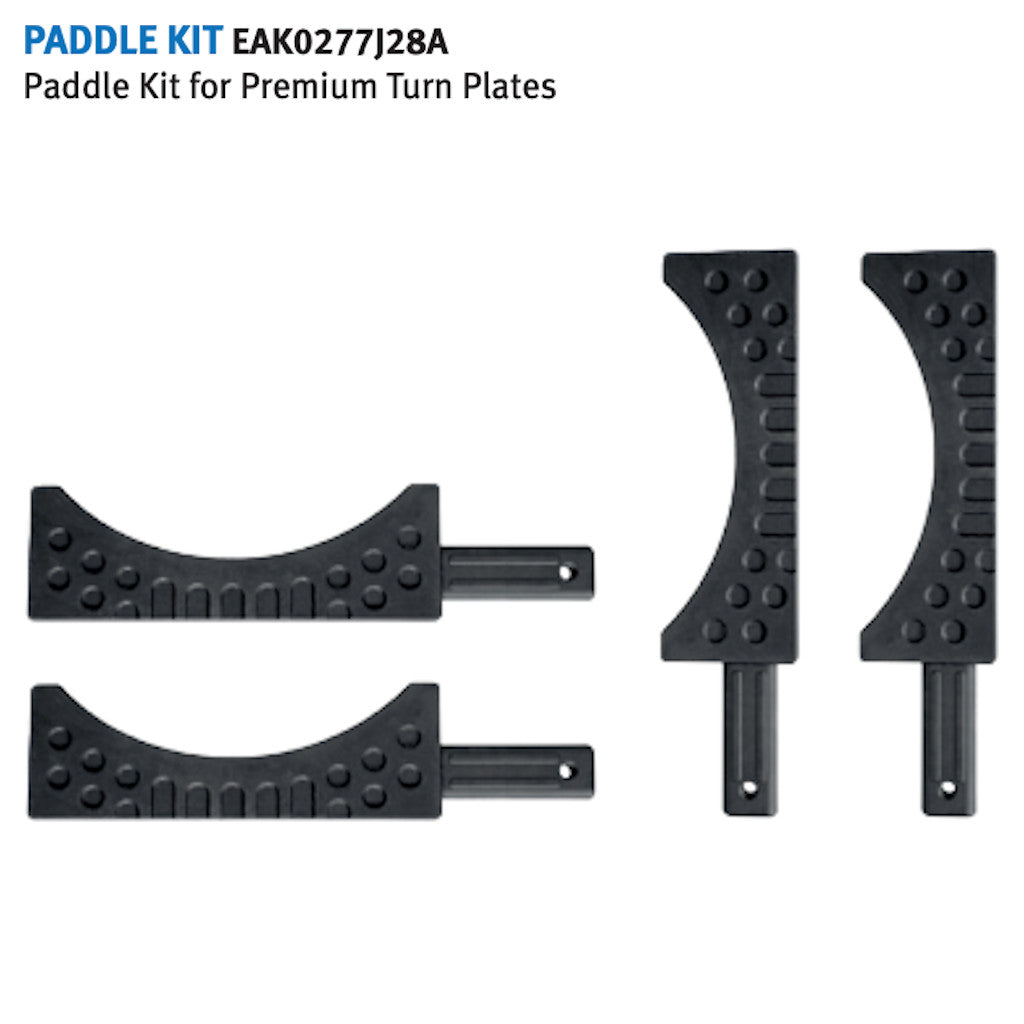

  • (1) EAK0277J28A Rollback Paddle Kit
  • LED Lights in Front Turnplate Base and Rear Slip Plates
  • Locking Control Activation Feature from Lift Console for Alignment Plates

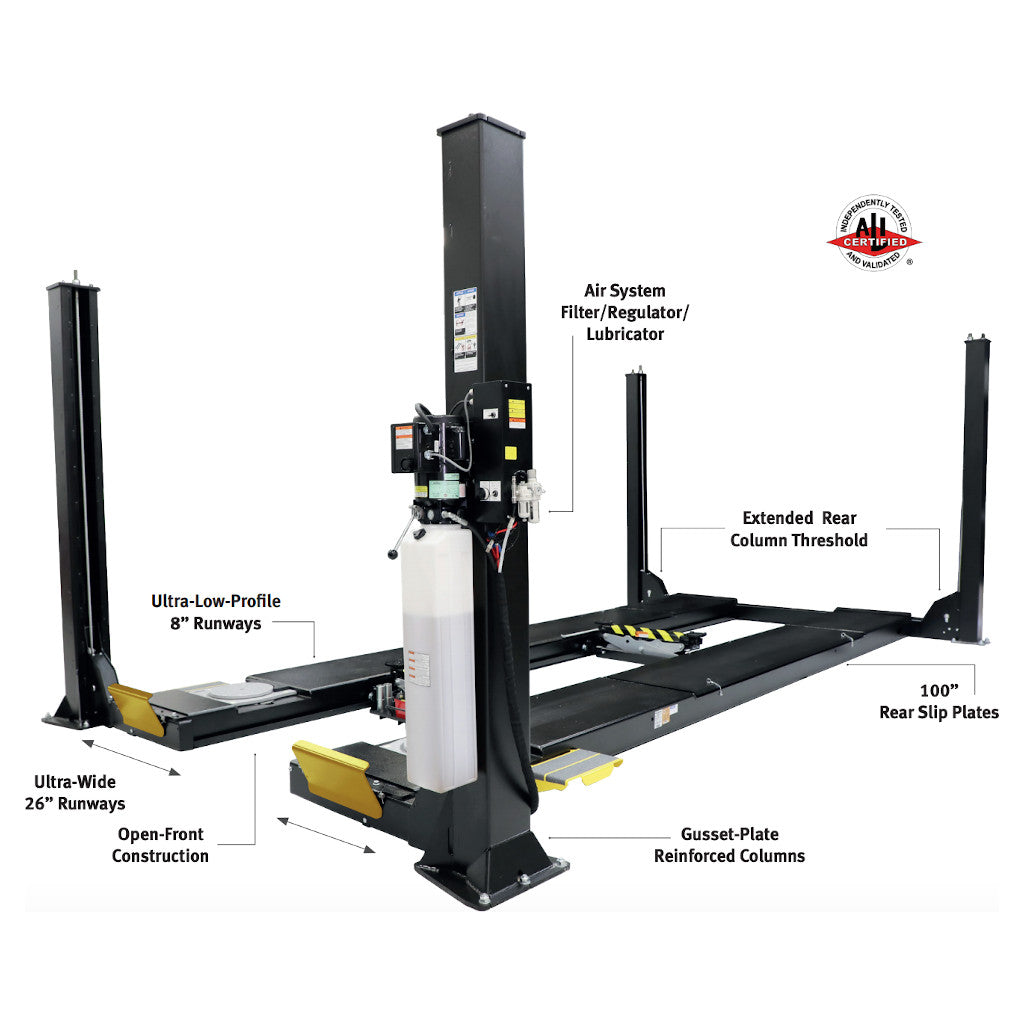

Accommodating, accessible, and equipped - the Hofmann 15k 4-post Alignment Lift is designed for the modern era of automotive service with a robust and refined structure made for professional-grade lifting.

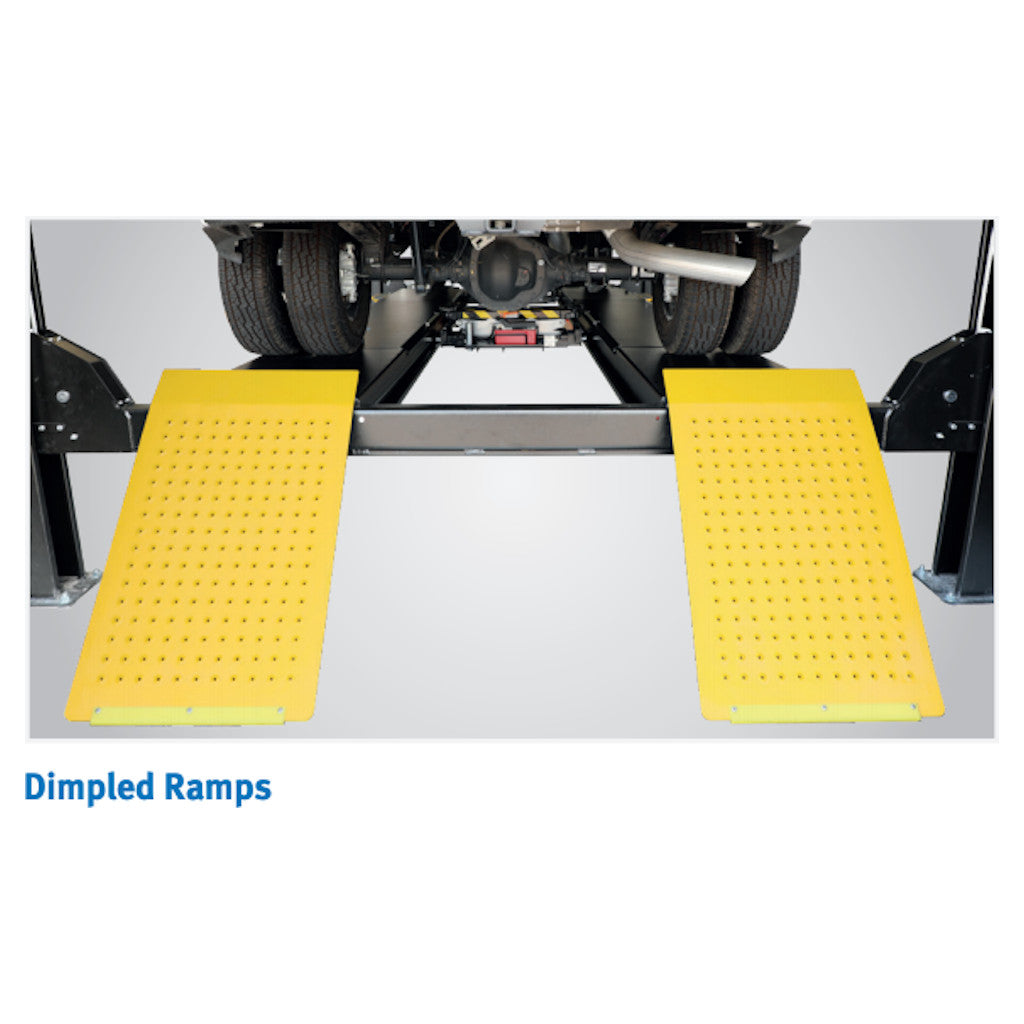

Offering a heavy-duty lifting capacity of 15,000 lbs., convenient open-front construction, ultra-wide runways, and extended 100” rear slip plates with easy-access low-approach ramps, this 4-post lift is equipped to handle a diverse range of vehicles and take your service work to the next level.

Available in two lengths: standard and extended, this lift is certified to the industry's leading ANSI/ALI automotive lift standard.

  • EELR706APKG standard
  • EELR708APKG extended

Lights & Locks Models also available:

  • EELR706LLPKG standard
  • EELR708LLPKG extended

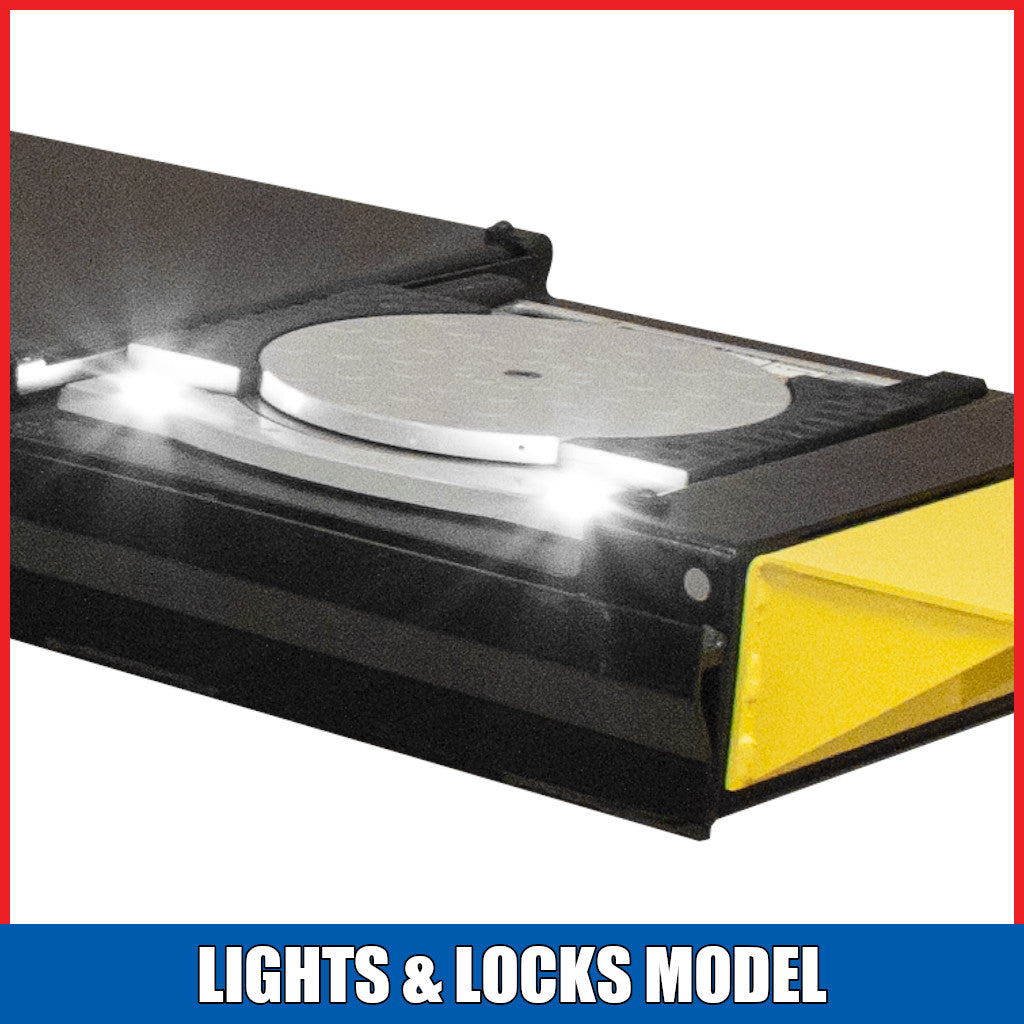

Lights & Locks Models provide productivity enhancements while allowing the technician to perform critical tasks while minimizing alignment process operations, by illuminating both inspection and adjustment areas and by sequencing the locking of alignment plates.

Lights & Locks Models:

  • Illuminate alignment adjustment and calibration areas
  • Front LEDs are mounted in the front turnplate base to easily accommodate varying vehicle wheel tracks
  • Rear LEDs are strategically positioned on the rear slip plates
  • Ease locking control activation from the lift console to reduce walking and effort from resetting alignment pins in plates
  • Locking components made from corrosion-resistant material

Expanded clearance and extended runways:

  • 120” drive-on clearance / 125” body clearance allows dual-wheel trucks to drive on without interference

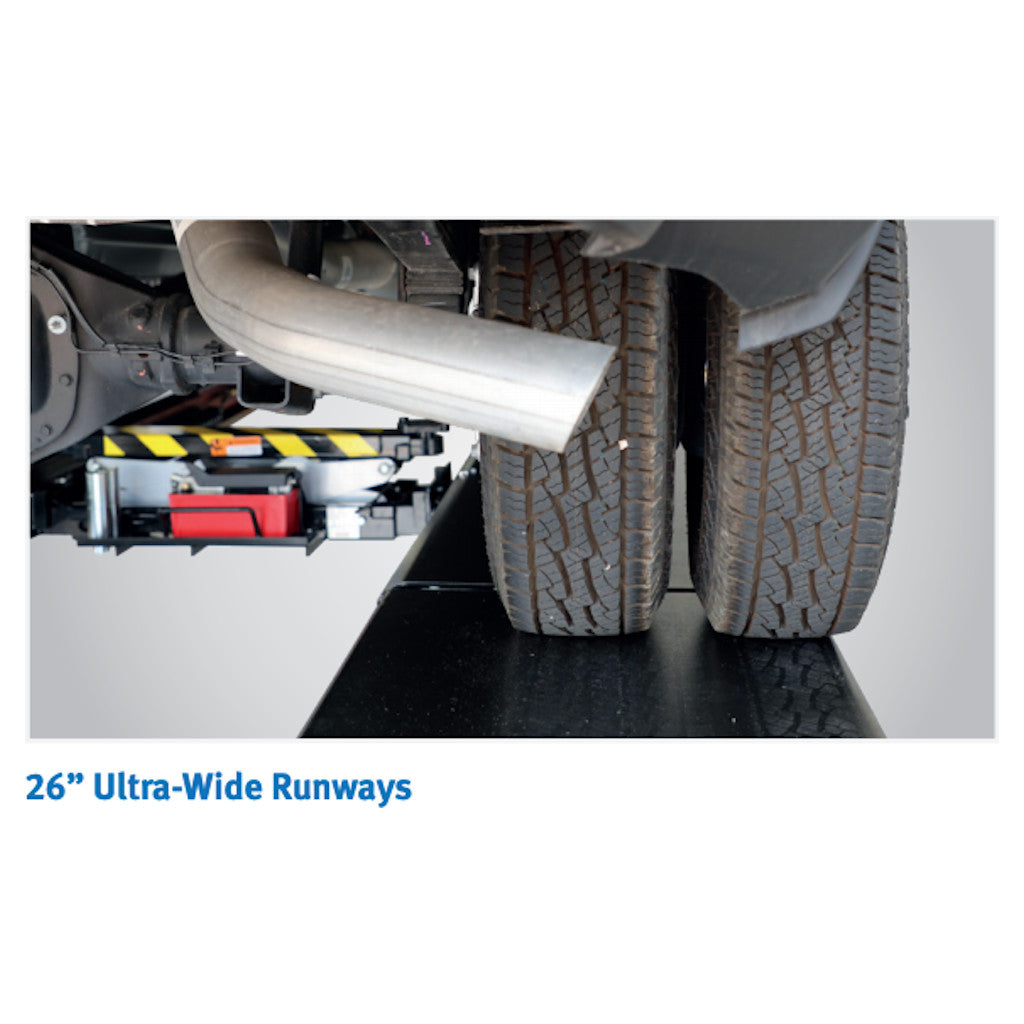

  • Best-in-class, ultra-wide, 26” runways accommodate wide-track vehicles
  • Ultra-low-profile, 8” runways allow “easy-on” approach angle for low-profile vehicles

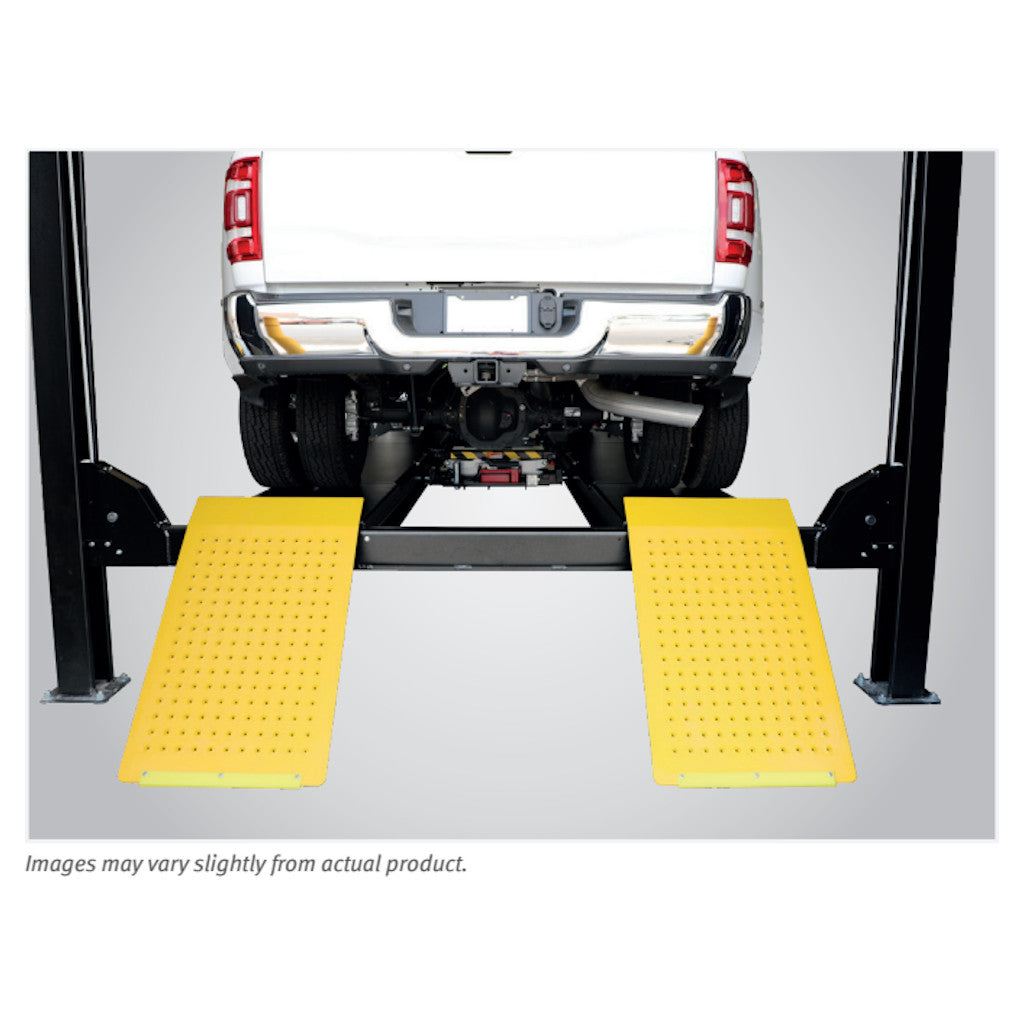

  • Extra-long 100” rear slip plates for improved 4-wheel alignment capability for long and short wheelbase vehicles

Easy access, open-front design:

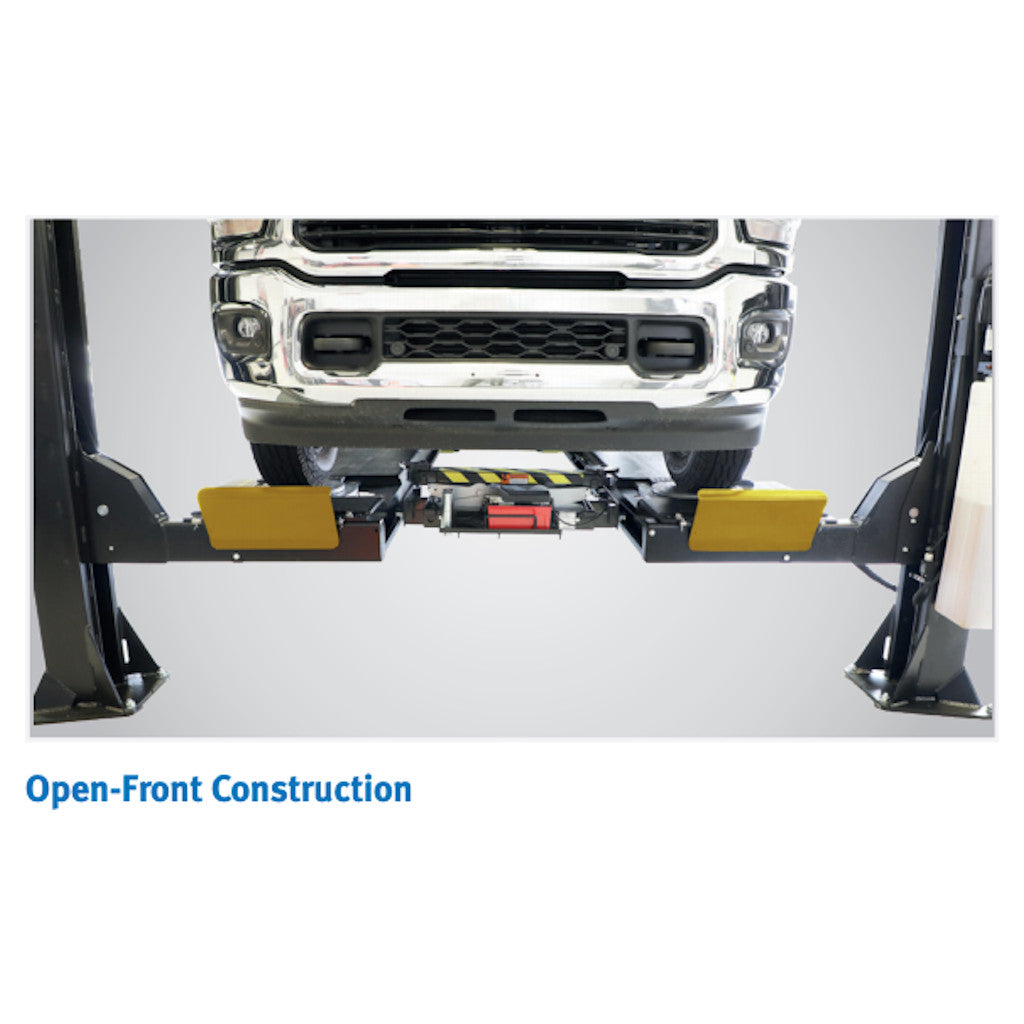

  • Open-front construction provides easy access to service areas for hassle-free adjustments and repairs
  • Micro-adjustment leveling on front and rear cross beam
  • Adjustable, folding 4” front wheel stops have clearance for long, low-profile vehicles

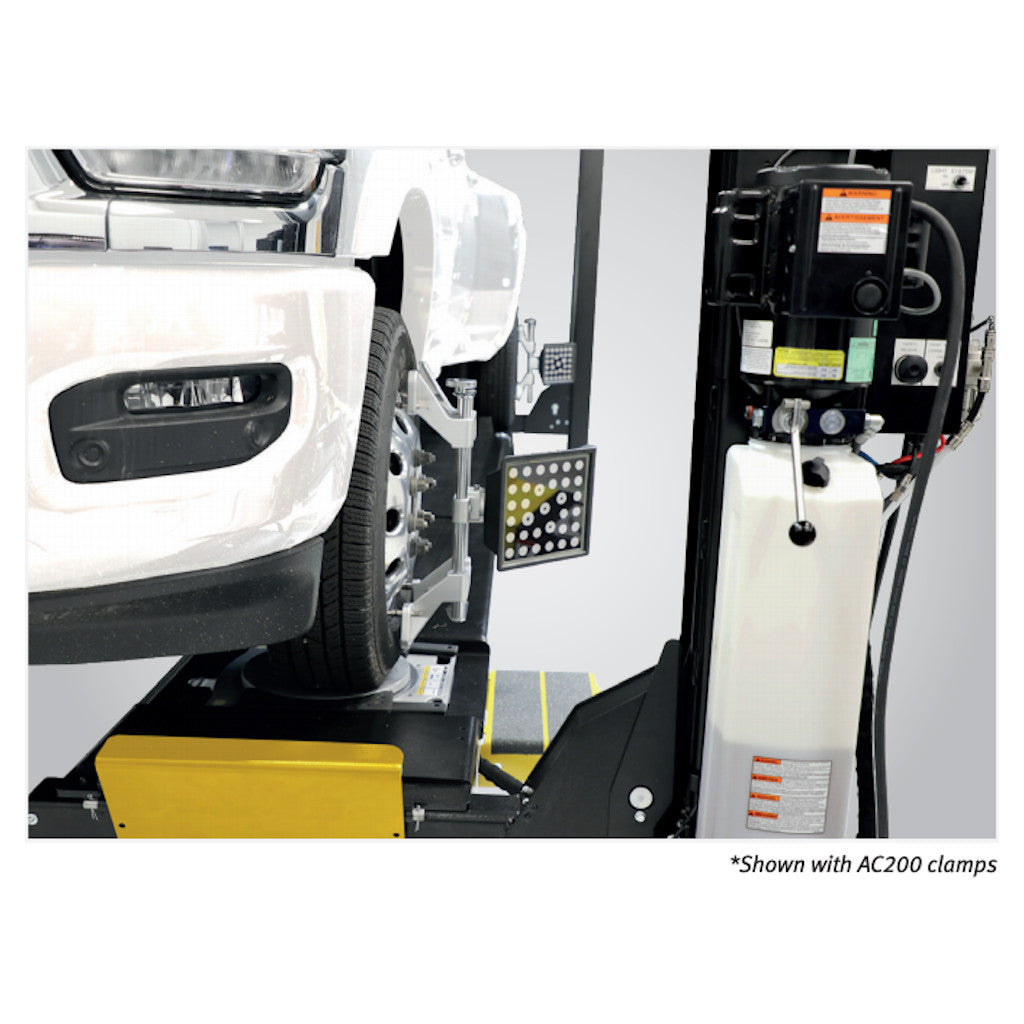

  • Imaging alignment compatible – easily accommodate split-roll during alignment using AC200 or AC400 clamps
                    TECHNICAL DATA 15k 4-Post Extended Length Lift Package
                    Hofmann Part Number EELR708LLPKG
                    Maximum Capacity 15000 lbs (6804 kg)
                    4 Wheel Alignment Wheelbase 68″ - 158″ (172.7 cm - 401.3 cm)
                    2 Wheel Alignment Wheelbase 195.25″ (495.9 cm)
                    General Service Wheelbase 210.5″ (534.7 cm)
                    Overall Length 277″ (703.6 cm)
                    Overall Width 142″ (360.7 cm)
                    Runway Width 26″ (66.0 cm)
                    Width Between Runways 40.625″ (103.2 cm)
                    Runway Minimum Height 8″ (17.8 cm)
                    Maximum Lifting Height 78″ (198.1 cm)
                    Lifting Time 85 seconds
                    Front Accessibility Open
                    Column Height 99.25″ (front), 98″ (rear)
                    Lifting Capacity Per Column 3750 lbs (1701 kg)
                    Motor 2 hp
                    Power Supply Requirements 230 VAC, 50/60 Hz, 1 Ph
                    Air Supply Requirements 90 - 120 psi (6 - 8 bar)
                    Maximum Operating Pressure 2190 psi (151 bar)
                    Recommended Minimum Bay Size 14′ x 26′
                    Minimum Concrete Thickness 4″
                    Shipping Weight 4550 lbs (2484 kg)
                    TECHNICAL DATA Rolling Jack
                    Hofmann Part Number EELR545A
                    Capacity 7500 lbs (3402 kg)
                    Minimum Arm Reach 33″ (838 mm)
                    Maximum Arm Reach 50.175″ (1274 mm)
                    Minimum Lowered Height 2.375″ (60 mm) above deck surface
                    Maximum Raised Height 12.25″ (323 mm) above deck surface
                    Air Supply Requirements 90 - 120 psi (6 - 8 bar)
                    Shipping Weight 310 lbs (141 kg)
                    TECHNICAL DATA Premium Front Radius Turnplates
                    Hofmann Part Number EAK0336V49A
                    Dimensions (LxWxH) 18.5″ x 19.7″ x 2″
