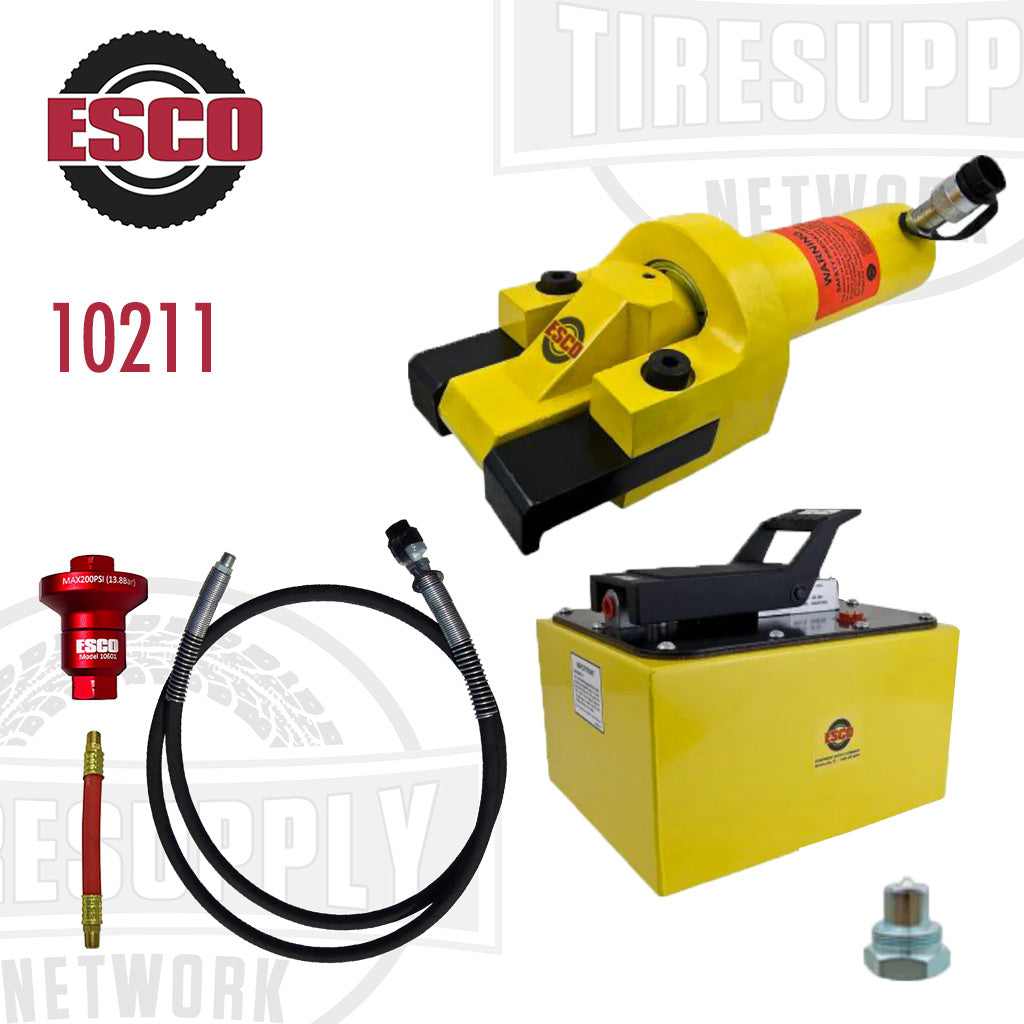

ESCO 10211 Giant Tire Bead Breaker Kit with 2 Gallon Hydraulic Pump
The ESCO Professional Bead Breaker Series have become a staple in the tire service industry for well over 30 years. ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application.
The ESCO Giant Tire Bead Breaker Kit includes the following items:
- Model #10103 – Giant Tire Bead Breaker Tool
- Model #10594 – 2 Gallon Turbo II Hydraulic Air Pump
- Model #10611 – 18' Hydraulic Hose
- Model #10605 – Male Coupler with female threads
- Model #10601K – 6″ Whip-Hose, Air Reducer

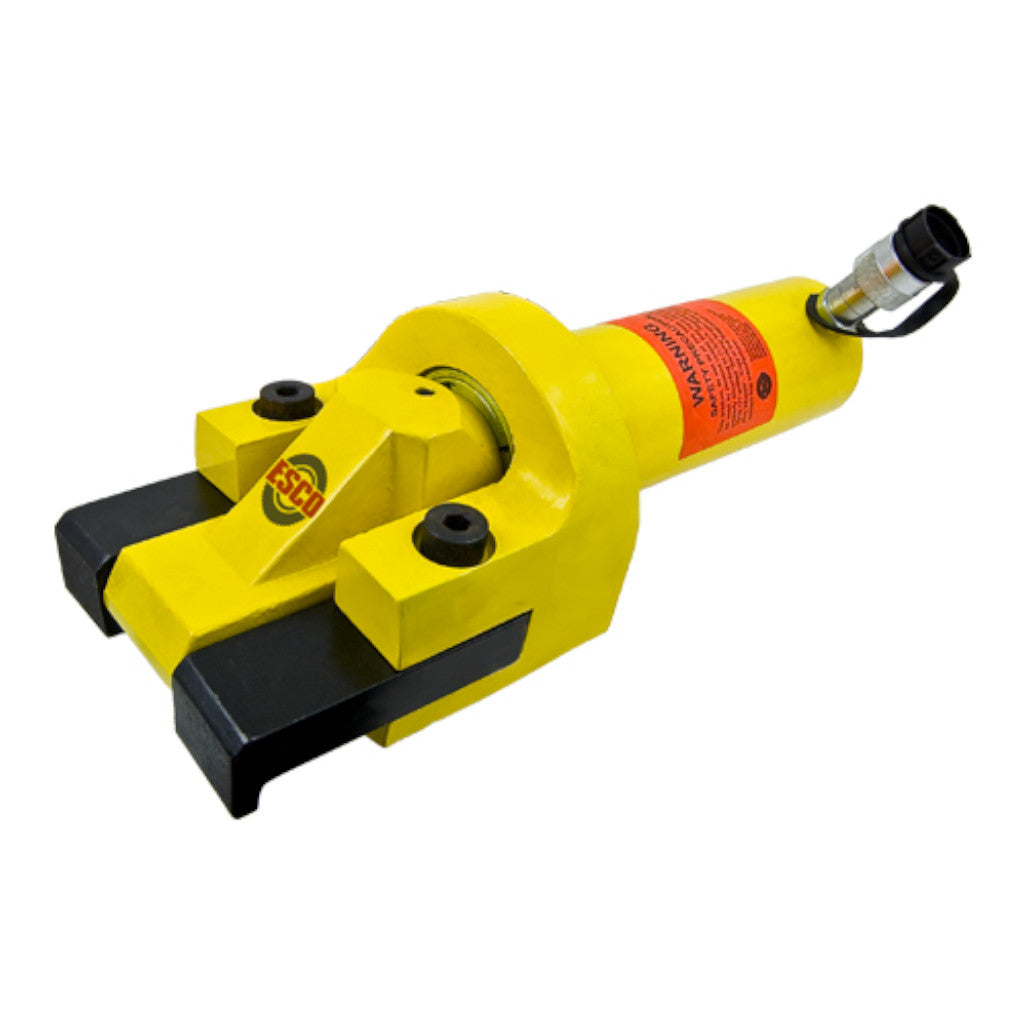

ESCO 10103 Giant Tire Bead Breaker – For 39″ Rims and Larger
Features:
- Use on 5-piece rims 39″ and larger.
- ESCO Model #10627 Kit converts the Model #10103 into ESCO Model #10103L, which is capable of Working on 63″ Rims.
- 25 tons of bead breaking force will break the toughest beads - 6″ stroke (152 mm)
- ESCO Model #10504 2-Gallon Air/Hydraulic Pump is recommended for operation.
- In some cases, you must first use ESCO Model #10105 or ESCO Model #10100 bead breaker to start the movement of the rim flange; Model #10103 can then be used.
Specifications:
- Ram Tonnage: 25 Tons
- Stroke: 6″ (152 mm)
- Maximum Pressure: 10,000 PSI
- Length: 16.5″ (419 mm)
- Width: 6.5″ (165 mm)
- Weight: 54 lbs (25 kg)

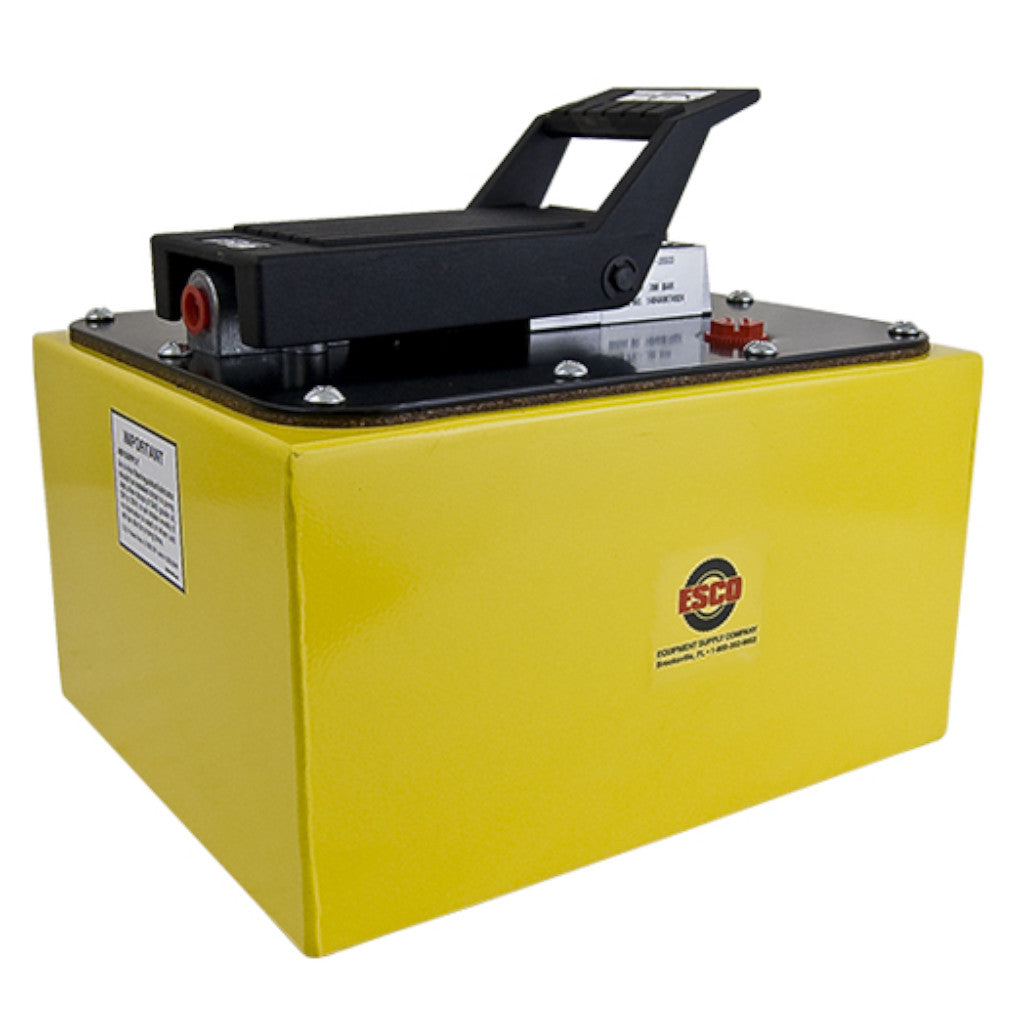

ESCO 10594 2-Gallon Air Hydraulic Pump
Features:
- Rugged 2 gallon metal reservoir
- 10,000 psi hydraulic pressure
- Shipped with premium hydraulic oil
- Maximum oil capacity for any application
Specifications:
- Oil Capacity: 2 Gallon
- Maximum Pressure: 10,000 psi
- Weight: 34 lbs (15 kg)

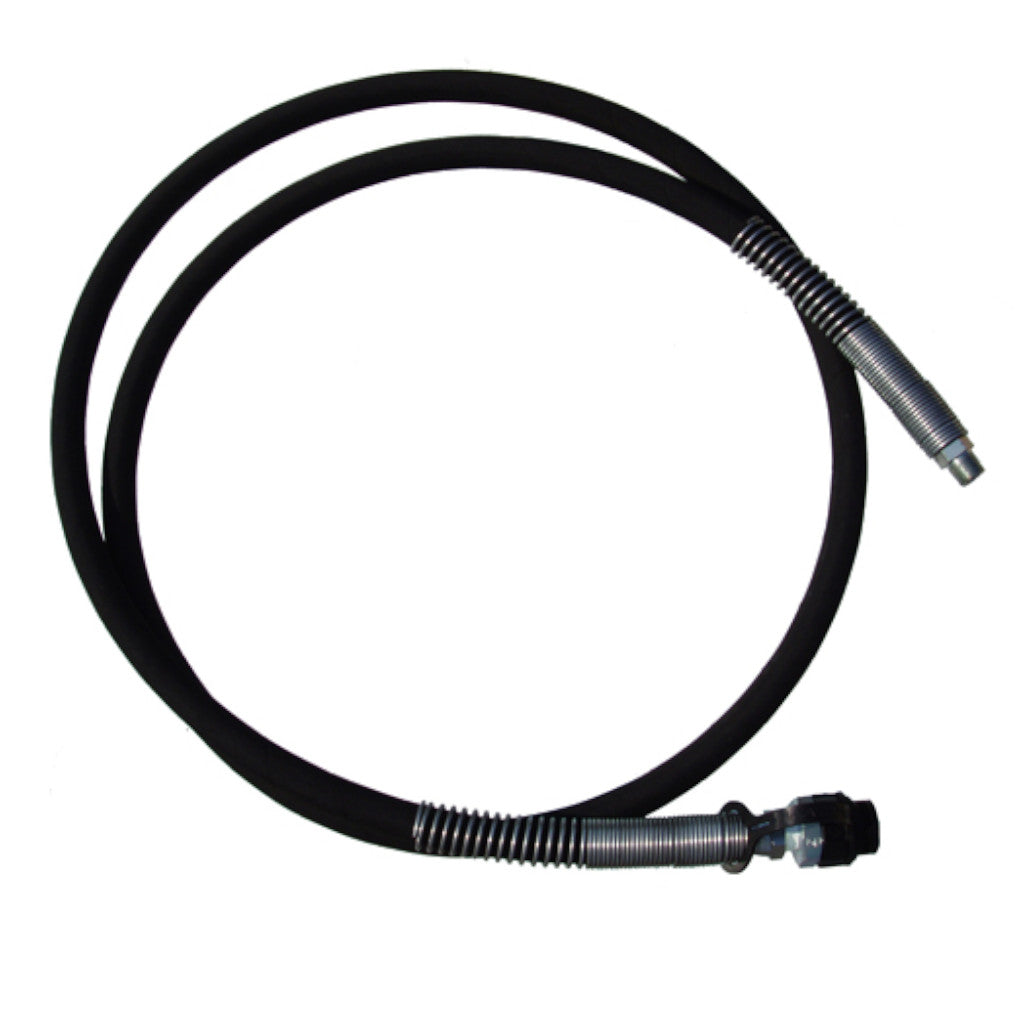

ESCO 10611 Hydraulic Hose Kit
Features:
- Hydraulic hose with swivel fitting and won’t kink.
- Reinforced with 2 layers of braided steel
- All hoses can withstand extreme cold temperatures of -40°F (C).
- Use with any 10,000 PSI pump, ram, or bead breaker
Specifications:
- Length: 18′ with 3/8″ Male Ends
- Attachments Include: Hose Only
- Weight: 9 lbs (4 kg)

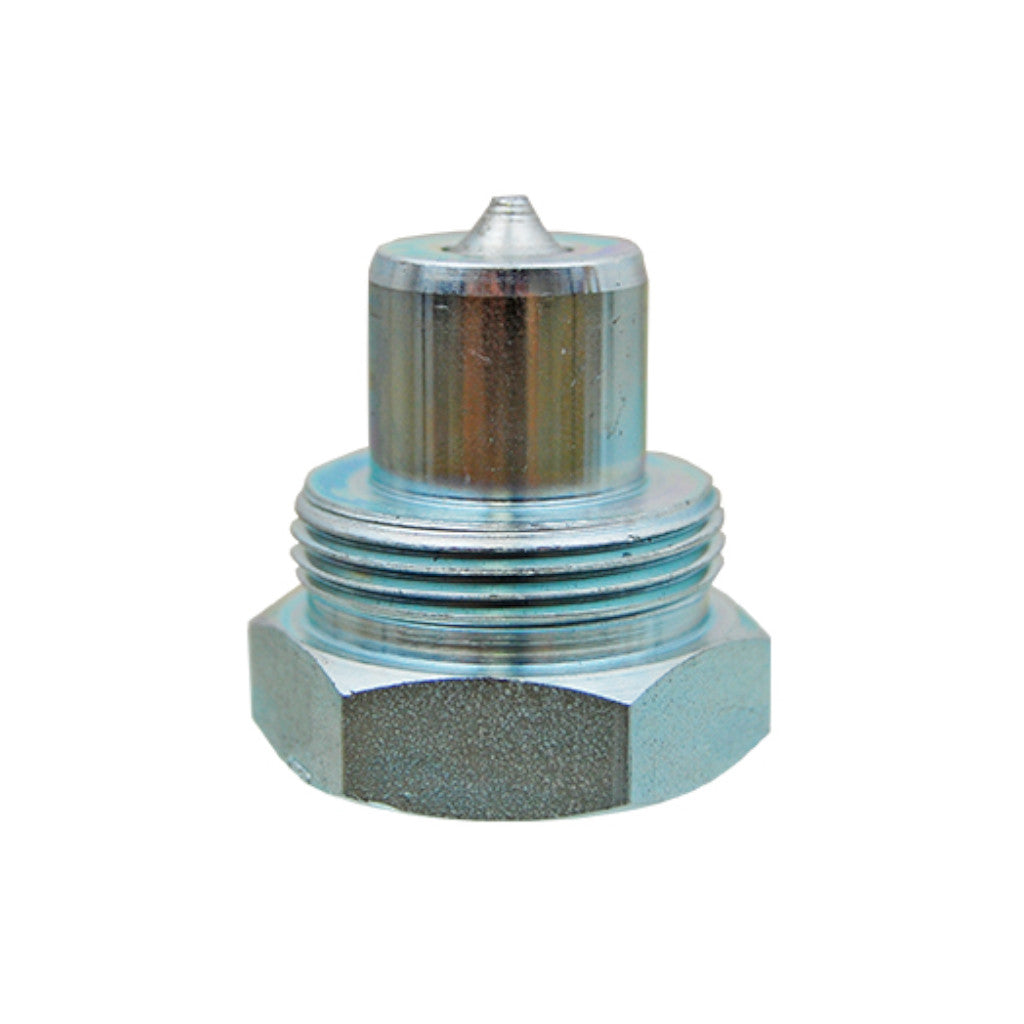

ESCO 10605 Hydraulic Half Coupler Kit (Male to Female)
Male Coupler, Female Threads
Specifications:
- Thread Size: 3/8″ Female NPT
- Rating: 10,000 PSI

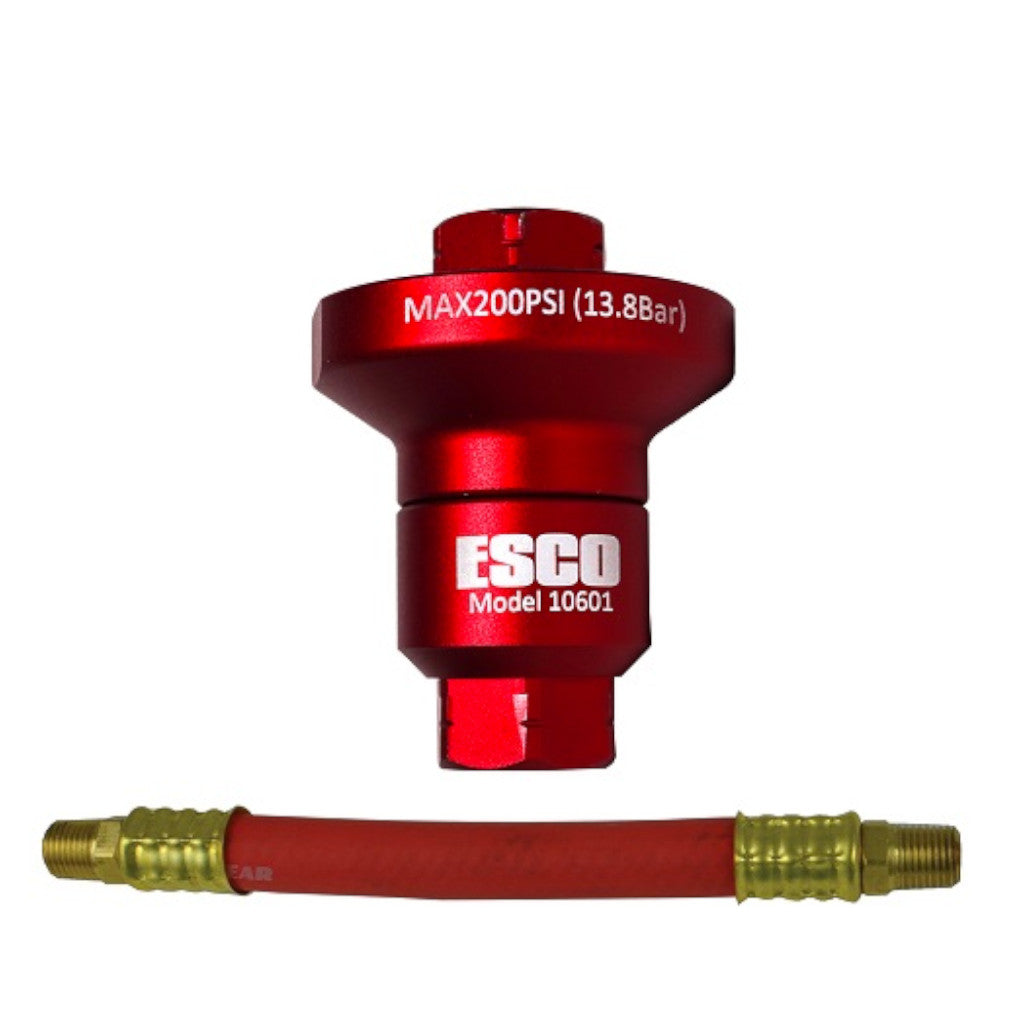

ESCO 10601K Air Reducer With 6″ Whip-Hose
The ESCO Air Reducer, for Air/Hydraulic Pumps, is designed to regulate the air pressure that is received by the hydraulic pump, that is then used to power all ESCO Hydraulic Tools.
Maintaining air pressure when using Hydraulic Equipment will increase the Proper Functioning of Hydraulic Equipment, Protect Air/Hydraulic Pumps from Over-Flow of Air, and Keep ESCO Hydraulic Products in their PRIME.
The ESCO 10601K Kit Includes:
- Model 10601 Air Reducer
- Model 10601H 6″ Whip-Hose
Features:
- Maintain recommended working air pressure
- Easy installation and usage
- Can be used in conjunction with multiple ESCO products
Model 10601 Specifications:
- Diameter: 15/16″ (24 mm)
- Working Air Pressure: 110 PSI
- Air Inlet Size: 1/4″ NPT
- Weight: 1 lb (0.5 kg)
Model 10601H Specifications:
- Length: 6″ (152.4 mm)
Compliance and Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
