ESCO | Giant Tire/OTR Bead Breaker Kit with 1 Quart Hydraulic Pump (10204)
The ESCO Professional Bead Breaker Series have become a staple in the tire service industry for well over 30 years. ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application.

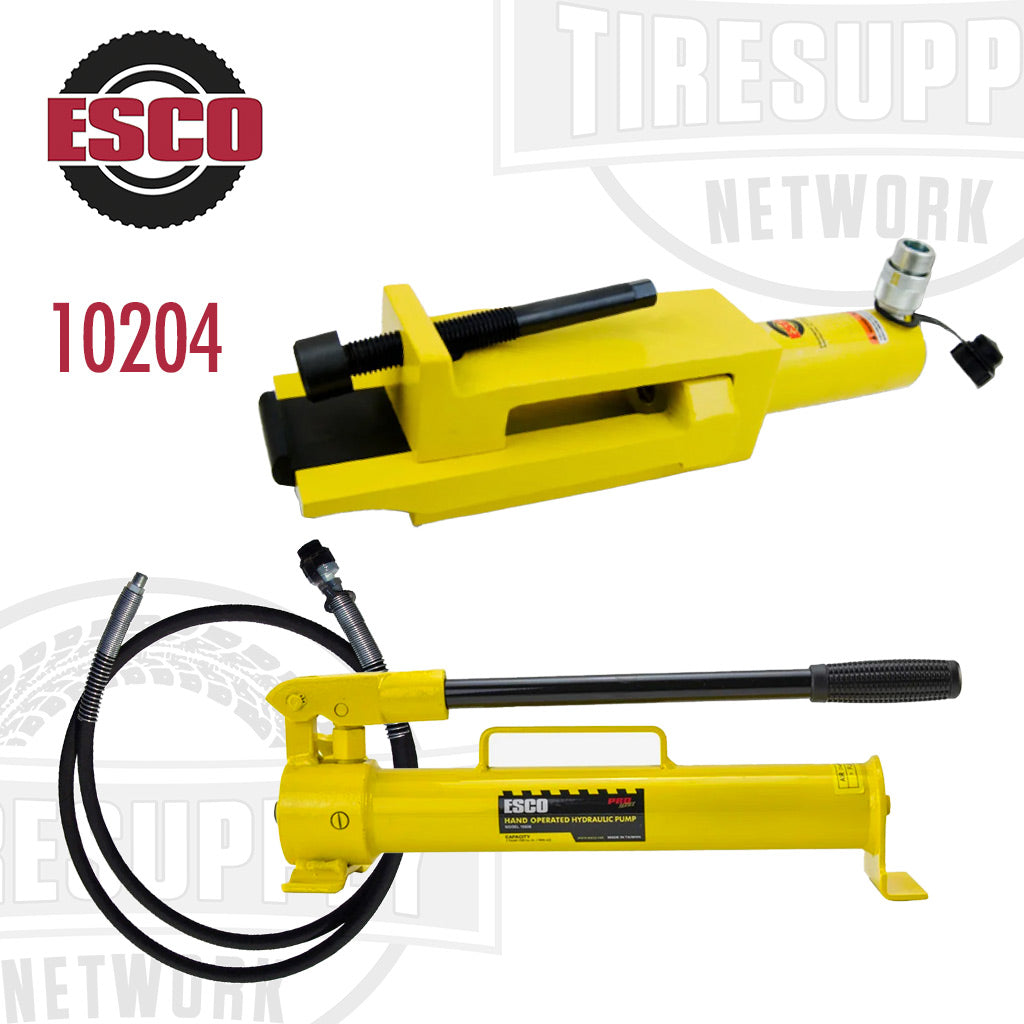

The ESCO Giant Tire/OTR Bead Breaker Kit includes the following items:
- Model #10100 – Giant Tire/OTR Bead Breaker Tool
- Model #10604 – 8′ Hose Assembly with Hose Coupler
- Model #10508 – 1 Quart Hydraulic Manual Air Pump

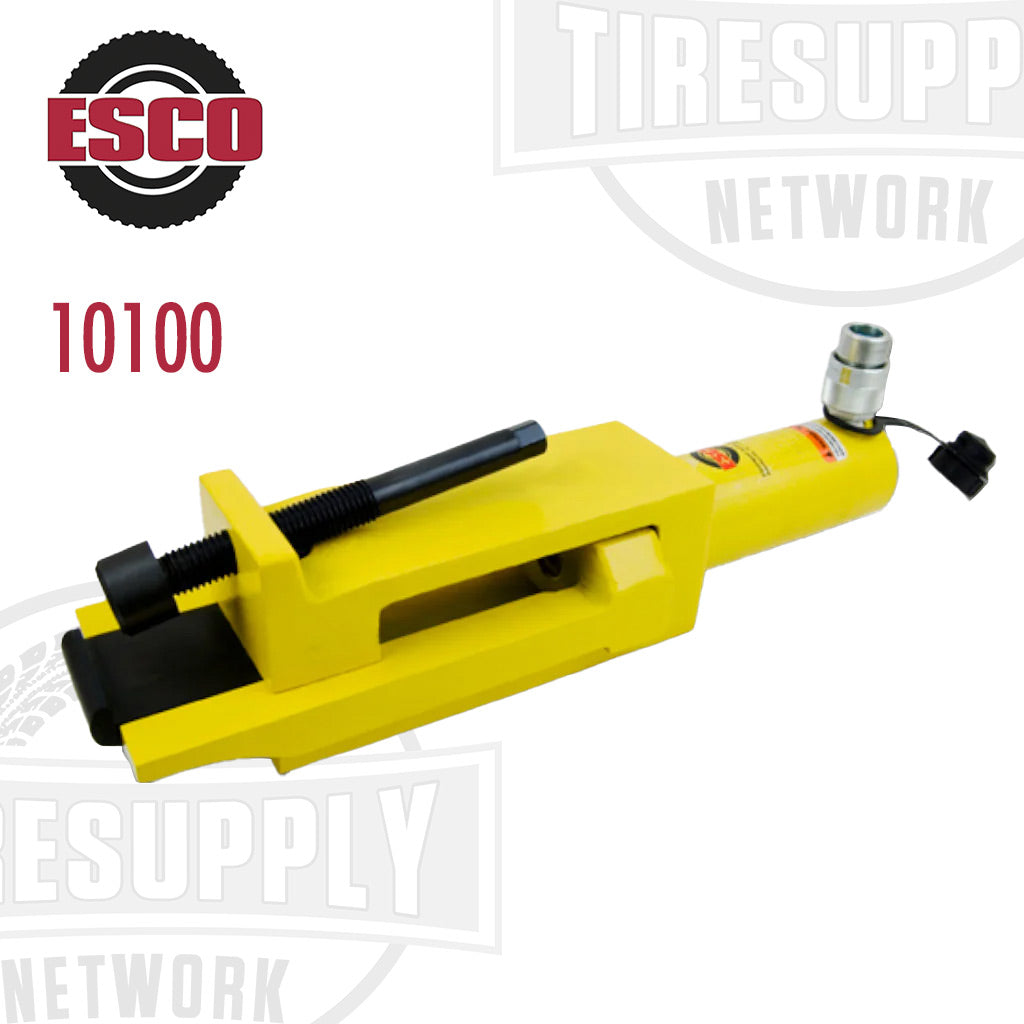

ESCO 10100 Giant Tire/OTR Bead Breaker
Features:
- Use on 5-piece rims 25” to 51” with pry bar/bead loosing pockets
- 13.8 tons of bead breaking force will break the toughest beads - 4” stroke (102 mm)
- Use with 10,000 PSI Hydraulic Pump
Specifications:
- Ram Tonnage: 13.8 Tons
- Stroke: 4” (102 mm)
- Maximum Pressure: 10,000 PSI
- Length: 18” (457 mm)
- Height: 5” (127 mm)
- Weight: 31 lbs (14 kg)

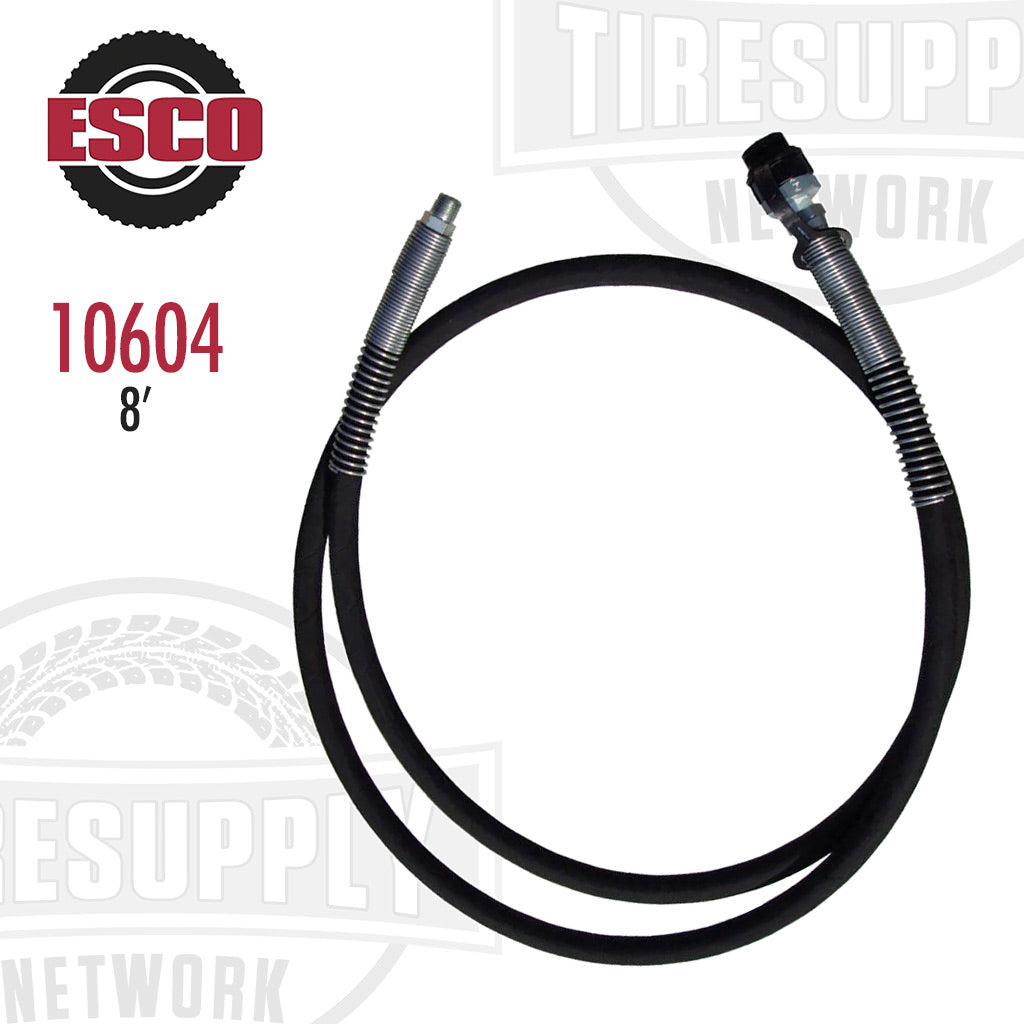

ESCO 10604 Hydraulic Hose Kit
Features:
- Hydraulic hose with swivel fitting and the hose won’t kink
- Reinforced with 2 layers of braided steel
- Hose can withstand extreme cold temperatures of -40°F (C)
- Use with any 10,000 psi. pump, ram, or bead breaker
- Attachments Include: ESCO 10605 Half Coupler
Specifications:
- Length: 8' (8' Hose with 3/8″ 18 Male Ends)
- Weight: 5 lbs. (2.2 kg)

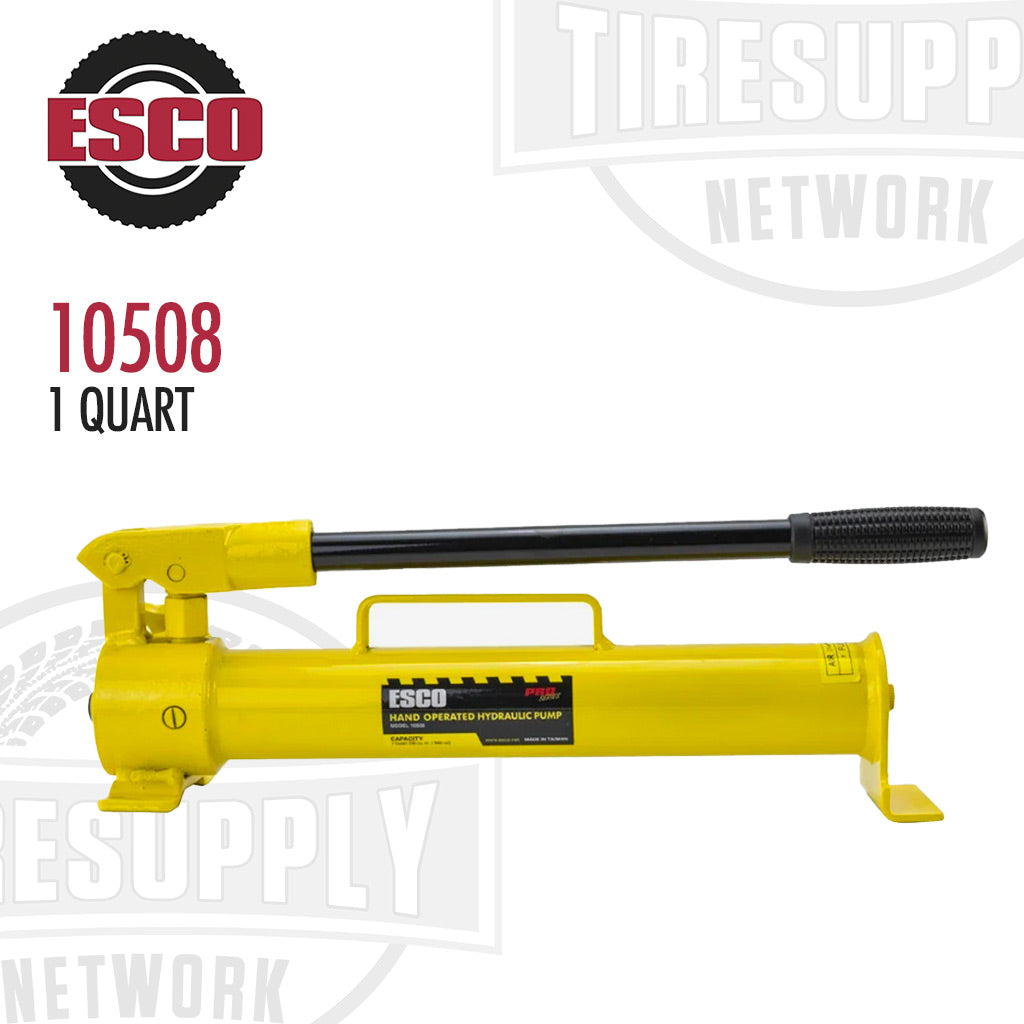

ESCO 10508 1-Quart Hydraulic Manual Air Pump
Features:
- Hand Operated Hydraulic Pump
- 1 Quart Oil Capacity
- 10,000 PSI Hydraulic Pressure
- Ships with premium hydraulic oil
Specifications:
- Oil Capacity: 1 Quart
- Maximum Pressure: 10,000 PSI
- Weight: 14 lbs (7 kg)
