BelAire  |  SKU: 6312H

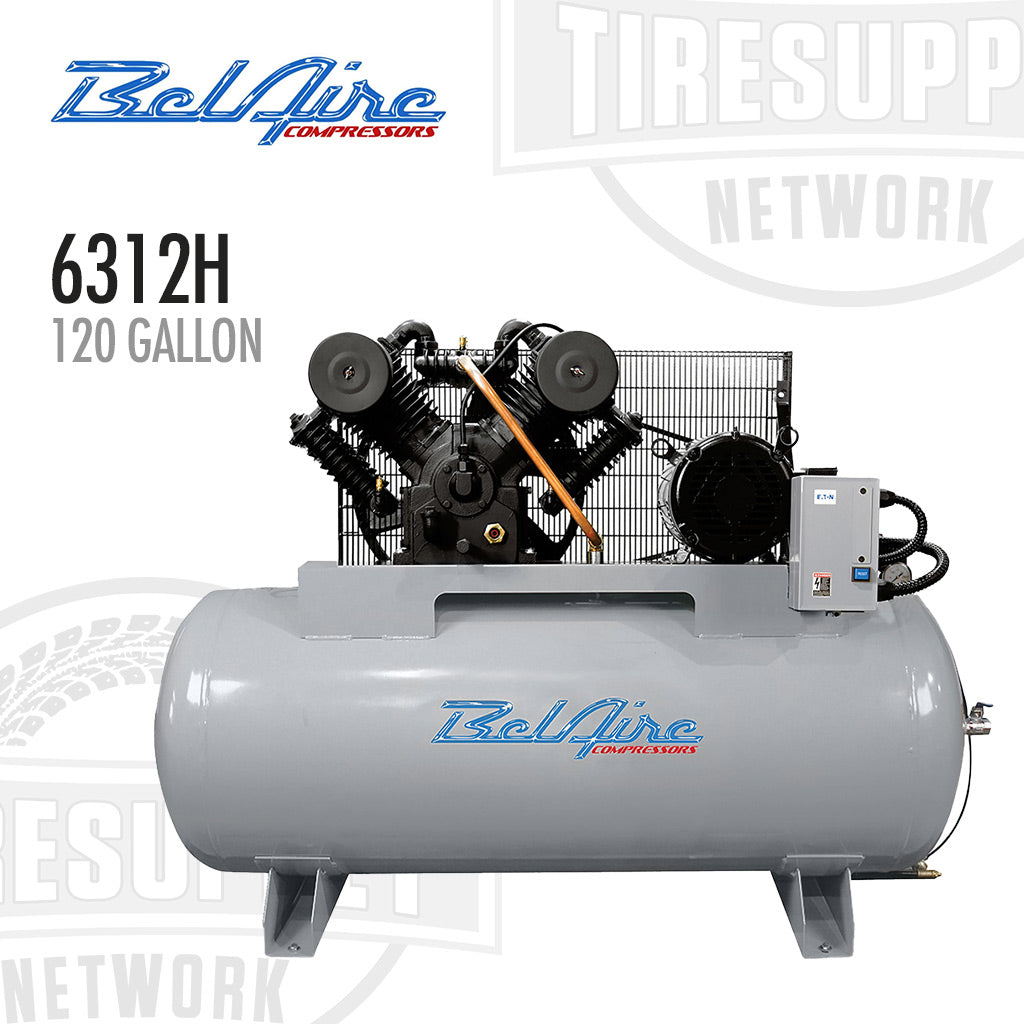

BelAire | 120 Gallon Electric Air Compressor - 3PH, 10HP - Horizontal (6312H)

Sale price $4,178.00 Regular price $4,642.22

Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!





BelAire | 120 Gallon Electric Air Compressor - 3PH, 10HP - Horizontal (6312H)

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

The BelAire 6312H4 Iron Series air compressor is engineered for high-demand environments requiring substantial airflow and reliability. Powered by a 10-horsepower motor operating on 460-volt three-phase electricity, it delivers approximately 35 CFM at 100 PSI and 32 CFM at 175 PSI, making it suitable for industrial applications and large workshops.

Equipped with a solid cast iron two-stage pump, this compressor is built for durability and longevity. The 120-gallon horizontal ASME-certified tank provides ample air storage, reducing the frequency of motor cycling and ensuring a steady supply of compressed air for various tools and equipment.

The unit features automotive-style rod bearings and wrist pins, contributing to smoother operation and increased reliability. A fully enclosed high-flow belt guard enhances safety by protecting the belt and the operator, while a manual air tank drain simplifies maintenance.

Designed with 460-volt three-phase power compatibility, the BelAire 6312H4 is versatile and can be easily integrated into existing systems. Its 3/4-inch air outlet is rated up to 175 PSI, accommodating a wide range of pneumatic tools and equipment.

This compressor is an excellent choice for industrial settings, automotive shops, and other applications that demand consistent and powerful compressed air delivery.

Features:

Solid Cast Iron 2 Stage Pump
Delivers 35 CFM at 100 PSI; 32 CFM at 175 PSI. Rugged components provide long-lasting dependability

Automotive-Style Rod Bearings & Wrist Pins
Smoother running & more durable

Start / Stop Pressure Switch Controls
Save time & energy

ASME Tank & Safety Valve
120 gallon air reserve for big jobs and multiple users. 3/4" air outlet; 175 PSI maximum pressure

2 Year Bumper To Bumper Factory Warranty
No additional purchase necessary

Fully Enclosed Belt Guard
Protects the belt & the operator

Manual Air Tank Drain
Makes tank simple to maintain

Dual 208-230 3-Phase Power
Easily wires into either your 208V or 230V 3-phase system. CPXHT50 dryer recommended (not included)

Specifications:
Motor
Voltage 460 Volt AC
Phase Three-Phase
Magnetic Starter Yes
Amp Draw Consult Certified Electrician
Recommended Breaker Consult Certified Electrician
Engine
HP 10
Pump
CFM 35
CFM Rated @ 100 PSI
Pump Material Solid Cast Iron
Max PSI 175 PSI
Oil Sight Glass Yes
Pump Type Two-Stage
After Cooler Yes
Pump Drive Belt Drive
Oil Type Oil Lubricated
Oil System Splash Lubrication
Pump Low Oil Shut-Off No
Tank
Tank Size 120 Gallons
Tank Outlet 3/4 Inch
Electronic Drain Valve No
Tank Orientation Vertical
Accessories
Pressure Gauge Yes
Air Dryer No
Overview
Weight 830 Pounds
Certification ASME
Consumer Warranty 2 Year
Product Length 73 Inches
Product Width 24 Inches
Product Height 49 Inches
Power Type Electric
