ESCO | 2 Gallon Air Hydraulic Pump Kit (10595)

ESCO | 2 Gallon Air Hydraulic Pump Kit (10595)

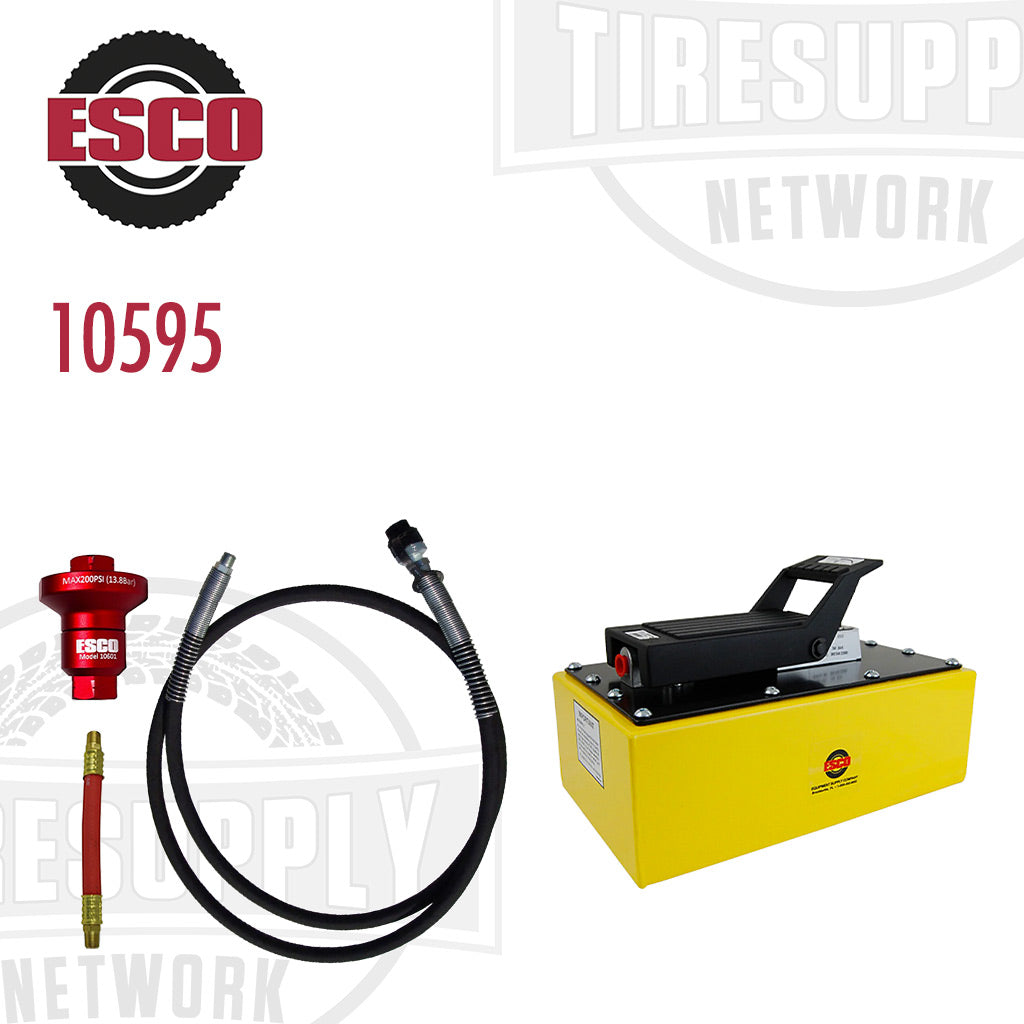

The ESCO 2 Gallon Air Hydraulic Pump Kit includes the following items:

• Model 10594 – 2 Gallon Air Hydraulic Pump
• Model 10610 – 8′ Hose Assembly
• Model 10601K – 6″ Whip-Hose, Air Reducer

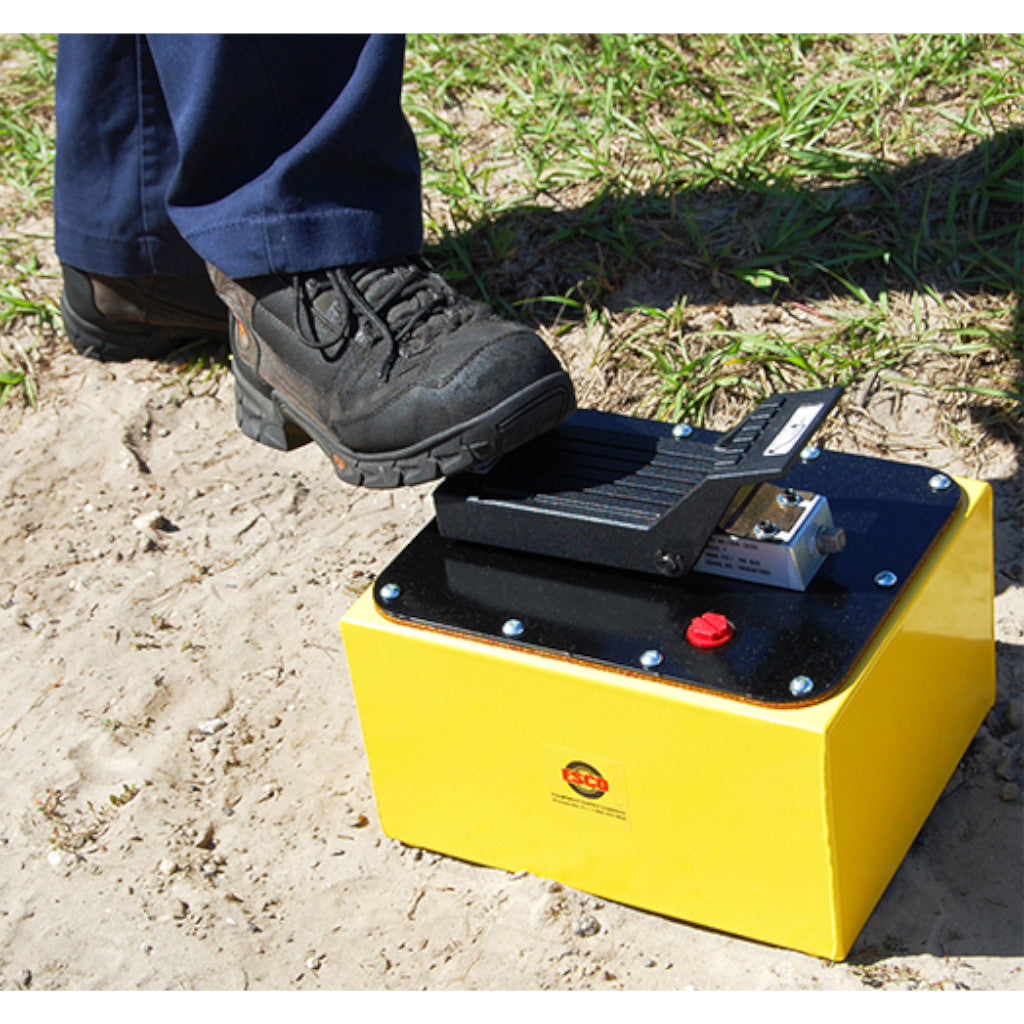

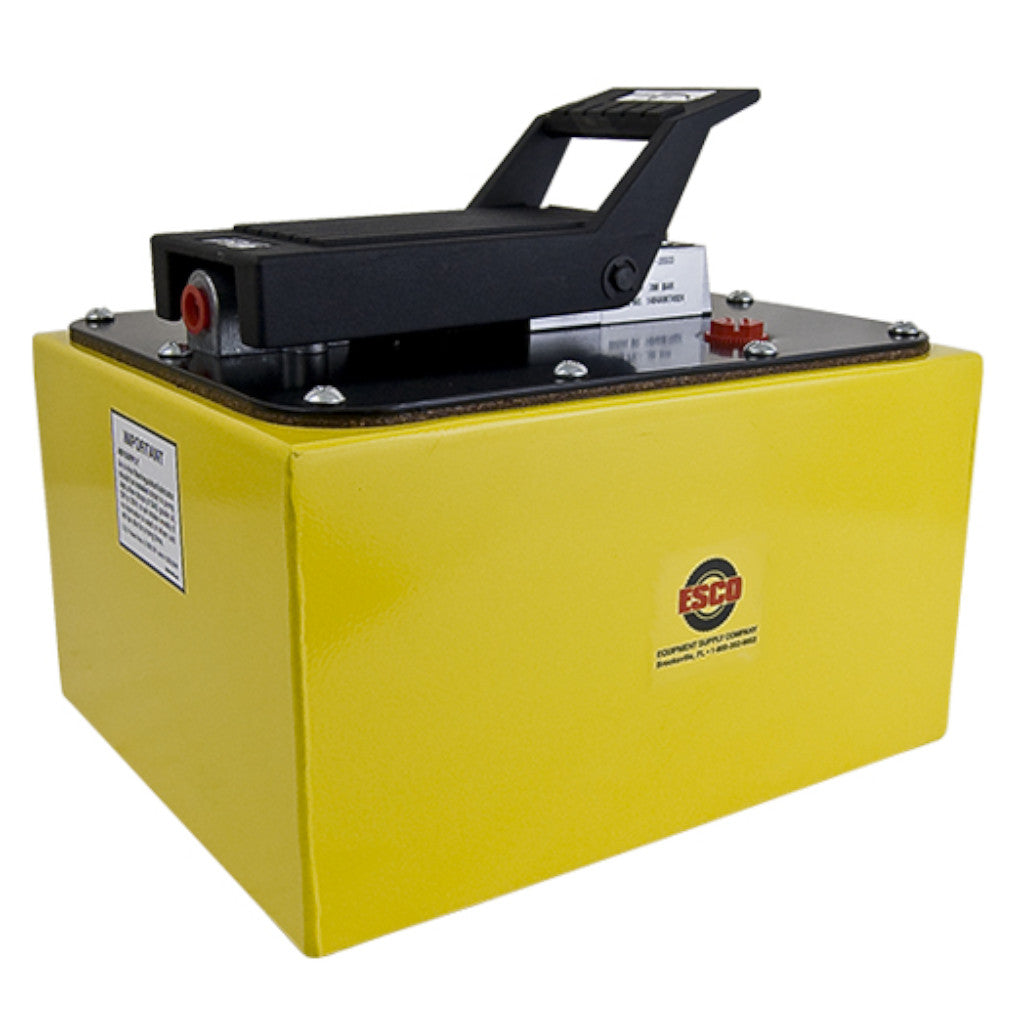

ESCO 10594 2 Gallon Air Hydraulic Pump

Features:

• Rugged 2 gallon metal reservoir
• 10,000 psi hydraulic pressure
• Shipped with premium hydraulic oil
• Maximum oil capacity for any application
• Designed for use in the field, service truck, or service center with multiple hydraulic tools
• Air inlet filter keeps air clean
• All metal air motor

Specifications:

• Oil Capacity: 2 Gallon
• Maximum Pressure: 10,000 psi
• Weight: 34 lbs (15 kg)

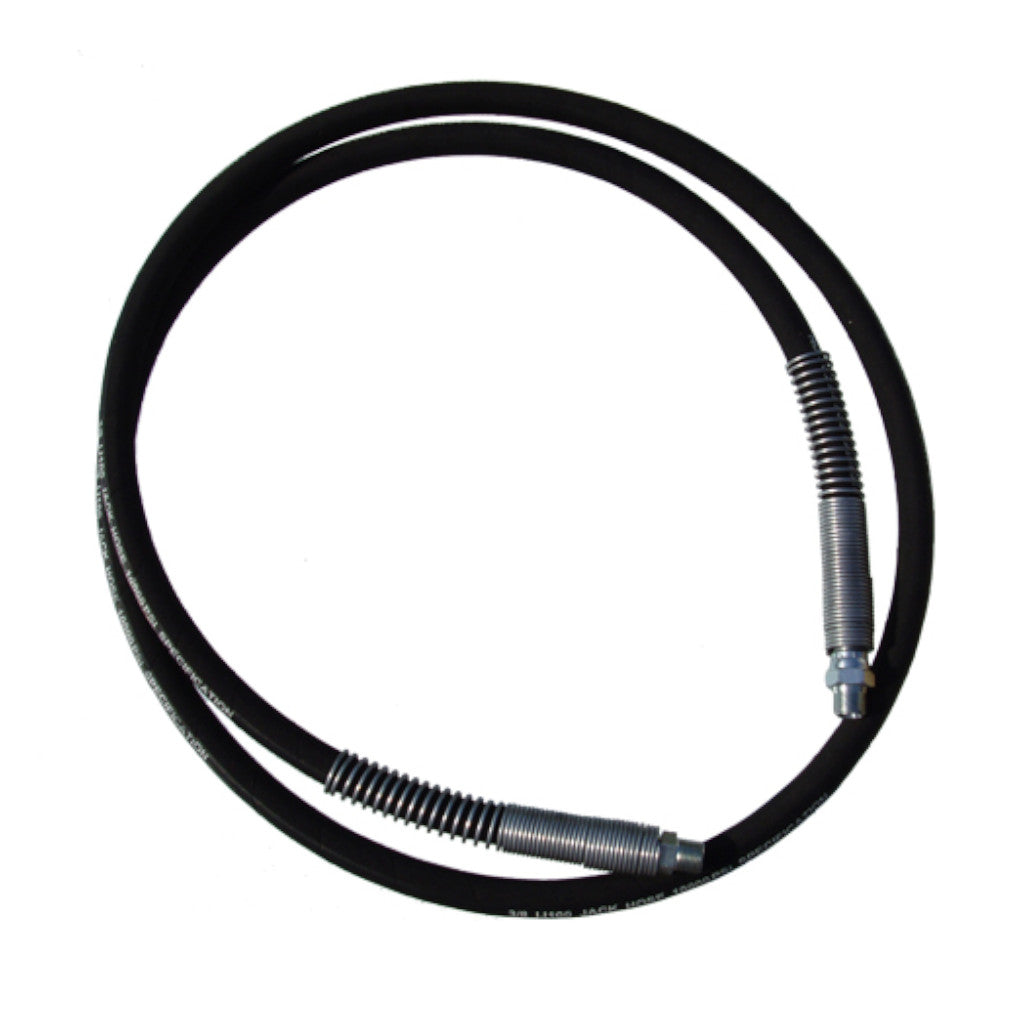

ESCO 10610 8' Hose Assembly

Features:

• Hydraulic hose with swivel fitting and won’t kink
• Reinforced with 2 layers of braided steel
• All hoses can withstand extreme cold temperatures of -40°F (C)
• Use with any 10,000 psi. pump, ram, or bead breaker
• Attachments Include: Hose Only

Specifications:

• Length: 8' Hose (with 3/8″ 18 Male Ends)
• Weight: 4 lbs (2 kg)

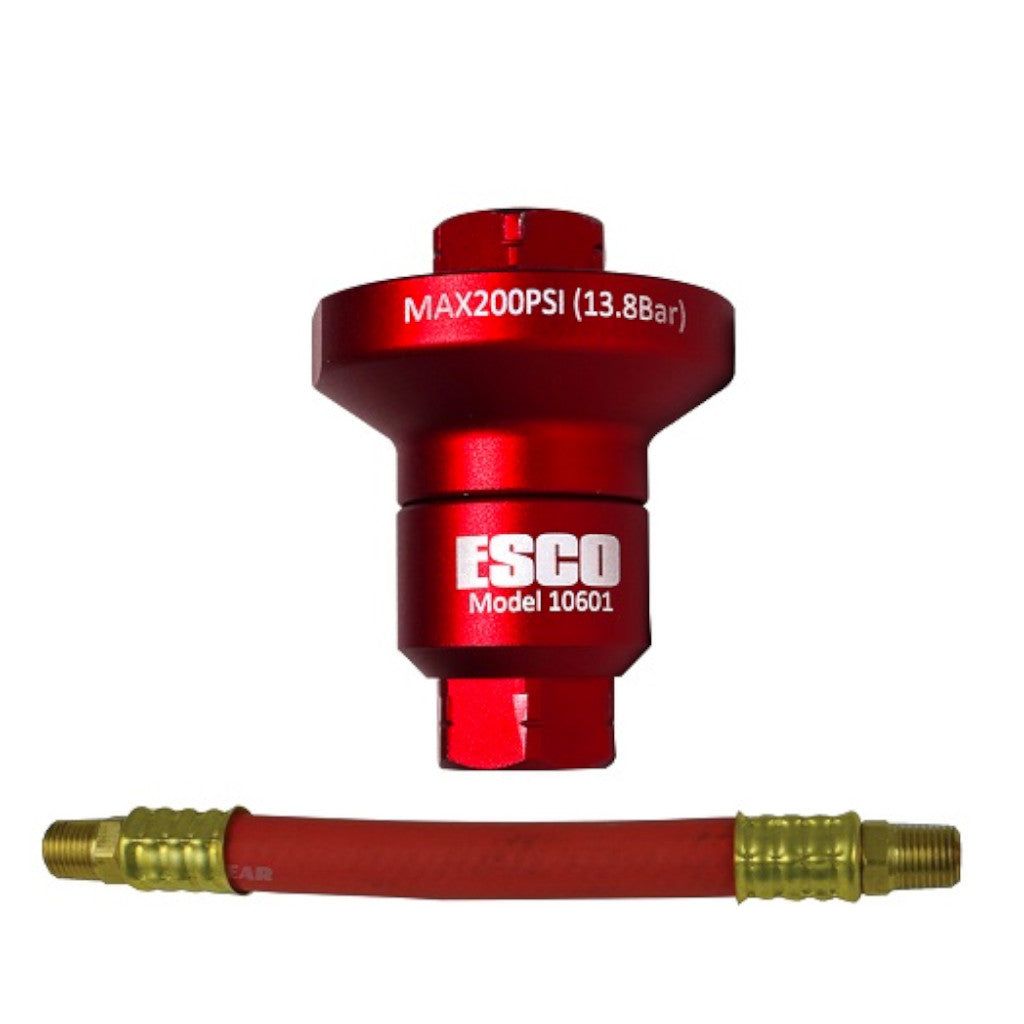

ESCO 10601K Air Reducer With 6″ Whip-Hose

The ESCO Air Reducer, for Air/Hydraulic Pumps, is designed to regulate the air pressure that is received by the hydraulic pump, that is then used to power all ESCO Hydraulic Tools.

Maintaining air pressure when using Hydraulic Equipment will increase the Proper Functioning of Hydraulic Equipment, Protect Air/Hydraulic Pumps from Over-Flow of Air, and Keep ESCO Hydraulic Products in their PRIME.

The ESCO 10601K Kit Includes:

• Model 10601 Air Reducer
• Model 10601H 6″ Whip-Hose

Features:

• Maintain recommended working air pressure
• Easy installation and usage
• Can be used in conjunction with multiple ESCO products

Model 10601 Specifications:

• Diameter: 15/16″ (24 mm)
• Working Air Pressure: 110 PSI
• Air Inlet Size: 1/4″ NPT
• Weight: 1 lb (0.5 kg)

Model 10601H Specifications:

• Length: 6″ (152.4 mm)

Compliance and Restrictions
