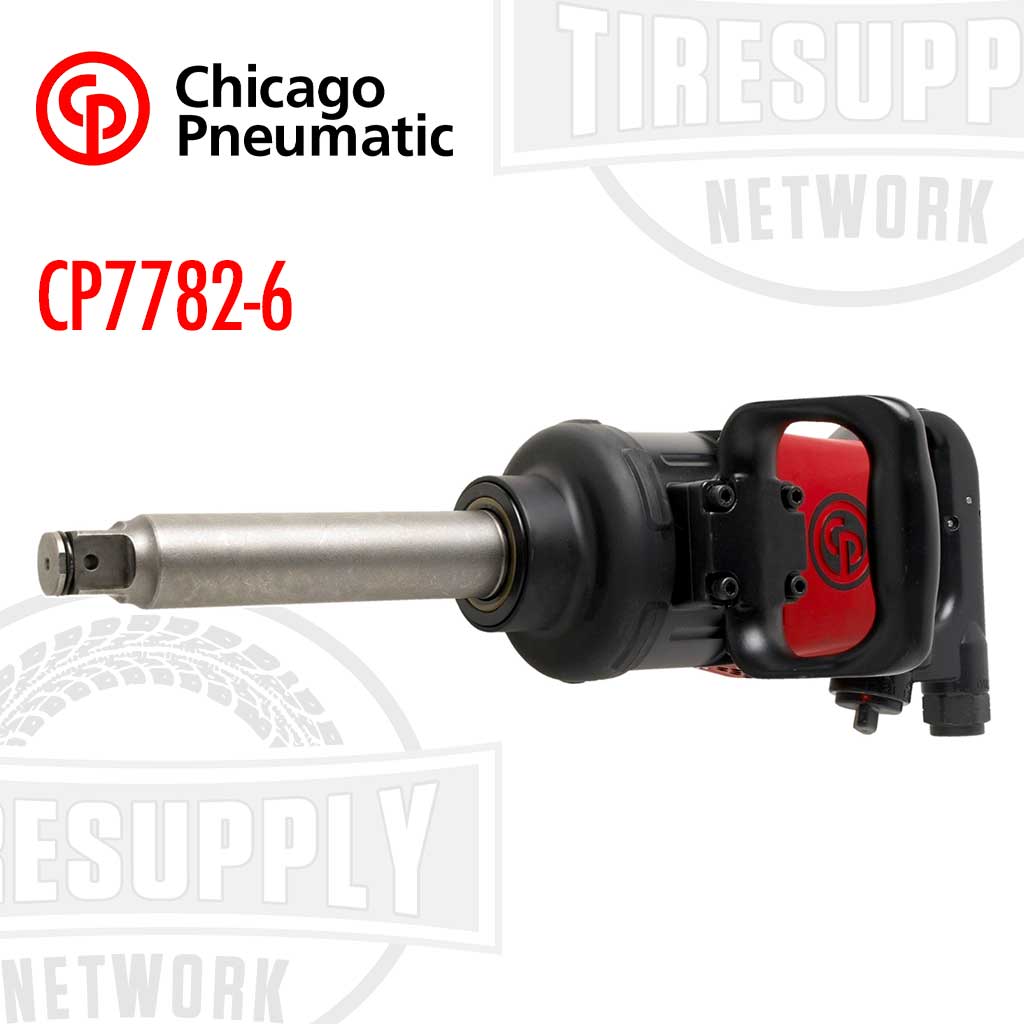

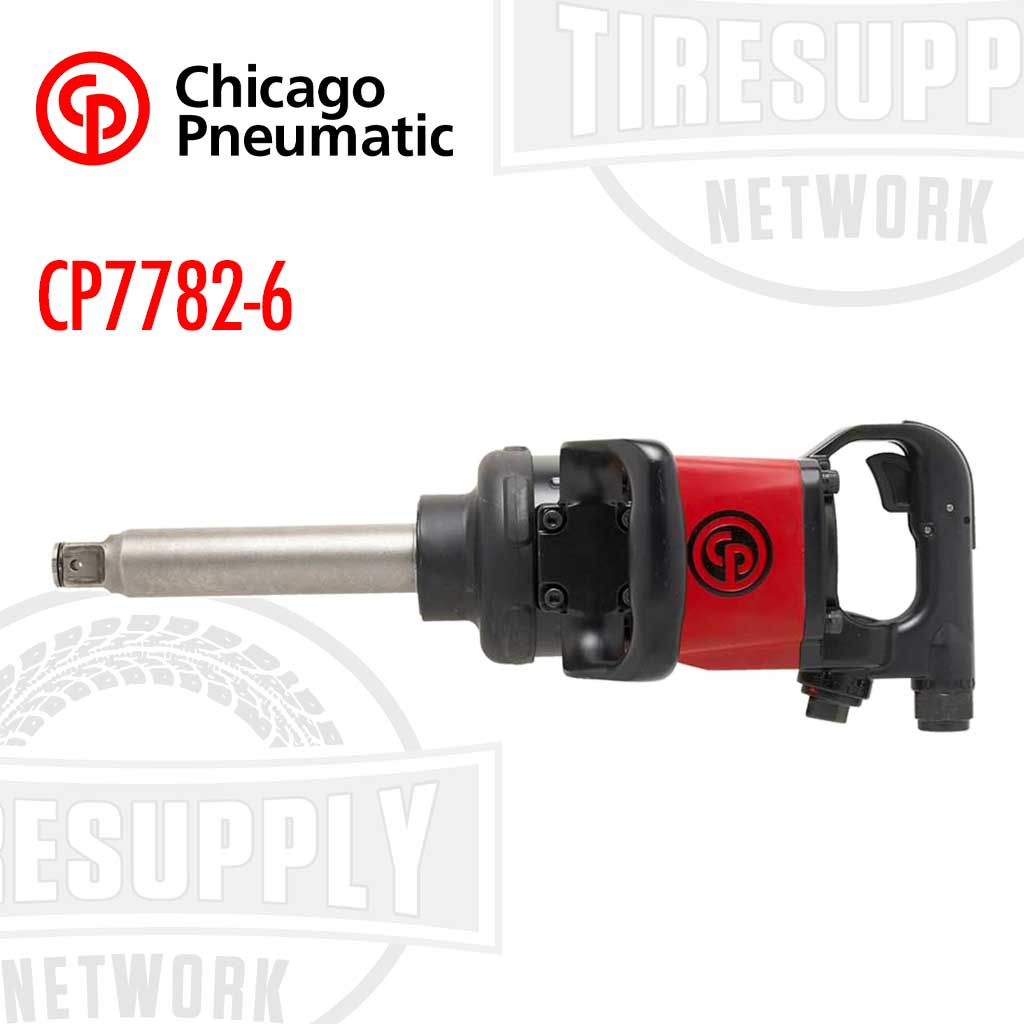

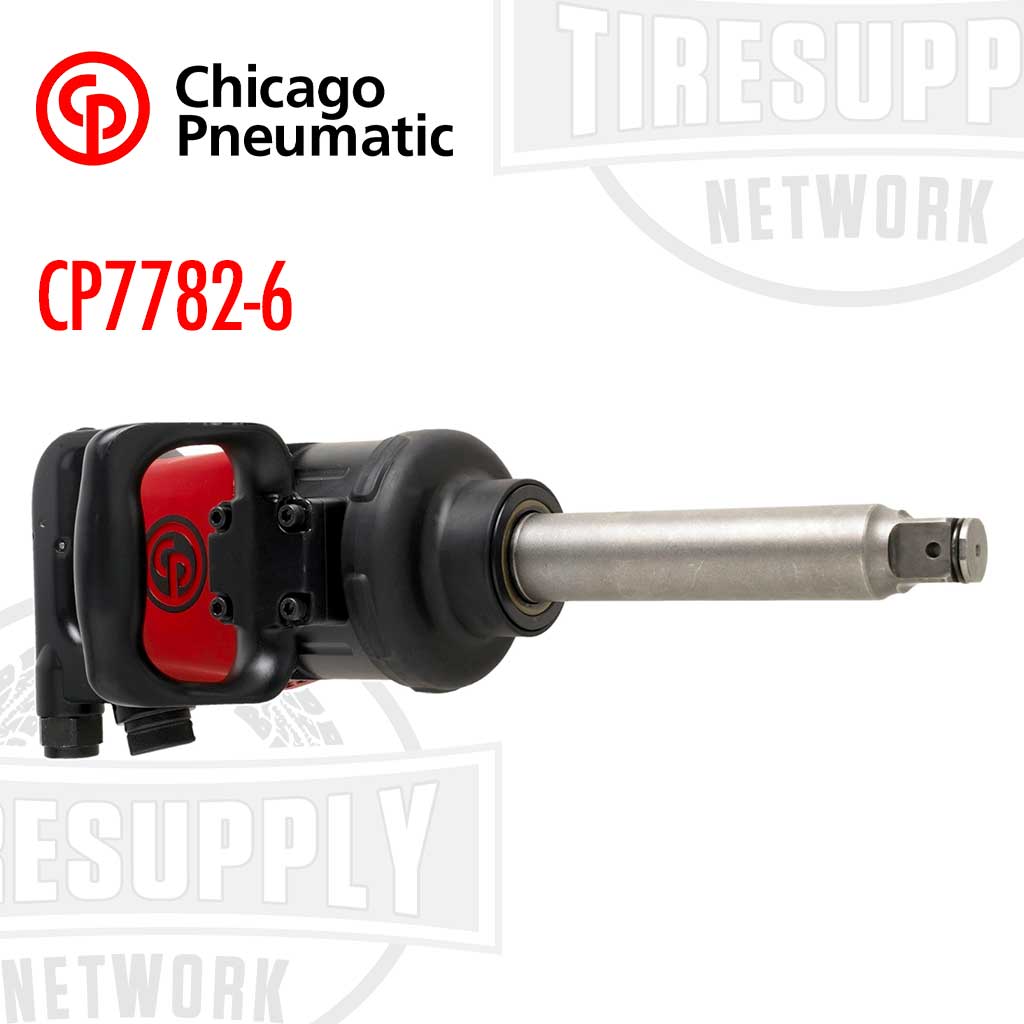

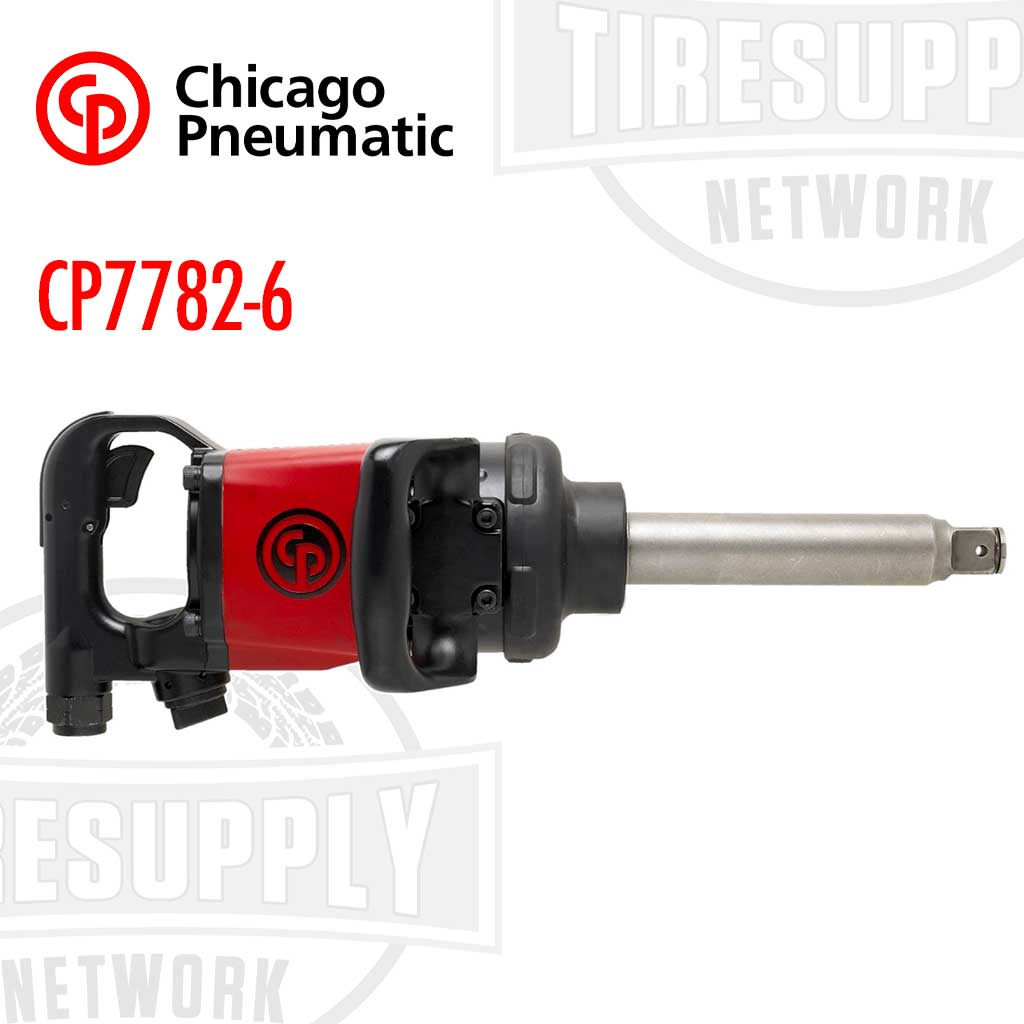

Chicago Pneumatic | 1" Drive Impact Wrench (CP7782-6)
Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!
Chicago Pneumatic | 1" Drive Impact Wrench (CP7782-6) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Chicago Pneumatic | 1" Drive Impact Wrench (CP7782-6)
Description
Description
Chicago Pneumatic | 1" Drive Impact Wrench (CP7782-6)
Benefits:
- Great power for general maintenance applications
- Reinforced clutch mechanism
- Low vibration for better operator comfort
Features:
- 1" D-handle impact wrench with dual retainer (Hole + Ring)
- Pin-less closed reinforced rocking dog impact mechanism
- Ergonomic side handle
- Integrated protective cover on the clutch housing
- Full teasing trigger
- Regulator with integrated forward/reverse with 3-position power settings in both direction
| Specification | CP7782-6 |
|---|---|
| Handle Type | D-Handle Inside Trigger |
| Square Drive | 1" |
| Working Torque Range (fwd) | 370-1475 ft.lbs ( 500-2000 Nm) |
| Maximum Torque (reverse) | 1920 ft.lbs (2600 Nm) |
| Free Speed | 5200 rpm |
| Blows Per Minute | 500 |
| Net Weight | 22.2 lbs. (10.1 kg) |
| Power/Weight Ratio | 96.4 ft.lb/lb (257.53 Nm/kg) |
| Length | 14.7" (370 mm) |
| Average Air Consumption | 10 cfm |
| Actual Air Consumption | 40.7 cfm |
| Minimum Hose Size | 1/2" (13 mm) |
| Noise Level | 100 db(A) |
| Sound Power | 111 db(A) |
| Vibration K (ISO-28927-2) | 1.8 m/s² |
| Vibration α (ISO-28927-2) | 7.9 m/s² |
| Socket Retainer | Friction Ring - SpringHammer® |
| Clutch Type | Double Dog |
Related Accessories
| Part # | Product Description | Product Listing |
| S085 | Marvel Air Tool Oil | See Part Here |
| SRK1 | Retaining Rings & O-Rings (1") (3 Pairs per Pack) | See Part Here |
| SS8210HDW | CP - 1" Drive 10 piece SAE & Metric Impact Socket Set | See Part Here |
Compliance and Restrictions
⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
