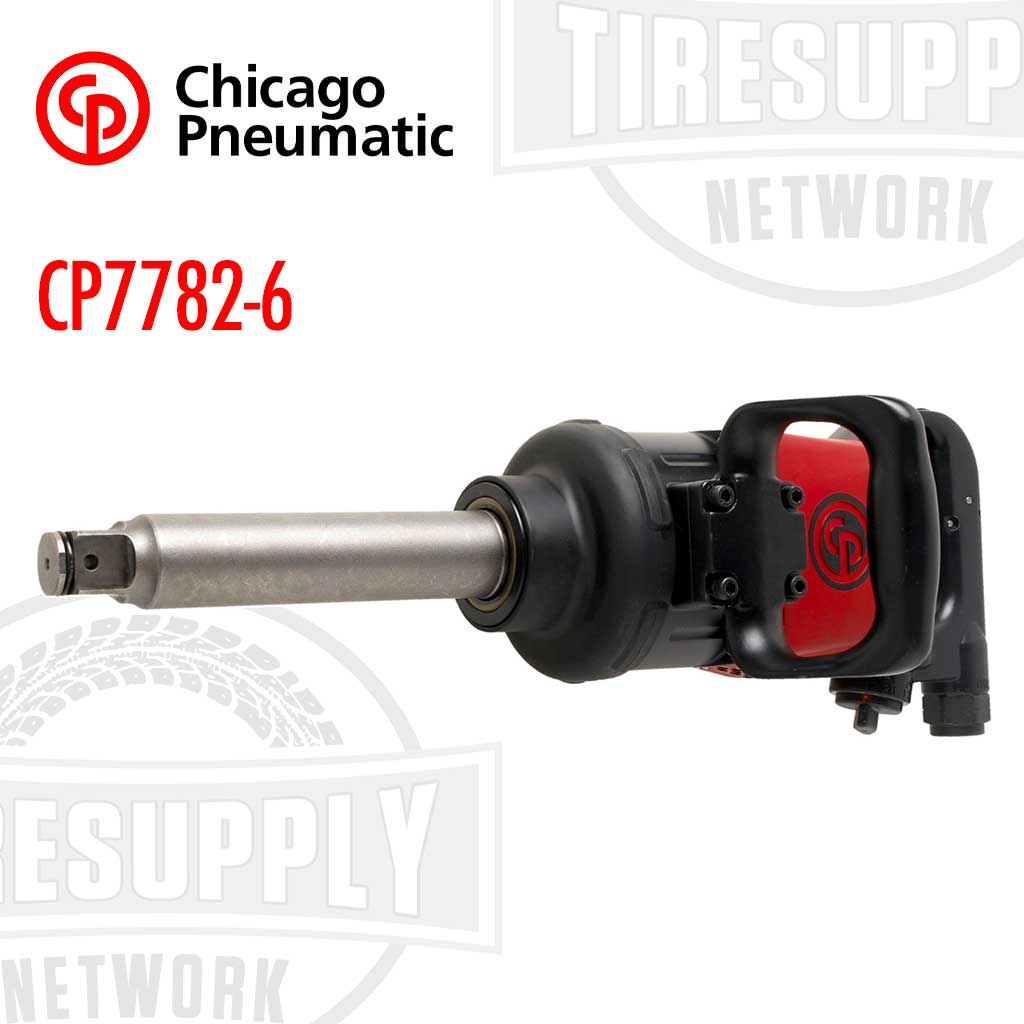

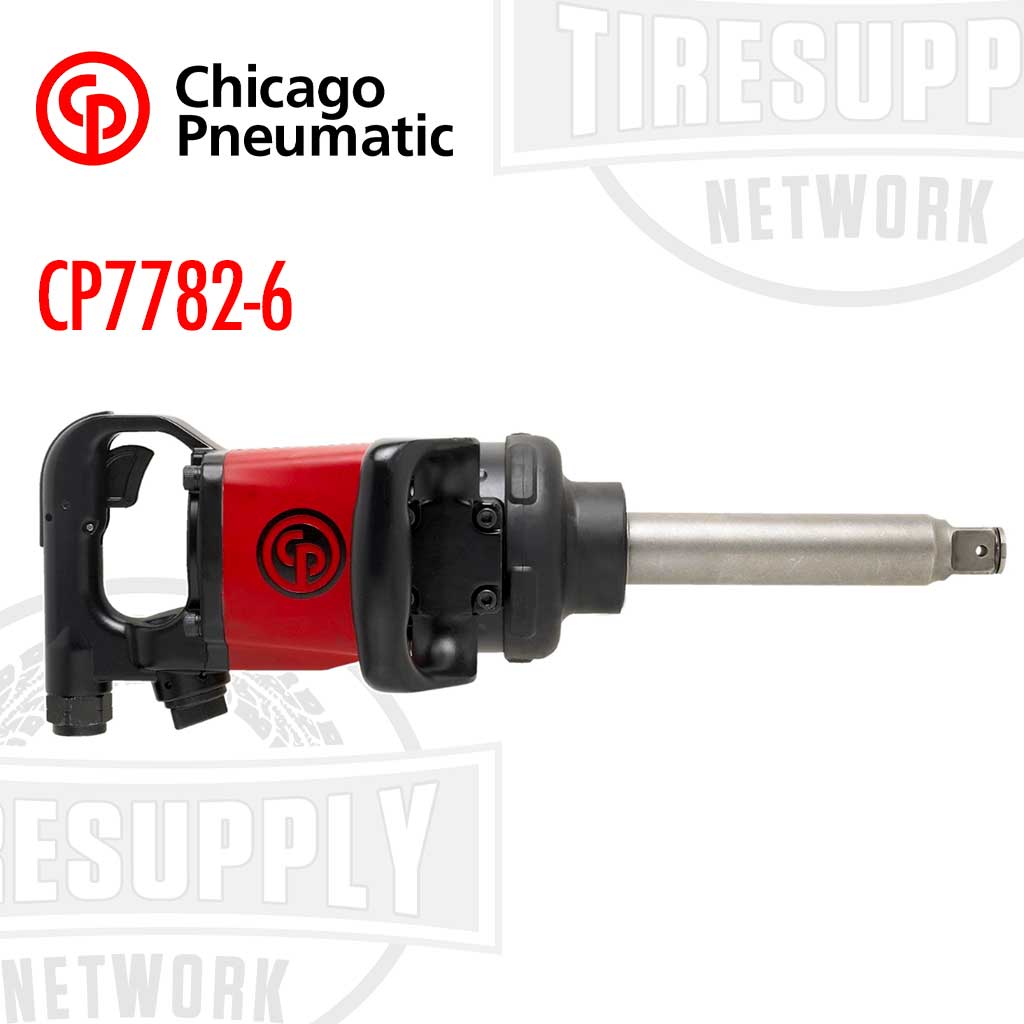

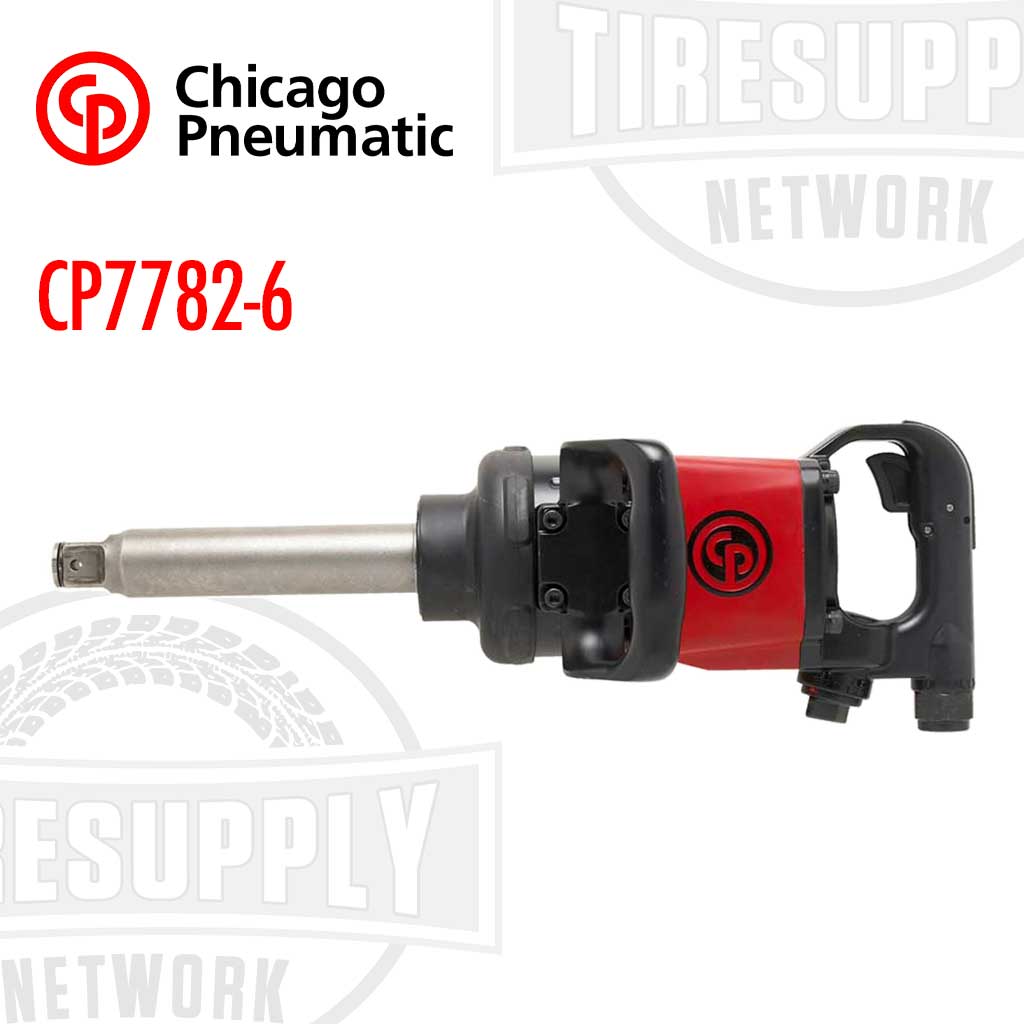

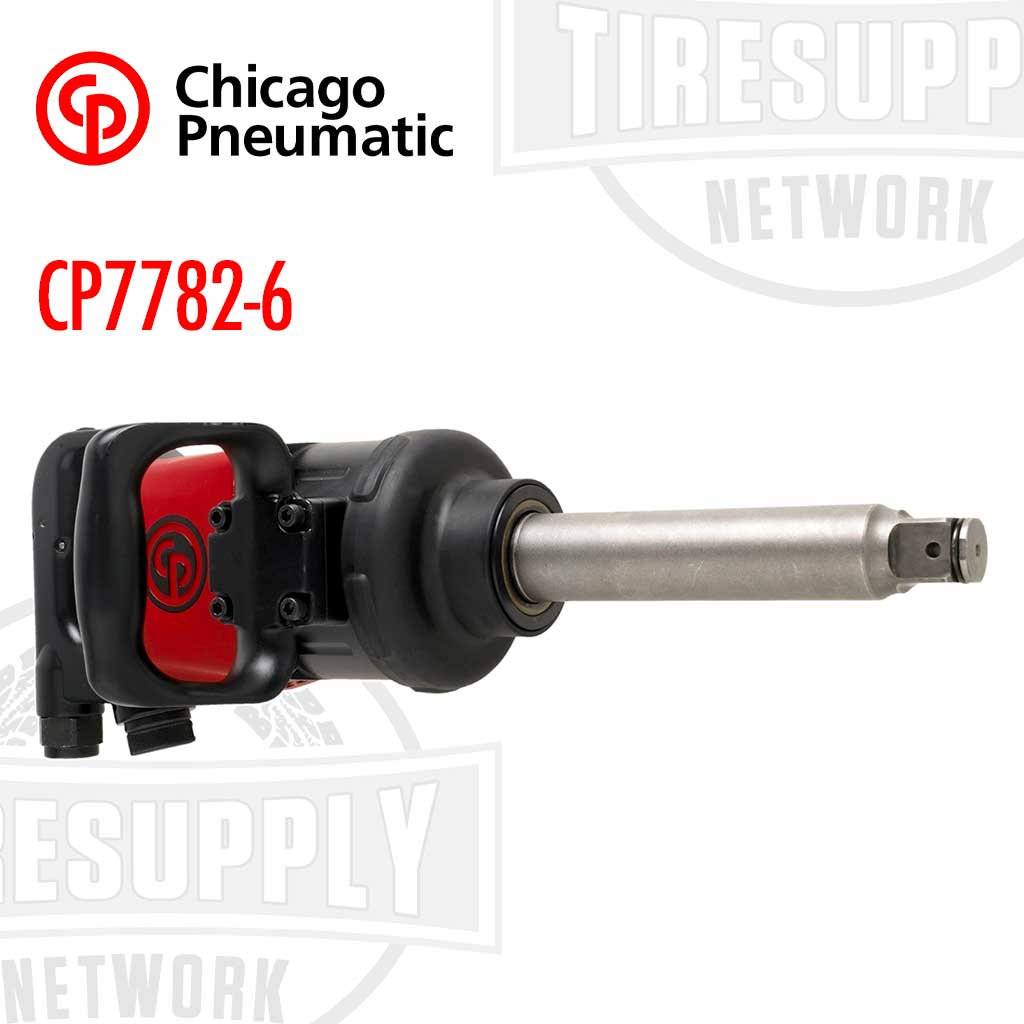

Chicago Pneumatic | 1" Drive Impact Wrench (CP7782-6)

Name: Chicago Pneumatic | 1" Drive Impact Wrench (CP7782-6)
Brand: Chicago Pneumatic
SKU: CP-7782-6
Price: 781.99 USD
Availability: InStock

$781.99

Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!

Chicago Pneumatic | 1" Drive Impact Wrench (CP7782-6)

Benefits:

Great power for general maintenance applications
Reinforced clutch mechanism
Low vibration for better operator comfort

Features:

1" D-handle impact wrench with dual retainer (Hole + Ring)
Pin-less closed reinforced rocking dog impact mechanism
Ergonomic side handle
Integrated protective cover on the clutch housing
Full teasing trigger
Regulator with integrated forward/reverse with 3-position power settings in both direction

Specification	CP7782-6
Handle Type	D-Handle Inside Trigger
Square Drive	1"
Working Torque Range (fwd)	370-1475 ft.lbs ( 500-2000 Nm)
Maximum Torque (reverse)	1920 ft.lbs (2600 Nm)
Free Speed	5200 rpm
Blows Per Minute	500
Net Weight	22.2 lbs. (10.1 kg)
Power/Weight Ratio	96.4 ft.lb/lb (257.53 Nm/kg)
Length	14.7" (370 mm)
Average Air Consumption	10 cfm
Actual Air Consumption	40.7 cfm
Minimum Hose Size	1/2" (13 mm)
Noise Level	100 db(A)
Sound Power	111 db(A)
Vibration K (ISO-28927-2)	1.8 m/s²
Vibration α (ISO-28927-2)	7.9 m/s²
Socket Retainer	Friction Ring - SpringHammer®
Clutch Type	Double Dog
