Chicago Pneumatic | 1" Drive Ultra-Lightweight High-Torque Impact Wrench w/ Extended Anvil (CP7783-6)
Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!
Chicago Pneumatic | 1" Drive Ultra-Lightweight High-Torque Impact Wrench w/ Extended Anvil (CP7783-6) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Chicago Pneumatic | 1" Drive Ultra-Lightweight High-Torque Imp...
Description
Description

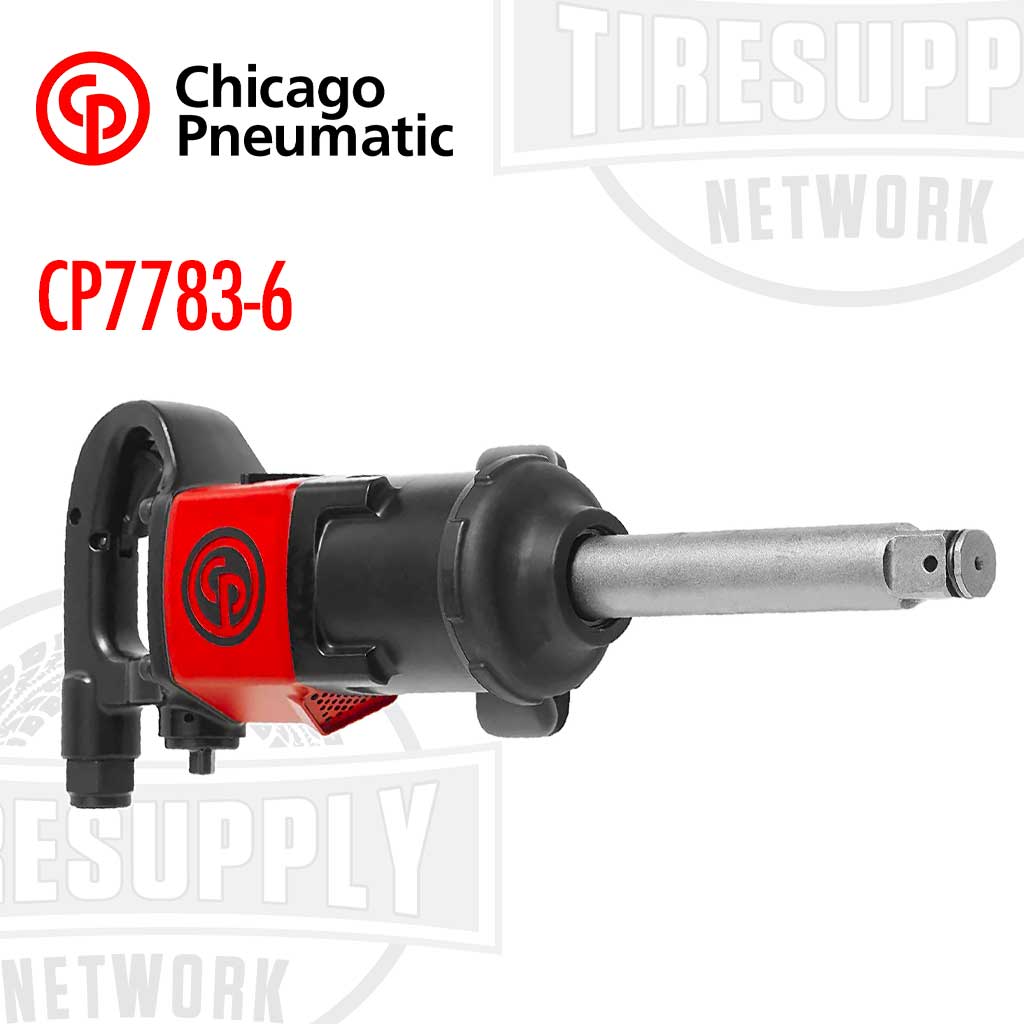

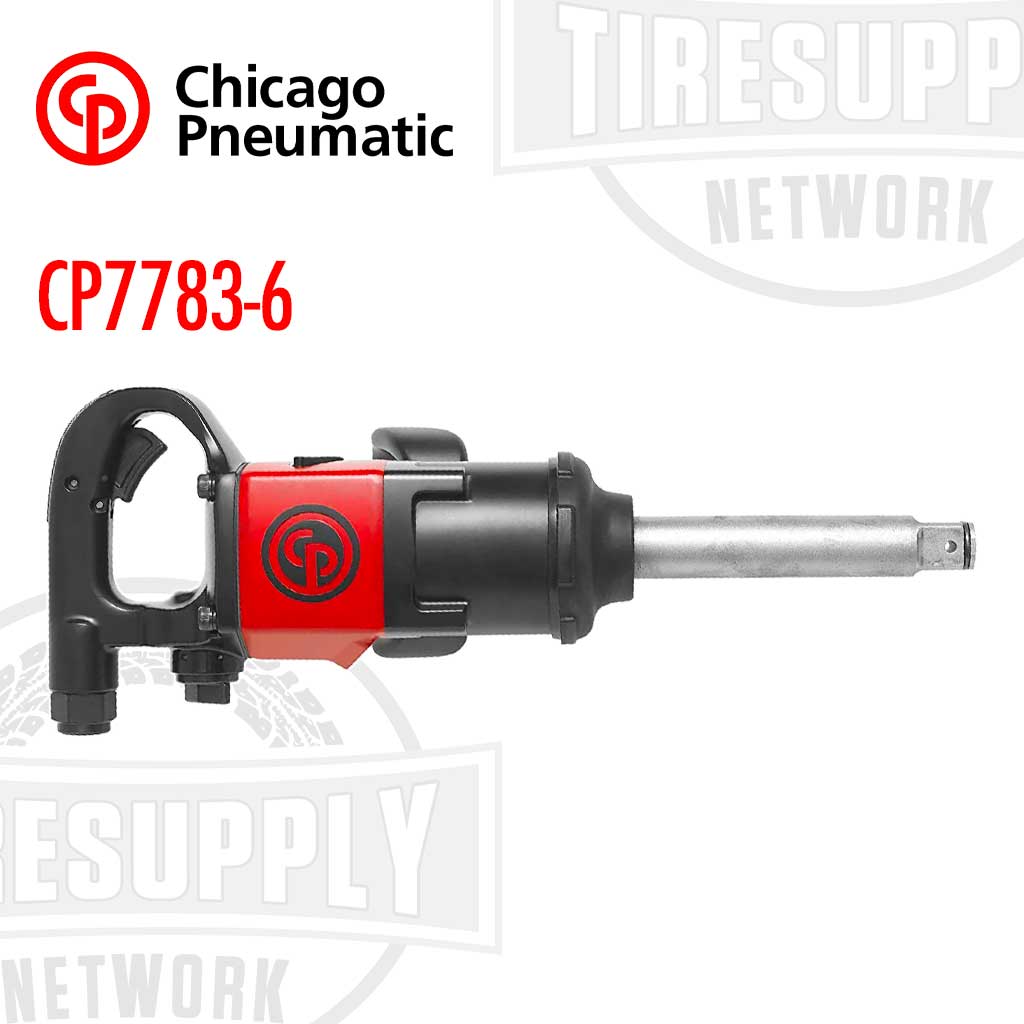

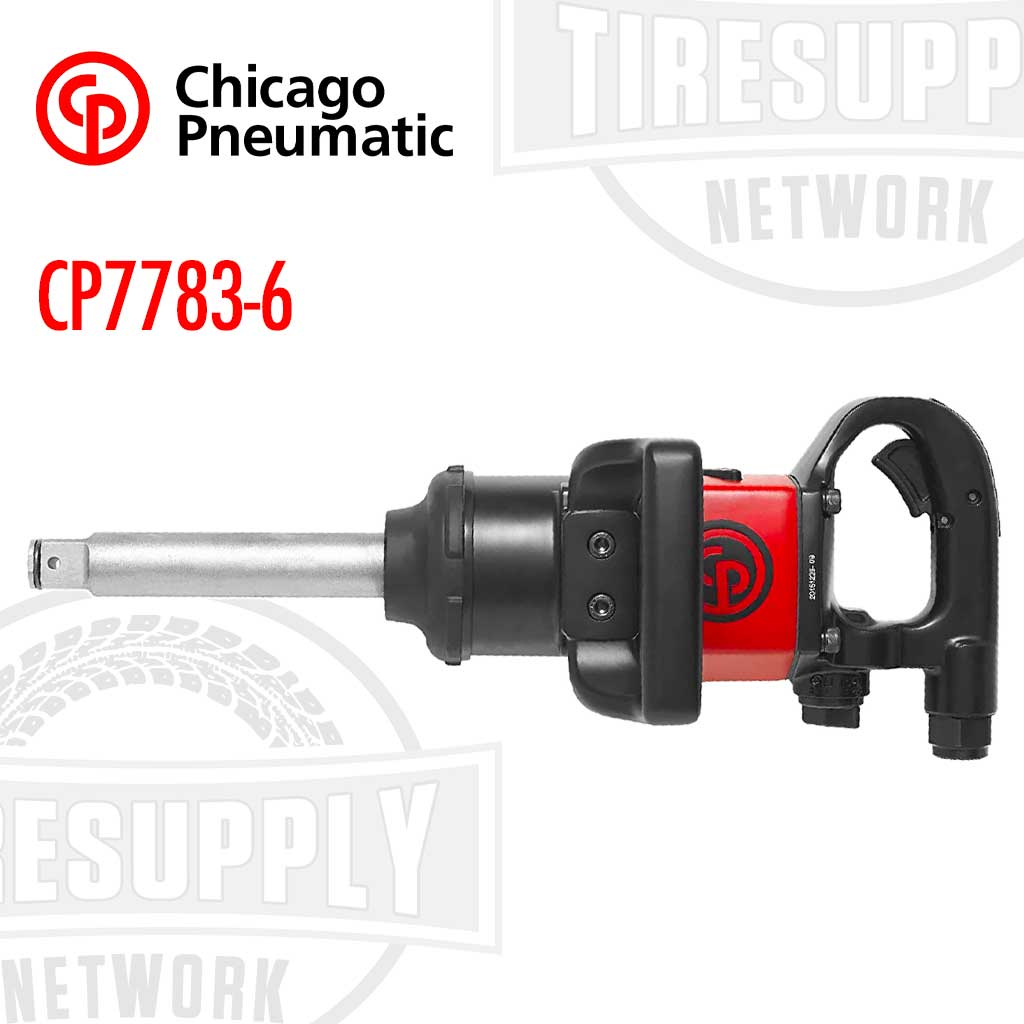

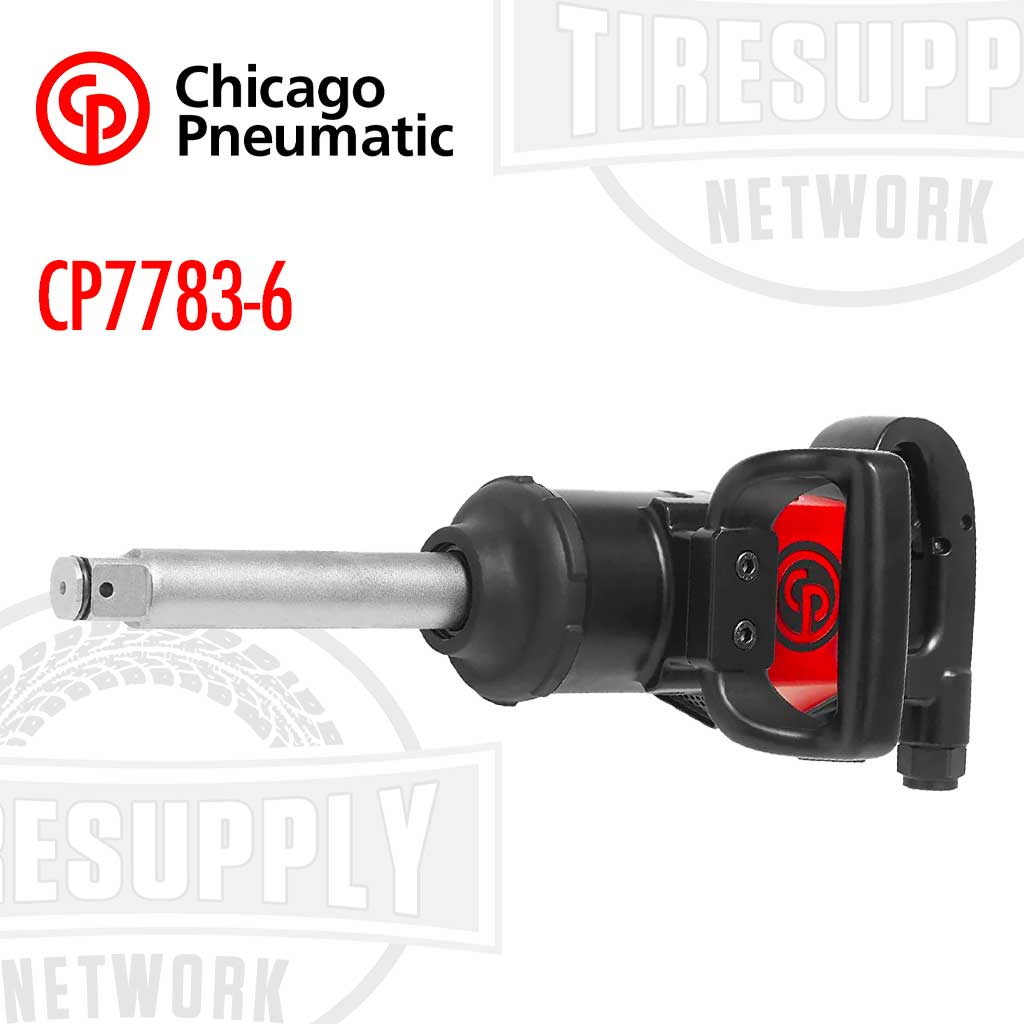

Chicago Pneumatic | 1" Drive Ultra-Lightweight High-Torque Impact Wrench w/ Extended Anvil (CP7783-6)
For users looking for an efficient unbolting tool for tire changing, the Chicago Pneumatic CP7783 Series offers an ultra-lightweight & high-torque 1" impact wrench with a D-handle.
Optimal fastening and unbolting processes with this ultra lightweight 1″ impact wrench. Featuring a pin-less closed reinforced rocking dog impact mechanism and metal housing, this tool is designed to optimize tire changing. It delivers a maximum reverse torque up to 1,770 ft. lbs. / 2,400 Nm. The CP7783 series consists of 2 models: 1" short anvil and 1" long anvil (6" anvil).
Features:
- Lightweight tool for reduced operator fatigue
- 1,770 ft. lbs. (2,400 Nm) max torque in reverse for high productivity
- Metal housing and pin-less closed reinforced rocking dog impact mechanism for high durability
- Four positions for D-handle placement to provide ultimate operator comfort
- Top or down exhaust, quick and easy to change
Specifications:
| Model |
CP7783-6 |
|---|---|
| Chicago Pneumatic Part Number |
8941077836 |
| Actual Air Consumption | 40.4 cfm |
| Air Inlet Thread Size | 1/2″ |
| Average Air Consumption | 10.1 cfm |
| Clutch Type | Pin-less Closed Rocking Dog |
| European Standards | EN ISO 11148-6:2013 |
| Free Speed | 6200 rpm |
| Handle Type | D-Handle Inside Trigger |
| Length | 19.6″ |
| Maximum Torque (Reverse) | 1770 ft.lbs (2400 Nm) |
| Minimum Hose Size | 3/4″ |
| Net Weight | 20.9 lbs |
| Socket Retainer | Ring & Hole |
| Sound DBA Pressure | 102 db(A) |
| Sound Power | 113 db(A) |
| Square Drive | 1″ |
| Vibration | 15.1 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration Uncertainty (K) | 4.1 m/s² |
| Working Torque Range (Forward) | 413 - 1253 ft.lbs (560 - 1700 Nm) |
Compliance and Restrictions
⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
