T022-120V

Lincoln LMC Model MT Medium Truck Air Vulcanizer Spotter - Choose 120V or 240V

Join CLUB5 at Tire Supply Network and save 5% on EVERY order! Learn more

Choose Voltage: 120V

Lincoln LMC Model MT Medium Truck Air Vulcanizer Spotter - Choose 120V or 240V

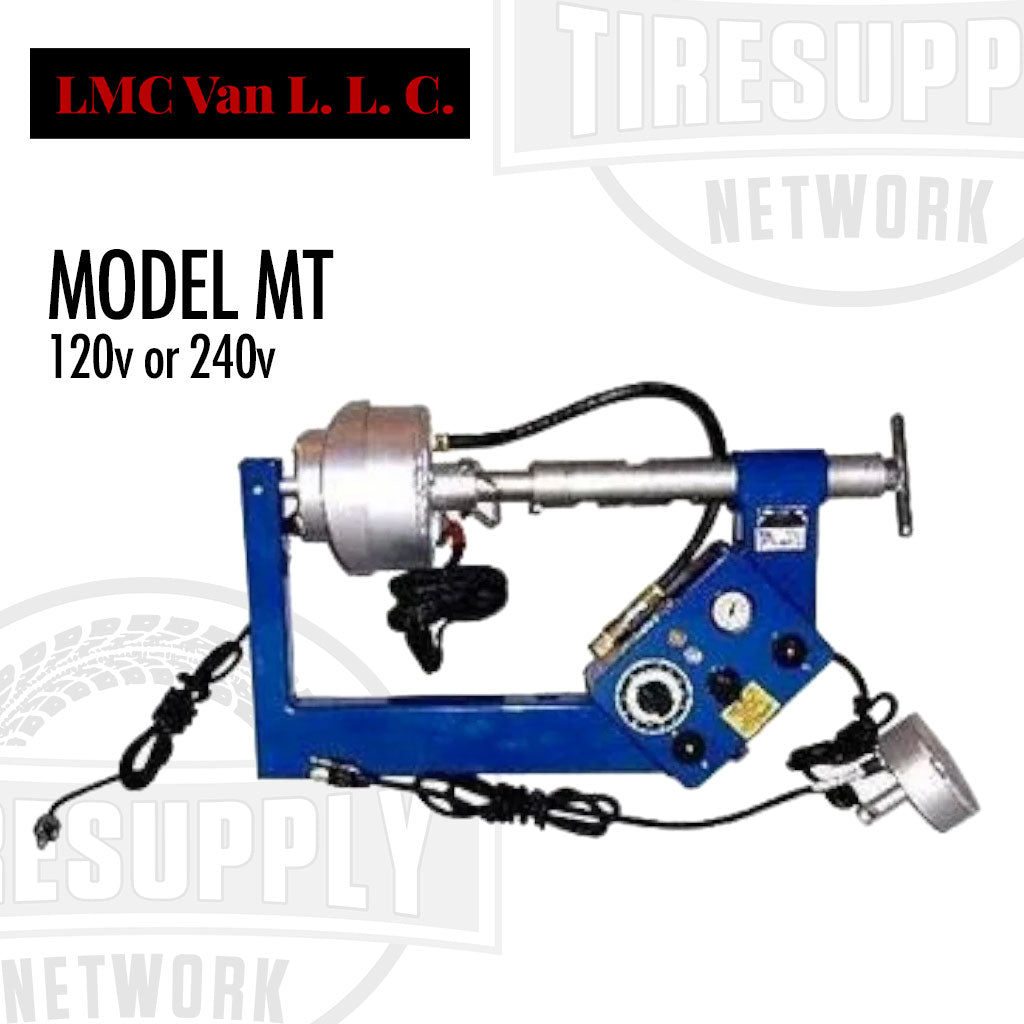

The all-new Model MT (T022) air-operated vulcanizer is the latest generation in repair equipment. Now repair the tread shoulder and sidewall areas of medium-sized (8:25 through 12:00) truck tires with one vulcanizer.

Features:

  • Patented piston/pad air head produces professional-looking sidewall repairs that are unequaled in the industry.
  • Tread and shoulder areas are solidly repaired with constant pressure provided by contour plates and a spring-loaded compensating system.
  • Heat from both sides of tire offers maximum efficiency.
  • Optional LT/MT stand (T031) supports tire on roller assembly for easy rotation. Horizontal orientation of spotter makes alignment with repair easy and eliminates stress from repair area.
  • For proper operation, contour plate set T155 contains 5 plates (T086, T087, T130, T131, T134) is required.
  • Available in 120V or 240V.

Specifications:

  • Shipping Weight: 52 lbs (23 kg)
  • Curing Head Size: 6″ (15 cm)
  • Number of Curing Heads: 3 each
  • Throat Height: 19″ (48 cm)
  • Throat Depth: 8″ (21 cm)

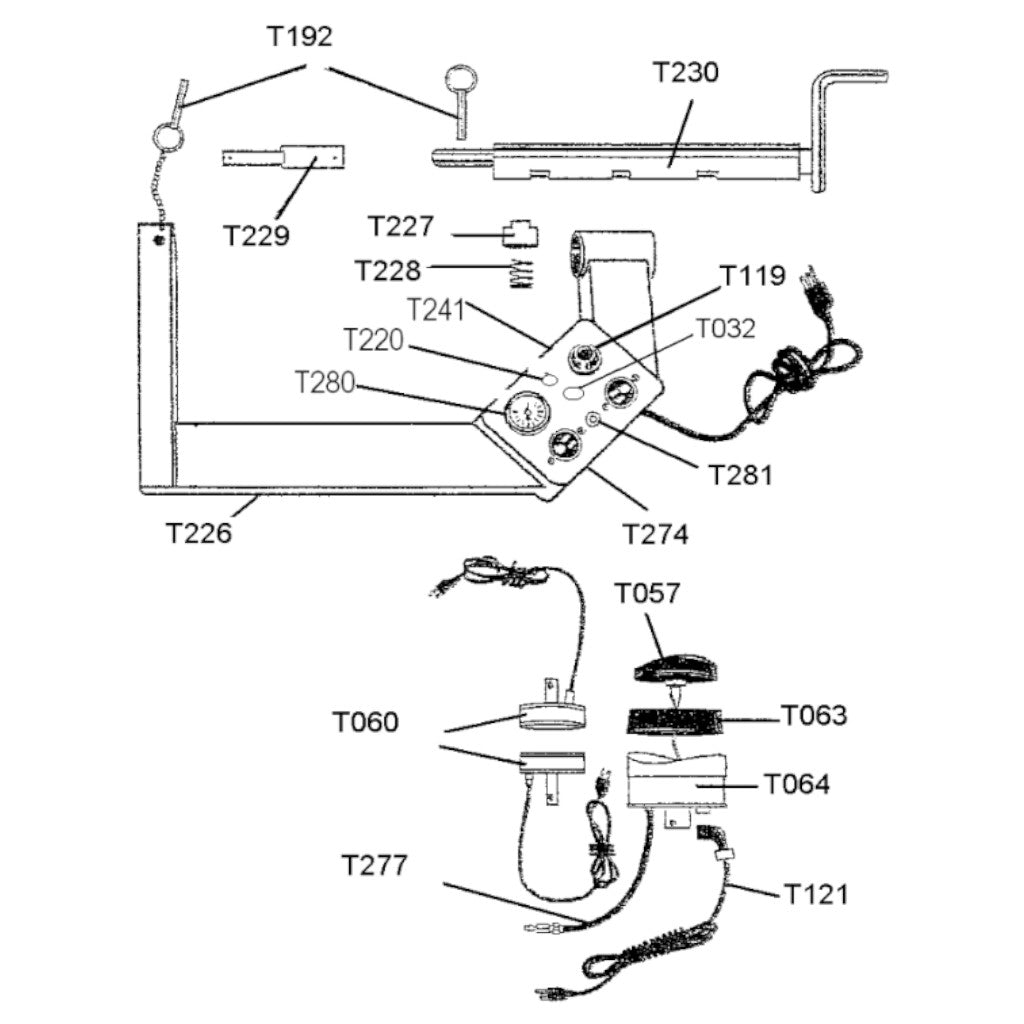

                            Replacement parts available! Call or email us for pricing and to place a special order for replacement parts. See the parts diagram in the pictures above and the parts list below to find the replacement part you need.

                            Parts Breakdown:

                            Part Number Model Description
                            T192
                            Detent pin
                            T226
                            Frame
                            T227
                            Plunger
                            T228
                            Spring
                            T229
                            Inside heat unit extension shaft
                            T230
                            Telescoping assembly
                            T057 AS4-16 Contour up silicone rubber heat pad 6″ diameter
                            T060 AS3-20
                            (2) Heat units 4″
                            T063 AS5-6 Silicone rubber seal 6″ diameter
                            T064 AS6-20
                            Steel air cylinder with contoured lip
                            T121 AS11 Detachable electrical cord for T057
                            T277 Air hose with fittings
                            T280 Panel mount air gauge
                            T281 Circuit breaker
                            T274 Humphrey valve
                            T220 Pilot light
                            T119 AS9 Regulator low pressure
                            T145 Thermostat for 4″ heat unit
                            T125 Element for 4″ heat unit
                            T032 1 hour timer
