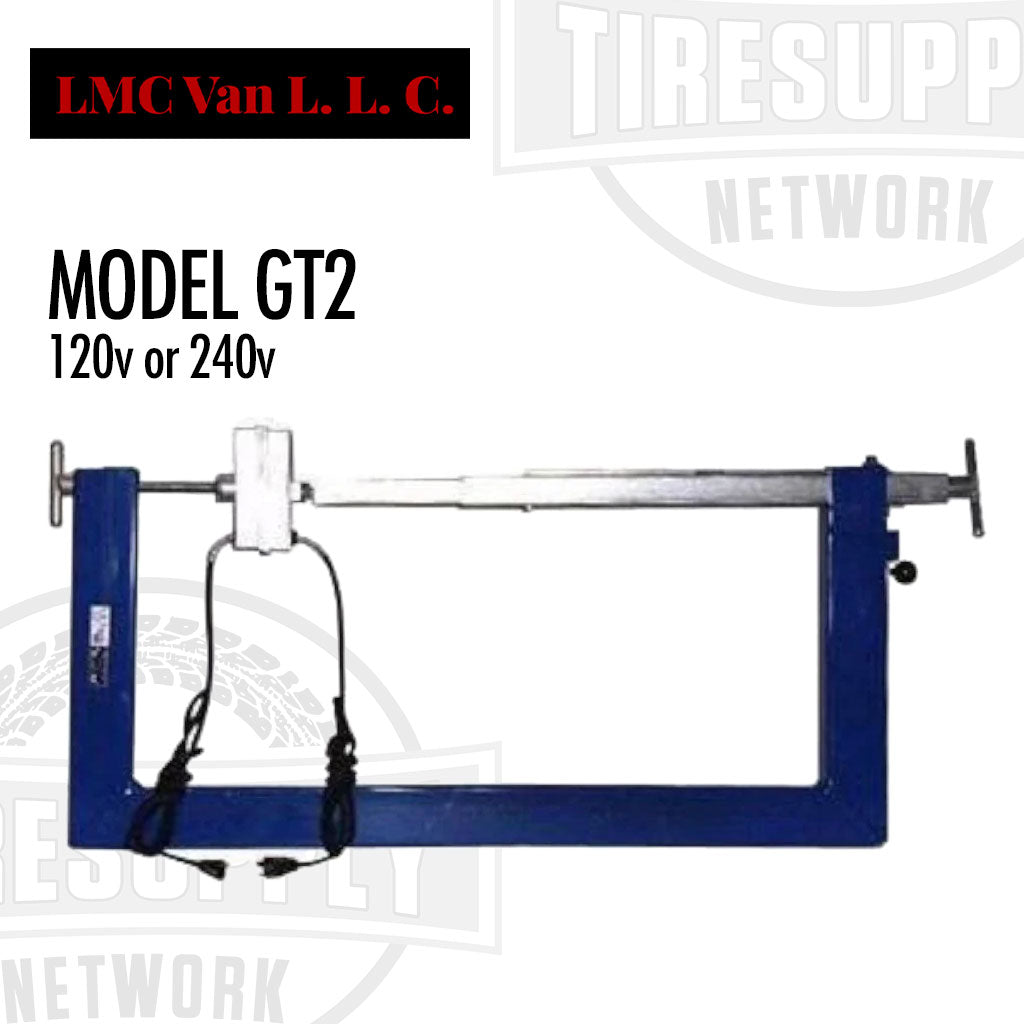

Lincoln LMC Model GT2 Giant Tire Vulcanizer Spotter with Contour Bags - Choose 120V or 240V
Features:
- Ideal for making small repairs on giant tires.
- Independently operating thermostatically-controlled heat units reach and maintain operating temperature quickly and efficiently.
- Spring-loaded lower heat unit maintains even pressure throughout curing process.
- Lower telescoping assembly slides back for quick mounting/removal of spotter - then locks into desired position for use.
- All acme threaded upper pressure screw and lower telescoping assembly for long, trouble free wear.
- Spot and section repair grader and giant tires through 37.5″ x 39″.
- Sidewall spot repairs possible without dismounting tire.
- B-3 (T096) pliable contour bags loop over heat unit and conform to irregular surfaces while transferring heat and pressure.
- Available in 120V or 240V.
Specifications:
- Shipping Weight: 62 lbs
- Throat Depth: 14-1/2″
- Throat Height: 31-1/2″

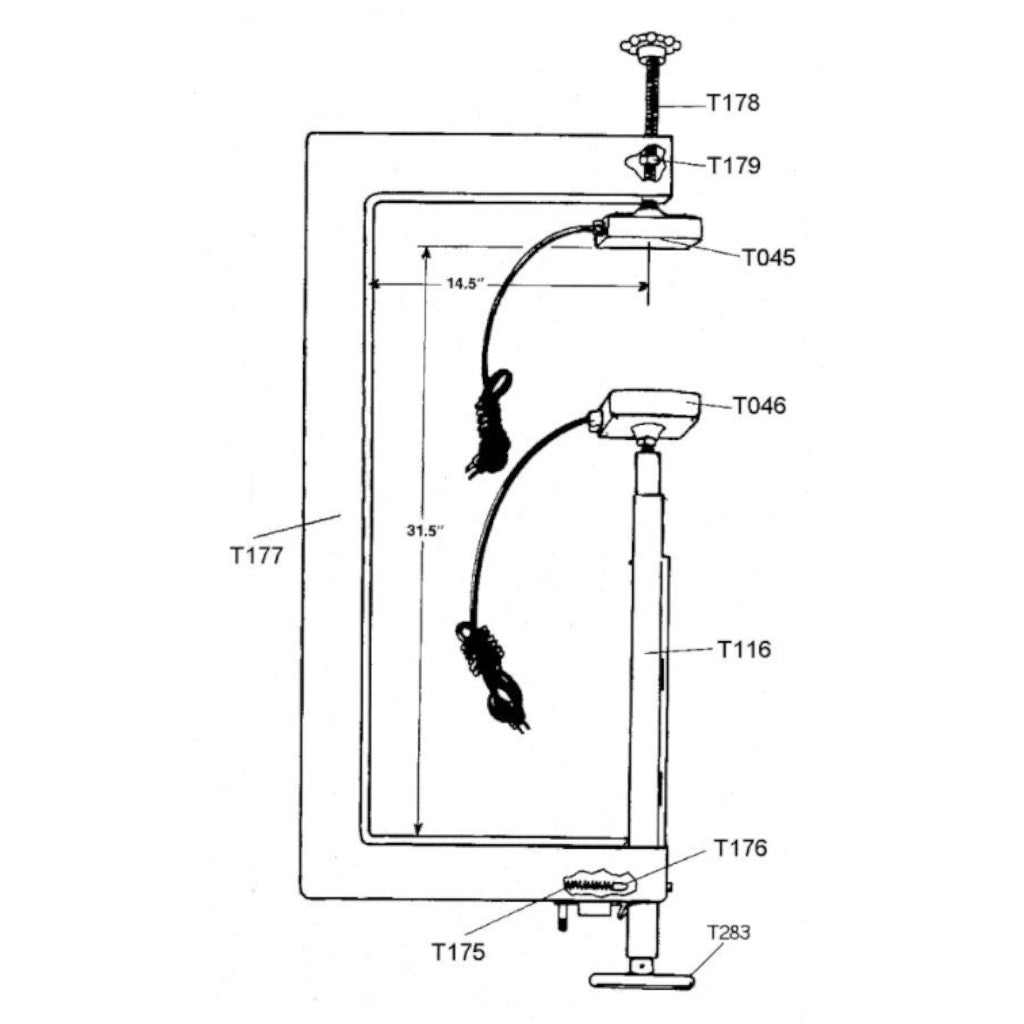

Replacement parts available! Call or email us for pricing and to place a special order for replacement parts. See the parts diagram in the pictures above and the parts list below to find the replacement part you need.
Parts Breakdown:
| Part Number | Model | Description |
| T177 | G101 | Frame for GT2 |
| T045 | G103 | Upper swivel heat unit 4-3/8″ x 6-3/8″ |
| T046 | G104 | Lower spring-loaded heat unit 4-3/8″ x 6-3/8″ |
| T178 | G105 | Hand-wheel adjusting screw (upper heat unit) |
| T179 | G106 | Nut for part number T178 |
| T116 | G107 | Telescoping pressure screw (lower heat unit) |
| T175 | G108 | Compression spring |
| T176 | G109 | Fiber rod |
| T146 | Thermostat for 4″ x 6″ heat unit |
|
| T127 | Element for 4″ x 6″ heat unit | |
| T096 | B3 | Pliable contour bag |
| T283 | Telescoping handle | |
| T122 | Electrical cord |
