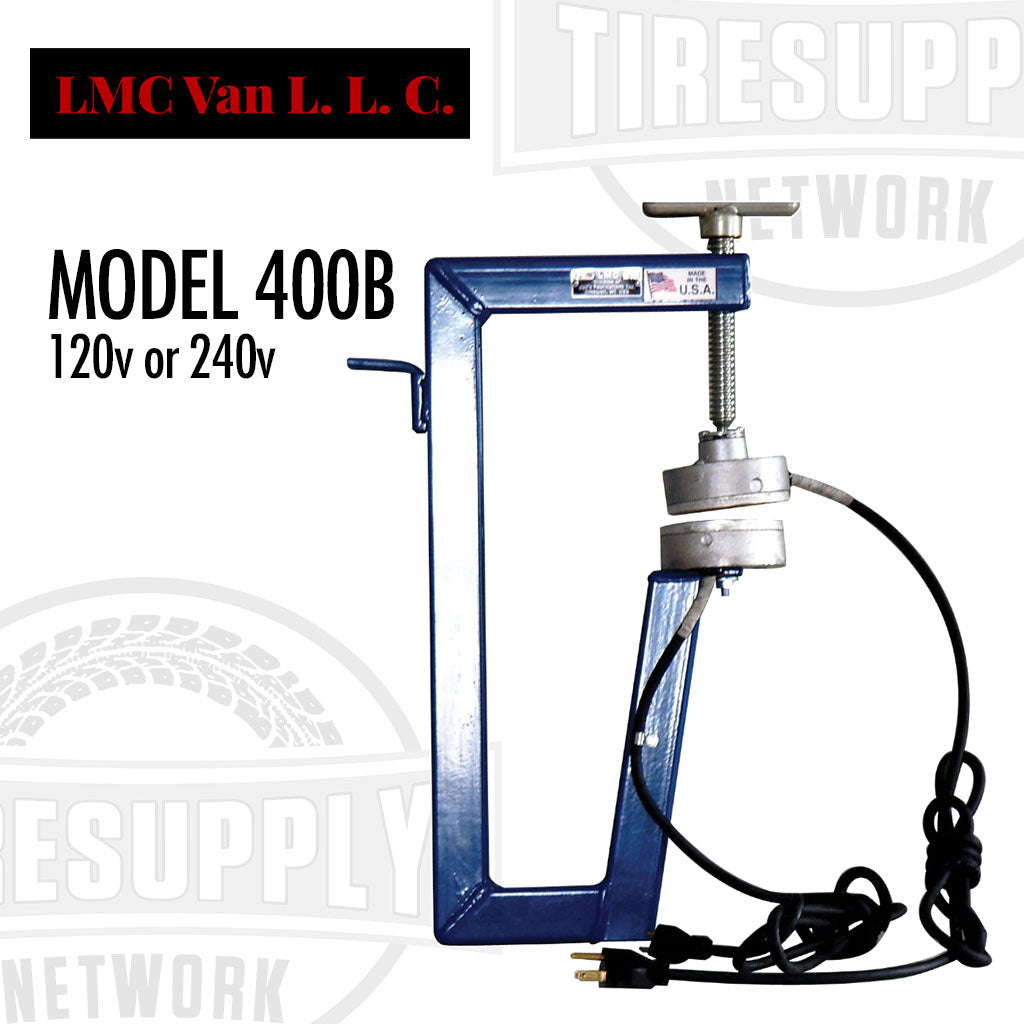

Lincoln LMC Model 400B Truck Tire Vulcanizer Spotter - Choose 120V or 240V
Features:
- Lightweight and easy to handle.
- High performance heat units feature platen mounted preset thermostats which reduce heat-up time from 15 minutes to 5.
- Tubular steel frame reduces unit weight from 18 pounds to 12.
- Larger capacity frame allows repairs in tires through 12:00 cross section.
- Faster travel, Acme Thread hand-wheel screw.
- Available in 120V or 240V.
Specifications:
- Shipping Weight: 14 lbs (6 kg)
- Curing Head Size: 3-5/16″ (9 cm)
- Number of Curing Heads: 2
- Throat Height: 9-3/4″ (25 cm)
- Throat Depth A: 6-1/4″ (16 cm)
- Throat Depth B: 15-3/8″ (39 cm)

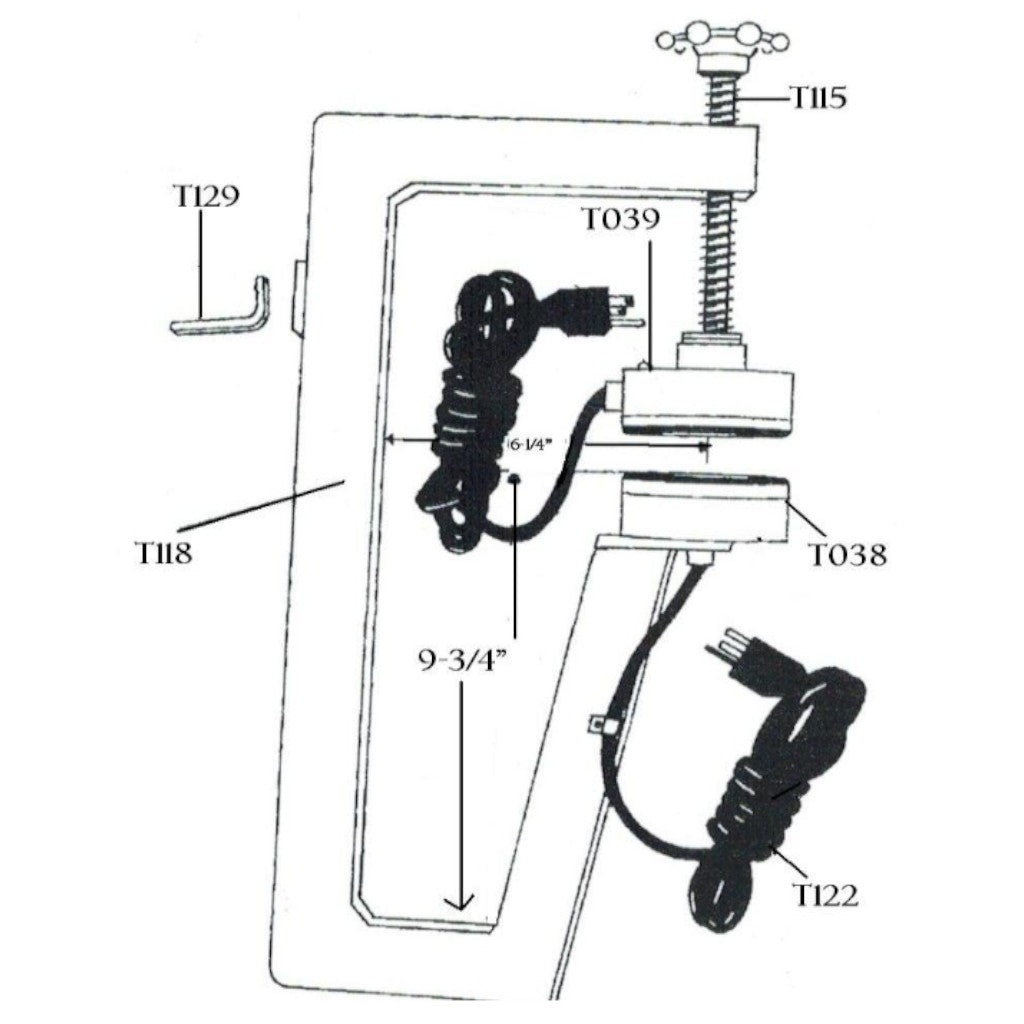

Replacement parts available! Call or email us for pricing and to place a special order for replacement parts. See the parts diagram in the pictures above and the parts list below to find the replacement part you need.
Parts Breakdown:
| Part Number | Model | Description |
| T118 | 41-B | Frame |
| T129 | 42-B | Mounting bracket |
| T039 | 43 | Upper heat unit (specify 120V or 240V) |
| T038 | 34 | Lower heat unit (specify 120V or 240V) |
| T115 | 46-B | Pressure screw |
| T123 | Thermostat for 3″ heat unit | |
| T124 | Element for 3″ heat unit (specify 120V or 240V) | |
| T122 | Electrical cord |
