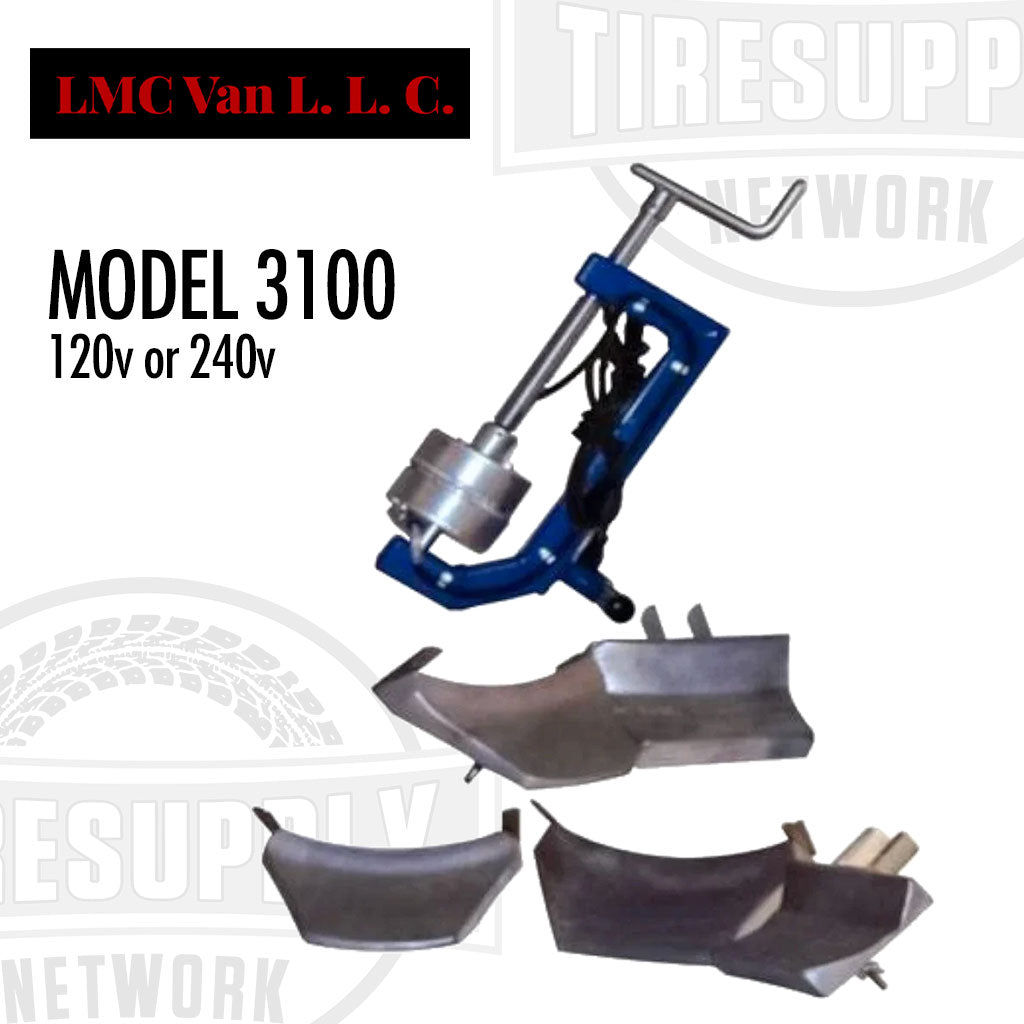

Lincoln LMC Model 3100 PL Truck Tire Bead Vulcanizer Spotter with Plates- Choose 120V or 240V
Features:
- Small in size, large capacity - capable of 7" spot repair.
- Simple to operate - position vulcanizer on bead, align and tighten.
- Lightweight at only 22 pounds.
- Price includes plates to repair both 22.5 and 24.5 radial and bias-ply tubeless tires.
- Repairs damaged bead coverings on radial and bias-ply tubeless truck tires.
- Available in 120V or 240V.
Specifications:
- Shipping Weight: 38 lbs (17 kg)
- Curing Head Size: 4″ (10 cm)
- Number of Curing Heads: 2 each
- Throat Depth: 3-1/2″ (9 cm)

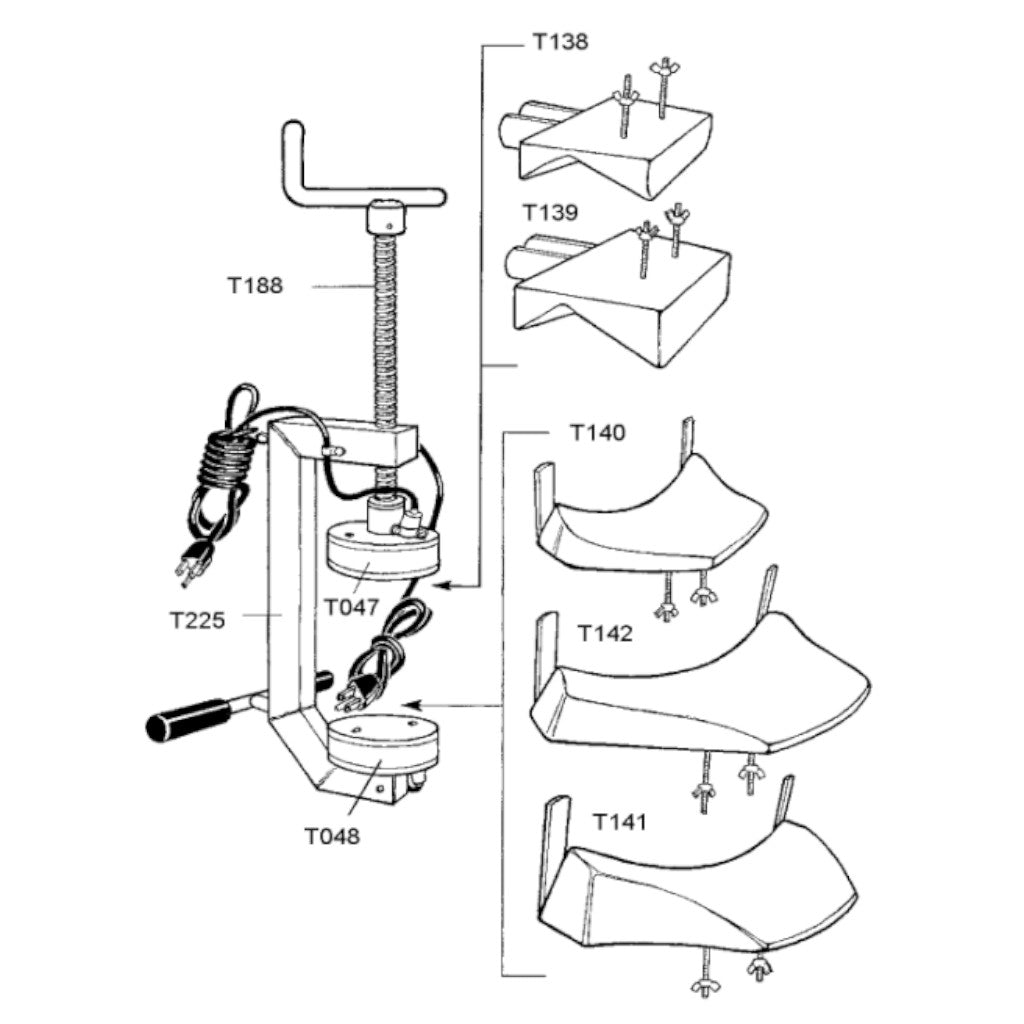

Replacement parts available! Call or email us for pricing and to place a special order for replacement parts. See the parts diagram in the pictures above and the parts list below to find the replacement part you need.
Parts Breakdown:
| Part Number | Model | Description |
| T047 | 31-3 | Outside heat unit, swivel |
| T048 | 3-4 | Inside heat unit, fixed |
| T138 | 31-31 | Outside bead contour plate (radial ply) |
| T139 | 31-31S | Outside bead contour plate (bias ply) |
| T140 | 31-22 | Inside bead contour plate (22.5 radial) |
| T141 | 31-22B | Inside bead contour plate (22.5 bias) |
| T142 | 31-24 | Inside bead contour plate (24.5 radial) |
| T188 | Hand-wheel and pressure screw | |
| T225 | Frame | |
| T125 | Element for 4″ heat unit | |
| T145 | Thermostat for 4″ heat unit | |
| T122 | Electrical cord |
