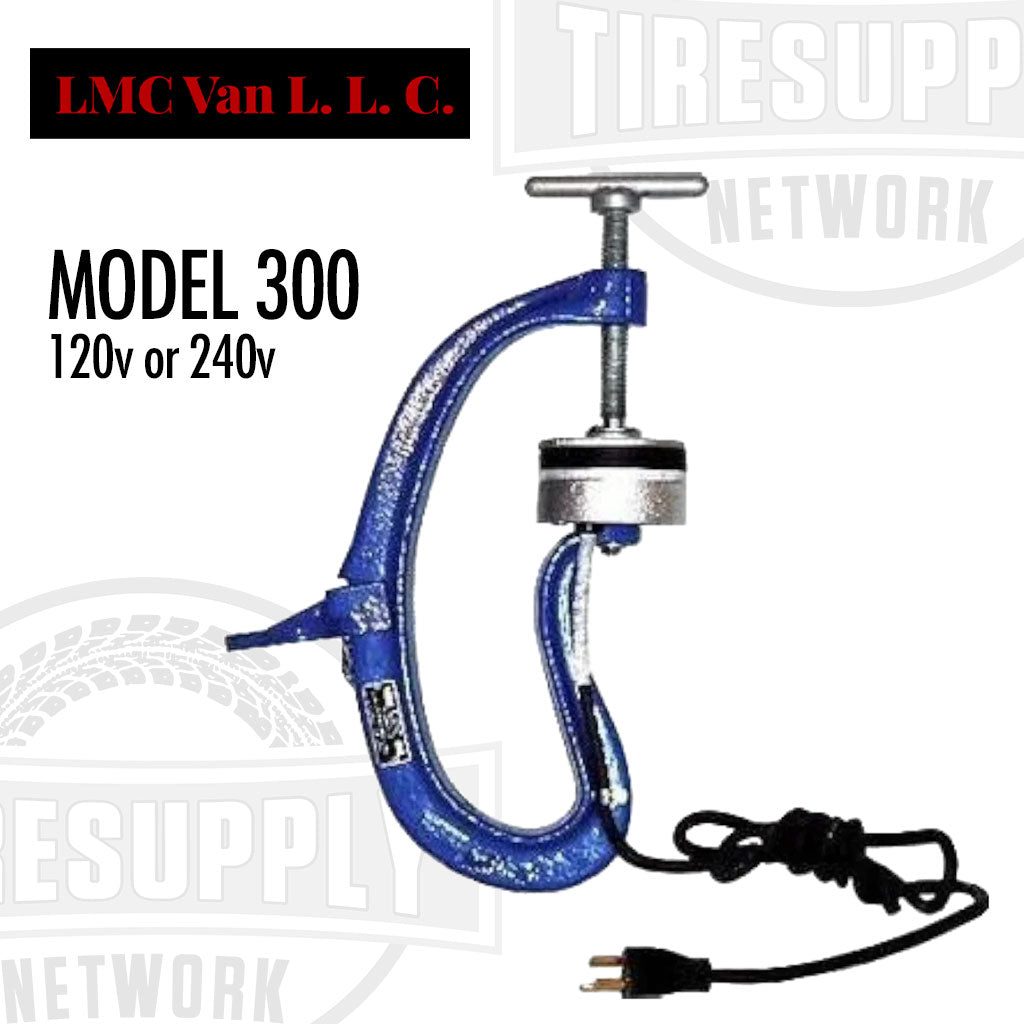

Lincoln LMC Model 300 Passenger Tire Vulcanizer Spotter - Choose 120V or 240V

Join CLUB5 at Tire Supply Network and save 5% on EVERY order! Learn more

Choose Voltage: 120V

Lincoln LMC Model 300 Passenger Tire Vulcanizer Spotter - Choose 120V or 240V

Tread-area repairs are easy with this lightweight, portable vulcanizer.

Now you can repair nail holes and other punctures in passenger tires the professional way - with heat. Unit flows repair rubber through the injury to protect cord and steel belts from moisture and contamination.


  • Accommodates passenger-size tube and tubeless tires.
  • Thermostatically controlled heat unit reaches operating temperature quickly and maintains it evenly.
  • Bench-mount or portable.
  • Available in 120V or 240V.


  • Shipping Weight: 12 lbs (5 kg)
  • Curing Head Size: 3-5/16″ (9 cm)
  • Number of Curing Heads: 1 each
  • Throat Height: 8-1/4″ (21 cm)
  • Throat Depth: 4″ (10 cm)

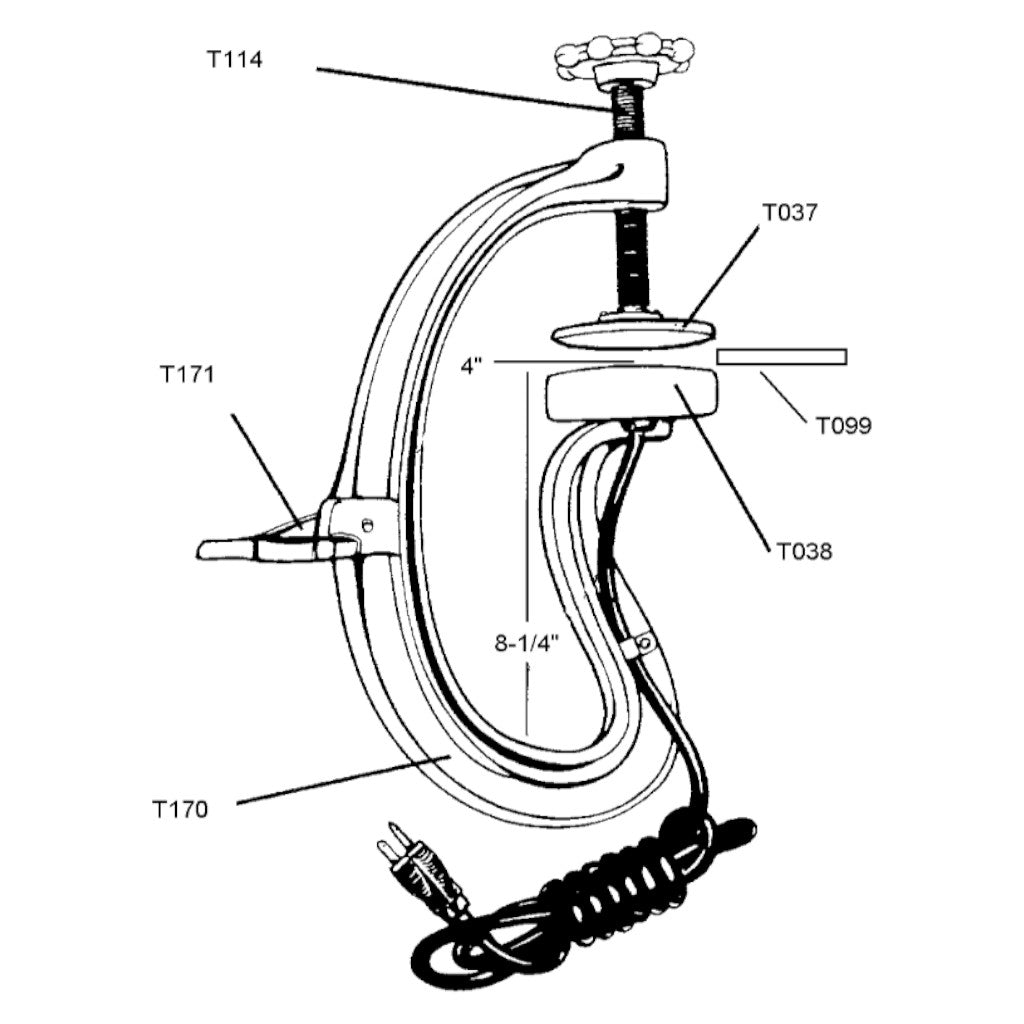

        Replacement parts available! Call or email us for pricing and to place a special order for replacement parts. See the parts diagram in the pictures above and the parts list below to find the replacement part you need.

        Parts Breakdown:

        Part Number Model Description
        T037 33 Top pressure plate
        T038 34 Heat unit, fixed (specify 120V or 240V)
        T099 RP-3 Rubber pad
        T114 36 Pressure screw
        T170 31 Frame
        T171 32 Mounting bracket
        Thermostat for 3″ heat unit
        Element for 3″ heat unit (specify 120V or 240V)
        T122 Electrical cord
