T026-120V

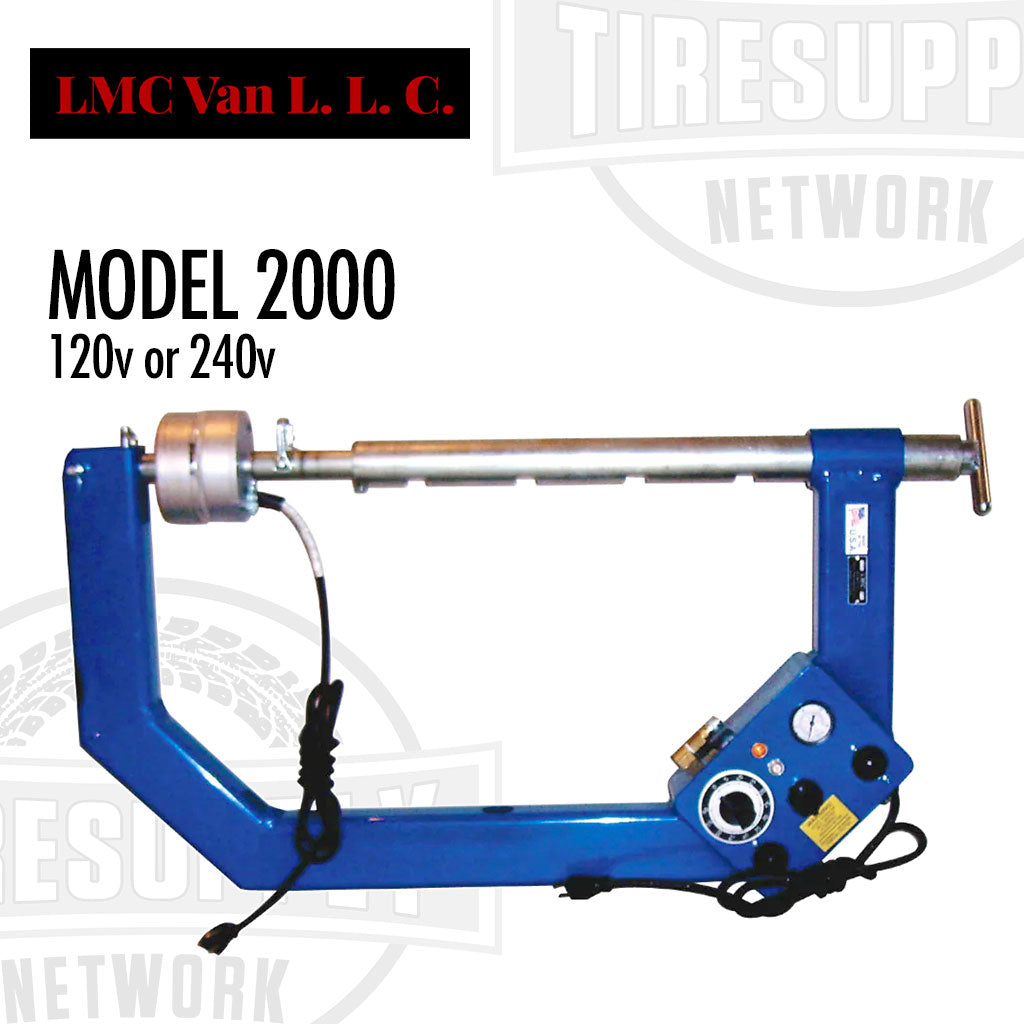

Lincoln LMC Model 2000 Air-Operated Truck Tire Vulcanizer Spotter - Choose 120V or 240V

Choose Voltage: 120V

Lincoln LMC Model 2000 Air-Operated Truck Tire Vulcanizer Spotter - Choose 120V or 240V

Features:

  • Only spotter in the market that handles tread, shoulder and sidewall repairs on all tires from low profile to super singles.
  • Will handle future tire sizes simply by changing contour plates.
  • Patented piston/pad system for expert repairs.
  • Inside-outside heat system.
  • Spring-loaded mechanical pressure, with solid heat units.
  • No expensive airbags to replace (average of less than 30 cents per cure).
  • Optional large-capacity Model TS stand (T033) supports both tire and vulcanizer with dual 16" rollers for easy tire rotation.
  • Optional plate package (T156) contains 9 plates.
  • Available in 120V or 240V.

Specifications:

  • Shipping Weight: 74 lbs (34 kg)
  • Curing Head Size: 6″ (15 cm)
  • Number of Curing Heads: 3 each
  • Throat Height: 24-1/2″ (62 cm)
  • Throat Depth: 11-1/2″ (29 cm)

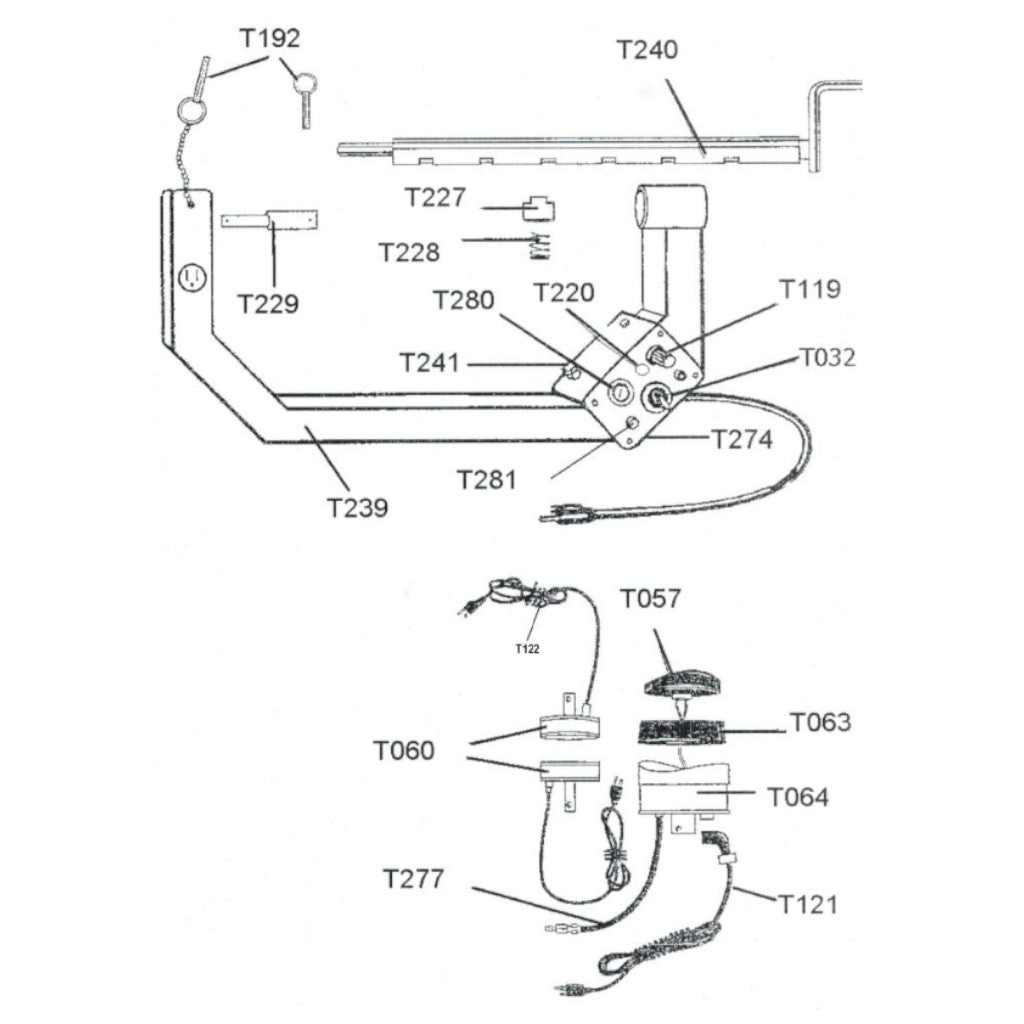

                  Replacement parts available! Call or email us for pricing and to place a special order for replacement parts. See the parts diagram in the pictures above and the parts list below to find the replacement part you need.

                  Parts Breakdown:

                  Part Number Model Description
                  T057 AS4-16 Contoured silicone heat pad 6″ diameter with electrical
                  T060 AS3-20 Solid heat units
                  T063 AS5-6 Silicone air seal 6″ diameter
                  T064 AS6-20 Steel air cylinder with contoured lip
                  T121 AS11 Detachable electrical cord for T057
                  T032
                  1 Hour timer
                  T156
                  Contour plate set
                  T192
                  Detent pin
                  T227
                  Plunger
                  T228
                  Spring
                  T229
                  Extension shaft
                  T239
                  Frame
                  T240
                  Telescoping assembly
                  T277 Air hose with 2 fittings
                  T119 AS9 Air regulator
                  T220
                  Pilot light
                  T277 Air hose with fitting
                  T274 Humphrey valve
                  T280 Panel mount air gauge
                  T281 Circuit breaker
                  T145 Thermostat for 4″ heat unit
                  T125 Element for 4″ heat unit
                  T122 Electrical cord
                  T241 Quick disconnect
