Lincoln LMC | Model 200 Tube Plate Vulcanizer Spotter - Choose 120V or 240V
Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!
Lincoln LMC | Model 200 Tube Plate Vulcanizer Spotter - Choose 120V or 240V - 120V is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

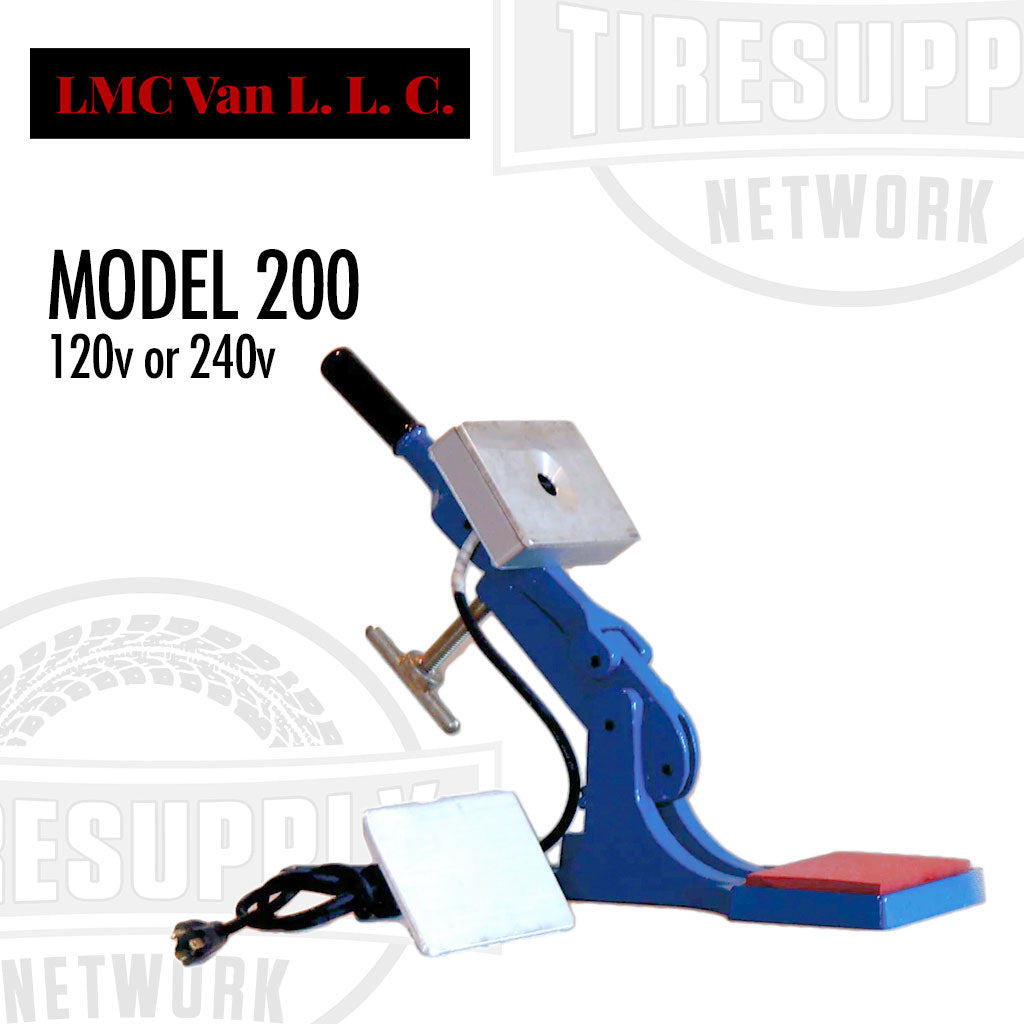

Lincoln LMC Model 200 Tube Plate Vulcanizer Spotter - Choose 120V or 240V
Features:
- The economical tube repair option.
- This tube plate will make a better repair on the most common sizes of tubes at a lower cost than any other method.
- Heat unit with snap-type thermostat reaches curing temperature fast.
- Detachable flat plate for vulcanizing valve stems.
- Available in 120V or 240V.
Specifications:
- Shipping Weight: 27 lbs (12 kg)
- Curing Head Size: 4″ x 6″ (10 x 15 cm)
- Number of Curing Heads: 1 each
- Throat Depth: 6″ (15 cm)

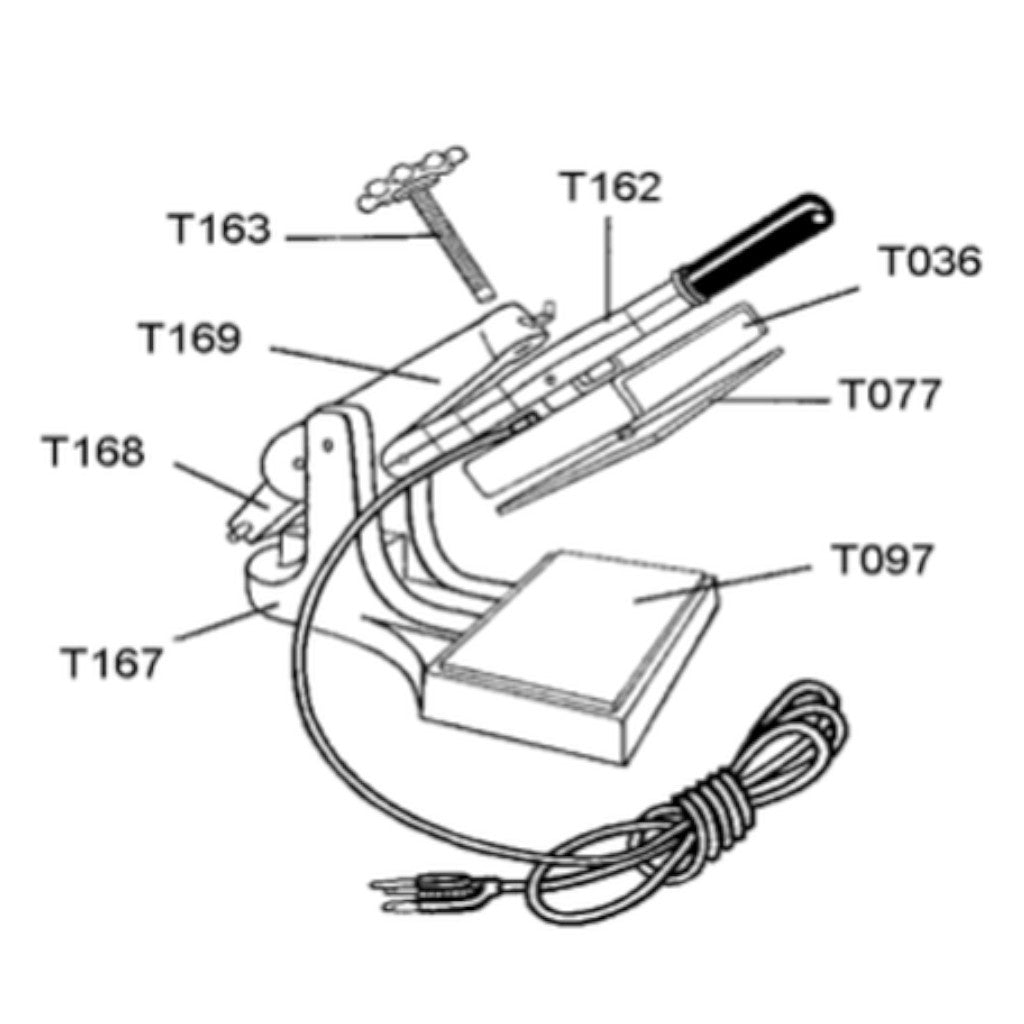

Replacement parts available! Call or email us for pricing and to place a special order for replacement parts. See the parts diagram in the pictures above and the parts list below to find the replacement part you need.
Parts Breakdown:
Part Number | Model | Description |
T036 | 26 | Heat unit |
T077 | 20 | Plate for heat unit |
T098 | RP-2 | Rubber pad |
T162 | 24 | Handle |
T163 | 27 | Hand-wheel screw |
T167 | 21 | Frame |
T168 | 22 | Trigger |
T169 | 23 | Pressure arm |
T146 | Thermostat for 4″ x 6″ heat unit | |
T127 | Element for 4″ x 6″ heat unit | |
T122 | Electrical cord |
Compliance and Restrictions
⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
