Lincoln LMC Model 150 Large Capacity Heavy Duty Plate Vulcanizer Spotter - Choose 120V or 240V
For large capacity tube repair. Model 150 includes all the features of the Model 100 plus the larger heat unit.
Features:
- Oversize frame allows plenty of room for all applications.
- Snap-type thermostat enables heat unit to reach curing temperatures fast.
- Heavy duty Vulcanizer for repairing all sizes of inner tubes and installing valve stems.
- Detachable flat plate for vulcanizing valve stems.
- Available in 120V or 240V.
Specifications:
- Shipping Weight: 47 lbs (21 kg)
- Curing Head Size: 4″ x 12″ (10 x 30 cm)
- Number of Curing Heads: 1 each
- Throat Depth: 9” (23 cm)

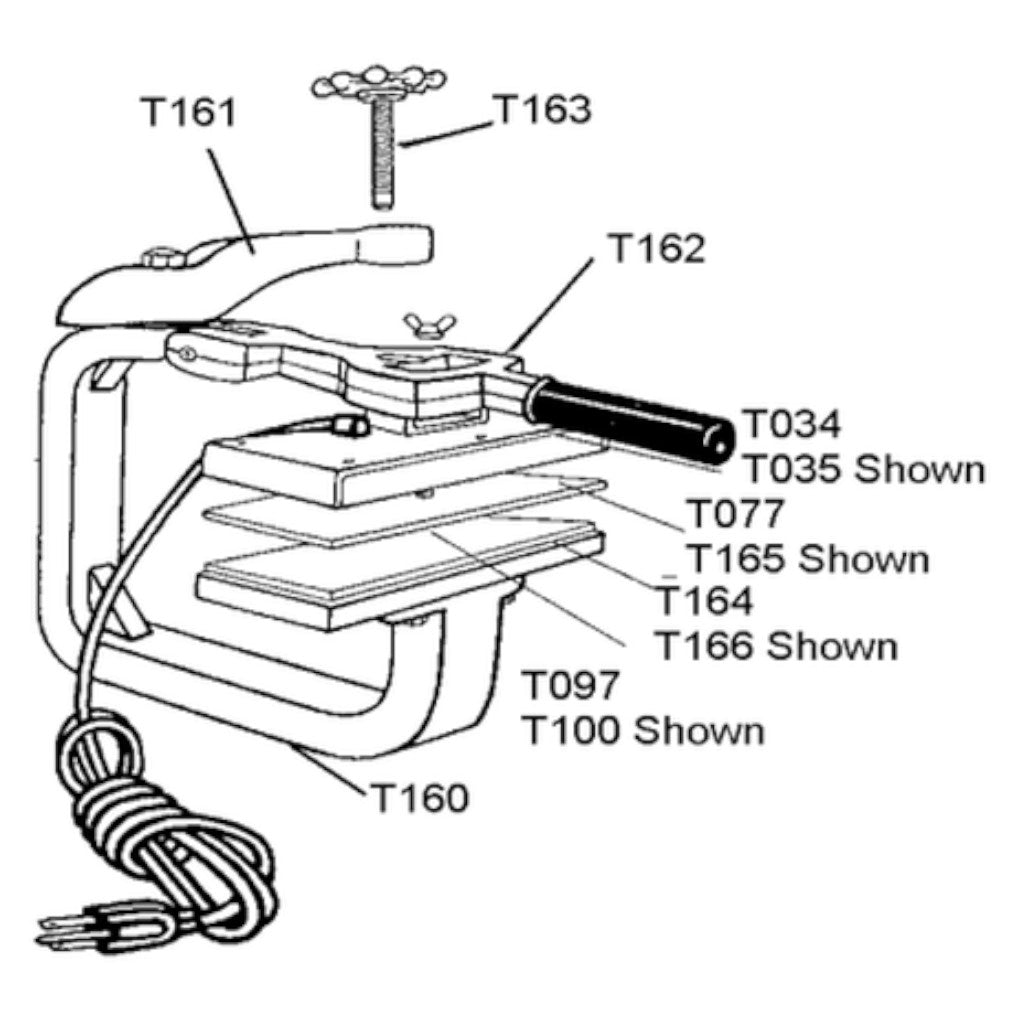

Replacement parts available! Call or email us for pricing and to place a special order for replacement parts. See the parts diagram in the pictures above and the parts list below to find the replacement part you need.
Parts Breakdown:
| Part Number | Model | Description |
| T035 | 156 | Heat unit |
| T100 | RP-15 | Rubber Pad |
| T160 | 2 | Frame |
| T161 | 3 | Pressure arm |
| T162 | 24 | Handle |
| T163 | 27 | Hand-wheel screw |
| T165 | 10L | Plate for heat unit |
| T166 | L-5 | Rubber pad plate |
| T147 | Thermostat for 4″ x 12″ heat unit | |
| T122 | Electrical Cord |
