T001-120V

Lincoln LMC Model 100 Heavy Duty Tube Plate Vulcanizer Spotter - Choose 120V or 240V

Join CLUB5 at Tire Supply Network and save 5% on EVERY order! Learn more

Choose Voltage: 120V

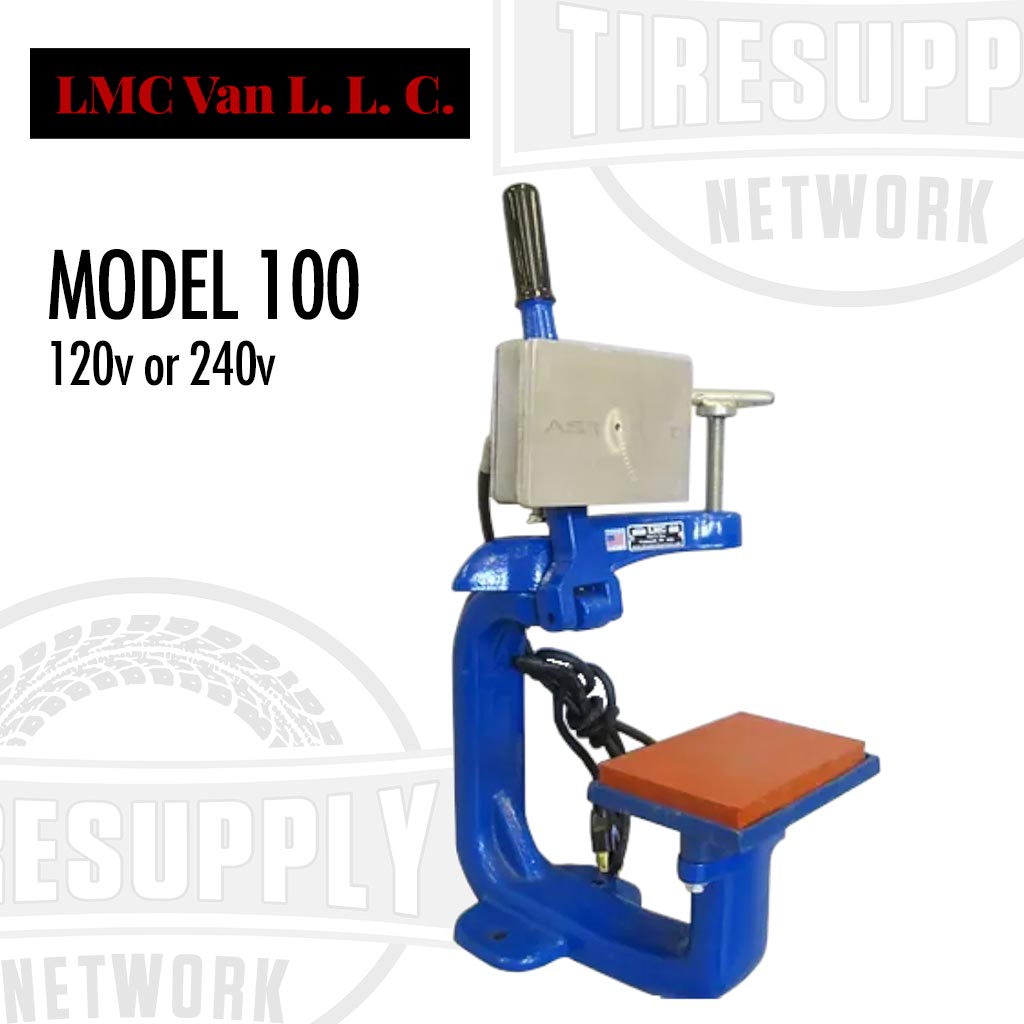

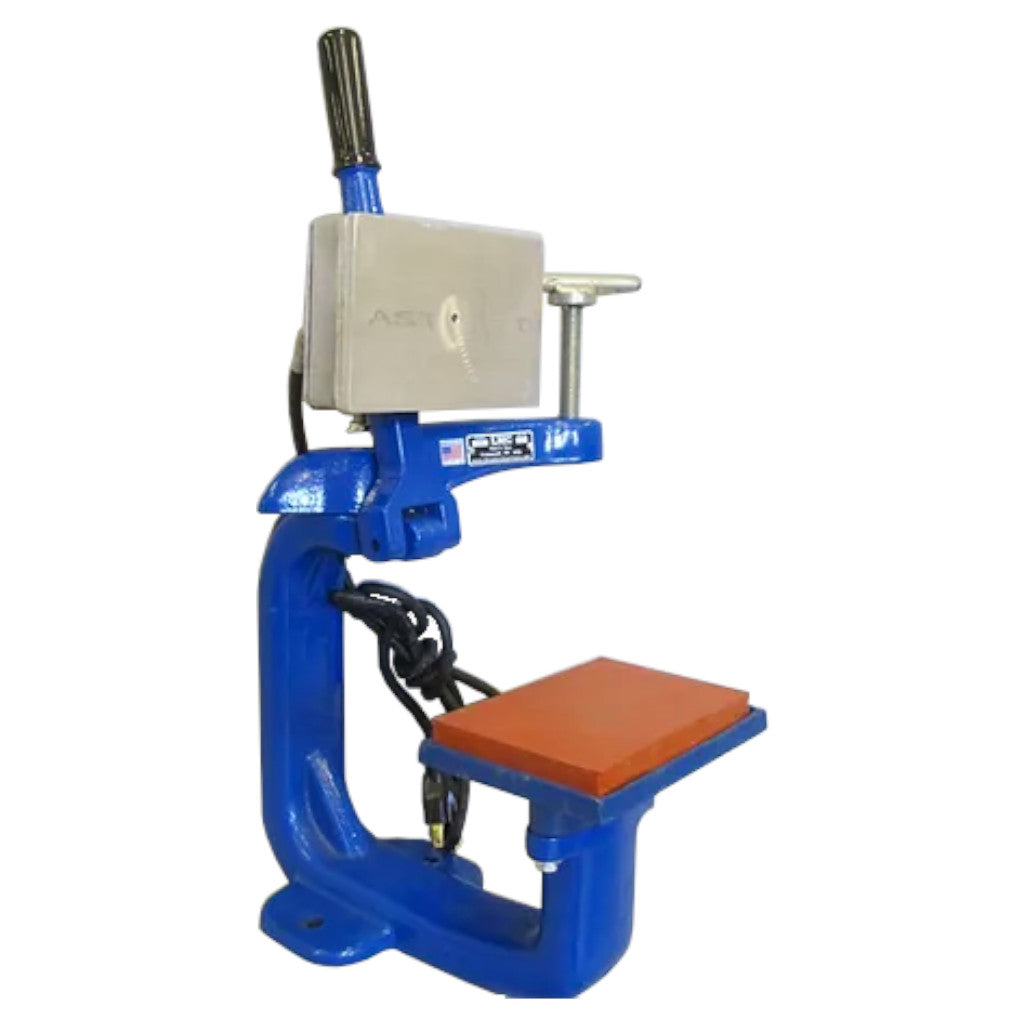

Lincoln LMC Model 100 Heavy Duty Tube Plate Vulcanizer Spotter - Choose 120V or 240V

For large capacity tube repair. Model 150 includes all the features of the Model 100 plus the larger heat unit.

Features:

  • Oversize frame allows plenty of room for all applications.
  • Snap-type thermostat enables heat unit to reach curing temperatures fast.
  • Heavy duty Vulcanizer for repairing all sizes of inner tubes and installing valve stems.
  • Detachable flat plate for vulcanizing valve stems.
  • Available in 120V or 240V

Specifications:

  • Shipping Weight: 45 lbs (20 kg)
  • Curing Head Size: 4″ x 6″ (10 x 15 cm)
  • Number of Curing Heads: 1 each
  • Throat Depth: 9” (23 cm)

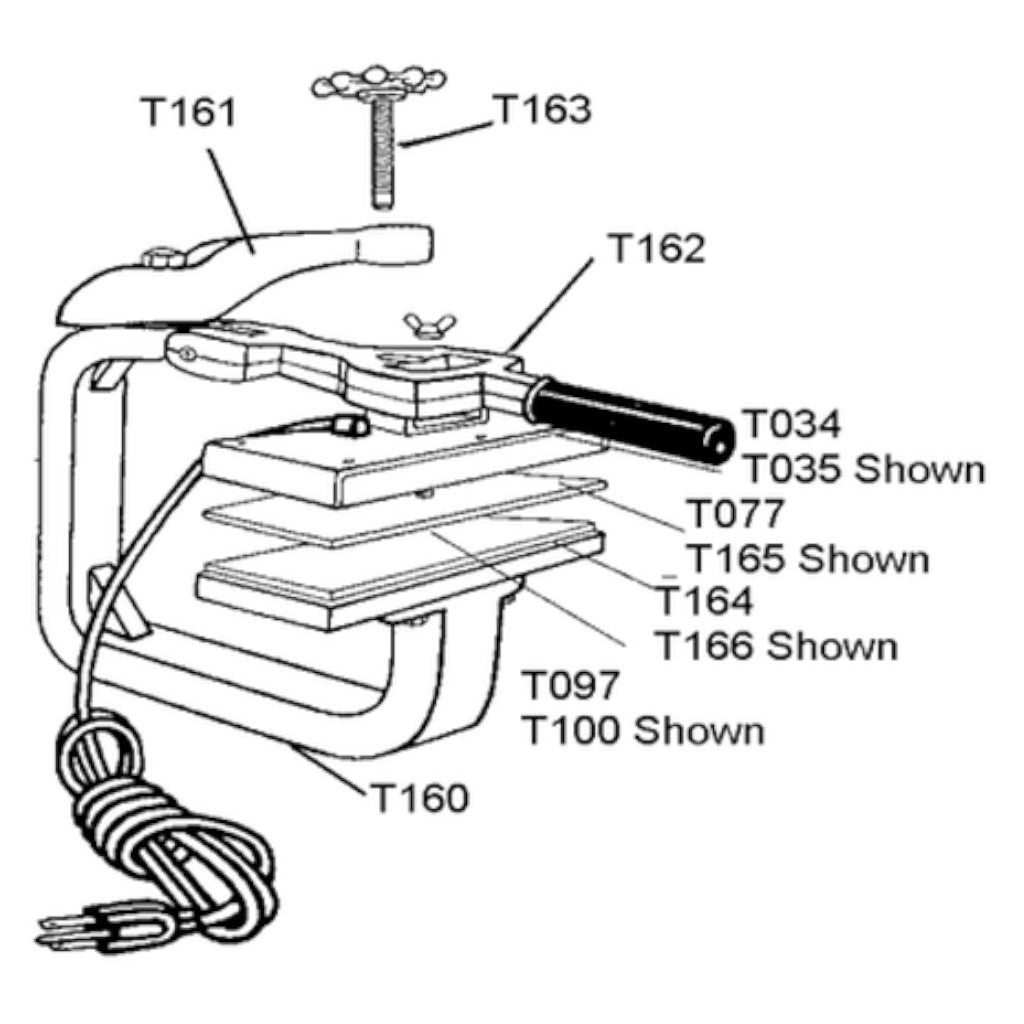

Replacement parts available! Call or email us for pricing and to place a special order for replacement parts. See the parts diagram in the pictures above and the parts list below to find the replacement part you need.

Parts Breakdown:

Part Number Model Description
T034 6 Heat unit
T077 20 Plate for heat unit
T097 RP-1 Rubber Pad
T160 2 Frame
T161 3 Pressure arm
T162 24 Handle
T163 27 Hand-wheel screw
T164 S-5 Rubber pad plate
T146 Thermostat for 4″ x 6″ heat unit
T127 Element for 4″ x 6″ heat unit
T122 Electrical Cord
