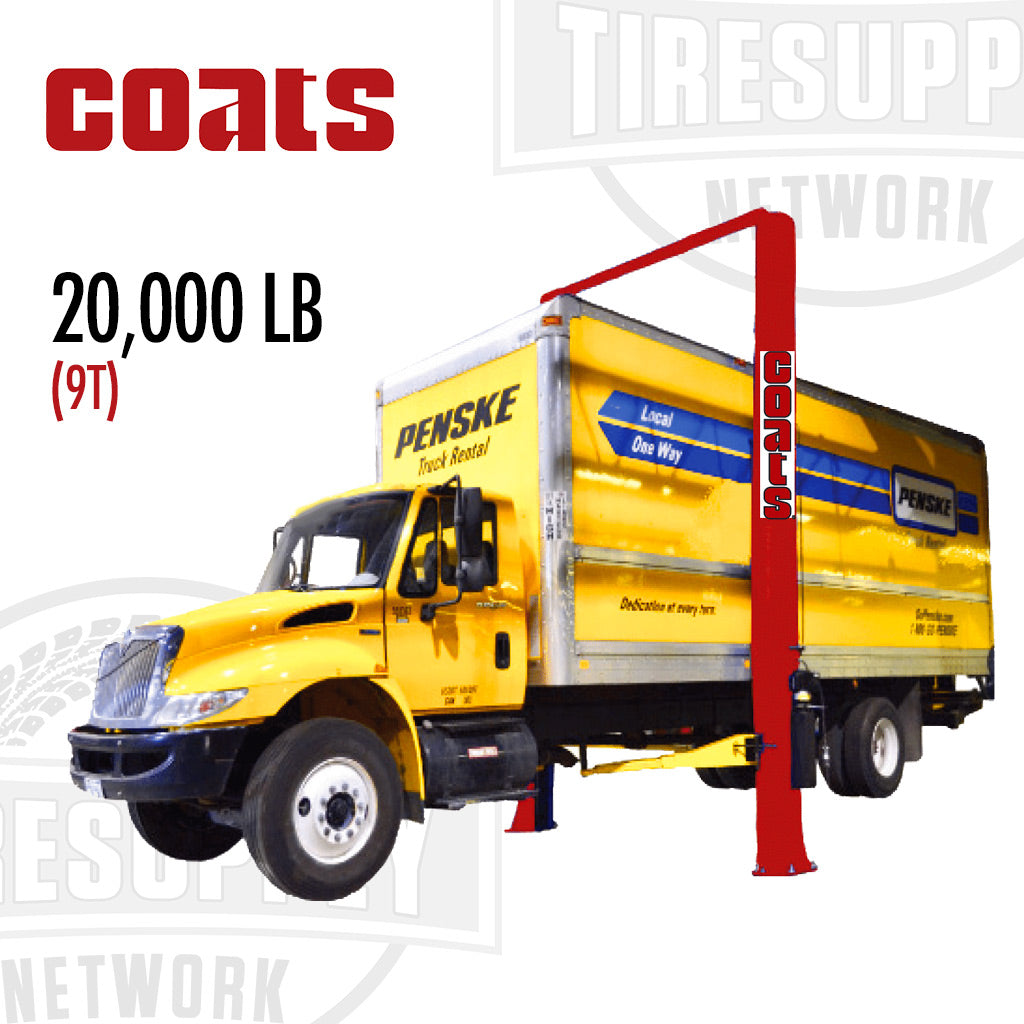

Coats | Two Post Lift 20,000 lb / 9T Capacity - Red (4T220SSR1)
Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!
As low as $415.58 for 72 months Finance Now!
Coats | Two Post Lift 20,000 lb / 9T Capacity - Red (4T220SSR1) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Coats | Two Post Lift 20,000 lb / 9T Capacity - Red (4T220SSR1)
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
PLEASE NOTE: All lifts do not include installation. If you do not have a forklift, we can arrange for a dock pickup at the freight carrier.
SEMA REBATE PROMOTION - OCTOBER 1 - NOVEMBER 30, 2025
Maximize Uptime and Productivity
2 POST STYLE 20,000 LB. / 9T CAPACITY RED
Blue Color Lift Option is Available. Inquire via email - help@tiresupplynetwork.com
Features
Features | Benefits |
Premium bake Powder coat finish | Protects against structural corrosion |

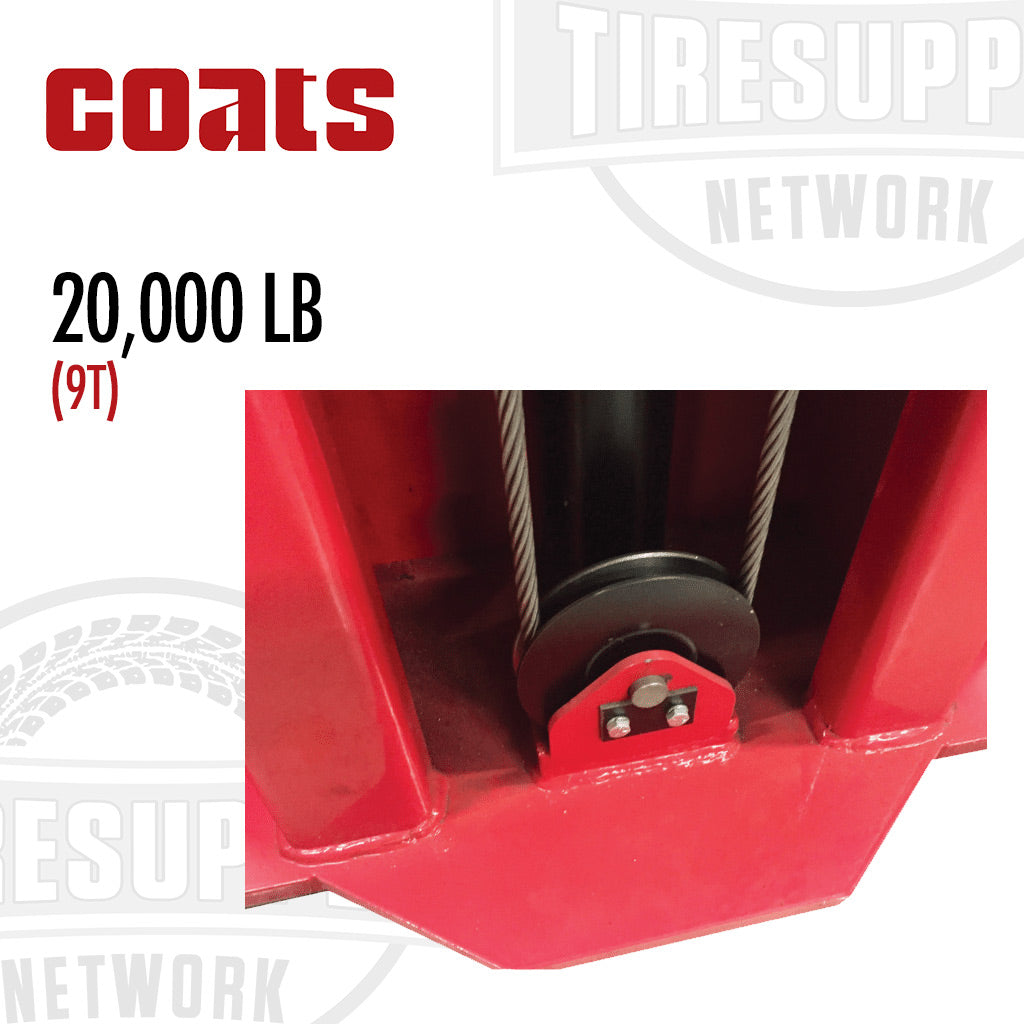

5”/ 127mm Steel Pulleys & 3/8”/9.5mm IWRC 6 x 36 cables | Last longer with less maintenance |
1 piece 199.5"/ 5067mm column can be ordered shorter | More flexibility & lower installation costs |

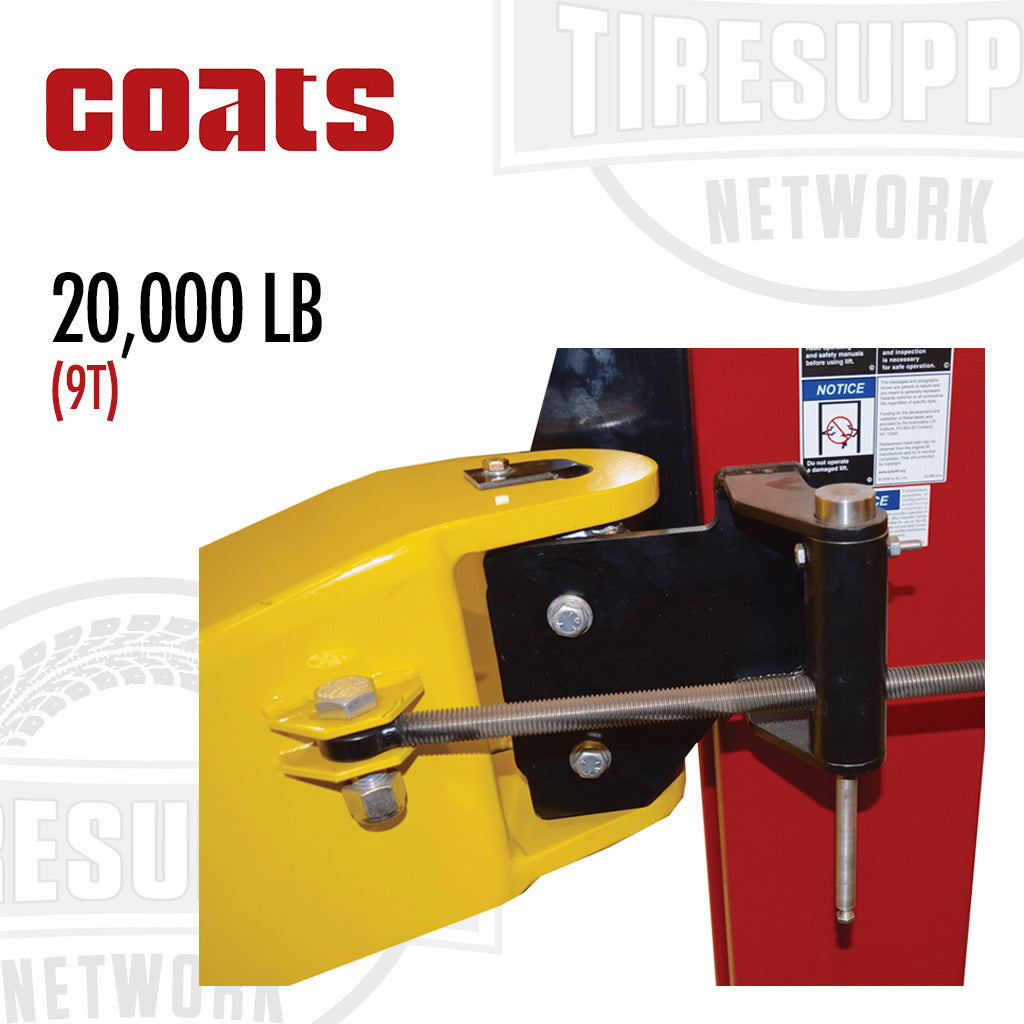

Replaceable plated heavy duty arm restraints | Last longer with lower maintenance |
Heavy Duty 2 piece non sag adjustable arms | More stable with heavy or uneven loads |
Air release single point locking | Last longer with less maintenance |

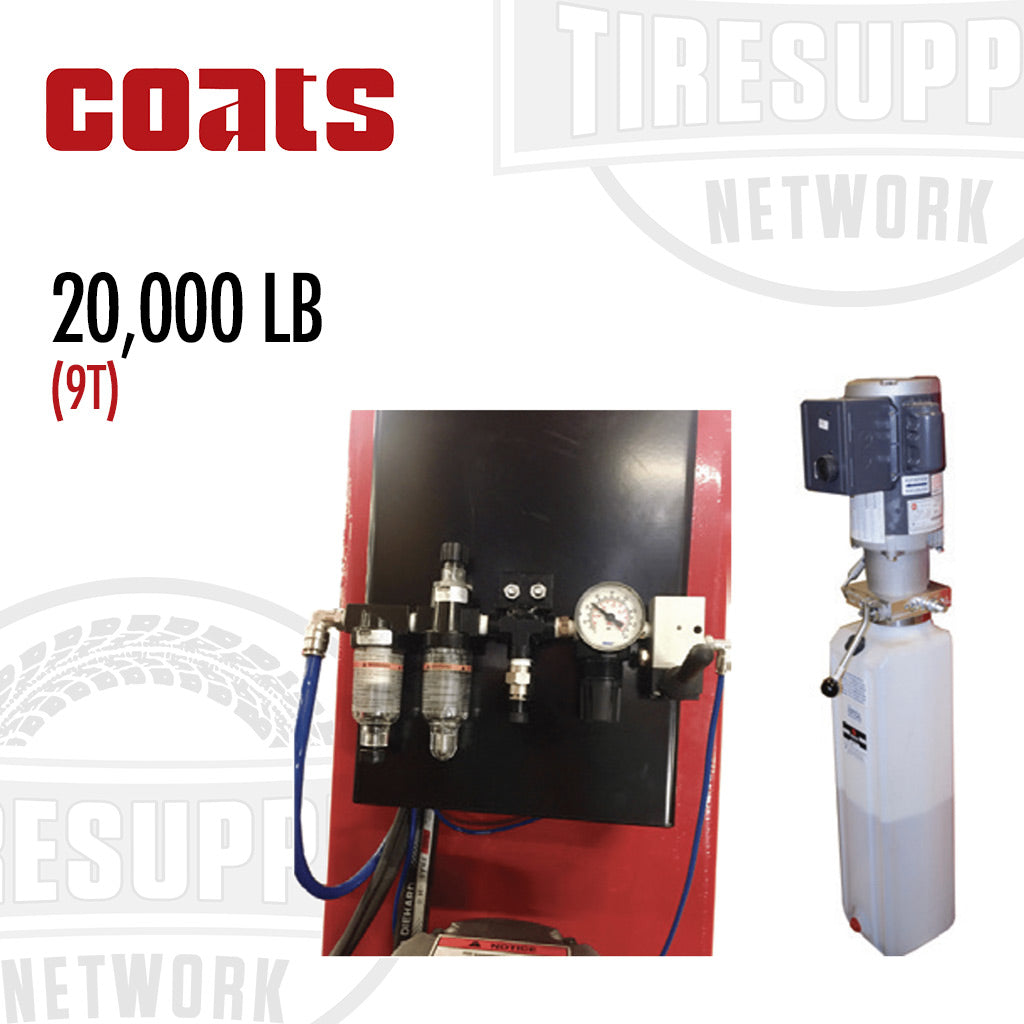

Standard air regulator filter | Reduces maintenance with air system |
Premium US Made Bucher 4hp/ 3kw Power Unit | Lasts longer with less maintenance |
72”/ 1829mm stroke cylinders raises 87.5"/ 2172mm | Lifts higher for more under car working height |
120.5"/ 3061mm space between columns | More flexibility with larger trucks |
Large irregular shaped base 17" x 31"/ 432mm x 787mm | Greater stability |
Low arm pad drive over height 4" or 5"/ 102mm x 127mm | Provides greater access with lower vehicles |
Specifications:
Part# | 4T220SSR1 |
Capacity | 20,000 lb / 9.2T |
Lifting Style | Symmetric |
Overall Height | 199.5"/ 5067mm |
Overall Width | 152”/ 3861 mm |
Width Between Columns | 120.5”/ 3061 mm |
Drive Thru Width | 106.75”/ 2712mm |
Under Bar Clearance | 192.5”/ 4890mm |
Lowered Height - Standard Lift Pad | 5”/ 127mm |
Raised Height - Standard Lift Pad | 76”/ 1930mm |

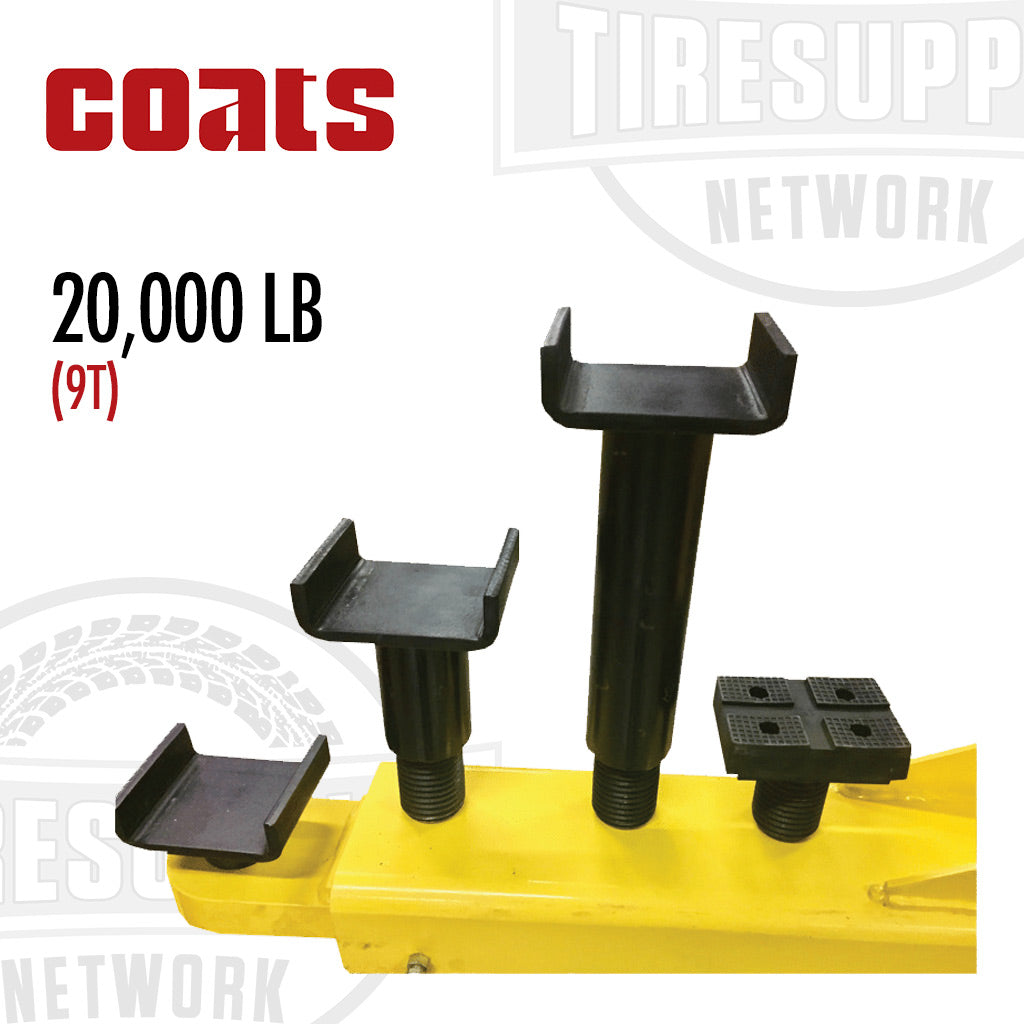

Raised Height - w/ Adapters | 85.5"/ 2172mm |
Front Arm Reach | 34” to 62” / 864mm to 1575mm |
Rear Arm Reach | 34” to 62” / 864mm to 1575mm |
Lifting Time | 75 seconds |
Standard Power Requirements | 230V - 60Hz - 1PH - 20 Amp 4HP / 2kw Motor |
Footprint | 199"h x 152"w x 31"d |
Ceiling Height Required | 17' |
Shipping Weight | 3850 lb. / 1,750 kg |
ALI Certified w/ Gold Label | Yes |
Need replacement parts? Call or email us and we can special order them for you!
