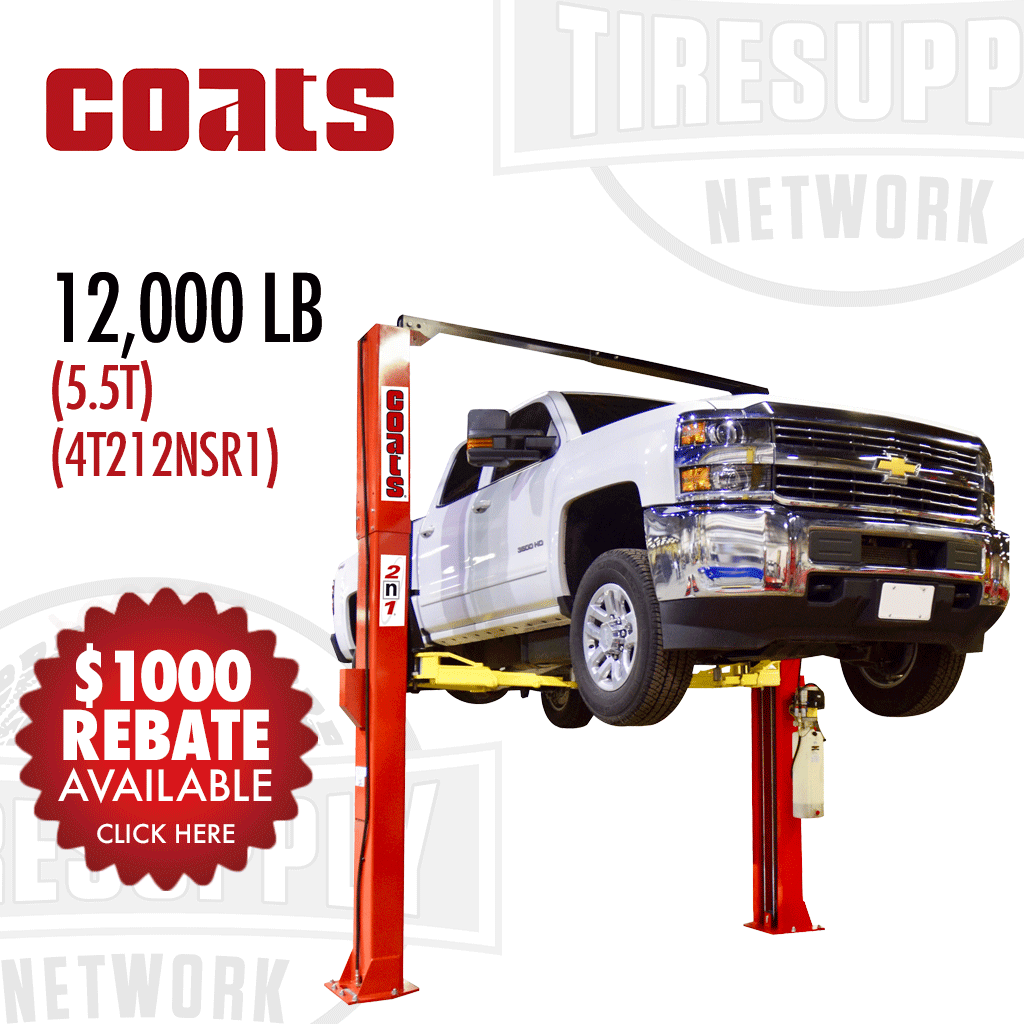

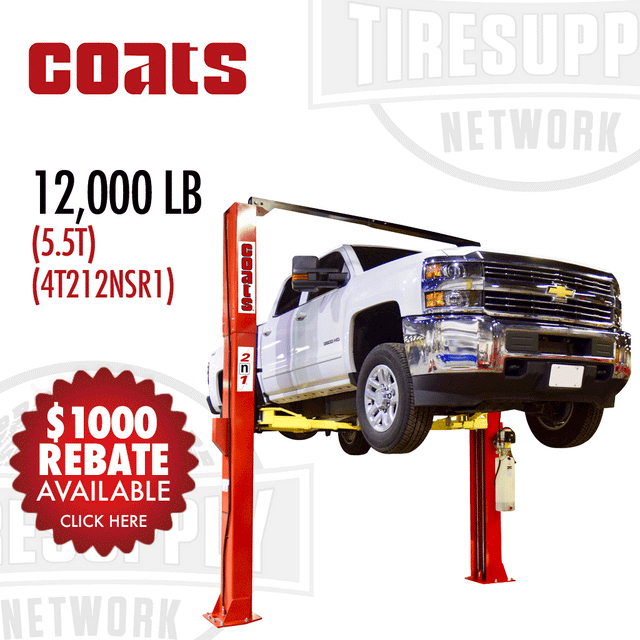

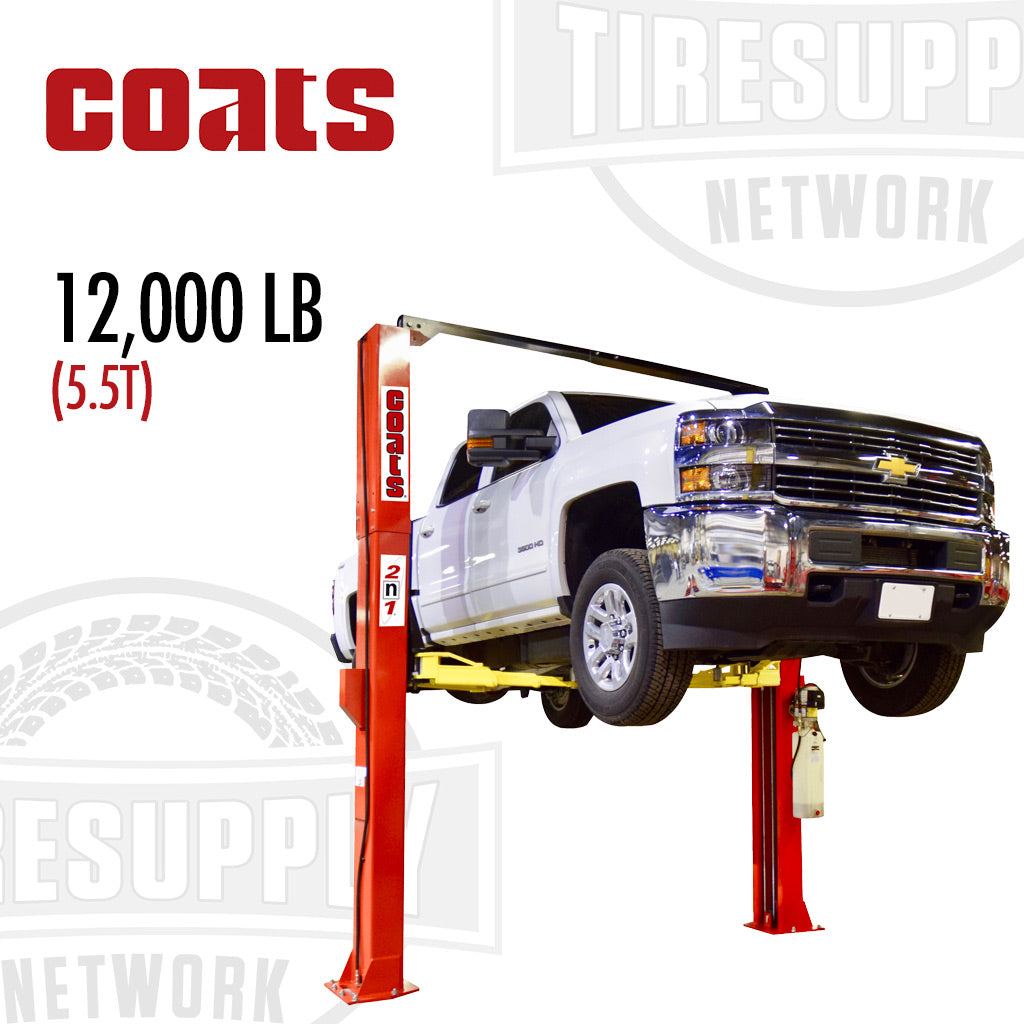

Coats | Two Post Lift 12,000 lb / 5.5T Capacity - Red (4T212NSR1)
PLEASE NOTE:Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
Maximize Uptime and Productivity
2 POST STYLE 12,000 LB. / 5.5T CAPACITY RED
Blue Color Lift Option is Available. Inquire via email - help@tiresupplynetwork.com
| Features | Benefits |
| Premium bake Powder coat finish | Protects against structural corrosion |

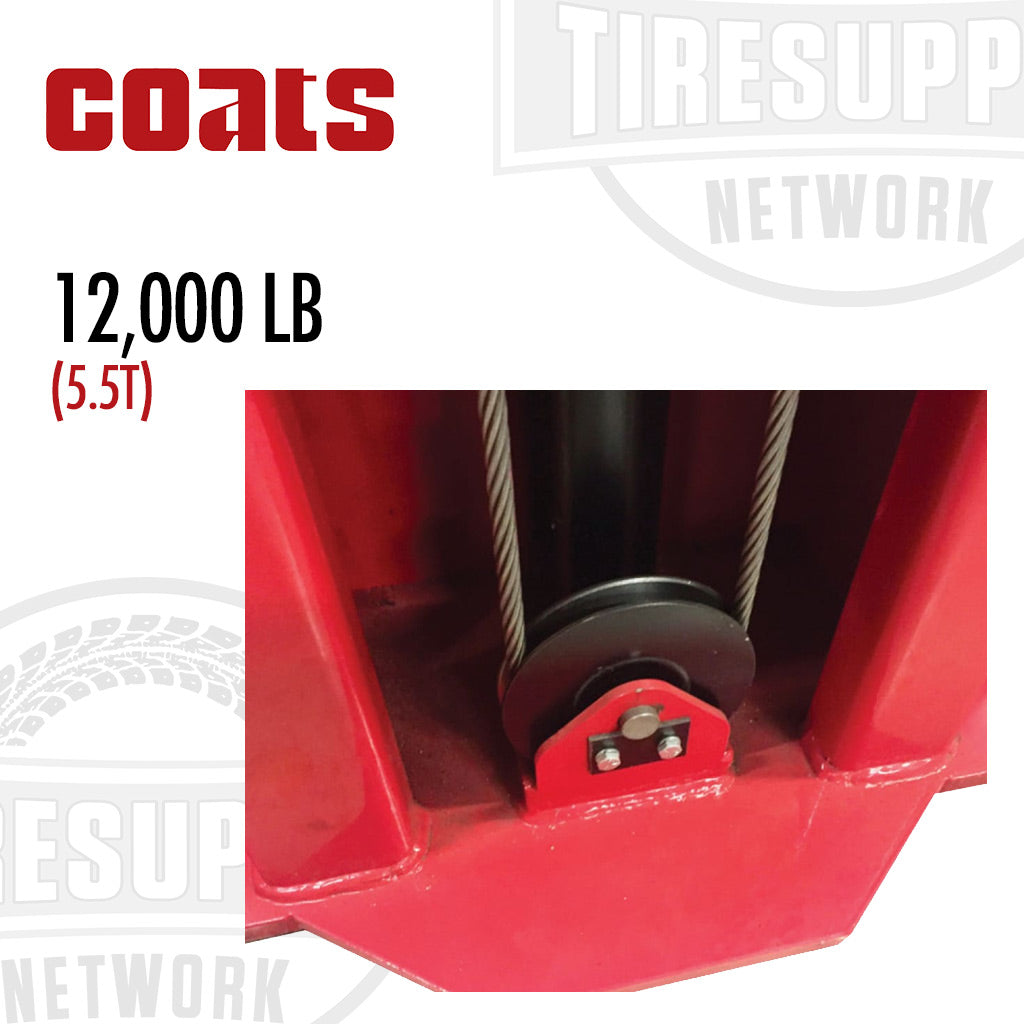

| 4 3/8” 89mm Steel Pulleys & 3/8” 9.5mm I 6 x 36 cables | Last longer with less maintenance |

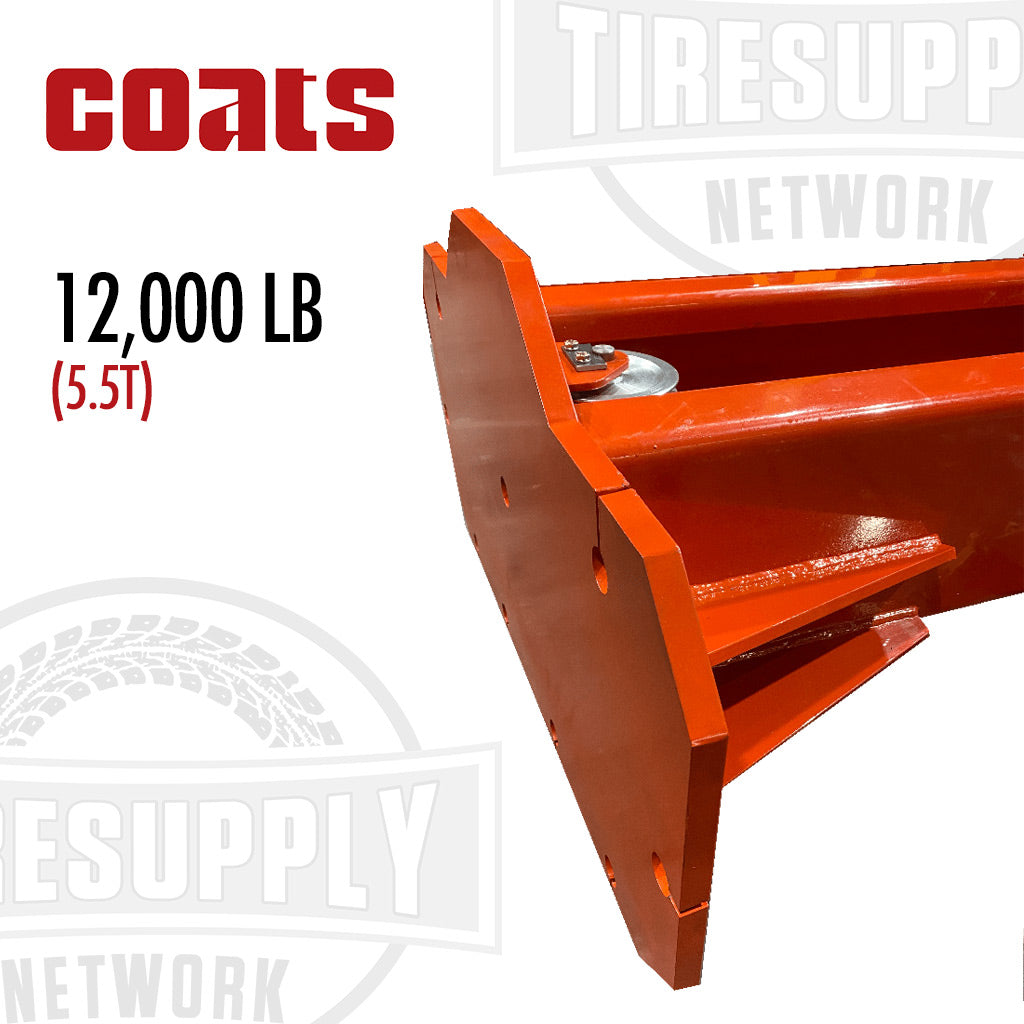

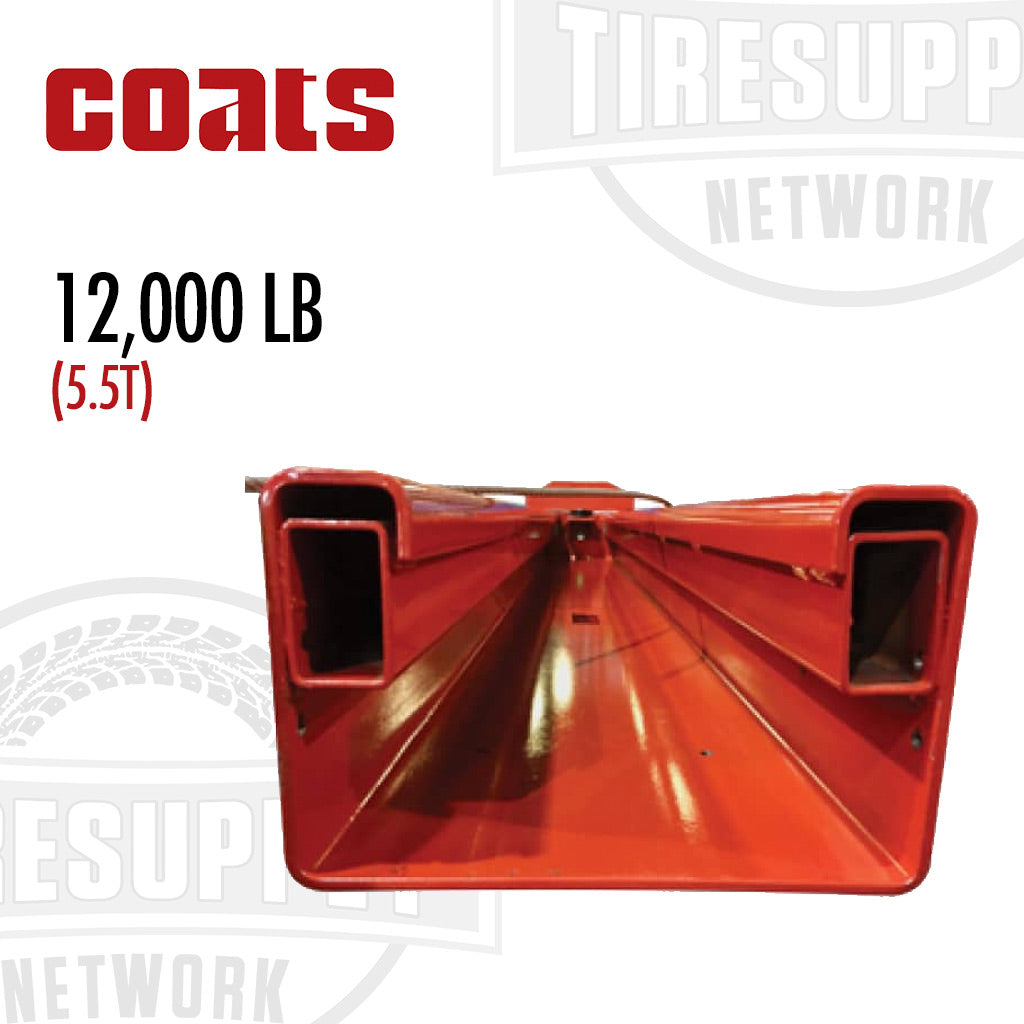

| Columns 1.5” x 2.5” / 51 x 64mm inner tube support | Up to 18% heavier columns ex less under load |
| Reinforced carriage Arms pin holes | Carriage & lift arms last longer with less sag |

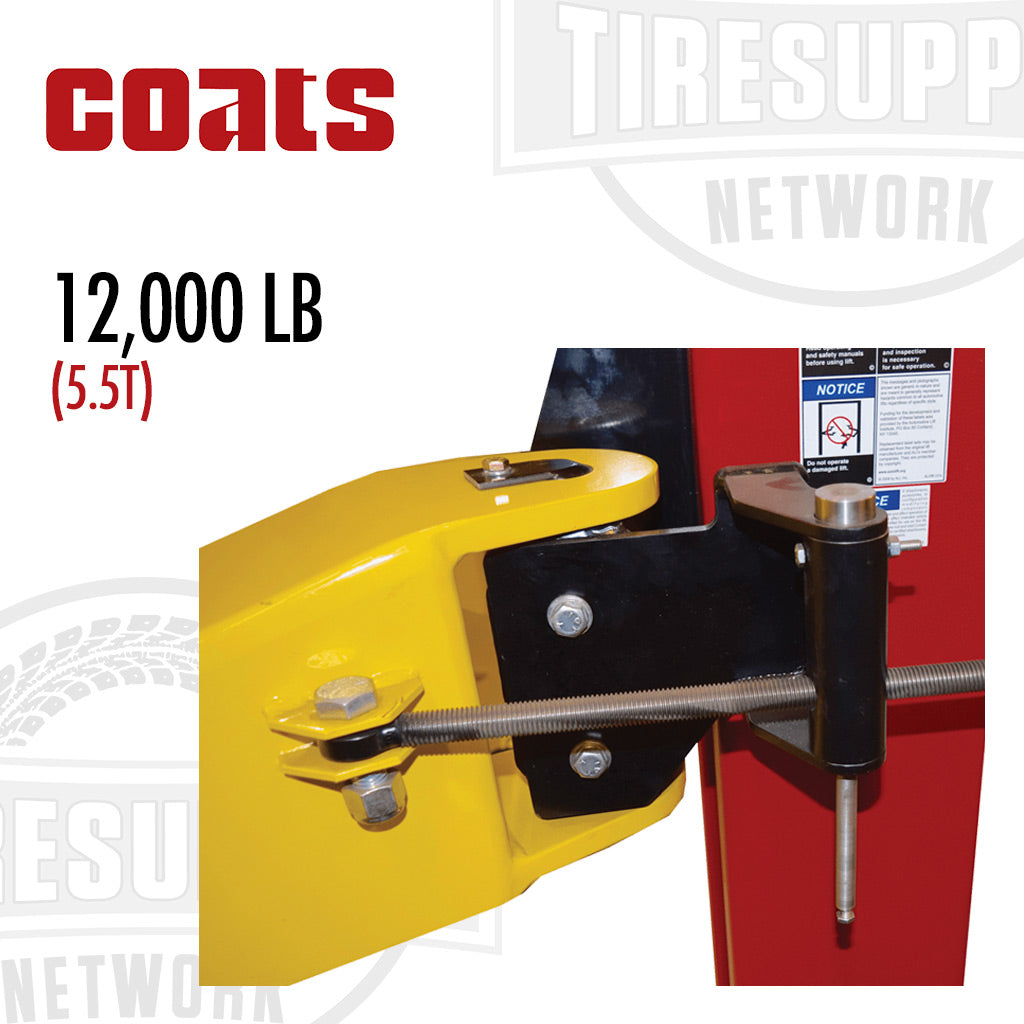

| Replaceable plated gear style arm restraints | Last longer with lower maintenance cost |
| Carriage mounted rubber door bumper guards | Protects customer cars from door damage |
| Single point release - controls can be on either column | Greater flexibility for the operator |

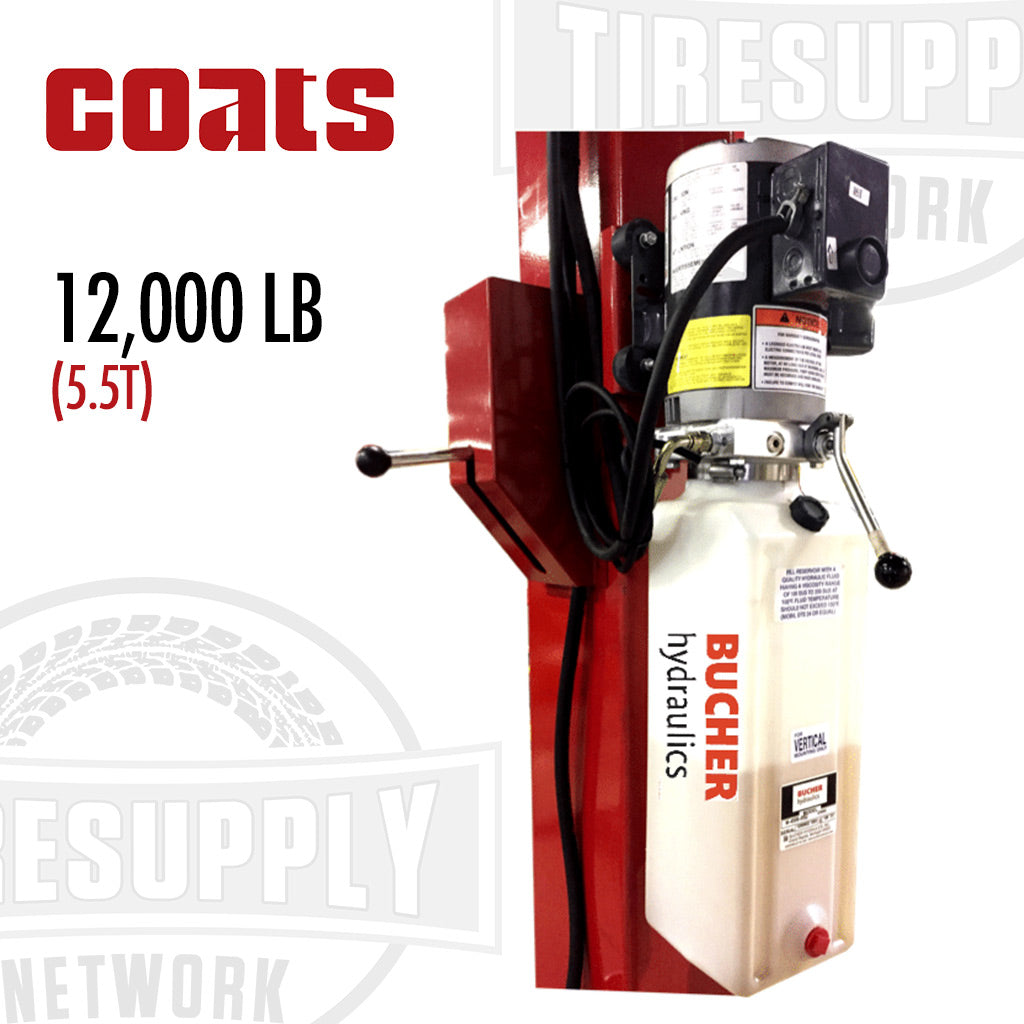

| Premium US Made Bucher Power Unit | Lasts longer with Less maintenance |
| 70.5” 1791mm stroke cylinders | Lifts higher for more under car working height |
| Field adjustable height setting | Lower installation cost more flexibility |
| Rubber power unit motor mounts | Motor lasts longer and runs quieter |

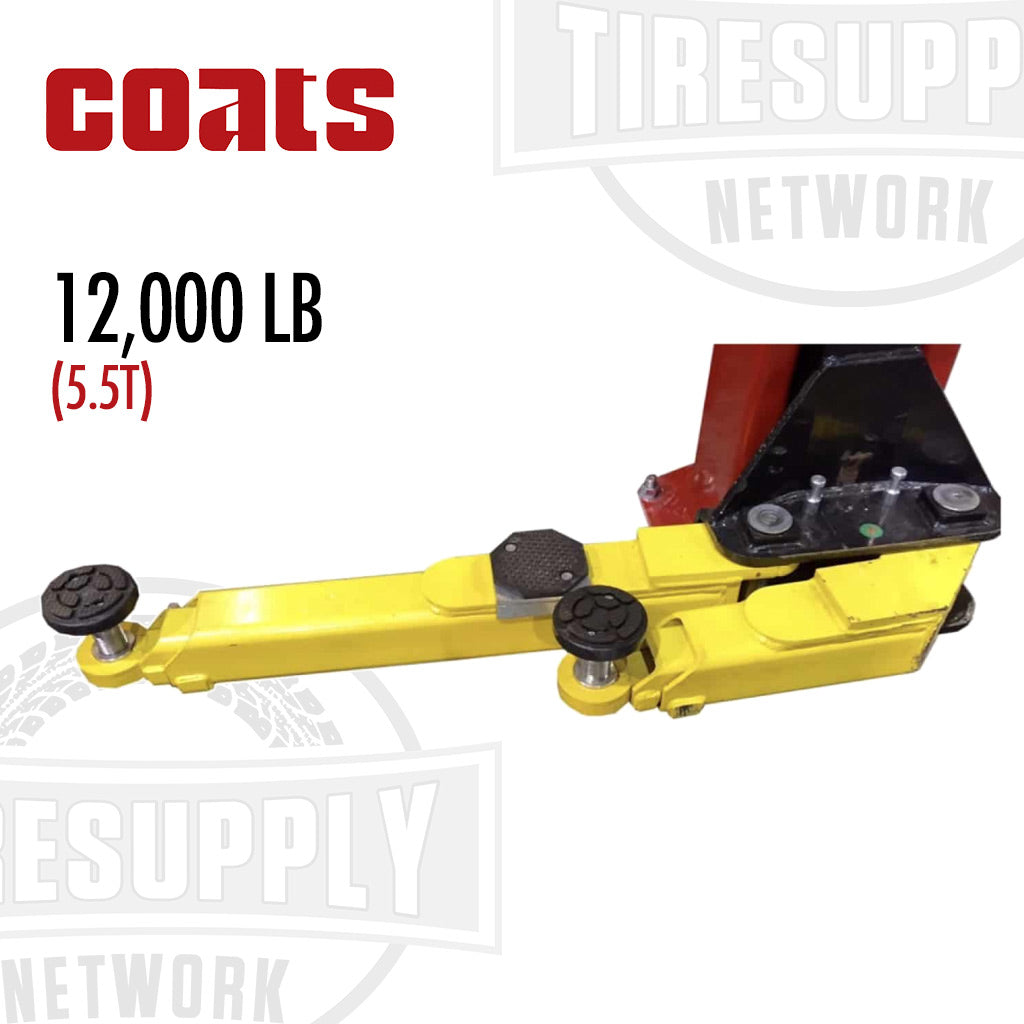

| 3 piece retractable arms front & rear | Provides greater access to approved lift points |
Specifications:
| Part# | 4T212NSR1 |
| Capacity | 12,000 lb / 5.5T |
| Lifting Style | 2N1 |
| Overall Height | 155" or 159”/ 3934mm or 4035 mm |
| Overall Width | 137”/ 3480 mm |
| Width Between Columns | 109.75”/ 2788 mm |
| Drive Thru Width | 89”/ 2261mm |
| Under Bar Clearance | 149.5" to 153.5”/ 3797mm or 3899mm |
| Lowered Height - Standard Lift Pad | 4.5”/ 114mm |
| Raised Height - Standard Lift Pad | 76”/ 1930mm |
| Raised Height - w/ Adapters | 86 5/8” w/ 3” & 6” adapter / 2200 mm w/ 76 mm & 152 mm adapter |
| Front Arm Reach | 21” to 39.75” / 533mm to 1010mm |
| Rear Arm Reach | 33” to 62” / 838mm to 1575mm |
| Lifting Time | 75 seconds |
| Standard Power Requirements | 220V-60Hz-1ph-20amp / 2 HP1.5kw |
| Shipping Weight | 2,300 lb. / 1,000 kg |
| All Certified | Yes |
Need replacement parts? Call or email us and we can special order them for you!
